Brief Operating Instructions
Deltapilot S
FMB70
Hydrostatic level measurement
These are Brief Operating Instructions.
For more detailed information, please refer to the Operating Instructions and the
additional documentation on the CD-ROM provided.
These Brief Operating Instructions are not intended to replace the Operating
Instructions provided in the scope of supply.
The complete device documentation consists of:
• these Brief Operating Instructions
• a CD-ROM with the Operating Instructions

Table of contents Deltapilot S FOUNDATION Fieldbus
2Endress+Hauser
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Installation, commissioning and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Operational safety and process safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 Safety icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 General installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Measuring arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Assembling and mounting the "separate housing" version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
3.2 Connecting the measuring unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.1 Onsite display (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4.2 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
4.3 Onsite operation via onsite display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4.4 Locking/unlocking operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
5 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.1 Commissioning via an FF configuration program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 Selecting the language and measuring mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

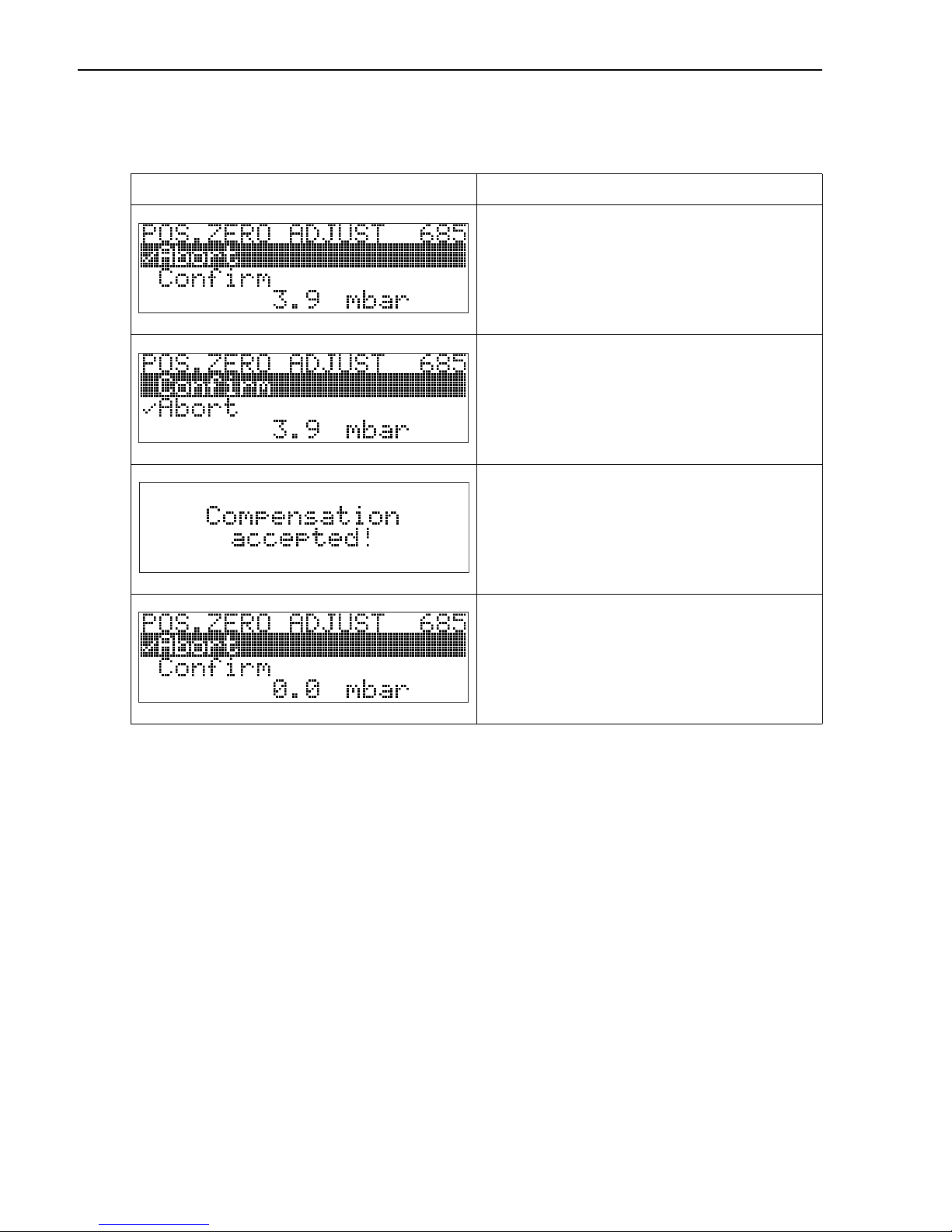

5.3 Position adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
5.4 Level measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
5.5 Pressure measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
5.6 Scaling the OUT parameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Deltapilot S FOUNDATION Fieldbus Safety instructions
Endress+Hauser 3
1 Safety instructions
1.1 Designated use
The Deltapilot S is a hydrostatic pressure transmitter for measuring level and pressure.
The manufacturer accepts no liability for damages resulting from incorrect use or use other than
that designated.
1.2 Installation, commissioning and operation
• The device must only be installed, connected, commissioned and maintained by qualified and
authorized specialists (e.g. electrical technicians) in full compliance with the instructions in
this manual, the applicable norms, legal regulations and certificates (depending on the
application).
• The specialist must have read and understood this manual and must follow the instructions it
contains. If you are unclear on anything in these Brief Operating Instructions, you must read
the Operating Instructions (on the CD-ROM). The Operating Instructions provide detailed
information on the device/measuring system.
• The device may only be modified or repaired if such work is expressly permitted in the
Operating Instructions (→ see CD-ROM).
• If faults cannot be rectified, the device must be taken out of service and secured against
unintentional commissioning.
• Do not operate damaged devices. Mark them as defective.
1.3 Operational safety and process safety
• Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance work on the device.
• The device is safely built and tested according to state-of-the-art technology and has left the
factory in perfect condition as regards technical safety. The applicable regulations and
European standards have been taken into account.
• Pay particular attention to the technical data on the nameplate.
• Devices for use in hazardous areas are fitted with an additional nameplate. If the device is to
be installed in an explosion hazardous area, then the specifications in the certificate as well as
all national and local regulations must be observed. The device is accompanied by separate
"Ex documentation", which is an integral part of this Operating Instructions. The installation
regulations, connection values and Safety Instructions listed in this Ex document must be
observed. The documentation number of the related Safety Instructions is also indicated on
the additional nameplate.
1.4 Return
Follow the instructions on returning the device as outlined in the Operating Instructions on the
CD-ROM provided.

Installation Deltapilot S FOUNDATION Fieldbus
4Endress+Hauser
1.5 Safety icons
2 Installation
2.1 General installation instructions
#Warning!
The seal is not allowed to press on the process isolating diaphragm as this could affect the
measurement result.
!Note!
• If a heated Deltapilot S is cooled during the cleaning (e.g. by cold water), a vacuum develops
for a short time, whereby water can penetrate the sensor through the pressure compensation
(1). If this is the case, mount the sensor with the pressure compensation (1) pointing
downwards.
• Keep the pressure compensation and GORE-TEX®filter (1) free from contaminations.
• Do not use sharp or hard objects to handle or clean the process isolating diaphragm.
Symbol Meaning
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal injury,
a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal injury or
incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect operation
or may lead to an instrument response which is not planned.
1
1
1
FIELD TERMINALS
FIELD TERMINALS

Deltapilot S FOUNDATION Fieldbus Installation
Endress+Hauser 5
• Due to the orientation of the Deltapilot S, there may be a shift in the measured value, i.e.
when the container is empty, the measured value does not display zero. You can correct this
zero point shift either via the "zero" key on the electronic insert, or on the outside of the
device or via the onsite display. →ä13, Section 4.2.1 "Position of operating elements",
→ä14, Section 4.2.2 "Function of the operating elements – onsite display not connected"
and →ä23, Section 5.3 "Position adjustment".
• To ensure optimal readability of the onsite display, it is possible to rotate the housing up to
380°.
• The onsite display can be rotated in 90° stages.
• Endress+Hauser offers a mounting bracket for installing on pipes or walls.
2.2 Measuring arrangement
2.2.1 Level measurement
P01-PMP75xxx-11-xx-xx-xx-000

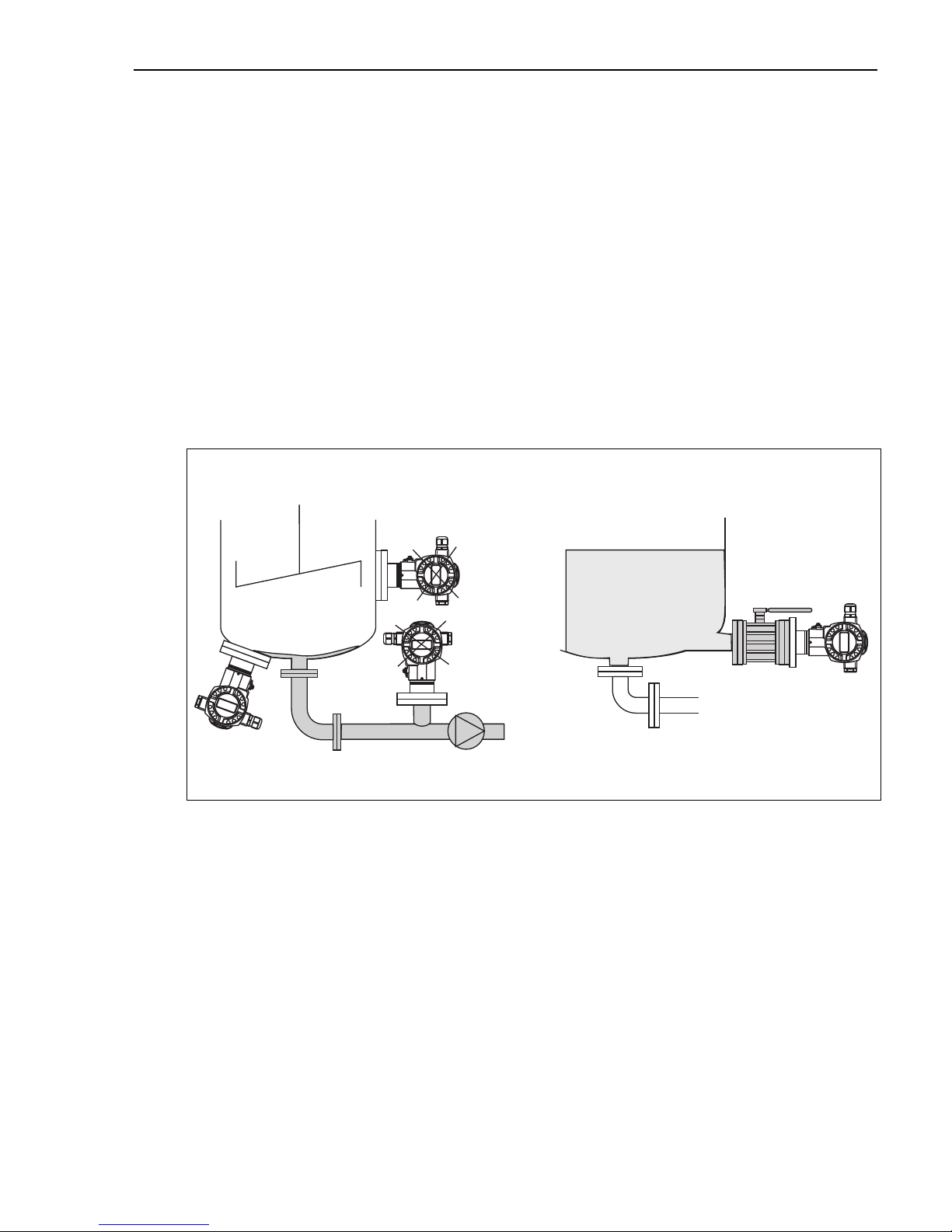

Fig. 1: Measuring arrangement for level
• Always install the device below the lowest measuring point.
• Do not install the device at the following positions:
– in the filling curtain
– in the tank outflow
– in the suction area of a pump
– or at a point in the tank that can be affected by pressure pulses from the agitator
• The calibration and functional test can be carried out more easily if you mount the device
downstream of a shutoff device.
• Deltapilot S must be included in the insulation for media that can harden when cold.

Installation Deltapilot S FOUNDATION Fieldbus
6Endress+Hauser
2.2.2 Pressure measurement in gases
• Mount Deltapilot S with shutoff device above the tapping point so that any condensate can
flow into the process.
2.2.3 Pressure measurement in steams
• Mount Deltapilot S with siphon above the tapping point.
• Fill the siphon with liquid before commissioning.
The siphon reduces the temperature to almost the ambient temperature.
2.2.4 Pressure measurement in liquids
• Mount Deltapilot S with the shutoff device below or at the same level as the tapping point.

Deltapilot S FOUNDATION Fieldbus Installation
Endress+Hauser 7
2.3 Assembling and mounting the "separate housing" version
P01-FMB70xxx-11-xx-xx-xx-003

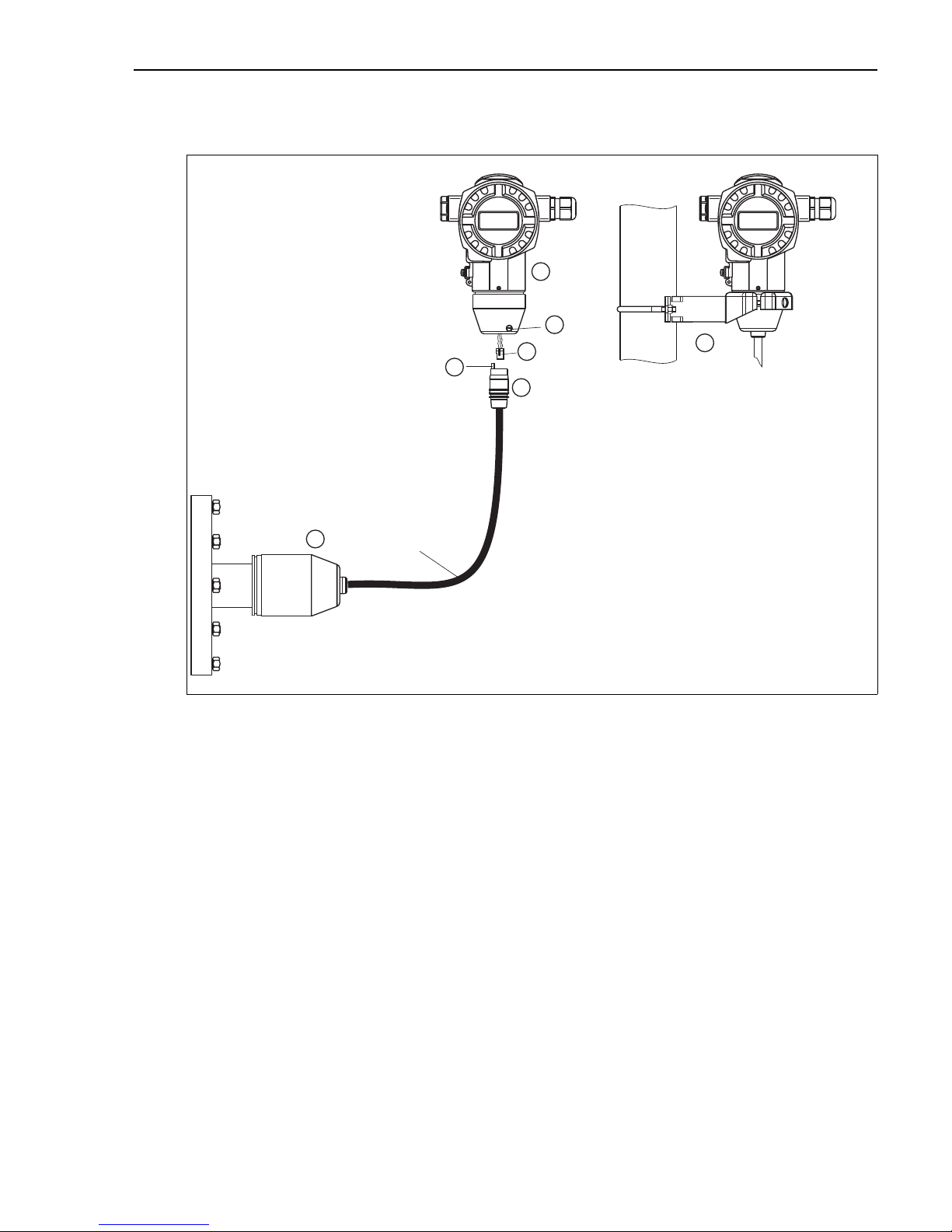

Fig. 2: "Separate housing" version
1 In the "separate housing" version, the sensor is supplied with process connection and cable fitted.
2 Cable with connection jack
3 Pressure compensation
5Plug
6Lockingscrew
7 Housing fitted with housing adapter, included
8 Mounting bracket suitable for wall and pipe mounting, included
Assembly and mounting
1. Connect plug (item 5) into the corresponding connection jack of the cable (item 2).
2. Plug the cable into the housing adapter (item 7).
3. Tighten the locking screw (item 6).
4. Mount the housing on a wall or pipe using the mounting bracket (item 8).
When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at
least 5 Nm.
Mount the cable with a bending radius (r) ≥ 120 mm.
r³120 mm
1
2
35
68
7

Wiring Deltapilot S FOUNDATION Fieldbus
8Endress+Hauser
3 Wiring
#Warning!
• If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals.
Risk of electric shock!
In a wet environment, do not open the cover if voltage is present.
• Risk of electric shock and/or explosion! Switch off the supply voltage before connecting the
device.
• When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.
3.1 Connecting the device
!Note!
• Devices with integrated overvoltage protection must be grounded.
• Protective circuits against reverse polarity, HF influences and overvoltage peaks are installed.
• The supply voltage must match the supply voltage on the nameplate.
• Switch off the supply voltage before connecting the device.
• Remove housing cover of the terminal compartment.
• Guide cable through the gland. Preferably use twisted, shielded two-wire cable.
• Connect device in accordance with the following diagram.
• Screw down housing cover.
• Switch on supply voltage.

Deltapilot S FOUNDATION Fieldbus Wiring
Endress+Hauser 9
P01-xMx7xxxx-04-xx-xx-xx-010

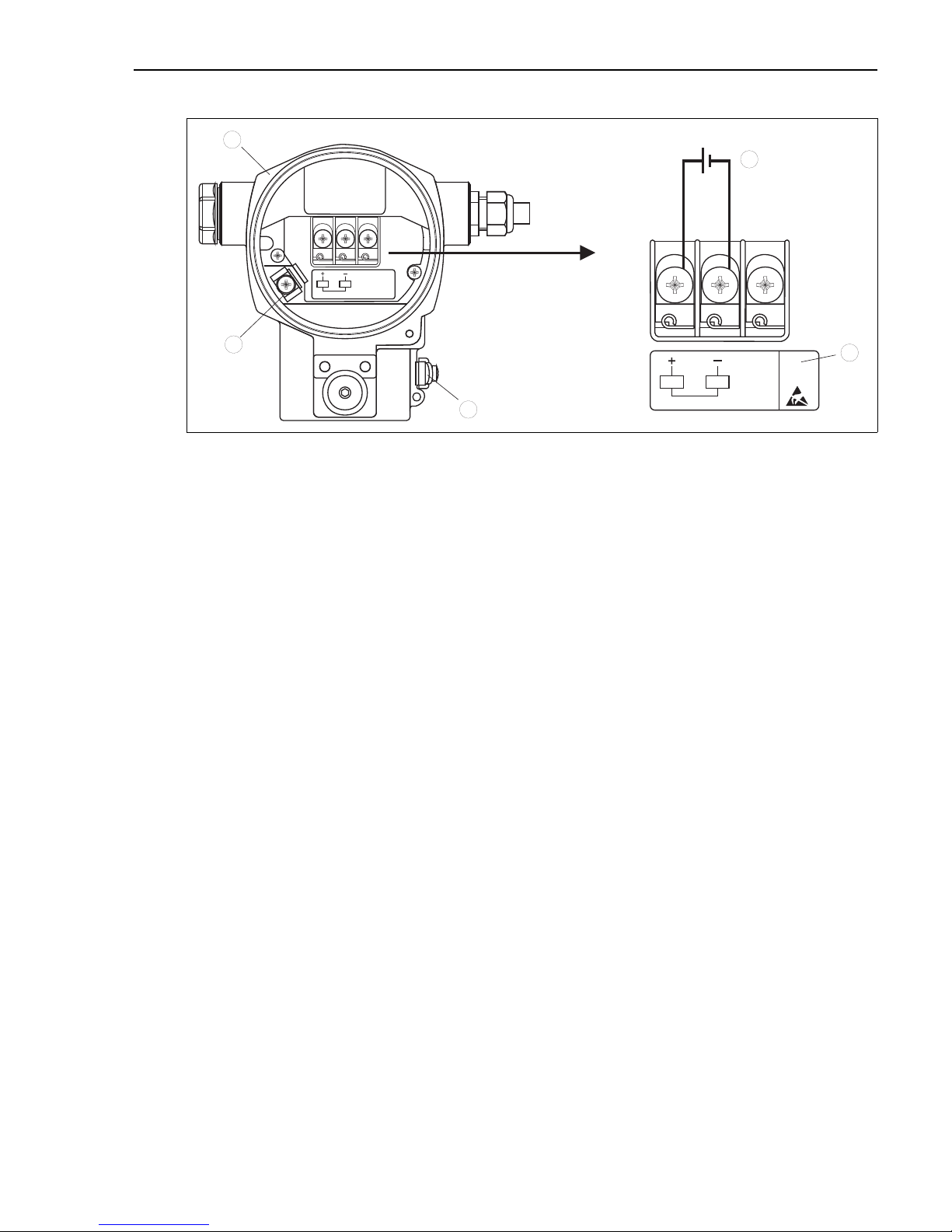

Fig. 3: Electrical connection FOUNDATION Fieldbus. Observe also the following section.
For devices with 7/8" plug see Operating Instructions.
1Housing
2 Internal ground terminal
3 External ground terminal
4 Supply voltage, for version in non-hazardous area = 9 to 32 V DC
5 Devices with integrated overvoltage protection are labeled OVP (overvoltage protection) here.
3.2 Connecting the measuring unit
!Note!
For further information on the network structure and grounding and for further bus system
components such as bus cables, see the relevant documentation, e.g. Operating Instructions
BA00013S "FOUNDATION Fieldbus Overview" and the FOUNDATION Fieldbus Guideline.
3.2.1 Supply voltage
• Version for non-hazardous area: 9 to 32 V DC
3.2.2 Current consumption
15.5 mA +/- mA, switch-on current corresponds to IEC 61158-2, Clause 21.
3.2.3 Cable specification
• Use a twisted, shielded two-wire cable, preferably cable type A.
• Terminals for wire cross-sections: 0.5 to 2.5 mm2
• Outer cable diameter: 5 to 9 mm
!Note!
For further information on the cable specifications, see Operating Instructions BA00013S
"FOUNDATION Fieldbus Overview", the FOUNDATION Fieldbus Guideline and IEC 61158-2
(MBP).
➀
➁
➂
➃
➄
FF FF
FF FF
1
2
3
4
5

Wiring Deltapilot S FOUNDATION Fieldbus
10 Endress+Hauser
3.2.4 Grounding and shielding
Deltapilot S must be grounded, for example by means of the external ground terminal.
Different grounding and shielding installation methods are available for FOUNDATION Fieldbus
networks such as:
• Isolated installation (see also IEC 61158-2)
• Installation with multiple grounding
• Capacitive installation

Deltapilot S FOUNDATION Fieldbus Operation
Endress+Hauser 11
4 Operation

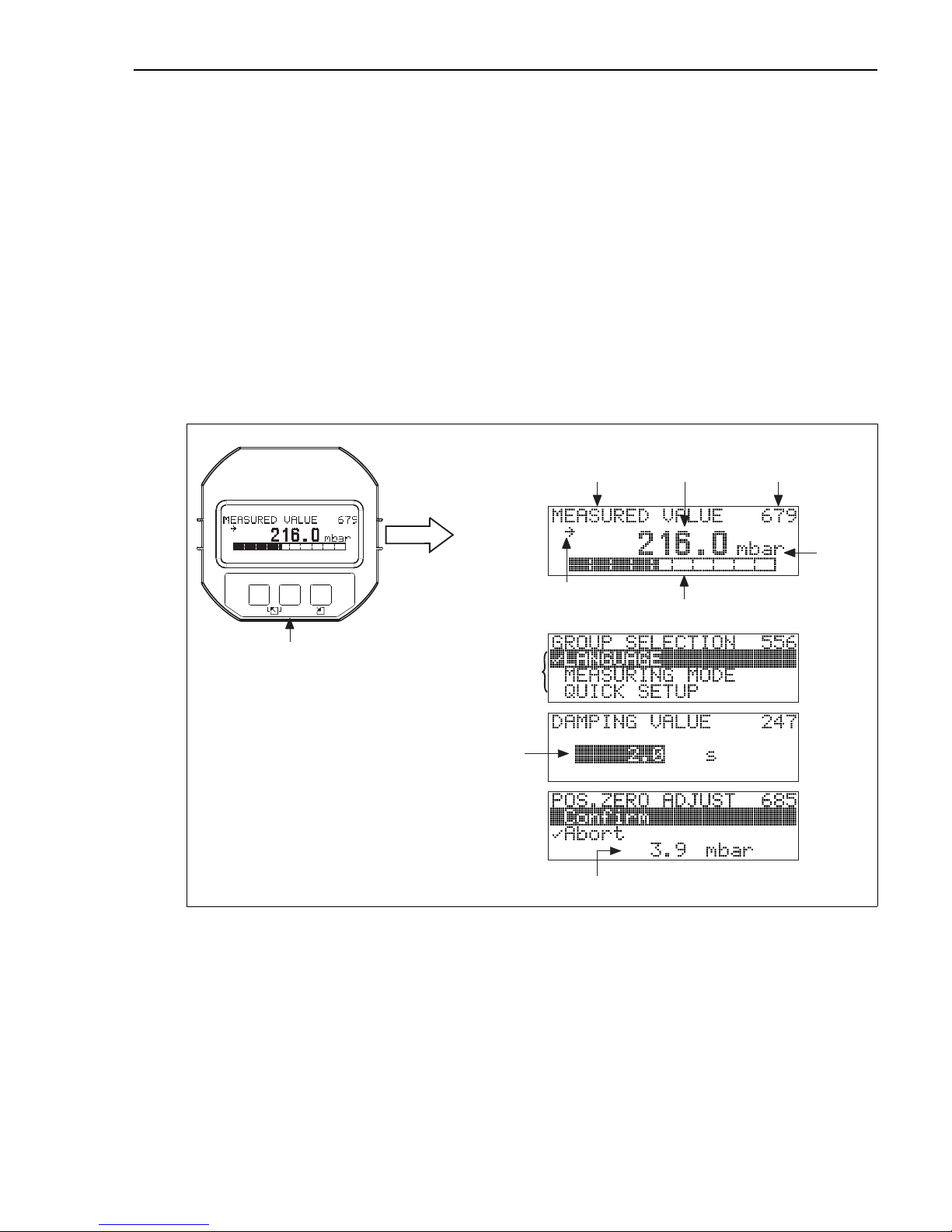

4.1 Onsite display (optional)
A 4-line liquid crystal display (LCD) is used for display and operation. The onsite display shows
measured values, dialog texts, fault messages and notice messages.
The display of the device can be turned in 90° steps.
Depending on the installation position of the device, this makes it easy to operate the device and
read the measured values.
The onsite display is available in English. The assignment of the English parameter names to the
German parameter names is provided in the Operating Instructions. Needless to say, the device
can also be operated in 6 languages (de, en, fr, es, jp, ch) via the DTM or EDD. The FieldCare
program is an E+H DTM operating tool and can be acquired from endress.com.
P01-xxxxxxxx-07-xx-xx-xx-011
E
+
–
Bargraph
Operating keys
Symbol Bargraph
ValueFunction name
Measured value display
Unit
Headerline
Information
line
Main line
Parameter
Identification
number
Editing modes
Selection
options
Value that
can be edited
Current measured value

Operation Deltapilot S FOUNDATION Fieldbus
12 Endress+Hauser

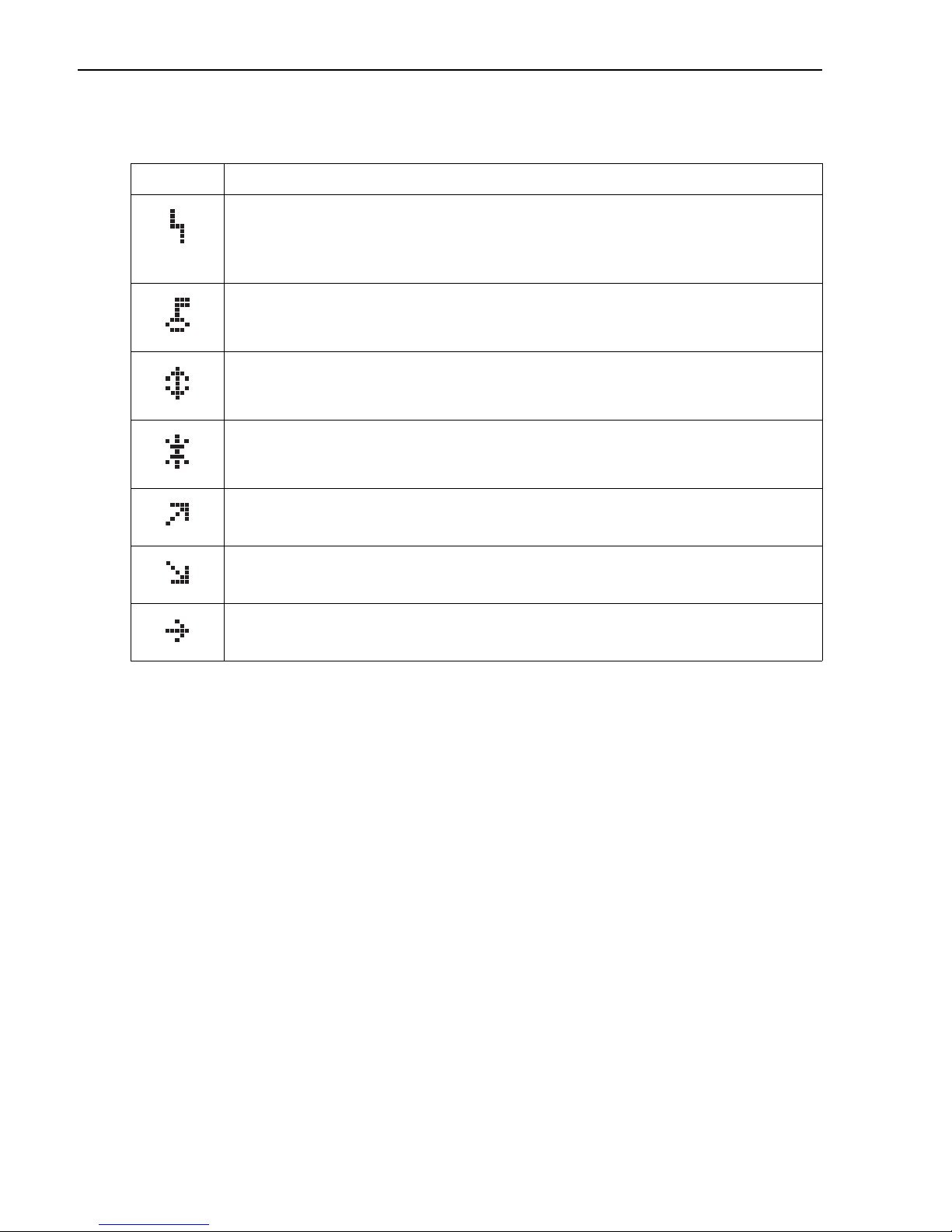

The following table illustrates the symbols that can appear on the onsite display. Four symbols
can occur at one time.
Symbol Meaning
Alarm symbol
– Symbol flashing: warning, device continues measuring.
– Symbol permanently lit: error, device does not continue measuring.
Note: The alarm symbol may overlie the tendency symbol.
Lock symbol
The operation of the device is locked. Unlock device, →ä19, Section 4.4.
Communication symbol
Data transfer via communication
Simulation symbol
Simulation mode is activated. DIP switch 2 for simulation is set to "On".
→ä13, Section 4.2.1 "Position of operating elements".
Tendency symbol (increasing)
The primary value of the Transducer Block is increasing.
Tendency symbol (decreasing)
The primary value of the Transducer Block is decreasing.
Tendency symbol (constant)
The primary value of the Transducer Block has remained constant over the past few minutes.

Deltapilot S FOUNDATION Fieldbus Operation
Endress+Hauser 13
4.2 Operating elements
4.2.1 Position of operating elements
With regard to aluminum housings and stainless steel housing (T14/T15), the operating key is
located either outside the device under the protection cap or inside on the electronic insert. In
hygienic stainless housings (T17), the operating key is always located inside on the electronic
insert. Additionally, three operating keys are located on the optional onsite display.
P01-PMx7xxxx-19-xx-xx-xx-075
Fig. 4: Operating key, external under the protective flap
1 Operating key or position adjustment (zero
point-correction) or total reset
P01-xxxxxxxx-19-xx-xx-xx-106
Fig. 5: Operating key and operating elements, internal
1 Green LED to indicate value is accepted
2 Operating key for position adjustment (zero
point-correction)
3 Slot for optional display
4 Slot for optional HistoROM®/M-DAT
5 DIP-switch for locking/unlocking
measured-value-relevant parameters
6 DIP switch for simulation mode
➀
0%
Zero
HW
21
PC
12
➀➁
➃
on
off ➂
➄➅
Sim.
Sensor
on
off
Simulation
0%
ZeroDisplay
HistoROM

Operation Deltapilot S FOUNDATION Fieldbus
14 Endress+Hauser
4.2.2 Function of the operating elements – onsite display not connected
4.2.3 Function of the operating elements – onsite display connected
Operating key(s) Meaning
P02-xxxxxxxx-19-xx-xx-xx-107
– Position adjustment (zero point correction): Press key for at least 3 seconds. The
LED on the electronic insert lights up briefly if the pressure applied has been
accepted for position adjustment.
→ä28 ("Level" measuring mode) or →ä30 ("Pressure" measuring mode).
– Total reset: Press key for at least 12 seconds. If the LED on the electronic insert
lights up briefly, the reset is being carried out.
P01-xxxxxxxx-19-xx-xx-xx-134
– DIP-switch 1: for locking/unlocking measured-value-relevant parameters
Factory setting: off (unlocked)
– DIP switch 2: for simulation mode
Factory setting: off (simulation mode off)
To carry out a simulation the DIP switch has to be set in the "on" position. → See
also Operating Instructions BA00372P, Section "Simulation".
Operating key(s) Meaning
O– Navigate upwards in the picklist
– Edit the numerical values and characters within a function
S– Navigate downwards in the picklist
– Edit the numerical values and characters within a function
F–Confirmentry
– Jump to the next item
Oand FContrast setting of onsite display: darker
Sand FContrast setting of onsite display: brighter
O and S
ESC functions:
– Exit edit mode without saving the changed value.
– You are in a menu within a function group. The first time you press the keys
simultaneously, you go back a parameter within the function group. Each time you
press the keys simultaneously after that, you go up a level in the menu.
– You are in a menu at a selection level. Each time you press the keys simultaneously,
you go up a level in the menu.
Note: The terms function group, level and selection level are explained in
Section 4.3.1, →ä15.
0%
Zero
12
on
off
Sim.

Deltapilot S FOUNDATION Fieldbus Operation
Endress+Hauser 15
4.3 Onsite operation via onsite display
4.3.1 Structure of the operating menu
The menu is split into four levels. The three upper levels are used to navigate while you use the
bottom level to enter numerical values, select options and save settings. → For the entire menu
see CD-ROM, Operating Instructions BA00372P.
The structure of the OPERATING MENU depends on the measuring mode selected, e.g. if the
"Pressure" measuring mode is selected, only the functions necessary for this mode are displayed.
P01-xxxxxxxx-19-xx-xx-xx-145
Fig. 6: Structure of the operating menu
1 1. Selection level
2 2. Selection level
3Functiongroups
4 Parameter
➀
➂
➁
➃
Measured value
GROUP SELECTION
DISPLAYSETTINGS
EXTENDED SETUP
POS. ZERO ADJUST
POS. INPUT VALUE
CALIB. OFFSET
POSITION ADJUSTMENT BASIC SETUP
OPERATING MENU
QUICK SETUP
MEASURING MODELANGUAGE

Operation Deltapilot S FOUNDATION Fieldbus
16 Endress+Hauser

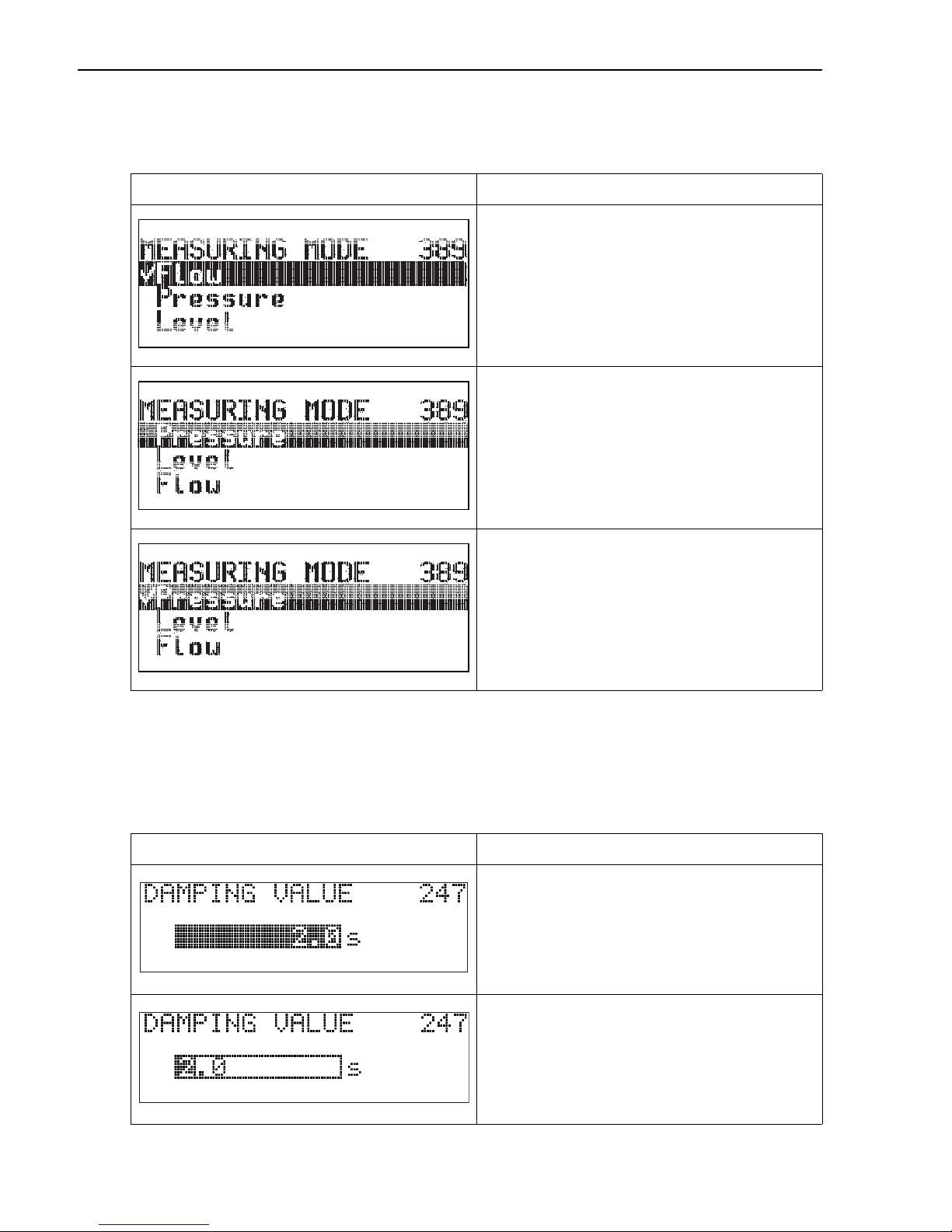

4.3.2 Selecting an option
Example: Selecting the "Pressure" measuring mode.
4.3.3 Editing a value
Example: adjusting DAMPING VALUE function from 2.0 s to 30.0 s. →ä14, Section 4.2.3
"Function of the operating elements – onsite display connected".
Onsite display Operation
P01-xxxxxxxx-19-xx-xx-en-017
"Level" has been selected as the measuring mode. A ✓in
front of the menu text indicates the active option.
P01-xxxxxxxx-19-xx-xx-en-033
Use "+" or "–" to select "Pressure" as the operating mode.
P01-xxxxxxxx-19-xx-xx-en-034
1. Confirm your choice with "E". A ✓in front of the
menu text indicates the active option. (The "Pressure"
measuring mode is selected.)
2. Jump to the next item with "E".
Onsite display Operation
P01-xxxxxxxx-19-xx-xx-xx-023
The onsite display shows the parameter to be changed. The
value highlighted in black can be changed. The "s" unit is
fixed and cannot be changed.
P01-xxxxxxxx-19-xx-xx-xx-027
1. Press "+" or "–" to get to the editing mode.
2. The first digit is highlighted in black.

Deltapilot S FOUNDATION Fieldbus Operation
Endress+Hauser 17

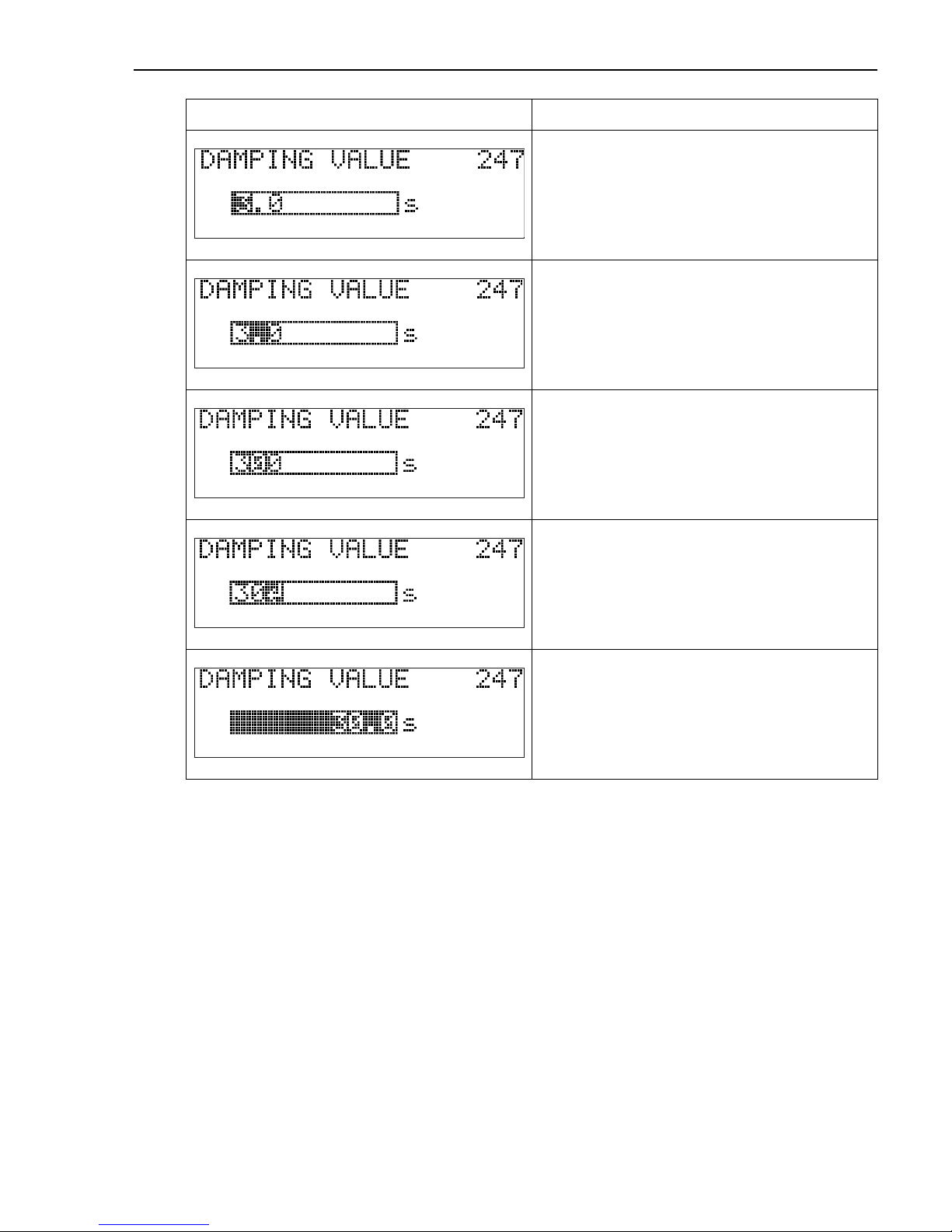

P01-xxxxxxxx-19-xx-xx-xx-028
1. Use "+" to change "2" to "3".
2. Confirm "3" with "E". The cursor jumps to the next
position (highlighted in black).
P01-xxxxxxxx-19-xx-xx-xx-029
The decimal point is highlighted in black, i.e. you can now
edit it.
P01-xxxxxxxx-19-xx-xx-xx-030
1. Keep pressing "+" or "–" until "0" is displayed.
2. Confirm "0" with "E".
The cursor jumps to the next position. ↵ is displayed
and is highlighted in black. → See next graphic.
P01-xxxxxxxx-19-xx-xx-xx-031
Use "E" to save the new value and exit the editing mode.
→See next graphic.
P01-xxxxxxxx-19-xx-xx-xx-032
The new value for the damping is now 30.0 s.
– Jump to the next parameter with "E".
– You can get back to the editing mode with "+" or "–".
Onsite display Operation

Operation Deltapilot S FOUNDATION Fieldbus
18 Endress+Hauser
4.3.4 Taking pressure applied at device as value
Example: performing position adjustment.
Onsite display Operation
P01-xxxxxxxx-19-xx-xx-xx-158
The bottom line on the onsite display displays the pressure
present, here 3.9 mbar.
P01-xxxxxxxx-19-xx-xx-xx-159
Use "+" or "–" to switch to the "Confirm" option. The
active selection is highlighted in black.
P01-xxxxxxxx-19-xx-xx-xx-037
Use "E" to assign the value (3.9 mbar) to the POS. ZERO
ADJUST parameter. The device confirms the calibration
and jumps back to the parameter, here POS. ZERO
ADJUST (see next graphic).
P01-xxxxxxxx-19-xx-xx-xx-160
Switch to the next parameter with "E".

Deltapilot S FOUNDATION Fieldbus Operation
Endress+Hauser 19
4.4 Locking/unlocking operation
Once you have entered all the parameters, you can lock your entries against unauthorized and
undesired access.
You have the following possibilities for locking/unlocking the operation:
• Via a DIP-switch on the electronic insert, locally on the display (→ä13).
• Via the onsite display (optional)
• Via digital communication.
The -symbol on the onsite display indicates that operation is locked. Parameters which refer
to how the display appears, e.g. LANGUAGE and DISPLAY CONTRAST can still be altered.
!Note!
• If operation is locked by means of the DIP-switch, you can only unlock operation again by
means of the DIP-switch. If operation is locked by means of remote operation e.g. FieldCare,
you can only unlock operation again by means of remote operation.
The table provides an overview of the locking functions:
Locking via View/read
parameter
Modify/write via1)
1) Parameters which refer to how the display appears, e.g. LANGUAGE and DISPLAY CONTRAST can still be
altered.
Unlocking via
Onsite
display
Remote
operation
DIP-Switch Onsite
display
Remote
operation
DIP-Switch yes no no yes no no
Onsite display yes no no no yes yes
Remote operation yes no no no yes yes
Locking/Unlocking operation via onsite display or remote operation
Locking operation 1. Operation via FF configuration program: select SWLOCK parameter in the Resource
Block.
Operation via FieldCare: select INSERT PIN No. parameter.
Menu path: OPERATING MENU → OPERATION → INSERT PIN No.
2. To lock operation, enter "0" for the parameter.
Unlocking operation 1. Operation via FF configuration program: select SWLOCK parameter in the Resource
Block.
Operation via FieldCare: select INSERT PIN No. parameter.
2. To unlock operation, enter "100" for the parameter.

Commissioning Deltapilot S FOUNDATION Fieldbus
20 Endress+Hauser
5 Commissioning
#Warning!
• If a pressure that is lower than the minimum permitted pressure is present at the device,
messages "E120 sensor low pressure" and "E727 sensor pressure error - overrange" are output
in succession.
• If a pressure that is greater than the maximum permitted pressure is present at the device,
messages "E115 sensor overpressure" and "E727 sensor pressure error - overrange" are output
in succession.
• The messages E727, E115 and E120 are "Error"-type messages and can be configured as a
"Warning" or an "Alarm". The factory setting for these messages is "Warning". This setting
prevents the BAD status from being transmitted in applications (e.g. cascade measurement)
where the user is aware of the risk of the sensor range being overshot.
• We recommend setting messages E727, E115 and E120 to "Alarm" in the following instances:
– It is not necessary to violate the sensor range for the measuring application.
– A position adjustment must be carried out that has to correct a large measured error as a
result of the orientation of the device.
5.1 Commissioning via an FF configuration program
!Note!
• The device is configured for the Pressure measuring mode as standard. The measuring range
and the unit in which the measured value is transmitted, as well as the digital output value of
the Analog Input Block OUT, correspond to the data on the nameplate. Following a reset with
code 7864, the OUT parameter may have to be rescaled (→ä32, Section 5.6 "Scaling the
OUT parameter").
1. Switch on the device.
2. Note the DEVICE_ID.
3. Open the configuration program.
4. Load Cff and device description files into the host system or the configuration program.
Make sure you are using the right system files.
5. Identify the device using the DEVICE_ID. Assign the desired tag name to the device by
means of the PD_TAG parameter.
