Endress+Hauser prolevel FMC 661 User manual

prolevel
FMC 661
Level Measurement
Operating Instructions
BA 142F/00/en/07.98a
016562-1000
valid for Software 1.x
Hauser + Endress
Nothing beats know-how

Short Instructions
..Quick configuration for level measurement
Function Matrix Action
1Reset transmitter V9H5 ●Enter 671
Press »E« to register entry
- Omit if commissioned as in Section 4.1
2»Empty« calibration* V0H1 ●Fill vessel 0…40% full (probe covered)
Enter level in %, m, ft, etc.
Press »E« to register entry
3»Full« calibration* V0H2 ●Fill vessel 60…100% full
Enter level in %, m, ft, etc.
Press »E« to register entry
40/4 mA signal V0H3
V0H5
V0H6
●Enter 0 for 0…20 mA signal, 1 for 4…20 mA signal
Press »E« to register entry
●Enter level for 0/4 mA signal (if not 0)
Press »E« to register entry
●Enter level for 20 mA signal (if not 100)
Press »E« to register entry
5Relays 1a and 1b V1H0
V1H1
●Enter level for switching in calibration units
Press »E« to register entry
●Enter fail-safe mode: 0 = minimum, 1 = maximum
Press »E« to register
6Relays 2a and 2b V1H5
V1H6
V1H9
●Enter level for switching in calibration units
Press »E« to register entry
●Enter fail-safe mode: 0 = minimum, 1 = maximum
Press »E« to register
●Enter 1 = Relay 2 assigned to channel 1
Press »E« to register entry
* Can be performed in reverse order
+
+
4 yellow relay LEDs,
1 red alarm LED,
1 green operation LED LC display
Operation
Selects vertical matrix position
Selects horizontal matrix position
Select position V0H0
Selects next digit
Move decimal point
Increases value of digit
Decreases value of digit
Registers entry
Short Instructions Prolevel FMC 661
Endress+Hauser

Table of Contents
Short Instructions . . . . . . . front cover
Notes on Safety . . . . . . . . . . . . . 3
1 Introduction . . . . . . . . . . . . . . 5
1.1 Application . . . . . . . . . . . . . . . 6
1.2 Measuring system . . . . . . . . . . . . 7
1.3 Measuring principle . . . . . . . . . . . . 8
1.4 Functional description . . . . . . . . . . . 9
1.5 Technical data . . . . . . . . . . . . . 10
2 Installation . . . . . . . . . . . . . . 12
2.1 Probes and sensors . . . . . . . . . . . 13
2.2 Prolevel FMC 661 installation . . . . . . . 14
2.3 Transmitter wiring . . . . . . . . . . . . 15
2.4 Sensor connection . . . . . . . . . . . 16
2.5 Rackbus RS-485 option . . . . . . . . . 18
3 Controls . . . . . . . . . . . . . . . 19
3.1 Operating matrix . . . . . . . . . . . . 19
3.2 Keyboard and display . . . . . . . . . . 20
3.3 Commulog VU 260 Z . . . . . . . . . . 21
3.4 Rackbus RS-485 (option) . . . . . . . . 22
4 Level Measurement . . . . . . . . . . 23
4.1 Commissioning . . . . . . . . . . . . 23
4.2 Calibration . . . . . . . . . . . . . . 24
4.3 Analogue Outputs . . . . . . . . . . . 30
4.4 Relays . . . . . . . . . . . . . . . . 32
4.5 Measured value display . . . . . . . . . 34
4.6 Parameter locking . . . . . . . . . . . 34
5 Level Measurement with Limit Switch . . 35
5.1 Level measurement with automatic calibration
correction . . . . . . . . . . . . . . . 36
5.2 External limit switch . . . . . . . . . . . 39
6 Trouble-Shooting . . . . . . . . . . . 40
6.1 Fault recognition . . . . . . . . . . . . 40
6.2 Incorrect measurements . . . . . . . . . 42
6.3 Simulated operating mode . . . . . . . . 43
6.4 Exchanging transmitters and sensors . . . . 44
6.5 Repairs . . . . . . . . . . . . . . . . 45
7 Appendix . . . . . . . . . . . . . . . 46
7.1 Calibration and linearisation in volume units . 46
Index . . . . . . . . . . . . . . . . 48
Operating matrix . . . . . . . back cover
Prolevel FMC 661 Table of Contents
Endress+Hauser 1

Table of Contents Prolevel FMC 661
2Endress+Hauser

Notes on Safety
Approved usageThe Prolevel FMC 661 is a field transmitter for level measurement which can be used
with a variety of capacitance probes and hydrostatic sensors. It has been designed to
operate safely in accordance with current technical and safety standards, and must be
installed by qualified personnel according to the instructions in this manual.
The manufacturer accepts no responsibility for any damage arising from incorrect use,
installation or operation of the equipment. Changes or modifications to the equipment
not expressly approved in the operating manual or by the bodies reponsible for
compliance may void the user’s authority to operate the equipment.
CertificatesThe Prolevel FMC 661 transmitter is available with certificate of conformity for use with
probes and sensors operating in hazardous areas. The Table below indicates the
combinations available and conditions for installation. Full details can be taken from the
certificates. Please note that where quoted technical data differs from that listed in
Section 1.5, that in the certificate applies.
Certificate Instruments Notes
Certificate of Conformity
PTB No. Ex-96.D.2074
Prolevel FMC 661 [EEx ia] IIC,
install outside Ex-area
CSA
LR 53988-81
FMC 661 Class I, II, III
Div. I
Groups A-G
FM
J.I. 0Z2A7.AX
FMC 661 Class I, II, III
Div. I
Groups A-G
PTB Certificate of
Conformity
PTB Ex 93.C.2171 X
ZE 104F/00/d
for Germany
ZE 103F/00/d, e, f
for foreign countries
PTB Nr. Ex-93.C.2062 X
ZE 097F/00/d
Capacitance probes
Multicap DC 11, DC 16,
DC 21, DC 26
with electronic insert
EC 37 Z or EC 47 Z
EEx ia IIC T4…T6
suitable for installation on Channel 1
of Prolevel FMC 661
Certificate of Conformity
PTB Nr. Ex-96.D.2017 X
DB 50…53
with FEB 17 or FEB 17 P
EEx ia IIC
T4…T6
KEMA No. Ex-92.C.8494
ZE 076F/00/d, e, f
for foreign countries
Liquiphant
FDL 30, 31, 35, 36
EEx ib IIC T6
suitable for installation on Channel 2
of Prolevel FMC 661
Type approval
BVS 93.4.8004 B
Capacitance probes
11 450 S; 21265 S with
electronic insert EC 17 Z
Dust-Ex, Zone 10 (Germany)
suitable for installation on Channel 2
of Prolevel FMC 661
German Lloyd
No. 97517 HH
Prolevel FMC 661
Capacitance probes
Insert EC 37 Z or EC 47 Z
Insert EC 17 Z
Level indication on channel 1
(EC 37 Z or EC 47 Z)
Level limit detection on channel 2
(EC 17 Z)
Suitable for unlimited use within the
Rules
German Lloyd
No. 99350-97HH
DB 50, 50 L, 52, 53
with FEB 17 or FEB 17 B
Prolevel FMC 661 Notes on Safety
Endress+Hauser 3

Safety conventions
In order to highlight safety-relevant or alternate operation procedures in the manual the
following conventions have been used, each indicated by a corresponding icon in the
margin.
Note!
•A note highlights actions or procedures which, if not performed correctly, may
indirectly affect operation or may lead to an instrument response which is not
planned.
Caution!
•Caution indicates actions or procedures which, if not performed correctly, may lead
to personal injury or incorrect functioning of the instrument
Warning!
•A warning indicates actions or procedures which, if not performed correctly, will lead
to personal injury, a safety hazard or destruction of the instrument
Note!
Warning!
Caution!
Notes on Safety Prolevel FMC 661
4 Endress+Hauser

1 Introduction
The Prolevel FMC 661 field transmitter measures level with hydrostatic pressure sensors
or capacitance probes. It may be installed, commissioned and maintained by authorised
personnel only. The operating manual must have been read and understood before the
equipment is installed: instructions are to be followed exactly.
In this manualSince it is not possible to describe all applications in detail, the standard application,
continuous level measurement, has been used as the basis for the functional description.
Other applications as listed in Section 1.1 are described in Chapter 5. The operating
instructions are structured as follows:
•Chapter 1: Introduction;
contains general information including application, measurement
principle, functional description and technical data.
•Chapter 2: Installation;
contains hardware configuration, installation instructions and
connection diagrams.
•Chapter 3: Controls;
describes operation with the front panel keys, Commulog VU 260 Z,
and via the Rackbus RS-485 interface.
•Chapter 4: Calibration and Operation;
tells you how to commission the Prolevel for the standard
application including calibration, linearisation, analogue outputs,
relays and locking the parameter matrix.
•Chapter 5: Level Measurement with Limit Switch;
describes the automatic calibration correction and other operating
modes of the Prolevel FMC 661.
•Chapter 6: Trouble-Shooting;
contains a description of the self-checking system with error
messages, the simulation feature as well as instructions for
configuration on replacement of the transmitter, probe or
electronic insert.
•Appendix: Contains a flowchart for calibration and linearisation using
volume units.
•Index: lists key words to help you find information quickly.
Short instructionsShort instructions for the standard set-up, continuous level measurement, which is used
in 80% of applications, are to be found in the front cover. We advise you to commission
as described in Section 4.1. before using this procedure as this ensures that probes can
be exchanged without the need for re-calibration.
Further documentationIn addition to this manual, the following publications provide information on configuration
of the Prolevel FMC 661.
•BA 028F Commulog VU 260 Z handheld terminal
•BA 134F Rackbus RS-485
The installation of the probes, electronic inserts and accessories is described in the
documentation accompanying these articles - see text for references. When installing
probes in explosion hazardous areas the instructions included in the accompanying
probe certification must also be observed.
Prolevel FMC 661 Chapter 1: Introduction
Endress+Hauser 5

1.1 Application
The Prolevel FMC 661 is designed for level measurement with a capacitance probe or
hydrostatic pressure sensor. A second channel allows level limit detection with a vibration
sensor, i.e. Liquiphant or Soliphant, or capacitance probe. The applications described
in this manual are as follows:
•Level or volume measurement …Chapter 4
•Level limit detection …Chapter 5
•Level measurement with automatic calibration correction …Chapter 5.
Prolevel transmitters may also be used for applications in explosion hazardous areas
and possess intrinsically-safe sensor circuits conforming to EEx ia IIC. A list of certificated
combinations is to be found in »Notes on Safety« preceding this chapter.
Endress+Hauser
PROLEVEL
FMC661
123.4
1A
1B
2A
2B
3
HV
+
E
_
1
1
2
0/4...20 mA limit relays
Prolevel FMC 661
transmitter
BA142_01
Liquids
Bulk solids
Channel 1
hazardous area safe area
or
or
Channel 1
alarm
relay
Fig.1.1:
Standard application showing
Prolevel FMC 661 controlling
level measurement
➀ Capacitance probe
➁ Hydrostatic probe
Endress+Hauser
PROLEVEL
FMC661
123.4
1A
1B
2A
2B
3
HV
+
E
_
1
2
Min
hazardous area
BA142_02
Max
safe area
FMC 661
Fig.1.2:
Left:
Prolevel FMC 661 with
Liquiphant limit switch
➀ Maximum fail-safe mode
➁ Minumum fail-safe mode
Right:
Prolevel FMC 661 with
simultaneous level measurement
and limit switching
➀ Capacitance level probe
➁ Hydrostatic level sensor
➂ Limit switch
The same arrangement is used
for automatic calibration
correction
or
channel 2
Endress+Hauser
PROLEVEL
FMC661
123.4
1A
1B
2A
2B
3
HV
+
E
_
1
3
2
channel 2 limit
switch
channel 1 level
BA142_03
hazardous area safe area
or
FMC 661
Chapter 1: Introduction Prolevel FMC 661
6 Endress+Hauser

1.2 Measuring system
A working system for level measurement comprises:
•Prolevel FMC 661 transmitter,
•Capacitance probe or hydrostatic sensor for level measurement with
appropriate electronic insert, see Chapter 2
•If required, vibration sensor or capacitance probe for level limit detection or
automatic calibration correction.
The Prolevel may operate as a stand alone unit with standard 0/4…20 mA output; two
sets of two relays, freely assignable to channel 1 or 2, can be used to control pumps,
valves, annuciators etc.. Alternatively, the Prolevel may be operated remotely over the
optional Rackbus RS-485 interface, either direct from a personal computer or as part of
a process control system. Connection to Modbus, Profibus or FIP networks can be
realised through the gateways ZA 672, ZA 673 or ZA 674 respectively.
VersionsThe Prolevel is available in two versions:
•With display and front panel controls,
•Without display and front panel controls — in this case the transmitter must be
configured by the Commulog VU 260 Z handheld terminal or over the optional
Rackbus RS-485 interface.
In all other respects, the two versions are identical. More details on controls and operation
can be found in Chapter 3.
Endress+Hauser
PROLEVEL
FMC671
1A
1B
2A
2B
3
Endress+Hauser
PROLEVEL
FMC671
1A
1B
2A
2B
3
Endress+Hauser
PROLEVEL
FMC671
123.4
1A
1B
2A
2B
3
HV
+
E
_
ZA 673
RACKBUS
PROFIBUS
FXA 675
ON
1
2
RB/485
BA142_04
Prolevel transmitters (and other units with Rackbus RS-485)
Rackbus RS-485
Personal computer with
operating software, e.g.
Commutool, Commuwin,
Commugraph
alternative
FXA 675 + ZA 67x
supervisory network
RS-485 adapter or PC card
Fig. 1.3:
The Prolevel FMC 661 can be
used as a stand-alone unit, see
Figs 1.1 and 1.2 or as part of
an operating system.
A RS-485 adapter or PC card
allows direct connection to a
personal computer, the FXA 675
and gateway ZA 67x connection
to a supervisory system using
the Modbus, Profibus or FIP
protocol
Prolevel FMC 661 Chapter 1: Introduction
Endress+Hauser 7

1.3 Measuring principle
The Prolevel FMC 661 measures level on the basis of the capacitance and hydrostatic
measurement principles. In both cases the measured value is processed by the
electronic insert and passed on as a frequency signal.
Capacitance
measurement The probe and vessel form the two plates of a capacitor, the total capacitance of
which can then be calculated from the
formula:
2πε0εrx L pF (1)
Ctot = C1 + -------------
ln (D/d)
whereby
Ctot = total capacitance
C1= capacitance of feed through
ε0= dielectric constant of air (8.85)
εr= rel. dielectric constant of product
D= diameter of vessel
d= diameter of probe
L= length of probe immersed in
product in meters
Measurement in
conducting media If the product conducts, the capacitance is now determined by the thickness and
properties of the insulating material
surrounding the probe. Equation (1)
applies, whereby the variable D is now the
diameter of the probe with insulation. In this
case the capacitance varies by approx.
300 pF/m.
Measurement is independent of dielectric
constant and not affected by changes in
this variable.
Hydrostatic
measurement In an open vessel, the level is derived from the hydrostatic pressure exerted by a
column of liquid on a probe placed at its
foot. The pressure exerted is:
p1=ρx g x h (2)
whereby
p1= hydrostatic pressure
ρ= density of the liquid
g = acceleration due to gravity
h = height of the liquid column.
Assuming a constant density, the level of
the liquid can be calculated from the
pressure measured by the Deltapilot.
C1
BA142_05
d
L
D
Fig. 1.4:
Capacitance measurement principle
BA142_06
dConducting
product
L
D
insulation
Fig. 1.5:
Measurement in conducting media
BA142_07
p1= ρx g x h
h
atmospheric
pressure
p1
Fig. 1.6:
Hydrostatic measurement principle
Chapter 1: Introduction Prolevel FMC 661
8 Endress+Hauser

1.4 Functional description
Fig. 1.7 is a block diagram of the Prolevel FMC 661. The transmitter supplies the power
to the sensor. The capacitance or pressure measured by the sensor is converted into a
frequency signal by the electronic insert located in its head and transmitted to the Prolevel
over a two-core cable. The signal is then processed to provide six operating modes.
Signal processingBy calibrating at two levels, »empty« and »full«, the frequency signal is converted to a
level measurement in the units entered during calibration. In mode 5, the measured value
at channel 1 is then corrected. For non-linear volume/level relationships, volume can be
calculated from level via the vessel characteristic which describes the shape of the
vessel. The signal resulting from the calibration and linearisation provides a standard
0/4...20 mA output, proportional to level or volume. Any portion of the measuring range
can be taken to provide a scaled output. The two sets of two relays can be assigned to
either measuring channel to provide level control by switching pumps on and off.
All measured values and the complete configuration can be accessed via the optional
Rackbus RS-485 interface.
Fail-safe operationIf a fault condition is detected, e.g. a break in sensor - transmitter cable, the analogue
signal switches to -10 % or +110 % level or holds the last measured value. The alarm
relay de-energises and the red LED on the front panel lights. In addition, each set of
relays can be set to switch on or off as required.
Hz
cap./press.
electronic
insert
analog
digital
current
sensitivity[Hz/pF]
offset[Hz]
offset[pF] sensitivity[pF/cm]
rangeupperlimit
V2
rangelowerlimit
V1
frequency volume
V2
V1 level
volume
H2
H1
level
cap./press.
level
zeropointshift
level
limit
detection
switchpoint
hysteresis
min./max.fail-safemode
switchingdelay
frequency
2
relay1a,1b
relay2a,2b
BA142_08
Channel 1
Channel 2

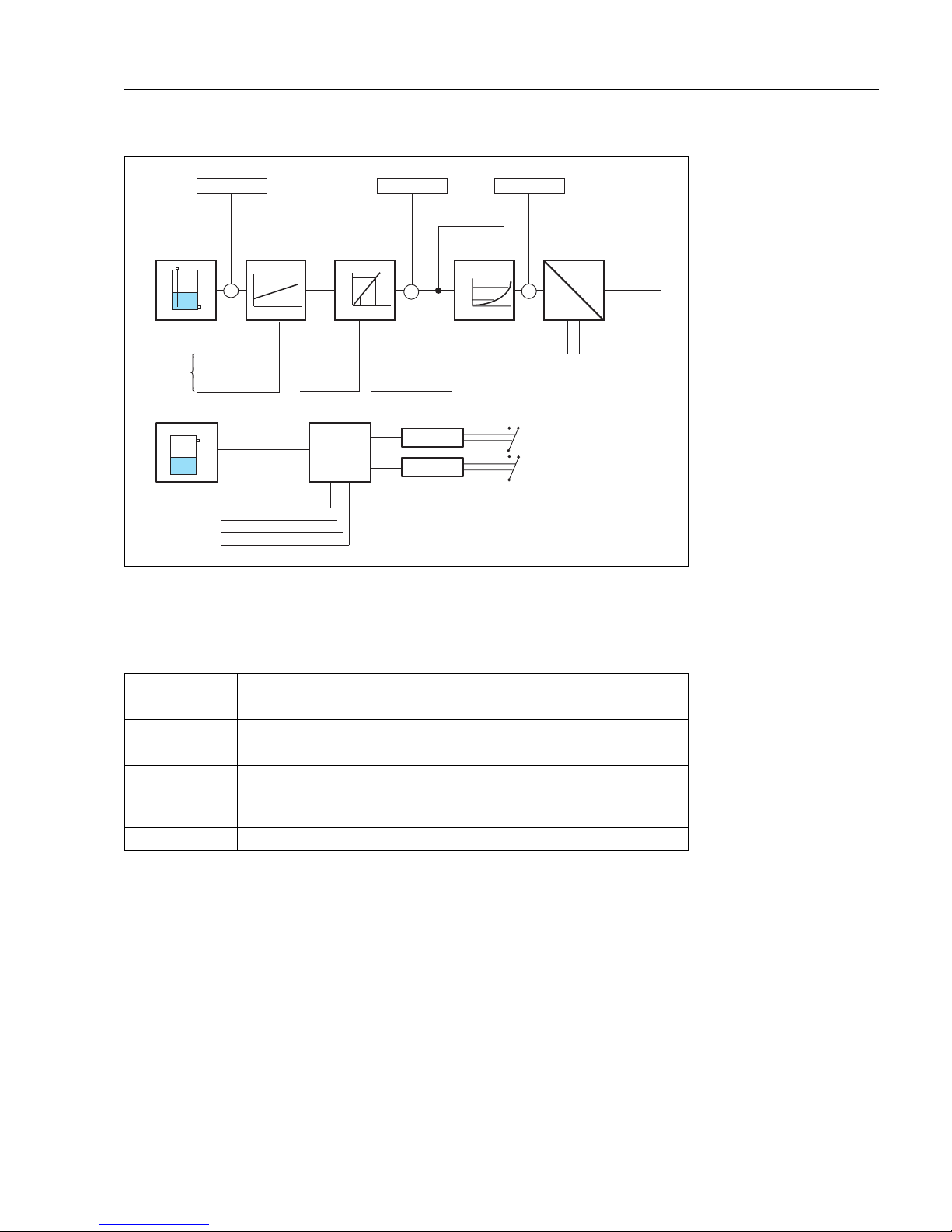

Fig.1.7:
Signal processing in the
Prolevel FMC 661 for single
channel operation (level
and/or limit switching)
Mode in V8H0 Function
0 Simultaneous level measurement and limit detection on channels 1 and 2
1 Level measurement on channel 1 only
2 Limit detection on channel 2 only
5 Corrected level measurement — the level measurement at channel 1 is
corrected when the product covers the limit switch at channel 2
6 Simulation of level, volume or current at channel 1
7 Simulation of limit detection at channel 2
Table 1.1:
Prolevel FMC 661 operating
modes
Prolevel FMC 661 Chapter 1: Introduction
Endress+Hauser 9

1.5 Technical data
General specifications
Input characteristics
Output characteristics
Manufacturer: Endress+Hauser GmbH+Co.
Designation: Prolevel FMC 661
Function: Transmitter for level measurement with capacitance and hydrostatic
probes as well as level limit detection with capacitance and vibration
probes
Input signal: Level proportional PFM signal
Interfaces: 0/4…20 mA, Rackbus RS 485 (option)
Reference conditions: to IEC 770 (TU= 25°C) or as specified
Miscellaneous: CE mark
Signal input, channel 1
Signal: Pulse frequency modulated signal from connected probe or sensor
Explosion protection: PTB [EEx ia] IIC, FM, CSA, intrinsically safe signal circuits separated
from each other and rest of the electronics
Probe or sensor: Multicap or other capacitance probe with EC 37 Z or EC 47 Z
electronic insert
Deltapilot S hydrostatic sensor with FEB 17/FEB 17 P
Switch input, channel 2
Signal : Pulse frequency modulated signal from connected probe or sensor
Limit switch: Multicap probe with EC 16 Z or EC 17 Z electronic insert
other capacitance probe with EC 17 Z electronic insert
Liquiphant FDL 30 / FDL 31 / FDL 35 / FDL 36
Soliphant DM 90 Z / DM 91 Z / DM 92 Z
Analog output
Output: 0... 20 mA, switchable to 4... 20 mA
Signal underflow: -2 mA;
Signal overflow: + 22 ±0.2 mA
Output on alarm: selectable +110%, -10% or hold
Current limitation: 23 mA
Temperature
coefficient:
0.3%/10 K of range end value
RFI (E = 10 V/m) 1 %
Warm-up time: 1 s
Output damping: 0 to 100 s, selectable
Max. load: 600 Ω
Load effect: negligible
Relays
Type: 5 relays with potential-free changeover contacts
Function: 2 pairs of two limit relays with freely selectable switch points and
hysteresis for operation in min. or max. fail-safe mode
1 alarm relay (de-energises on fault condition)
Switching capacity: 6 A, 250 VAC ; 750 VA at cos ϕ= 0.7, 1500 VA at cos ϕ= 1
6 A, 250 VDC; 200 W
Chapter 1: Introduction Prolevel FMC 661
10 Endress+Hauser

Output characteristics
(continued)
Power supply
Environment
Mechanical
specifications
Display and keyboard
Display (LCD): 4 digit measured value display with optional lighting, segmented
current display in 10% steps, various indicators (communication,
signal underflow, overflow)
Light emitting diodes: 1 yellow status LED for every limit relay (lit = relay energised)
1 red alarm LED, lit = alarm — relay de-energised;
flashing = warning — relay remains energised
1 green LED to indicate power on
Keyboard: 6 keys for parameter entry, option available without keys
Interfaces: 0/4…20 mA, Rackbus RS 485 (option)
Reference conditions: to IEC 770 (TU= 25°C) or as specified
Communication interface
Commulog VU 260 Z: 2 communication sockets in terminal compartment
Rackbus RS 485 optional interface for direct connection to a personal computer via
adapter or interface card, or to Rackbus via FXA 675 interface card
Rackbus address via 6-gang DIP-switch in terminal compartment
bus termination via 4-gang switch in terminal compartment
Alternating voltage:
Direct voltage:
230 V / 115 V / 110 V (85...253 V), 50/60 Hz or
24 V / 48 V (20...55V), 50/60 Hz or
24 V (16...60V),
residual ripple max. 2 Vpp within tolerance
Power consumption: max. 7 W, switch-on current 880 mA
Safe isolation: between power supply and signal outputs, CPU, Rackbus RS-485,
switch-on current 880 mA and electronics
Operating temperature:
Limiting temperature:
Storage temperature:
0°C…60°C
-20°C…60°C
-40°C…80°C
Climatic class: to Table 10, Class R, DIN 40 040, instrument outdoors,
average annual humidity 95%, dew permissible
Ingress protection: IP 66 with closed housing and corresponding cable glands
IP 40 with open housing, IP 20 with open terminal compartment
Electromagnetic
compatibility:
Emission to EN 50 081-2, industrial use
Immunity to EN 50 082-2
and NAMUR industrial standard, at 10 V/m
Vibration resistance: to Table 6, Class W, DIN 40 040
Explosion protection: [EEx ia] IIC, FM, CSA see also "Notes on Safety"
Housing: for wall- or post-mounting
Dimensions (l x b x h) 292 mm x 176 mm x 253 mm, see Fig. 2.3
Weight: 2.6 kg
Materials: body ABS (acrylnitrilbutadenestyrol)/PC (polycarbonate), RAL 5012 (blue)
transparent cover, polycarbonate
front panel, blue with white field for labelling
Electrical connection
Cable entries: 5 pre-stamped cable entries Pg 16 each in bottom and rear of terminal
compartment
4 pre-stamped cable entries Pg 13.5 in bottom
Prolevel FMC 661 Chapter 1: Introduction
Endress+Hauser 11

2 Installation
This Chapter describes:
•Probes and sensors for the Prolevel FMC 661
•Installation of the Prolevel FMC 661
•Transmitter wiring
•Sensor connection.
•Hardware configuration for Rackbus RS-485 option.
Fig 2.1 shows the structure of the chapter.
Technicians and fitters It is assumed that suitably qualified personnel are to be used for the installation and
electrical connection of the system components. This is particularly important when the
sensors are to be installed in hazardous areas. Please note the following:
Warning!
•The Prolevel FMC 661 transmitter must be installed outside explosion hazardous
areas.
•Observe the specifications in the certificates as well as local regulations when
mounting the sensors in hazardous areas
Warning!
BA142_09
Mounting the
Prolevel
transmitter
Wiring the
Prolevel
transmitter
Measuring
system
Probe constants
Wiring the
sensors and
probes
Wiring and
configuration for
Rackbus RS-485
2.1 2.2 2.3
2.4 2.5

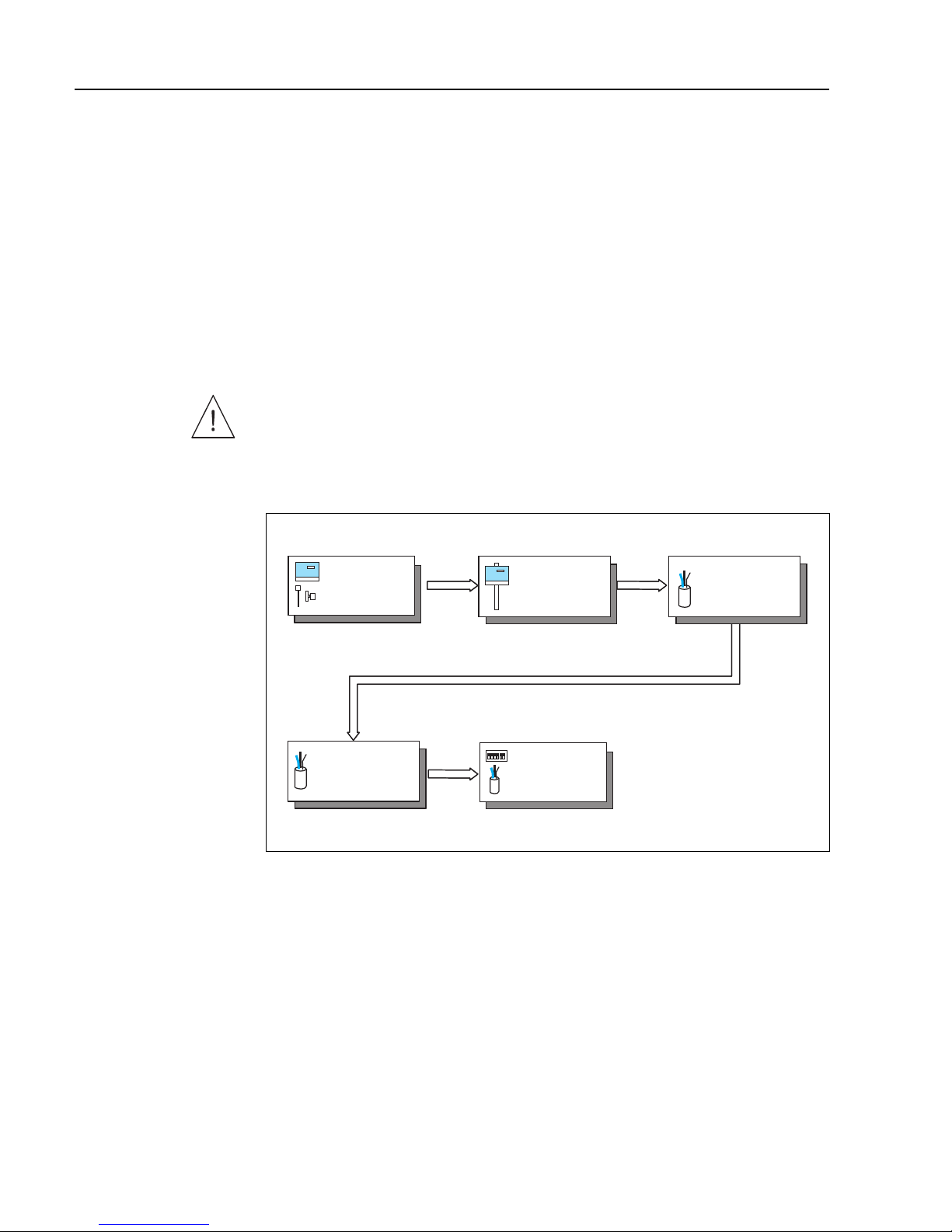

Fig.2.1:
Structure of Chapter 2,
Installation
Chapter 2: Installation Prolevel FMC 661
12 Endress+Hauser

2.1 Probes and sensors
Table 2.1 lists the sensors most frequently used with the Prolevel FMC 661 transmitter.
In addition to those listed, all probes which can be used with an EC 17 Z, EC 37 Z or
EC 47 Z electronic insert can be connected to the transmitter. Installation hints can be
taken from the appropriate Technical Information Sheet.
Sensor constantsDeltapilot S hydrostatic pressure sensors and EC 37 Z/47 Z inserts are supplied with the
sensor constants zero frequency »fo« and sensitivity »∆f« or »S«, see Fig. 2.2. For
Deltapilot S sensors the constants depend on the measuring range, see Table 2.2. Note
these constants and enter them into fields V3H5 and V3H6 during commissioning,
Section 4.1. This dispenses with the need for a recalibration of the transmitter on
replacement of the sensor or insert.
Principle Channel 1 Channel 2
Probe TI sheet Insert Probe TI sheet Insert
Capacitance DC 11 TI 169F
DC 16 TI 096F
DC 21 TI 208F
DC 26 TI 209F
11 322 Z E 11.81.03
11 500 Z TI 161F
21 211 E 10.73.18
Multicap TE, TA, E, A
TI 239, 240, 242, 243
EC 37 Z
EC 47 Z
DC 11 TI 169F
DC 16 TI 096F
DC 21 TI 208F
DC 26 TI 209F
11 450 (Z/St) TI 197
11 961 (Z) E 04.77.04
21 262 (Z/St) TI 227
21 265 (Z/St) TI 195
Multicap TE, TA, E, A
EC 17 Z
EC 16 Z
FEC 22
Hydrostatic
pressure
Deltapilot S TI 257
DB 50, 50 L, 51, 52, 53
FEB17
FEB 17P
Not suitable
Vibration Not suitable Liquiphant
DL 17 Z 013154-0008
FDL 30/31/35/36 TI 185F
Soliphant
DM 90 Z…92 Z TI 124F
BA042
EL 17 Z
EM 17 Z
Table 2.1:
Selection of probes suitable for
use with the Prolevel FMC 661
1 3 6542
+
I
II
CA (pF) C(S)(pF)
17
d4
d4/z4
7
18
d2
d2/z2
8
FMC480Z
FMC470Z
FMC671/672/676/677Z
HAA420Z
1MHz
EC 47Z
Ex
0,6526,805S
III
f
o 475,3 57,2
EC10015EP8
BA142_10
sensor constants
Fig.2.2:
Location of sensor constants on
EC 37 Z/47 Z electronic insert
and Deltapilot S DB 4x housing
Cell
type Electronic insert FEB 17/FEB 17 P
Range f0∆fRange f0∆f
0.1 bar BA 0…100 mbar 200 10 DA -100…100 mbar 200 5
0.4 bar BB 0…400 mbar 200 2.5 DB -400…400 mbar 200 1.25
1.2 bar BC 0…1200 mbar 200 0.833 DC -900…1200 mbar 200 0.476
4.0 bar BD 0…4000 mbar 200 0.25 DD -900…4000 mbar 200 0.204
Table 2.2:
Measuring ranges and sensor
constants of
Deltapilot S DB 5x
Prolevel FMC 661 Chapter 2: Installation
Endress+Hauser 13

2.2 Prolevel FMC 661 installation
Location Where possible, find a shady, protected spot in which to mount the Prolevel transmitter:
•Nominal operating temperature: 0°C…+60°C
Use a protective hood or provide cooling if the ambient temperature exceeds +60°C. For
temperatures below -20°C insulate the instrument.
Mounting The Prolevel FMC 661, with IP 66 protective housing, can be mounted on a wall or post
outdoors or in the control room. Fig. 2.3 gives details for wall mounting.
Fig. 2.4 shows how the Prolevel can be
post-mounted with the all-weather cover.
The fastenings (nuts and bolts) for both
post mounting and all-weather cover are
supplied with the units.
•
Post mounting :
Material: galvanised steel
(for 2" post Order No. 919 566-0000;
for 1" post: 919 566-1000);
stainless steel 1.4301 (≅SS 304 H)
(for 2" post Order No. 919 566-0001;
for 1" post: 919 566-1001);
Weight: 1 kg
•
Prolevel all-weather cover:
Material: Aluminium, blue paint-finish;
Order No. 919567-000
Material: Steel 1.4301 (≅SS 304 H),
blue paint-finish; Order No. 919567-001
BA142_11
292
min. 52
106
253
275.5
gap
min.69
201
ø 4.5
Fig.2.3:
Dimensions in mm of Prolevel
FMC 661 housing
1" = 25.4 mm
BA142_12
Fig. 2.4:
Post-mounting with all-weather cover
Chapter 2: Installation Prolevel FMC 661
14 Endress+Hauser

2.3 Transmitter wiring
Warning!
•Make electrical connections with the power supply switched off!
•The PE terminal strip must be grounded externally (contact protection)!
•When wiring up probes and sensors in explosion hazardous areas, observe the
instructions on the certificate and other local regulations.
Terminal stripThe terminal strip for cable diameters up to 2.5 mm2is located in a separate connection
compartment. Fig. 2.5 shows the wiring diagram for the Prolevel FMC 661 (Terminal 3 is
reserved for the internal protective ground):
•Remove the plastic cover from the front of the connection compartment
•Press out the pre-stamped cable entries as required
bottom: 5 x Pg 16, 4 x Pg 13.5; rear: 4 x Pg 16.
PowerThe power requirements are printed on the nameplate at the right-hand side of the
nameplate, see also Section 1.5, "Technical Data".
•If the specifications on the nameplate do not correspond to those of your
power supply, do not connect up - you may damage the instrument!
•Connect the protective ground to the metallic terminal strip provided at the left
— this ensures safe isolation and contact protection.
•Current output, relay outputs, power connection and sensor input are all
electrically isolated from one another.
Analogue outputsOnly one non-floating device can be connected to the current output.
•There is no limit to the number of floating devices, other than that imposed by
considerations of the maximum load of 600 Ω.
RelaysFor the switching capacity of the relays see the technical data in Section 1.5.
•Relays 1a and 1b are normally assigned to channel 1
•Relays 2a and 2b are normally assigned to channel 2.
The assignment can be changed by software, see Section 4.4.
RS-485
[EExia]IIC
B DGND A
L+ L-
L1 N
L+
L-
16...60VDC
85...253VAC
20...55VAC
L1
N
PE
0/4...20mA
Sensor1 Sensor2
RxD/TxD-P
RxD/TxD-N
DGND
RS-485
123 45 81 82 91 92
3111 21 41
1b1a 2a 2b
51 61
3212 22 42 52 62
3313 23 43 53 60
- + - +
BA142_13
current 1
relays channel 1 relays channel 2 alarm relay
PE terminal strip ground externally
optional interface level sensor limit switch
Commulog VU 260Z
bus switches
Fig.2.5:
Terminal assignments for
Prolevel FMC 661
Warning!
Prolevel FMC 661 Chapter 2: Installation
Endress+Hauser 15

2.4 Sensor connection
Sensor cable Use commercial 2-core installation cable, max. line resistance 25 Ω/core, for the sensor/
transmitter cable — the Prolevel satisfies the quoted EMC standards with this cable.
Level probes and
sensors, channel 1 The Prolevel FMC 661 can be operated with a variety of sensor types, each requiring a different electronic insert. For Channel 1, continuous level measurement:
•EC 37 Z or EC 47 Z for capacitance and Multicap probes
EB 17 or EB 27 P for Deltapilots S
Level limit switch,
channel 2: The level limit switch may be a vibration probe — Liquiphant (liquids) or Soliphant (solids) — or a capacitance probe, with electronic insert
•EC 16 Z/EC 17 Z for Multicap probes
EC 17 Z for other capacitance probes
•EL 17 Z for Liquiphant probes
EM 17 Z for Soliphant probes
EC 37 Z and EC 47 Z The electronic inserts EC 37 Z and EC 47 Z have two measuring ranges which can be
selected by inserting a bridge between terminals 4 and 5 of the insert, see Fig 2.6. Full
instructions on selection of the insert are to be found in Publication E 07.80.06/1c.
•Note the zero frequency fo____ and sensitivity S_____on the insert for the
range you have selected.
EC 17 Z The EC 17 Z electronic insert can be used at Channel 2 with capacitance and Multicap
probes for limit level switching. The connection diagram is shown in Fig. 2.6. Technical
information is given in Publication E 11.84.04/1a.
EC 16 Z The EC 16 Z electronic insert is for use on channel 2 with the Multicap probes with active
build-up compensation. Wire it up as described in the Technical Information Sheet
TI 170F delivered with the insert.
81 82
BA142_14
Channel 1
Insert bridge for
Range II (standard)
Remove for Range I
Ground
connection

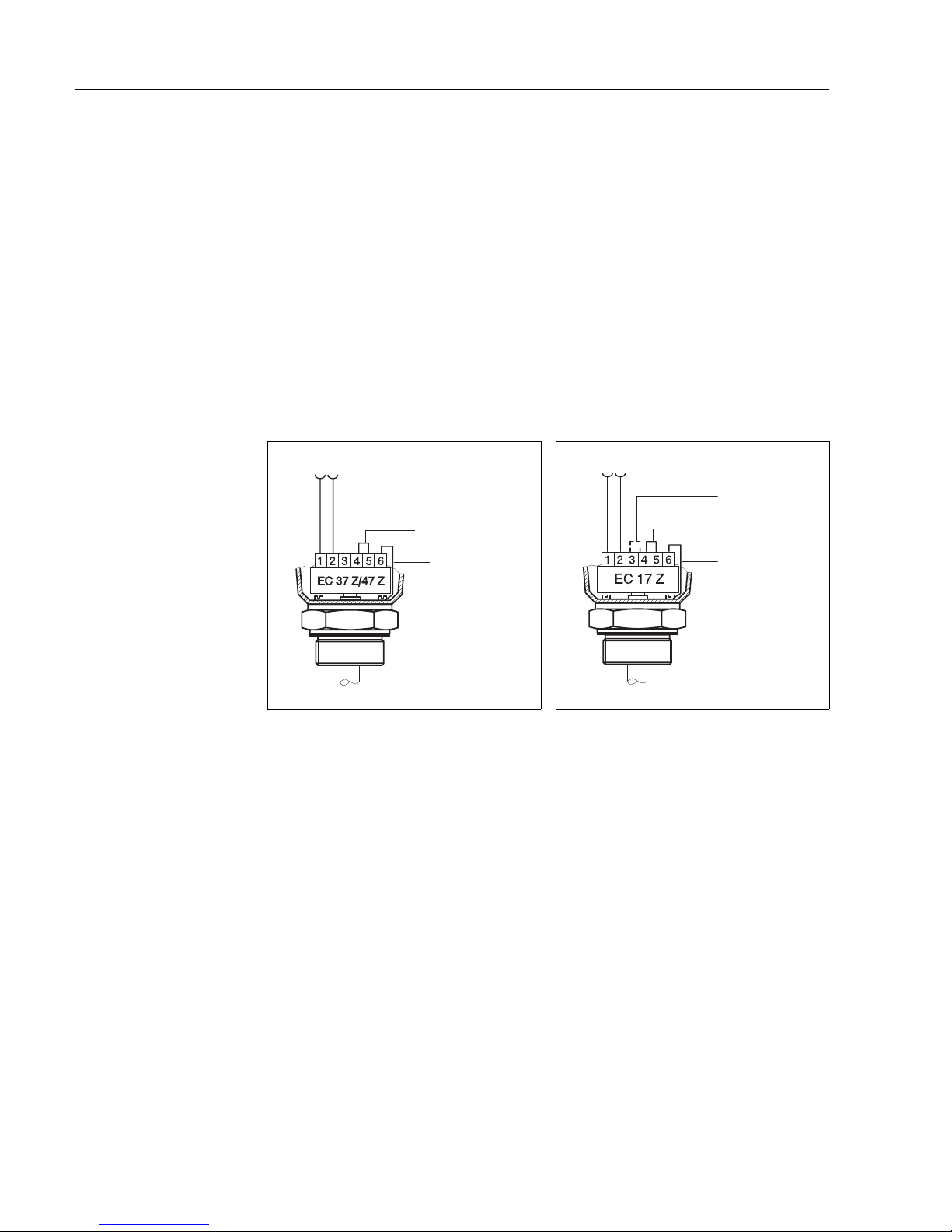

Fig.2.6:
Connection diagram for
electronic inserts
Left: Capacitance/Multicap
EC 37 Z/EC 47 Z
Right: Capacitance/Multicap
EC 17 Z
91 92
Insert bridge if
conductive
build-up on probe
Channel 2
Ground
connection
Insert bridge
(see instructions)
BA142_15
Chapter 2: Installation Prolevel FMC 661
16 Endress+Hauser
