Endress+Hauser Deltapilot S FMB70 User manual

KA01023P/00/EN/16.14
71270391
Brief Operating Instructions
Deltapilot S
FMB70
Hydrostatic level measurement
These Instructions are Brief Operating Instructions; they are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information about the device can be found in the Operating Instructions
and the other documentation:
Available for all device versions via:
– Internet: www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App

Deltapilot S PROFIBUS PA
2Endress+Hauser
A0023555
TAG No.: XXX000
Ser. No.: X000X000000
Order code 00X00-XXXX0XX0XXX
www.endress.com/deviceviewer Endress+Hauser Operations App
Serial number

Deltapilot S PROFIBUS PA Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.3 Operational safety and process safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
1.5 Safety icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Product identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.1 General installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3.2 Measuring arrangement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Assembling and mounting the "separate housing" version . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4 Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.1 On-site display (optional) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.2 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
5.3 On-site operation via on-site display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5.4 Configuring the device address . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
5.5 Locking/unlocking operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
6 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
6.1 Position adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
6.2 Level measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
6.3 Pressure measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Safety instructions Deltapilot S PROFIBUS PA
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Deltapilot S is a hydrostatic pressure transmitter for measuring level and pressure.
The manufacturer accepts no liability for damages resulting from incorrect use or use other than
that designated.
1.2 Installation, commissioning and operation
• The device must only be installed, connected, commissioned and maintained by qualified and
authorized specialists (e.g. electrical technicians) in full compliance with the instructions in
this manual, the applicable norms, legal regulations and certificates (depending on the
application).
• The specialist must have read and understood this manual and must follow the instructions it
contains. If you are unclear on anything in these Brief Operating Instructions, you must read
the Operating Instructions. The Operating Instructions provide detailed information on the
device/measuring system.
• The device may only be modified or repaired if such work is expressly permitted in the
Operating Instructions.
• If faults cannot be rectified, the device must be taken out of service and secured against
unintentional commissioning.
• Do not operate damaged devices. Mark them as defective.
1.3 Operational safety and process safety
• Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance work on the device.
• The device is safely built and tested according to state-of-the-art technology and has left the
factory in perfect condition as regards technical safety. The applicable regulations and
European standards have been taken into account.
• Pay particular attention to the technical data on the nameplate.
• Devices for use in hazardous areas are fitted with an additional nameplate. If the device is to
be installed in an explosion hazardous area, then the specifications in the certificate as well as
all national and local regulations must be observed. The device is accompanied by separate
"Ex documentation", which is an integral part of this Operating Instructions. The installation
regulations, connection values and Safety Instructions listed in this Ex document must be
observed. The documentation number of the related Safety Instructions is also indicated on
the additional nameplate.

Deltapilot S PROFIBUS PA Product identification
Endress+Hauser 5
1.4 Return
Follow the instructions on returning the device as outlined in the Operating Instructions.
1.5 Safety icons
2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is displayed.
For an overview of the technical documentation provided, enter the serial number from the
nameplates in the W@M Device Viewer (www.endress.com/deviceviewer).
3 Installation
3.1 General installation instructions
#Warning!
The seal is not allowed to press on the process isolating diaphragm as this could affect the
measurement result.
Symbol Meaning
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal injury,
a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal injury or
incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect operation
or may lead to an instrument response which is not planned.

Installation Deltapilot S PROFIBUS PA
6Endress+Hauser
!Note!
• If a heated Deltapilot S is cooled during the cleaning (e.g. by cold water), a vacuum develops
for a short time, whereby water can penetrate the sensor through the pressure compensation
(1). If this is the case, mount the sensor with the pressure compensation (1) pointing
downwards.
• Keep the pressure compensation and GORE-TEX®filter (1) free from contaminations.
• Do not use sharp or hard objects to handle or clean the process isolating diaphragm.
• Due to the orientation of the Deltapilot S, there may be a shift in the measured value, i.e.
when the container is empty, the measured value does not display zero. You can correct this

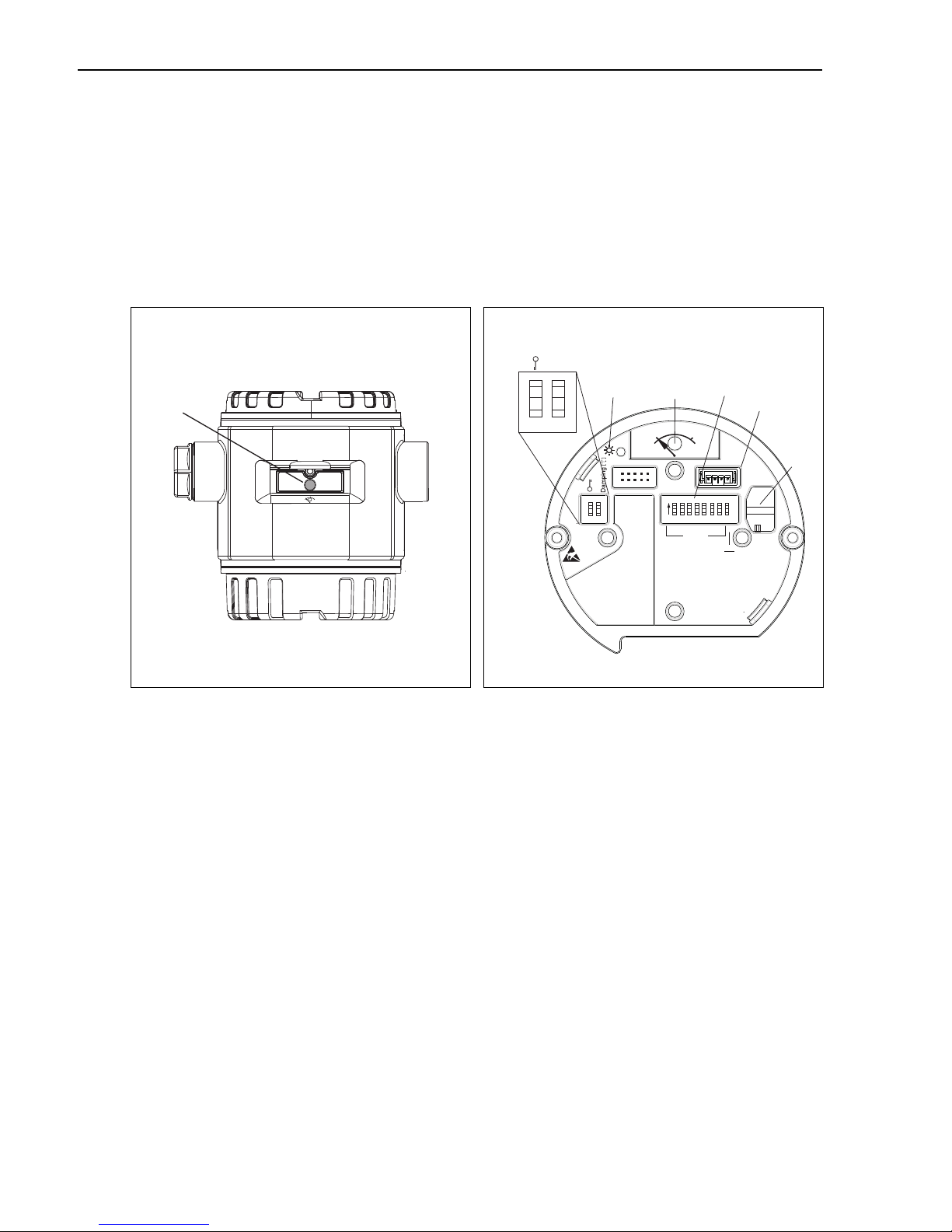

zero point shift either via the "zero" key on the electronic insert, or on the outside of the
device or via the on-site display.See Page 14, Section 4.2.1 "Position of operating
elements", Page 15, Section 4.2.2 "Function of the operating elements" and Page 24, Section
5.1 "Position adjustment".
• To ensure optimal readability of the on-site display, it is possible to rotate the housing up to
380°.
• The on-site display can be rotated in 90° stages.
• Endress+Hauser offers a mounting bracket for installing on pipes or walls.
1
1
1
FIELD TERMINALS
FIELD TERMINALS

Deltapilot S PROFIBUS PA Installation
Endress+Hauser 7
3.2 Measuring arrangement
3.2.1 Level measurement
P01-PMP75xxx-11-xx-xx-xx-000
Fig. 1: Measuring arrangement for level
• Always install the device below the lowest measuring point.
• Do not install the device at the following positions:
– in the filling curtain
– in the tank outflow
– in the suction area of a pump
– or at a point in the tank that can be affected by pressure pulses from the agitator
• The calibration and functional test can be carried out more easily if you mount the device
downstream of a shutoff device.
• Deltapilot S must be included in the insulation for media that can harden when cold.
3.2.2 Pressure measurement in gases
• Mount Deltapilot S with shutoff device above the tapping point so that any condensate can
flow into the process.
3.2.3 Pressure measurement in steams
• Mount Deltapilot S with siphon above the tapping point.
• Fill the siphon with liquid before commissioning.
The siphon reduces the temperature to almost the ambient temperature.
3.2.4 Pressure measurement in liquids
• Mount Deltapilot S with the shutoff device below or at the same level as the tapping point.

Installation Deltapilot S PROFIBUS PA
8Endress+Hauser
3.3 Assembling and mounting the "separate housing" version
P01-FMB70xxx-11-xx-xx-xx-003
Fig. 2: "Separate housing" version
1 In the "separate housing" version, the sensor is supplied with process connection and cable fitted.
2 Cable with connection jack
3 Pressure compensation
5Plug
6 Locking screw
7 Housing fitted with housing adapter, included
8 Mounting bracket suitable for wall and pipe mounting, included
Assembly and mounting
1. Connect plug (item 5) into the corresponding connection jack of the cable (item 2).
2. Plug the cable into the housing adapter (item 7).
3. Tighten the locking screw (item 6).
4. Mount the housing on a wall or pipe using the mounting bracket (item 8). When
mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least
5 Nm.
Mount the cable with a bending radius (r) 120 mm.
r³120 mm
1
2
35
68
7

Deltapilot S PROFIBUS PA Wiring
Endress+Hauser 9
4 Wiring
4.1 Connecting the device
#Warning!
Risk of electric shock!
If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals.
In a wet environment, do not open the cover if voltage is present.
#Warning!
Limitation of electrical safety due to incorrect connection!
• Risk of electric shock and/or explosion in hazardous areas! In a wet environment, do not open
the cover if voltage is present.
• When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.
• Devices with integrated overvoltage protection must be earthed.
• Protective circuits against reverse polarity, HF influences and overvoltage peaks are installed.
• The supply voltage must match the supply voltage on the nameplate.
• Switch off the supply voltage before connecting the device.
• Remove housing cover of the terminal compartment.
• Guide cable through the gland. Preferably use twisted, screened two-wire cable.
• Connect device in accordance with the following diagram.
• Screw down housing cover.
• Switch on supply voltage.

Wiring Deltapilot S PROFIBUS PA
10 Endress+Hauser

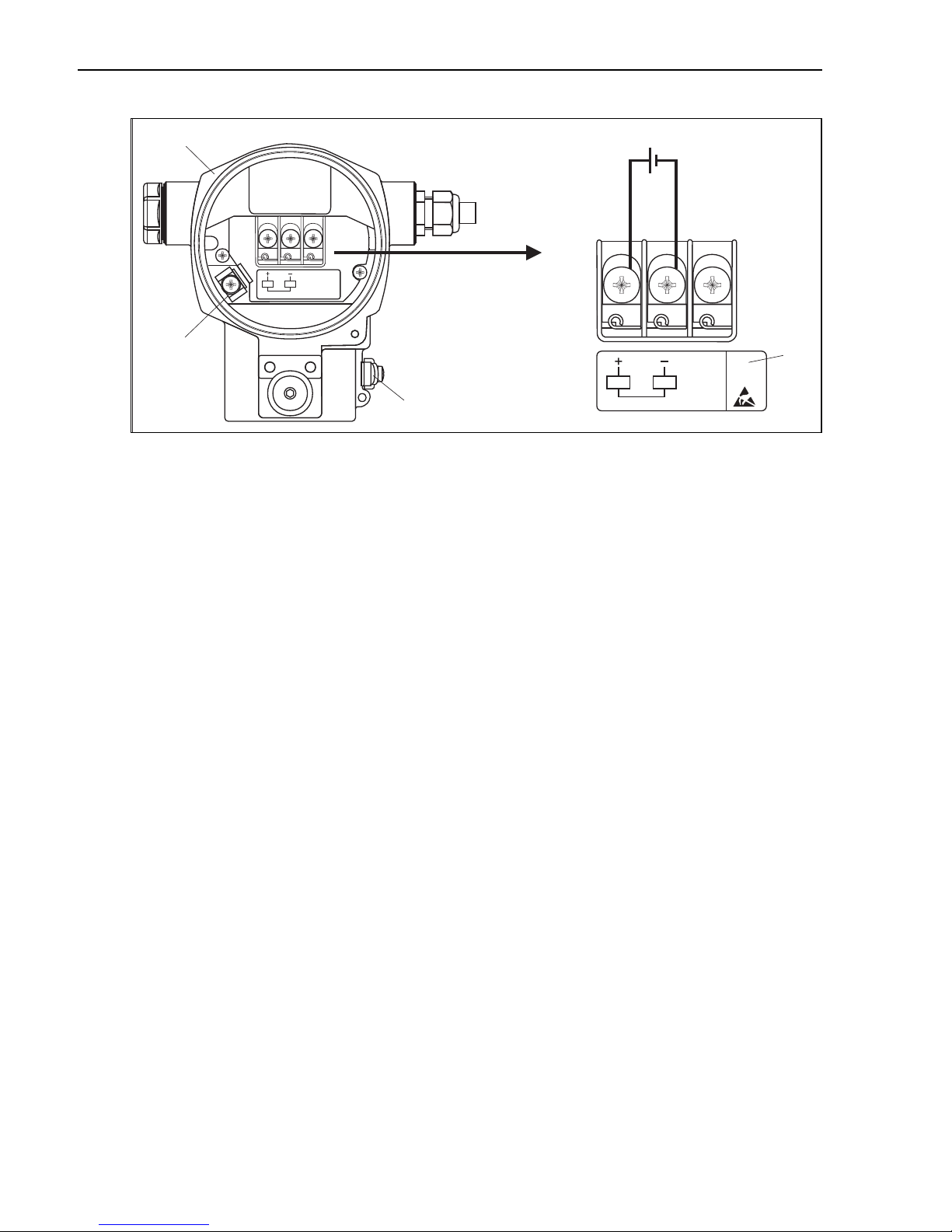

P01-xMx7xxxx-04-xx-xx-xx-008
Fig. 3: Electrical connection PROFIBUS PA Observe also the following section.
For devices with plug see Operating Instructions.
1Housing
2 Internal earth terminal
3 External earth terminal
4 Supply voltage, for version in non-hazardous area = 9...32 V DC
5 Devices with integrated overvoltage protection are labelled OVP (overvoltage protection) here.
4.2 Connecting the measuring unit
4.2.1 Supply voltage
• Version for non-hazardous area: 9...32 V DC
4.2.2 Current consumption
Up to HW Version 1.10:
11 mA ±1 mA, switch-on current corresponds to IEC 61158-2, Clause 21.
As of HW Version 02.00:
13 mA ±1 mA, switch-on current corresponds to IEC 61158-2, Clause 21.
As of Hardware Version 1.10, you will find a label in the device on the electronic insert.
4.2.3 Cable specification
• Use a twisted, screened two-wire cable, preferably cable type A.
• Terminals for wire cross-sections: 0.5...2.5 mm2
• Outer cable diameter: 5...9 mm
➀
➁
➂
➃
➄
PA PA
PA PA

Deltapilot S PROFIBUS PA Operation
Endress+Hauser 11
!Note!
For further information on the cable specifications, see Operating Instructions BA00034S
"Guidelines for planning and commissioning PROFIBUS DP/PA", PNO Guideline 2.092
"PROFIBUS PA User and Installation Guideline" and IEC 61158-2 (MBP).
4.2.4 Earthing and screening
Deltapilot S must be earthed, for example by means of the external earth terminal.
Different earthing and screening installation methods are available for PROFIBUS PA networks
such as:
• Isolated installation (see also IEC 61158-2)
• Installation with multiple earthing
• Capacitive installation
5 Operation
5.1 On-site display (optional)
A 4-line liquid crystal display (LCD) is used for display and operation. The on-site display shows
measured values, dialog texts, fault messages and notice messages.
The display of the device can be turned in 90° steps.
Depending on the installation position of the device, this makes it easy to operate the device and
read the measured values.

Operation Deltapilot S PROFIBUS PA
12 Endress+Hauser
P01-xxxxxxxx-07-xx-xx-xx-011
E
+
–Bargraph
Operating keys
SymbolBargraph
ValueFunction name
Measured value display
Unit
Header line
Information
line
Main line
Parameter
Identification
number
Editing modes
Selection
options
Valuethat
can beedited
Current measured value

Deltapilot S PROFIBUS PA Operation
Endress+Hauser 13
The following table illustrates the symbols that can appear on the on-site display. Four symbols
can occur at one time.
Symbol Meaning
Alarm symbol
– Symbol flashing: warning, device continues measuring.
– Symbol permanently lit: error, device does not continue measuring.
Note: The alarm symbol may overlie the tendency symbol.
Lock symbol
The operation of the device is locked. Unlock device, see Page 22, Section 4.5.
Communication symbol
Data transfer via communication
Tendency symbol (increasing)
The primary value of the Transducer Block is increasing.
Tendency symbol (decreasing)
The primary value of the Transducer Block is decreasing.
Tendency symbol (constant)
The primary value of the Transducer Block has remained constant over the past few minutes.

Operation Deltapilot S PROFIBUS PA
14 Endress+Hauser
5.2 Operating elements
5.2.1 Position of operating elements
With regard to aluminium housings and stainless steel housing (T14/T15), the operating key is
located either outside the device under the protection cap or inside on the electronic insert. In
hygenic stainless housings (T17), the operating key is always located inside on the electronic
insert. Additionally, three operating keys are located on the optional on-site display.
P01-PMx7xxxx-19-xx-xx-xx-075
Fig. 4: Operating key, external under the protective flap
1 Operating key or position adjustment
(zero point-correction) or total reset
P01-xxxxxxxx-19-xx-xx-xx-105
Fig. 5: Operating key and operating elements, internal
1 Green LED to indicate value is accepted
2 Operating key for position adjustment
(zero point-correction) or total reset
3 DIP switch for hardware address
4 Slot for optional display
5 Slot for optional HistoROM®/M-DAT
6 DIP-switch for locking/unlocking
measured-value-relevant parameters
7 DIP-switch for damping on/off
➀
0%
Zero
Display
Sensor
on
off
0%
Zero
Address
SW
HW
12345678
on
off
HistoROM
on
off
➀➁
➂➃
➄
➆➅
t
PC
21 21
CKON
345678
SDA0 8

Deltapilot S PROFIBUS PA Operation
Endress+Hauser 15
5.2.2 Function of the operating elements – on-site display not connected
Operating key(s) Meaning
P02-xxxxxxxx-19-xx-xx-xx-107
– Position adjustment (zero point correction): Press key for at least 3 seconds. If the
LED on the electronic insert lights up briefly, the pressure applied has been
accepted for position adjustment.
See also Page 27 (Level measuring mode) or Page 29 (Pressure measuring
mode).
– Total reset: Press key for at least 12 seconds. If the LED on the electronic insert
lights up briefly, the reset is being carried out.
P01-xxxxxxxx-19-xx-xx-xx-109
Set address in the bus. See also Page 21, Section 4.4 "Configuring the device
address".
P01-xxxxxxxx-19-xx-xx-xx-108
– DIP-switch 1: for locking/unlocking measured-value-relevant parameters
Factory setting: off (unlocked)
– DIP switch 2: damping on/off
Factory setting: on (damping on)
0%
Zero
on
off 12345678
Address
21
CKON
34 5 67 8
SDA0 8
01
SW
HW
12
on
off
τ

Operation Deltapilot S PROFIBUS PA
16 Endress+Hauser
5.2.3 Function of the operating elements – on-site display connected
Operating key(s) Meaning
O– Navigate upwards in the picklist
– Edit the numerical values and characters within a function
S– Navigate downwards in the picklist
– Edit the numerical values and characters within a function
F–Confirmentry
– Jump to the next item
Oand FContrast setting of on-site display: darker
Sand FContrast setting of on-site display: brighter
O and S
ESC functions:
– Exit edit mode without saving the changed value.
– You are in a menu within a function group. The first time you press the keys
simultaneously, you go back a parameter within the function group. Each time you
press the keys simultaneously after that, you go up a level in the menu.
– You are in a menu at a selection level. Each time you press the keys simultaneously,
you go up a level in the menu.
Note: The terms function group, level and selection level are explained in Section
4.3.1, Page 17.
P01-xxxxxxxx-19-xx-xx-xx-109
Set address in the bus. See also Page 21, Section 4.4 "Configuring the device
address".
on
off 12345678
Address
21
CKON
34 5 67 8
SDA0 8
01
SW
HW

Deltapilot S PROFIBUS PA Operation
Endress+Hauser 17
5.3 On-site operation via on-site display
5.3.1 Structure of the operating menu
The menu is split into four levels. The three upper levels are used to navigate while you use the
bottom level to enter numerical values, select options and save settings.
For the entire menu see CD-ROM, Operating Instructions BA00356P.
The structure of the OPERATING MENU depends on the measuring mode selected, e.g. if the
"Pressure" measuring mode is selected, only the functions necessary for this mode are displayed.
P01-xxxxxxxx-19-xx-xx-xx-145
Fig. 6: Structure of the operating menu
1 1. Selection level
2 2. Selection level
3Functiongroups
4 Parameter
➀
➂
➁
➃
Measured value
GROUP SELECTION
DISPLAYSETTINGS
EXTENDED SETUP
POS. ZERO ADJUST
POS. INPUT VALUE
CALIB. OFFSET
POSITION ADJUSTMENT BASIC SETUP
OPERATING MENU
QUICK SETUP
MEASURING MODELANGUAGE

Operation Deltapilot S PROFIBUS PA
18 Endress+Hauser
5.3.2 Selecting an option
Example: select "English" as the language of the menu.
On-site display Operation
P01-xxxxxxxx-19-xx-xx-xx-017
German is selected as the language. A ✓in front of the
menu text indicates the active option.
P01-xxxxxxxx-19-xx-xx-xx-033
Select English with "+" or "–".
P01-xxxxxxxx-19-xx-xx-xx-034
1. Confirm your choice with "E". A ✓in front of the
menu text indicates the active option. (English is now
selected as the menu language.)
2. Jump to the next item with "E".

Deltapilot S PROFIBUS PA Operation
Endress+Hauser 19
5.3.3 Editing a value
Example: adjusting DAMPING VALUE function from 2.0 s to 30.0 s. See also Page 16,
Section 4.2.3 "Function of the operating elements".
On-site display Operation
P01-xxxxxxxx-19-xx-xx-xx-023
The on-site display shows the parameter to be changed.
The value highlighted in black can be changed. The "s"
unit is fixed and cannot be changed.
P01-xxxxxxxx-19-xx-xx-xx-027
1. Press "+" or "–" to get to the editing mode.
2. The first digit is highlighted in black.
P01-xxxxxxxx-19-xx-xx-xx-028
1. Use "+" to change "2" to "3".
2. Confirm "3" with "E". The cursor jumps to the next
position (highlighted in black).
P01-xxxxxxxx-19-xx-xx-xx-029
The decimal point is highlighted in black, i.e. you can now
edit it.
P01-xxxxxxxx-19-xx-xx-xx-030
1. Keep pressing "+" or "–" until "0" is displayed.
2. Confirm "0" with "E".
The cursor jumps to the next position.  is displayed
and is highlighted in black. See next graphic.
P01-xxxxxxxx-19-xx-xx-xx-031
Use "E" to save the new value and exit the editing mode.
See next graphic.

Operation Deltapilot S PROFIBUS PA
20 Endress+Hauser
5.3.4 Taking pressure applied at device as value
Example: performing position adjustment.
P01-xxxxxxxx-19-xx-xx-xx-032
The new value for the damping is now 30.0 s.
– Jump to the next parameter with "E".
– You can get back to the editing mode with "+" or
"–".
On-site display Operation
P01-xxxxxxxx-19-xx-xx-xx-158
The bottom line on the on-site display displays the pressure
present, here 3.9 mbar.
P01-xxxxxxxx-19-xx-xx-xx-159
Use "+" or "–" to switch to the "Confirm" option. The active
selection is highlighted in black.
P01-xxxxxxxx-19-xx-xx-xx-037
Use "E" to assign the value (3.9 mbar) to the POS. ZERO
ADJUST parameter. The device confirms the calibration
and jumps back to the parameter, here POS. ZERO
ADJUST (see next graphic).
P01-xxxxxxxx-19-xx-xx-xx-160
Switch to the next parameter with "E".
On-site display Operation
