Brief Operating Instructions
Gammapilot M FMG60
PROFIBUS PA
Radiometric measurement
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
For detailed information, refer to the Operating Instructions
and other documentation.

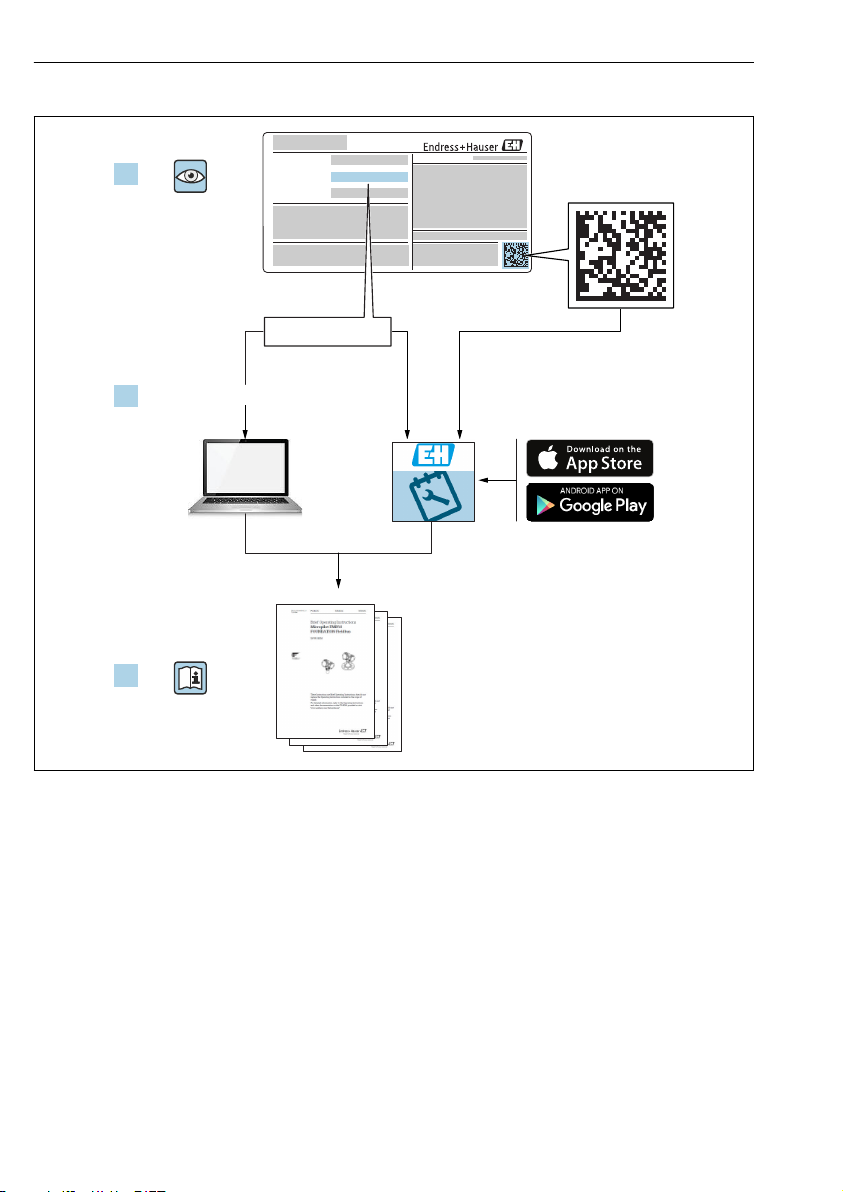

Available for all device versions via:
• Internet: www.endress.com/deviceviewer
• Smart phone/Tablet: Endress+Hauser Operations App
KA01093F/00/EN/15.18
71402951
2018-08-13

Gammapilot M FMG60 PROFIBUS PA
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Gammapilot M FMG60 PROFIBUS PA Gammapilot M - Quick guide
Endress+Hauser 3

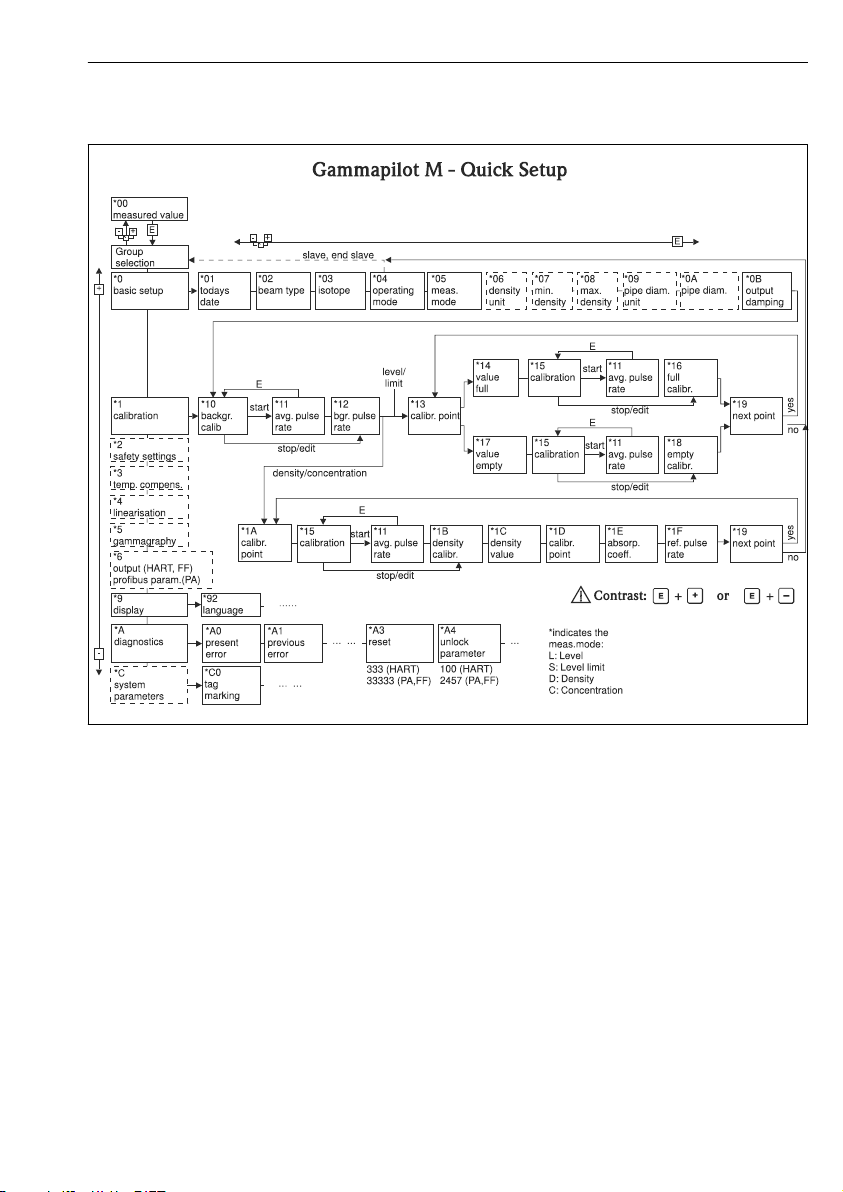

Gammapilot M - Quick guide
A0036818-EN

Table of contents Gammapilot M FMG60 PROFIBUS PA
4 Endress+Hauser
Table of contents
1 About this document .............................................................. 5
1.1 Symbols used ......................................................................... 5
2 Basic safety instructions .......................................................... 7
2.1 Requirements for the personnel ............................................................ 7
2.2 Designated use ........................................................................ 7
2.3 Installation, commissioning and operation .................................................... 7
2.4 Hazardous area ........................................................................ 7
2.5 Radiation protection .................................................................... 8
2.6 Workplace safety ...................................................................... 9
2.7 Operational safety ......................................................................9
2.8 Product safety ........................................................................ 10
3 Installation ...................................................................... 10
3.1 Incoming acceptance, product identification, transport, storage ................................... 10
3.2 Installation conditions .................................................................. 11
3.3 Water cooling ........................................................................ 15
3.4 Post-installation check ................................................................. 15
4 Wiring ........................................................................... 16
4.1 Connection compartments ...............................................................16
4.2 Cable entries ......................................................................... 17
4.3 Terminal assignment .................................................................. 18
4.4 PROFIBUS PA cable specifications ......................................................... 20
4.5 Supply voltage ....................................................................... 21
4.6 Potential equalization .................................................................. 21
4.7 Wiring in connection compartment 1 ...................................................... 22
4.8 Wiring in connection compartment 2 ...................................................... 23
4.9 Connecting the remote display and operating unit FHX40 ....................................... 24
4.10 Wiring for cascade mode ................................................................ 25
4.11 Post-connection check ..................................................................26
5 Operation ....................................................................... 26
5.1 Display operation ..................................................................... 26
6 Commissioning .................................................................. 29
6.1 Calibration: overview ...................................................................30
6.2 Function check ....................................................................... 31
6.3 Switching on the device ................................................................. 31
6.4 Basic setup .......................................................................... 32
6.5 Calibration for level measurement and point level detection ...................................... 38
6.6 Calibration for density and concentration measurements ........................................ 47
6.7 Density measurement/temperature-compensated ............................................. 56
6.8 Gammagraphy detection ................................................................ 57

Gammapilot M FMG60 PROFIBUS PA About this document
Endress+Hauser 5
1 About this document
1.1 Symbols used
1.1.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will
result in serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can
result in minor or medium injury.
NOTICE
NOTICE!
This symbol contains information on procedures and other facts which do not result
in personal injury.
1.1.2 Electrical symbols
Symbol Meaning
Direct current
A terminal at which DC is present or through which DC flows.
Alternating current
A terminal to which alternating voltage (sine-wave) is applied or through which alternating current
flows.
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
1.1.3 Tool symbols
Symbol Meaning
Flat blade screwdriver
Allen key

About this document Gammapilot M FMG60 PROFIBUS PA
6 Endress+Hauser
1.1.4 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation
A
Reference to page
Reference to graphic
Notice or individual step to be observed
1.
,
2.
,
3.
… Series of steps
Result of a step
Help in the event of a problem
Visual inspection
Operation via local display
Operation via operating tool
Write-protected parameter
1.1.5 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
1.
,
2.
,
3.
… Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections

Gammapilot M FMG60 PROFIBUS PA Basic safety instructions
Endress+Hauser 7
Symbol Meaning
-
Hazardous area
Indicates the hazardous area.
.
Safe area (non-hazardous area)
Indicates the non-hazardous area.
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Are authorized by the plant owner/operator.
‣Are familiar with federal/national regulations.
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application).
‣Follow instructions and comply with basic conditions.
2.2 Designated use
The Gammapilot M is a compact transmitter for non-contact level, point level, density and
concentration measurement. The measuring range of a single Gammapilot M is up to 2 m (6.6
ft). Large measuring ranges of any size can be implemented, however, by cascading several
Gammapilot M devices. When used for point level detection, the Gammapilot is certified
according to IEC 61508 for safety-related operation up to SIL 2/3.
2.3 Installation, commissioning and operation
The Gammapilot M is designed to meet state-of-the-art safety requirements and complies
with applicable standards and EC regulations. However, if it is used improperly or for
applications for which it is not intended, application-related hazards may arise, e.g. product
overflow due to incorrect installation or configuration. Installation, electrical connection,
commissioning, operation and maintenance of the measuring system must therefore be
carried out exclusively by trained specialists authorized to perform such work by the system
operator. Technical personnel must have read and understood these Operating Instructions
and must adhere to them. Modifications and repairs to the device may only be carried out if
they are expressly permitted in the Operating Instructions.
2.4 Hazardous area
If the measuring system is used in hazardous areas, the corresponding national standards and
regulations must be observed. The device is accompanied by separate "Ex documentation",
which is an integral part of these Operating Instructions. The installation specifications,

Basic safety instructions Gammapilot M FMG60 PROFIBUS PA
8 Endress+Hauser
connection values and safety instructions listed in this supplementary documentation must be
observed.
• Technical personnel must be suitably qualified and trained.
• Comply with the metrological and safety-related requirements for the measuring point.
LWARNING
‣The three screws connecting the detector pipe to the terminal housing may not be opened.
A0018068
LWARNING
‣The safety instructions, which depend on the certificate ordered, must be observed
(Operating Instructions -> "Certificates and approvals" section)
2.5 Radiation protection
LWARNING
‣When working with radioactive sources, avoid any unnecessary exposure to radiation. All
unavoidable radiation exposure must be kept to a minimum. Three basic concepts apply to
achieve this:

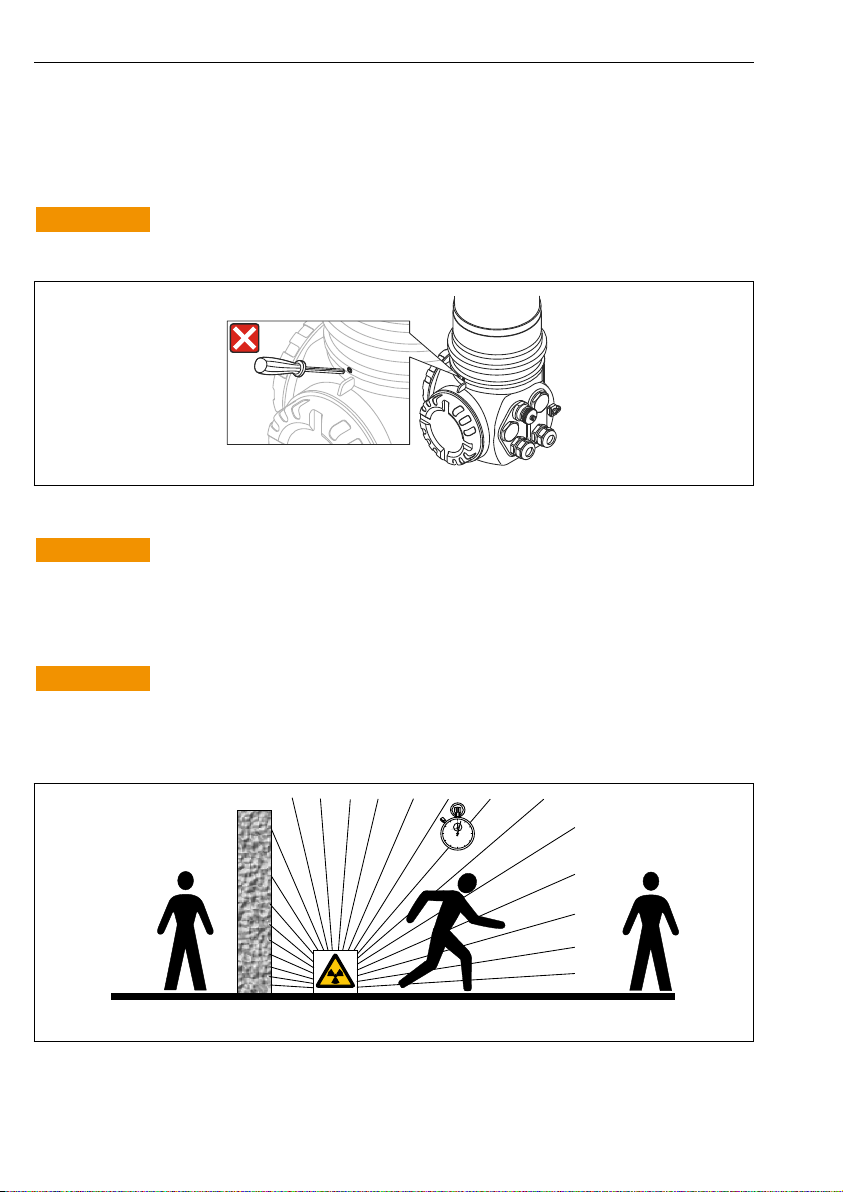

ABC
A0016373
A Shielding
B Time
C Distance

Gammapilot M FMG60 PROFIBUS PA Basic safety instructions
Endress+Hauser 9
Shielding
Ensure the best possible shielding between the radiation source and yourself and all other
persons. Effective shielding is provided by source containers (FQG60, FQG61/FQG62, FQG63,
QG2000) and all high-density materials (lead, iron, concrete etc.).
LCAUTION
‣When working with source containers, all the instructions for mounting and usage outlined
in the following documents must be observed:
Source container Document
FQG60 TI00445F/00/EN
FQG61, FQG62 TI00435F/00/EN
FQG63 TI00446F/00/EN
QG2000 TI00346F/00/EN
BA00223F/00/EN
Time
The time spent in the exposed area should be kept to a minimum.
Distance
Keep as far away from the radiation source as possible. The radiation intensity decreases in
proportion to the square of the distance from the radiation source.
2.6 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.7 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with the manufacturer.
Repair
To ensure continued operational safety and reliability,
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use original spare parts and accessories from the manufacturer only.

Installation Gammapilot M FMG60 PROFIBUS PA
10 Endress+Hauser
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the hazardous
area (e.g. explosion protection, pressure vessel safety):
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area.
‣Observe the specifications in the separate supplementary documentation that is an integral
part of these Instructions.
2.8 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
3 Installation
3.1 Incoming acceptance, product identification, transport, storage
3.1.1 Incoming acceptance
Check the packaging and contents for any signs of damage. Check the shipment, make sure
nothing is missing and that the scope of supply matches your order.
3.1.2 Product identification
The measuring device can be identified in the following ways:
• Using the nameplate specifications.
• Using the order code with a breakdown of the device features on the delivery note.
• By entering the serial number of the nameplates into W@M Device Viewer.
(www.endress.com/deviceviewer): All the information about the measuring device is
displayed.
For an overview of the scope of the Technical Documentation provided:
Enter the serial number of the nameplates into W@M Device Viewer. (www.endress.com/
deviceviewer)
3.1.3 Transport
LCAUTION
Risk of injury
‣Follow the safety instructions and transport conditions for devices weighing more than
18 kg (39.69 lb).

Gammapilot M FMG60 PROFIBUS PA Installation
Endress+Hauser 11
3.1.4 Storage
Pack the device so that it is protected against impact for storage and transport. The original
packaging provides optimum protection. The permissible storage temperature is:
• –40 to +50 °C (–40 to +122 °F) for devices with PVT scintillator
• –40 to +60 °C (–40 to +140 °F) for devices with NaI crystal
3.2 Installation conditions
3.2.1 Installation conditions for level measurement
Conditions
• For level measurements the Gammapilot M is mounted vertically; if possible the detector
head should point downwards
• The angle of emission of the source container must be exactly aligned to the measuring
range of the Gammapilot M. Observe the measuring range marks of the Gammapilot M.
• If several Gammapilot M devices are connected in cascade mode, there should not be any
gap between the individual measuring ranges.
• The source container and the Gammapilot M should be mounted as close to the vessel as
possible. Any access to the beam must be blocked to ensure that it is not possible to reach
into this area.
• The Gammapilot M should be protected against direct sunlight in order to increase its
service life. Use a protective cover if necessary.
• The mounting device FHG60 or an equivalent mounting device should be used to secure the
Gammapilot M (Operating Instructions -> "Accessories" section).
The mounting device itself must be installed in such a way that it can withstand the weight
of the Gammapilot M under all anticipated conditions (e.g. vibrations). (Operating
Instructions -> "Installation conditions" section)
The Gammapilot M should be given additional support to prevent damage to the
connecting cable or to the unit if it falls.

Installation Gammapilot M FMG60 PROFIBUS PA
12 Endress+Hauser
Examples
ABC
DEF
1
A0018074
A Vertical cylinder; the Gammapilot M is mounted vertically with the detector head pointing
downwards, the gamma ray is aligned to the measuring range.
B Cascading of multiple Gammapilot M devices; there is no gap between the measuring ranges
C Incorrect: Gammapilot M mounted inside the tank insulation
D Conical vessel outlet (here with sun protection cover)
E Horizontal cylinder (here with sun protection cover)
F Correct: tank insulation removed for Gammapilot M
1 Support

Gammapilot M FMG60 PROFIBUS PA Installation
Endress+Hauser 13
3.2.2 Installation conditions for point level detection
Conditions
• For point level detection, the Gammapilot M is generally mounted horizontally at the height
of the desired level limit.
• The angle of emission of the source container must be exactly aligned to the measuring
range of the Gammapilot M. Observe the measuring range marks of the Gammapilot M.
• The source container and the Gammapilot M should be mounted as close to the vessel as
possible. Any access to the beam must be blocked to ensure that it is not possible to reach
into this area.
• The Gammapilot M should be protected against direct sunlight in order to increase its
service life. Use a protective cover if necessary.
• The mounting device FHG60 or an equivalent mounting device should be used to secure the
Gammapilot M (Operating Instructions -> "Accessories" section).
The mounting device itself must be installed in such a way that it can withstand the weight
of the Gammapilot M under all anticipated conditions (e.g. vibrations). (Operating
Instructions -> "Installation conditions" section)
More information with regard to the safety-related use of the Gammapilot M can be
found in the Functional Safety Manual SD00230F/00/EN and SD00324F/00/EN.
Examples
AB
A0018075
A Maximum fail-safe mode
B Minimum point level detection

Installation Gammapilot M FMG60 PROFIBUS PA
14 Endress+Hauser
3.2.3 Installation conditions for density and concentration measurements
Conditions
• If possible, density and concentration should be measured on vertical pipes with forward
flow from bottom to top.
• If only horizontal pipes are accessible, the path of the beam should also be arranged
horizontally to minimize the influence of air bubbles and deposits.
• The Endress+Hauser clamping device FHG61 or an equivalent clamping device should be
used to secure the radiation source container and the Gammapilot M to the measuring tube.
The clamping device itself must be installed in such a way that it can withstand the weight
of the source container and the Gammapilot M under all anticipated conditions.
• The sample point may not be further than 20 m (66 ft) from the measuring point.
• The distance of the density measurement to pipe bends is ≥3 x pipe diameter, and ≥10 x
pipe diameter in the case of pumps.
Measuring system arrangement
The arrangement of the source container and the Gammapilot M depends on the pipe
diameter (or the length of the irradiated measuring path) and the density measuring range.
These two parameters determine the measuring effect (relative change in the pulse rate). The
measuring effect increases with the length of the radiation path through the medium.
Therefore, it is advisable to use diagonal irradiation or a measurement section for small pipe
diameters.
To select the measuring system arrangement please contact your Endress+Hauser sales
organization or use the Applicator™ 1)
1) configuration software. The Applicator™ is available from your Endress+Hauser sales organization.

Gammapilot M FMG60 PROFIBUS PA Installation
Endress+Hauser 15
A
1
BC
A0018076
A Vertical beam (90°)
B Diagonal beam (30°)
C Measurement section
1 Sample point
• To increase the accuracy of density measurements, the use of a collimator is
recommended. The collimator screens the detector against environmental radiation.
• When planning, the total weight of the measuring system must be taken into
consideration.
• The Gammapilot M should be given additional support to secure it against falling or to
prevent damage to the connecting cable.
• A clamping device (FHG61) and a measurement section (FHG62) are available as
accessories (Operating Instructions -> "Accessories" section)
3.3 Water cooling
See the Operating Instructions
BA00236F/00/EN
3.4 Post-installation check
After installing the measuring device, carry out the following checks:
• Is the device damaged (visual inspection)?
• Does the device match the measuring point specifications (ambient temperature, measuring
range etc.)?
• If available: are the measuring point number and labeling correct (visual inspection)?
• Is the measuring device sufficiently protected against sunlight?
• Are the cable glands tightened correctly?

Wiring Gammapilot M FMG60 PROFIBUS PA
16 Endress+Hauser
4 Wiring
4.1 Connection compartments
The Gammapilot M has two connection compartments
1
2
A0018082
1 Connection compartment 1
2 Connection compartment 2
Connection compartment 1
Connection compartment for:
• Power supply
• Signal output (depending on the device version)
Connection compartment 2
Connection compartment for:
• Signal output (depending on the device version)
• Pt-100 input (4-wire)
• Pulse input for cascade mode
• Pulse output for cascade mode
• Display and operating module FHX40 (or VU331)
Depending on the device version, the signal output is located in connection compartment
1 or 2.
Maximum cable length:

Gammapilot M FMG60 PROFIBUS PA Wiring
Endress+Hauser 17
• For cascade, 20 m (66 ft) per device
• For Pt-100 2 m (6.6 ft). Temperature measurement should be performed as close as
possible to density measurement.
4.2 Cable entries
The number and type of cable entries depend on the device version ordered. The following are
possible:
• Coupling M20x1.5. sealing range 7 to 10.5 mm (0.28 to 0.41 in)
• Cable entry M20x1.5
• Cable entry G1/2
• Cable entry NPT1/2
• M12 connector (see "Fieldbus connectors")
• 7/8" connector (see "Fieldbus connectors")
In addition, the Gammapilot M also has a socket to connect the separate display and operating
unit FHX40. The housing of the Gammapilot M does not have to be opened to connect the
FHX40.
1 2 3
A0018083
1 Cable entry for connection compartment 2
2 Socket for FHX40
3 Cable entry for connection compartment 1
Cable entries
• A maximum of one cable gland is provided for each of the connection compartments
upon delivery. If additional cable glands are required (e.g. for cascade mode), they
must be supplied by the user.
• Connecting cables should be routed away from the housing from below to prevent
moisture from penetrating the connection compartment. Otherwise, a drip loop should
be provided or the Gammapilot M should be fitted with a weather protection cover.

Wiring Gammapilot M FMG60 PROFIBUS PA
18 Endress+Hauser
4.3 Terminal assignment
Connection compartment 1
1
14 15
2(3)
L1
L+
N
L- + -
(4)
1
A0018084
 1 For the terminal assignment, see the table below
1 Power supply: 90 to 253VAC, 18 to 35 VDC
Connection compartment 2
0
9
3
+ +
+
57
10
4
- -
-
6
11 12 13
SIM WP
PT100
IN CASCADE OUT
OFF
ON
8
)
A0018085
 2 For the terminal assignment, see the table below

Gammapilot M FMG60 PROFIBUS PA Wiring
Endress+Hauser 19
Terminal Meaning
0 Grounding of the cable shield 1)
1, 2 Power supply 2)
Connection
compartment 2:
3, 4
Connection
compartment 1:
3 1), 4 1)
Signal output, depending on communication version:
• 4-20mA with HART
• PROFIBUS PA
• FOUNDATION Fieldbus
Depending on the device version ordered, the signal output is located in connection
compartment 1 or 2 (see below).
For the versions of the Gammapilot M with a fieldbus connector (M12 or 7/8"), the
signal output is wired in connection compartment 2 on delivery and connected to
the fieldbus connector (see the "Fieldbus connectors" section). In this case, the
housing does not need to be opened to connect the signal cable.
5, 6 Pulse input (for cascade mode; is used for master and slave)
7, 8 Pulse output (for cascade mode; is used for slave and end slave)
9, 10, 11, 12 Pt-100 input (4-wire)
13 Connection for display and operating module VU331 (from FHX40); is wired on delivery
and connected to the FHX40 plug.
14 Protective ground 1)
15 Protective ground or grounding of the cable shield 1)
1) Rated cross-section > 1 mm2 (17 AWG)
2) Rated cross-section max. 2.5 mm2 (14 AWG)
The cables used at terminals 14 and 15 must at least have the same cross-section as the
cables at terminals 1 and 2.

Wiring Gammapilot M FMG60 PROFIBUS PA
20 Endress+Hauser
Feature 30 of the ordering information: power supply
wiring/output wiring
Connection compartment
with terminals for
Supply
voltage
Signal
output
A Non-Ex; non-Ex 1 2
1
2
A0018082
B Ex e; Ex ia 1 2
C Ex e; Ex e 1 1
D Ex d (XP); Ex d (XP) 1 1
E Ex d (XP); Ex ia (IS) 1 2
F Dust-Ex; Dust-Ex 1 1
G Ex e, Dust-Ex; Ex e, Dust-Ex 1 1
H Ex d, Dust-Ex; Ex d, Dust-Ex 1 1
J Ex e, Dust-Ex; Ex ia, Dust-Ex 1 2
K Ex d, Dust-Ex; Ex ia, Dust-Ex 1 2
L Dust-Ex; Ex ia 1 2
4.4 PROFIBUS PA cable specifications
Always use a twisted, shielded two-wire cable. Make sure to comply with the following
specifications if installing in hazardous areas (EN 50 020, FISCO model):
• Loop-resistance (DC): 15 to 150 Ω/km
• Inductance per unit length: 0.4 to 1 mH/km
• Capacitance per unit length: 80 to 200 nF/km
The following are examples of suitable cable types:
Non-hazardous area:
• Siemens 6XV1 830-5BH10 (gray)
• Kerpen CEL-PE/OSCR/PVC/FRLA FB-02YS(ST)YFL (gray)
• Belden 3076F (orange)
Hazardous area:
• Siemens 6XV1 830-5AH10 (blue)
• Belden 3076F
• Kerpen CEL-PE/OSCR/PVC/FRLA FB-02YS(ST+C)YFL (blue)
