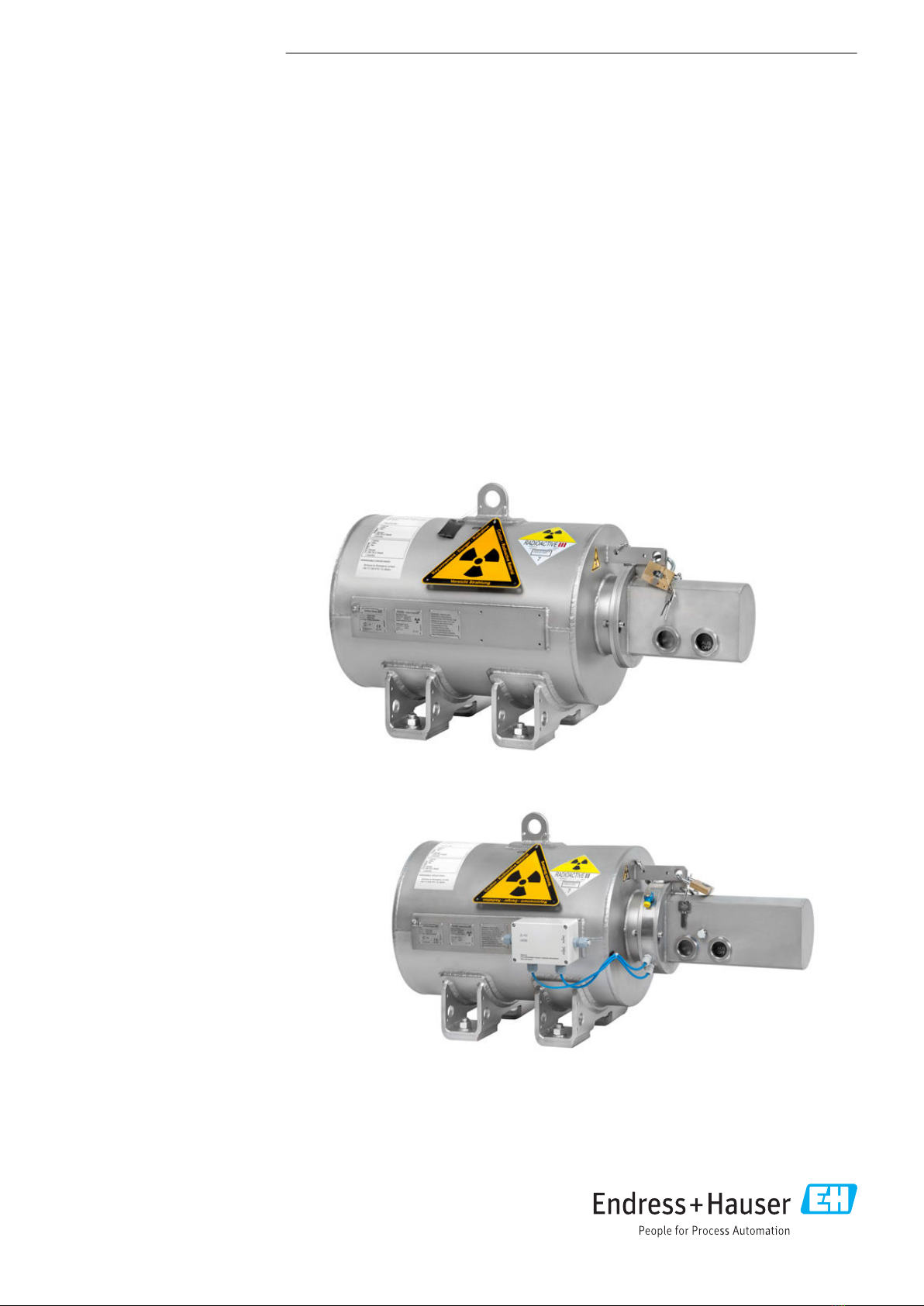

Endress+Hauser FQG66 User manual

Products Solutions Services
Operating Instructions
Source container FQG66
Radiometric level measurement
BA01327F/00/EN/02.20
71483609
2020-06-19

Source container FQG66
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

Source container FQG66 Table of contents
Endress+Hauser 3
Table of contents
1 About this document ................ 4
1.1 Document function ..................... 4
1.2 Symbols used .......................... 4
1.3 Documentation ........................ 5
2 Basic safety instructions ............ 6
2.1 Requirements for personnel ............... 6
2.2 Designated use ........................ 6
2.3 Workplace safety ....................... 6
2.4 Operational safety ...................... 6
2.5 Product safety ......................... 7
2.6 Basic instructions for use and storage ........ 7
2.7 Hazardous area ........................ 7
2.8 General instructions on radiation protection ... 8
2.9 Legal regulations for radiation protection ..... 8
2.10 Supplementary safety instructions .......... 9
3 Product description ................ 10

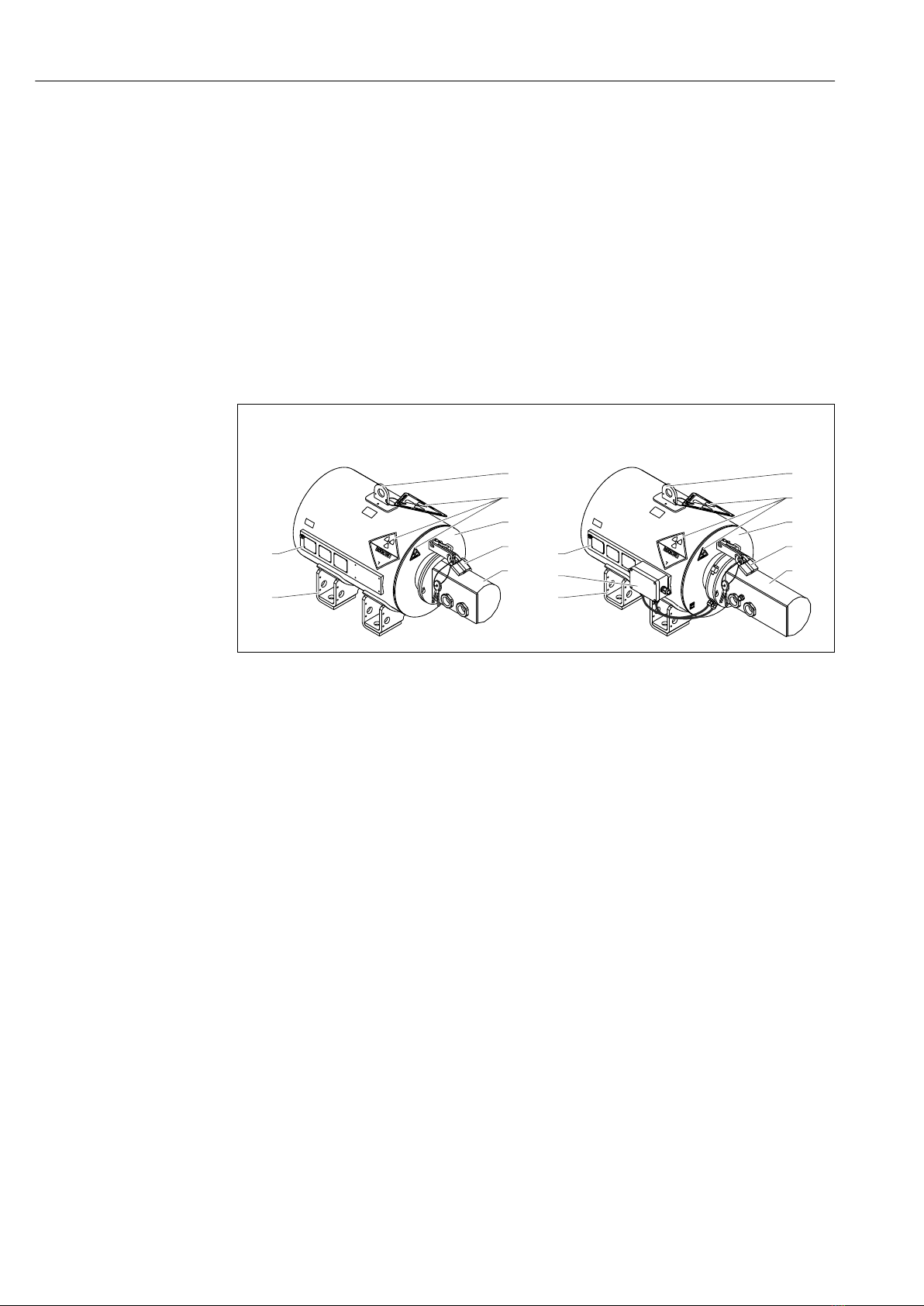

3.1 Product design ........................ 10
4 Incoming acceptance and product
identification ..................... 11
4.1 Packaging dimensions .................. 11
4.2 Incoming acceptance ................... 11
4.3 Product identification ................... 12
4.4 Manufacturer address .................. 12

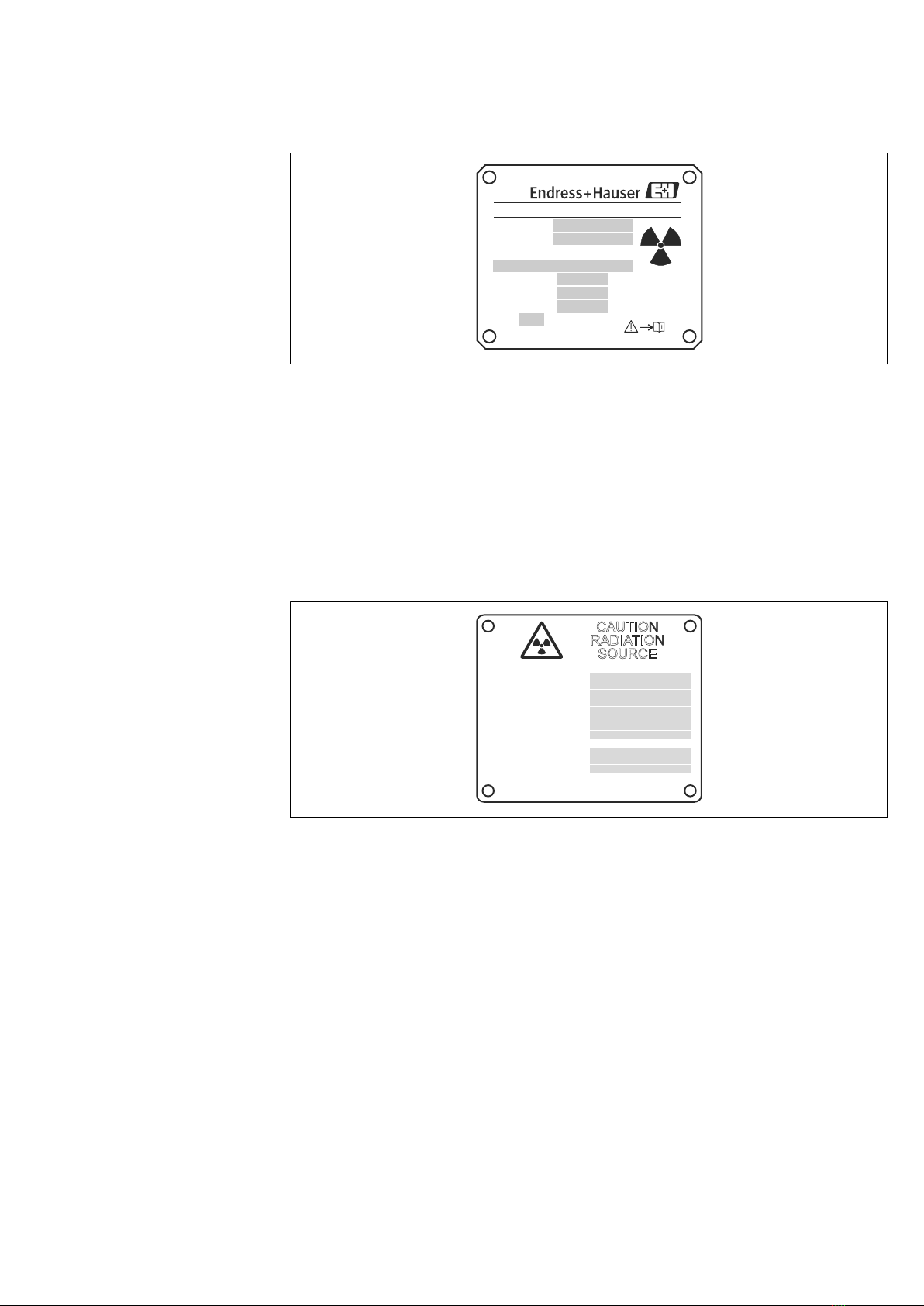

4.5 Nameplate ........................... 12
4.6 Storage and transport .................. 14
5 Installation ....................... 16
5.1 Installation conditions .................. 16
5.2 Mounting the measuring device ........... 16
5.3 Post-installation check .................. 20
6 Electrical connection .............. 22
6.1 Connection conditions .................. 22
6.2 Connecting the measuring device .......... 24
6.3 Post-connection check .................. 24
7 Commissioning .................... 26
7.1 Preparatory steps ...................... 26
7.2 Function check ....................... 26
7.3 Switching ON the measuring device ........ 26
7.4 Switching OFF the measuring device ........ 30
8 Maintenance ...................... 31
8.1 Maintenance schedule .................. 31
8.2 Maintenance tasks ..................... 31
8.3 Measuring and test equipment ............ 35
8.4 Endress+Hauser services ................ 35
9 Emergency procedure .............. 36
9.1 Objective and overview .................. 36
9.2 Emergency procedure .................. 36
9.3 Notification to authority ................. 37
10 Repair ............................ 38
10.1 General notes ........................ 38
10.2 Spare parts .......................... 38
10.3 Endress+Hauser services ................ 38
10.4 Return .............................. 38
10.5 Disposing of the measuring device ......... 40

About this document Source container FQG66
4 Endress+Hauser
1 About this document
1.1 Document function
These Operating Instructions provide all of the information that is required in various
phases of the life cycle of the device including:
• Product identification
• Incoming acceptance
• Storage
• Installation
• Connection
• Operation
• Commissioning
• Troubleshooting
• Maintenance
• Disposal
1.2 Symbols used
1.2.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Symbols for certain types of information and graphics
Radiation symbol
Warns against radioactive substances or ionizing radiation
Permitted
Procedures, processes or actions that are permitted
Preferred
Procedures, processes or actions that are preferred
Forbidden
Procedures, processes or actions that are forbidden
Tip
Indicates additional information
Reference to documentation
Reference to graphic
Notice or individual step to be observed

Source container FQG66 About this document
Endress+Hauser 5
1.
,
2.
,
3.
Series of steps
Result of a step
1, 2, 3, ...
Item numbers
A, B, C, ...
Views
Safety instructions
Observe the safety instructions contained in the associated Operating Instructions
1.3 Documentation
The following documentation types are available in the Downloads section of the Endress
+Hauser website (www.endress.com/downloads):
For an overview of the scope of the associated Technical Documentation, refer to the
following:
•W@M Device Viewer (www.endress.com/deviceviewer): Enter the serial number
from nameplate
•Endress+Hauser Operations App: Enter the serial number from the nameplate or
scan the 2D matrix code (QR code) on the nameplate
1.3.1 Technical Information (TI)
Planning aid
The document contains all the technical data on the device and provides an overview of
the accessories and other products that can be ordered for the device.
1.3.2 Brief Operating Instructions (KA)
Guide that takes you quickly to the 1st measured value
The Brief Operating Instructions contain all the essential information from incoming
acceptance to initial commissioning.

Basic safety instructions Source container FQG66
6 Endress+Hauser
2 Basic safety instructions
2.1 Requirements for personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task.
‣Personnel must be authorized by the plant owner/operator.
‣Be familiar with federal/national regulations.
‣Before starting work: personnel must read and understand the instructions in the
manual and supplementary documentation as well as the certificates (depending on
the application).
‣Personnel must follow instructions and comply with general policies.
The operating personnel must fulfill the following requirements:
‣Personnel are instructed and authorized according to the requirements of the task by
the facility's owner-operator.
‣Personnel follow the instructions in this manual.
2.2 Designated use
The source containers described in this document contain the radioactive source, which is
used for radiometric point level measurement, level measurement and density
measurement. They screen the radiation from the surrounding environment and allow it
to be emitted almost unattenuated in the direction of measurement only. In order to
guarantee the screening effect and rule out damage to the radiation source, it is essential
to comply strictly with all the instructions provided in these operating instructions for
mounting and operating the unit, as well as all legal regulations surrounding radiation
protection. Endress+Hauser does not accept any responsibility for damage caused by
incorrect use.
When moving or changing the location of the source container, it is absolutely essential to
switch the container to the "AUS/OFF" position (radiation source is switched off).
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.4 Operational safety
Risk of injury!
‣Operate the device only if it is in proper technical condition, free from errors and faults.
‣The operator is responsible for interference-free operation of the device.
Modifications to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers and render the product approval null and void:
‣If modifications are nevertheless required, consult with Endress+Hauser.
Repair
To ensure continued operational safety and reliability:
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of a device.

Source container FQG66 Basic safety instructions
Endress+Hauser 7
‣Use original spare parts and accessories from Endress+Hauser only.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate.
2.6 Basic instructions for use and storage
• Observe applicable regulations and national/international standards.
• Comply with radiation protection regulations when using, storing and working with the
radiometric measuring system.
• When storing and transporting the source container, pay attention to the center of
gravity and weight indicated on the packaging.
• Heed warning signs and observe safety zones.
• Install and operate the device according to the instructions in this document and as
specified by the regulatory authority.
• Never operate or store the device outside the specified parameters.
• When operating and storing the device, protect it against extreme influences (i.e.
chemical products, weather, mechanical impacts, vibrations etc.).
• Always secure the "AUS/OFF" switch position by using the lock pin and padlock.
• Before switching on the radiation, make sure that no-one is in the radiation zone (or
inside the product vessel). The radiation may only be switched ON by properly instructed
staff.
• Do not operate damaged or corroded devices. Seek the advice of the competent radiation
safety officer immediately if damage or corrosion occurs. Follow instructions.
• Conduct the required leak test according to the applicable regulations and instructions.
LWARNING
The device is exposed to strong vibrations or impact.
‣At regular intervals, please check that the fastening unit is securely seated and stable
and check the condition of the padlock or the retaining element.
LCAUTION
The plant is not in proper operating condition.
Radiation can escape.
‣Check the area around the device for signs of radiation.
‣Notify the radiation safety officer.
2.7 Hazardous area
NOTICE
The suitability of the radiometric measurement method and of the device for
applications in hazardous areas must be checked by the plant operator according to
the national rules and regulations that apply.
‣Compliance with national rules and regulations is mandatory.
The following must be observed:
• Avoid electrostatic charge at the device. Do not rub synthetic surfaces dry.
• Avoid friction sparks and impact sparks.
• The device must be integrated in the plant potential equalization system.

Basic safety instructions Source container FQG66
8 Endress+Hauser
LCAUTION
Source containers with a proximity switch or pneumatic drive are not suitable for
hazardous areas.
‣Do not use source containers with a proximity switch or pneumatic drive in hazardous
areas.
2.8 General instructions on radiation protection
When working with radioactive sources, avoid any unnecessary exposure to radiation. All
unavoidable radiation exposure must be kept to a minimum. Three basic concepts apply to
achieve this:
ABC
A0016373
A Shield
B Time
C Distance
2.8.1 Shield
Ensure the best possible screening between the radiation source and yourself and all other
persons. Source containers (e.g. FQG60, FQG61, FQG62, FQG63, FQG66) and all high-
density materials (lead, iron, concrete) can be used for effective screening purposes.
2.8.2 Time
The time spent in the exposed area should be kept to a minimum.
2.8.3 Distance
Keep as far away from the radiation source as possible. The local radiation dose rate
decreases in proportion to the square of the distance from the radiation source.
2.9 Legal regulations for radiation protection
The handling of radioactive emitters is legally controlled. The radiation protection
regulations of the country in which the plant is operated are of overriding importance and
must be strictly observed. In the Federal Republic of Germany, the current versions of the
Radiation Protection Act and the Radiation Protection Directive apply. The following points
derived from this Ordinance are particularly important for radiometric measurement:
2.9.1 Handling permit
A handling permit is required by the operator of a plant that uses gamma radiation. Permit
applications are made to the local state government or the authority responsible (State
Offices for Environmental Protection, Trade Inspection Offices, etc.). The Endress+Hauser
sales organization will be happy to help you obtain the handling permit.

Source container FQG66 Basic safety instructions
Endress+Hauser 9
2.9.2 Radiation safety officer
The plant operator must appoint a radiation safety officer (RSO) who has the necessary
specialist knowledge and who is responsible for observing the Radiation Protection
Directive and all radiation protection procedures. Endress+Hauser offers training courses
in which individuals can acquire the necessary specialist knowledge.
2.9.3 Control zone
Only persons who are exposed to radiation during the course of their job and are subject to
official personal dose monitoring procedures may work in control zones (i.e. areas where
the local dose rate exceeds a specific value). The limit values for the control zone are
specified in the current Radiation Protection Ordinance applicable for your area.
The Endress+Hauser sales organization will be pleased to provide further information on
radiation protection and regulations in other countries.
2.10 Supplementary safety instructions
Please observe the safety instructions in documents SD00292F/00 (for Canada) and
SD01561F/00 (for the United States).

Product description Source container FQG66
10 Endress+Hauser
3 Product description
3.1 Product design
Feature 020 "Version"
• A - "Manual operation"
Lock pin to secure the "EIN/ON" and "AUS/OFF" switch position
• B - "Manual operation + proximity switch"
Lock pin to secure the "EIN/ON" and "AUS/OFF" switch position, with proximity switch
• L - "Pneumat. drive + proximity switch"
• Pneumatic drive with proximity switch
• "EIN/ON" switch position: pressurized
• "AUS/OFF" switch position: unpressurized
A B, L
1
33
1
2
44
55
8
6 6
8
7
2
A0023516
A Manual operation
B Manual operation + proximity switch
L Pneumatic drive + proximity switch
1 Lifting eye
2 Radiation symbols: fitted when FQG66 is loaded
3 Source container
4 Padlock
5 Operating unit with protection cap
6 Bracket for mounting
7 Terminal housing
8 Sign holders (for fitting nameplates and connection for potential equalization)

Source container FQG66 Incoming acceptance and product identification
Endress+Hauser 11
4 Incoming acceptance and product
identification
The radiation source container also serves as Type-A packaging (IATA rules) for the
radiation source.
4.1 Packaging dimensions
4.1.1 Secondary packaging for loaded / unloaded container
1200 (47.2)
800 (31.5)
800 (31.5)
A0042563
 1 Dimensions of secondary packaging for unloaded container. Unit of measurement mm (in)
4.1.2 Seaworthy secondary packaging
1200 (47.2)
900 (35.4)
800 (31.5)
A0042564
 2 Dimensions of seaworthy secondary packaging. Unit of measurement mm (in)
4.2 Incoming acceptance
Check the following during goods acceptance:
 Are the order codes on the delivery note and the product sticker identical?
 Are the goods undamaged?

Incoming acceptance and product identification Source container FQG66
12 Endress+Hauser
 Do the nameplate data match the ordering information on the delivery note?
If one of these conditions is not met, please contact the manufacturer's sales office.
4.3 Product identification
The following options are available for the identification of the measuring device:
• Nameplate specifications
• Extended order code with breakdown of the device features on the delivery note
‣Enter the serial number from the nameplates into W@M Device Viewer
(www.endress.com/deviceviewer)
 All the information about the measuring device and the scope of the associated
Technical Documentation are displayed.
‣Enter the serial number from the nameplate into the Endress+Hauser Operations App
or use the Endress+Hauser Operations App to scan the 2-D matrix code (QR Code)
provided on the nameplate
 All the information about the measuring device and the scope of the associated
Technical Documentation are displayed.
4.4 Manufacturer address
Endress+Hauser SE+Co. KG
Hauptstraße 1
79689 Maulburg, Germany
Address of the manufacturing plant: See nameplate.
4.5 Nameplate
4.5.1 Device nameplate
Order code:
Ser. no.:
Ident no.:
FQG
Made in Germany, D-79689 Maulburg
1
4
5
6
7
2
3
A0026746
1 ID number of source container
2 Serial number of source container
3 Order code for source container as per product structure
4 Order code for source container as per product structure
5 Radiation angle of emission
6 Specification: horizontal or vertical
7 Local dose rate at a defined distance from the surface (when switched off, outside the path of the beam)

Source container FQG66 Incoming acceptance and product identification
Endress+Hauser 13
Nameplate of the radiation source
6
5
4
2
1
3
7
Source No:
Radionuclide
Ser. No:
Gamma source
Made in Germany, D-79689 Maulburg
Dat.:
Order Code :
Activity:
Caution Radioactive Material
A0026744
1 Internal Endress+Hauser order code for the radiation source
2 Internal Endress+Hauser serial number for the radiation source
3 Wording "Caution Radioactive Material", if required
4 "Co60" or "Cs137"
5 Serial number of the radiation source (according to certificate of the supplier)
6 Activity including unit (MBq or GBq)
7 Date of loading (month/year)
4.5.2 Supplementary nameplate
Australia
10
7
5
4
3
2
1
6
9
8
Endress + Hauser Australia Pty. Ltd.
Level 1 16 Giffnock Avenue NORTH RYDE NSW 2113
Telephone: [phone]
ENDRESS + HAUSER
CAUTION
RADIATION
SOURCE
MANUFACTURED BY:
DATE OF MANUFACTURE:
SOURCE:
ACTIVITY:
SOURCE SERIAL NUMBER:
SOURCE MODEL No:
INSTRUMENT MODEL:
SERIAL NUMBER:
MAX. RADIATION LEVEL
AT ONE METER:
DATE OF MEASUREMENT:
ISO CLASS No:
A0026743
1 Date of manufacture of radiation source
2 "Co60" or "Cs137"
3 Activity including unit (MBq or GBq)
4 Serial number of radiation source
5 Order code of radiation source
6 Internal Endress+Hauser order code for the radiation source
7 Internal Endress+Hauser serial number for the radiation source
8 Local dose rate at defined distance: 1 m (3.3 ft)
9 Date of container inspection
10 Material class of radiation source

Incoming acceptance and product identification Source container FQG66
14 Endress+Hauser
Norway
ADVARSEL INNEHOLDER
RADIOAKTIV STRALEKILDE.
STRALEVERN TYPE FQG S
DENNE ER DET IKKE LOV A EIE.
FLYTTE ELLER KASTE UTEN
GODKJENNELSE FRA
STATENS STRALEVERN.
KAN KUN BEHANDLES AV
STRALEVERNKYNDIG PERSON.
FØLG STRALEVERNFORSKRIFTENE.
66 40°
A0027290
Sweden
INNEHÅLLER RADIOAKTIV
STRÅLKÄLLA.
FÅR TAS ISÄR ENDAST AV
STRÅLSKYDDSUTBILDAD PERSON.
STRÅLKÄLLAN SKA OMHÄNDERTAS
SOM RADIOAKTIVT AVFALL VID
SKROTNING
A0026742
USA
Distributor in the U.S.A
Endress+Hauser, Inc.
2350 Endress Place
Greenwood, IN 46143-9972
A0027291
4.6 Storage and transport
4.6.1 Storage conditions
• Permitted storage temperature:
• Order code 020 "Version", option A "Manual operation":
–55 to +100 °C (–67 to +212 °F)
• Order code 020 "Version", option B "Manual operation + proximity switch", option L
"Pneumat. drive + proximity switch":
–20 to +80 °C (–4 to +176 °F)
• Use original packaging.

Source container FQG66 Incoming acceptance and product identification
Endress+Hauser 15
4.6.2 Transporting the product to the measuring point
LWARNING
Risk of injury!
‣Transport the measuring device to the measuring point in the original packaging.
‣A lifting eye for lifting by crane is provided on the FQG66 source container as an
installation aid.
‣Follow the safety instructions and transport conditions for devices weighing more than
18 kg (39.6 lb).
‣Note the center of gravity and weight.
Total weight
• ~ 450 kg (992 lb) for loaded containers including disposable pallet
• ~ 475 kg (1 047 lb) for unloaded containers including Euro pallet
AB
A0042534
A Original packaging, Euro pallet, loaded / unloaded source container
B Original packaging, Euro pallet (sea freight)
AB
A0026817
A Transporting the device screwed to a disposable pallet using a crane attached to the lifting eye
B Transporting the device using a crane attached to the lifting eye

Installation Source container FQG66
16 Endress+Hauser
5 Installation
5.1 Installation conditions
The source container can be mounted as follows:
• On an external construction with low to zero vibration
• Directly mounted on clamping device, provided by customer, attached to the pipe
LCAUTION
Mounting the source container
‣The source container may only be mounted according to local regulations and/or the
handling permit by certified, specially trained personnel whose radiation exposure is
monitored. Ensure that this is allowed by the handling permit. All local conditions must
be taken into consideration.
‣Mount the source container in a horizontal position (i.e. with the cover pointing to the
right or left).
‣All work must be carried out as quickly as possible and as far away as possible from the
radiation source (shielding!). Suitable measures (e.g. blocking of access) must also be
taken to protect other individuals from all possible risk.
‣Mounting and removal is only permitted with the switch in the "AUS/OFF" position,
secured by the lock pin.
‣Take the weight of the source container into consideration: max. 435 kg (959.18 lb)
‣Optimum fire resistance can only be guaranteed if the FQG66 is mounted horizontally
(device standing on the device base).
‣If using the device in non-stationary plants, additional measures must be taken to
ensure the device cannot be lost, and to protect it from collision and impact.
‣Use the lifting eye and suitable lifting equipment. Consider the weight and center of
gravity of the container!
5.2 Mounting the measuring device
5.2.1 Orientation for level measurement
For continuous level measurement, the source container must be mounted at the height of,
or slightly above, the maximum level.
The radiation must be aligned exactly with the detector mounted on the opposite side. The
source container and detector should be mounted as close as possible to the product vessel
to avoid control zones.

Source container FQG66 Installation
Endress+Hauser 17
20°/
40°
1
2
A0023674
1 FQG66: Order code 240 "Angle of emission", option 3 "20 degrees, horizontal" or
option 5 "40 degrees, horizontal"
2 Gammapilot
A distance between the source container and the product vessel is often unavoidable if the
measuring range is large and the container diameter small. This space must then be
secured by grip protection and marked accordingly.
2
1
20°/
40°
A0023677
1 FQG66: Order code 240 "Angle of emission", option 3 "20 degrees, horizontal" or
option 5 "40 degrees, horizontal"
2 Gammapilot

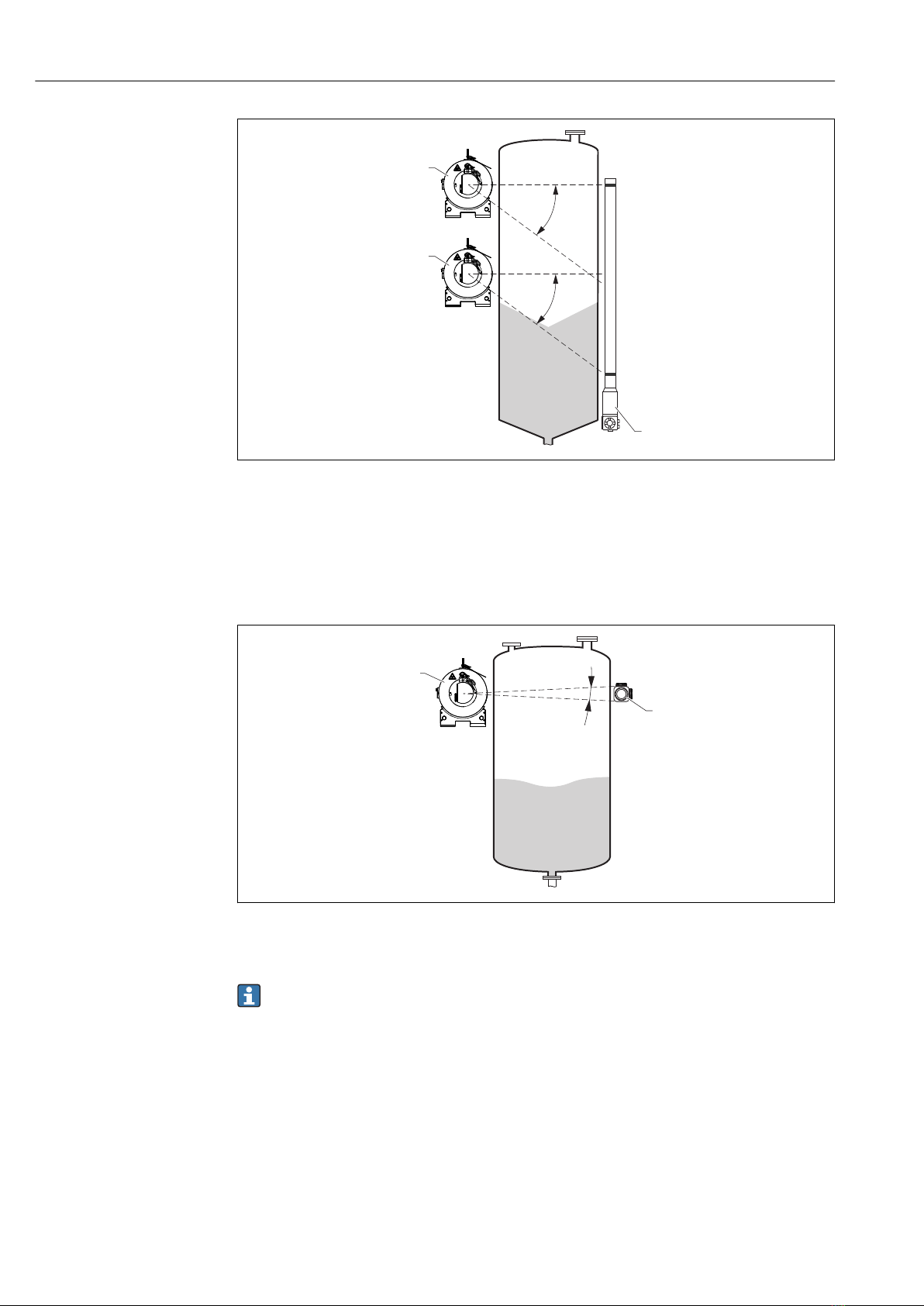

Two or more source containers are used for large measuring ranges. The use of several
sources can be necessary not only due to large measuring ranges but also for accuracy
reasons.

Installation Source container FQG66
18 Endress+Hauser
2
1
1
40°
40°
A0023679
1 FQG66: Order code 240 "Angle of emission", option 5 "40 degrees"
2 Gammapilot
5.2.2 Orientation for point level detection
For point level detection, the radiation source container is mounted at the same height as
the detector.
1
2
5°
A0023681
1 FQG66: Order code 240 "Angle of emission", option 1 "5 degrees, horizontal"
2 Gammapilot
• Keep the distance between the FQG66 and the vessel wall to a minimum!
• Secure any intermediate area between the source container and wall by grip
protection, if necessary!

Source container FQG66 Installation
Endress+Hauser 19

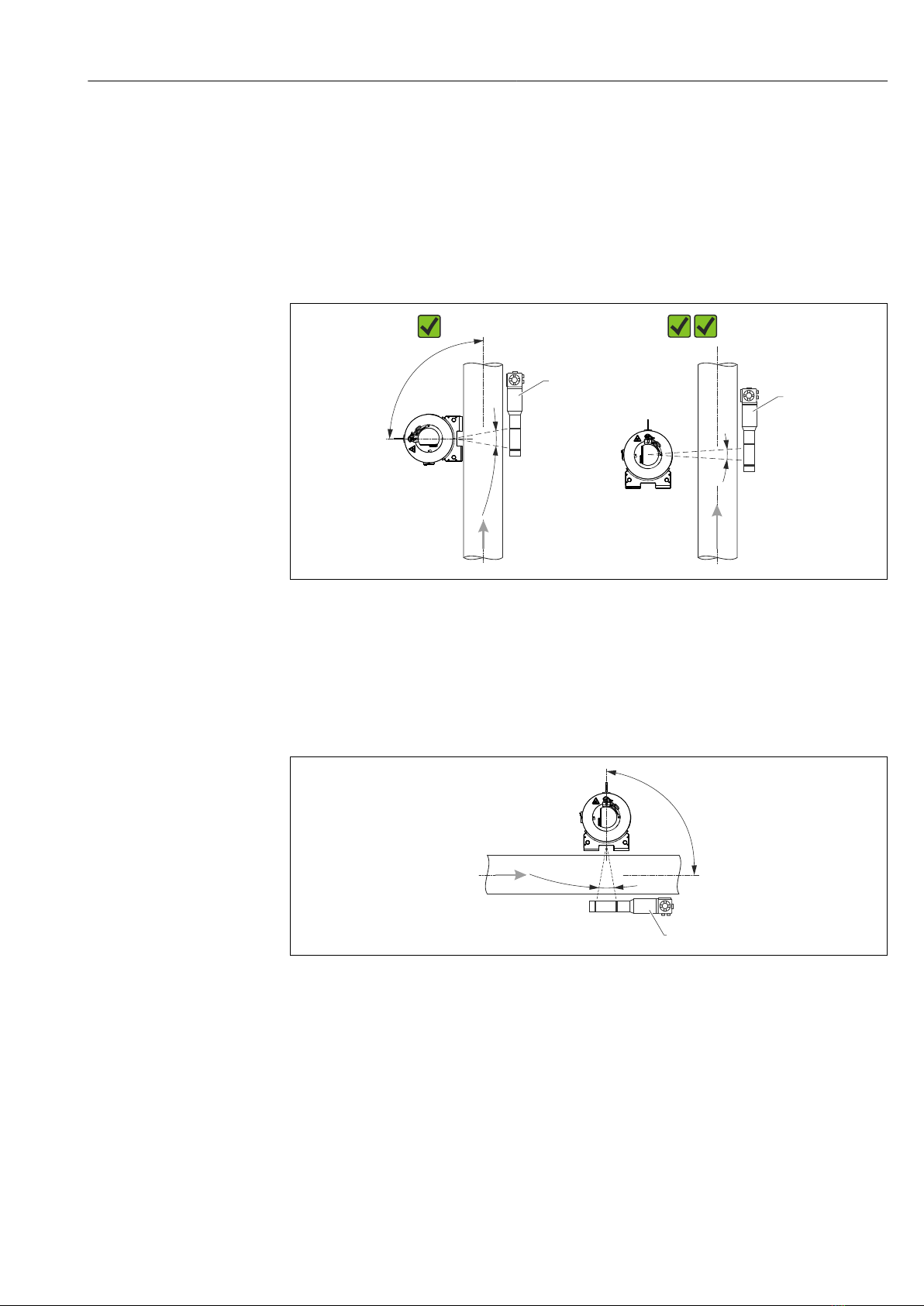

5.2.3 Orientation for density measurement
Vertical pipes
If possible, density should be measured with forward flow from bottom to top. With this
type of measuring arrangement, the detector (e.g. Gammapilot M FMG60) should
preferably be positioned so that it is mounted with the terminal head at the top. If this
arrangement is not possible, an additional bracket must be used to secure the detector
against slipping.
A
1
1
90°
5°/
20°/
40°
5°
B
A0023787
A Order code 240 "Angle of emission", option 2, 4 or 6 "5, 20 or 40 degrees, vertical"
B Order code 240 "Angle of emission", option 1 "5 degrees, horizontal"
1 Gammapilot
Horizontal pipes
With this type of orientation, it is advisable to mount the FQG66 above the pipe. Attention
must be paid to the effect of air bubbles and material buildup in the pipe.
1
90°
5°/
20°/
40°
A0023795
 3 Feature 240 "Angle of emission", option model 2, 4 or 6 "5, 20 or 40 degrees, vertical"
1 Gammapilot
Lateral installation is only permitted in low-vibration applications, while taking safety
instructions into consideration (regular inspection of the "EIN/ON" or "AUS/OFF"
mechanism, padlock or retaining element and mounting clamps).

Installation Source container FQG66
20 Endress+Hauser
B
A
A0023796
A Source container FQG66 with vertical beam emission
B Source container FQG66 with horizontal beam emission
General information
The clamping device must be installed in such a way as to withstand the weight of the
source container and the detector (e.g. Gammapilot) under all anticipated operating
conditions (e.g. vibrations). If necessary, the customer should provide additional support
with a separate, stable, low-vibration construction.
Note the weights:
• Gammapilot FMG60: 14 to 29 kg (30.87 to 63.95 lb)
• Gammapilot FTG20: 15.5 kg (34.18 lb)
• Source container FQG66: 435 kg (959.18 lb)
5.3 Post-installation check
 Is the device undamaged (visual inspection)?
Are the measuring point identification and labeling correct (visual inspection)?
Does the device comply with the measuring point specifications? For example:
•  ambient temperature
•  Measuring height
•  Source activity
•  Angle of emission
Are the securing screws firmly tightened?
5.3.1 Measuring the local dose rate
After mounting, the local dose rate in the vicinity of the source container and the detector
must be measured.
LCAUTION
‣Depending on the installation, radiation can also occur outside the actual radiation
emission channel through scattering. In such cases it must be shielded off by the use of
additional lead or steel shielding. Render and mark all control and exclusion areas as
prohibited for unauthorized entry.
What to do in event of empty process vessel or pipe
LCAUTION
‣If the process vessel is empty, once the unit has been correctly mounted the control
area around the empty process vessel must be measured. If necessary, this area must be
cordoned off and marked accordingly. If there is an entry into the interior space of the
process vessel, it must be sealed off and marked with a "radioactive" safety sign. Access
can only be permitted by the competent radiation safety officer after he/she has
checked all the safety precautions. The source container must be switched off for access
to be permitted. If maintenance is required in or on the product vessel, it is mandatory
to switch off the radiation. Additional shielding measures may also be required.
