Brief Operating Instructions

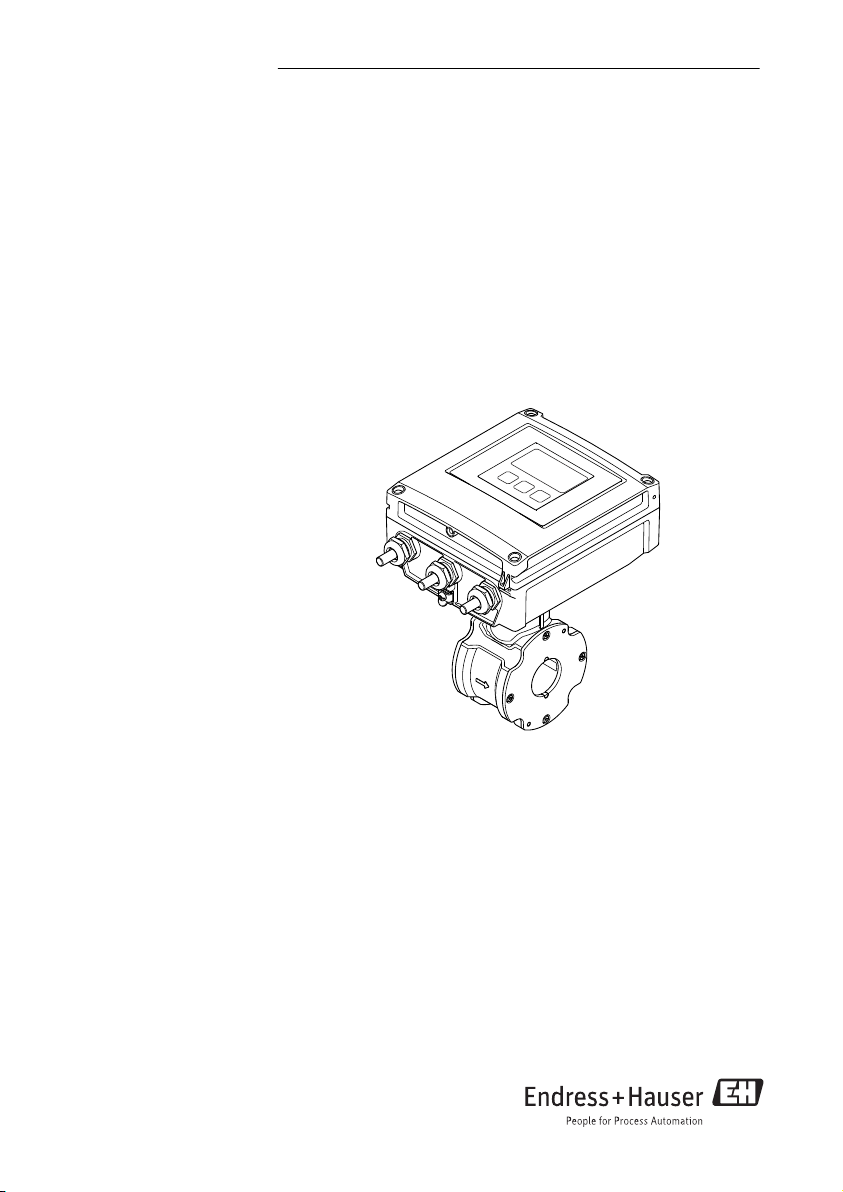

Proline Promag D 400
Electromagnetic flowmeter
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
• On the CD-ROM supplied (is not included in the delivery for
all device versions).
• Available for all device versions via:
– Internet: www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Description of the procedure (→  10)
KA01112D/06/EN/03.14
71245353

Table of contents Proline Promag D 400
2 Endress+Hauser
Table of contents
1 Document information ........................................................... 3
1.1 Symbols used ........................................................................ 3
2 Basic safety instructions ......................................................... 5
2.1 Requirements for the personnel ........................................................... 5
2.2 Designated use ....................................................................... 5
2.3 Workplace safety ...................................................................... 6
2.4 Operational safety ..................................................................... 6
2.5 Product safety ........................................................................ 7
2.6 IT security ........................................................................... 7
3 Product description .............................................................. 8
3.1 Product design ....................................................................... 8
4 Incoming acceptance and product identification .................................. 9
4.1 Incoming acceptance ................................................................... 9
4.2 Product identification ................................................................. 10
5 Storage and transport ........................................................... 11
5.1 Storage conditions .................................................................... 11
5.2 Transporting the product ............................................................... 12
6 Mounting ....................................................................... 13
6.1 Installation conditions ................................................................. 13
6.2 Mounting the measuring device .......................................................... 18
6.3 Post-installation check ................................................................. 26
7 Electrical connection ............................................................ 26
7.1 Connection conditions ................................................................. 27
7.2 Connecting the measuring device ......................................................... 33
7.3 Hardware settings .................................................................... 39
7.4 Ensuring the degree of protection ........................................................ 42
7.5 Post-connection check ................................................................. 42
8 Operation options .............................................................. 43
8.1 Structure and function of the operating menu ................................................ 43
8.2 Access to the operating menu via the local display ............................................ 45
8.3 Access to the operating menu via the Web browser ............................................ 51
8.4 Access to the operating menu via the operating tool ........................................... 54
9 System integration .............................................................. 54
10 Commissioning ................................................................. 54
10.1 Function check ...................................................................... 54
10.2 Switching on the measuring device ........................................................ 55
10.3 Configuring the device address via software ................................................. 55
10.4 Setting the operating language .......................................................... 55
10.5 Configuring the measuring device ........................................................ 56
10.6 Defining the tag name ................................................................. 57
10.7 Protecting settings from unauthorized access ................................................ 57
11 Diagnostic information ......................................................... 60

Proline Promag D 400 Document information
Endress+Hauser 3
1 Document information
1.1 Symbols used
1.1.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in personal
injury.
1.1.2 Electrical symbols
Symbol Meaning
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
Direct current and alternating current
• A terminal to which alternating voltage or DC voltage is applied.
• A terminal through which alternating current or direct current flows.
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.

Document information Proline Promag D 400
4 Endress+Hauser
1.1.3 Tool symbols
Symbol Meaning
Torx screwdriver
Phillips head screwdriver
Open-ended wrench
1.1.4 Symbols for certain types of information
Symbol Meaning
Permitted
Indicates procedures, processes or actions that are permitted.
Preferred
Indicates procedures, processes or actions that are preferred.
Forbidden
Indicates procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation
Refers to the corresponding device documentation.
Reference to page
Refers to the corresponding page number.
Reference to graphic
Refers to the corresponding graphic number and page number.
,… ,
Series of steps
Result of a sequence of actions
Visual inspection
1.1.5 Symbols in graphics
Symbol Meaning
1, 2, 3,... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections

Proline Promag D 400 Basic safety instructions
Endress+Hauser 5
Symbol Meaning
Flow direction
-
Hazardous area
Indicates a hazardous area.
.
Safe area (non-hazardous area)
Indicates the non-hazardous area.
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the instructions
in the Operating Instructions and supplementary documentation as well as in the
certificates (depending on the application)
‣Following instructions and basic conditions
2.2 Designated use
Application and media
The measuring device described in these Instructions is intended only for flow measurement
of liquids with a minimum conductivity of 5 μS/cm.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or in applications
where there is an increased risk due to process pressure, are labeled accordingly on the
nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣Use the measuring device only for media against which the process-wetted materials are
adequately resistant.
‣If the measuring device is not operated at atmospheric temperature, compliance with the
relevant basic conditions specified in the associated device documentation is absolutely
essential: "Device documentation" section (→  10).

Basic safety instructions Proline Promag D 400
6 Endress+Hauser
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
!WARNING
Danger of breakage of the sensor due to corrosive or abrasive fluids!
‣Verify the compatibility of the process fluid with the sensor material.
‣Ensure the resistance of all fluid-wetted materials in the process.
‣Observe the specified pressure and temperature range.
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
Residual risks
The external surface temperature of the housing can increase by max. 10 K due to the power
consumption of the electronic components. Hot process fluids passing through the measuring
device will further increase the surface temperature of the housing. The surface of the sensor,
in particular, can reach temperatures which are close to the fluid temperature.
Possible burn hazard due to fluid temperatures!
‣For elevated fluid temperature, ensure protection against contact to prevent burns.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.
If working on and with the device with wet hands:
‣It is recommended to wear gloves on account of the higher risk of electric shock.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Environmental requirements
If a plastic transmitter housing is permanently exposed to certain steam and air mixtures, this
can damage the housing.
‣If you are unsure, please contact your Endress+Hauser Sales Center for clarification.
‣If used in an approval-related area, observe the information on the nameplate.

Proline Promag D 400 Basic safety instructions
Endress+Hauser 7
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
2.6 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.

Product description Proline Promag D 400
8 Endress+Hauser
3 Product description
3.1 Product design
1
2
3
5
6
8
7
4
A0021563
 1 Important components of the compact version

Proline Promag D 400 Incoming acceptance and product identification
Endress+Hauser 9
1 Display module
2 Smart sensor electronics module
3 HistoROM DAT (plug-in memory)
4 Main electronics module
5 Terminals (screw terminals, some available as plug-in terminals)
6 Transmitter housing, compact version
7 Cable glands
8 Sensor, compact version
4 Incoming acceptance and product identification
4.1 Incoming acceptance
1
+
2
1
+
2
Are the order codes on the
delivery note (1) and the
product sticker (2) identical?
Are the goods undamaged?
Do the nameplate data match
the ordering information on
the delivery note?
Is the CD-ROM with the
Technical Documentation
(depends on device version)
and documents present?

Incoming acceptance and product identification Proline Promag D 400
10 Endress+Hauser
• If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center.
• Depending on the device version, the CD-ROM might not be part of the delivery! In
such cases, the technical documentation is available via the Internet or via the Endress
+Hauser Operations App, see the "Device documentation" section (→  10).
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is displayed.
• Enter the serial number from the nameplates into the Endress+Hauser Operations App or
scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations
App: all the information for the measuring device is displayed.
Order code:
Ext. ord. cd.:
Ser. no.:
Order code:
Ext. ord. cd.:
Ser. no.:
1
2
3
4
A0021952

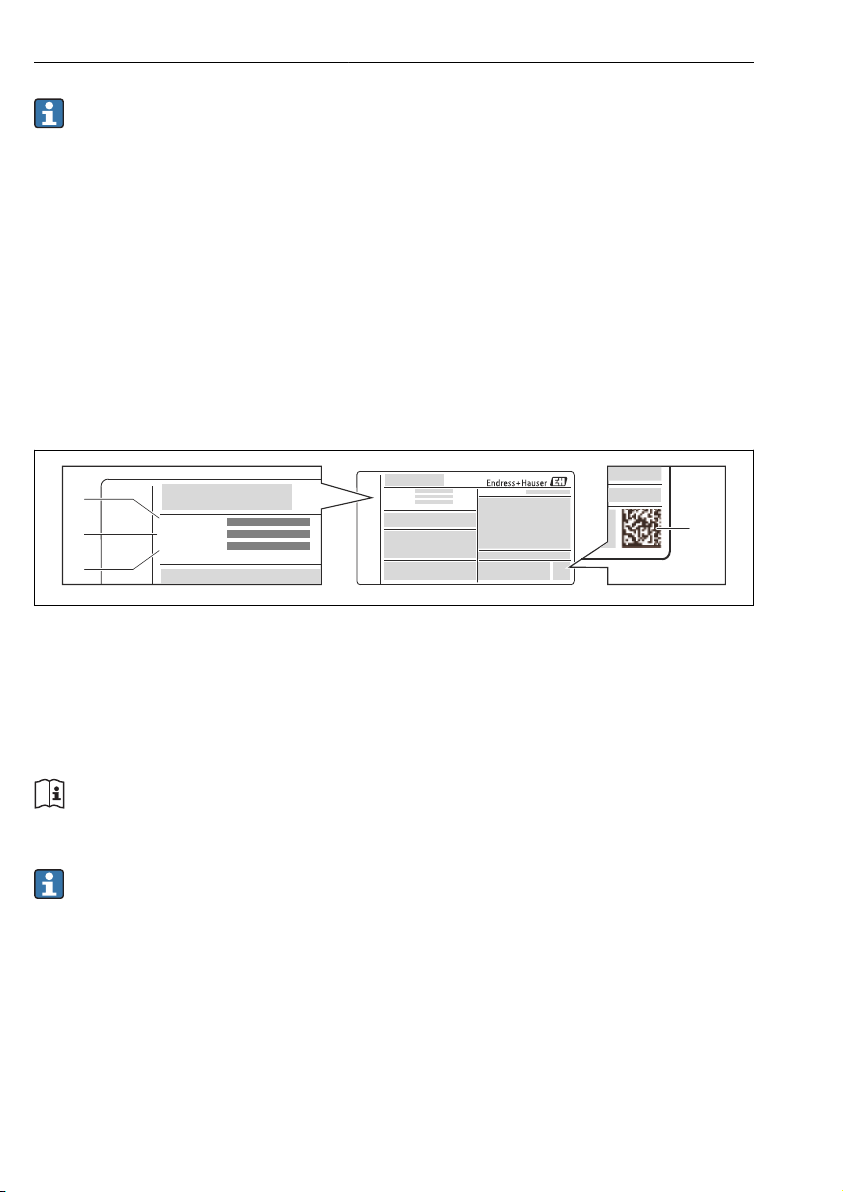

 2 Example of a nameplate
1 Order code
2 Serial number (Ser. no.)
3 Extended order code (Ext. ord. cd.)
4 2-D matrix code (QR code)
For detailed information on the breakdown of the specifications on the nameplate, see
the Operating Instructions for the device (→  10).
4.2.1 Device documentation
All devices are supplied with Brief Operating Instructions. These Brief Operating
Instructions are not a substitute for the Operating Instructions pertaining to the device!
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• On the CD-ROM supplied (is not included in the delivery for all device versions).
• Available for all device versions via:
– Internet: www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
The information required to retrieve the documentation can be found on the nameplate of the
device (→  2,  10).

Proline Promag D 400 Storage and transport
Endress+Hauser 11
Technical documentation can also be downloaded from the Download Area of the
Endress+Hauser web site: www.endress.com→ Download. However this technical
documentation applies to a particular instrument family and is not assigned to a specific
device.
W@M Device Viewer
1. Launch the W@M Device Viewer: www.endress.com/deviceviewer
2. Enter the serial number (Ser. no.) of the device: see nameplate (→  2,  10).
 All the associated documentation is displayed.
Endress+Hauser Operations App
The Endress+Hauser Operations App is available for Android (Google play) and iOS (App
Store).
Via the serial number:
1. Launch the Endress+Hauser Operations App.
2. Enter the serial number (Ser. no.) of the device: see nameplate (→  2,  10).
 All the associated documentation is displayed.
Via the 2-D matrix code (QR code):
1. Launch the Endress+Hauser Operations App.
2. Scan the 2-D matrix code (QR code) on the nameplate (→  2,  10).
 All the associated documentation is displayed.
5 Storage and transport
5.1 Storage conditions
Observe the following notes for storage:
• Store in original packaging.
• Do not remove protective covers or protective caps installed on process connections.
• Protect from direct sunlight.
• Select a storage location where moisture cannot collect in the measuring device.
• Store in a dry and dust-free place.
• Do not store outdoors.
• Storage temperature(→  13)

Storage and transport Proline Promag D 400
12 Endress+Hauser
5.2 Transporting the product

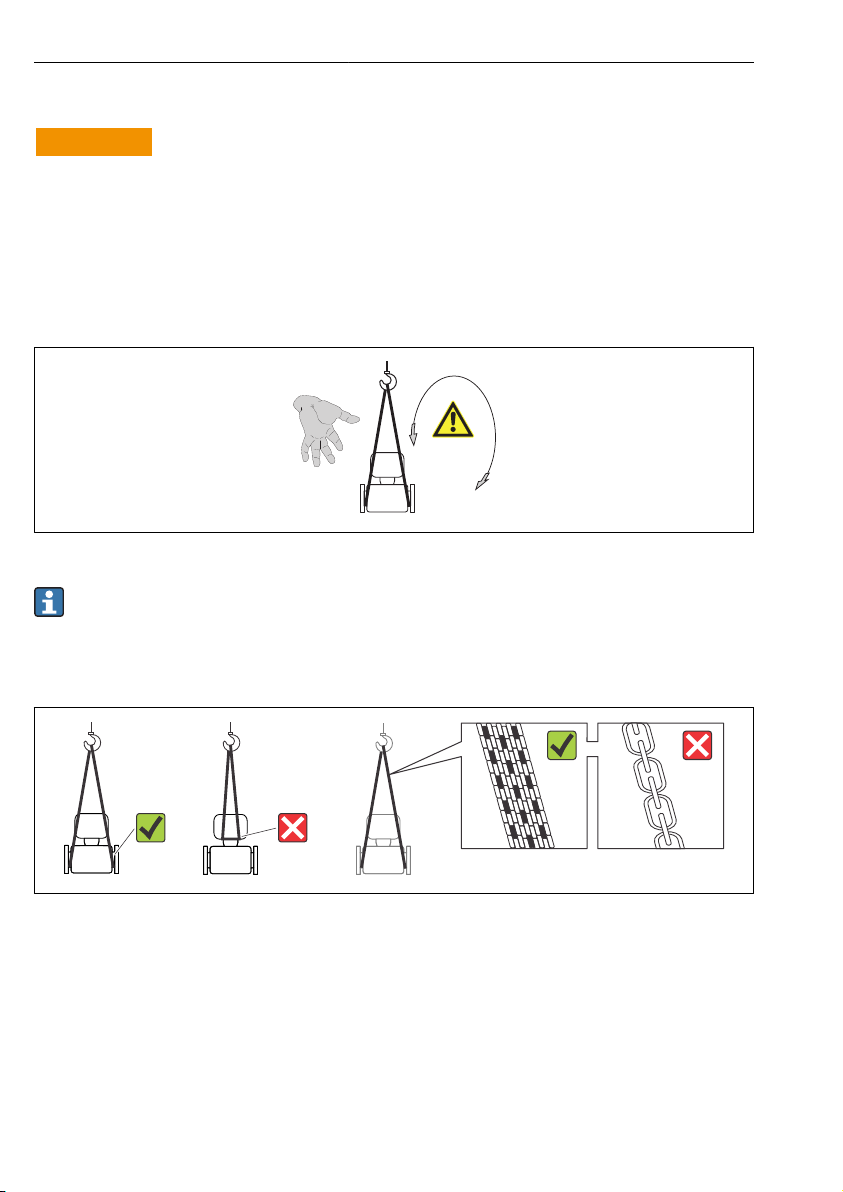

!WARNING
Center of gravity of the measuring device is higher than the suspension points of the
webbing slings.
Risk of injury if the measuring device slips.
‣Secure the measuring device from rotating or slipping.
‣Observe the weight specified on the packaging (stick-on label).
‣Observe the transport instructions on the stick-on label on the electronics compartment
cover.
A0015606
• Transport the measuring device to the measuring point in the original packaging.
• Do not remove protective covers or protective caps installed on process connections.
They prevent mechanical damage to the sealing surfaces and contamination in the
measuring tube.
A0015604

Proline Promag D 400 Mounting
Endress+Hauser 13
6 Mounting
6.1 Installation conditions
6.1.1 Mounting position
Mounting location
h
A0023343
h ≥ 2 × DN
Installation in down pipes
Install a siphon with a vent valve downstream of the sensor in down pipes whose length h ≥
5 m (16.4 ft). This precaution is to avoid low pressure and the consequent risk of damage to
the measuring tube. This measure also prevents the system losing prime.
h
2
1
A0017064
 3 Installation in a down pipe
1 Vent valve
2 Pipe siphon
h Length of down pipe

Mounting Proline Promag D 400
14 Endress+Hauser

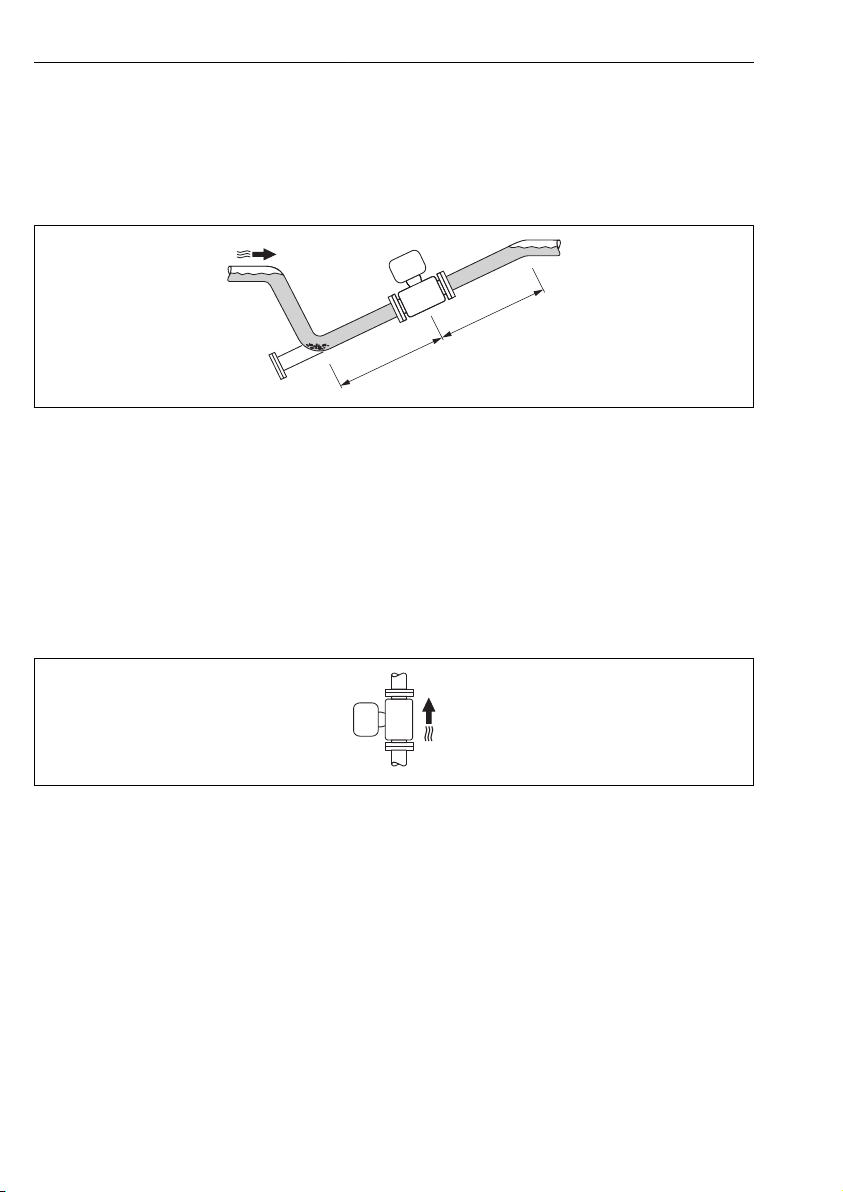

Installation in partially filled pipes
A partially filled pipe with a gradient necessitates a drain-type configuration. The empty pipe
detection (EPD) function offers additional protection by detecting empty or partially filled
pipes.
³5 × DN ³2 × DN
A0017063
Orientation
The direction of the arrow on the sensor nameplate helps you to install the sensor according
to the flow direction.
An optimum orientation position helps avoid gas and air accumulations and deposits in the
measuring tube.
Vertical
A0015591
This is the optimum for self-emptying piping systems.

Proline Promag D 400 Mounting
Endress+Hauser 15
Horizontal
A
1 1
A
A0017195
1 Measuring electrodes for signal detection
The measuring electrode plane must be horizontal. This prevents brief insulation of the
two measuring electrodes by entrained air bubbles.
Inlet and outlet runs
5 × DN≥2 × DN≥
A0016275
For the dimensions and installation lengths of the device, see the "Technical Information"
document, "Mechanical construction" section
6.1.2 Requirements from environment and process
Ambient temperature range
For detailed information on the ambient temperature range, see the Operating
Instructions for the device (→  10)

Mounting Proline Promag D 400
16 Endress+Hauser
If operating outdoors:
• Install the measuring device in a shady location.
• Avoid direct sunlight, particularly in warm climatic regions.
• Avoid direct exposure to weather conditions.
• Protect the display against impact.
• Protect the display from abrasion by sand in desert areas.
A display protector can be ordered from Endress+Hauser: "Accessories" section
System pressure
A0015594
Furthermore, install pulse dampers if reciprocating, diaphragm or peristaltic pumps are
used.
Vibrations
It is recommended to mount the sensor and transmitter separately.
L
A0016266
 4 Measures to avoid device vibrations (L > 10 m (33 ft))

Proline Promag D 400 Mounting
Endress+Hauser 17
Adapters
100
10
0.5
d / D
[mbar]
0.6 0.7 0.8 0.9
1 m/s
2 m/s
3 m/s
4 m/s
5 m/s
6 m/s
7 m/s
8 m/s
1
D
d
max. 8°
A0016359
6.1.3 Special mounting instructions
Display protection
‣To ensure that the optional display protection can be easily opened, maintain the
following minimum head clearance: 350 mm (13.8 in)

Mounting Proline Promag D 400
18 Endress+Hauser
6.2 Mounting the measuring device
6.2.1 Required tools
For transmitter
• Torque wrench
• For wall mounting:
Open-ended wrench for hexagonal screw max. M5
• For pipe mounting:
– Open-ended wrench AF 8
– Phillips head screwdriver PH 2
• For turning the transmitter housing (compact version):
– Phillips head screwdriver PH 2
– Torx screwdriver TX 20
– Open-ended wrench AF 7
For sensor
For flanges and other process connections:
• Screws, nuts, seals etc. are not included in the scope of supply and must be provided by the
customer.
• Appropriate mounting tools
6.2.2 Preparing the measuring device
1. Remove all remaining transport packaging.
2. Remove any protective covers or protective caps present from the sensor.
3. Remove stick-on label on the electronics compartment cover.
6.2.3 Mounting the sensor
Mounting kit
The sensor is installed between the pipe flanges using a mounting kit. The device is centered
using the recesses on the sensor. Centering sleeves are also provided depending on the flange
standard or the diameter of the pitch circle.
A mounting kit – consisting of mounting bolts, seals, nuts and washers – can be ordered
separately (see "Accessories" section ).

Proline Promag D 400 Mounting
Endress+Hauser 19
5
1
2
3
4
A0018060
 5 Mounting the sensor
1 Nut
2 Washer
3 Mounting bolts
4 Centering sleeve
5 Seal
Arranging the mounting bolts and centering sleeves
The device is centered using recesses on the sensor. The arrangement of the mounting bolts
and the use of the centering sleeves supplied depend on the nominal diameter, the flange
standard and the diameter of the pitch circle.
Nominal diameter Process connection
[mm] [in]5 EN 1092-1 (DIN 2501) ASME B16.5 JIS B2220
25…40 1…1 ½
1
1
1
1
A0010896 A0010824
1
1
1
1
A0010896
50 2
1
1
1
1
A0010897 A0010825 A0010825

Mounting Proline Promag D 400
20 Endress+Hauser
Nominal diameter Process connection
[mm] [in]5 EN 1092-1 (DIN 2501) ASME B16.5 JIS B2220
65 2 ½
2
2
2 2
3
3
3
3
3
3
3
3
A0012170
–
A0012171
80 3
1
1
1
1
1
1
A0010898 A0010827 A0010826
100 4
1
1
11
1
1
11
A0012168
1
1
11
1
1
11
A0012168
A0012169
1 = Mounting bolts with centering sleeves
2 = EN (DIN) flange: 4-hole → with centering sleeves
3 = EN (DIN) flange: 8-hole → without centering sleeves
Mounting the seals
!CAUTION
An electrically conductive layer could form on the inside of the measuring tube!
Risk of measuring signal short circuit.
‣Do not use electrically conductive sealing compounds such as graphite.
Comply with the following instructions when installing seals:
• Make sure that the seals do not protrude into the piping cross-section.
• For DIN flanges: only use seals according to DIN EN 1514-1.
• Use seals with a hardness rating of 70° Shore.
