Brief Operating Instructions
Levelflex FMP55
HART
Guided Level Radar
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
Available for all device versions via:
– Internet: www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Description of the procedure (→  12)
KA01060F/00/EN/15.13
71226726

Table of contents Levelflex FMP55 HART
2 Endress+Hauser
Table of contents
1 Important document information ................................................ 3
1.1 Symbols ............................................................................ 3
2 Basic safety instructions ......................................................... 6
2.1 Requirements for the personnel ........................................................... 6
2.2 Designated use ....................................................................... 6
2.3 Workplace safety ...................................................................... 7
2.4 Operational safety ..................................................................... 7
2.5 Product safety ........................................................................ 7
3 Product description .............................................................. 8
3.1 Design ............................................................................. 8
4 Incoming acceptance and product identification ................................. 10
4.1 Incoming acceptance .................................................................. 10
4.2 Product identification ................................................................. 11
4.3 Device documentation ................................................................. 12
5 Storage, Transport .............................................................. 13
5.1 Storage conditions .................................................................... 13
5.2 Transport product to the measuring point ................................................... 13
6 Mounting ....................................................................... 15
6.1 Mounting requirements ................................................................ 15
6.2 Mounting the device .................................................................. 21
6.3 Post-installation check ................................................................. 29
7 Electrical connection ............................................................ 30
7.1 Connection conditions ................................................................. 30
7.2 Connecting the device ................................................................. 49
7.3 Post-connection check ................................................................. 52
8 Commissioning (via operating menu) ........................................... 53
8.1 Display and operating module ........................................................... 53
8.2 Operating menu ..................................................................... 56
8.3 Unlock the device .................................................................... 57
8.4 Setting the operating language .......................................................... 57
8.5 Configuration of an interface measurement ................................................. 58
8.6 User-specific applications ............................................................... 60

Levelflex FMP55 HART Important document information
Endress+Hauser 3
1 Important document information
1.1 Symbols
1.1.1 Safety symbols

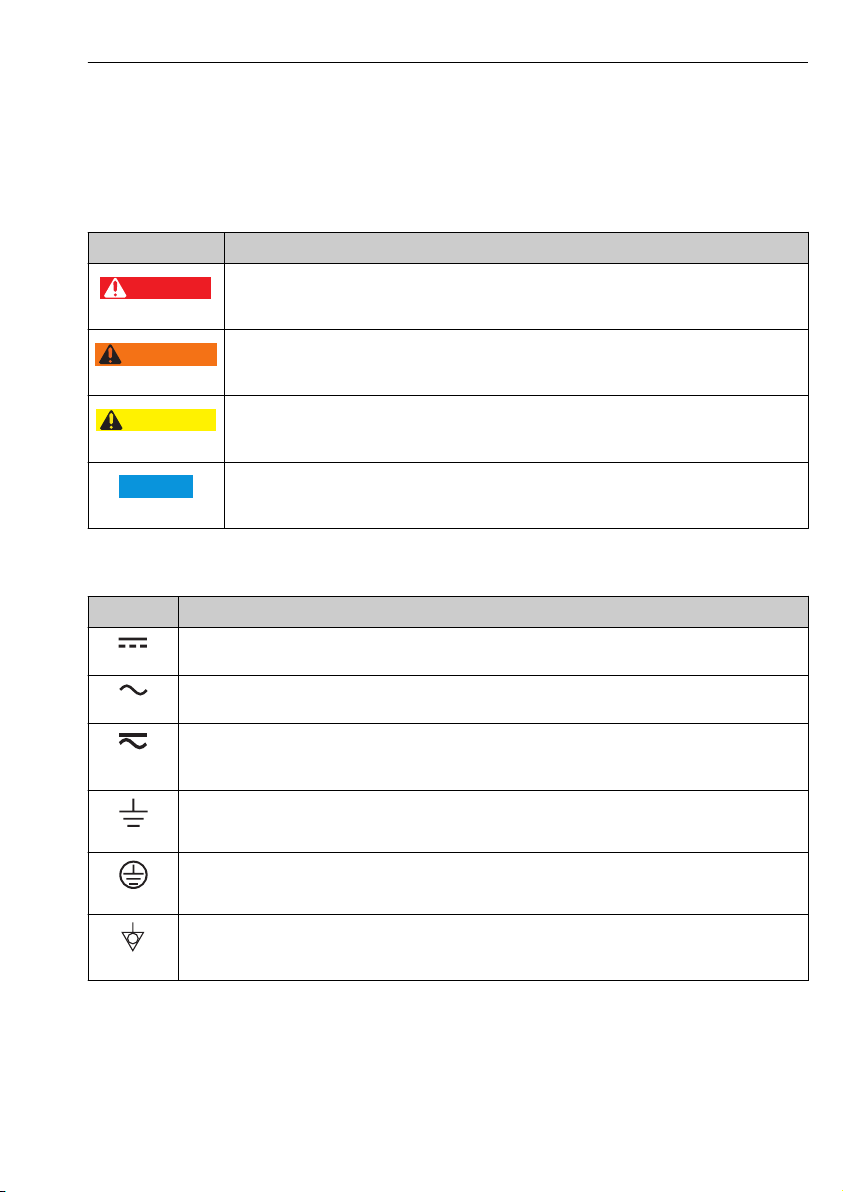

Symbol Meaning
DANGER
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
A0011190-EN
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
A0011192-EN
NOTICE!
This symbol contains information on procedures and other facts which do not result in personal
injury.
1.1.2 Electrical symbols
Symbol Meaning
A0011197
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011198
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
A0017381
Direct current and alternating current
• A terminal to which alternating voltage or DC voltage is applied.
• A terminal through which alternating current or direct current flows.
A0011200
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
A0011199
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011201
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.

Important document information Levelflex FMP55 HART
4 Endress+Hauser
1.1.3 Tool symbols
A0011219 A0011220 A0013442 A0011221 A0011222
Cross-head
screwdriver
Flat blade
screwdriver Torx screwdriver Allen key Hexagon wrench
1.1.4 Symbols for certain types of information
Symbol Meaning
A0011182
Allowed
Indicates procedures, processes or actions that are allowed.
A0011183
Preferred
Indicates procedures, processes or actions that are preferred.
A0011184
Forbidden
Indicates procedures, processes or actions that are forbidden.
A0011193
Tip
Indicates additional information.
A0011194
Reference to documentation
Refers to the corresponding device documentation.
A0011195
Reference to page
Refers to the corresponding page number.
A0011196
Reference to graphic
Refers to the corresponding graphic number and page number.
,… ,
Series of steps
Result of a sequence of actions
1.1.5 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections

Levelflex FMP55 HART Important document information
Endress+Hauser 5
Symbol Meaning
-
A0011187
Hazardous area
Indicates a hazardous area.
.
A0011188
Safe area (non-hazardous area)
Indicates a non-hazardous location.
1.1.6 Symbols at the device
Symbol Meaning
Safety instructions
Observe the safety instructions contained in the associated Operating Instructions.
Temperature resistance of the connection cables
Specifies the minimum value of the temperature resistance of the connection cables.

Basic safety instructions Levelflex FMP55 HART
6 Endress+Hauser
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the instructions
in the Operating Instructions and supplementary documentation as well as in the
certificates (depending on the application)
‣Following instructions and basic conditions
2.2 Designated use
Application and measured materials
The measuring device described in these Operating Instructions is intended only for level and
interface measurement of liquids. Depending on the version ordered the device can also
measure potentially explosive, flammable, poisonous and oxidizing materials.
Observing the limit values specified in the "Technical data" and listed in the Operating
Instructions and supplementary documentation, the measuring device may be used for the
following measurements only:
‣Measured process variable: Level and/or interface
‣Calculated process variable: Volume oder mass in arbitrarily shaped vessels (calculated
from the level by the linearization functionality)
To ensure that the measuring device remains in proper condition for the operation time:
‣Use the measuring device only for measured materials against which the process-wetted
materials are adequately resistant.
‣Observe the limit values in "Technical data".
Incorrect use
The manufacturer is not liable for damage caused by improper or non-designated use.
Verification for borderline cases:
‣For special measured materials and cleaning agents, Endress+Hauser is glad to provide
assistance in verifying the corrosion resistance of wetted materials, but does not accept any
warranty or liability.
Residual risk
The electronics housing and its built-in components such as display module, main electronics
module and I/O electronics module may heat to 80 °C (176 °F) during operation through heat
transfer from the process as well as power dissipation within the electronics. During operation
the sensor may assume a temperature near the temperature of the measured material.
Danger of burns due to heated surfaces!
‣For high process temperatures: Install protection against contact in order to prevent burns.

Levelflex FMP55 HART Basic safety instructions
Endress+Hauser 7
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with the manufacturer.
Repair
To ensure continued operational safety and reliability,
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use original spare parts and accessories from the manufacturer only.
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the hazardous
area (e.g. explosion protection, pressure vessel safety):
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area.
‣Observe the specifications in the separate supplementary documentation that is an integral
part of these Instructions.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which
they are safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.

Product description Levelflex FMP55 HART
8 Endress+Hauser
3 Product description
3.1 Design
3.1.1 Levelflex FMP51/FMP52/FMP54/FMP55
1
2
5
3
4
6
A0012399

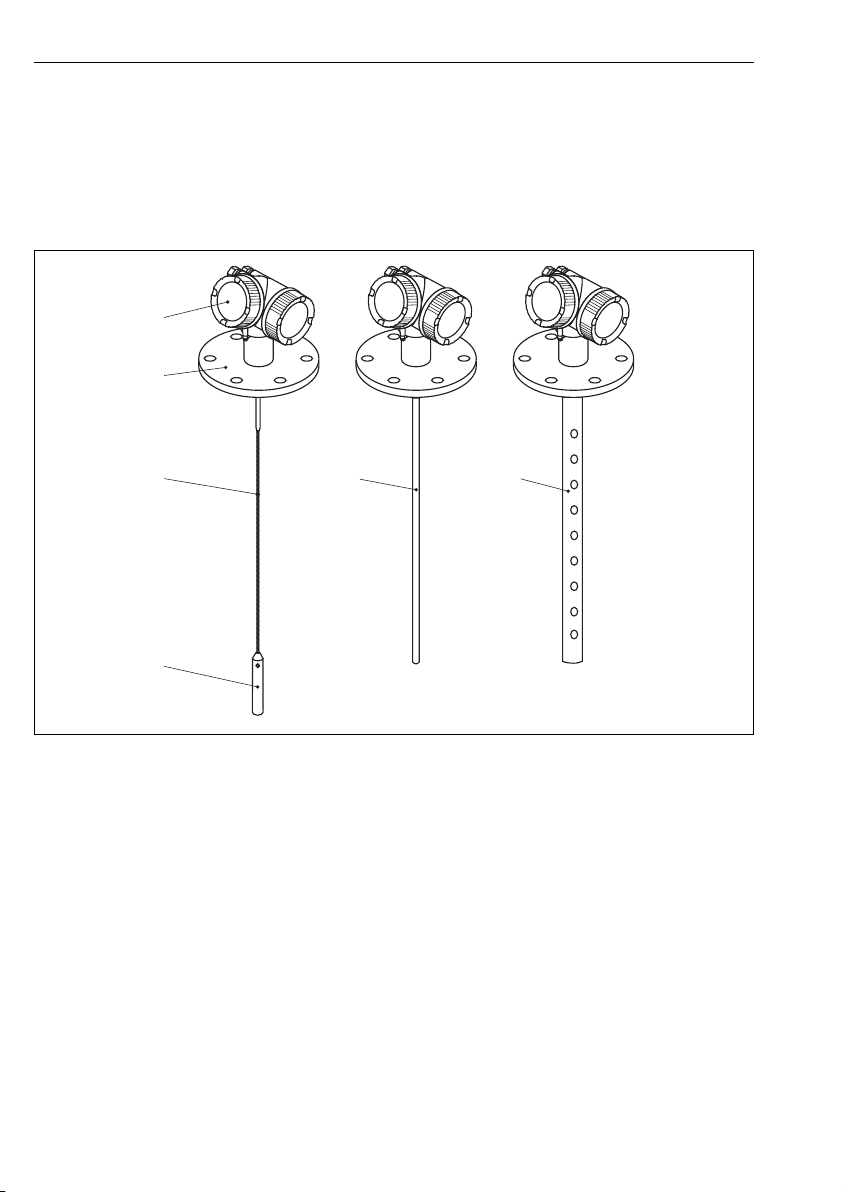

 1 Design of the Levelflex
1 Electronics housing
2 Process connection (here as an example: flange)
3 Rope probe
4 End-of-probe weight
5 Rod probe
6 Coax probe

Levelflex FMP55 HART Product description
Endress+Hauser 9
3.1.2 Electronics housing
Esc
–+E
123
4
5
6
9
7
8
A0012422
 2 Design of the electronics housing
1 Electronics compartment cover
2 Display module
3 Main electronics module
4 Cable glands (1 or 2, depending on instrument version)
5 Nameplate
6 I/O electronics module
7 Terminals (pluggable spring terminals)
8 Connection compartment cover
9 Grounding terminal

Incoming acceptance and product identification Levelflex FMP55 HART
10 Endress+Hauser
4 Incoming acceptance and product identification
4.1 Incoming acceptance

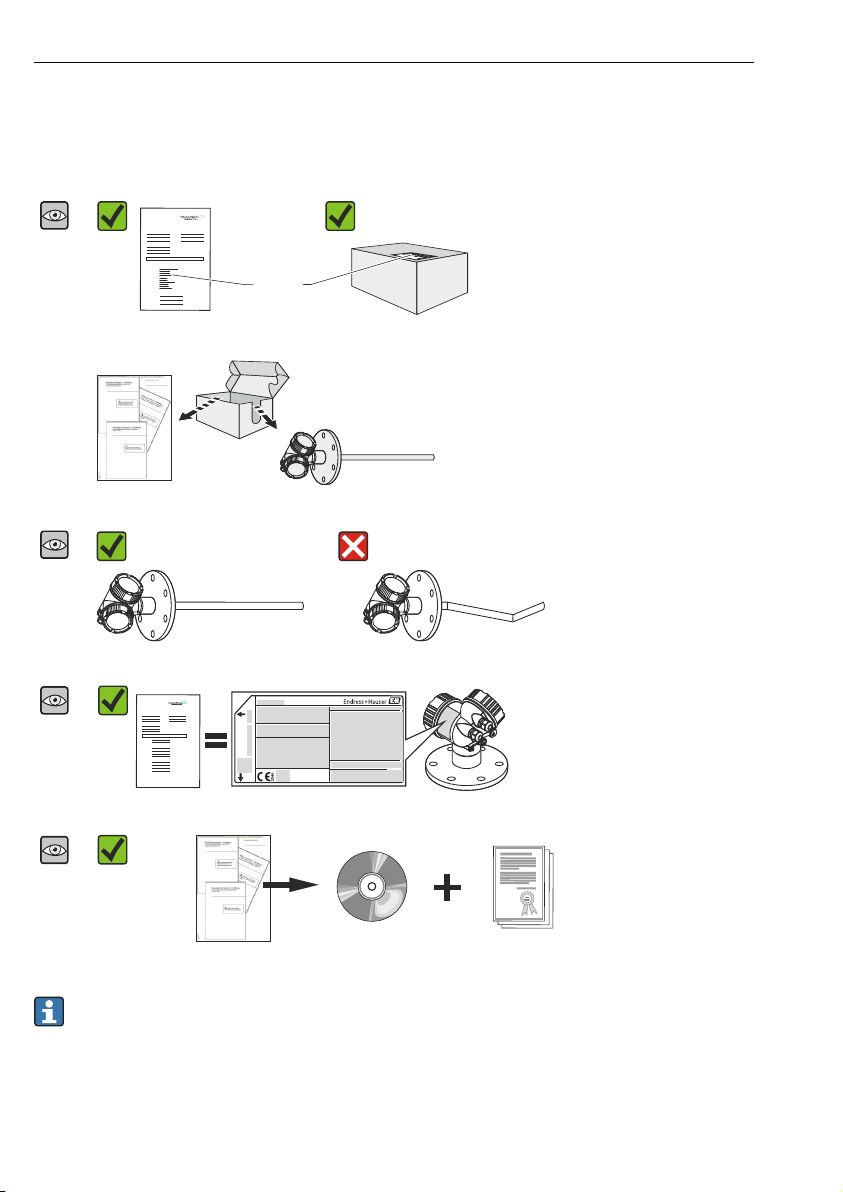

A0015502
DELIVERY NOTE
1 = 2
A0022480
Is the order code on the
delivery note (1) identical to
the order code on the
product sticker (2)?
A0022486
A0015502
A0022489
Are the goods undamaged?
A0015502
DELIVERY NOTE
Made in Germany, 79689 Maulburg
A0022491
Do the nameplate data
match the ordering
information on the delivery
note?
A0015502
A0022494
Is the DVD (operating tool)
present?
If required (see nameplate):
Are the Safety Instructions
(XA) present?
If one of the conditions does not comply, contact your Endress+Hauser distributor.

Levelflex FMP55 HART Incoming acceptance and product identification
Endress+Hauser 11
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
( www.endress.com/deviceviewer ): All information about the measuring device is
displayed.
• Enter the serial number from the nameplates into the Endress+Hauser Operations App or
scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations
App: all the information for the measuring device is displayed.
4.2.1 Nameplate
Order code:
Ext. ord. cd.:
Ser. no.:
1
2
3
4
A0021952
 3 Example of a nameplate
1 Order code
2 Serial number (Ser. no.)
3 Extended order code (Ext. ord. cd.)
4 2-D matrix code (QR code)
For detailed information about interpreting the nameplate specifications, refer to the
Operating Instructions for the device.
Only 33 digits of the extended order code can be indicated on the nameplate. If the
extended order code exceeds 33 digits, the rest will not be shown. However, the complete
extended order code can be viewed in the operating menu of the device in the Extended
order code 1 to 3 parameter.

Incoming acceptance and product identification Levelflex FMP55 HART
12 Endress+Hauser
4.3 Device documentation
All devices are supplied with Brief Operating Instructions. These Brief Operating
Instructions are not a substitute for the Operating Instructions pertaining to the device!
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
Available for all device versions via:
– Internet: www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
The information required to retrieve the documentation can be found on the nameplate of the
device.
Technical documentation can also be downloaded from the Download Area of the
Endress+Hauser web site: www.endress.com→ Download. However this technical
documentation applies to a particular instrument family and is not assigned to a specific
device.
4.3.1 W@M Device Viewer
1. Launch the W@M Device Viewer: www.endress.com/deviceviewer
2. Enter the serial number (Ser. no.) of the device: see nameplate.
 All the associated documentation is displayed.
4.3.2 Endress+Hauser Operations App
The Endress+Hauser Operations App is available both for android smart phones (Google
Play Store) and for iPhones and iPads (App Store).
Via the serial number:
1. Launch the Endress+Hauser Operations App.
2. Enter the serial number (Ser. no.) of the device: see nameplate.
 All the associated documentation is displayed.
Via the 2-D matrix code (QR code):
1. Launch the Endress+Hauser Operations App.
2. Scan the 2-D matrix code (QR code) on the nameplate.
 All the associated documentation is displayed.

Levelflex FMP55 HART Storage, Transport
Endress+Hauser 13
5 Storage, Transport
5.1 Storage conditions
• Permitted storage temperature: –40 to +80 °C (–40 to +176 °F)
• Use the original packaging.
5.2 Transport product to the measuring point
฀WARNING
Housing or probe may be damaged or break away.
Risk of injury!
‣Transport the measuring device to the measuring point in its original packaging or at the
process connection.
‣Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the probe
but at the process connection. Take into account the mass center of the device in order to
avoid unintended tilting.
‣Comply with the safety instructions, transport conditions for devices over 18kg (39.6lbs).
A0013920
NOTICE
Shipping lock for FMP5x with coax probe

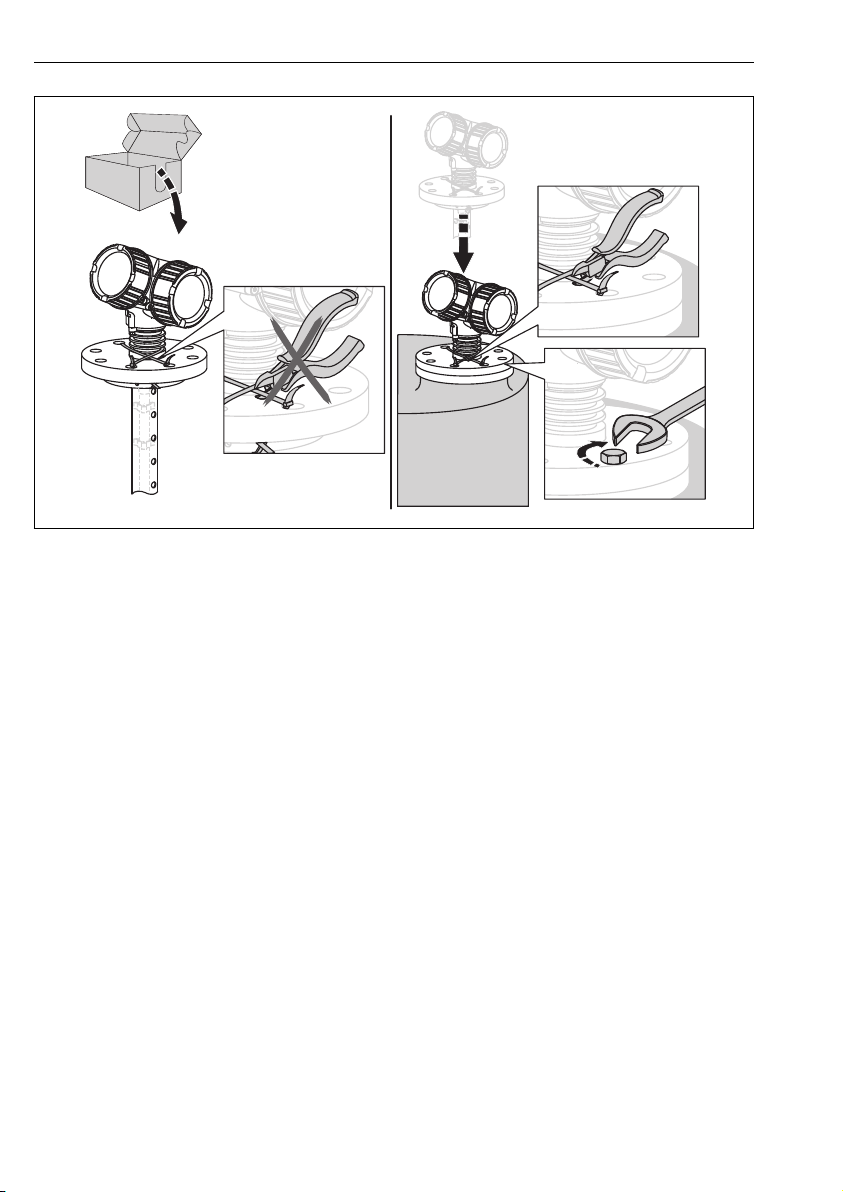

‣For FMP5x with coax probe the coax tube is not fixed permanently to the electronics
housing. For shipping and transport it is secured with two cable ties. In order to prevent the
spacer at the probe rod from moving along the probe, these cable ties must not be loosened
when transporting and mounting the device. They may only be undone directly before
screwing the device flange to the process connection.

Storage, Transport Levelflex FMP55 HART
14 Endress+Hauser
1 2
4
3
A0015471

Levelflex FMP55 HART Mounting
Endress+Hauser 15
6 Mounting
6.1 Mounting requirements
6.1.1 Suitable mounting position
A0011281
 4 Mounting position of Levelflex FMP55
• Rod probes / rope probes: must be mounted in a stilling well or bypass (→  19).
• Coax probes: can be mounted at an arbitrary distance from the wall of the vessel.
• When mounting in the open, a weather protection cover may be installed to protect the
device against extreme weather conditions.
• Minimum distance from the end of probe to the bottom of the vessel: 10 mm (0.4 in)

Mounting Levelflex FMP55 HART
16 Endress+Hauser
6.1.2 Mounting cladded flanges
• Use flange screws according to the number of flange holes.
• Tighten the screws with the required torque (see table).
• Retighten the screws after 24 hours or after the first temperature cycle.
• Depending on process pressure and process temperature check and retighten the
screws at regular intervals.
Flange size Number of screws Recommended torque [Nm]
minimum maximum
EN
DN40/PN40 4 35 55
DN50/PN16 4 45 65
DN50/PN40 4 45 65
DN80/PN16 8 40 55
DN80/PN40 8 40 55
DN100/PN16 8 40 60
DN100/PN40 8 55 80
DN150/PN16 8 75 115
DN150/PN40 8 95 145
ASME
1½"/150lbs 4 20 30
1½"/300lbs 4 30 40
2"/150lbs 4 40 55
2"/300lbs 8 20 30
3"/150lbs 4 65 95
3"/300lbs 8 40 55
4"/150lbs 8 45 70
4"/300lbs 8 55 80
6"/150lbs 8 85 125
6"/300lbs 12 60 90

Levelflex FMP55 HART Mounting
Endress+Hauser 17
Flange size Number of screws Recommended torque [Nm]
minimum maximum
JIS
10K 40A 4 30 45
10K 50A 4 40 60
10K 80A 8 25 35
10K 100A 8 35 55
10K 100A 8 75 115

Mounting Levelflex FMP55 HART
18 Endress+Hauser
6.1.3 Securing the probe
Securing coax probes
For WHG-approvals: For probe lengths ≥3 m (10 ft) a support is required.

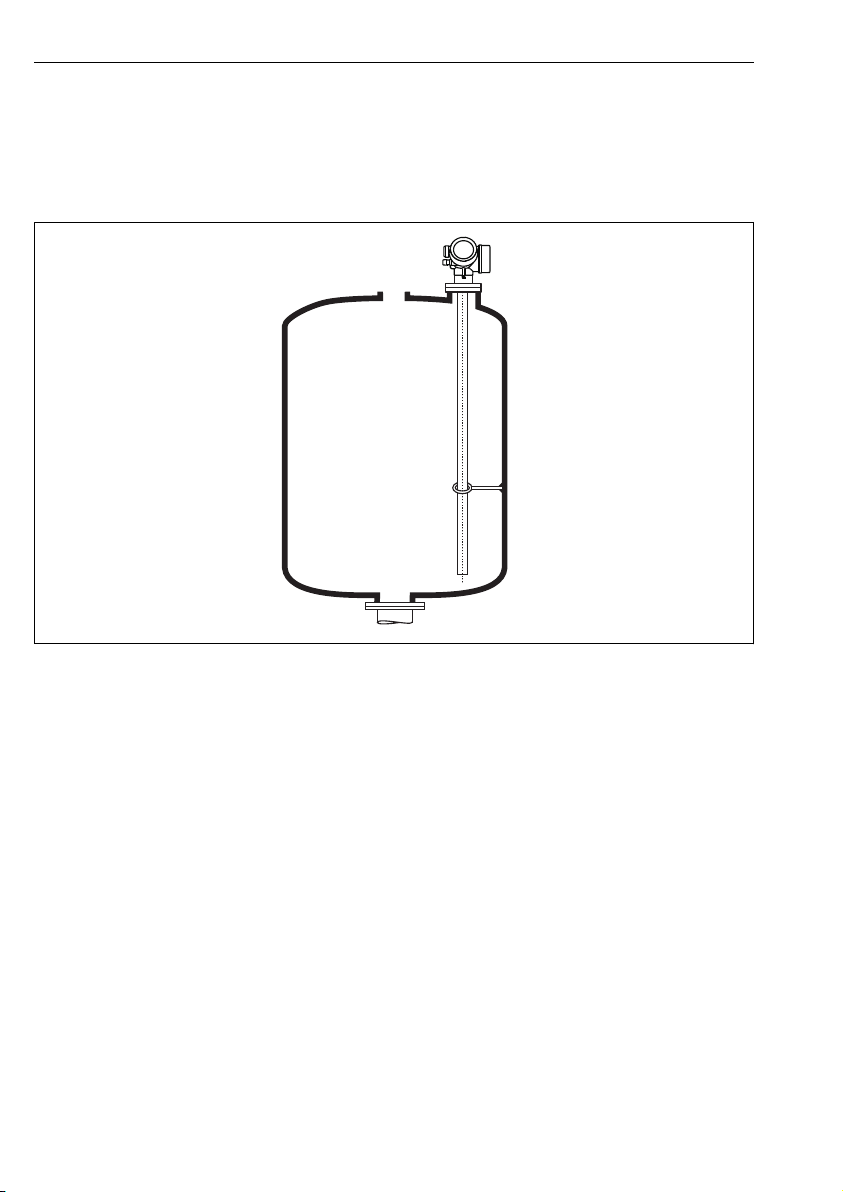

A0012608
Coax probes can be supported at any point of the outer tube.

Levelflex FMP55 HART Mounting
Endress+Hauser 19
6.1.4 Special mounting conditions
Bypasses and stilling wells
A B
³100
(3.94)
3
21
A0014129

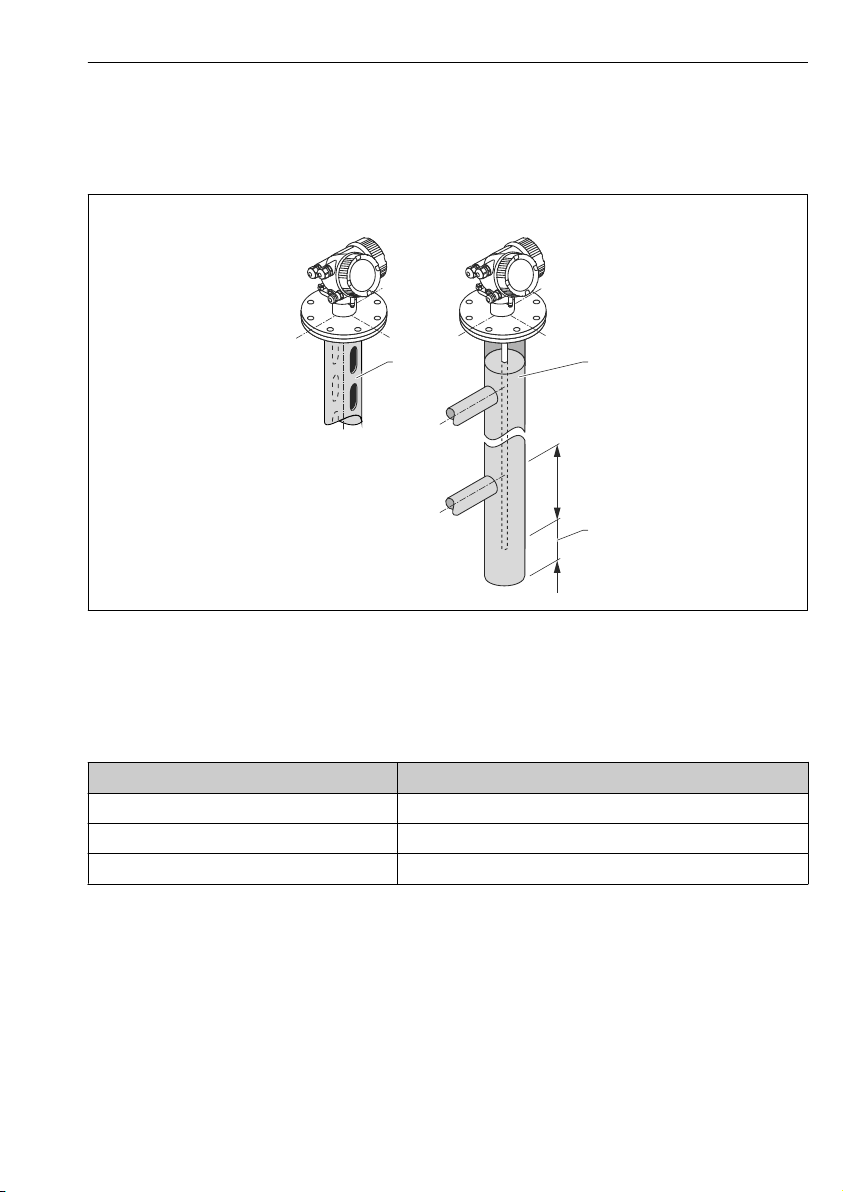

1 Mounting in a stilling well
2 Mounting in a bypass
3 Minimum distance between end of probe and lower edge of the bypass; see table below
Minimum distance between end of probe and lower edge of the bypass
Type of probe Minimum distance
Rope 150 mm (6 in)
Rod 10 mm (0.4 in)
Coax 10 mm (0.4 in)
• Pipe diameter: > 40 mm (1.6") for rod probes
• Rod probe installation can take place up to a diameter size of 150 mm (6 in). In the event of
larger diameters, a coax probe is recommended.
• Side disposals, holes or slits and welded joints that protrude up to approx. 5 mm (0.2")
inwards do not influence the measurement.
• The pipe may not exhibit any steps in diameter.
• The probe must be 100 mm longer than the lower disposal.

Mounting Levelflex FMP55 HART
20 Endress+Hauser
• Within the measuring range, the probe must not get into contact with the pipe wall. If
necessary, use a center washer or centering star (see feature 610 of the product structure).
• Within the measuring range, the probe must not get into contact with the pipe wall. If
necessary, use a PFA centering star (see feature 610 of the product structure).
• Coax probes can always be applied if there is enough mounting space.
For bypasses with condensate formation (water) and a medium with low dielectric
constant (e.g. hydrocarbons):
In the course of time the bypass is filled with condensate up to the lower disposal and for
low levels the the level echo is superimposed by the condensate echo. Thus in this range
the condensate level is measured instead of the correct level. Only higher levels are
measured correctly. To prevent this, position the lower disposal 100 mm (4 in) below the
lowest level to be measured and apply a metallic centering disk at the height of the lower
edge of the lower disposal.
With heat insulated tanks the bypass should also be insulated in order to prevent
condensate formation.
For information on bypass solutions from Endress+Hauser please contact your Endress
+Hauser sales representative.
Non-metallic vessels
When mounting Levelflex in a non-metallic vessel, use a coax probe.
