Endress+Hauser Levelflex M FMP45 User manual

BA280F/00/en/03.09
No. 71074931
Valid as of software version:
01.04.zz
Operating Instructions
Levelflex M FMP45
Run Time Measurement
8

Brief overview Levelflex M FMP45 with PROFIBUS PA
2Endress + Hauser
Brief overview
For quick and simple commissioning:
Safety Instructions →ä6
Explanation of the warning symbols
You can find special instructions at the appropriate position in the chapter in
question. The positions are indicated with the icons Warning #, Caution "and
Note !.
Æ
Installation →ä12
The steps for installing the device and installation conditions (e.g. dimensions)
can be found here.
Æ
Wiring →ä26
The device is virtually completely wired on delivery.
Æ
Display and Operating Elements →ä31
An overview of the position of the display and operating elements can be found
here.
Æ
Commissioning via Display VU331 →ä59
In the "Commissioning" section, you learn how to switch on the device and
check the functioning.
Æ
Commissioning via Endress+Hauser operating program →ä73
In the "Commissioning" section, you learn how to switch on the device and
check the functioning.
Additional information on the operation via the Endress+Hauser operating
program (FieldCare) can be found in Operating Instructions BA027S/04.
Æ
Fault Tracking / Trouble Shooting →ä84
If faults occur during operation, use the checklist to localise the cause.
Here you can find measures you can take yourself to take remedial action
against the fault.
Æ
Index →ä106
You can find important terms and keywords on the individual sections here.
Use the keyword index to find quickly and efficiently the information you need.

Levelflex M FMP45 with PROFIBUS PA Brief overview
Endress + Hauser 3
Brief operating instructions
L00-FMP40xxx-19-00-00-en-012
!Note!
This operating manual explains the installation and initial start-up for the level transmitter
measuring device. All functions that are required for a typical measuring task are taken into account
here.
In addition, the Levelflex M provides many other functions that are not included in this operating
manual, such as optimising the measuring point and converting the measured values.
An overview of all device functions can be found on →ä102.
An extensive description of all device functions can be found in BA245F – "Description of the
instrument functions" on the enclosed CD-ROM.
Operating Instructions can also be found on our homepage: www.endress.com
E
+
-
+
E
+
-
E
E
-
… …
… …
KA189F/00/a2/03.07
52012501
52012501
100%
0%
F
E
UB
FMP43
FMP40
FMP41C
FMP45
LN
D
L
Levelflex M - Brief operating instructions
input E
(see sketch)
input F
(see sketch) displayed
D and L are confirm
or specify
range
suggestion
000
measured value
Group
selection
00
basic setup
01
safety settings
09
display
04
linearisation
05
extended calibr.
0C
system
parameters
092
language
0A
diagnostics
0A0
present
error
002
tank
properties
004
process
cond.
005
empty
calibr.
006
full
calibr.
008
dist./
meas value
051
check
distance
003
medium
property
052
range of
mapping
053
start
mapping
008
dist./
meas value
- envel. curve
- substracted signal
- mapping
- single curve
- cyclic
= 100: unlocked
¹ 100: locked
09A
plot settings
09B
recording
curve
0A1
previous
error
0A4
unlock
parameter
(333 = reset customer parameters)
0A3
reset
threaded
connection
1½
(G 1
:
reference point of
measurement
¾or BSP
¾orG ½)
¾or1½NPT
03
length
adjustment
030
end of
probe
031
probe
length
032
probe
033
probe
length
034
determine
length
- unknown
- 1.4 … 1.6
- 1.6 … 1.9
- 1.9 … 2.5
-4…7
-2.5…4
->7
0E
envelope curve
Contrast: +or +
- standard
- aluminium tank
- plastic tank
- bypass/pipe
- coax-probe
- concrete
wall
- standard
- fast
change
- test: no filter
- slow
change
- free
- tie down
isolated
- tie down
gnd.
If shortened
please enter probe length here.
reference point of
measurement
F = measuring span
E = empty distance (= zero)
UB = upper blocking distance
LN = probe length
L = level
D = distance

Brief overview Levelflex M FMP45 with PROFIBUS PA
4Endress + Hauser

Levelflex M FMP45 with PROFIBUS PA Table of contents
Endress + Hauser 5
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 6
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
1.2 Installation, commissioning and operation . . . . . . . . 6
1.3 Operational safety and process safety . . . . . . . . . . . . 6
1.4 Notes on safety conventions and icons . . . . . . . . . . . 7
2 Identification . . . . . . . . . . . . . . . . . . . . 8
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . 11
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . 11
3 Installation . . . . . . . . . . . . . . . . . . . . . 12
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 12
3.2 Incoming acceptance, transport, storage . . . . . . . . . 12
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 13
3.4 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 25
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 26
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 26
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 29
4.3 Recommended connection . . . . . . . . . . . . . . . . . . 30
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 30
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 30
5 Operation . . . . . . . . . . . . . . . . . . . . . . 31
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 31
5.2 Display and operating elements . . . . . . . . . . . . . . . 33
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
5.4 Display and acknowledging error messages . . . . . . 38
5.5 PROFIBUS PA communication . . . . . . . . . . . . . . . . 41
6 Commissioning. . . . . . . . . . . . . . . . . . 56
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
6.2 Switching on the measuring device . . . . . . . . . . . . 56
6.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
6.4 Basic Setup with the VU331 . . . . . . . . . . . . . . . . . 59
6.5 Blocking distance . . . . . . . . . . . . . . . . . . . . . . . . . 67
6.6 Envelope curve with VU331 . . . . . . . . . . . . . . . . . 69
6.7 Function "envelope curve display" (0E3) . . . . . . . . 70
6.8 Basic setup with the Endress+Hauser
operating program . . . . . . . . . . . . . . . . . . . . . . . . . 73
7 Maintenance. . . . . . . . . . . . . . . . . . . . 79
7.1 Exterior cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 79
7.2 Repairs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
7.3 Repairs to Ex-approved devices . . . . . . . . . . . . . . . 79
7.4 Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
8 Accessories . . . . . . . . . . . . . . . . . . . . . 80
8.1 Weather protection cover . . . . . . . . . . . . . . . . . . . . 80
8.2 Remote display and operation FHX40 . . . . . . . . . . . 81
8.3 Centering disks . . . . . . . . . . . . . . . . . . . . . . . . . . . 82
8.4 Commubox FXA291 . . . . . . . . . . . . . . . . . . . . . . . 83
8.5 ToF Adapter FXA291 . . . . . . . . . . . . . . . . . . . . . . . 83
8.6 Proficard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
8.7 Profiboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
9 Trouble-shooting . . . . . . . . . . . . . . . . . 84
9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . . 84
9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 85
9.3 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 87
9.4 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
9.5 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
9.6 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
9.7 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
9.8 Contact addresses of Endress+Hauser . . . . . . . . . . . 90
10 Technical data . . . . . . . . . . . . . . . . . . . 91
10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 91
11 Appendix. . . . . . . . . . . . . . . . . . . . . . 102
11.1 Operating menu PA (Display modul) . . . . . . . . . . 102
11.2 Description of functions . . . . . . . . . . . . . . . . . . . . 104
11.3 Function and system design . . . . . . . . . . . . . . . . . 104
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Safety instructions Levelflex M FMP45 with PROFIBUS PA
6Endress + Hauser
1 Safety instructions
1.1 Designated use
The Levelflex M FMP45 is a compact level transmitter for the continuous measurement of solids
and liquids, measuring prinziple: Guided Level Radar / TDR: Time Domain Reflectometry.
1.2 Installation, commissioning and operation
The Levelflex M has been designed to operate safely in accordance with current technical, safety
and EU standards. If installed incorrectly or used for applications for which it is not intended,
however, it is possible that application-related dangers may arise, e.g. product overflow due to
incorrect installation or calibration. For this reason, the instrument must be installed, connected,
operated and maintained according to the instructions in this manual: personnel must be authorised
and suitably qualified. The manual must have been read and understood, and the instructions
followed. Modifications and repairs to the device are permissible only when they are expressly
approved in the manual.
1.3 Operational safety and process safety
Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance word on the device.
Hazardous areas
Measuring systems for use in hazardous environments are accompanied by separate "Ex
documentation", which is an integral part of this Operating Manual. Strict compliance with the
installation instructions and ratings as stated in this Additional documentation is mandatory.
• Ensure that all personnel are suitably qualified.
• Observe the specifications in the certificate as well as national and local regulations.

Levelflex M FMP45 with PROFIBUS PA Safety instructions
Endress + Hauser 7
1.4 Notes on safety conventions and icons
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety conventions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the instrument
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the instrument
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned
Explosion protection
0Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous
area
-Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring
entering areas with the designation “explosion hazardous areas” must conform with the stated type
of protection.
.Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in
safe areas still require a certificate if their outputs run into explosion hazardous areas
Electrical symbols
%Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied
&Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or
supplied
)Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of an
earth grounding system
*Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment
+Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C.
Safety instruction
For safety instructions refer to the manual for the appropriate instrument version.
t >85°C

Identification Levelflex M FMP45 with PROFIBUS PA
8Endress + Hauser
2 Identification
2.1 Device designation

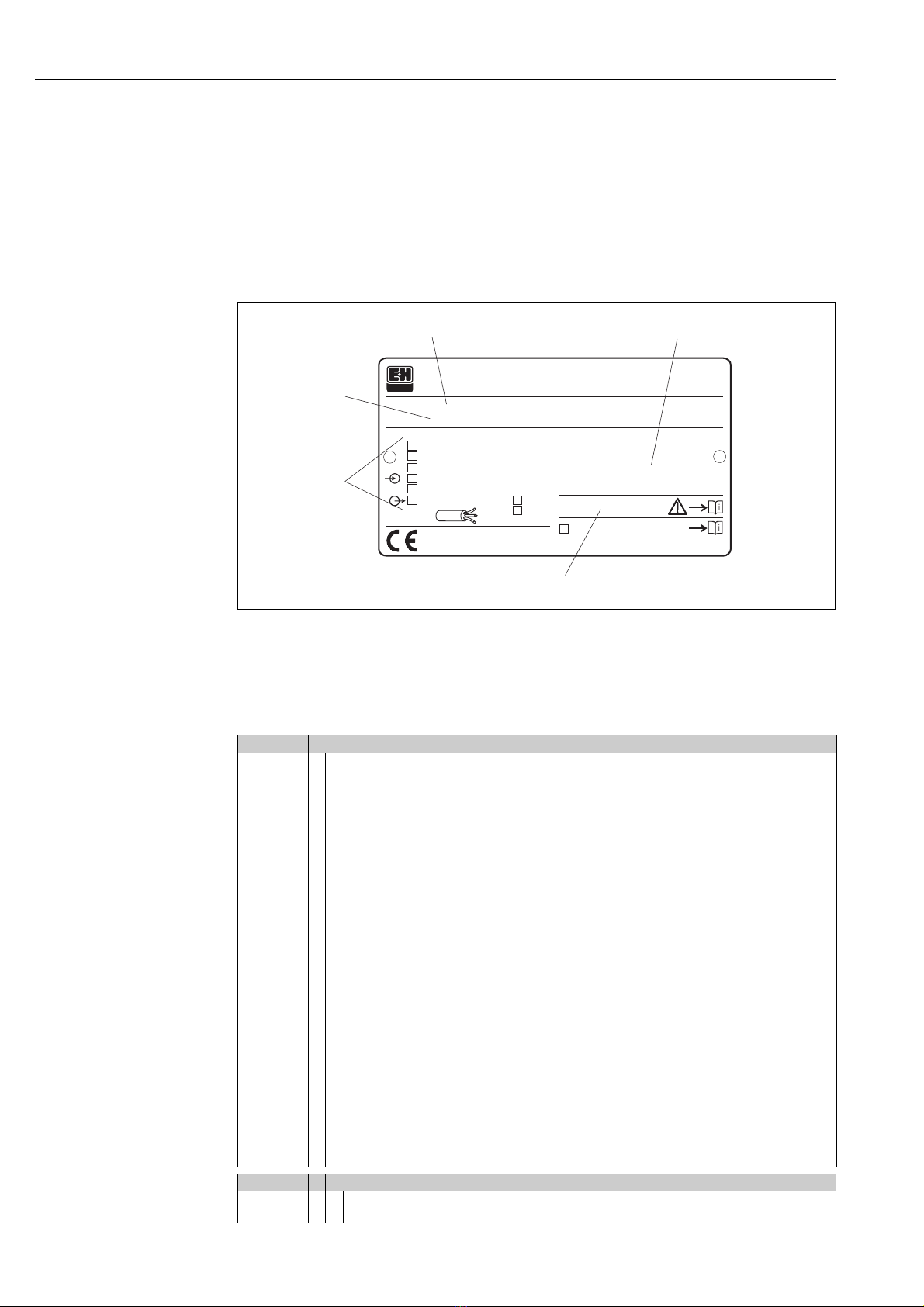

2.1.1 Nameplate
The following technical data are given on the instrument nameplate:
L00-FMP4xxxx-18-00-00-en-001
Fig. 1: Information on the nameplate of the Levelflex M FMP45 (example)
2.1.2 Ordering structure
This overview does not mark options which are mutually exclusive.
Made in Germany
D-79689 Maulburg
Dat./Insp.:
Order Code:
IP68 / NEMA 6P
Ser.-No.:
4-wire
ENDRESS+HAUSER
t >85°C
TA > 70°C :
D01301-A
if modification
see sep. label
X= Patents
LEVELFLEX-M
90 … 253 V AC 3,5VA
10,5 … 32 V DC 1W
16 … 3 V DC 0,8W
Profibus PA
Foundation Fieldbus
LN= PN=
4 … 20 mA HART 2-wire
Order No
(see Order Information)
Communication
variant and
supply voltage
Serial number
Reference to additional
safety-relevant documentation
Designation according to Directive 94/9/EC
and designation of protection
10 Approval:
A Non-hazardous area
F Non-hazardous area, WHG
1 ATEX II 1/2G EEx ia IIC T6/IECEx Zone 0/1
2 ATEX II 1/2D, Alu blind cover
3 ATEX II 1/2G EEx em (ia) IIC T6/IECEx Zone 0/1
4 ATEX II 1/3D
5 ATEX II 1/2G EEx ia IIC T6, ATEX II 1/3D
6 ATEX II 1/2G EEx ia IIC T6, WHG
7 ATEX II 1/2G EEx d (ia) IIC T6
8 ATEX II 1/2G EEx ia IIC T6, ATEX II 1/3D, WHG
G ATEX II 3G EEx nA II T6
C NEPSI Ex em(ia) IIC T6
I NEPSI Ex ia IIC T6
J NEPSI Ex d(ia) IIC T6
Q*NEPSIDIP
R NEPSI Ex nA II T6
M FM DIP Cl.II Div.1 Gr.E-G N.I.
S FM IS Cl.I,II,III Div.1 Gr.A-G N.I.
T FM XP Cl.I,II,III Div.1 Gr.A-G
N CSA General Purpose
P CSA DIP Cl.II Div.1 Gr.G + coal dust, N.I.
U CSA IS Cl.I,II,III Div.1 Gr.A-D,G + coal dust, N.I.
V CSA XP Cl.I,II,III Div.1 Gr.A-D,G + coal dust, N.I.
K TIIS Ex d (ia) IIC T1
L TIIS Ex d (ia) IIC T2
Y Special version, to be specified
20 Process temperature:
A -200...+280 °C / -328...+5360 °F (XT)
B -200...+400 °C / -328...+7520 °F (HT)

Levelflex M FMP45 with PROFIBUS PA Identification
Endress + Hauser 9
Y Special version, to be specified
30 Probe:
A ..... mm, rope 4mm, 316
C .....inch, rope 1/6", 316
K .....mm, rod 16 mm, 316L
L ..... mm, coax, 316L
M .....inch, rod 16 mm, 316L
N ..... inch, coax, 316L
S *.....mm, rod 16 mm, 316L, 500 mm divisible
T *.....mm, rod 16 mm, 316L, 1000 divisible
U *.....inch, rod 16 mm, 316L, 20 in divisible
V *.....inch, rod 16 mm, 316L, 40 in divisible
Y Special version, to be specified
40 Process connection:
AFJ 2" 150lbs RF, 316/316L flange ANSI B16.5
AGJ 3" 150lbs RF, 316/316L flange ANSI B16.5
AHJ 4" 150lbs RF, 316/316L flange ANSI B16.5
ARJ 2" 300/600lbs RF, 316/316L flange ANSI B16.5
ASJ 3" 300/600lbs RF, 316/316L flange ANSI B16.5
ATJ 4" 300lbs RF, 316/316L flange ANSI B16.5
A1J 2" 1500lbs RF, 316/316L flange ANSI B16.5
A2J 3" 1500lbs RF, 316/316L flange ANSI B16.5
A3J 4" 600lbs RF, 316/316L flange ANSI B16.5
A4J 4" 900lbs RF, 316/316L flange ANSI B16.5
A5J 4" 1500lbs RF, 316/316L flange ANSI B16.5
CHJ DN100 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CRJ DN50 PN10-40 B1, 316L flange EN1092-1 (DIN2527 C)
CSJ DN80 PN10-40 B1, 316L flange EN1092-1 (DIN2527 C)
CTJ DN100 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
C1J DN50 PN63 B2, 316L flange EN1092-1 (DIN2527 E)
C2J DN50 PN100 B2, 316L flange EN1092-1 (DIN2527 E)
C3J DN80 PN63 B2, 316L flange EN1092-1 (DIN2527 E)
C4J DN80 PN100 B2, 316L flange EN1092-1 (DIN2527 E)
C5J DN100 PN63 B2, 316L flange EN1092-1 (DIN2527 E)
C6J DN100 PN100 B2, 316L flange EN1092-1 (DIN2527 E)
KFJ 10K 50 RF, 316L flange JIS B2220
KGJ 10K 80 RF, 316L flange JIS B2220
KHJ 10K 100 RF, 316L flange JIS B2220
K3J 63K 50 RF, 316L flange JIS B2220
K4J 63K 80 RF, 316L flange JIS B2220
K5J 63K 100 RF, 316L flange JIS B2220
GGJ Thread ISO228 G1-1/2, 200bar, 316L
GJJ Thread ISO228 G1-1/2, 400bar, 316L, high pressure test
RGJ Thread ANSI NPT1-1/2, 200bar, 316L
RJJ Thread ANSI NPT1-1/2, 400bar, 316L, High pressure test
YY9 Special version, to be specified
50 Power supply; output:
B 2-wire; 4-20mA SIL HART
D2-wire;PROFIBUSPA
F 2-wire; FOUNDATION Fieldbus
G 4-wire 90-250VAC; 4-20mA SIL HART
H 4-wire 10.5-32VDC; 4-20mA SIL HART
K 2-wire; 4-20mA HART, interface measurement
Y Special version, to be specified
60 Operation:
1 W/o display, via communication
2 4-line display VU331, envelope curve display on site
3 Prepared for FHX40, remote display (accessory)
9 Special version, to be specified
70 Type of probe:
B *Compact, centering disc d=45 mm, 316L, pipe diameter DN50/2" + DN65/2-1/2"
C *Compact, centering disc d=75 mm, 316L, pipe diameter DN80/3" + DN100/4"
F *Remote, cable 3m, top, center d=45 mm, centering disk d=45 mm, 316L,
pipe diameter DN50/2" + DN65/2-1/2"
G *Remote, cable 3m, top, center d= 75 mm, centering disk d=75 mm, 316L,
pipe diameter DN80/3" + DN100/4"
20 Process temperature:

Identification Levelflex M FMP45 with PROFIBUS PA
10 Endress + Hauser
You can fill in the options of the respective feature into the following table. The filled in options
result in the complete order code.
1) OVP = overvoltage protection
H *Remote, cable 3m, side, center d=45 mm, centering disk d=45 mm, 316L,
pipe diamter DN50/2" + DN65/2-1/2"
I *Remote, cable 3m, side, center d=75 mm, centering disc d=75 mm, 316L,
pipe diamter DN80/3" + DN100/4"
1 Compact, basic version
3 Remote, cable 3m, top entry
4 Remote, cable 3m, side entry
9 Special version, to be specified
80 Housing:
A F12 Alu, coated IP68 NEMA6P
B F23 316L IP68 NEMA6P
C T12 Alu, coated IP68 NEMA6P, separate conn. compartment
D T12 Alu, coated IP68 NEMA6P + OVP1), separate conn. compartment
Y Special version, to be specified
90 Cable Entry:
2 Gland M20 (EEx d > thread M20)
3ThreadG1/2
4 Thread NPT1/2
5PlugM12
6 Plug 7/8"
9 Special version, to be specified
100 Additional options:
A Basic version
B EN10204-3.1 material, wetted parts,
(316L wetted parts for rod/coax) inspection certificate
C EN10204-3.1 material, wetted parts,
(316L pressurized for rope version) inspection certificate
D *Steam boiler app.+EN10204-3.1 material, Steam boiler approval
EN12952-11/12953-9, EN10204-3.1 material, wetted parts
(316L wetted parts for rod/coax) inspection certificate
H *5-point linearity protocol
J *5-point, 3.1, NACE, 5-point linearity protocol, see additional spec.,
EN10204-3.1 material, NACE MR0175 (316L wetted parts)
inspection certificate
N EN10204-3.1 material, NACE MR0175,
(316L wetted parts) inspection certificate
U *Gas phase comp. 300mm/10" reference rod, EN10204-3.1 material, NACE
MR0175 (316L wetted parts) inspection certificate
V *Gas phase comp. 550mm/18" reference rod, EN10204-3.1 material, NACE
MR0175 (316L wetted parts) inspection certificate
Y Special version, to be specified
100 Marking:
1Tagging(TAG)
2 Bus address
FMP45- Complete product designation
⇓
Please enter probe length in mm or inch / 0.1 inch
mm
inch / 0.1 inch
probe length LN →ä14
70 Type of probe:

Levelflex M FMP45 with PROFIBUS PA Identification
Endress + Hauser 11
2.2 Scope of delivery
"Caution!
It is essential to follow the instructions concerning the unpacking, transport and storage of
measuring instruments given in the chapter "Incoming acceptance, transport, storage" on →ä12!
The scope of delivery consists of:
• Assembled instrument
• Endress+Hauser operating program (on the enclosed CD-ROM)
• Accessories (→Chap. 8).
Accompanying documentation:
• Short manual (basic setup/troubleshooting): housed in the instrument
• Operating manual (this manual)
• Approval documentation: if this is not included in the operating manual.
!Note!
The operating manual BA245F - "Description of Instrument functions" you can be found on the
enclosed CD-ROM.
2.3 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC declaration of conformity and thus complies with the
statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademark of the company, E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of the company, Ladish & Co., Inc., Kenosha, USA
ToF®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PulseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PROFIBUS®
Registered trademark of the PROFIBUS Trade Organisation, Karlsruhe, Germany

Installation Levelflex M FMP45 with PROFIBUS PA
12 Endress + Hauser
3 Installation

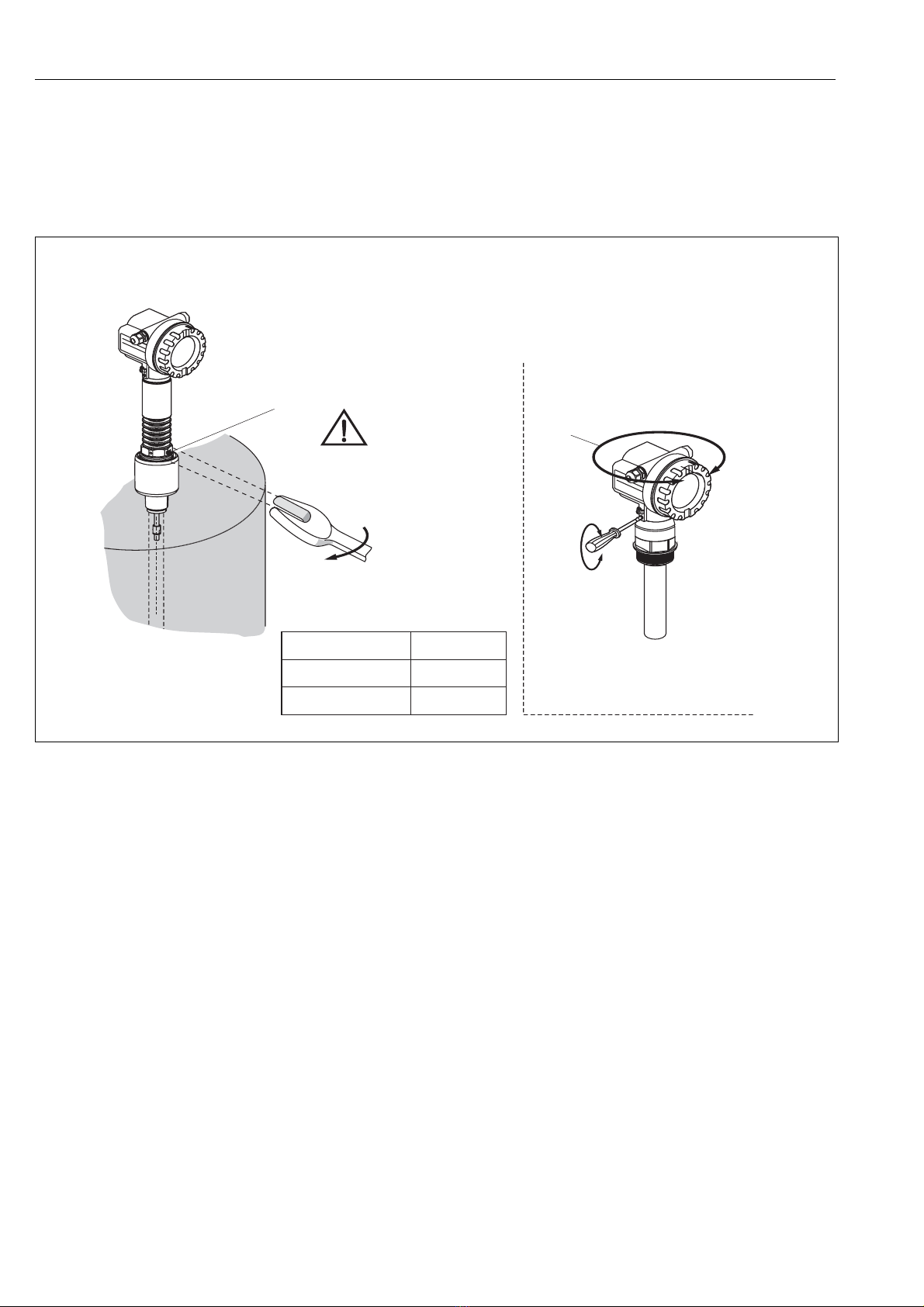

3.1 Quick installation guide
L00-FMP45xxx-17-00-00-en-003
3.2 Incoming acceptance, transport, storage
3.2.1 Incoming acceptance
Check the packing and contents for any signs of damage.
Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
3.2.2 Transport
"Caution!
Follow the safety instructions and transport conditions for instruments of more than18 kg.
Do not lift the measuring instrument by its probe rod in order to transport it.
3.2.3 Storage
Pack the measuring instrument so that is protected against impacts for storage and transport. The
original packing material provides the optimum protection for this.
The permissible storage temperature is -40 °C…+80 °C.
3
1
2
60
1" ½
F12 housing
Turn housing
The housing can be turned 350°
in order to simplify access to the
display and the terminal compartment
AF 60
max. torque
see table
Caution!
Use only the
threaded boss ???
F12 or T12 housing
torqueProcess temperature
max. 280 °C 450 Nm
max. 400 °C 400 Nm
Mounting with threaded boss

Levelflex M FMP45 with PROFIBUS PA Installation
Endress + Hauser 13
3.3 Installation conditions
3.3.1 Dimensions
Housing dimensions

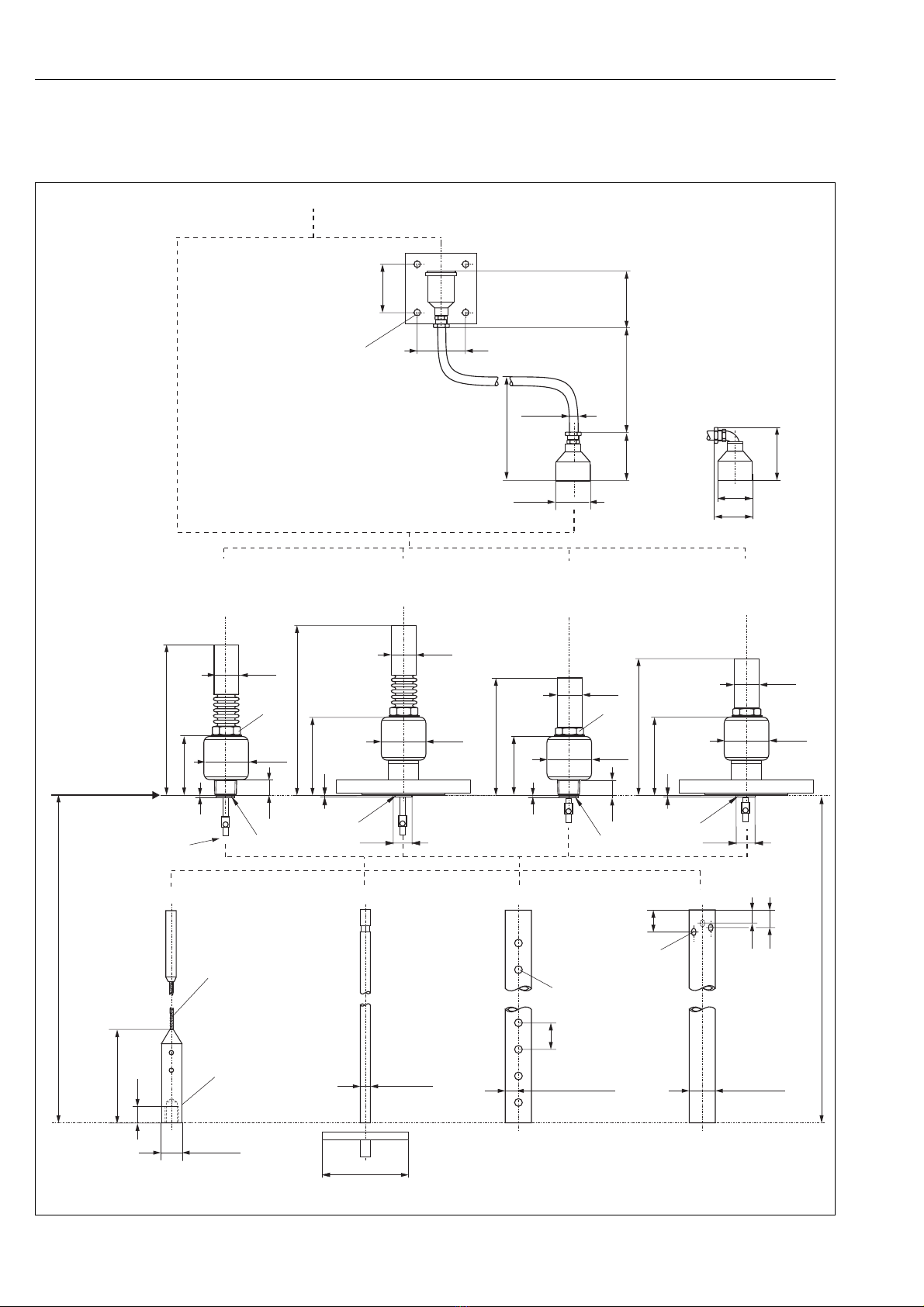

Dimensions for the process connection and the probe type →ä14.
L00-F12xxxx-06-00-00-en-001
L00-T12xxxx-06-00-00-en-001
L00-F23xxxx-06-00-00-en-001
ENDRESS+HAUSER
65 78
max. 110
85
150
Ø 129
(Aluminium)
F12 housing
ENDRESS+HAUSER
78
85
65
162
max. 100 94
Ø 129
(Aluminium)
T12 housing
max. 94 104
Ø 129
150
40
(316L)
F23 housing

Installation Levelflex M FMP45 with PROFIBUS PA
14 Endress + Hauser
Levelflex M FMP45 - process connection, type of probe
Housing dimensions →ä13.
L00-FMP45Ixx-06-00-00-en-001
88
88
123
2765
80
Ø 76
4 xØ 8,5
150
HT 400 °CXT 280 °C
3xØ 8
20
15
25
100
Ø 76
Ø 81
236
263
20
Ø 10
40
max. 14000
260
rope:
Ø 4 (0.16”)
Ø 16 (0.63”)Ø 42,4 (1.67”)
Ø 22 (0.87”)
SW 60 SW 60
159
159
338
37
37
Ø 90
Ø 90
Ø 90 Ø 90
Ø 60
Ø 60
Ø 60
Ø 60
132
311
132
M10x1.0
Ø 21.3
8
Ø40
8
Ø40
M40x1
8
M40x1
M40x1
8
M40x1
Ø 45/Ø75
Ø 45Option 70, feature “B, F, H“
Ø 75 Option 70, feature “C, G, I“
measurement
probe length LN
Ø 42,4 (1.67” )
(on 1½” thread
or flange)
internal thread:
M14 on 4 (0.16”)rope
reference point of
rod probe coax proberope probe
interface
measurement
probe length LN (rope prope - special product)
Threaded connection
G1½ (1 ½BSP)
or 1½NPT
Threaded connection
G1½(1 ½BSP)
or 1½NPT
Flange DN 50…100
or equivalent
Flange DN 50…100
or equivalent
F12 / T12 / F23 housing
Type of Probe
(see feature 70 in “Ordering structure”)
Variant “3” :/“4”
remote electronic
top entry
Variant “4”:
remote electronic
side entry

Levelflex M FMP45 with PROFIBUS PA Installation
Endress + Hauser 15
3.4 Installation
3.4.1 Mounting kit
In addition to the tool needed for flange mounting, you will require the following tool:
• For the mounting of threaded connection: 60 mm Open-end spanner for 1½", 50 mm Open-end
spanner for ¾".
• 4 mm Allen wrench for turning the housing.
3.4.2 Shortening probes
Rod probe
The shortening is necessary if the distance to the container floor or outlet cone is less than 50 mm.
The rods of a rod probe are shortened by sawing or separating at the bottom end.

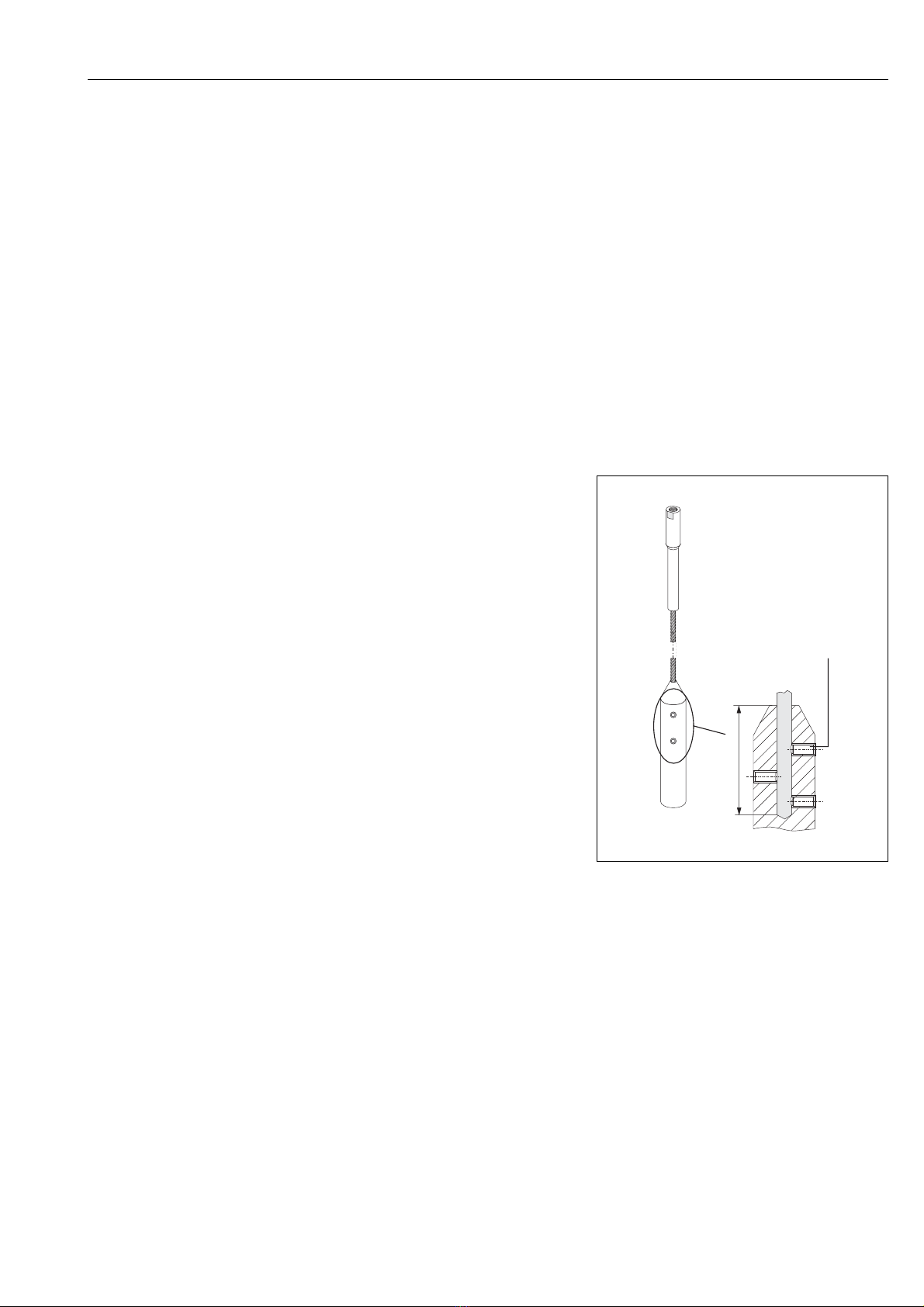

Rope probes
Coax probes
The shortening is necessary if the distance to the container floor or outlet cone is less than 10 mm.
Coax probes can be shortened max. 80 mm from the end. They have centering units inside which
fix the rod centrally in the pipe. The centerings are held with borders on the rod. Shortening is
possible up to approx. 10 mm below the centering.
The shortening is necessary if the distance to the
container floor or outlet cone is less than 150
mm.
• Remove ballast weight:
– The weight is fixed to the probe rope with 3
Allen setscrews (M4, Allen key AF3). The
screws are secured with Loctite. This may
first have to be made plastic with a hot air
apparatus.
• Remove released rope from the weight
• Measure off new rope length
• Wrap adhesive tape around the rope at the
point to be shortened to prevent it from
fanning out.
• Saw off the rope at a right angle or cut it off
with a bolt cutter.
• Insert the rope completely into the weight,
– thin rope (4 mm) 60 mm deep,
– thick rope(6 mm) 80 mm deep
The weight is then refixed to the rope:
• Reapply screw locking fluid (we recommend
Loctite type 243) to the setscrews and screw
into place.
• When doing so, observe the following
torques:
– For 6 mm rope: 15 Nm
– For 4 mm rope: 5 Nm
L00-FMP4xxxx-17-00-00-en-044
60 / 80 mm
M4
secured with
Loctite 243
torque
4 mm cable = 5 Nm
6 mm cable =15 Nm

Installation Levelflex M FMP45 with PROFIBUS PA
16 Endress + Hauser
3.4.3 Mounting probes in an empty silo
"Caution!
If there is a risk of electrostatic discharge from the product, then both processconnection and rope
must be earthed before the probe is lowered into the silo.
Levelflex can be screwed into a threaded socket or flange. Proceed as follows:
Insert probe
• Uncoil rope and lower it slowly and carefully
into the silo.
• Do not kink the rope
• Avoid any backlash, since this mightdamage
the probe or the silo fittings.
•!Note!
– For flange mounting: if a seal is used, be
sure to use unpainted metal bolts toensure
good electrical contact betweenprobe flange
and process flange.
L00-FMP4xxxx-17-00-00-en-056
Uncoil rope and lower
probe slowlyand
carefullyinto the silo
Screw down
• Screw the Levelflex into the process
connection or to flange.
• Turn with the hexagonal nut only:
torque 10...20 Nm.
• Levelflex functions in metal, concrete and
plastic silos. When installing inmetal silos,
take care to ensure goodmetallic contact
between the processconnection and silo.
L00-FMP4xxxx-17-00-00-en-057
Screw in Levelflex
housing allignable
Tighten with the
hexagonal nut only

Levelflex M FMP45 with PROFIBUS PA Installation
Endress + Hauser 17
3.4.4 Mounting rope probes in a partially full silo
It is not always possible to empty a silo which is already in operation. Because the probe can be
turned in the threaded boss, it can also be mounted when the silo is only partially filled. In order to
avoid problems when Levelflex is mounted into a partially full silo, the following measures should
be taken:
• Mount when the silo is as empty as if possible. A minimum of 2/3 of the silo must be empty.
After mounting, map must be made should the installation conditions require it.
"Caution!
If there is a risk of electrostatic discharge from the product, the housing must be earthed before the
probe is lowered into the silo.
!Note!
Before full accuracy is obtained the probe rope must hang fully extended.
Screw down
• If appropriate, screw the Levelflex into the
threaded flange.
• Turn with the hexagonal nut only:
torque 10...20 Nm
• For flange mounting: if a seal is used, be sure
to use unpainted metal bolts to ensure good
electrical contact between probe flange and
process flange.
• When installing in metal silos, take care to
ensure good metallic contact between the
process connection and silo.
L00-FMP4xxxx-17-00-00-en-058
Screw in Levelflex
housing allignable
Tighten with the
hexagonal nut only
Insert probe
• Uncoil rope and lower it slowly and carefully
into the silo.
• Avoid tangles.
• Avoid any backlash, since this might damage
the silo fittings.
• If possible, make a visual check to see that the
rope has not tangled or is lying such that it can
knot when the level falls. This is
particularly important if a flange was not used.
Re-insert the probe if necessary.
• Screw the flange to the counterflange on the
nozzle.
L00-FMP4xxxx-17-00-00-en-059
Uncoil rope and lower
probe slowlyand
carefullyinto the silo.
Avoid tangles or knots.

Installation Levelflex M FMP45 with PROFIBUS PA
18 Endress + Hauser
3.4.5 General instructions
Normally use rod probes. Rope probes are used in liquids for measuring ranges > 4m and with
restricted ceiling clearance which does not allow the installation of rigid probes.
Coax probes are not influenced by the installation conditions. They may also be operated
• in the filling curtain
• in arbitrary proximity to internal fittings
• at viscositys up to 500 cSt.
!Note!
Seal for devices with G 1½" thread
The thread and the type of seal comply to DIN 3852 part 1, screwed end type A. Gaskets according
to DIN 7603 with a dimesnion of 48x55mm can be used for it. Please use a gasket according to this
standard in the form A, C or D and of a material that is resistant to your application.
Minimum distance B of rod and rope probes to the container wall:
The wall clearance can be chosen as desired as long as the probe does not touch the tank wall.
!Note!
• There should no bridges to the wall created by soiling or highly viscous media.
Welding the probe into the vessel
"Caution!
Before welding the probe into the vessel, it must be grounded by a low-resistive connection. If this
is not possible, the electronics as well as the HF module must be disconnected. Otherwise the
electronics may be damaged.
Mounting location
• Do not mount rod or rope probes in the filling
curtain (2).
• Mount rod and rope probes away from the
wall (B) at such a distance that, in the event of
build-up on the wall, there is still a minimum
distance of 100 mm between the probe and
the build-up.
• Mount rod and rope probes as far away as
possible from installed fittings. "Mapping "
must be carried out during commissioning in
the event of distances < 300 mm.
• Minimum distance of probe end to the
container floor (C):
– Rope probe: 150 mm
– Rod probe: 100 mm
– Coax probe: 10 mm
• When installing outdoors, it is recommended
that you use a protective cover (1) see
Accessories on →ä80.
L00-FMP4xxxx-17-00-00-xx-007
B
C
12

Levelflex M FMP45 with PROFIBUS PA Installation
Endress + Hauser 19
Other installations
• Select the mounting location such that the
distance to internals (5) (e.g. limit switch,
struts) > is 300 mm over the entire length of
the probe, also during operation.
• Probe must within the measuring span not
touch any internals during operation.
Optimization options
• Interference echo suppression: Measurement
can be optimised by electronically tuning out
interference echoes.
L00-FMP41Cxx-17-00-00-xx-001
Separable probes
If there is little mounting space (distance to the
ceiling), it is advisable to use separable rod pro-
bes (∅16 mm).
• max. probe length 10 m/394 inch
• max. sideways capacity 20 Nm
• probes are separable several times with the
lengths:
– 500 mm/19.68 inch
– 1000 mm/ 39.37 inch
•torque:15Nm
L00-FMP4xxxx-17-00-00-xx-015
Centering of probe end
If the centering disk is mounted at the end of the
probe, it enables a reliable measuring.
See "Ordering structure" →ä8.
• Centering disk for rod probes:
– d = 45 mm (DN50/2" + DN65/2 1/2")
– d = 75 mm (DN80/3" + DN100/4")
L00-FMP4xxxx-17-00-00-en-068
5
Ød
Tightening torque
25 Nm ± 5Nm

Installation Levelflex M FMP45 with PROFIBUS PA
20 Endress + Hauser
Supporting probes against warping
For WHG or Ex approval:
For probe lengths ≥3 m a support is required (see figure).
a. Rod probes
L00-FMP4xxxx-17-00-00-en-055
b. Coax probes
Ø <26 mm
#
#
Ø 17...18 mm
Probe rod
Short metal pipe
e.g. welded in place
approx. 50 mm
Sleeve bored tight
to ensure electrical contact
between the rod and sleeve!
Ground the probe
when welding the sleeve!
L00-FMP4xxxx-17-00-00-en-054
