Operating Instructions
Micropilot FMR56, FMR57
Level radar
Level measurement in bulk solids
BA01127F/00/EN/01.13
71217606
Valid as of version
01.00.zz

Micropilot FMR56, FMR57 Table of contents
Endress+Hauser 3
Table of contents
1 Important document information .... 4
1.1 Document function ..................... 4
1.2 Document conventions ................... 4
1.3 Additional documentation ................ 6
2 Basic safety instructions ............ 9
2.1 Requirements for the personnel ............ 9
2.2 Designated use ........................ 9
2.3 Workplace safety ...................... 10
2.4 Operational safety ..................... 10
2.5 Product safety ........................ 10
3 Product description ................ 11
3.1 Product design ........................ 11
3.2 Registered trademarks .................. 12
4 Incoming acceptance and product
identification ..................... 13
4.1 Incoming acceptance ................... 13
4.2 Product identification .................. 15
5 Storage, Transport ................ 17
5.1 Storage conditions ..................... 17
5.2 Transport product to the measuring point .... 17
6 Installation ....................... 18
6.1 Installation conditions .................. 18
6.2 Measuring conditions .................. 25
6.3 Installation in vessel (free space) .......... 26
6.4 Vessels with heat insulation .............. 35
6.5 Turning the transmitter housing .......... 35
6.6 Turning the display module .............. 36
6.7 Post-installation check .................. 36
7 Electrical connection .............. 37
7.1 Connection conditions .................. 37
7.2 Connecting the measuring device .......... 43
7.3 Post-connection check .................. 45
8 Operation options ................. 46
8.1 Overview ............................ 46
8.2 Structure and function of the operating
menu .............................. 48
8.3 Display and operating module ............ 53
9 Integration into a PROFIBUS
network .......................... 60
9.1 Overview of the device database files (GSD) .. 60
9.2 Set device address ..................... 60
10 Commissioning .................... 62
10.1 Installation and function check ............ 62
10.2 Setting the operating language ............ 62
10.3 Configuration of a level measurement ...... 63
10.4 Configurationof the on-site display ......... 65
10.5 Protection of the settings against
unauthorized changes .................. 65
11 Diagnostics and troubleshooting ... 66
11.1 General trouble shooting ................ 66
11.2 Diagnostic information on local display ...... 67
11.3 Diagnostic event in the operating tool ....... 69
11.4 Diagnostic list ........................ 70
11.5 Ovewrview of diagnostic information ....... 70
11.6 Event logbook ........................ 72
11.7 Firmware-Historie ..................... 74
12 Maintenance ...................... 75
12.1 Exterior cleaning ...................... 75
12.2 Replacing seals ....................... 75
13 Repairs ........................... 76
13.1 General information on repairs ............ 76
13.2 Spare parts .......................... 77
13.3 Return .............................. 77
13.4 Disposal ............................ 77
14 Accessories ....................... 78
14.1 Device-specific accessories ............... 78
14.2 Communication-specific accessories ........ 82
14.3 Service-specific accessories ............... 82
14.4 System components .................... 82
15 Overview of the operating menu .... 83
16 Description of device parameters ... 87
16.1 "Setup" menu ......................... 87
16.2 The "Diagnostics" menu ................. 123
Index ................................. 139

Important document information Micropilot FMR56, FMR57
4 Endress+Hauser
1 Important document information
1.1 Document function
These Operating Instructions contain all the information that is required in various phases
of the life cycle of the device: from product identification, incoming acceptance and
storage, to mounting, connection, operation and commissioning through to
troubleshooting, maintenance and disposal.
1.2 Document conventions
1.2.1 Safety symbols
Symbol Meaning
DANGER
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
A0011190-EN
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
A0011192-EN
NOTICE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Electrical symbols
Symbol Meaning
A0011197
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011198
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
A0017381
Direct current and alternating current
• A terminal to which alternating voltage or DC voltage is applied.
• A terminal through which alternating current or direct current flows.
A0011200
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding
system.
A0011199
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011201
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.

Micropilot FMR56, FMR57 Important document information
Endress+Hauser 5
1.2.3 Tool symbols
Symbol Meaning
A0013442
Torx screwdriver
A0011220
Flat blade screwdriver
A0011219
Cross-head screwdriver
A0011221
Allen key
A0011222
Hexagon wrench
1.2.4 Symbols for certain types of information
Symbol Meaning
A0011182
Allowed
Indicates procedures, processes or actions that are allowed.
A0011183
Preferred
Indicates procedures, processes or actions that are preferred.
A0011184
Forbidden
Indicates procedures, processes or actions that are forbidden.
A0011193
Tip
Indicates additional information.
A0011194
Reference to documentation
Refers to the corresponding device documentation.
A0011195
Reference to page
Refers to the corresponding page number.
A0011196
Reference to graphic
Refers to the corresponding graphic number and page number.
,… ,
Series of steps
Result of a sequence of actions
A0013562
Help in the event of a problem
1.2.5 Symbols in graphics
Symbol Meaning
1, 2, 3 ... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections

Important document information Micropilot FMR56, FMR57
6 Endress+Hauser
Symbol Meaning
-
A0011187
Hazardous area
Indicates a hazardous area.
.
A0011188
Safe area (non-hazardous area)
Indicates a non-hazardous location.
1.2.6 Symbols at the device
Symbol Meaning
Safety instructions
Observe the safety instructions contained in the associated Operating Instructions.
Temperature resistance of the connection cables
Specifies the minimum value of the temperature resistance of the connection cables.
1.3 Additional documentation
Document Purpose and content of the document
Technical Information
TI01042F (FMR56, FMR57)
Planning aid for your device
The document contains all the technical data on the device and provides
an overview of the accessories and other products that can be ordered for
the device.
Brief Operating Instructions
KA01131F (FMR56/FMR57,
PROFIBUS PA)
Guide that takes you quickly to the 1st measured value
The Brief Operating Instructions contain all the essential information
from incoming acceptance to initial commissioning.
Description of Device Parameters
GP01018F (FMR5x, PROFIBUS PA)
Reference for your parameters
The document provides a detailed explanation of each individual
parameter in the operating menu. The description is aimed at those who
work with the device over the entire life cycle and perform specific
configurations.
The document types listed are available:
• On the CD supplied with the device
• In the Download Area of the Endress+Hauser Internet site: www.endress.com →
Download
1.3.1 Safety Instructions (XA)
Depending on the approval, the following Safety Instructions (XA) are supplied with the
device. They are an integral part of the Operating Instructions.
Feature 010 Approval Available for Safety Instructions HART Safety Instructions
PROFIBUS
FOUNDATION Fieldbus
BA ATEX: II 1 G Ex ia IIC T6 Ga • FMR56
• FMR57 XA00677F XA00685F
BB ATEX: II 1/2 G Ex ia IIC T6-T1 Ga/Gb • FMR56
• FMR57 XA00677F XA00685F
BC ATEX: II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb • FMR56
• FMR57
XA00680F XA00688F
BD ATEX: II 1/2/3 G Ex ic [ia Ga] IIC T6-T1 Ga/Gb/Gc FMR57 XA00678F XA00686F
BE ATEX: II 1 D Ex ta IIIC T500 xx°C Da • FMR56
• FMR57
XA00682F XA00690F

Micropilot FMR56, FMR57 Important document information
Endress+Hauser 7
Feature 010 Approval Available for Safety Instructions HART Safety Instructions
PROFIBUS
FOUNDATION Fieldbus
BF ATEX: II 1/2 D Ex ta IIIC Txx°C Da/Db • FMR56
• FMR57
XA00682F XA00690F
BG ATEX: II 3 G Ex nA IIC T6-T1 Gc • FMR56
• FMR57 XA00679F XA00687F
BH ATEX: II 3 G Ex ic IIC T6-T1 Gc • FMR56
• FMR57 XA00679F XA00687F
BL ATEX: II 1/2/3 G Ex nA [ia Ga] IIC T6-T1 Ga/Gb/Gc FMR57 XA00678F XA00686F
B2 ATEX: II 1/2 G Ex ia IIC T6-T1 Ga/Gb
ATEX: II 1/2 D Ex ia IIIC Txx°C Da/Db
• FMR56
• FMR57
XA00683F XA00691F
B3 ATEX: II 1/2 G Ex d [ia] IIC T6-T1 Ga/Gb
ATEX: II 1/2 D Ex ta IIIC Txx°C Da/Db
• FMR56
• FMR57
XA00684F XA00692F
IA IECEx: Ex ia IIC T6-T1 Ga • FMR56
• FMR57 XA00677F XA00685F
IB IECEx: Ex ia IIC T6-T1 Ga/Gb • FMR56
• FMR57 XA00677F XA00685F
IC IECEx: Ex d [ia] IIC T6-T1 Ga/Gb • FMR56
• FMR57
XA00680F XA00688F
ID IECEx: Ex ic [ia Ga] IIC T6-T1 Ga/Gb/Gc FMR57 XA00678F XA00686F
IE IECEx: Ex ta IIIC T500 xx°C Da • FMR56
• FMR57
XA00682F XA00690F
IF IECEx: Ex ta IIIC Txx°C Da/Db • FMR56
• FMR57
XA00682F XA00690F
IG IECEx: Ex nA IIC T6-T1 Gc • FMR56
• FMR57 XA00679F XA00687F
IH IECEx: Ex ic IIC T6-T1 Gc • FMR56
• FMR57 XA00679F XA00687F
IL IECEx: Ex nA [ia Ga] IIC T6-T1 Ga/Gb/Gc FMR57 XA00678F XA00686F
I2 IECEx: Ex ia IIC T6-T1 Ga/Gb
IECEx: Ex ia IIIC Txx°C Da/Db
• FMR56
• FMR57
XA00683F XA00691F
I3 IECEx: Ex d [ia] IIC T6-T1 Ga/Gb
IEXEx: Ex ta IIIC Txx°C Da/Db
• FMR56
• FMR57
XA00684F XA00692F
For certified devices the relevant Safety Instructions (XA) are indicated on the
nameplate.
If the device is prepared for the remote display FHX50 (product structure: feature 030:
Display, Operation", option L or M), the Ex marking of some certificates changes according
to the following table 1):
Feature 010 ("Approval") Feature 030 ("Display, Operation") Ex marking
BE L oder M ATEX II 1D Ex ta [ia] IIIC T500 xx°C Da
BF L oder M ATEX II 1/2 D Ex ta [ia Db] IIIC Txx°C Da/Db
BG L oder M ATEX II 3G Ex nA [ia Ga] IIC T6 Gc
BH L oder M ATEX II 3G Ex ic [ia Ga] IIC T6 Gc
B3 L oder M ATEX II 1/2G Ex d [ia] IIC T6 Ga/Gb,
ATEX II 1/2D Ex ta [ia Db] IIIC Txx°C Da/Db
IE L oder M IECEx Ex ta [ia] IIIC T500 xx°C Da
1) The marking of certificates not mentioned in this table are not affected by the FHX50.

Important document information Micropilot FMR56, FMR57
8 Endress+Hauser
Feature 010 ("Approval") Feature 030 ("Display, Operation") Ex marking
IF L oder M IECEx ta [ia Db] IIIC Txx°C Da/Db
IG L oder M IECEx Ex nA [ia Ga] IIC T6 Gc
IH L oder M IECEx Ex ic [ia Ga] IIC T6 Gc
I3 L oder M IECEx Ex d [ia] IIC T6 Ga/Gb,
IECEx Ex ta [ia Db] IIIC Txx°C Da/Db

Micropilot FMR56, FMR57 Basic safety instructions
Endress+Hauser 9
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the
instructions in the Operating Instructions and supplementary documentation as well as
in the certificates (depending on the application)
‣Following instructions and basic conditions
The operating personnel must fulfill the following requirements:
‣Being instructed and authorized according to the requirements of the task by the
facility's owner-operator
‣Following the instructions in these Operating Instructions
2.2 Designated use
Application and measured materials
The measuring device described in these Operating Instructions is intended for the
continuous, contactless level measurement of mainly bulk solids. The device can also be
freely mounted outside closed metal vessels because of its operating frequency of about
26 GHz, a maximum radiated pulsed power of 23.3 mW and an average power output of
0.076 mW. Operation is completely harmless to humans and animals.
Observing the limit values specified in the "Technical data" and listed in the Operating
Instructions and supplementary documentation, the measuring device may be used for the
following measurements only:
‣Measured process variables: level, distance, signal strength
‣Calculated process variables: Volume or mass in arbitrarily shaped vessels; flow
through measuring weirs or flumes (calculated from the level by the linearization
functionality)
To ensure that the measuring device remains in proper condition for the operation time:
‣Use the measuring device only for measured materials against which the process-
wetted materials are adequately resistant.
‣Observe the limit values in "Technical data".
Incorrect use
The manufacturer is not liable for damage caused by improper or non-designated use.
Verification for borderline cases:
‣For special measured materials and cleaning agents, Endress+Hauser is glad to provide
assistance in verifying the corrosion resistance of wetted materials, but does not accept
any warranty or liability.
Residual risk
The electronics housing and its built-in components such as display module, main
electronics module and I/O electronics module may heat to 80 °C (176 °F) during operation
through heat transfer from the process as well as power dissipation within the electronics.
During operation the sensor may assume a temperature near the temperature of the
measured material.
Danger of burns due to heated surfaces!
‣For high process temperatures: Install protection against contact in order to prevent
burns.

Basic safety instructions Micropilot FMR56, FMR57
10 Endress+Hauser
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with the manufacturer.
Repair
To ensure continued operational safety and reliability,
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use original spare parts and accessories from the manufacturer only.
Hazardous area
To eliminate a danger for persons or for the facility when the device is used in the
hazardous area (e.g. explosion protection, pressure vessel safety):
‣Based on the nameplate, check whether the ordered device is permitted for the
intended use in the hazardous area.
‣Observe the specifications in the separate supplementary documentation that is an
integral part of these Instructions.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which they are safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser
confirms this by affixing the CE mark to the device.

Micropilot FMR56, FMR57 Product description
Endress+Hauser 11
3 Product description
3.1 Product design
3.1.1 Micropilot FMR56
1 4
1
22
3
A0016791

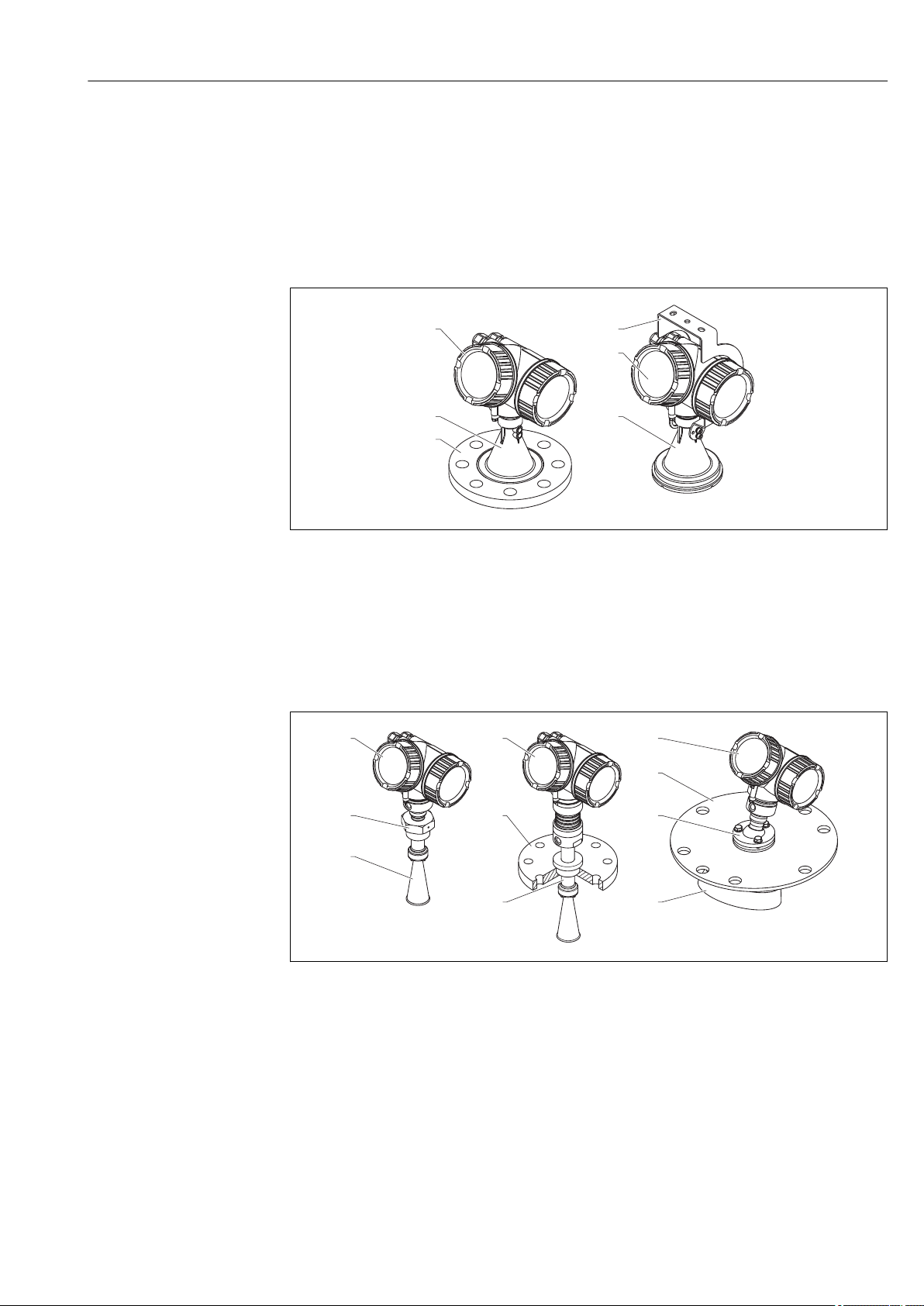

 1 Design of the Micropilot FMR56 (26 GHz)
1 Electronics housing
2 Horn 80mm/100 mm (3in/4in), PP cladded
3 Flange
4 Mounting bracket
3.1.2 Micropilot FMR57
1
2 4
4
6
3
5 7
1 1
A0016807
 2 Design of the Micropilot FMR57 (26 GHz)
1 Electronics housing
2 Process connection (Thread)
3 Horn antenna
4 Flange
5 Antenna extension
6 Alignment device
7 Parabolic antenna

Product description Micropilot FMR56, FMR57
12 Endress+Hauser
3.1.3 Electronics housing
Esc
–+E
123
4
5
6
9
7
8
A0012422

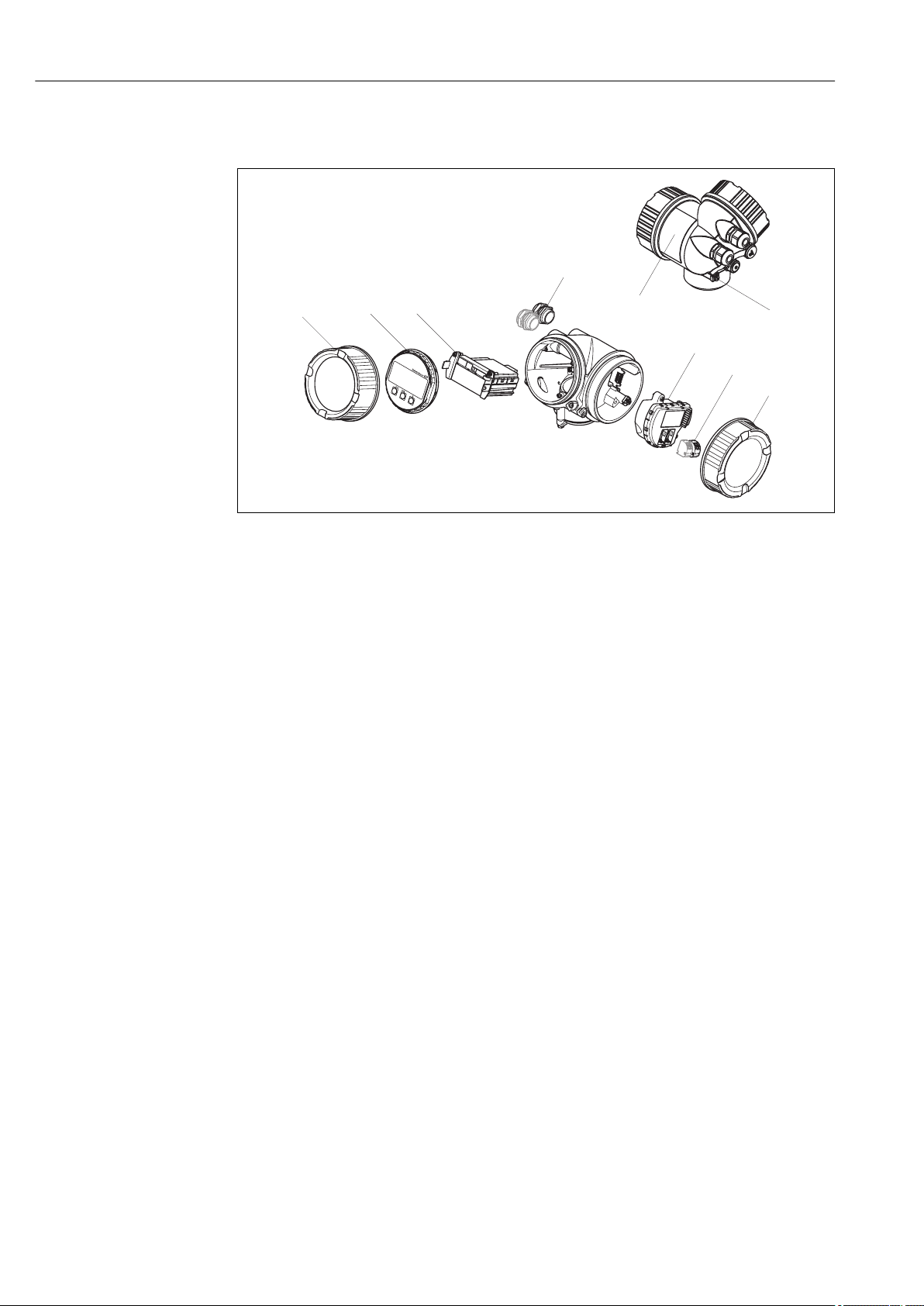

 3 Design of the electronics housing
1 Electronics compartment cover
2 Display module
3 Main electronics module
4 Cable glands (1 or 2, depending on instrument version)
5 Nameplate
6 I/O electronics module
7 Terminals (pluggable spring terminals)
8 Connection compartment cover
9 Grounding terminal
3.2 Registered trademarks
PROFIBUS®
Registered trademark of the PROFIBUS User Organization, Karlsruhe, Germany
KALREZ®, VITON®
Registered trademark of DuPont Performance Elastomers L.L.C., Wilmington, USA
TEFLON®
Registered trademark of E.I. DuPont de Nemours & Co., Wilmington, USA
TRI CLAMP®
Registered trademark of Alfa Laval Inc., Kenosha, USA

Micropilot FMR56, FMR57 Incoming acceptance and product identification
Endress+Hauser 13
4 Incoming acceptance and product
identification
4.1 Incoming acceptance
A0013696
DELIVERY NOTE
1 = 2
A0016870
Is the order code on the delivery note (1) identical to the order code on
the product sticker (2)?
A0016871
A0013696
A0016872
Are the goods undamaged?
A0013696
DELIVERY NOTE
Made in Germany, 79689 Maulburg
A0014038
Do the nameplate data match the ordering information on the delivery
note?

Incoming acceptance and product identification Micropilot FMR56, FMR57
14 Endress+Hauser
A0013696
A0014037

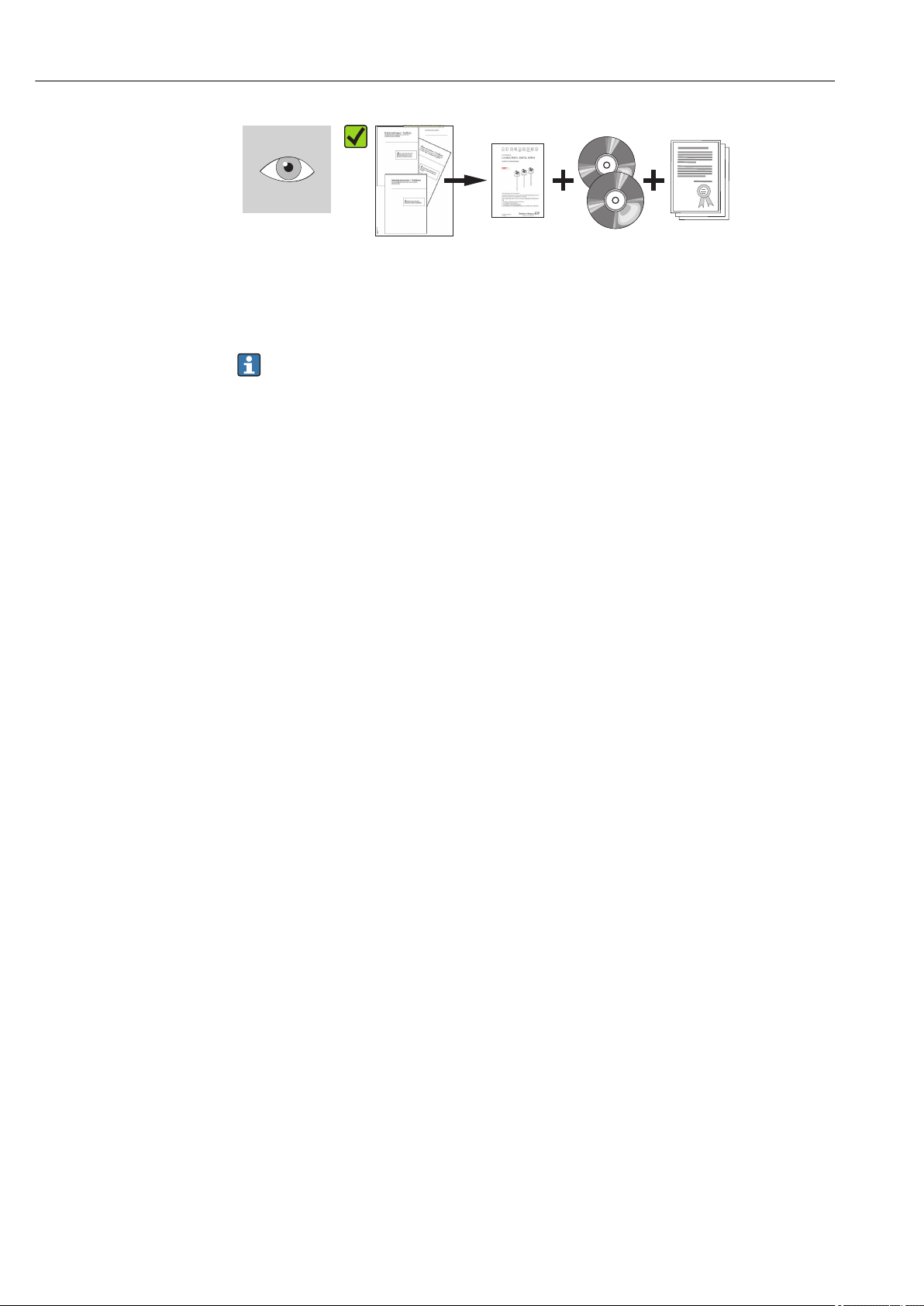

Are the CD-ROMs (product documentation, operating tool) and
documentation present?
If required (see nameplate): Are the Safety Instructions (XA) present?
If one of the conditions does not comply, contact your Endress+Hauser distributor.

Micropilot FMR56, FMR57 Incoming acceptance and product identification
Endress+Hauser 15
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Extended order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
( www.endress.com/deviceviewer ): All information about the measuring device is
displayed.
For an overview of the scope of the Technical Documentation provided, refer to the
following: enter serial numbers from nameplates in W@M Device Viewer
( www.endress.com/deviceviewer )
4.2.1 Nameplate
2021
22
24
25
23
26
12
3
4
5
6
7
8
9
10
19
18
17
16
15
14
Ext. ord. cd.:
Order code:
Ser. no.:
T max =
p
LN =
Mat.:
Date:
FW: Dev.Rev.:
Ta:
if modification
see sep. label
X =
MWP:
12
11
47 (1.85)
92 (3.62)
mm (in)
13
A0019444

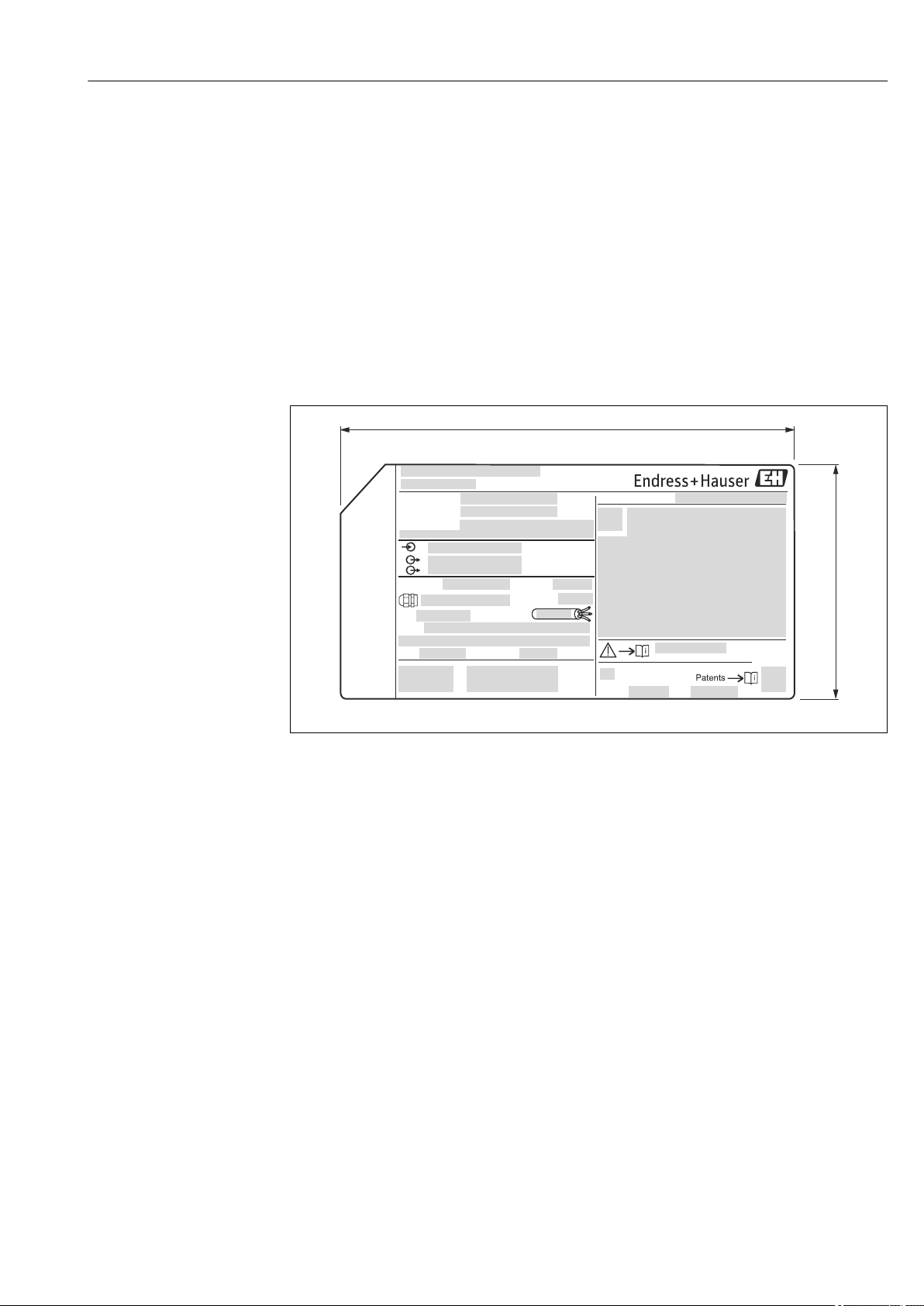

 4 Nameplate of the Micropilot
1 Device name
2 Address of manufacturer
3 Order code
4 Serial number (Ser. no.)
5 Extended order code (Ext. ord. cd.)
6 Process pressure
7 Antenna length (only for FMR51 with antenna extension)
8 Certificate symbol
9 Certificate and approval relevant data
10 Degree of protection: e.g. IP, NEMA
11 Document number of the Safety Instructions: e.g. XA, ZD, ZE
12 Data Matrix Code
13 Modification mark
14 Manufacturing date: year-month
15 Temperature resistance of the cable
16 Geräterevision (Dev.Rev.)
17 Additional information about the device version (certificates, approvals, communication): e.g. SIL, PROFIBUS
18 Firmware version (FW)
19 CE mark, C-Tick
20 Profibus PA: Profil-Version; FOUNDATION Fieldbus: Device ID
21 Material in contact with process
22 Permitted ambient temperature (Ta)
23 Size of the thread of the cable glands
24 Maximum process temperature
25 Signal outputs
26 Operating voltage

Incoming acceptance and product identification Micropilot FMR56, FMR57
16 Endress+Hauser
Only 33 digits of the extended order code can be indicated on the nameplate. If the
extended order code exceeds 33 digits, the rest will not be shown. However, the
complete extended order code can be viewed in the operating menu of the device
(Diagnostics → Device info → Extended order code 1/2/3).

Micropilot FMR56, FMR57 Storage, Transport
Endress+Hauser 17
5 Storage, Transport
5.1 Storage conditions
• Permitted storage temperature: –40 to +80 °C (–40 to +176 °F)
• Use the original packaging.
5.2 Transport product to the measuring point
NOTICE
Housing or antenna horn may be damaged or break away.
Risk of injury!
‣Transport the measuring device to the measuring point in its original packaging or at
the process connection.
‣Do not fasten lifting devices (hoisting slings, lifting eyes etc.) at the housing or the
antenna horn but at the process connection. Take into account the mass center of the
device in order to avoid unintended tilting.
‣Comply with the safety instructions, transport conditions for devices over 18kg
(39.6lbs).
A0016875

Installation Micropilot FMR56, FMR57
18 Endress+Hauser
6 Installation
6.1 Installation conditions
6.1.1 Mounting position
A
1 2 3
A0016883
• Recommended distance A from wall to
outer edge of nozzle: ~ 1/6 of vessel
diameter.
Nevertheless the device should not be
installed closer than 20 cm (7.87 in) to
the vessel wall.
If the wall of the vessel is not smooth
(corrugated metal, welding seams,
irregularities etc.) the distance from the
wall should be kept as large as possible.
If necessary, use an alignment device to
prevent interference reflections from
the wall (→  33).
• Not in the center (2), as interference can
cause signal loss.
• Not above the fill stream (3).
• It is recommended to us a weather
protection cover (1) in order to protect
the device from direct sun or rain.
• In extremely dusty applications, the
integrated air purge connection can
prevent clogging of the antenna
(→  34).

Micropilot FMR56, FMR57 Installation
Endress+Hauser 19
6.1.2 Vessel installations
a
b
A0018946
Avoid any installations (limit switches,
temperature sensors, braces etc.) inside
the signal beam. Take into account the
beam angle (→  23):

Installation Micropilot FMR56, FMR57
20 Endress+Hauser

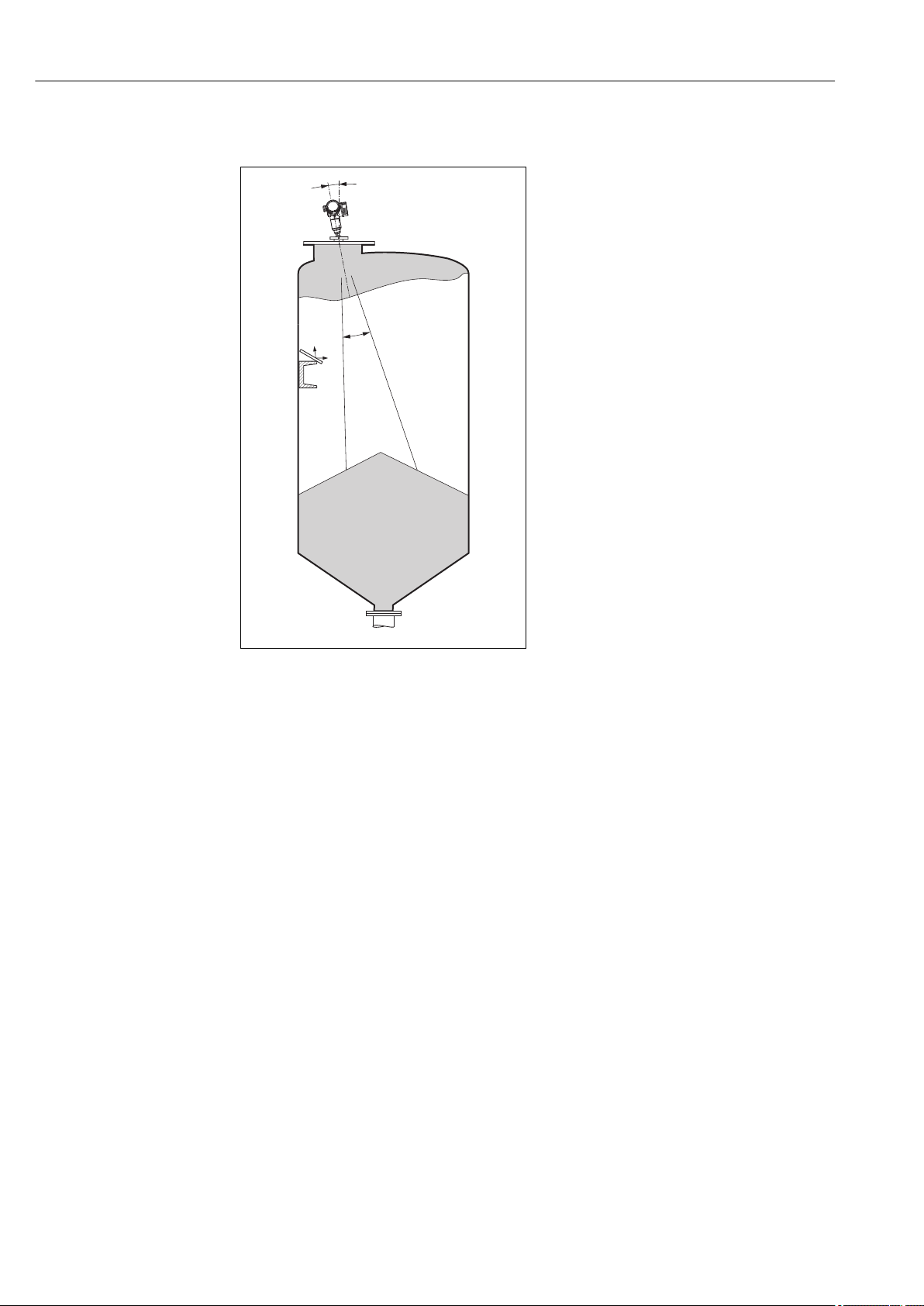

6.1.3 Reduction of interference echoes
a
b
A0016889
Metallic screens mounted at a slope
spread the radar signal and can, therefore,
reduce interference echoes.
6.1.4 Measurement in a plastic vessel
If the outer wall of the vessel is made of a non-conductive material (e.g. GRP), microwaves
can also be reflected off interfering installations outside the signal beam (e.g. metallic
pipes (1), ladders (2), grates (3), ...). Therefore, there should be no such interfering
installations in the signal beam. Please contact Endress+Hauser for further information.
