Endress+Hauser Prosonic T FMU30 Technical specifications

KA01054F/00/EN/13.11
71145341
Brief Operating Instructions
Prosonic T FMU30
Ultrasonic Level Measurement
These Instructions are Brief Operating Instructions; they do not replace the
Operating Instructions included in the scope of supply.
For detailed information, refer to the Operating Instructions and other
documentation on the CD-ROM provided or visit "www.endress.com/
deviceviewer".

Table of contents Prosonic T
2Endress+Hauser
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Installation, commissioning and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Operational safety and process safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.5 Safety icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.1 Incoming acceptance, storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.4 Measuring range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.5 Installation hint . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
2.6 Installation check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
3 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.1 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
3.2 Terminal assignment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.3 Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.4 Potential matching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3.5 Checking the connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
4 Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 General structure of the operating menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Display and operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
5 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.2 Switching on the measuring device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
5.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Prosonic T Safety instructions
Endress+Hauser 3
1 Safety instructions
1.1 Designated use
The Prosonic T is a compact measuring device for continuous, non-contact level measurement.
Depending on the sensor, the measuring range is up to 8 m (26 ft) in fluids and up to 3.5 m
(11 ft) in bulk solids. By using the linearisation function, the Prosonic T can also be used for flow
measurements in open channels and measuring weirs.
1.2 Installation, commissioning and operation
• The device must only be installed, connected, commissioned and maintained by qualified and
authorized specialists (e.g. electrical technicians) in full compliance with the instructions in
this manual, the applicable norms, legal regulations and certificates (depending on the
application).
• The specialist must have read and understood this manual and must follow the instructions it
contains. If you are unclear on anything in these Brief Operating Instructions, you must read
the Operating Instructions (on the CD-ROM). The Operating Instructions provide detailed
information on the device/measuring system.
• The device may only be modified or repaired if such work is expressly permitted in the
Operating Instructions (→ see CD-ROM).
• If faults cannot be rectified, the device must be taken out of service and secured against
unintentional commissioning.
• Do not operate damaged devices. Mark them as defective.
1.3 Operational safety and process safety
• Alternative monitoring measures must be taken to ensure operational safety and process safety
during confiugration, testing and maintenance work on the device.
• The device is safely built and tested according to state-of-the-art technology and has left the
factory in perfect condition as regards technical safety. The applicable regulations and
European standards have been taken into account.
• Pay particular attention to the technical data on the nameplate.
• If the device is to be installed in an explosion hazardous area, then the specifications in the
certificate as well as all national and local regulations must be observed. The device is
accompanied by separate "Ex documentation", which is an integral part of this Operating
Instructions. The installation regulations, connection values and Safety Instructions listed in
this Ex document must be observed. The documentation number of the related Safety
Instructions is also indicated.
1.4 Return
Follow the instructions on returning the device as outlined in the Operating Instructions on the
CD-ROM provided.

Mounting Prosonic T
4Endress+Hauser
1.5 Safety icons
2Mounting
2.1 Incoming acceptance, storage
2.1.1 Incoming acceptance
Check the packing and contents for any signs of damage. Check the shipment, make sure
nothing is missing and that the scope of supply matches your order.
2.1.2 Storage
Pack the measuring instrument so that is protected against impacts for storage and transport. The
original packing material provides the optimum protection for this.
The permissible storage temperature is -40 °C to +80 °C (-40 °F to +176 °F).
Symbol Meaning
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal injury,
a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal injury or
incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect operation
or may lead to an instrument response which is not planned.

Prosonic T Mounting
Endress+Hauser 5
2.2 Installation
2.2.1 Installation variants
L00-FMU30xxx-17-00-00-xx-002
AInstallation with counter nut
1 Counter nut (PC) supplied for G1½ and G2 instruments
BInstallation with sleeve
1 Sealing ring (EPDM) supplied
CInstallation with installation bracket
DInstallation with screw in flange
1 Sealing ring (EPDM) supplied
2 Nozzle
3Sensor
4 Screw in flange
BA
C
D
1
1
1
2
3
4

Mounting Prosonic T
6Endress+Hauser
2.3 Installation conditions
2.3.1 Installation conditions for level measurements
L00-FMU30xxx-17-00-00-xx-005
• Do not install the sensor in the middle of the tank (3). We recommend leaving a distance
between the sensor and the tank wall (1) measuring 1/6 of the tank diameter.
• Protect the device against direct sun or rain (2) see the Technical Information TI00440F,
Chapter "Accessories" on the CD-ROM provided.
• Avoid measurements through the filling curtain (4).
• For solid application where bulk solid cones appear, align the sensor membrane perpendicular
to the surface.
• Make sure that equipment (5) such as limit switches, temperature sensors, etc. are not located
within the emitting angle α. In particular, symmetrical equipment (6) such as heating coils,
baffles etc. can influence measurement.
• Never install two ultrasonic measuring devices in a tank, as the two signals may affect each
other.
• To estimate the detection range, use the 3 dB emitting angle α.
Sensor αLmax rmax
1½" 11° 5 m (16 ft) 0.48 m (1.6 ft)
2" 11° 8 m (26 ft) 0.77 m (2.5 ft)
1
234
5
6
1/6D
D
r
a
L

Prosonic T Mounting
Endress+Hauser 7
2.3.2 Installation in narrow shafts
2.3.3 Installation conditions for flow measurements
• Install the device at the inflow side (B), as close above the maximum water level Hmax as
possible (take into account the blocking distance BD).
• Position the instrument in the middle of the channel or weir.
• Align the sensor membrane parallel to the water surface.
• Keep to the installation distance of the channel or weir.
In narrow shafts with strong
interference echoes, we recommend
using an ultrasound guide pipe (e.g. PE
or PVC wastewater pipe) with a
minimum diameter of 100 mm
(3.94 in).
Make sure that the pipe is not soiled by
accumulated dirt. If necessary, clean
the pipe at regular intervals.
L00-FMU30xxx-17-00-00-xx-010
1Ventinghole
1

Mounting Prosonic T
8Endress+Hauser
Example: Khafagi-Venturi flume
L00-FMU30xxx-17-00-00-xx-003
A Khafagi-Venturi flume
BInflow
C Outflow
BD Blocking distance
E Empty calibration
F Full calibration
V Direction of flow
1xb
0
b0
BD
A
E
BC
V
Hmax

Prosonic T Mounting
Endress+Hauser 9
Example: Triangular weir
L00-FMU30xxx-17-00-00-xx-012
BD Blocking distance
E Empty calibration
F Full calibration
2.4 Measuring range
2.4.1 Blocking distance, Nozzle mounting
Install the instrument at a height so that the blocking distance BD is not undershot, even at
maximum fill level. Use a pipe nozzle if you cannot maintain the blocking distance in any other
way. The interior of the nozzle must be smooth and may not contain any edges or welded joints.
In particular, there should be no burr on the inside of the tank side nozzle end. Note the
specified limits for nozzle diameter and length. To minimise disturbing factors, we recommend
an angled socket edge (ideally 45°).
min. 3 H
H
min. 2 H
a
min. 2 H
BD
max
max
max
max
E
(= F)

Mounting Prosonic T
10 Endress+Hauser
L00-FMU30xxx-17-00-00-xx-004
BD Blocking distance F Full calibration (span)
SD Safety distance D Nozzle diameter
E Empty calibration L Nozzle length
F
E
BD
SD
L
D
Maximum nozzle length mm (in)
Nozzle diameter 1½" sensor 2" sensor
DN50/2" 80 (3.15)
DN80/3" 240 (9.45) 240 (9.45)
DN100/4" 300 (11.8) 300 (11.8)
DN150/6" 400 (15.7) 400 (15.7)
DN200/8" 400 (15.7) 400 (15.7)
DN250/10" 400 (15.7) 400 (15.7)
DN300/12" 400 (15.7) 400 (15.7)
Sensor characteristics
Emitting angle α11° 11°
Blocking distance m (ft) 0.25 (0.8) 0.35 (1.1)
Max. range m (ft) in liquids 5 (16) 8 (26)
Max. range m (ft) in solids 2 (6.6) 3.5 (11)

Prosonic T Mounting
Endress+Hauser 11
"Caution!
If the blocking distance is undershot, it may cause device malfunction.
2.4.2 Safety distance
If the level rises to the safety distance SD, the device switches to warning or alarm status.
The size of SD can be set freely in the "Safety distance" (015) function.The "in safety
distance" (016) function defines how the device reacts if the level enters the safety distance.
There are three options:
•Warning: The device outputs an error message but continues measurement.
•Alarm: The device outputs an error message. The output signal assumes the value defined in
the "Output on alarm" (011) function (MAX, MIN, user-specific value or holds the last
value). As soon as the level drops below the safety distance, the device recommences
measurement.
•Self holding: The device reacts in the same way as for an alarm. However, the alarm
condition continues after the level drops below the safety distance. The device only
recommences measurement when you cancel the alarm using the "Ackn. alarm" (017)
function.
2.4.3 Range
The sensor range is dependent on the measuring conditions. Refer to Technical Information
TI00440F/00/EN for an estimation. The maximum range is shown in the above diagram (valid
for good conditions).
Sensor maximum range
1½" 5 m (16 ft)
2" 8 m (26 ft)

Mounting Prosonic T
12 Endress+Hauser
2.5 Installation hint
"Caution!
Use only the screw-in piece to screw in the Prosonic T.
L00-FMU30xxx-17-00-00-xx-009
1 65 AF, max. torque 7 Nm (5.16 lbf ft)
2.6 Installation check
After installing the device, carry out the following checks:
• Is the device damaged (visual inspection)?
• Does the device correspond to the measuring point specifications for process temperature,
process pressure, ambient temperature, measuring range etc.
• If available: Are the measuring point number and labelling correct (visual inspection)?
• Is the measuring device sufficiently protected against precipitation and direct sunlight?
• Are the cable glands tightened correctly?
• After aligning the housing, check the process seal at the nozzle or flange.
65
1

Prosonic T Wiring
Endress+Hauser 13
3 Wiring
"Caution!
Before connection please note the following:
• The power supply must be identical to the data on the nameplate.
• Switch off power supply before connecting up the instrument.
• Connect equipotential bonding to devices ground terminal before connecting up the
instrument →ä15, "Potential matching".
#Warning!
When you use the measuring system in hazardous areas, make sure to comply with national
standards and the specifications in the safety instructions (XA’s). Make sure you use the specified
cable gland.
3.1 Wiring
1. Unscrew housing cover (1).
2. Remove display (2) if fitted.
3. Insert cable (3) through gland (4).
"Caution!
If possible, insert the cable from
above and let a draining loop in
order to avoid intrusion of
humidity.
4. Installation cable screen to the
grounding terminal (5) within the
terminal compartment.
5. Make connection according to
terminal assignment, →ä14,
"Terminal assignment".
6. Tighten cable gland (4).
7. Insert display (2) if fitted.
8. Screw on housing cover (1).
9. Switch on power supply.
L00-FMU30KAx-04-00-00-xx-008
12
1
2
3
5
4

Wiring Prosonic T
14 Endress+Hauser

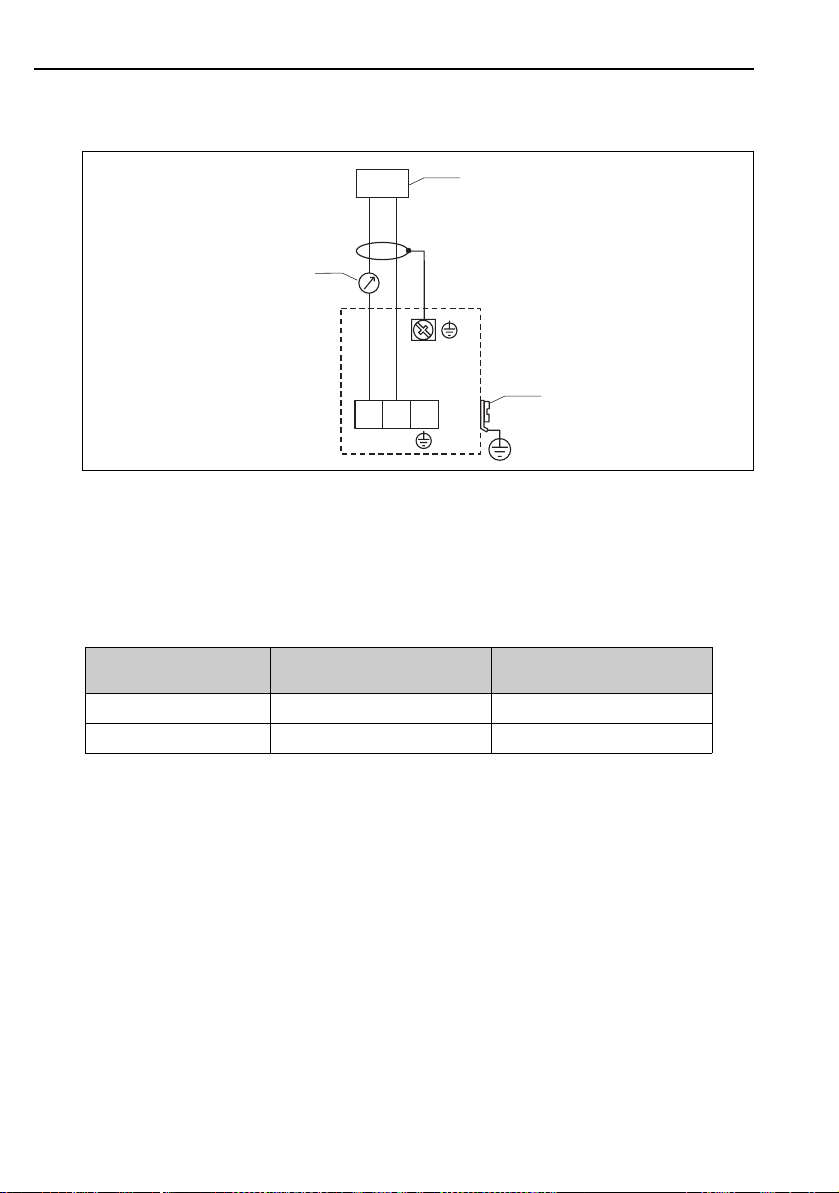

3.2 Terminal assignment
L00-FMU30xxx-04-00-00-de-015
1Power
2 Plant ground
3 4...20 mA
3.3 Supply voltage
The following values are the voltages across the terminals directly at the instrument:
L- L+
123
1
2
3
Current
consumption Terminal voltage minimum Terminal voltage maximum
4 mA 14 V 35 V
20 mA 8 V 35 V

Prosonic T Wiring
Endress+Hauser 15
3.4 Potential matching
L00-FMU30xxx-17-00-00-xx-014
1 External ground terminal of the device
Connect the equipotential bonding to the external ground terminal of the transmitter.
"Caution!
In Ex applications, the instrument must only be grounded on the sensor side. Further safety
instructions are given in the separate documentation for applications in explosion hazardous
areas.
!Note!
Since the housing is isolated from the tank by the plastic sensor, interference signals may occur
if the potential matchin gline is not prolerly connected.
For optimum electromagnetic compatibility the potential matching line should be as short as
possible and at least 2.5 mm2(14 AWG) in cross-section.
If increased electromagnetic interference is to be expected due to the installation conditions, we
recommend usage of a ground strap.
3.5 Checking the connection
After wiring the device, carry out the following checks:
• Are the terminals correctly assigned?
• Is the cable gland tight?
• Is the housing cover fully screwed on?
• If power supply available: Does a display appear on the display module?
1

Operation Prosonic T
16 Endress+Hauser
4Operation
4.1 General structure of the operating menu
4.1.1 Operating options
• Via the operating and display module
• Via the service interface of the device with the Commubox FXA291 and the operating
program "FieldCare"
The operating menu is made up of two levels:
•Function groups (00, 01, 03, …, 0A, 0C):
The individual operating options of the instrument are split up roughly into different function
groups. The function groups that are available include, e.g.: "basic setup", "safety
settings..", "output", "display", etc.
•Functions (001, 002, 003, …, 0A6, 0C8):
Each function group consists of one or more functions. The functions perform the actual
operation or parameterisation of the instrument. Numerical values can be entered here and
parameters can be selected and saved. The available functions of the “basic setup"(00)
function group include, e.g..: "tank shape"(002), "medium property" (003), "process
cond."(004), "empty calibr." (005), etc.
If, for example, the application of the instrument is to be changed, carry out the following
procedure:
1. Select the “basic setup"(00) function group
2. Select the "tank shape"(002) function (where the existing tank shape is selected).
4.1.2 Identifying the functions
For simple orientation within the function menus, for each function a position is shown on the
display.
empty calibr. 005
6.500 m
distance membrane
to min. level
⇒
1 Function group
2 Function
2
005
1

Prosonic T Operation
Endress+Hauser 17
The first two digits identify the function group:
The third digit numbers the individual functions within the function group:
Here after the position is always given in brackets (e.g. "tank shape" (002)) after the described
function.
4.2 Display and operating elements
On-site display VU331
The LCD module for display and operation is located beneath the housing cover. The measured
value is legible through the transparent cover. Open the cover to operate the device.
L00-FMU30xxx-07-05-xx-xx-000
1 Display symbol 3 Plug-in module
2 Display (rotatable) 4 Function keys
•basic setup 00
•safety settings 01
•temperature 03
...
•basic setup 00 →•tank shape 002
•medium properties 003
•process cond. 004
...
4...20mA
+
FEU31
-
Display
%
E
12
3
4

Operation Prosonic T
18 Endress+Hauser
4.2.1 Display
In the measured value display, the bargraph corresponds to the output.The bargraph is
segmented in 10 bars. Each completely filled bar represents a change of 10% of the adjusted
span.
measured value display
1. label
2. symbol
3. value
4. bargraph
5. unit
6. position in menu
group selection
1. selection list
Function with free parameter
1. label
2. help texts
3. position in menu
envelope curve
1. envelope curve
4
1
6
3
5
2
1
2
1
3
1

Prosonic T Operation
Endress+Hauser 19
4.2.2 Display symbols
The following table describes the symbols that appear on the liquid crystal display:
4.2.3 Function of the keys
Sybmol Meaning
ALARM_SYMBOL
This alarm symbol appears when the instrument is in an alarm state. If the symbol flashes, this indicates
a warning.
LOCK_SYMBOL
This lock symbol appears when the instrument is locked, i.e. if no input is possible.
Key(s) Meaning
(The keys to press are displayed in grey.)
Navigate upwards in the selection list
Edit numeric value within a function
Navigate downwards in the selection list
Edit numeric value within a function
Navigate to the left within a function group
Navigate to the right within a function group, confirmation.
Contrast settings of the LCD
Hardware lock / unlock
After a hardware lock, an operation of the instrument via display or
communication is not possible!
The hardware can only be unlocked via the display. An unlock parameter must
be entered to do so.

Commissioning Prosonic T
20 Endress+Hauser
5 Commissioning
5.1 Function check
Make sure that all final checks have been completed before you start up your measuring point:
• Checklist →ä12 “Installation check”.
• Checklist →ä15 “Checking the connection”.
5.2 Switching on the measuring device
After switching on the supply voltage, the instrument is first initialised. Then the following
appear for approximately five second:.
• Device type
• Software Version
Step Function Remarks
1→ language Select the language
(this message appears the first time the instrument is switched on)
2→ distance unit Select the basic unit
(this message appears the first time the instrument is switched on)
3→ measured value The current measured value is displayed.
This function displays the current measured value in the selected unit
(see "customer unit"(042) function). The number of digits after decimal point
can be selected in the "no.of decimals"(095) function.
For details, see the documentation BA00388F "Prosonic T - Description of
Instrument Functions" on the CD-ROM provided.
4→ group selection After E is pressed, you reach the group selection.
This selection enables you to perform the basic setup →ä23.
