Brief Operating Instructions
Proline Promass F 200
Coriolis flowmeter
These Instructions are Brief Operating Instructions; they are
not a substitute for the Operating Instructions pertaining to
the device.
Detailed information about the device can be found in the
Operating Instructions and the other documentation:
• On the CD-ROM supplied (is not included in the delivery for
all device versions).
• Available for all device versions via:
– Internet: www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
Description of the procedure (→  10)
KA01122D/06/EN/03.14
71241809

Table of contents Proline Promass F 200
2 Endress+Hauser
Table of contents
1 Document information ........................................................... 3
1.1 Symbols used ........................................................................ 3
2 Basic safety instructions ......................................................... 5
2.1 Requirements for the personnel ........................................................... 5
2.2 Designated use ....................................................................... 5
2.3 Workplace safety ...................................................................... 6
2.4 Operational safety ..................................................................... 7
2.5 Product safety ........................................................................ 7
2.6 IT security ........................................................................... 7
3 Product description .............................................................. 8
3.1 Product design ....................................................................... 8
4 Incoming acceptance and product identification .................................. 9
4.1 Incoming acceptance ................................................................... 9
4.2 Product identification ................................................................. 10
5 Storage and transport ........................................................... 11
5.1 Storage conditions .................................................................... 11
5.2 Transporting the product ............................................................... 12
6 Installation ..................................................................... 14
6.1 Installation conditions ................................................................. 14
6.2 Mounting the measuring device .......................................................... 20
6.3 Post-installation check ................................................................. 21
7 Electrical connection ............................................................ 23
7.1 Connection conditions ................................................................. 23
7.2 Connecting the measuring device ......................................................... 29
7.3 Hardware settings .................................................................... 31
7.4 Ensuring the degree of protection ........................................................ 32
7.5 Post-connection check ................................................................. 33
8 Operation options .............................................................. 34
8.1 Structure and function of the operating menu ................................................ 34
8.2 Access to the operating menu via the local display ............................................ 35
8.3 Access to the operating menu via the operating tool ........................................... 41
9 System integration .............................................................. 43
10 Commissioning ................................................................. 43
10.1 Function check ...................................................................... 43
10.2 Switching on the measuring device ........................................................ 44
10.3 Setting the operating language .......................................................... 44
10.4 Configuring the measuring device ........................................................ 44
10.5 Defining the tag name ................................................................. 45
10.6 Protecting settings from unauthorized access ................................................ 45
11 Diagnostic information ......................................................... 47

Proline Promass F 200 Document information
Endress+Hauser 3
1 Document information
1.1 Symbols used
1.1.1 Safety symbols
Symbol Meaning
DANGER
A0011189-EN
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
A0011190-EN
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
A0011191-EN
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
A0011192-EN
NOTICE!
This symbol contains information on procedures and other facts which do not result in personal
injury.
1.1.2 Electrical symbols
Symbol Meaning
A0011197
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011198
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
A0017381
Direct current and alternating current
• A terminal to which alternating voltage or DC voltage is applied.
• A terminal through which alternating current or direct current flows.
A0011200
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding system.
A0011199
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011201
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.

Document information Proline Promass F 200
4 Endress+Hauser
1.1.3 Tool symbols
Symbol Meaning
A0011220
Flat blade screwdriver
A0011221
Allen key
A0011222
Open-ended wrench
1.1.4 Symbols for certain types of information
Symbol Meaning
A0011182
Allowed
Indicates procedures, processes or actions that are allowed.
A0011183
Preferred
Indicates procedures, processes or actions that are preferred.
A0011184
Forbidden
Indicates procedures, processes or actions that are forbidden.
A0011193
Tip
Indicates additional information.
A0011194
Reference to documentation
Refers to the corresponding device documentation.
A0011195
Reference to page
Refers to the corresponding page number.
A0011196
Reference to graphic
Refers to the corresponding graphic number and page number.
,… ,
Series of steps
Result of a sequence of actions
A0015502
Visual inspection

Proline Promass F 200 Basic safety instructions
Endress+Hauser 5
1.1.5 Symbols in graphics
Symbol Meaning
1, 2, 3,... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
A0013441
Flow direction
-
A0011187
Hazardous area
Indicates a hazardous area.
.
A0011188
Safe area (non-hazardous area)
Indicates a non-hazardous area.
2 Basic safety instructions
2.1 Requirements for the personnel
The personnel must fulfill the following requirements for its tasks:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the instructions
in the Operating Instructions and supplementary documentation as well as in the
certificates (depending on the application)
‣Following instructions and basic conditions
2.2 Designated use
Application and media
The measuring device described in these Instructions is intended only for flow measurement
of liquids and gases.
Depending on the version ordered, the measuring device can also measure potentially
explosive, flammable, poisonous and oxidizing media.
Measuring devices for use in hazardous areas, in hygienic applications or in applications
where there is an increased risk due to process pressure, are labeled accordingly on the
nameplate.
To ensure that the measuring device remains in proper condition for the operation time:
‣Only use the measuring device in full compliance with the data on the nameplate and the
general conditions listed in the Operating Instructions and supplementary documentation.

Basic safety instructions Proline Promass F 200
6 Endress+Hauser
‣Based on the nameplate, check whether the ordered device is permitted for the intended
use in the hazardous area (e.g. explosion protection, pressure vessel safety).
‣Use the measuring device only for media against which the process-wetted materials are
adequately resistant.
‣If the measuring device is not operated at atmospheric temperature, compliance with the
relevant basic conditions specified in the associated device documentation is absolutely
essential: "Device documentation" section (→  10).
Incorrect use
Non-designated use can compromise safety. The manufacturer is not liable for damage caused
by improper or non-designated use.
!WARNING
Danger of breakage of the measuring tube due to corrosive or abrasive fluids.
Housing breakage due to mechanical overload possible!
‣Verify the compatibility of the process fluid with the measuring tube material.
‣Ensure the resistance of all fluid-wetted materials in the process.
‣Observe the specified pressure and temperature range.
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability as minute changes in the temperature, concentration or level of
contamination in the process can alter the corrosion resistance properties.
Residual risks
!WARNING
Danger of housing breaking due to measuring tube breakage!
‣In the event of a measuring tube breakage for a device version without rupture disk it is
possible for the pressure loading capacity of the sensor housing to be exceeded. This can
lead to rupture or failure of the sensor housing.
The external surface temperature of the housing can increase by max. 20 K due to the power
consumption of the electronic components. Hot process fluids passing through the measuring
device will further increase the surface temperature of the housing. The surface of the sensor,
in particular, can reach temperatures which are close to the fluid temperature.
Possible burn hazard due to fluid temperatures!
‣For elevated fluid temperature, ensure protection against contact to prevent burns.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
For welding work on the piping:
‣Do not ground the welding unit via the measuring device.

Proline Promass F 200 Basic safety instructions
Endress+Hauser 7
If working on and with the device with wet hands:
‣It is recommended to wear gloves on account of the higher risk of electric shock.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
2.6 IT security
We only provide a warranty if the device is installed and used as described in the Operating
Instructions. The device is equipped with security mechanisms to protect it against any
inadvertent changes to the device settings.
IT security measures in line with operators' security standards and designed to provide
additional protection for the device and device data transfer must be implemented by the
operators themselves.
Endress+Hauser can be contacted to provide support in performing this task.

Product description Proline Promass F 200
8 Endress+Hauser
3 Product description
3.1 Product design
1 2 345 6 78
9
+E
–
A0014056
 1 Important components of a measuring device
1 Electronics compartment cover
2 Display module
3 Main electronics module
4 Cable glands
5 Transmitter housing (incl. HistoROM)
6 I/O electronics module
7 Terminals (spring loaded terminals, pluggable)
8 Connection compartment cover
9 Sensor

Proline Promass F 200 Incoming acceptance and product identification
Endress+Hauser 9
4 Incoming acceptance and product identification
4.1 Incoming acceptance
A0015502
1
+
2
1
+
2
A0013843
Are the order codes on the
delivery note (1) and the
product sticker (2) identical?
A0013695
A0015502
A0013698
Are the goods undamaged?
A0015502
A0013699
Do the nameplate data match
the ordering information on
the delivery note?
A0015502
A0013697
Is the CD-ROM with the
Technical Documentation
(depends on device version)
and documents present?
• If one of the conditions is not satisfied, contact your Endress+Hauser Sales Center.
• Depending on the device version, the CD-ROM might not be part of the delivery! In
such cases, the technical documentation is available via the Internet or via the Endress
+Hauser Operations App, see the "Device documentation" section (→  10).

Incoming acceptance and product identification Proline Promass F 200
10 Endress+Hauser
4.2 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is displayed.
• Enter the serial number from the nameplates into the Endress+Hauser Operations App or
scan the 2-D matrix code (QR code) on the nameplate with the Endress+Hauser Operations
App: all the information for the measuring device is displayed.
Order code:
Ext. ord. cd.:
Ser. no.:
1
2
3
4
A0021952
 2 Example of a nameplate
1 Order code
2 Serial number (Ser. no.)
3 Extended order code (Ext. ord. cd.)
4 2-D matrix code (QR code)
For detailed information on the breakdown of the specifications on the nameplate, see
the Operating Instructions for the device (→  10).
4.2.1 Device documentation
All devices are supplied with Brief Operating Instructions. These Brief Operating
Instructions are not a substitute for the Operating Instructions pertaining to the device!
Detailed information about the device can be found in the Operating Instructions and the
other documentation:
• On the CD-ROM supplied (is not included in the delivery for all device versions).
• Available for all device versions via:
– Internet: www.endress.com/deviceviewer
– Smart phone/tablet: Endress+Hauser Operations App
The information required to retrieve the documentation can be found on the nameplate of the
device (→  2,  10).

Proline Promass F 200 Storage and transport
Endress+Hauser 11
Technical documentation can also be downloaded from the Download Area of the
Endress+Hauser web site: www.endress.com→ Download. However this technical
documentation applies to a particular instrument family and is not assigned to a specific
device.
W@M Device Viewer
1. Launch the W@M Device Viewer: www.endress.com/deviceviewer
2. Enter the serial number (Ser. no.) of the device: see nameplate (→  2,  10).
 All the associated documentation is displayed.
Endress+Hauser Operations App
The Endress+Hauser Operations App is available both for android smart phones (Google
Play store) and for iPhones and iPads (App Store).
Via the serial number:
1. Launch the Endress+Hauser Operations App.
2. Enter the serial number (Ser. no.) of the device: see nameplate (→  2,  10).
 All the associated documentation is displayed.
Via the 2-D matrix code (QR code):
1. Launch the Endress+Hauser Operations App.
2. Scan the 2-D matrix code (QR code) on the nameplate (→  2,  10).
 All the associated documentation is displayed.
5 Storage and transport
5.1 Storage conditions
Observe the following notes for storage:
• Store in original packaging.
• Do not remove protective covers or protective caps installed on process connections.
• Protect from direct sunlight.
• Storage temperature: –40 to +80 °C (–40 to +176 °F)
• Store in a dry and dust-free place.
• Do not store outdoors.

Storage and transport Proline Promass F 200
12 Endress+Hauser
5.2 Transporting the product
!WARNING
Center of gravity of the measuring device is higher than the suspension points of the
webbing slings.
Risk of injury if the measuring device slips.
‣Secure the measuring device from rotating or slipping.
‣Observe the weight specified on the packaging (stick-on label).
‣Observe the transport instructions on the stick-on label on the electronics compartment
cover.
A0015606
Observe the following notes during transport:
• Transport the measuring device to the measuring point in the original packaging.
• Do not remove protective covers or protective caps installed on process connections. They
prevent mechanical damage to the sealing surfaces and fouling in the measuring tube.
A0015604

Proline Promass F 200 Storage and transport
Endress+Hauser 13
A0015605

Installation Proline Promass F 200
14 Endress+Hauser
6 Installation
6.1 Installation conditions
No special measures such as supports are necessary. External forces are absorbed by the
construction of the device.
6.1.1 Mounting position

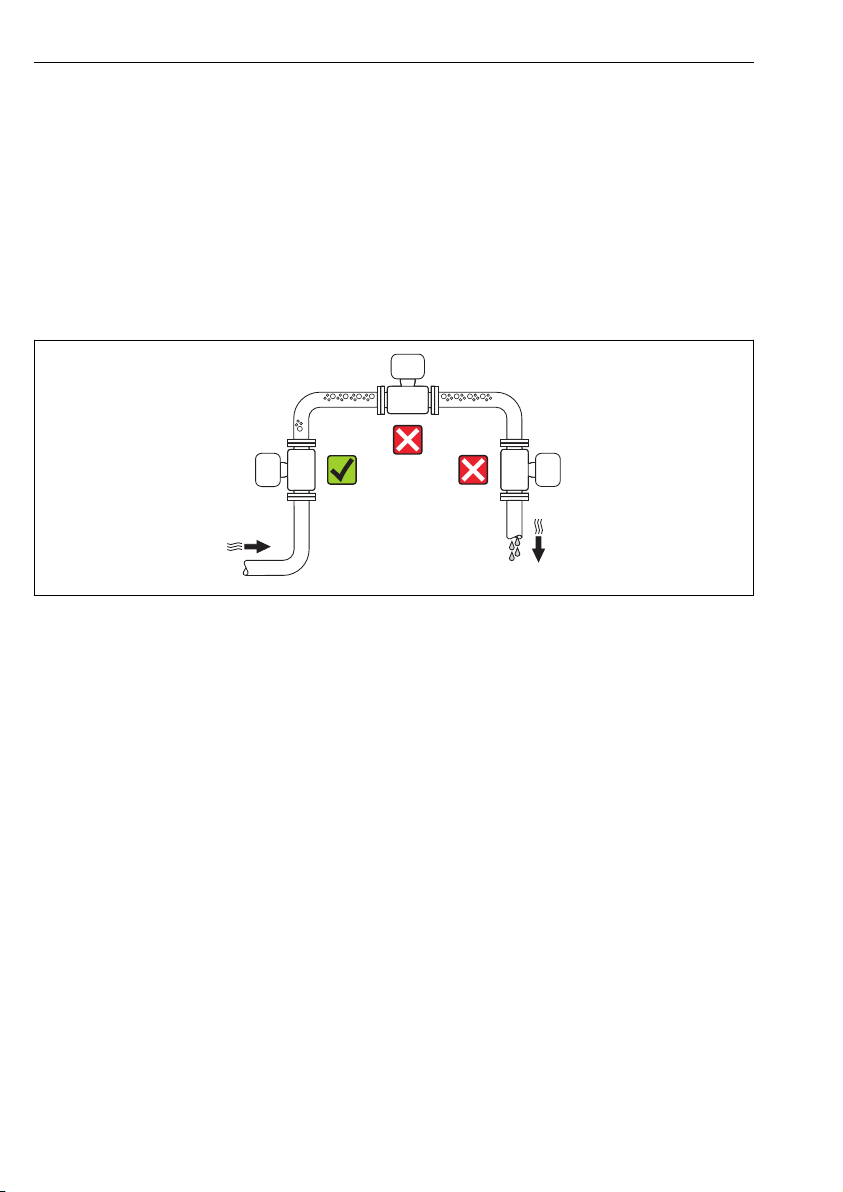

Mounting location
A0015595
Installation in down pipes
However, the following installation suggestion allows for installation in an open vertical
pipeline. Pipe restrictions or the use of an orifice with a smaller cross-section than the
nominal diameter prevent the sensor running empty while measurement is in progress.

Proline Promass F 200 Installation
Endress+Hauser 15
1
2
3
4
5
A0015596
 3 Installation in a down pipe (e.g. for batching applications)
1 Supply tank
2 Sensor
3 Orifice plate, pipe restriction
4 Valve
5 Batching tank
DN Ø orifice plate, pipe restriction
[mm] [in] [mm] [in]
8 ³⁄₈ 6 0.24
15 ½ 10 0.40
25 1 14 0.55
40 1½ 22 0.87
50 2 28 1.10

Installation Proline Promass F 200
16 Endress+Hauser
Orientation
The direction of the arrow on the sensor nameplate helps you to install the sensor according
to the flow direction.
Orientation Recommendation
AVertical orientation
A0015591
BHorizontal orientation, transmitter
head up
A0015589
1)
Exception:
CHorizontal orientation, transmitter
head down
A0015590
2)
Exception:
DHorizontal orientation, transmitter
head at side
A0015592
1) Applications with low process temperatures may reduce the ambient temperature. To maintain the minimum
ambient temperature for the transmitter, this orientation is recommended.
2) Applications with high process temperatures may increase the ambient temperature. To maintain the maximum
ambient temperature for the transmitter, this orientation is recommended.
1 2
A0014057

Proline Promass F 200 Installation
Endress+Hauser 17
Inlet and outlet runs
No special precautions need to be taken for fittings which create turbulence, such as valves,
elbows or T-pieces, as long as no cavitation occurs (→  17).
A0015597 A0015598
For the dimensions and installation lengths of the device, see the "Technical Information"
document, "Mechanical construction" section
6.1.2 Requirements from environment and process
Ambient temperature range
Measuring device –40 to +60 °C (–40 to +140 °F)
Local display –20 to +60 °C (–4 to +140 °F)
The readability of the display may be impaired at temperatures outside the temperature range.
‣If operating outdoors:
Avoid direct sunlight, particularly in warm climatic regions.
System pressure
For this reason, the following mounting locations are recommended:
• At the lowest point in a vertical pipe
• Downstream from pumps (no danger of vacuum)
A0015594
Thermal insulation
In the case of some fluids, it is important that the heat radiated from the sensor to the
transmitter is kept to a minimum. A wide range of materials can be used for the required
insulation.

Installation Proline Promass F 200
18 Endress+Hauser
NOTICE
Electronics overheating on account of thermal insulation!
‣Observe maximum permitted insulation height of the transmitter neck so that the
transmitter head is completely free.
mm (in)
£20 (0.79)
A0016749
Heating
NOTICE
Electronics can overheat due to elevated ambient temperature!
‣Observe maximum permitted ambient temperature for the transmitter (→  17).
‣Depending on the fluid temperature, take the device orientation requirements into
account .
Heating options
If a fluid requires that no heat loss should occur at the sensor, users can avail of the following
heating options:
• Electrical heating, e.g. with electric band heaters
• Via pipes carrying hot water or steam
• Via heating jackets
For detailed information about heating with electrical band heaters, refer to the
Operating Instructions for the device on the CD-ROM provided
Vibrations
The high oscillation frequency of the measuring tubes ensures that the correct operation of
the measuring system is not influenced by plant vibrations.
6.1.3 Special mounting instructions
Rupture disk
Make sure that the function and operation of the rupture disk is not impeded through the
installation of the device. The position of the rupture disk is indicated on a sticker beside it.
For additional information that is relevant to the process .
The existing connecting nozzles are not designed for a rinse or pressure monitoring function.

Proline Promass F 200 Installation
Endress+Hauser 19
E
D
45°
RUPTURE DISK
i
2
3
1
B
C
A
A0008361
1 Rupture disk label
2 Rupture disk with 1/2" NPT internal thread with 1" width across flat
3 Transport protection
DN A B C D E
[mm] [in] [mm] [in] [in] [in] [mm] [in] [mm] [in]
8 ³⁄₈ Approx.42 Approx.1.65 AF 1 ½ NPT 62 2.44 216 8.50
15 ½ Approx.42 Approx.1.65 AF 1 ½ NPT 62 2.44 220 8.66
25 1 Approx.42 Approx.1.65 AF 1 ½ NPT 62 2.44 260 10.24
40 1½ Approx.42 Approx.1.65 AF 1 ½ NPT 67 2.64 310 12.20
50 2 Approx.42 Approx.1.65 AF 1 ½ NPT 79 3.11 452 17.78
For detailed information about using a rupture disk, refer to the Operating Instructions
for the device on the CD-ROM provided
Zero point adjustment
All measuring devices are calibrated in accordance with state-of-the-art technology.
Calibration takes place under reference conditions . Therefore, a zero point adjustment in the
field is generally not required.
Experience shows that zero point adjustment is advisable only in special cases:
• To achieve maximum measuring accuracy even with low flow rates
• Under extreme process or operating conditions (e.g. very high process temperatures or very
high-viscosity fluids).

Installation Proline Promass F 200
20 Endress+Hauser
6.2 Mounting the measuring device
6.2.1 Required tools
For transmitter
• For turning the transmitter housing: Open-ended wrench8 mm
• For opening the securing clamps: Allen key3 mm
For sensor
For flanges and other process connections: Corresponding mounting tools
6.2.2 Preparing the measuring device
1. Remove all remaining transport packaging.
2. Remove any protective covers or protective caps present from the sensor.
3. Remove stick-on label on the electronics compartment cover.
6.2.3 Mounting the measuring device
!WARNING
Danger due to improper process sealing!
‣Ensure that the inside diameters of the gaskets are greater than or equal to that of the
process connections and piping.
‣Ensure that the gaskets are clean and undamaged.
‣Install the gaskets correctly.
1. Ensure that the direction of the arrow on the nameplate of the sensor matches the flow
direction of the fluid.
2. Install the measuring device or turn the transmitter housing so that the cable entries do
not point upwards.

A0013964
6.2.4 Turning the transmitter housing
To provide easier access to the connection compartment or display module, the transmitter
housing can be turned:
