Endress+Hauser PROline promag 50 w Manual

Electromagnetic
Flow Measuring System
PROline promag 50/53 W
Flow measurement in
water or wastewater applications
Features and benefits
• Nominal diameters 1” to 78”
• Hard rubber or polyurethane liners
• PFA for high-temperature applica-
tions up to +355°F (+180°C)
• Fitting lengths to ISO and DVGW
• High measuring accuracy for
improved process control:
– Promag 50: ± 0.5%
(option: ± 0.2%)
– Promag 53: ± 0.2%
• Robust field housing, NEMA 4X
(IP 67)
• NEMA 4X (IP 67) wall-mount housing
for straight-forward installation of the
remote version
• NEMA 6P (IP 68) sensor version
• Promag 53 with Touch Control:
operation without opening the
housing - also for explosion proof
applications
• Expandable software packages:
–electrode cleaning
–pulsating flow
• Quick setup menus for straight-
forward commissioning in the field
• Potable-water approvals:
KTW,WRC, etc.
• Interfaces for integration into all
major process-control systems:
–HART®interface as standard
–Promag 50: PROFIBUS-PA
–Promag 53: PROFIBUS-PA/-DP,
FOUNDATION fieldbus
• Explosion proof approval for
installation in Division 1 (FM, CSA,
ATEX, etc.)
Application
All fluids with a minimum conductivity of
≥5 µS/cm can be measured:
• Drinking water
• Wastewater
• Wastewater sludge, etc.
A minimum conductivity of ≥20 µS/cm is
required for measuring demineralized
water.
Liner specific applications
• Polyurethane lining for applications
with cold water and for slightly
abrasive fluids
• Hard rubber lining for all applications
with water (especially for drinking
water)
Technical
Information
TI 046D/24/ae
The Power of Know How

Promag 50/53 W
Endress+Hauser
Function and system design
Faraday’s law of induction states that a voltage is induced in a conductor moving in a
magnetic field.
In electromagnetic measuring, the flowing medium corresponds to the moving
conductor. The induced voltage is proportional to the flow velocity and is detected by
two measuring electrodes and transmitted to the amplifier. Flow volume is computed
on the basis of the pipe’s diameter.The constant magnetic field is generated by a
switched direct current of alternating polarity.
Ue = B · L · v
Q = A · v
Ue = induced voltage
B = magnetic induction (magnetic field)
L = electrode gap
v = flow velocity
Q =volumeflow
A = pipe cross-section
I = current strength
The measuring system consists of a transmitter and a sensor.
Two versions are available:
• Compact version: transmitter and sensor form a single mechanical unit.
• Remote version: transmitter and sensor are installed separately.
Transmitter:
• Promag 50 (user interface with push buttons for operation, two-line display)
• Promag 53 (“Touch Control” without opening the housing, four-line display)
Sensor:
• Promag W, 1” to 78” (DN 25 to 2000)
Measuring system
Measuring principle
2
V
I
I

Promag 50/53 W
Endress+Hauser
Measured variable
Measuring range
Operable flow range
Input signal
Output
Promag 50
Current output:
Active/passive selectable, galvanically isolated, time constant selectable
(0.01 to 100 s), full scale value selectable, temperature coefficient: typically
0.003% o.r./°F (0.005% o.r./°C);resolution: 0.5 µA
• active: 0/4 to 20 mA, RL< 700 Ω(HART®: RL≥250 Ω)
• passive: 4 to 20 mA, max. 30 V DC, Ri≤150 Ω
Pulse/frequency output:
Passive, open collector, 30 V DC, 250 mA, galvanically isolated.
Frequency output: full scale frequency 2 to 1000 Hz (fmax = 1250 Hz), on/off ratio 1:1,
pulse width max. 10 s
Pulse output: pulse value and pulse polarity selectable, max. pulse width
configurable (0.5 ms to 2 s), maximum pulse frequency selectable
PROFIBUS-PA interface
• PROFIBUS-PA in accordance with EN 50170 Volume 2, IEC 61158-2 (MPB),
galvanically isolated
• Current consumption: 11 mA
• Permissible supply voltage: 9 to 32 V
• FDE (Fault Disconnection Electronic): 0 mA
• Data transmission rate, supported bauderate: 31.25 kBit/s
• Signal encoding: Manchester II
• Function blocks: 1 x Analog Input, 1 x Totalizer
• Output data: Volume flow, Totalizer
• Input data: Positive zero return (ON/OFF), Control totalizer, Value for local display
• Bus address adjustable via DIP switches at the measuring device
Output signal
3
Flow rate (proportional to induced voltage)
Typically v = 0.033 to 33 ft/s (0.01 to 10 m/s) with the specified measuring accuracy
Over 1000 : 1
Status input (auxiliary input):
U = 3 to 30 V DC, Ri= 5 kΩ, galvanically isolated.
Configurable for: totalizer(s) reset, measured-value suppression, error-message
reset
Current input (for Promag 53 only):
Active/passive selectable, galvanically isolated, full scale value selectable,
resolution: 3
µ A
Temperature coefficient: typically 0.003% o.r./°F (0.005% o.r./°C) (o.r = of reading)
Active:4 to 20 mA, Ri≤150 Ω, Uout = 24 VDC, short-circuit proof
Passive: 0/4 to 20 mA, Ri≤150 Ω, Umax = 30 VDC
Input

Promag 50/53 W
Endress+Hauser4
Promag 53
Current output:
Active/passive selectable, galvanically isolated, time constant selectable
(0.01 to 100 s), full scale value selectable, temperature coefficient: typically
0.003% o.r./°F (0.005% o.r./°C); resolution: 0.5 µA
• active: 0/4 to 20 mA, RL< 700 Ω(HART®: RL≥250 Ω)
• passive: 4 to 20 mA, max. 30 V DC, Ri≤150 Ω
Pulse/frequency output:
Active/passive selectable, galvanically isolated (I.S. version: passive only)
• active: 24 V DC, 25 mA (max.250 mA during 20 ms), RL> 100 Ω
• passive: open collector, 30 V DC, 250 mA
Frequency output: full scale frequency 2 to 10,000 Hz (fmax = 12,500 Hz),
on/off ratio 1:1, pulse width max. 10 s
Pulse output: pulse value and pulse polarity selectable, pulse width configurable
(0.05 ms to 2 s), on/off ratio is 1:1 as of a frequency of 1 / (2 x pulse width)
PROFIBUS-DP interface:
• PROFIBUS-DP/PA in accordance with EN 50170 Volume 2, IEC 61158-2 (MPB),
galvanically isolated
• Data transmission rate, supported baudrate: 9.6 kBaud to 12 MBaud
• Automatic data transmission rate recognition
• Signal encoding: NRZ-Code
• Function blocks: 2 x Analog Input, 3 x Totalizer
• Output data: Volume flow, Corrected volume flow, Totalizer 1 to 3
• Input data: Positive zero return (ON/OFF), Totalizer control, Value for local display
• Bus address adjustable via DIP switches at the measuring device
PROFIBUS-PA interface:
• PROFIBUS-PA in accordance with EN 50170 Volume 2, IEC 61158-2 (MPB),
galvanically isolated
• Current consumption: 11 mA
• Permissible supply voltage: 9 to 32 V
• Data transmission rate, supported baudrate: 31.25 kBit/s
• Error current FDE (Fault Disconnection Electronic): 0 mA
• Signal encoding: Manchester II
• Function blocks: 2 x Analog Input, 3 x Totalizer
• Output data: Volume flow, Corrected volume flow, Totalizer 1 to 3
• Input data: Positive zero return (ON/OFF), Totalizer control, Value for local display
• Bus address adjustable via DIP switches at the measuring device
FOUNDATION Fieldbus interface:
• FOUNDATION Fieldbus H1, IEC 61158-2 (MBP), galvanically isolated
• Current consumption: 12 mA
• Permissible supply voltage: 9 to 32 V
• Error current FDE (Fault Disconnection Electronic): 0 mA
• Data transmission rate, supported buadrate: 31.25 kBit/s
• Signal encoding: Manchester II
• Function blocks: 5 x Analog Input, 1 x Discrete Output, 1 x PID
• Output data: Volume flow, Corrected volume flow, Totalizer 1 to 3
• Input data: Positive zero return (ON/OFF), Reset totalizer
• Link Master (LM) functionality is supported

Promag 50/53 W
Endress+Hauser 5
Load
Signal on alarm
Low flow cutoff
Galvanic isolation
Switching output
• Current output →failure response selectable
• Pulse/frequency output →failure response selectable
• Status output (Promag 50) →non-conductive by fault or power supply failure
• Relay output (Promag 53) →de-energized by fault or power supply failure
See “Output signal”
Status output (Promag 50):
Open collector, max. 30 V DC / 250 mA, galvanically isolated
Configurable for: error messages, Empty Pipe Detection (EPD), flow direction, limit
values
Relay output (Promag 53):
Normally closed (NC or break) or normally open (NO or make) contacts available
(default: relay 1 = NO, relay 2 = NC),
max. 30 V / 0.5 A AC; 60 V / 0.1 A DC, galvanically isolated.
Configurable for: error messages, Empty Pipe Detection (EPD), flow direction, limit
values, batching contacts
Switch points for low flow cutoff are selectable
All circuits for inputs, outputs, and power supply are galvanically isolated from each
other.

Promag 50/53 W
Endress+Hauser6

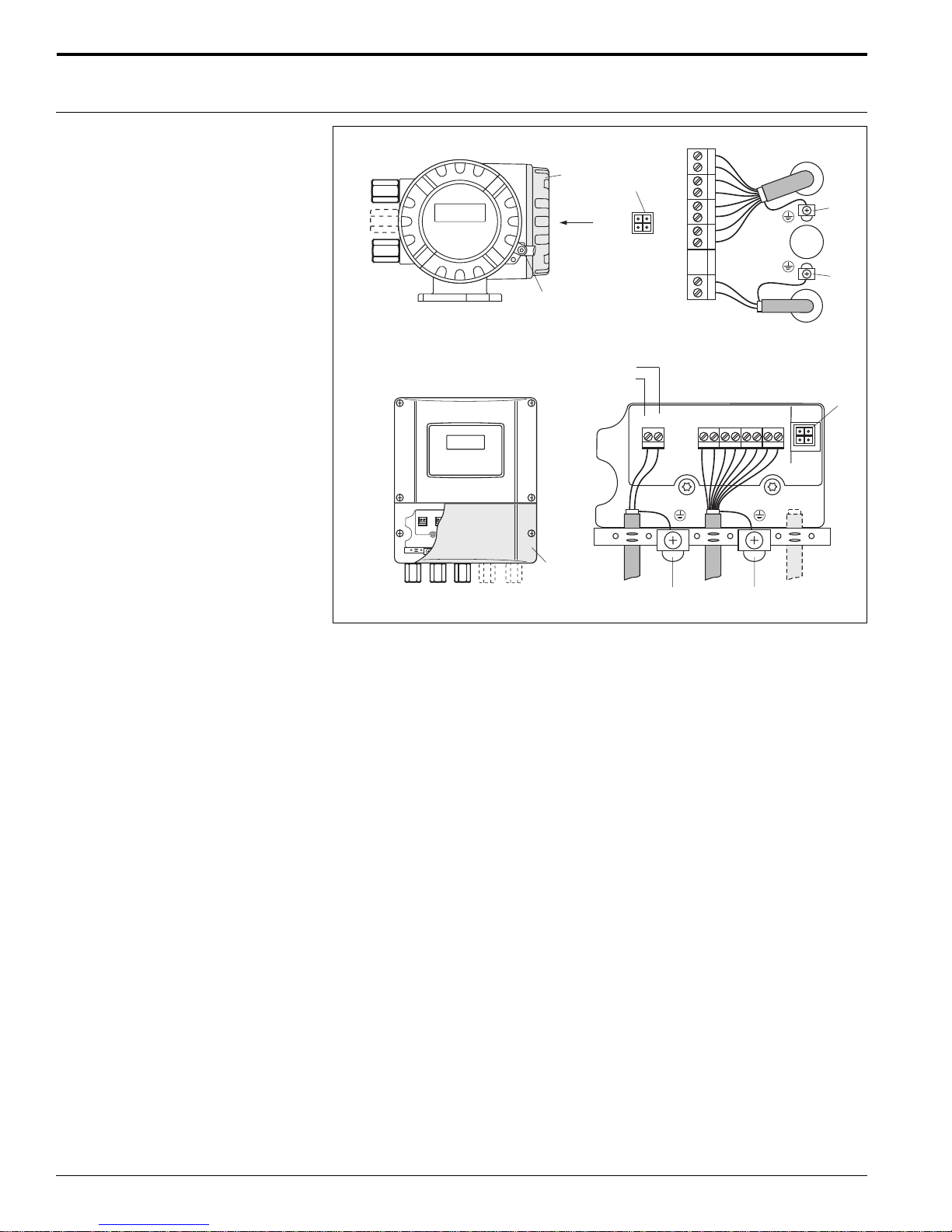

Power supply
Electrical connection
measuring unit
Top: field housing
Bottom:wall-mounthousing
a Cable for power supply: 85 to 260 VAC, 20 to 55 VAC, or 16 to 62 VDC; power consumption: 15 VA / 15 W
Terminal No. 1: L1 fo AC, L+ for DC
Terminal No. 2: N for AC, L- for DC
b Signal cable: terminals No. 20 to 27 ´® see Page 8
c Grounding terminal for protective conductor
d Groundingterminalforsignal-cableshield
e Service connection for connecting service interface FXA 193 (FieldCheck,ToF Tool-FieldTool Package)
f Coverforwiringcompartment
g Coversecuringclamp
12
cda
a
a
b
c
d
a
b
b
b
222320
+ − + − + − + −
21 242526 27
−27
−25
−23
−21
2
1
+26
+24
+22
+20
L1 (L+)
L1 (L+)
N (L-)
N (L-)
e
g
f
f
e

Promag 50/53 W
Endress+Hauser 7

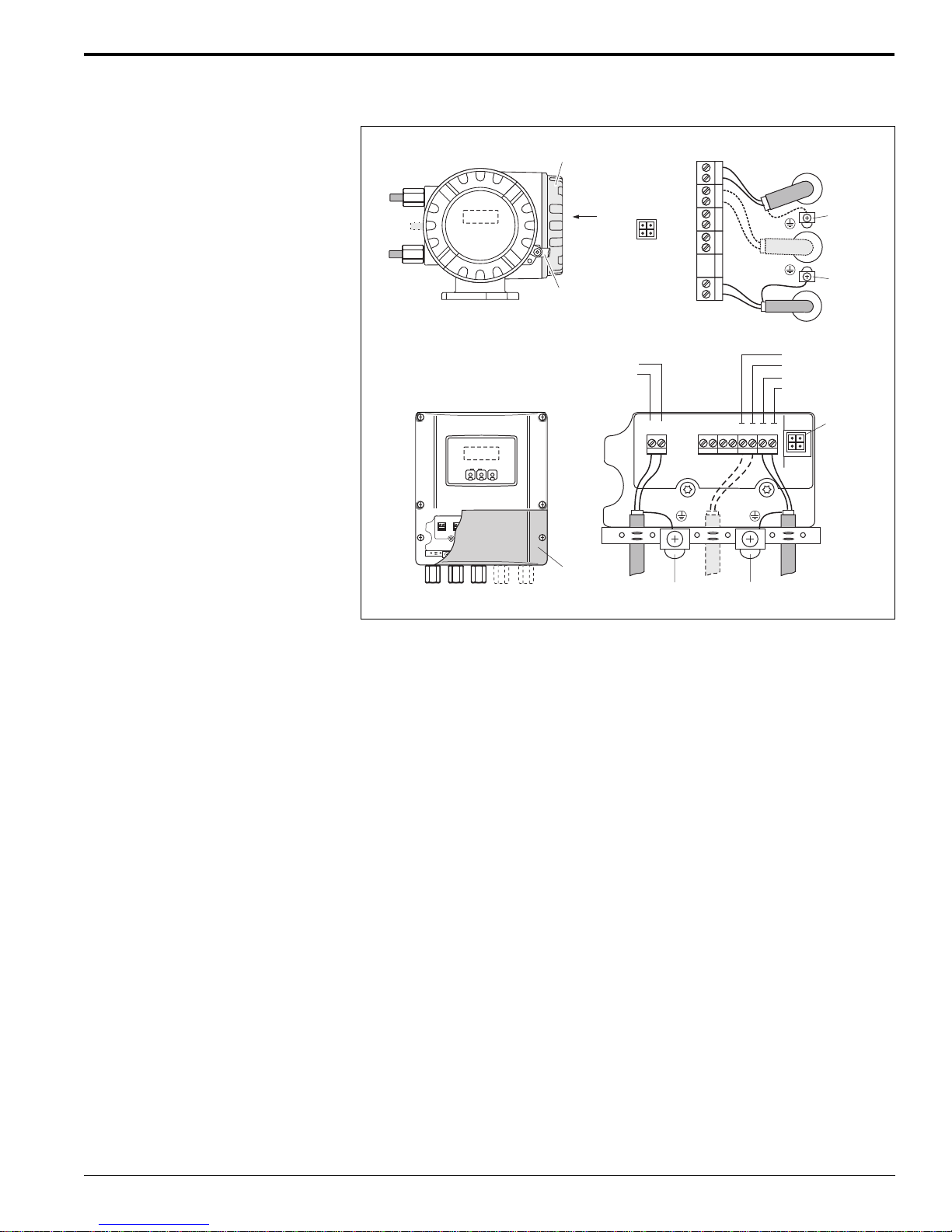

Electrical connection
Measuring unit (bus communication)
Top: Field housing
Bottom: Wall-mounthousing
a Cable for power supply:85 to 260 VAC, 20 to 55 VAC, or 16 to 62 VDC; power consumption:15 VA / 15 W
Terminal No. 1: L1 fo AC, L+ for DC
Terminal No. 2: N for AC, L- for DC
b Fieldbuscable:
Terminal No.26: DP (B) / PA (+) / FF (+) (with polarity protection)
Termianl No.27: DP (A) / PA (-) / FF (-) (with reverse polarity protection)
DP(A)=RxD/TxD-N;DP(B)= RxD/TxD-P
c Grounding terminal for protective conductor
d Groundingterminalfor signal-cable shield
e Service connector for connecting service interface FXA 193 (FieldCheck,ToFTool-Field Tool Package)
f Cover for connection compartment
g Cablefor external termination (PROFIBUS only)
h Coversecuringclamp
DP (A)/PA (–)/FF (–)
DP (B)/PA (+)/FF (+)
12
cd
e
a
ab bg
222320 21 242526 27
f
(DGND)
(+5 V)
g
L1 (L+)
N (L–)
b
b
c
d
a
a
27
25
23
21
2
1
26
24
22
20
L1 (L+)
DP (B)/PA (+)/FF (+)
N (L-)
DP (A)/PA (–)/FF (–)
h
f
e
(DGND)
(+5 V)
g
g
Esc
E
- +

Promag 50/53 W
Endress+Hauser
Terminal assignment Promag 50
Terminal No. (inputs / outputs)
Order variant 20 (+) / 21 (-) 22 (+) / 23 (-) 24 (+) / 25 (-) 26 (+) / 27 (-)
50***-***********W- - - Current output
HART®
50***-***********A- - Frequency output Current output
HART®
50***-***********DStatus input Status output Frequency output Current output
HART®
50***-***********S- - Frequency output Current output
IS, passive HART®
50***-***********T- - Frequency output Current output
Intrinsically Safe HART®
Ground connection, power supply → refer to illustration on top of page 6
8
Terminal assignment Promag 53
The inputs and outputs on the communication board can be either permanently
assigned or variable, depending on the version ordered (see table). Replacement
for modules which are defective or which have to be replaced can be ordered as
accessories.
Terminal No. (inputs / outputs)
Order variant 20 (+) / 21 (-) 22 (+) / 23 (-) 24 (+) / 25 (-) 26 (+) / 27 (-)
Fixed communication boards (fixed assignment)
53***-***********A- - Frequency output Current output
HART®
53***-***********BRelay output 2 Relay output 1 Frequency output Current output
HART®
53***-***********F- - - Profibus-PA
IS
53***-***********G- - - Foundation
Fieldbus IS
53***-***********H- - - Profibus-PA
53***-***********J- - - Profibus-DP
53***-***********K- - - Foundation
Fieldbus
53***-***********S - - Frequency output Current output
Intrinsically safe IS, active
HART®
53***-***********T- - Frequency output Current output
Intrinsically safe IS, passive
HART®
Flexible communication boards
53***-***********CRelay output 2 Relay output 1 Frequency output Current output
HART®
53***-***********D Status input Relay output Frequency output Current output
HART®
53***-***********LStatus input Relay output 2 Relay output 1 Current output
HART®
53***-***********MStatus input Frequency output 2 Frequency output 1 Current output
HART®
53***-***********2Relay output Current output 2 Frequency output Current output
1 HART®
53***-***********4Current input Relay output Frequency output Current output
HART®
53***-***********5Status input Current input Frequency output Current output
HART®
Ground connection, power supply → refer to illustration on top of page 6

Promag 50/53 W
Endress+Hauser

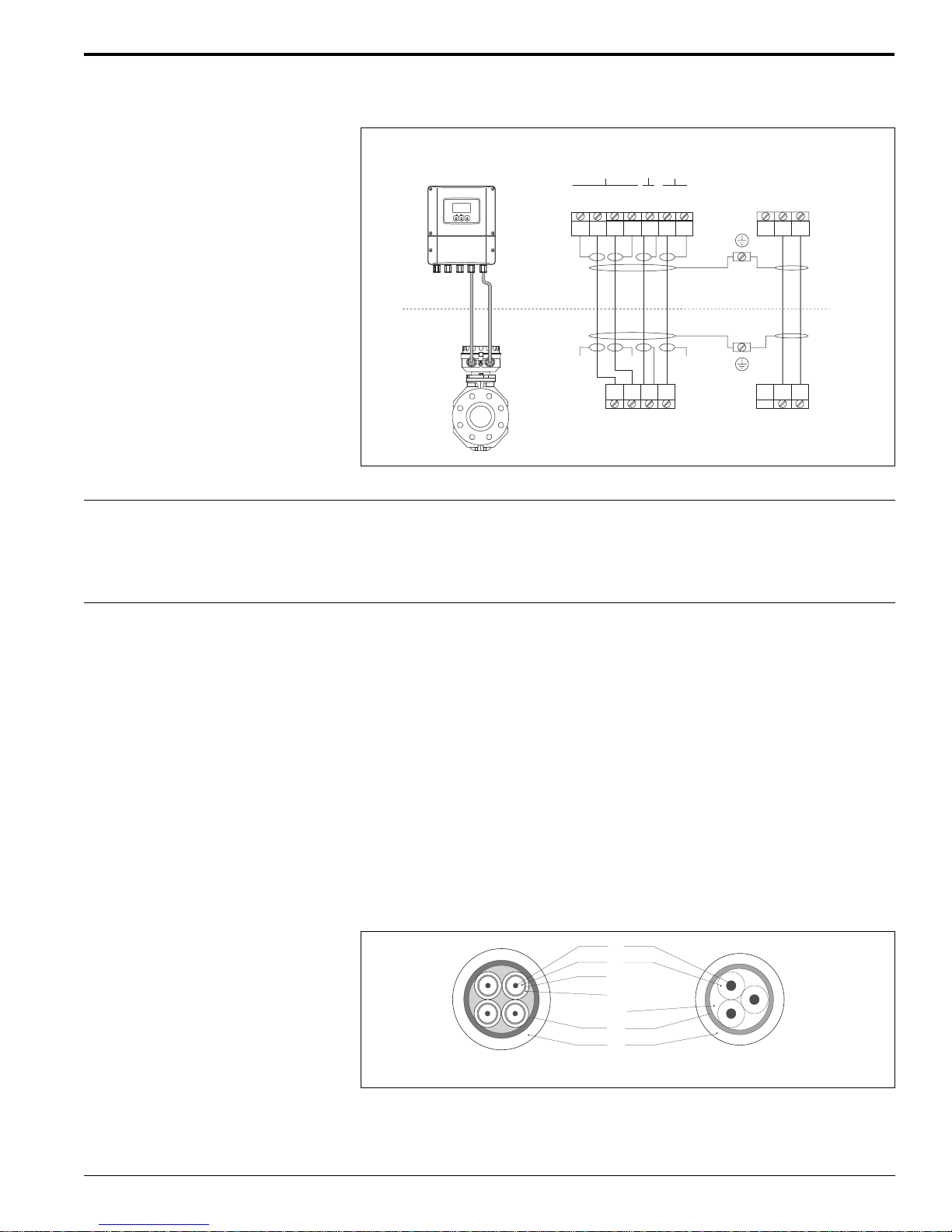

Electrical connection
remote version
n.c. = cable shields to be isolated and not to be connected
9
Power-supply and signal cables (inputs/outputs):
• 1/2" NPT
Connecting cable for remote version:
• 1/2" NPT
Coil cable:
• 2 x 18 AWG (0.75 mm2) PVC cable with common, braided copper shield,
approximately 0.28” diameter (Ø approx. 7 mm)
• Conductor resistance: ≤0.011 Ω/ft (37 Ω/km)
• Capacitance: core/core, shield grounded: ≤36 pF/ft (120 pF/m)
• Permanent operating temperature: -5° to +180°F (–20 to +80°C)
• Cable cross-section: maximum 16 AWG (2.5 mm2)
Signal cable:
• 3 x 20 AWG (0.38 mm2) PVC cable with common, braided copper shield,
approximately 0.28” diameter (Ø approx. 7 mm) and individually shielded cores.
• With Empty Pipe Detection (EPD): 4 x 20 AWG (0.38 mm2) PVC cable with
common, braided copper shield, approximately 0.28” diameter (Ø approx. 7 mm)
and individually shielded cores.
• Conductor resistance: ≤0.015 Ω/ft (50 Ω/km)
• Capacitance: core/shield: ≤128 pF/ft (420 pF/m)
• Permanent operating temperature: -5° to +180°F (–20 to +80 °C)
• Cable cross-section: maximum 16 AWG (2.5 mm2)
Cable entry
Cable specifications
remote version
a = signal cable, b = coil current cable (maximum 16 AWG (2.5 mm2)
1 = Core 5 = Core strengthening
2 = Core insulation 6 = Cable shield
3 = Core shield 7 = Outer jacket
4 = Core jacket
brown
white
green
yellow
n.c. n.c.n.c.
Esc
E
- +
65
5
7
7
84
4
37
37
36 42
42
41
41
S1
E1
E1
E2
E2 S2
GND GND
E
ES
2
1
Coil circuit
EPDMeas. signal Pipe
Electrode Circuit
1
2
3
4
5
6
7
ab

Promag 50/53 W
Endress+Hauser10
Supply voltage
Power consumption
Power supply failure Lasting minimum 1 power cycle:
• EEPROM or T-DAT™ (Promag 53 only) retain the measuring-system data in the
event of a power supply failure
• S-DAT™ = exchangeable data storage chip which stores the data of the sensor:
nominal diameter, serial number, calibration factor, zero point, etc.
Endress+Hauser optionally supplies reinforced connecting cables with an additional
metal braid. We recommend such cables for the following cases:
• Underground laid cables
• Danger of rodent attack
• Device used with NEMA 6P (IP 68) ingress protection
Operation in areas of severe electrical interference:
The measuring device complies with the general safety requirements in accordance
with EN 61010, the EMC requirements of EN 61326, and NAMUR recommendation
NE 21.
Caution:
Grounding is by means of the ground terminals provided for that purpose inside the
connection housing. Keep the stripped and twisted lengths of cable shield to the
terminals as short as possible.
85 to 260 VAC, 45 to 65 Hz
20 to 55 VAC, 45 to 65 Hz
16 to 62 V DC
PROFIBUS-PA and FOUNDATION Fieldbus
Nonhazardous: 9 to 32 VDC
Intrinsically safe: 9 to 24 VDC
Explosion proof: 9 to 32 VDC
AC: <15 VA (including sensor)
DC: <15 W (including sensor)
Switch-on current:
• maximum 13.5 A (< 50 ms) at 24 V DC
• maximum 3 A (< 5 ms) at 260V AC

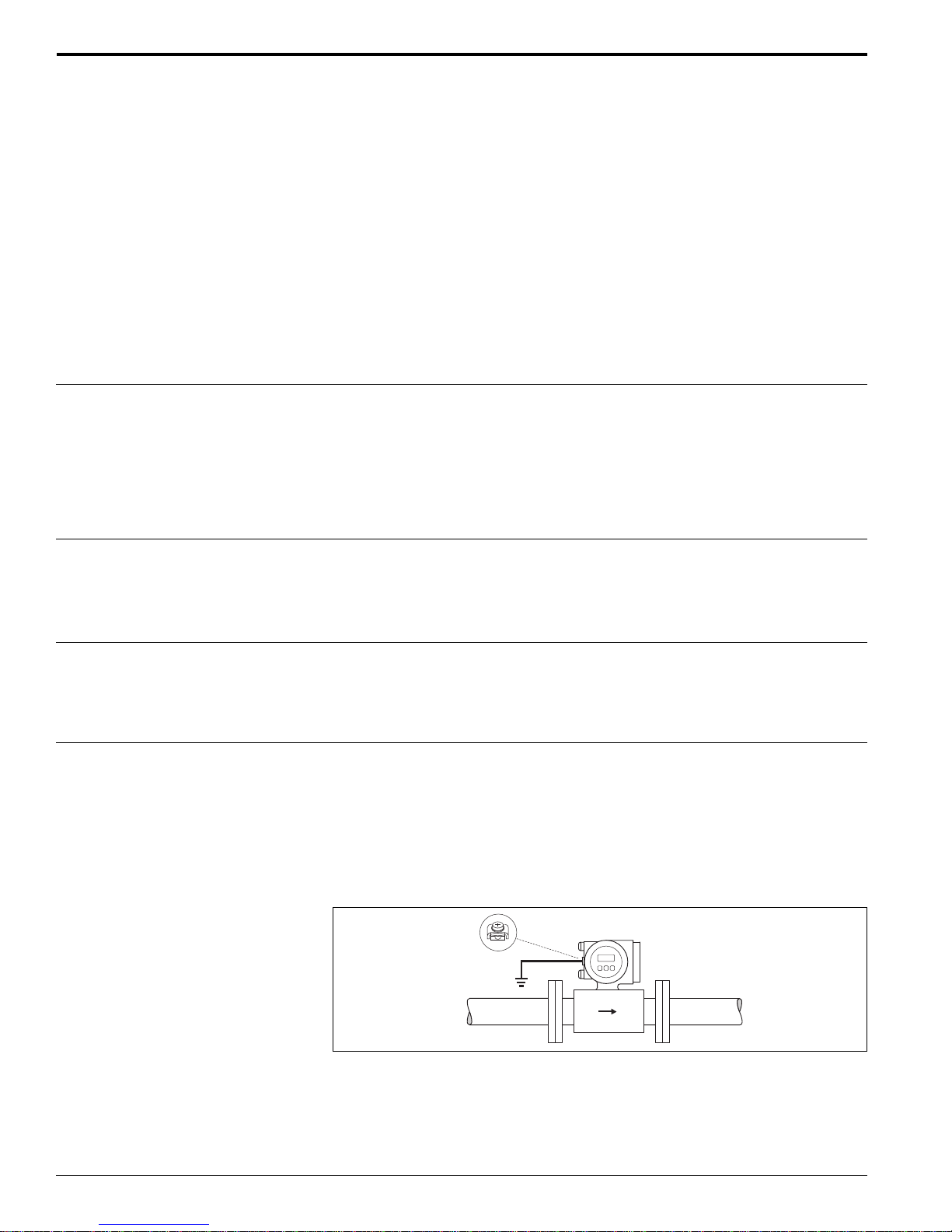

Potential equalization Standard case
Perfect measurement is only ensured when the medium and the sensor have the
same electrical potential. Most Promag sensors have a standard installed reference
electrode which guarantees the required potential matching. This usually means that
additional potential matching measures are unnecessary.
NOTE: For installation in metal pipes, it is advisable to connect the ground terminal
of the transmitter housing to the piping.
Caution:
For sensors without reference electrodes or without metal process terminals, carry
out potential matching as per the instructions for special cases described below.
These special measures are particularly important when standard grounding
practice cannot be ensured or extremely strong matching currents are expected.

Promag 50/53 W
Endress+Hauser 11

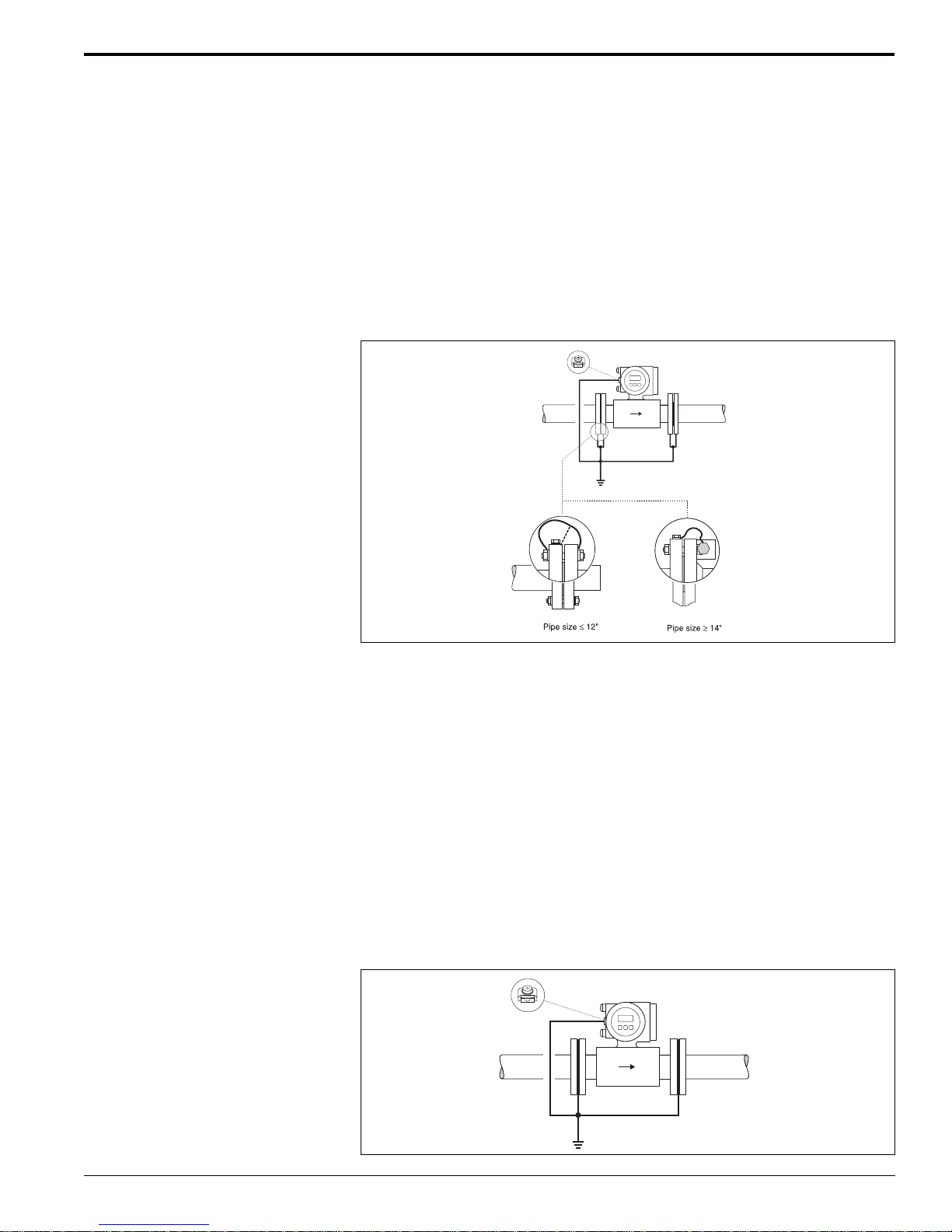

Metallic, ungrounded pipes
In order to avoid errors in measurement, use grounding cables to connect each
sensor flange to its corresponding pipe flange and ground the flanges. Connect the
transmitter or sensor connection housing, as applicable, to ground by means of the
grounding terminal provided for that purpose.
Note:
The grounding cable for flange-to-flange connections can be ordered separately as
an accessory from Endress+Hauser.
•≤12”; the grounding cable is in direct connection with the conductive flange
coating and is secured by the flange screws.
•≥14”, the grounding cable connects directly to the metal transport bracket.
Plastic pipes and lined pipes
Normally, potential is matched using the reference electrodes in the measuring tube.
However, in exceptional cases it is possible that, due to the grounding plan of a
system, large matching currents flow over the reference electrodes. This can lead to
destruction of the sensor, e.g. through electrochemical decomposition of the elec-
trodes. In such cases, e.g. for fiberglass or PVC piping, it is recommended that you
use additional ground disks for potential matching.
When using ground disks, not the following points:
• Ground disks (1” to 12”) can be ordered from Endress+Hauser as an accessory
• Ground disks (including seals) increase the installation length. Refer to the
disk dimensions on page 22.
Caution:
Risk of damage by electrochemical corrosion. Note the electrochemical insulation
rating if the grounding rings and measuring electrodes are made of different materi-
als.
Observe the plant internal grounding guidelines.
9 AWG Cu
9 AWG Cu

Promag 50/53 W
Endress+Hauser
Pipes with cathodic protection
If the medium cannot be grounded for process-related reasons, the measuring
device must be installed in such a way as to be potential-free:
• When installing the measuring device, make sure that there is an electrical
connection between the two piping runs, 9 AWG copper wire (6 mm2).
• Make sure that the installation materials do not establish a conductive connection
to the measuring device and that the installation materials withstand the
tightening torques applied when the threaded fasteners are tightened.
• Also comply with the regulations applicable to potential-free installation.
a = isolating transformer, b = electrically insulated
12
Performance characteristics
To DIN 19200 and VDI/VDE 2641:
• Medium temperature: +28 °C ± 2 K
• Ambient temperature: +22 °C ± 2 K
• Warm-up time: 30 minutes
Installation:
• Inlet run >10 x Dia
•Outlet run > 5 x Dia
• Sensor and transmitter grounded.
• Sensor centered relative to the pipe.
Promag 50:
Pulse output: ± 0.5% o.r.± 1 mm/s (o.r.= of reading)
Current output: plus typically ± 5 µA
Promag 53:
Pulse output: ± 0.2% o.r.± 2 mm/s (o.r.= of reading)
Current output: plus typically ± 5 µA
Supply-voltage fluctuations have no effect within the specified range.
Reference conditions
Measured error
Repeatability
Measured error in [%] of reading
± 0.1% o.r. ± 0.5 mm/s (o.r.= of reading)
9 AWG Cu
abb
03
(1) 6
(2) 13
(4) 20 (6) 26
(8) 33
(10)
2.5
[%]
2.0
1.5
1.0
0.5
0
v ft/s (m/s)
0.2 %
0.5 %

Promag 50/53 W
Endress+Hauser 13
Operating conditions
Installation instructions Mounting location
Correct measuring is possible only if the pipe is full. Avoid the following locations:
• Highest point in the run. Risk of air accumulating
• Directly upstream from an open pipe outlet in a down pipe
Installation of pumps
Do not install the sensor on the inlet side of a pump. This precaution is to avoid low
pressure and the consequent risk of damage to the lining of the measuring tube.
It might be necessary to install pulse dampers in systems incorporating reciprocat-
ing, diaphragm or peristaltic pumps. The sensor is shock and vibration resistant for
acceleration up to 2 g in accordance with IEC 68-2-6.
Partially filled pipes
Partially filled pipes with gradients necessitate a drain-type configuration. The Empty
Pipe Detection (EPD) function offers additional protection by detecting empty or
partially filled pipes.
Caution:
To avoid the risk of solids accumulating, do not install the sensor at the lowest point
in the drain. It is advisable to install a cleaning valve.
Installation conditions
h 2 x D³
³5 x D
³2 x D

Promag 50/53 W
Endress+Hauser14

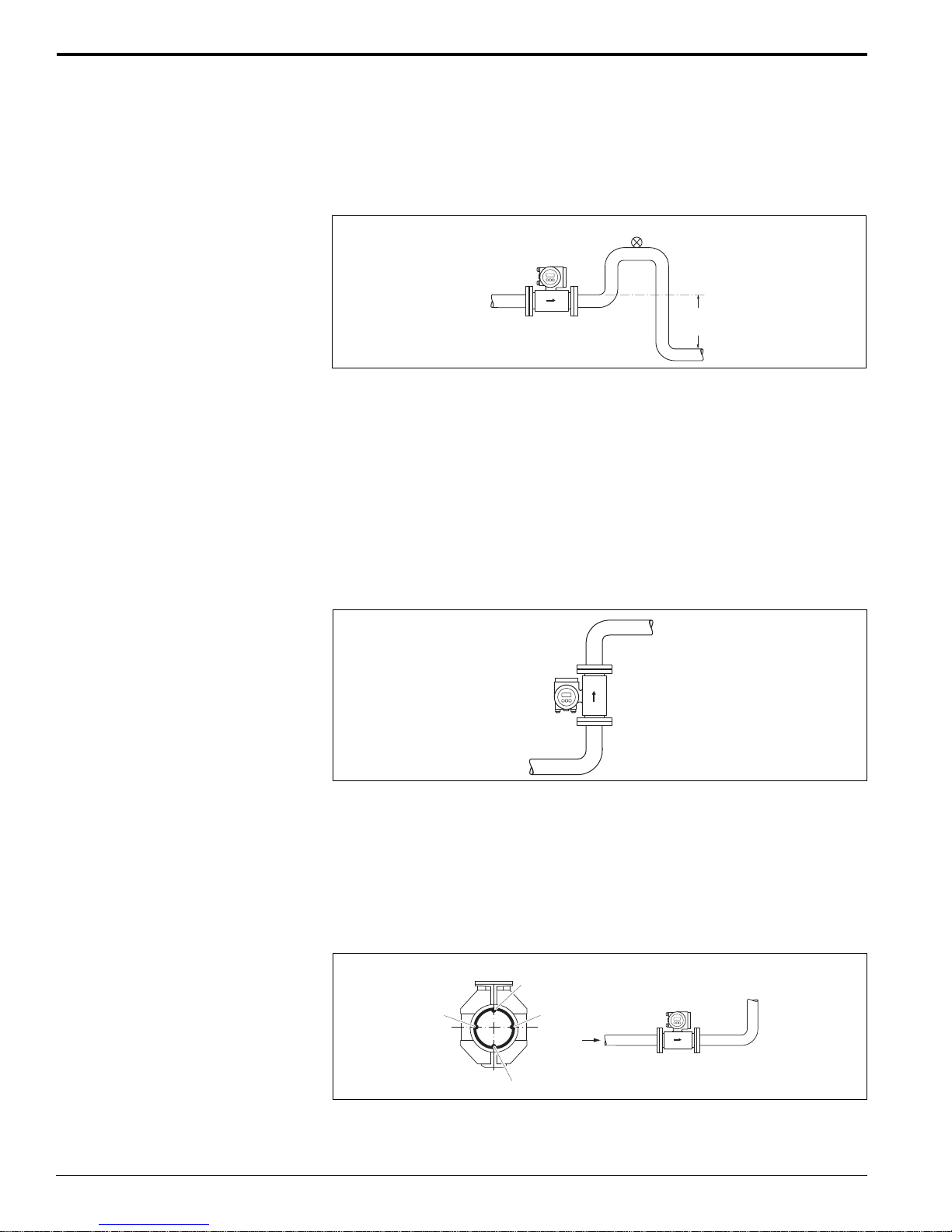

Vertical pipes
Install a siphon (b) or a vent valve (a) downstream of the sensor in vertical pipes
longer than 15 feet (5 meters). This precaution is to avoid low pressure and the
consequent risk of damage to the lining of the measuring tube. These measures also
prevent the system losing prime, which could cause air inclusions.
a = vent valve, b = siphon
Horizontal orientation:
The measuring electrode-plane should be horizontal. This prevents brief insulation
of the two electrodes by entrained air bubbles.
Caution:
Empty Pipe Detection functions correctly only when the measuring device is installed
horizontally and the transmitter housing is facing upward. Otherwise, there is no
guarantee that Empty Pipe Detection will respond if the measuring tube is only
partially filled or empty.
1 = EPD electrode (Empty Pipe Detection)
2 = Measuring electrodes (signal detection)
3 = Reference electrode (potential equalization)
Orientation
An optimum orientation helps avoid gas and air accumulations and deposits in the
measuring tube. Promag, nevertheless, supplies a range of options and accessories
for correct measuring of problematic mediums:
• Electrode Cleaning Circuitry (ECC) to remove electrically conductive deposits in
the measuring tube, e.g. in accretive mediums
• Empty Pipe Detection (EPD) for recognition of partially filled measuring tubes, or
for degassing mediums or for applications with fluctuating process pressure.
Vertical orientation:
This orientation is ideal for self-emptying piping systems and for use in conjunction
with Empty Pipe Detection.
> 15 ft
(5 m)
b
a
A
1
2
3
2
A

Promag 50/53 W
Endress+Hauser 15

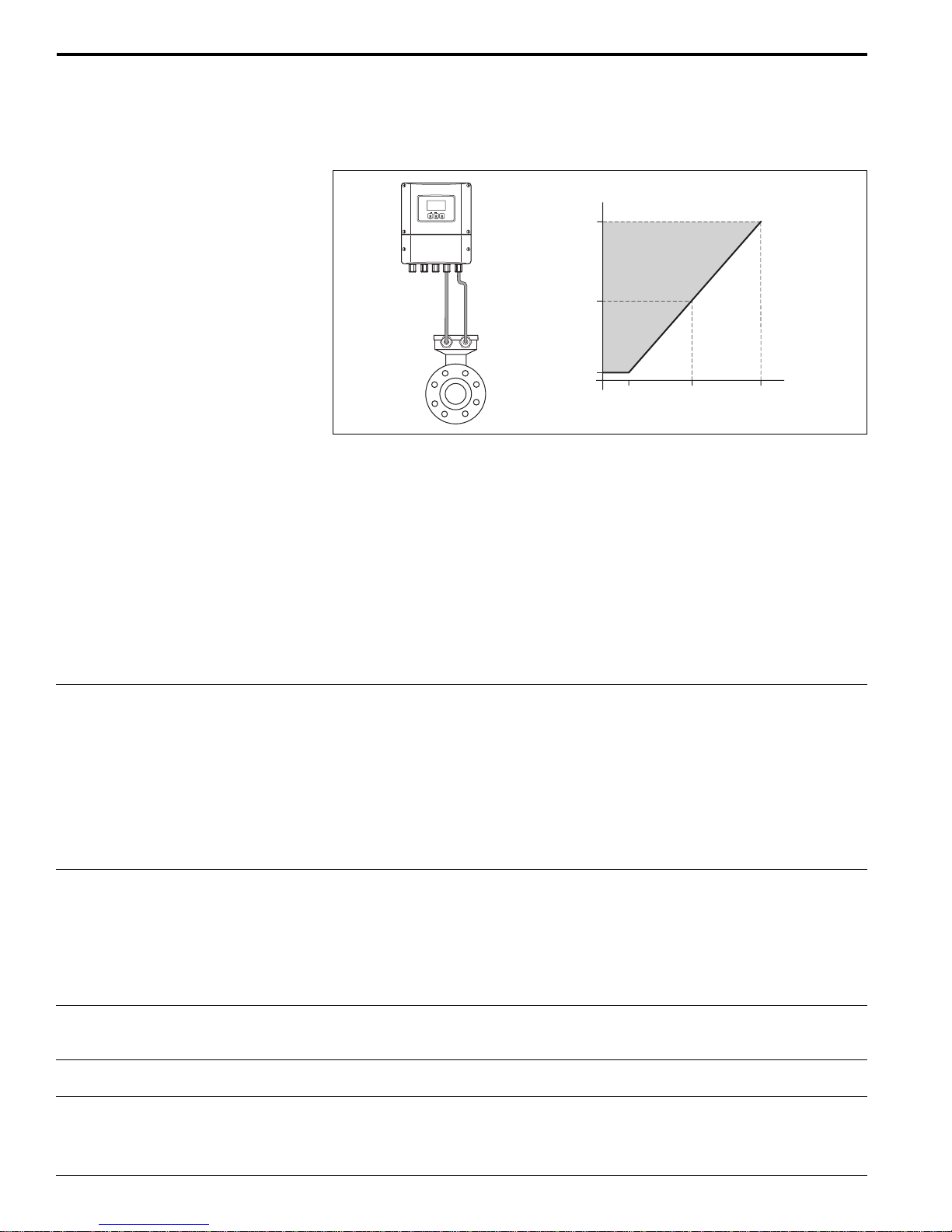

Vibrations
Secure the piping and the sensor if vibration is severe.
Caution:
It is advisable to install the sensor and transmitter separately if vibration is exces-
sively severe. The sensor is shock and vibration resistant for acceleration up to 2 g
in accordance with IEC 68-2-6.
Foundations, supports
If the nominal diameter is 14” or larger, mount the sensor on a foundation of ad-
equate loadbearing strength.
Caution:
Do not allow the sensor casing to take the weight of the sensor. This would buckle
the casing and damage the internal magnetic coils.
Inlet and outlet runs If possible, install the sensor well clear of fittings such as valves, T-pieces, elbows,
etc. Compliance with the following requirements for the inlet and outlet runs is
necessary in order to ensure measuring accuracy:
• Inlet run ≥5 x pipe diameter
• Outlet run ≥2 x pipe diameter
Adapters With the help of the appropriate adapters (reducers and expanders) the sensor can
be mounted in a pipeline of a larger diameter. For slowly flowing fluids, the resulting
higher velocity increases the measuring accuracy.
> 30 feet
(> 10 m)
5 x D³2 x D³
D
d
max. 4°

Promag 50/53 W
Endress+Hauser16
Length of connecting cable Permissible cable length Lmax depends on the conductivity of the medium. A
minimum conductivity of 20 µS/cm is required for measuring demineralized water.
Gray shaded area = permissible range for medium conductivity
Lmax = length of connecting cable in feet (m)
Medium conductivity in µ S/cm
In order to ensure measuring accuracy, comply with the following instructions when
installing the remote version:
• Secure the cable run or route the cable in a conduit. Movement of the cable
can falsify the measuring signal, particularly if the conductivity of the medium
is low.
• Route the cable well clear of electrical machines and switching elements.
• Ensure ground equalization between the sensor and transmitter, if necessary.
Environment
Ambient temperature Standard: -5° to +140°F (-20° to +60°C) for sensor and transmitter
Optional: -40° to +140°F (-40° to +60°C)
Note the following points:
• Install the device at a shady location. Avoid direct sunlight, particularly in
warm climatic regions.
• If both medium and ambient temperatures are high, specify the remote
transmitter (refer to the “Medium temperature” ranges).
• At ambient temperatures below -5°F (-20°C), the readability of the display may
be impaired.
15° to + 120°F (-10° to +50°C), 70°F (20°C) is the preferable storage temperature.
• The measuring device must be protected against direct sunlight during storage
in order to avoid unacceptably high surface temperatures.
• Choose a storage location where moisture does not collect in the measuring
device. This helps prevent mold, fungus and bacteria from damaging the liner.
• Do not remove the protective plates or caps on the process connections until the
device is ready to install.
• Standard: NEMA 4X (IP 67) for transmitter and sensor
• Optional: NEMA 6P (IP 68) for Promag W sensor, remote version
Acceleration up to 2 g in accordance with IEC 68-2-6
To EN 61326 and NAMUR recommendation NE 21
Storage temperature
Degree of protection
Shock and vibration resistance
Electromagnetic compatibility (EMC)
Esc
E
- +200
100
5
33
(10) 330 (100) 650
(200)
L max
ft (m)
[ S/cm]m
L max

Promag 50/53 W
Endress+Hauser 17
Process conditions
Medium temperature range The permissible medium temperature depends on the measuring tube liner:
• Polyurethane, -5° to +125°F (-20° to +50°C) for 1” to 78” sensors
• Hard rubber, 32° to +180°F (0° to +80°C) for 3” to 78” sensors
Conductivity Minimum conductivity:
≥5µS/cm →for fluids generally
≥20µS/cm →for demineralized water
Note that in the case of the remote version, the minimum conductivity is also influ-
enced by the length of the connecting cable. Refer to “Length of connecting cable”.
ANSI B 16.5:
Class 150, 1” to 24”
Class 300, 1” to 6”
AWWA:
Class D, 28” to 78”
Medium pressure range
(nominal pressure)
Pressure tightness (liner) Size Measuring Resistance to partial vacuum of measuring tube lining
tube limit values for abs. pressure (psia) at various
lining fluid temperatures
75°F 160°F 175°F 212°F 265°F 300°F 355°F
1” to 40” Polyurethane 0 0 - - - - -
3” to 78” Hard rubber 0 0 0 - - - -

Promag 50/53 W
Endress+Hauser18
Pressure loss No pressure loss if the sensor is installed in a pipe of the same nominal diameter.
Pressure losses occur in configurations incorporating adapters (reducers, expand-
ers). Contact your Endress+Hauser representative or Endress+Hauser for informa-
tion.
Flow limit As a rule, the pipeline diameter determines the sensor diameter. With a known
flowrate and the help of the Endress+Hauser Flow Applicator, the best size can be
selected. Generally, a velocity range of 6 to 10 ft/sec should be selected.
A necessary increase in velocity can be achieved through a reduction of the sensor
diameter. The higher installation expense is normally balanced by the lower sensor
cost.
The flow velocity should also be determined by the fluid’s physical properties:
• v < 6 ft/sec, for abrasive mediums such as potter’s clay, lime milk, ore slurry, etc.
• v > 6 ft/sec, for fluids causing build-up such as wastewater sludge, etc.
Nominal
diameter Min./max. full scale value
(v ~ 1.0 or 33 ft/s) Full scale value
(v ~ 8 ft/s) Pulse weighting
(~ 2 pulses/s) Creepage
(~ 0.1 ft/s)
inch
1
1-1/2
2
3
4
6
8
10
12
14
16
18
20
24
28
30
32
36
40
42
48
54
60
66
72
78
mm
25
40
50
80
100
150
200
250
300
350
400
450
500
600
700
750
800
900
1000
1050
1200
1350
1500
1650
1800
2000
2.5 to 80 gpm
7 to 190 gpm
10 to 300 gpm
24 to 800 gpm
40 to 1250 gpm
90 to 2650 gpm
155 to 4850 gpm
250 to 7500 gpm
350 to 10,600 gpm
500 to 15,000 gpm
600 to 19,000 gpm
800 to 24,000 gpm
1000 to 30,000 gpm
1400 to 44,000 gpm
1900 to 60,000 gpm
2150 to 67,000 gpm
2450 to 80,000 gpm
3100 to 100,000 gpm
3800 to 125,000 gpm
4200 to 135,000 gpm
5500 to 175,000 gpm
9 to 300 Mgal/day
12 to 380 Mgal/day
14 to 500 Mgal/day
16 to 570 Mgal/day
18 to 650 Mgal/day
18 gpm
50 gpm
75 gpm
200 gpm
300 gpm
600 gpm
1200 gpm
1500 gpm
2400 gpm
3600 gpm
4800 gpm
6000 gpm
7500 gpm
10,500 gpm
13,500 gpm
16,500 gpm
19,500 gpm
24,000 gpm
30,000 gpm
33,000 gpm
52,000 gpm
75 Mgal/day
95 Mgal/day
120 Mgal/day
140 Mgal/day
175 Mgal/day
0.20 gal
0.50 gal
0.5 gal
2 gal
2 gal
5 gal
10 gal
15 gal
25 gal
30 gal
50 gal
50 gal
75 gal
100 gal
125 gal
150 gal
200 gal
225 gal
250 gal
250 gal
400 gal
0.0005 Mgal/day
0.0005 Mgal/day
0.00075 Mgal/day
0.00075 Mgal/day
0.001 Mgal/day
0.25 gpm
0.75 gpm
1.25 gpm
2.5 gpm
4.0 gpm
12 gpm
15 gpm
30 gpm
45 gpm
60 gpm
60 gpm
90 gpm
120 gpm
180 gpm
210 gpm
270 gpm
300 gpm
360 gpm
480 gpm
600 gpm
600 gpm
1.3 Mgal/day
1.3 Mgal/day
2.2 Mgal/day
2.6 Mgal/day
3.0 Mgal/day
Recommended
flow rate Factory settings

Promag 50/53 W
Endress+Hauser 19
Remote field housing
(nonhazardous areas only U.S.)
Mechanical construction
Dimensions / mounting details Wall mounted housing
Weight: 13 lbs (6 kg)
Dimensionsin inches (mm)
NOTE: A mounting kit (for panel or post mounting) is available from
Endress+Hauser. Please refer to Accessories.
Esc
E
- +
8.46"
(215) 1.77"
(45)
3.54"
(90)
5.31"
(135)
9.84"
(250)
6.27"
(159.5)
3.56"
(90.5)
2.08"
(53)
2.08"
(53)
3.74"
(95)
7.55"
(192) 0.45"
(11.5)
0.45"
(11.5)
3.20"
(81.5)
4.01"
(102)
3.18"
(81) 3.18"
(81)
> 1.97"
(50)
13.9"
(355)
6.57"
(167)
10.4"
(265)
9.53"
(242)
Blind version
7.40"
(188)
5.24"
(133)
4.84"
(123)
Æ0.34"
(8.6 M8) 3.94"
(100)
3.94"
(100)

Promag 50/53 W
Endress+Hauser20
Promag W (compact version)
Dimensionsin inches (mm)
inches mm
L
in mm
1
1-1/2
2
3
4
6
8
10
12
14
16
18
20
24
28
30
32
36
40
42
48
54
60
66
72
78
7.87
7.87
7.87
7.87
9.84
11.8
13.8
17.7
19.7
21.6
23.6
25.6
25.6
30.7
35.8
38.4
40.9
46.0
51.2
53.7
61.4
69.1
76.8
84.4
92.1
102.3
200
200
200
200
250
300
350
450
500
550
600
650
650
780
910
975
1040
1170
1300
1365
1560
1755
1950
2145
2340
2600
341
341
341
391
391
472
527
577
627
738.5
790.5
840.5
891.5
995.5
1198.5
1198.5
1241.5
1394.5
1546.5
1598.5
1796.5
1998.5
2196.5
2360.5
2550.5
2650.5
257
257
257
282
282
322
347
372
397
456.5
482.5
507.5
533
585
686.5
686.5
708
784.5
860.5
886.5
985.5
1086.5
1185.5
1267.5
1362.5
1412.5
10.1
10.1
10.1
11.1
11.1
12.7
13.6
14.6
15.6
17.9
18.9
19.9
20.9
23.0
27.0
27.0
27.9
30.9
33.9
34.9
38.8
42.8
46.7
49.9
53.6
55.6
3.31
3.31
3.31
4.29
4.29
5.90
7.08
8.07
9.05
11.1
12.1
13.1
14.1
16.2
20.1
20.1
21.0
24.0
27.0
28.0
31.9
35.9
39.8
43.0
46.8
48.7
4.72
4.72
4.72
7.08
7.08
10.2
12.7
15.7
18.1
22.2
24.2
26.2
28.2
32.3
40.3
40.3
42.0
48.0
54.0
56.0
63.8
71.8
79.6
86.0
93.5
97.5
3.70
3.70
3.70
3.70
3.70
5.51
6.14
6.14
6.53
10.9
10.9
11.5
11.5
15.8
23.2
24.6
25.5
30.9
33.9
35.9
39.0
42.3
54.8
58.3
64.2
68.2
84
84
84
109
109
150
180
205
230
282
308
333
358.5
410.5
512
512
533.5
610
686
712
811
912
1011
1093
1188
1238
120
120
120
180
180
260
324
400
460
564
616
666
717
821
1024
1024
1067
1220
1372
1424
1622
1824
2022
2186
2376
2476
94
94
94
94
94
140
156
156
166
276
276
292
292
402
589
626
647
785
862
912
992
1252
1392
1482
1632
1732
16
20
23
31
35
56
99
165
242
386
452
562
628
893
882
1014
1212
1764
1984
2425
3086
4850
5952
8157
9039
10,1421
7.3
9.4
10.6
14
16
25.5
45
75
110
175
205
255
285
405
400
460
550
800
900
1100
1400
2200
2700
3700
4100
4600
13.4
13.4
13.4
15.4
15.4
18.6
20.7
22.7
24.7
29.1
31.1
33.1
35.1
39.2
47.2
47.2
48.9
54.9
60.9
62.9
71.7
78.7
86.5
92.9
100.4
104.3
25
40
50
80
100
150
200
250
300
350
400
450
500
600
700
750
800
900
1000
1050
1200
1350
1500
1650
1800
2000
A
in mm
B
in mm
C
in mm
K
in mm
E
in mm
Weight *
lb kg
Nominal
Size
NOTE: The fitting length (L) is always the same, regardless of the pressure rating.
* Weight data valid for 150 lb ANSI and AWWA Class D versions.
8.94"
(227) 8.94"
(227)
Promag W 1" to 12”
Compact Version Promag W 14" to 78”
Compact Version
7.68"
(195) 7.68"
(195)
6.61"
(168) 6.61"
(168)
6.30"
(160) 6.30"
(160)
8.15" *
(207) 8.15" *
(207)
K
* Blind option dimension K
E
E
L
L
A
A
C
C
B
B
Esc
E
- +
Esc E
- +
