Operating Instructions
MMP20 SONO Mobil
HD2 (option E)
Moisture measurement
BA01948M/00/EN/01.18
71418837
2018-10-29

MMP20 SONO Mobil HD2 (option E)
2 Endress+Hauser
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 3
Table of contents
1Introduction...................................................................................................... 5
2General information ......................................................................................... 6
3Documentation ................................................................................................. 7
4Operating elements .......................................................................................... 8
5Commissioning ................................................................................................. 9
6Operation........................................................................................................ 11
6.3.1 "Single values" operating mode..........................................................................................................13
6.3.2 "Average" operating mode .................................................................................................................13
6.3.3 "Water calculation" operating mode ..................................................................................................15
6.4.1 HD2 mode..........................................................................................................................................16

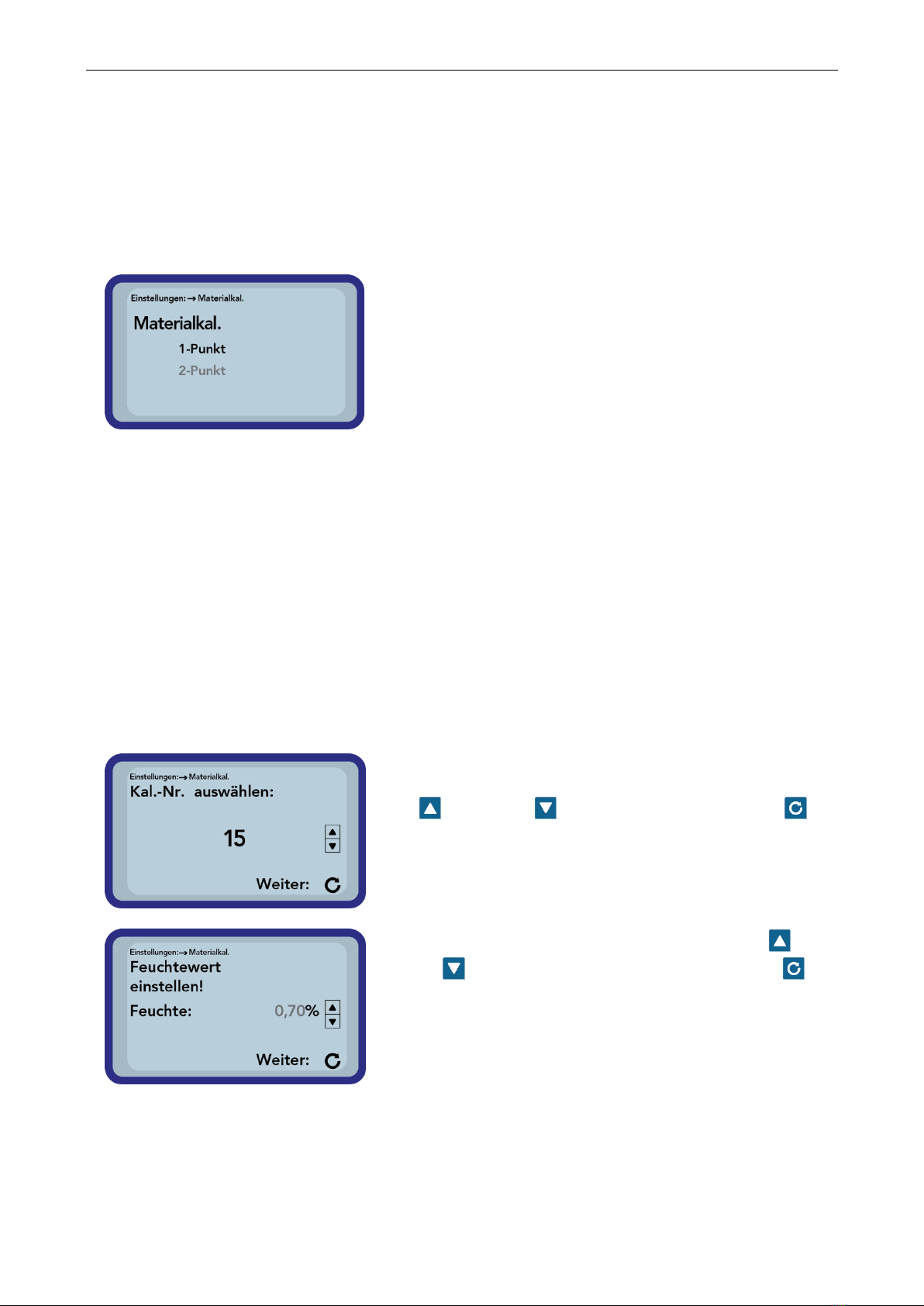

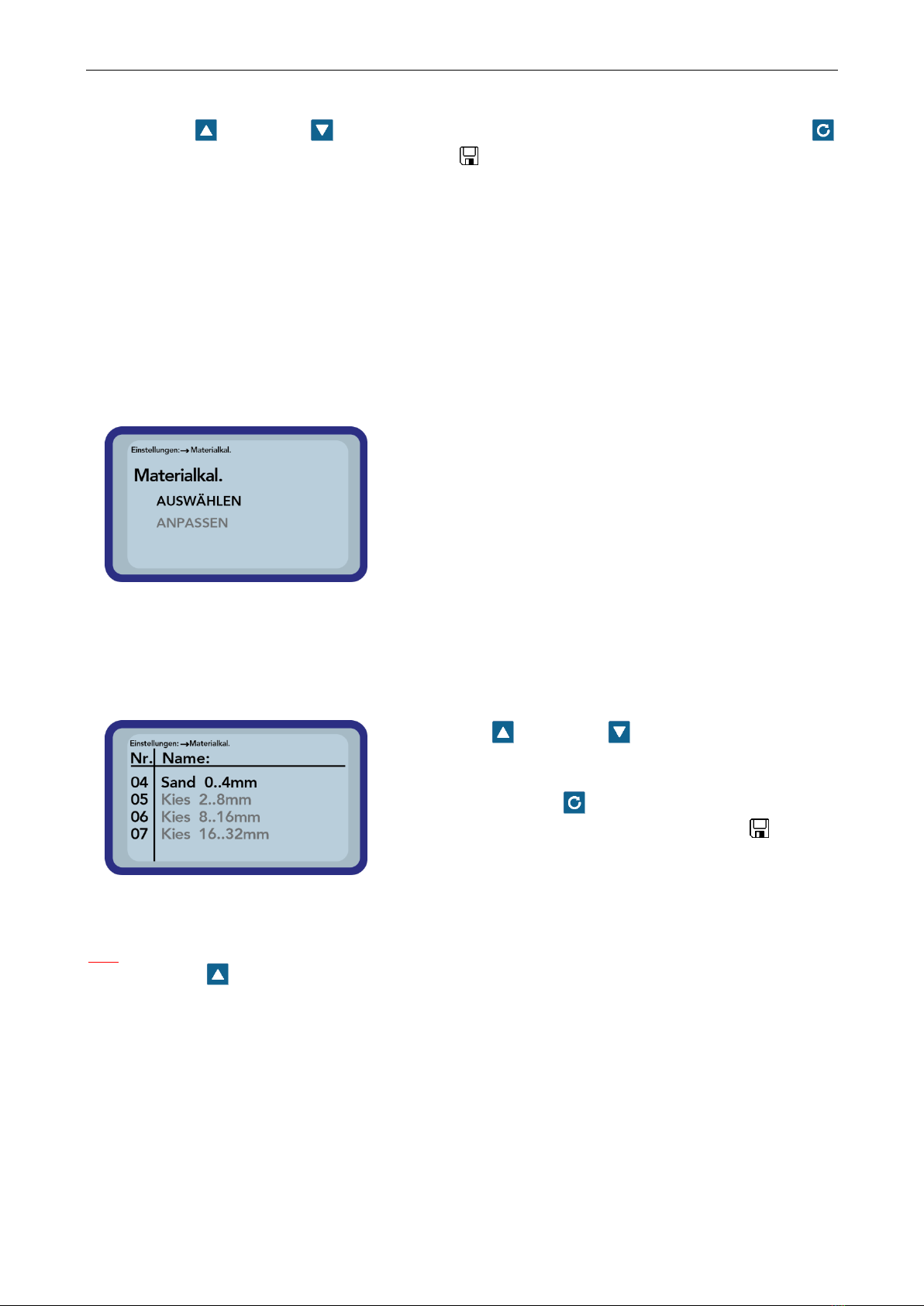

6.4.2 Material calibration........................................................................................................................... 17
6.4.3 Find probe .........................................................................................................................................21
6.4.4 Language........................................................................................................................................... 22
6.4.5 Auto-power-off .................................................................................................................................22
6.4.6 Display lighting .................................................................................................................................22
6.4.7 Display contrast................................................................................................................................. 23
6.4.8 Probe info..........................................................................................................................................23
6.4.9 HD2 info ............................................................................................................................................23
7Technical data of HD2..................................................................................... 24
8Using SONO-M1 probes................................................................................... 25
9Best possible accuracy with HD2 ..................................................................... 26

MMP20 SONO Mobil HD2 (option E)
Page 4 Endress+Hauser
10Replacing the probe rods ................................................................................ 30
11Technical data for the SONO-M1 probe........................................................... 31
12Safety instructions.......................................................................................... 35

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 5
1Introduction
MMP20 SONO-HD2 is a robust, battery-powered mobile display unit for a variety of probes:
SONO-M1, SONO-M1C, SONO-M2.
The HD2 is a handheld device for displaying the measured values of TRIME moisture sensors, and
has been specifically designed for mobile use in the field.
Area of application
•IP68 protection for robust use in the field
•Measuring range: 0% to 100% water content
•Depending on the hand probe used, material conductivity range: max. 12mS/cm
•Accuracy: up to +-0.1%
Your benefits
High-tech, mobile measurement of the moisture content of hard-to-measure materials at the speed
of light directly onsite, with the following performance characteristics:
•Mobile moisture measurement of abrasive materials of average conductivity, such as sand,
gravel, grit and other base materials.
•TDR moisture measurement technique for precise measured values with a representative
measuring field and "slice-by-slice" radar scanning
•Up to 15 different material calibration curves are saved directly in the probe.
•The handy two-rod probe with solid rods can be easily inserted into sand, gravel, expanded
clay and other aggregates.
•The two-rod probes can be connected to the PC for calibration and data logging via the
SM-USB module.

MMP20 SONO Mobil HD2 (option E)
Page 6 Endress+Hauser
2General information
Please read these Operating Instructions carefully.
If you have any questions, please contact our Service Department at the address above. Do not, under
any circumstances, open the device yourself, or make any attempt to repair the device. In the event of
warranty claims, please contact your dealer.
In the interest of product improvement, we reserve the right to make technical and optical modifica-
tions to the device.
Designated use
This handheld device has been developed as a reader for a variety of IMKO probes. Only probes
specially designed for this device may be connected to it. If a probe that is not designed for the device
is connected to it, this may damage the device and/or the connected probe.
Rechargeable battery
Never replace the in-built rechargeable battery yourself.
The maximum operating times indicated apply under ideal conditions. The ambient temperature and
recharging cycle can significantly reduce the performance times. In addition, the recharging capacity
drops over time for technical reasons or if the unit is stored at very high or low temperatures.
Charging the HD2 handheld device
Only use the charger supplied or a comparable voltage source to charge the HD2 handheld device.
A different charging voltage can damage the device.
If the device heats up while it is charging, this is normal behavior and is not dangerous.
If the HD2 only works briefly or not at all despite being charged repeatedly, the integrated battery is
defective and must be replaced. Should this occur, please contact your dealer or IMKO directly.
Temperatures and ambient conditions
The HD2 handheld device has been developed for use in heavy-duty environments.
The operation of this device outside the conditions indicated can damage the device.

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 7
3Documentation

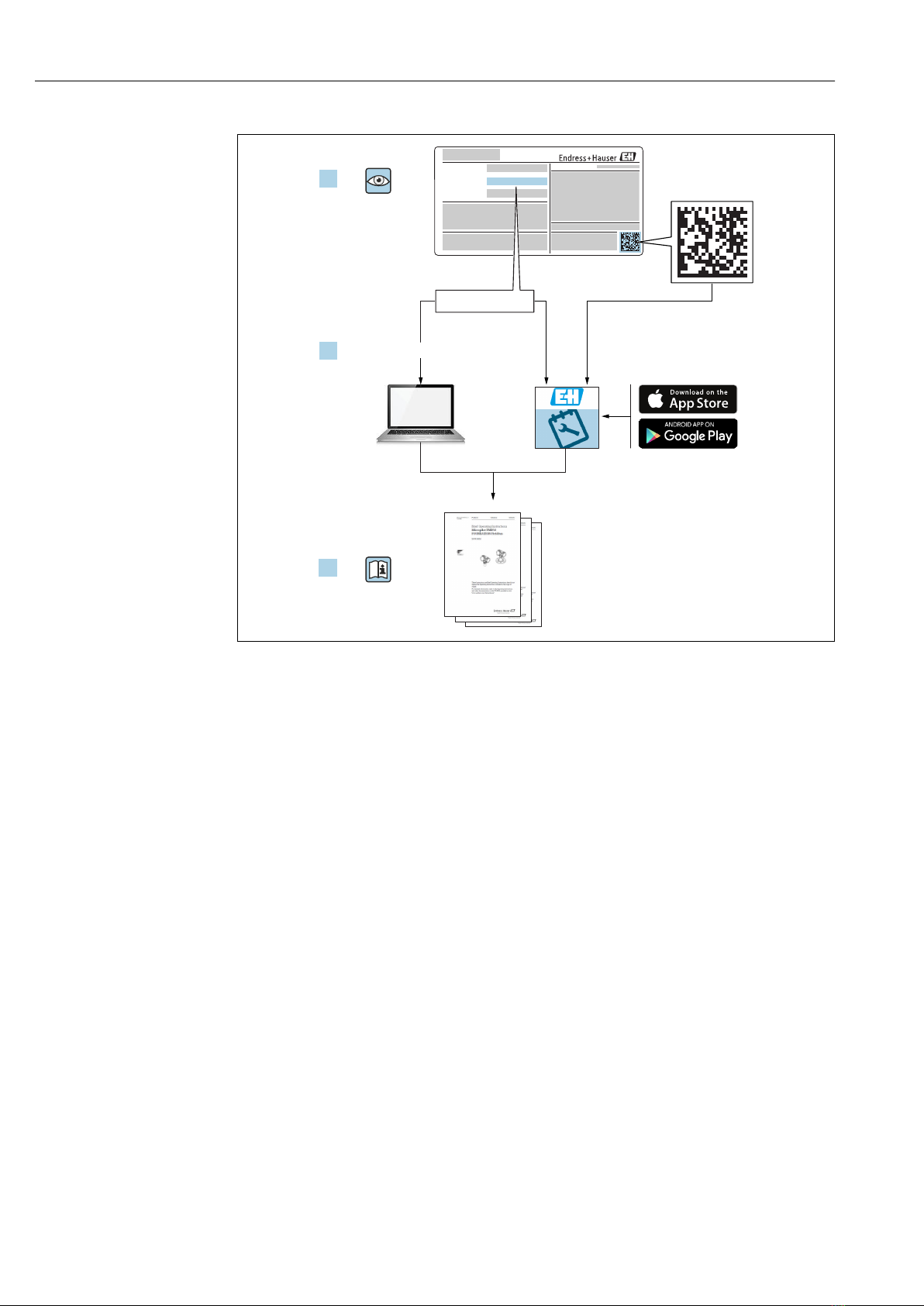

The following types of documentation are available in the Download area of the Endress+Hauser
website (www.endress.com/downloads):
For an overview of the Technical Documentation pertaining to the device, please refer to the
following:
• W@M Device Viewer (www.endress.com/deviceviewer): enter the serial number on the nameplate
• Endress+Hauser Operations App: enter the serial number on the nameplate or
scan the 2D matrix code (QR code) on the nameplate
Standard documentation
BA01948M
Operating Instructions for MMP20 SONO-HD2 mobile, battery-powered display unit
Supplementary documentation
SD02332M
SM-USB
Connection and configuration of SONO and TRIME probes on a PC with Windows
via the SM-USB module
SD02333M
SONO-VIEW
Stand-alone display and configuration unit for reliable process control with SONO or TRIME mois-
ture sensors

MMP20 SONO Mobil HD2 (option E)
Page 8 Endress+Hauser
3
4
Display
Connection for probe or charger

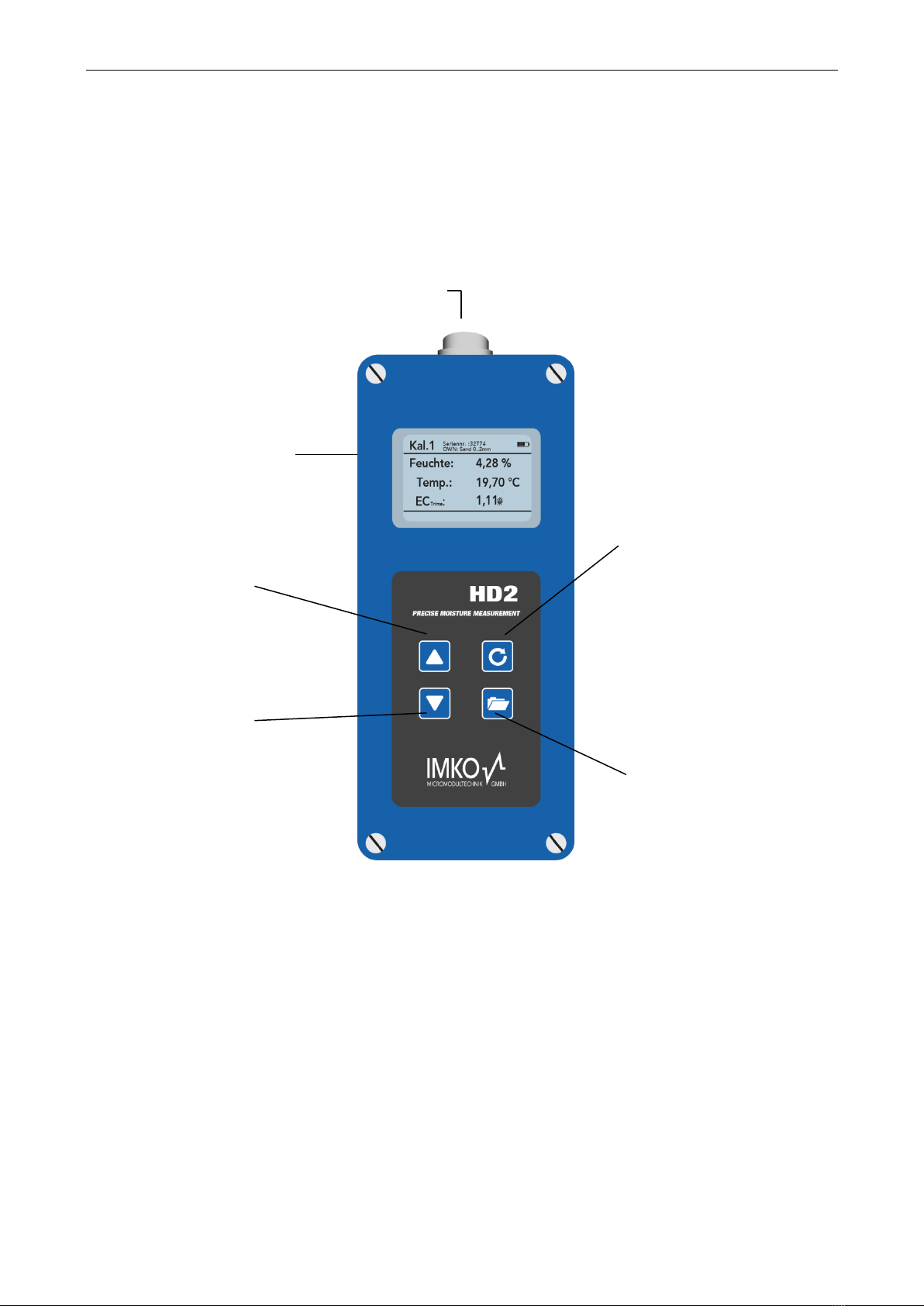

4Operating elements
"Measure"
•Switch on/off
•Take a measurement
•Select a menu item
•Save and activate a
setting
"Settings"
•Exit "Settings"
•Call menu
•Go back from
the menu items
"Up"
•Select item
or setting
•Quick dial "Calibra-
tion selection"
"Down"
•Select menu item or
setting
•Clear the value
memory
(only "Average"
operating mode)

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 9
5Commissioning
Safety instructions
Caution: Before you commission the device, make sure to read the general information under Point 1
at the start of these Operating Instructions. Improper use can damage this device.
Checking the packaging contents
HD2 handheld device
Power adapter (12 V/2 A)
Charging adapter
Protection cap
Manual
Charging the battery
The installed battery should be charged before the device is used for the first time. To do so, insert the
charging adapter provided into the 7-pin socket on the HD2. Then connect the power adapter to the
charging adapter. Charging commences immediately if the HD2 handheld device is already switched
on or the battery is over-discharged. Otherwise, switch on the HD2 by pressing and holding the "Meas-
ure" key for approximately 1 second. An animated battery symbol on the display indicates that
charging is active.
The built-in charging electronics charge the battery until it is fully charged. Charging takes around
2 hours if the battery was fully discharged. As soon as the battery is finished charging, all 4 "battery
bars" appear permanently on the display screen and trickle charging commences.
Caution: Only charge the battery at room temperatures (approx. 10°C to approx. 30°C)! If
the temperature is too low, end-of-charge cutoff might not work correctly and the
battery may be overcharged. If ambient temperatures are too high, the HD2 can
be damaged by the heat generated during charging.

MMP20 SONO Mobil HD2 (option E)
Page 10 Endress+Hauser

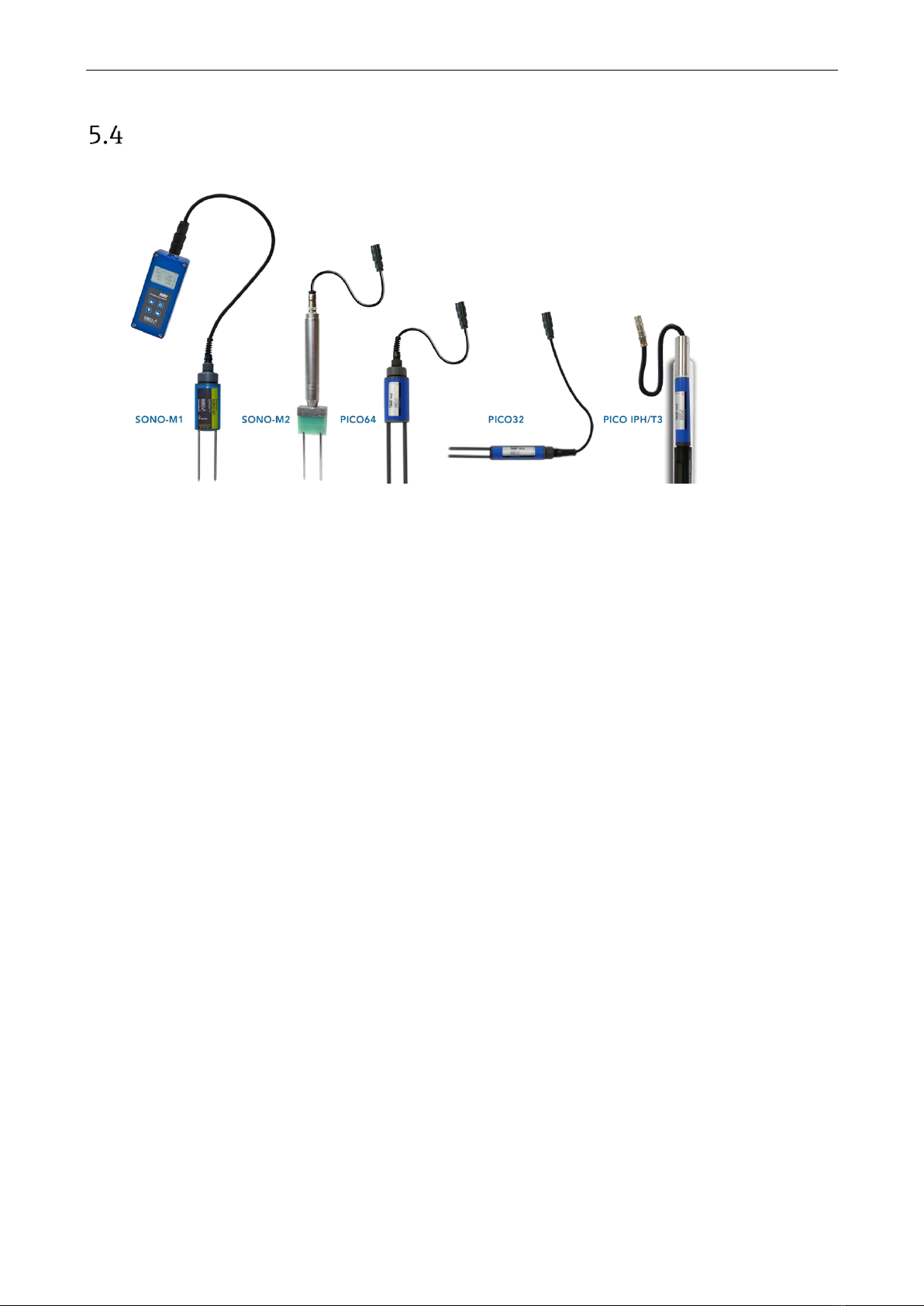

Connecting the probe
The HD2 handheld device can be operated with the following IMKO moisture probes:
Connect the moisture probe to the HD2 by inserting the 7-pin plug into the socket provided on the
HD2 and tighten the union nut.

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 11
6Operation

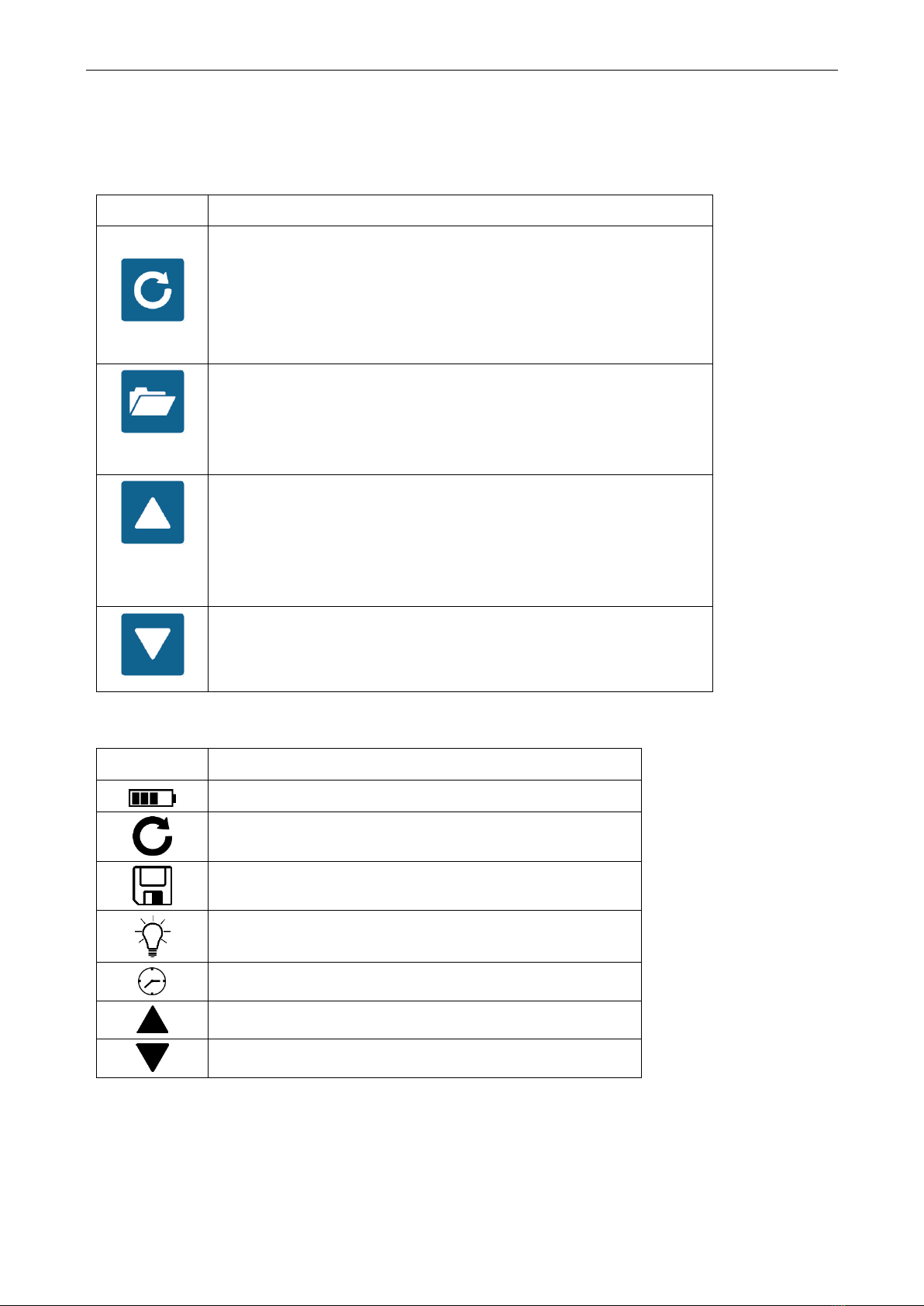

Key function:
Key
Description
Measure
•Switch on/off press and hold for 1s
•Take a measurement press briefly
•Select a menu item press briefly
•Save a setting press briefly
Settings
•Exit "Settings"
•Switch to the menu
•Go back from the menu items
Up
•Previous menu item or setting
•For selection –material calibration (Single Value/
Average mode)
•Access to density setting (Water Calculation mode)
Down
•Next menu item or setting
•Clear the value memory (Average mode)
Symbols on the display:
Symbol
Description
Remaining battery
Measurement active
Setting saved
Brightness of background lighting
Time until switchoff (lighting / APO)
Press the "Up" key
Press the "Down" key

MMP20 SONO Mobil HD2 (option E)
Page 12 Endress+Hauser
Meaning of displayed text:
Text
Meaning
Cal.:
Number of the active calibration in the probe
Moisture:
Moisture measured value
Note: the measured value can be %vol, %grav, εor tp,
depending on the calibration configured.
Temp.:
Temperature
EC-Trime
Electrical Conductivity -
electrical conductivity based on TDR measurement
Serial No.:
Serial number of the probe or HD2
HW:
Hardware version
FW:
Firmware version
Switching on the HD2 handheld device
Press and hold the "Measure" key for about 1 second to switch on the HD2.
The HD2 attempts to communicate with the connected probe during the power-up process. This takes
around 4 seconds. If no probe is connected or if the probe cannot be found for some other reason, an
error message appears on the screen.
If the HD2 managed to successfully find the probe, the measurement background appears on the
screen depending on the specific operating mode and the HD2 is ready for operation.
Note: If it is not possible to connect to the probe even after several attempts, check whether
the probe is connected correctly. If this does not rectify the problem, please contact our
Service Department.
Switching off the HD2 handheld device
To switch off the HD2 handheld device, press and hold the "Measure" key for approximately
1 second.
Note: It is not possible to switch off the HD2 when it is in "Settings". Please exit "Settings" first
of all by pressing the "Settings" key until the measurement screen appears.

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 13
Measurement
The HD2 handheld device has three operating modes:
1. Single value single value display - displays the measured variables "moisture", "temperature"
and "EC-Trime"
2. Average displays the average moisture value calculated from up to 6 individual measure-
ments
3. Water calculation calculates the water content in l/m³
Note: No additional actions are possible during a measurement. The user must wait until
the measurement is finished.
6.3.1 "Single values" operating mode
The "Single values" operating mode is the ideal mode for determining all the soil parameters that can
be measured with a TRIME probe. The unit displays the moisture as a "%", the soil temperature in "°C"
or "°F" and the measured conductivity ECTRIME in "dS/m".
Once the HD2 handheld device is switched on, the following screen is displayed after the initial
start-up screen:
To start measuring, press the "Measure" key briefly. The device starts measuring and a rotating
symbol appears in place of the battery in the top right-hand corner for the duration of the meas-
urement process. No other actions can be performed during this time. The measurement takes around
4-5 seconds. Once the measurement is finished, the battery symbol appears on the display again along
with the measured values. The values continue to be displayed on the screen until a new measurement
is carried out.

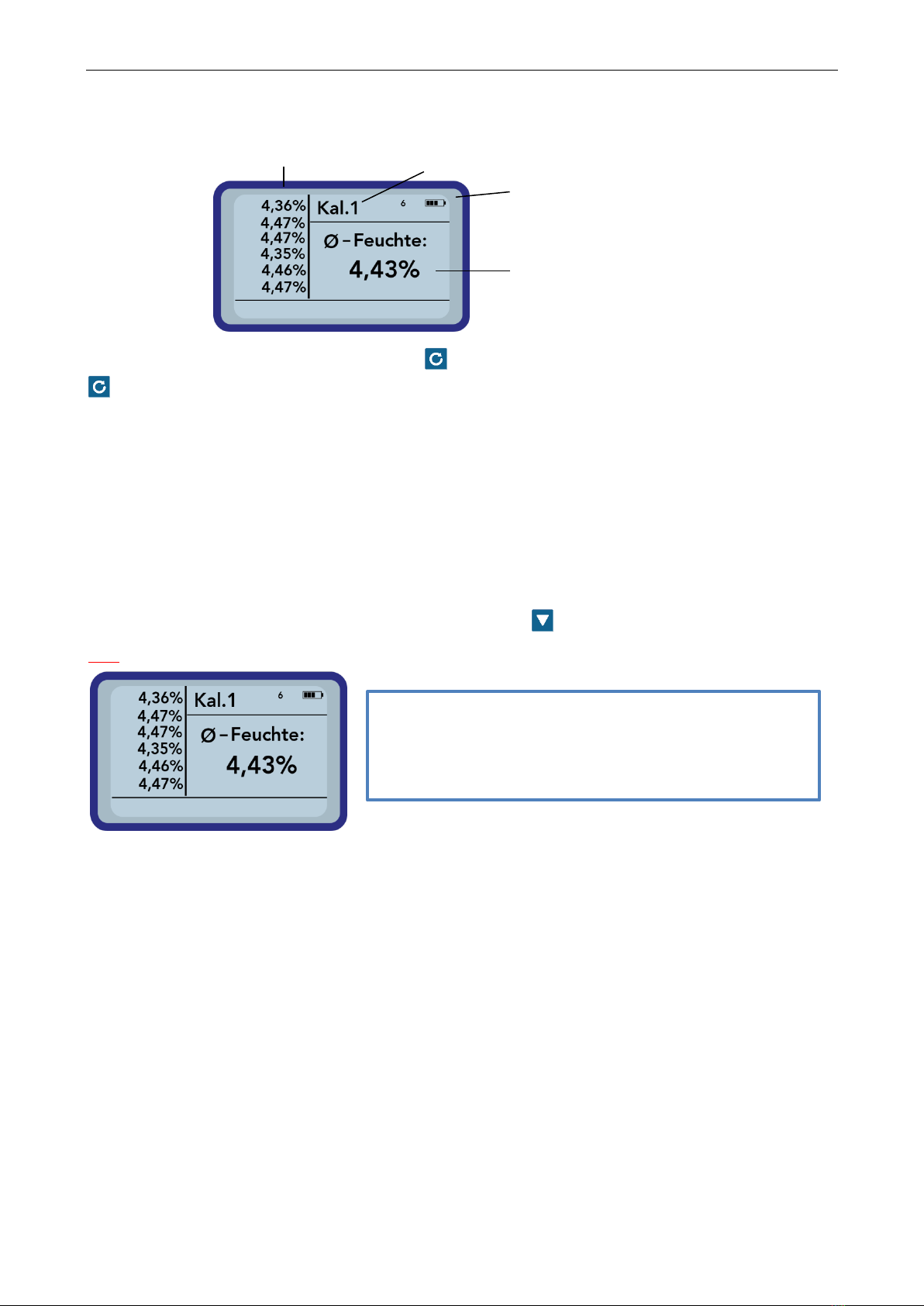

6.3.2 "Average" operating mode
In this mode, only the moisture is determined and an arithmetic average is calculated from up to six
individual values. The volumetric or the gravimetric moisture is displayed depending on the set
calibration. This operating mode is suitable for measuring the moisture values of large volumes of
material (e.g. sand, gravel etc.).
Once the HD2 handheld device is switched on, the following screen is displayed in the "Average"
operating mode after the initial start-up screen:
Number of the
selected calibration
Serial number of the
connected probe
Measured value - temperature
Measured value –ECTrime
Name of the selected
calibration
Measured value - moisture
Remaining
battery

MMP20 SONO Mobil HD2 (option E)
Page 14 Endress+Hauser
To start measuring, press the "Measure" key briefly. The device starts measuring and a rotating
symbol appears in place of the battery in the top right-hand corner for the duration of the meas-
urement process. No other actions can be performed during this time. The measurement takes around
4-5 seconds. Once the measurement is finished, the battery symbol appears on the display again. The
individual measurements are displayed on the left of the screen. The last measured value appears at
the top of the list, and older values are displayed one position down. The arithmetic average is dis-
played on the right of the screen. The average value is calculated from the existing individual values
(maximum of six).
Note: Only a maximum of 6 values can be saved in the list. Older values are removed from
the list and are no longer used to calculate the average.
To delete the series of measurements, press the "Down" key .
TIP:
Individual measure-
ment values
Number of the
selected calibration
Remaining
battery
Average of the
measurements
With only six measurements in the "mean value"
operating mode, you already receive a representative
measurement result from all measuring points over a
large quantity of material.

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 15
6.3.3 "Water calculation" operating mode
Only the moisture is measured in this mode. A mean value is calculated from up to six individual
values. The water quantity per m³ is calculated from this mean. The density of the material being
measured must be set to ensure the value is calculated correctly.
To delete the measurement series, press the "Down" key .
To set the density, press the "Up" key in the measurement window. The following screen then
appears:
Set the density of your material with the "Up" and
"Down" keys and press the "Measure" key to confirm
your entries.
You return automatically to the measurement window. You
can exit the density setting with the "Settings" key with-
out changing the old density value.
Settings
The settings for the HD2 handheld device can be changed and adjusted in a variety of ways. Pressing
the "Settings" key takes you to the following menu structure:
Press the "Up" and "Down" keys to highlight the desired entry and press the "Measure" key
to select it. Press the "Settings" key to exit the current menu item and the "Settings" menu.
Individual measure-
ment values
Number of the
selected calibration
Remaining battery
Average water
content in l/m³
Density in kg/dm³

MMP20 SONO Mobil HD2 (option E)
Page 16 Endress+Hauser
Overview of the configuration options
Setting
Description
HD2 mode
Change the operating mode
•"Normal" measure the parameters "moisture", "temperature"
and EC-Trime
•"Average" get an average of up to 6 moisture measured values
•"Water calculation" calculates the water content in l/m3
Material cal.
•Select the desired material calibration in the probe
•Customize a material calibration
Find probe
Search again for a connected probe (if an error occurred during
power-up)
Language
Change the system language
•German
•English
Auto-power-off
Setting for automatic switch-off
Display lighting
Setting for background lighting
•Switch-off time
•Brightness
Display contrast
Setting for the optimum contrast
Probe info
Display information about the probe
HD2 info
Display information about the HD2 handheld device
6.4.1 HD2 mode
The operating mode of the HD2 handheld device can be changed in this menu item.
With the "Single value" option, the user selects an individual measurement of the three probe
parameters: moisture, temperature and EC-Trime.
Depending on the selected calibration, the "moisture" parameter displays the moisture as a volumetric
or gravimetric percent or can output the transit time of the TDR pulse. If the transit time is displayed,
the percentage sign is understood as "Raw value tp".
If the "Average" option is selected, only the moisture is determined - in %vol or %grav depending on
the calibration selected - or the transit time in tp. The measured value is saved in a list of up to six
measured values. The arithmetic average is calculated from this list.
Note: Only a maximum of 6 values can be saved in the list. Older values are removed from
the list and are no longer used to calculate the average.
The "Water calculation" setting activates a mode that indicates the water quantity in the material
being measured in l/m³. To be able to measure larger volumes of material, a material sample can be
taken at several points and an average calculated.

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 17
Press the "Up" and "Down" keys to highlight the desired entry and press the "Measure" key
to select it. Once the entry has been selected, the symbol appears in the top right-hand corner of
the display indicating that the option has been activated and saved.
6.4.2 Material calibration
Different calibrations are saved in the probe depending on the intended application of the probe. This
can be volumetric calibrations for soils of different densities, gravimetric calibrations for sand mois-
ture measurements or also transit time calibrations.
You can select the calibration needed for your application in the "Material calibration" menu item. This
makes it possible to use the same probe for different applications. In addition, you also have the option
of programming and performing your own calibrations here in order to be able to measure special
materials.
Once you have selected the "Material cal." menu item, choose
either "SELECT" to set one of the 15 calibrations or
"CUSTOMIZE" to program a new calibration to one of the
15 calibrations saved in the memory.
Menu item: "SELECT":
The 15 calibrations, and the names of the calibrations, appear on the display. This may take a
moment. Then a screen similar to that shown below appears:
Press the "Up" and "Down" keys to scroll through the
list and select the desired calibrations. The "!" symbol in front
of a calibration indicates the currently active calibration.
Press the "Measure" key to set the selected calibration as
the active calibration. After a brief moment, the symbol
appears in the top right-hand corner of the display, indicat-
ing that the option has been activated. In addition, the "!"
symbol appears in front of the active calibration.
TIP: You can also access this menu item directly from the measurement window by pressing the
"Up" key .

MMP20 SONO Mobil HD2 (option E)
Page 18 Endress+Hauser
Menu item: "CUSTOMIZE":
Here, you have the option of performing your own material calibrations or of customizing existing
calibrations to suit your particular needs. Two options are available for this:
1-point calibration:
- Adjusts the calibration curve to the selected point.
- The slope is not changed.
- Just one material sample is required.
2-point calibration:
- Creation of a linear calibration between two measured
points
- Two material samples with different moisture values are
required
1-point calibration:
This material calibration option merely adjusts (offsets) the configured calibration. As the slope is not
changed, it is important at the start to select a calibration curve that suits the material.
NOTE: You require a sample of the material being measured to perform a 1-point material
calibration. The moisture value must be determined with another method (weighing and
drying, or similar) before the calibration.
Procedure:
At the start of the calibration, the calibration memory
(01 –15) to be overwritten must be selected with the
"Up" and "Down" keys. Press the "Measure" key to
accept the setting.
Then set the percentage moisture using the "Up" and
"Down" keys, and again press the "Measure" key to
confirm your entries.

MMP20 SONO Mobil HD2 (option E)
Endress+Hauser Page 19
To start measuring the material, press the "Measure" key
again. Four measurements are taken to increase the accu-
racy. An average of these measurement values is then cal-
culated. The measuring time is approximately 20 seconds.
When the measurement is finished, the measured pulse
transit time is displayed briefly.
NOTE: Before you start measuring, make sure that the
rods of the probe are fully immersed in the mate-
rial to be measured. The probe must remain in the
material for the entire duration of the measure-
ment and should not be moved.
CAUTION: If you select "SAVE" at the end of the calibration, you overwrite one of the pre-configured
calibrations (or one you may have already modified) in the probe! The original
calibrations can only be restored with a PC and the Pico-Config software, as well as an
RS485 adapter (e.g. SM-USB).
After this, the calibration can be saved to the calibration
memory set at the start ("Save"). The selected memory is
only overwritten once the "Measure" key is pressed. The
word "OWN:" now appears in front of the original memory
name to clearly indicate which memory has been overwrit-
ten.

MMP20 SONO Mobil HD2 (option E)
Page 20 Endress+Hauser
2-point calibration:
In a 2-point calibration, two material samples of different moisture content are measured and a linear
equation (f(x)=mx+b) is then calculated from this information. While a higher-value polynomial is
useful to achieve better accuracy, the linear equation often suffices, particularly in the lower moisture
range, and delivers very good results.
NOTE: You require two material samples with different moisture values to perform a 2-point ma-
terial calibration. The moisture values must be determined with another method (weigh-
ing and drying, or similar) before the calibration. Make sure to adhere to the following
sequence: first "lower moisture value" (drier material) and then "upper moisture value"
(wetter material).
Procedure:
At the start of the calibration, the calibration memory
(01 –15) to be overwritten must be selected with the
"Up" and "Down" keys. Press the "Measure" key to
accept the setting.
Then set the percentage moisture of the lower moisture
value using the "Up" and "Down" keys, and again press
the "Measure" key to confirm your entries.
To start measuring the material, press the "Measure" key
again. Four measurements are taken to increase the accu-
racy. An average of these measurement values is then cal-
culated. The measuring time is approximately 20 seconds.
When the measurement is finished, the measured pulse
transit time is displayed briefly.
NOTE: Before you start measuring, make sure that the
rods of the probes are fully immersed in the ma-
terial to be measured. The probe must remain in
the material for the entire duration of the meas-
urement and should not be moved.
Then set the percentage moisture of the upper moisture
value using the "Up" and "Down" keys, and again press
the "Measure" key to confirm your entries.
