Endress+Hauser mypro CLM 431 User manual

BA 202C/07/en/02.00
No.51500561
Software version 2.00 or later
mypro
CLM 431 / CLD 431
Conductive
Two-Wire Transmitter
for Conductivity and
Resistance
Operating Instructions
Endress Hauser
The Power of Know How

Please familiarise yourself with the instrument before
you take any other steps:
Safety
General information
You wish to install and prepare the instrument for start-
up. The required steps are described in these chapters:
Installation
You wish to operate or reconfigure the instrument. The
operating concept is explained in these chapters:
Operation
Functional description
Interfaces
When you encounter problems or when the instrument
requires maintenance, refer to these chapters for help:
Troubleshooting
Service and maintenance
Accessories
Technical data

LM431CE0.CHP
Table of contents
1 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.1 Symbolsused......................................................... 2
1.2 Storage and transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.3 Unpacking............................................................ 2
1.4 Packaging and disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
1.5 Productstructure....................................................... 3
2 Safety ............................................................... 5
2.1 Intendeduse.......................................................... 5
2.2 Generalsafetynotes.................................................... 5
2.3 Installation, start-up, operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.4 Monitoringandsafetyfeatures............................................ 6
2.5 Immunity to interference . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.6 Certificate of conformity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.7 Notes for installation in hazardous areas . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3 Installation .......................................................... 7
3.1 Measuring system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.2 Dimensions ........................................................... 8
3.3 Mounting............................................................ 10
3.4 Connection of conductivity measuring cells . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
3.5 Electrical connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3.6 Connection of MyPro in Ex area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
4 Operation........................................................... 20
4.1 Start-up ............................................................. 20
4.2 Power-up, factory settings. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
4.3 Operating concept / operating elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
4.4 Display.............................................................. 22
4.5 Lockingconcept...................................................... 22
4.6 Operatinglevel1 ..................................................... 23
4.7 Operatinglevel2...................................................... 26
5 Functional description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.1 Main parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
5.2 Basic functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
5.3 Calibration parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
5.4 Alpha table ...................................................... 32
5.5 Polarisationdetection .................................................. 33
5.6 Diagnosis............................................................ 33
5.7 Service and simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
5.8 Userinfo............................................................. 36
6 Interfaces........................................................... 37
6.1 HART.............................................................. 37
6.2 PROFIBUS-PA........................................................ 41
7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
7.1 Error indication . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
7.2 Diagnostic codes (error codes) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
8 Service and maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
8.1 Cleaning............................................................. 44
8.2 Repairs.............................................................. 44
9 Accessories ......................................................... 45
10 Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
11 Index............................................................... 49
mypro CLM 431 / CLD 431 conductive Table of contents
Endress+Hauser 1

1 General information
1.1 Symbols used
Warning:
This symbol alerts to hazards which
may cause serious injuries as well as
damage to equipment if ignored.
Note:
This symbol indicates important
items of information. Ignoring this
information may result in malfunction.
1.2 Storage and transport
The packaging material used to store or trans-
port the instrument must provide shock pro-
tection. Optimal protection is provided by the
original packaging materials.
Conformance with the ambient conditions
(see Technical data) must be assured.
1.3 Unpacking
Verify that the packaging and contents are
undamaged! Inform the post office or freight
carrier of any damage. Damaged merchan-
dise must be retained until the matter has
been settled.
Check that the delivery is complete and
agrees with the shipping documents and your
order (refer to nameplate for type and variant).
The delivery includes:
MyPro CLM 431:
• Measuring transmitter MyPro CLM 431
• Housing fastening elements
• Prepared cable (depending on version)
• Operating instructions BA 202C/07/en
• Certificate of conformity
(depending on version)
MyPro CLD 431:
• Measuring transmitter MyPro CLD 431
with measuring cell CLS 12
• Operating instructions BA 202C/07/en
• Certificate of conformity
(depending on version)
Keep the original packaging materials for
future storage or shipping of the instrument.
If you have any questions, consult your sup-
plier or the Endress+Hauser sales agency in
your area (see back cover of these operating
instructions for addresses).
1.4 Packaging and disposal
Package the assembly properly for reuse at a
later point in time. Optimal protection is
provided by the original packaging materials.
Observe local regulations for disposal.
General information mypro CLM 431 / CLD 431 conductive
2 Endress+Hauser

1.5 Product structure

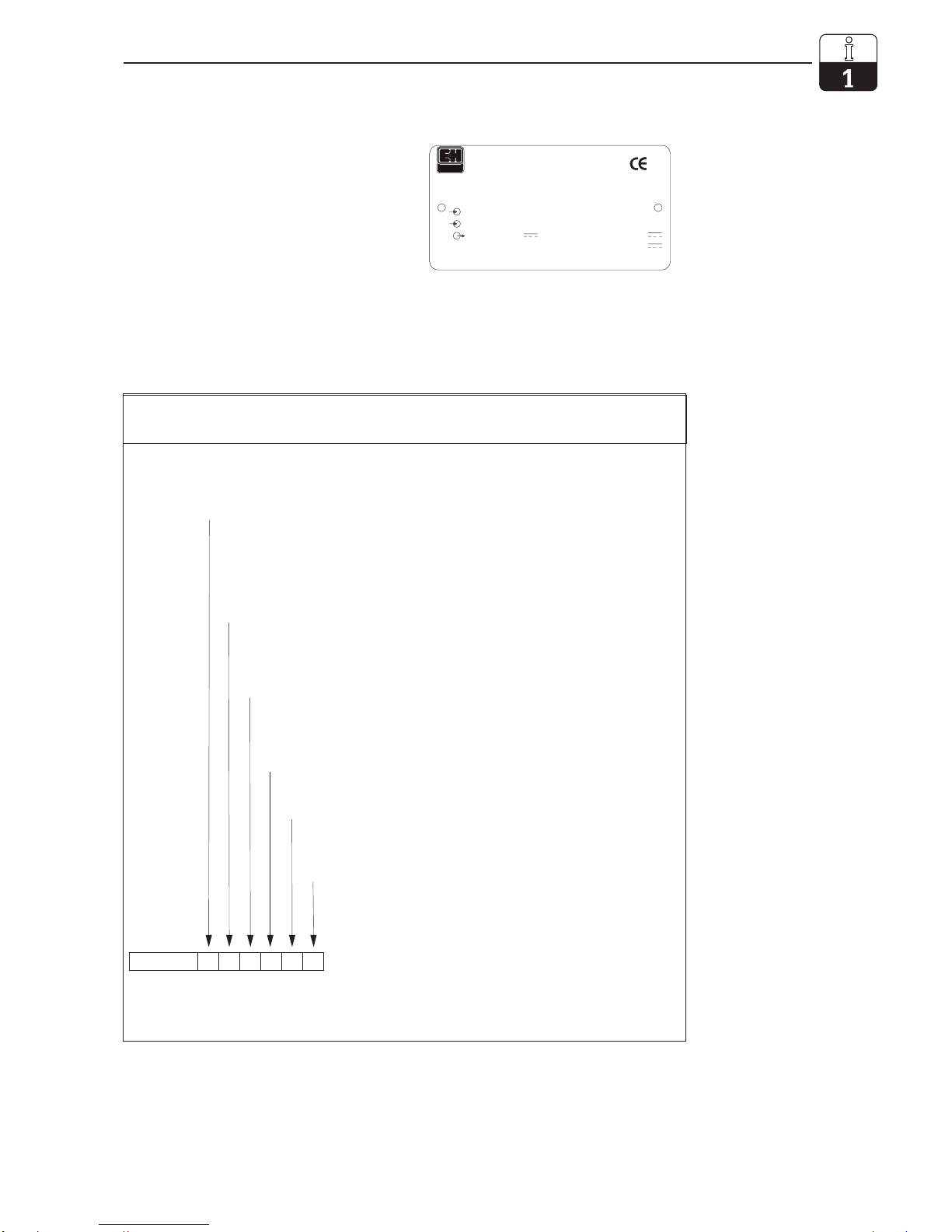

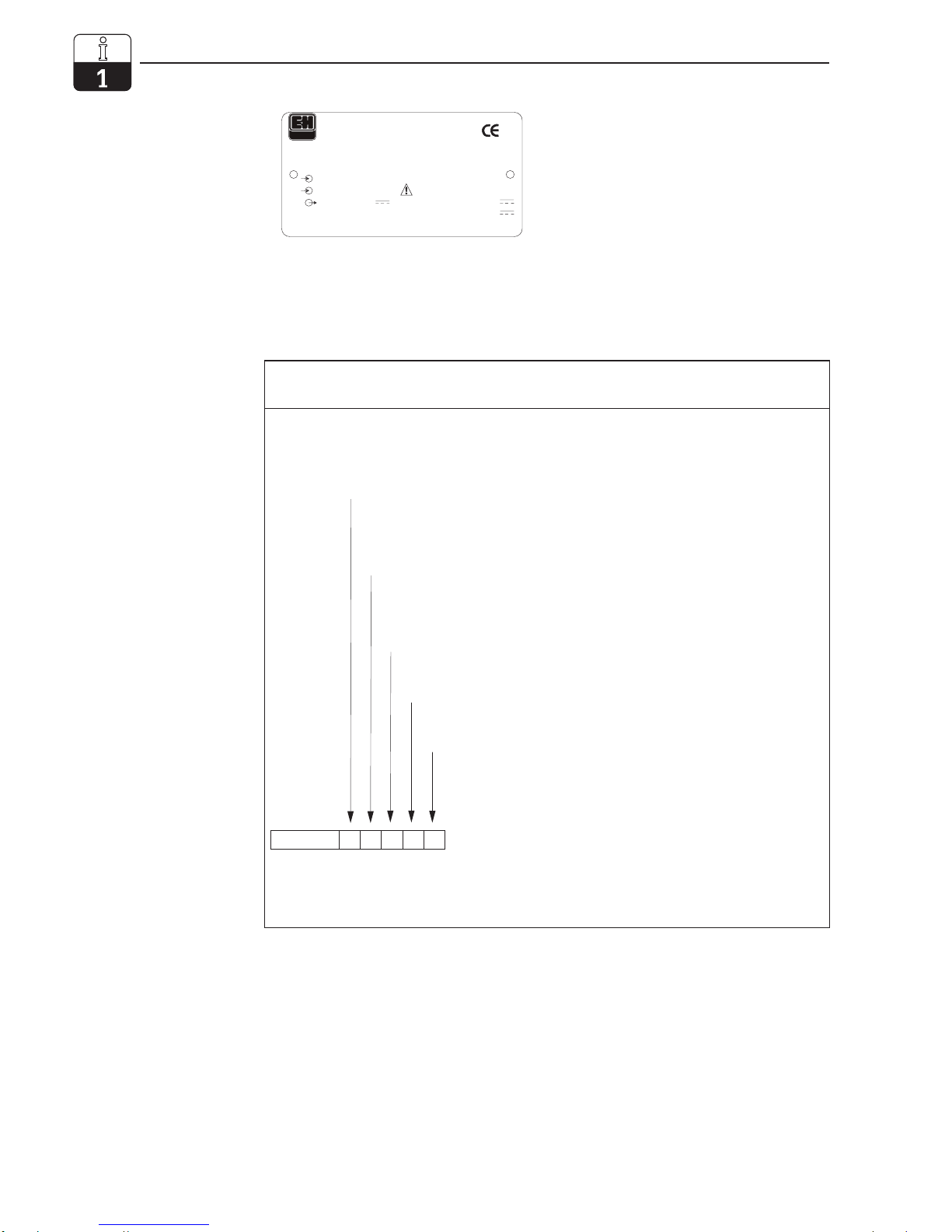

You can identify the instrument variant by the
order code on the nameplate.
4 ... 20mA , HART
s er.-no.
or der code
MYPRO
ENDRESS+HAUSER
U min 12V
U max 30V
Pmax 750mW
xxx xx
-35°C ... 250°C
0 ... 60mS / 0 ... 200 MΩ0 ... 60mS / 0 ... 200 MΩ
CL M431-A3C2ME
Fig. 1.1 Example of nameplate of CLM 431
LM431CE1.CHP
Certificate type
A Version for non-Ex area
H Cenelec EEx ia/ib IIC T4 (dir. 76/117/EEC; dir. 94/9/EC)
Cable entry for power supply
1 Cable gland Pg 13.5
3 Cable entry M 20 x 1.5
5 Cable entry NPT ½ “
7 Cable entry G ½
8 Cable entry M 12
Electronics, communication, display
A 4 ... 20 mA, HART, without display
B 4 ... 20 mA, HART, liquid crystal display
C PROFIBUS-PA, without display
D PROFIBUS-PA, liquid crystal display
Accessories
1 No accessories
2 For wall and pipe mounting (DN 60)
3 For wall and pipe mounting (DN 30 ... 200)
4 With angle bracket for flange mounting
Preset measuring parameter
C Conductive, conductivity measurement
M Conductive, resistance measurement
Cable, measuring cell connection
A Without cable
C With CYK 71 cable, length 1 m
E With CYK 71 cable, length 2 m
CLM 431- complete order code
MyPro CLM 431 conductive
mypro CLM 431 / CLD 431 conductive General information
Endress+Hauser 3

4 ... 20mA , HART
s er.-no.
or der code
MYPRO
ENDRESS+HAUSER
U min 12V
U max 30V
Pmax 750mW
xxx xx
-35°C ... 160°C
0,04 ...20 S /cm / 0 ... 25 MµΩ0,04 ...20 S /cm / 0 ... 25 MµΩ
CL D-A1D1CA
Fig. 1.2 Example of nameplate of CLD 431
Certificate type
A Version for non-Ex area
H Cenelec EEx ia/ib IIC T4 (dir. 76/117/EEC; dir. 94/9/EC)
Cable entry for power supply
1 Cable gland Pg 13.5
3 Cable entry M 20 x 1.5
5 Cable entry NPT ½ “
7 Cable entry G ½
8 Cable entry M 12
Electronics, communication, display
A 4 ... 20 mA, HART, without display
B 4 ... 20 mA, HART, liquid crystal display
C PROFIBUS- PA, without display
D PROFIBUS-PA, liquid crystal display
Accessories
1 No accessories
Measuring cell, process connection and material
CA CLS 12, 0.04 ... 20 µS, G1, stainless steel 1.4571
CB CLS 12, 0.1 ...200 µS, G1, stainless steel 1.4571
CLD 431- complete order code
MyPro CLD 431 conductive
General information mypro CLM 431 / CLD 431 conductive
4 Endress+Hauser

2 Safety
2.1 Intended use
The MyPro CLM 431 / CLD 431 is a field-
tested and reliable measuring transmitter
for determining the conductivity and specific
resistance of liquid media.
In particular, the MyPro CLM 431 / CLD 431
is suitable for use in the following areas of
application:
• Chemical industry
• Pharmaceutical industry
• Foodstuffs industry
• Drinking water treatment
• Condensate processing
• Municipal sewage treatment plants
• Industrial effluent treatment
The instrument design permits operation in
explosive atmospheres (zone 1 according to
ElexV).
2.2 General safety notes
This device has been manufactured for safe
operation according to the state of the art in
engineering and conforms to the applicable
regulations and European standards (see
Technical data). It has been designed
according to EN 61010-1 and has left the
manufacturer’s works in perfect condition.
However, if used improperly or for purposes
other than the intended purpose, it may be
dangerous, e.g. due to incorrect connection.
Warning:
•Operating this instrument in any
way other than as described in
these instructions may compro-
mise the safety and function of the
measuring system and is there-
fore impermissible.
•The notes and warnings in these
installation and operating instruc-
tions must be strictly adhered to!
2.3 Installation, start-up, operation
Warning:
•This device may only be installed,
connected electrically, commis-
sioned, operated and serviced by
properly trained personnel author-
ized by the system operator.
•The personnel must be familiar
with these operating instructions
and must adhere to the instructions
described therein.
•Before connecting the instrument
to the mains, make sure that the
mains voltage matches the voltage
rating on the nameplate.
•When connecting an instrument in
an explosive atmosphere, adher-
ence to the applicable regulations
is mandatory (see chapter 2.7).
•Check that all connections have
been properly made before power-
ing up the system!
•The instrument housing must be
grounded before start-up!
•Damaged equipment that may be
dangerous must not be operated
and should be clearly identified as
being defective.
•Any troubleshooting of the measur-
ing system is to be performed
exclusively by authorized, trained
personnel.
•If faults cannot be remedied, the
instrument must be removed from
service and secured to prevent
accidental start-up.
•Repair work must be carried out
directly by the manufacturer or
by the Endress+Hauser Service
Organization.
LM431CE2.CHP
mypro CLM 431 / CLD 431 conductive Safety
Endress+Hauser 5

2.4 Monitoring and safety features
Monitoring features
If a problem ever occurs, an alarm symbol
flashes on the display, and a defined error
current (22 mA +/– 0.5 mA) is output via the
current interface.
Safety features
This instrument is protected against external
influences and damage by the following
design measures:
• Massive metal housing
• UV-resistant front panel
• Housing protection type IP 65
2.5 Immunity to interference
This instrument has been tested according to
the applicable European standards for indus-
trial applications with regard to electromag-
netic compatibility and has been protected
against electromagnetic interference (see
Technical data in chapter 10).
Warning:
•The specified immunity to inter-
ference only applies for devices
connected as outlined in these
operating instructions.
2.6 Certificate of conformity
The MyPro CLM / CLD 431 transmitter has
been developed and manufactured in
accordance with currently valid European
standards and directives and is suitable for
use in hazardous areas.
Compliance with the harmonised European
standards for the use of the equipment in
hazardous areas is confirmed by this certifi-
cate of conformity.
Note:
For the CLM 431-G/H and
CLD 431-H versions an EC
conformity certificate is supplied.
For the -H versions additional safety
instructions (XA 173C/07/en) are
supplied.
2.7 Notes for installation in hazardous areas
The MyPro CLM 431 / CLD 431 transmitter
has been manufactured and tested in
accordance with the harmonised European
regulations (CENELEC) for »electric equip-
ment for hazardous areas«. The equipment
complies with the basic requirements of the
76/117/EEC and directive and is suitable for
use in hazardous areas.
Warning:
•The applicable national regula-
tions are to be observed for instal-
lation and operation.
•All lines conducting signals are to
be shielded according to VDE
0165 and to be routed separately
from other control lines.
Note:
For helpful information on the instal-
lation and operation of electric
equipment in hazardous areas,
please refer to the Endress+Hauser
fundamental information brochure
GI 003/11/d »Explosionsschutz von
elektrischen Betriebsmitteln und
Anlagen« (»Explosion protection of
electric equipment and systems«).
This brochure can be ordered from
the Endress+Hauser sales offices.
Safety mypro CLM 431 / CLD 431 conductive
6 Endress+Hauser

3 Installation
3.1 Measuring system
The complete measuring system comprises:
• the MyPro CLM 431 transmitter
• a conductive two-electrode
measuring cell with an integrated
temperature sensor, e.g. CLS 12
• a measuring cable, e.g. CYK 71
• or the compact unit MyPro CLD 431 with
conductivity measuring cell CLS 12
CLS 12
conductive conductivity
measuring cell
with integrated temperature
sensor
Measuring cable
CYK 71
Measuring transmitter
MyPro CLM 431

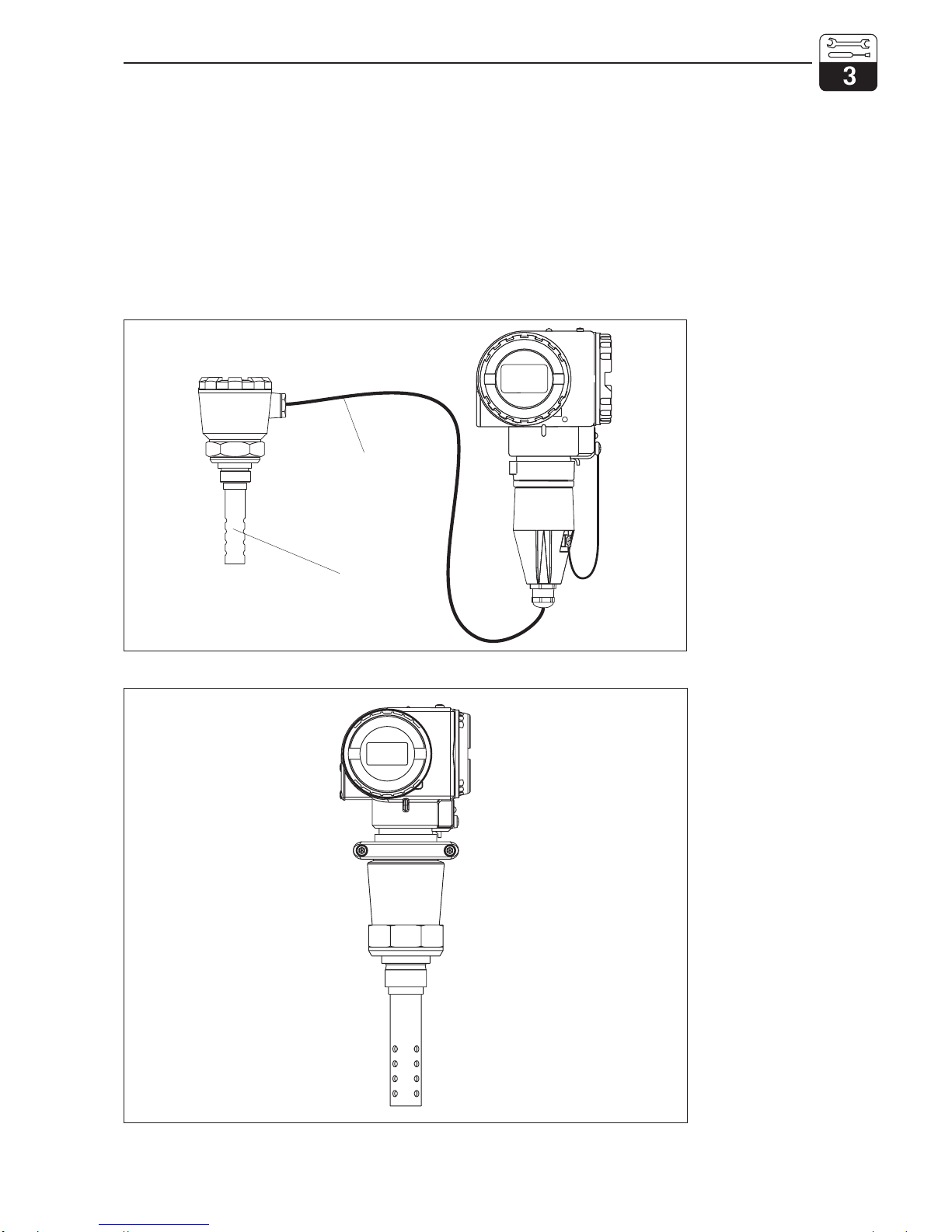

LM431SYS.CDR Fig. 3.1
Complete measuring
system consisting of
MyPro CLM 431 with
measuring cable CYK 71
and conductivity
measuring cell
CLS 12
Measuring transmitter
MyPro CLD 431
LM431SY2.CDR Fig. 3.2
Compact unit
MyPro CLD 431
with integrated
conductivity measuring
cell CLS 12
LM431CE3.CHP
mypro CLM 431 / CLD 431 conductive Installation
Endress+Hauser 7

3.2 Dimensions
3.2.1 MyPro CLM 431 conductive
104 137
53
74
227
MASSCLM.CDR

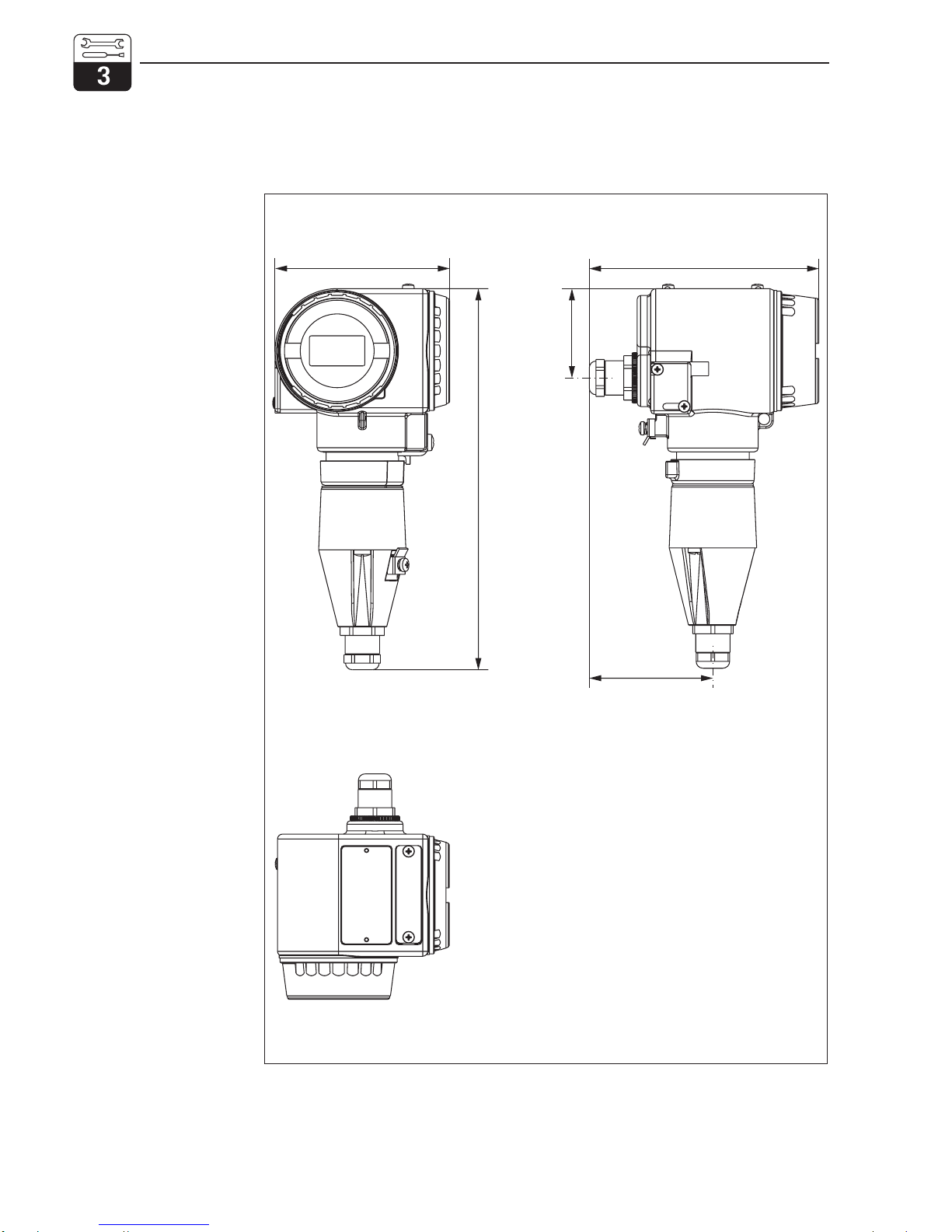

Fig. 3.3 Dimensions of MyPro CLM 431
Installation mypro CLM 431 / CLD 431 conductive
8 Endress+Hauser

3.2.2 MyPro CLD 431 conductive
MASSCLD.CDR
104 137
321
115
∅25
53

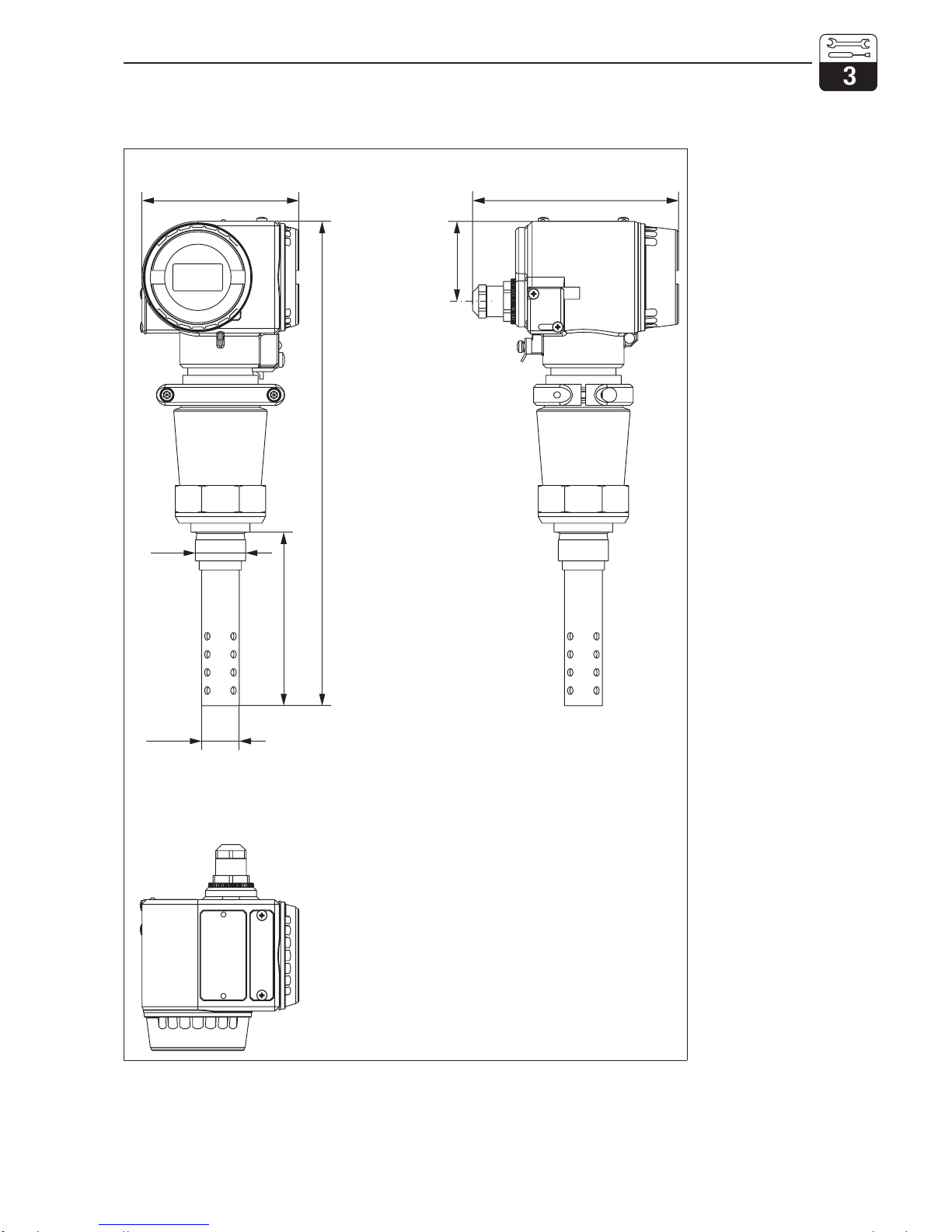

Fig. 3.4
Dimensions of
MyPro CLD 431
with CLS 12
G1
LM431CE3.CHP
mypro CLM 431 / CLD 431 conductive Installation
Endress+Hauser 9

3.3 Mounting
3.3.1 MyPro CLM 431 conductive
The measuring transmitter MyPro CLM 431
can be installed on a wall or pipe using the
holder (depending on version) supplied with
the instrument.
The holder is attached to the MyPro housing
with two screws. The housing can be rotated
90° thanks to four boreholes.
MOUNT3D2.CDR
MOUNT2D2.CDR
82
8
53
∅30 ... 200 165
102
MOUNT3D1.CDR

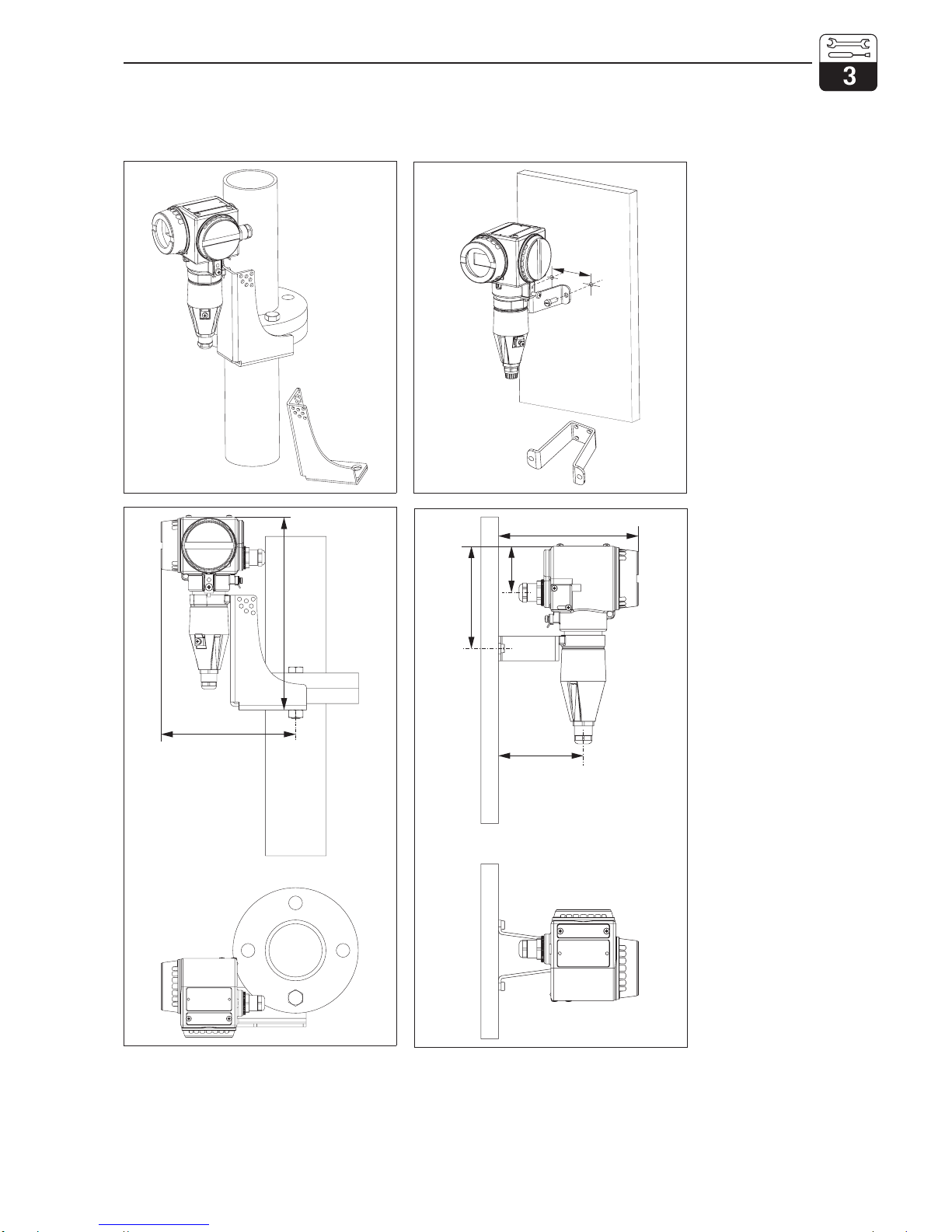

Fig. 3.5
Left:
Pipe mounting DN 60,
with mounting bracket
Right:
Pipe mounting
DN 30 ... 200,
with mounting bracket
(horizontal attachment)
MOUNT2D1.CDR
∅60.3
77
84
∅6
77
Fig. 3.6
Left:
Pipe mounting DN 60,
with mounting bracket
Right:
Pipe mounting
DN 30 ... 200,
with mounting bracket
(vertical attachment)
Installation mypro CLM 431 / CLD 431 conductive
10 Endress+Hauser

MOUNT3D3.CDR MOUNT3D4.CDR
69
Fig. 3.7
Left:
Flange mounting with
angle bracket
Right:
Wall mounting with
mounting bracket
MOUNT2D3.CDR
177
254
MOUNT2D4.CDR
97
118
160
53
Fig. 3.8
Left:
Flange mounting with
angle bracket
Right:
Wall mounting with
mounting bracket
LM431CE3.CHP
mypro CLM 431 / CLD 431 conductive Installation
Endress+Hauser 11

3.3.2 MyPro CLD 431 conductive
The compact version can be installed in a
pipe with medium flow. The distance of the
measuring cell from the inside pipe wall
does not influence the accuracy of the
measurement.
Note:
•The torque to fasten the thread
must not exceed 25 Nm.
•Observe the temperature limits
when installing the compact
version (see Technical data,
fig. 10.1).

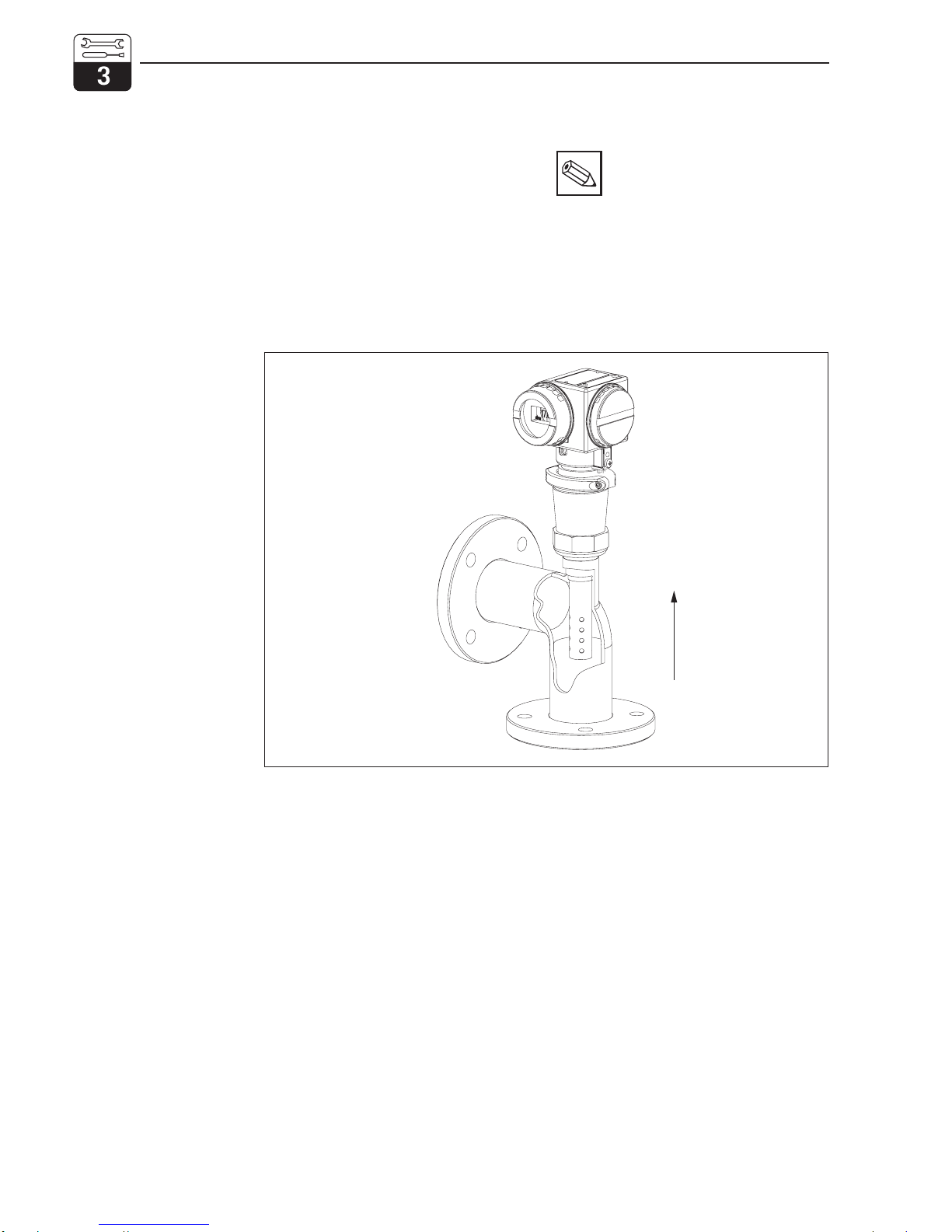

MONTAGE6.CDR
flow direction
Fig. 3.9 Pipe mounting of MyPro CLD 431
Installation mypro CLM 431 / CLD 431 conductive
12 Endress+Hauser

3.3.3 Instrument orientation
Housing orientation
Following horizontal or vertical attachment to
a wall or pipe, the orientation of the housing
can be changed to provide optimal
accessibility.
Note:
Pay attention to the keypad position
during installation. The keys should
be easily accessible.
Display rotation
The display can be rotated to permit perfect
viewing in different mounting positions. It can
be rotated in four 90° steps.
Refer to the figure below for the procedure to
follow.
270°
AUSRICHT.CDR Fig. 3.10
Housing orientation
Left:
MyPro CLM 431
Right:
MyPro CLD 431
4 x 90°
press
EINBAU.CDR Fig. 3.11
Removal and installation
of display
 Unscrew the lid over
the display. Push the tab
towards the outside.
 Tilt the display
forward and remove.
 Turn the removed
display in 90° steps.
Reinstall in the desired
orientation.
 To reinstall, latch the
display back into the
guide.
LM431CE3.CHP
mypro CLM 431 / CLD 431 conductive Installation
Endress+Hauser 13

3.4 Connection of conductivity measuring cells
3.4.1 Suitable measuring cells
The following conductive conductivity measur-
ing cells can be used for the measuring trans-
mitter MyPro CLM 431:
Note:
The measuring range depends
on the application range of the
measuring cells used.
3.4.2 Measuring cable connection
Conductivity measuring cells are connected
by means of a special preassembled,
shielded, multi-core measuring cable, type
CYK 71. Should an extension of the measu-
ring cable be necessary, use junction box VS
in conjunction with extension cable CYK 71.
10
0.01
0.0010.01
0.1
0.1
1
1
10
10
100
100
1 100 1000
k =1CLS 21
k = 0.1
CLS 12 / 13 / 15 / 19
k = 0.1
CLS 12 / 13 / 15 / 19
k = 0.01CLS 12 / 13 / 15 / 19
k = 0.01CLS 12 / 13 / 15 / 19
µS/cm mS/cm
M·cmΩ
TI172E02.CDR

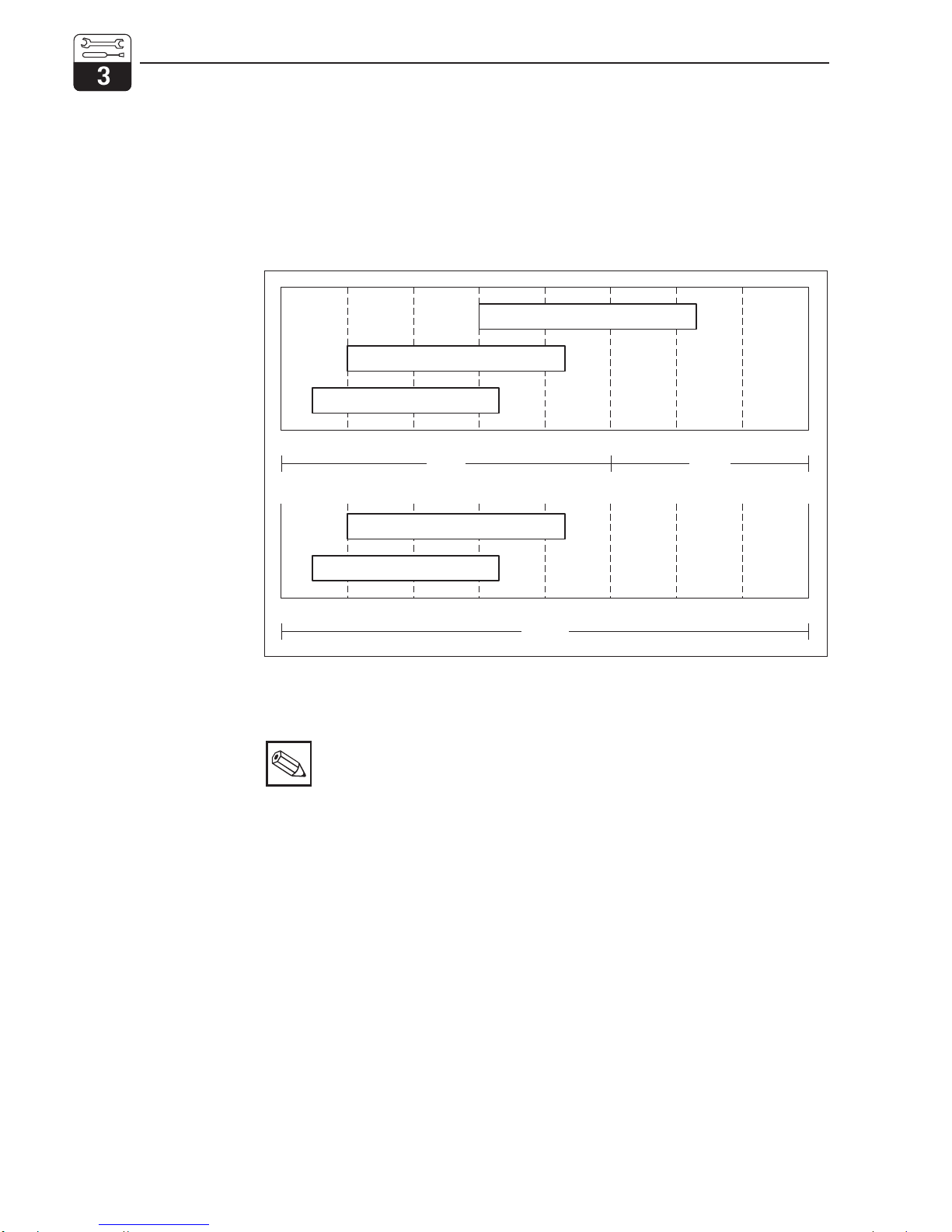

Fig. 3.12
Overview of suitable
measuring cells with
measuring ranges
Installation mypro CLM 431 / CLD 431 conductive
14 Endress+Hauser

Construction and preparation of CYK 71 cable with examples for connection
13
13 12
12 11 11 14
14 15
15 16
16 17
17
ϑ
ϑ
Cd /MΩCd /MΩ
ϑ
ϑ
bk bk
gn wt ye
31 2 34 21
gn wt ye
gn wt ye gn wt ye
LM431C2E.CDR Fig. 3.14
Connection examples
Left:
Connection of measuring
cell CLS 19 with CYK 71
Right:
Connection of measuring
cell CLS 12 with CYK 71
7
6
3
8
5
4
2
1
Warning:
Semiconductor layer must
be removed down to inner
screen for connection!
LM431K71.CDR Fig. 3.13
Construction / preparation
of special measuring
cable CYK 71
1 Inner conductor
(measuring signal)
2 Inner insulation
3 Black semiconductor
layer
4 Inner screen
(measuring signal)
5 2nd insulation
6 Auxiliary cores for
Pt 100 (gn/wt/ye)
7 Outer insulation
8 Outer screen
LM431CE3.CHP
mypro CLM 431 / CLD 431 conductive Installation
Endress+Hauser 15

Instructions for measuring cable connection to CLM 431
Note:
The screen can also be connected
to the screen terminal on the
terminal block.




Loosen fastening screws and pull off
connection hood. Loosen connection hood Pg cable gland and
thread cable through.
Connect cable ends according to terminal
assignment diagram (figure 3.14). Replace connection hood and tighten
fastening screws.
ANSCHL2.CDR
Connect the screen following sequence a to c.
ab c
Pull the cable through until the Pg cable gland can
grasp the cable insulation. Tighten the Pg cable
gland.

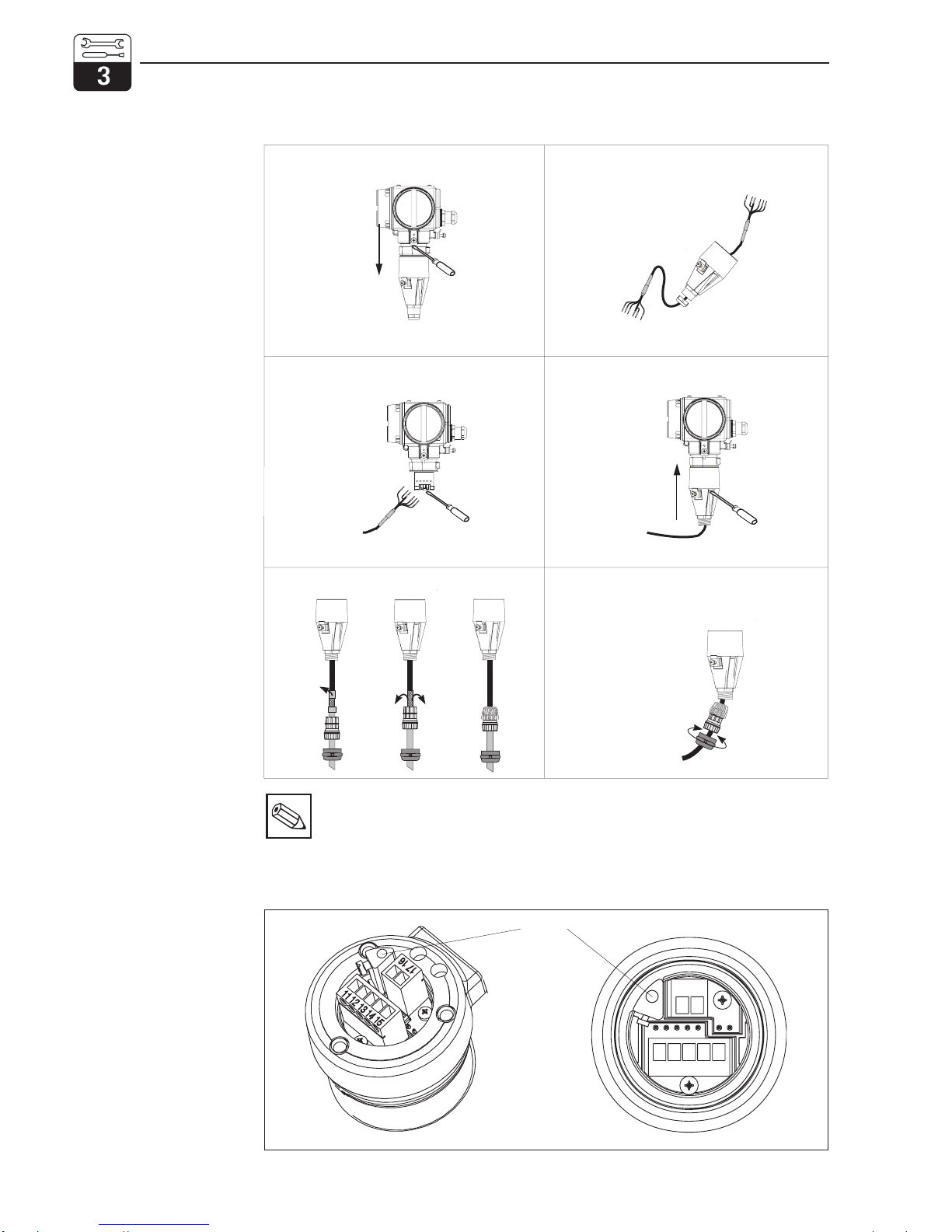

Fig. 3.15 Measuring cable connection
1514131211
17 16
ANSCHL.CDR
Screen
Fig. 3.16 Terminal block
Installation mypro CLM 431 / CLD 431 conductive
16 Endress+Hauser

3.5 Electrical connection
The measuring transmitter MyPro CLM 431 /
CLD 431 has separate connection compart-
ments for the power supply and measuring
cell connections.
The terminals for the two-wire line are located
under the screwed cover on the right side of
the instrument.
Proceed as described below to connect the
MyPro CLM 431 / CLD 431:
• Connect the MyPro CLM 431 / CLD 431
transmitter to a 12 ... 30 V power source
• Ground the instrument via the outer
ground terminal.
• Ground the two-wire line screen via the
ground terminal in the connection
compartment.
Note:
•Keep the screen ground line as
short as possible. Connect the
screen directly to the ground
terminal. This also applies to
connection of junction box VS.
•If the instrument is mounted on a
post, ground the post to increase
immunity to interference. Running
the cable in the post will improve
interference suppression.
•Immunity to interference is only
guaranteed when the instrument is
grounded via the shielded two-
wire line.
4...20 mA
Test
1
3
2
+
0000
Power supply
connection compartment
Measuring cell
connection
compartment Ground terminal for
cable screen Ground terminal for
instrument LM431AN1.CDR Fig. 3.17 Electrical connection
compartment
4...20 mA
Test
1
3
2
+
+
0000
LM431AN2.CDR
Supply voltage
12 ... 30 V DC
Signal output
4 ... 20 mA current
Fig. 3.18 Electrical connection
LM431CE3.CHP
mypro CLM 431 / CLD 431 conductive Installation
Endress+Hauser 17
