Operating Instructions
RIA45
Panel meter
BA00272R/09/EN/05.15
71300679
Valid as of FW version
01.03.xx (Gerätesoftware)

RIA45 Table of contents
Endress+Hauser 3
Table of contents
1 Document information .............. 4
1.1 Document function ..................... 4
1.2 Document conventions ................... 4
2 Safety instructions .................. 6
2.1 Requirements for the personnel ............ 6
2.2 Designated use ........................ 6
2.3 Workplace safety ....................... 6
2.4 Operational safety ...................... 6
2.5 Product safety ......................... 7
3 Identification ....................... 8
3.1 Device designation ...................... 8
3.2 Scope of delivery ....................... 8
3.3 Certificates and approvals ................ 8
4 Installation ........................ 9
4.1 Incoming acceptance, transport, storage ...... 9
4.2 Installation conditions ................... 9
4.3 Dimensions ........................... 9
4.4 Installation procedure .................. 10
4.5 Post-installation check .................. 10
5 Wiring ............................ 11
5.1 Connecting the device .................. 11
5.2 Post-connection check .................. 13
6 Operation ......................... 14
6.1 Operating elements .................... 14
6.2 Display and device status indicator/LED ..... 16
6.3 Icons ............................... 16
6.4 Quick guide to the operating matrix ........ 17
7 Commissioning .................... 21
7.1 Post-installation check and switching on the
device .............................. 21
7.2 General information on the device
configuration ......................... 21
7.3 Notes on setup access protection .......... 21
7.4 Configuring the device .................. 22
7.5 In operation .......................... 35
8 Maintenance ...................... 38
9 Accessories ....................... 39
9.1 Device-specific accessories ............... 39
9.2 Communication-specific accessories ........ 39
10 Troubleshooting .................. 40
10.1 Troubleshooting instructions ............. 40
10.2 Process error messages ................. 40
10.3 Spare parts .......................... 41
11 Return ............................ 43
12 Disposal .......................... 44
13 Technical data .................... 45
13.1 Input ............................... 45
13.2 Output ............................. 46
13.3 Power supply ......................... 47
13.4 Performance characteristics .............. 48
13.5 Installation .......................... 49
13.6 Mechanical construction ................ 51
13.7 Operability .......................... 52
13.8 Certificates and approvals ............... 53
13.9 Documentation ....................... 53
14 Appendix ......................... 54
14.1 Further explanations on the differential
pressure application at level measurement ... 54
14.2 Display menu ......................... 56
14.3 Setup menu .......................... 57
14.4 Diagnostics menu ..................... 66
14.5 Expert menu ......................... 68
Index .................................. 75

Document information RIA45
4 Endress+Hauser
1 Document information
1.1 Document function
These Operating Instructions contain all the information that is required in various phases
of the life cycle of the device: from product identification, incoming acceptance and
storage, to mounting, connection, operation and commissioning through to
troubleshooting, maintenance and disposal.
1.2 Document conventions
1.2.1 Safety symbols
Symbol Meaning
DANGER
DANGER!
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
WARNING!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
CAUTION!
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
NOTE!
This symbol contains information on procedures and other facts which do not result in
personal injury.
1.2.2 Electrical symbols
Symbol Meaning
A0011197
Direct current
A terminal to which DC voltage is applied or through which direct current flows.
A0011198
Alternating current
A terminal to which alternating voltage is applied or through which alternating current flows.
A0017381
Direct current and alternating current
• A terminal to which alternating voltage or DC voltage is applied.
• A terminal through which alternating current or direct current flows.
A0011200
Ground connection
A grounded terminal which, as far as the operator is concerned, is grounded via a grounding
system.
A0011199
Protective ground connection
A terminal which must be connected to ground prior to establishing any other connections.
A0011201
Equipotential connection
A connection that has to be connected to the plant grounding system: This may be a potential
equalization line or a star grounding system depending on national or company codes of practice.
A0012751
ESD - Electrostatic discharge
Protect the terminals against electrostatic discharge. Failure to comply with this instruction can
result in the destruction of parts or malffunction of the electronics.

RIA45 Document information
Endress+Hauser 5
1.2.3 Symbols for certain types of information
Symbol Meaning
Permitted
Procedures, processes or actions that are permitted.
Preferred
Procedures, processes or actions that are preferred.
Forbidden
Procedures, processes or actions that are forbidden.
Tip
Indicates additional information.
Reference to documentation
Reference to page
Reference to graphic
,… ,
Series of steps
Result of a sequence of actions
Help in the event of a problem
Visual inspection
1.2.4 Symbols in graphics
Symbol Meaning
1, 2, 3,... Item numbers
,… ,
Series of steps
A, B, C, ... Views
A-A, B-B, C-C, ... Sections
A0013441
Flow direction
-
A0011187
Hazardous area
Indicates a hazardous area.
.
A0011188
Safe area (non-hazardous area)
Indicates a non-hazardous area.
1.2.5 Tool symbols
Symbol Meaning
A0011220
Flat blade screwdriver
A0011221
Allen key
A0011222
Open-ended wrench
A0013442
Torx screwdriver

Safety instructions RIA45
6 Endress+Hauser
2 Safety instructions
2.1 Requirements for the personnel
The personnel for installation, commissioning, diagnostics and maintenance must fulfill
the following requirements:
‣Trained, qualified specialists must have a relevant qualification for this specific function
and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before beginning work, the specialist staff must have read and understood the
instructions in the Operating Instructions and supplementary documentation as well as
in the certificates (depending on the application)
‣Following instructions and basic conditions
The operating personnel must fulfill the following requirements:
‣Being instructed and authorized according to the requirements of the task by the
facility's owner-operator
‣Following the instructions in these Operating Instructions
2.2 Designated use
The device evaluates analog process variables and shows them on its multicolored display.
Using the unit's outputs and limit relays, processes can be monitored and controlled. The
device is equipped with a wide range of software functions for this purpose. Power can be
supplied to 2-wire sensors with the integrated loop power supply.
• The device is seen as an associated apparatus and may not be installed in hazardous
areas.
• The manufacturer accepts no liability for damages resulting from incorrect use or use
other than that designated. The device may not be converted or modified in any way.
• The device has been designed for panel installation and may only be operated in an
installed state.
2.3 Workplace safety
For work on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
2.4 Operational safety
Risk of injury.
‣Operate the device in proper technical condition and fail-safe condition only.
‣The operator is responsible for interference-free operation of the device.
Conversions to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers.
‣If, despite this, modifications are required, consult with Endress+Hauser.
Repair
To ensure continued operational safety and reliability,
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to repair of an electrical device.
‣Use original spare parts and accessories from Endress+Hauser only.

RIA45 Safety instructions
Endress+Hauser 7
Environmental requirements
If a plastic transmitter housing is permanently exposed to certain steam and air mixtures,
this can damage the housing.
‣If you are unsure, please contact your Endress+Hauser Sales Center for clarification.
‣If used in an approval-related area, observe the information on the nameplate.
2.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet
state-of-the-art safety requirements, has been tested, and left the factory in a condition in
which it is safe to operate.
It meets general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser
confirms this by affixing the CE mark to the device.

Identification RIA45
8 Endress+Hauser
3 Identification
3.1 Device designation
3.1.1 Nameplate
Compare the nameplate on the device with the following diagram:
4
5
1
3
2
A0010405
 1 Nameplate of the device (sample)
1 Order code, serial number and ID number of the device
2 Power supply
3 Power consumption
4 Approval
5 Temperature range
3.2 Scope of delivery
The scope of delivery of the process indicator comprises:
• Panel meter for panel mounting
• Hard copy of Brief Operating Instructions and Ex documentation (XA)
• Fastening material
• Distance piece for terminals (Ex option)
Please note the device accessories in Section ’Accessories’.
3.3 Certificates and approvals
CE mark, Declaration of Conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and
left the factory in a condition in which it is safe to operate. The device meets the relevant
standards and directives as per EN 61 010-1 "Safety requirements for electrical equipment
for measurement, control and laboratory use".
Thus, the device described in these Operating Instructions meets the legal requirements of
the EU directives. The manufacturer confirms successful testing of the device by affixing to
it the CE mark.
An overview of all the certificates and approvals available can be found in the Section
"Technical data" →  53.

RIA45 Installation
Endress+Hauser 9
4 Installation
4.1 Incoming acceptance, transport, storage
The permitted ambient and storage conditions must be observed. The precise
specifications can be found in Section "Technical data".
4.1.1 Incoming acceptance
On receipt of the goods, check the following points:
• Are the packaging or contents damaged?
• Is anything missing from the delivery? Compare the scope of delivery with the
information you specified in the order.
4.1.2 Transportation and storage
Note the following points:
• Pack the device so that is protected against impact for storage and transportation. The
original packaging provides optimum protection.
• The permitted storage temperature range is –40 to 85 °C (–40 to 185 °F); it is possible to
store the device in the limit temperature ranges for a limited period (maximum 48
hours).
4.2 Installation conditions
NOTICE
The life-time of the display is shortened when operated in the upper temperature
range.
‣To avoid heat accumulation, always make sure the device is sufficiently cooled.
‣Do not operate the device in the upper temperature range over a longer period of time.
The device is designed to be used in a panel.
The orientation is determined by the readability of the display. Connections and outputs
are fitted on the rear of the device. The wires are connected by means of number-coded
terminals.
Operational temperature range:
Non-Ex/Ex devices: –20 to 60 °C (–4 to 140 °F)
UL devices: –20 to 50 °C (–4 to 122 °F)
4.3 Dimensions
Observe the installation depth of 150 mm (5.91 in) for the device incl. terminals and
fastening clips.
In the case of devices with Ex approval, the Ex frame provided is mandatory and an
installation depth of 175 mm (6.89 in) must be observed. More dimensions can be found
in Section "Technical data".
• Panel cutout: 92 mm (3.62 in) x 45 mm (1.77 in).
• Panel thickness: max. 26 mm (1 in).
• Max. viewing angle range: 45° to the left and right from the central display axis.
• If the devices are arranged horizontally beside one another in the X-direction, or
arranged vertically on top of one another in the Y-direction, the mechanical distance
(specified by the housing and front section) must be observed.

Installation RIA45
10 Endress+Hauser
4.4 Installation procedure
The panel cutout required measures 92 mm (3.62 in) x 45 mm (1.77 in)
114
67
12
1.
34
2.
4
3
5
6
6
A0010404
 2 Installation in the panel
1. Screw the threaded rods (pos. 1) into the positions provided on the mounting frame
(pos. 2). Four opposing screw positions (pos. 3/4) are available for this purpose.
2. Push the device through the panel cutout from the front.
3. To secure the casing in the panel, hold the device in a horizontal position and push
the frame (pos. 2), with the threaded rods screwed in, over the casing until the frame
locks into position (1.).
4. Then tighten the threaded rods to fix the device in place (2.).
5. or the Ex option, install the distance piece (pos. 6) for the input terminals.
To disassemble the device, the mounting frame can be unlocked at the locking elements
(pos. 5) and then removed.
4.5 Post-installation check
• Is the sealing which is spray-applied to the casing undamaged?
• Is the mounting frame securely engaged on the housing of the device?
• Are the threaded rods tightened?
• Is the device positioned in the center of the panel cutout?
• Is the distance piece installed (Ex option)?

RIA45 Wiring
Endress+Hauser 11
5 Wiring
LWARNING
Danger! Electric voltage!
‣The entire connection of the device must take place while the device is de-energized.
‣The ground connection must be made before all other connections. Danger if protective
ground is disconnected.
‣Before commissioning the device, make sure that the supply voltage matches the
voltage specifications on the nameplate.
‣Provide suitable switch or circuit breaker in building installation. This switch must be
provided close to the device (within easy reach) and marked as a circuit breaker.
‣Provide overload protection (nominal current ≤ 10 A) for power cable.
• Observe the terminal designation on top of the device.
• It is permitted to connect a mixture of safety extra low voltage and voltage which
poses a shock hazard to the relays.
5.1 Connecting the device
A loop power supply (LPS) is provided for every input. The loop power supply is primarily
provided to supply power to 2-wire sensors and is galvanically isolated from the system
and the outputs.

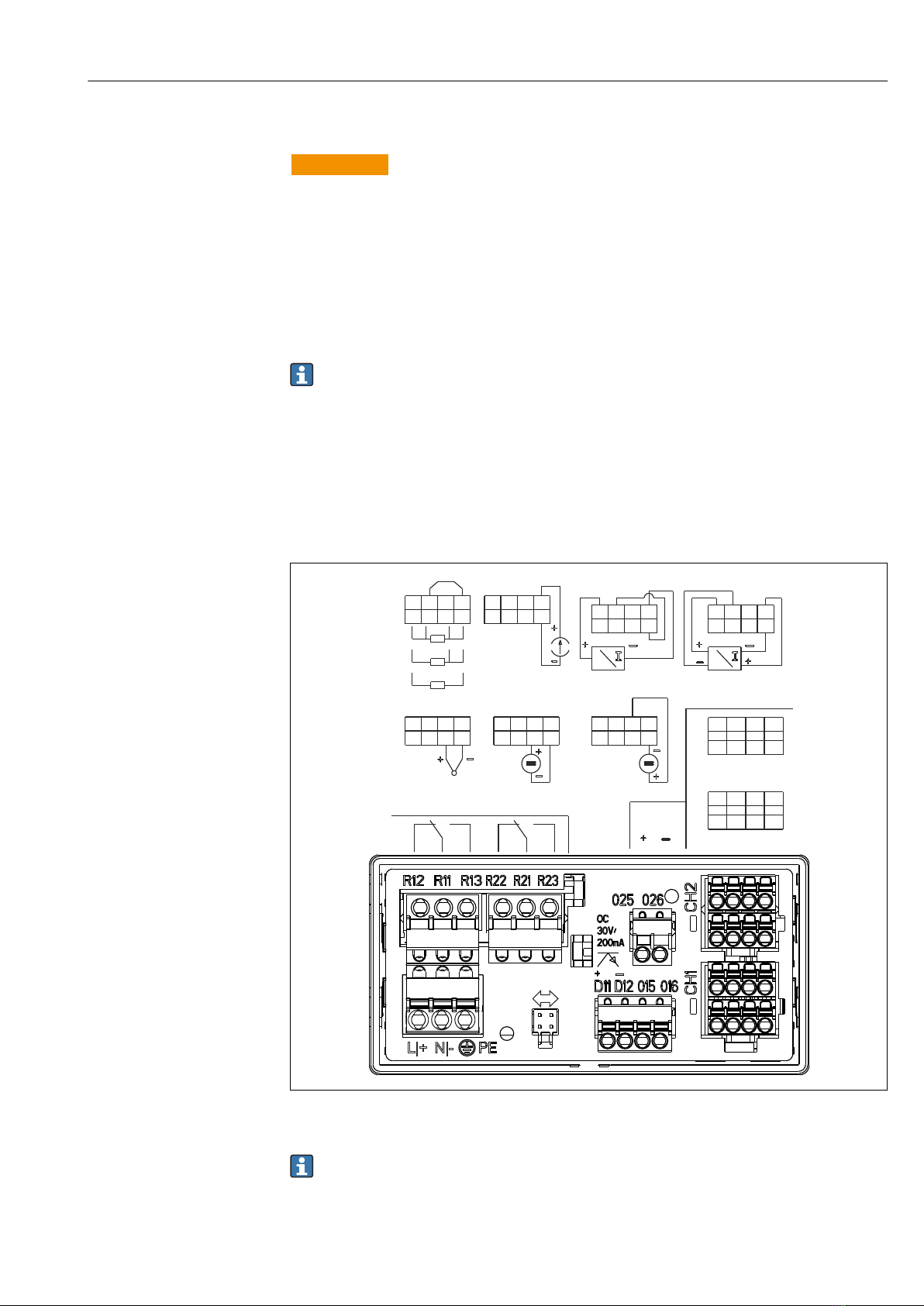

RTD ILPS 2-W LPS 4-W
TC U<=1V U>1V
CH1 CH2
Typ J,K,T,N...
±100mV...±1V
4-W
3-W
2-W
0/4...20mA
0...10V
0/1...5V
±10V
±30V
4...20mA 0/4...20mA
Analog Out
4...20mA
x2 x4
x8x7x6x5 x4
x8
x2x1 x4
x8
x2x1
x8x7 x8x7 x8
x3 232221
25 26 27 28
24
131211
15 16 17 18
14
x4
x8
R12 R11 R13 R22 R21 R23
L|+ N|-
A0010228
 3 Terminal assignment of the device (channel 2 and relays as an option)
If long signal cables with high-energy transients can be expected, we recommend
fitting a suitable surge arrester upstream.

Wiring RIA45
12 Endress+Hauser

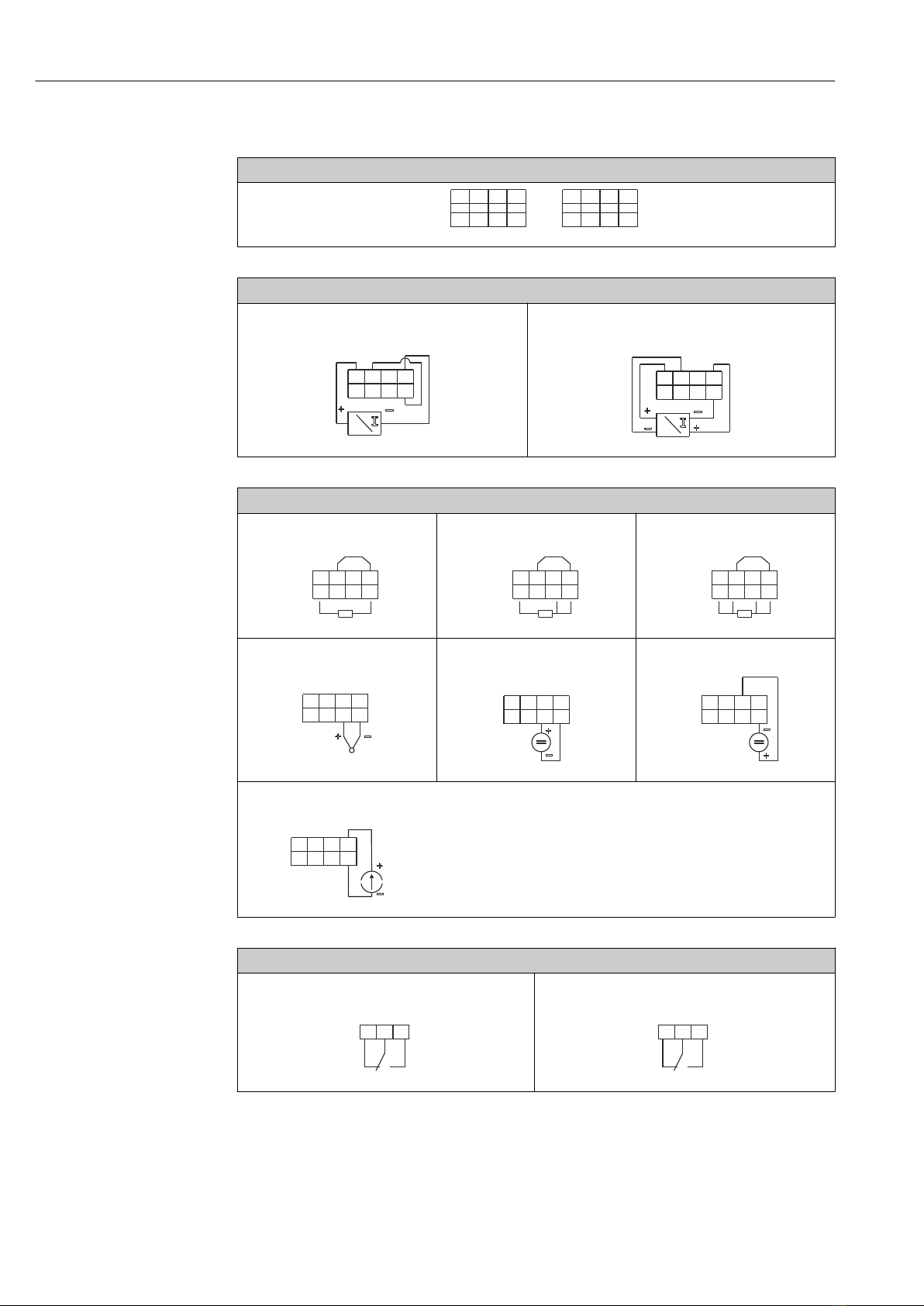

5.1.1 Overview of possible connection options at the device
Terminal assignment of analog inputs, channel 1 and 2 (optional)
CH2
232221
25 26 27 28
24
CH1
131211
15 16 17 18
14
A0010406
Connection of the loop power supply
2-Leiter
LPS 2-W
x4
x8
x2x1
A0010407
4-Leiter
LPS 4-W
x4
x8
x2x1
A0010408
Connection of the analog input
RTD/Resistance 2-wire
RTD
2-W
x2 x4
x8x7x6x5
A0010581
RTD/Resistance 3-wire
RTD
3-W
x2 x4
x8x7x6x5
A0010582
RTD/Resistance 4-wire
RTD
4-W
x2 x4
x8x7x6x5
A0010583
Thermocouple
TC
x8x7
A0010409
U ≤ 1 V
U<=1V
x8x7
A0010410
U > 1 V
U>1V
x8
x3
A0010411
Current
I
x8
x4
A0011934
Connection of the relays (optional)
Relay 1
R12 R11R13
A0010412
Relay 2
R22 R21R23
A0010413

RIA45 Wiring
Endress+Hauser 13
Connection of the analog output
Analog output 1
O15 O16
A0010416
Analog output 2 (optional)
O25O26
A0010414
Connection of the digital output
Digital output/open collector
D11 D12
OC
A0010415
Connection of the power supply
24 to 230 V AC/DC (-20 % / +10 %) 50/60 Hz
L|+ N|- PE
A0010418
Interfaces
Interface for configuring with the PC software
A0010417
5.2 Post-connection check
Device condition and specifications Notes
Are the device or cables damaged? Visual inspection
Electrical connection Notes
Does the supply voltage match the specifications on the nameplate? 24 to 230 V AC/DC (-20 % / +10
%) 50/60 Hz
Are the power supply terminals firmly engaged in their correct slot? -
Are the mounted cables strain-relieved? -
Are the supply voltage and signal cables connected correctly? See connection diagram on the
housing.

Operation RIA45
14 Endress+Hauser
6 Operation
The easy operating concept of the device makes it possible for users to commission the
device for many applications without a printed set of Operating Instructions.
The FieldCare operating software is a quick and convenient way of configuring the device.
Brief explanatory (help) texts provide additional information on individual parameters.
6.1 Operating elements
6.1.1 Local operation at the device
The device is operated by means of the three keys integrated in the front part of the device
• Open the configuration menu
• Confirm an entry
• Select a parameter or submenu offered in the menu
Within the configuration menu:
• Scroll step-by-step through the parameters/menu items/characters offered
• Change the value of the selected parameter (increase or decrease)
Outside the configuration menu:
Display enabled and calculated channels, as well as min. and max. values for all the active
channels.
You can always exit items/submenus at the end of the menu by selecting "x Back".
Leave the setup directly without saving the changes by pressing the ‘-’ and ‘+’ keys
simultaneously for > 3 s.
6.1.2 Configuration via interface & FieldCare Device Setup PC
configuration software
LCAUTION
Undefined switching of outputs and relays possible while configuring with FieldCare
‣Do not configure during running process.
To configure the device with the FieldCare Device Setup software, connect the device to
your PC. You need a special interface adapter for this purpose, e.g. the Commubox
FXA291.
Installing the communication DTM in FieldCare
Before the configuration of the device can be done, FieldCare Device Setup must be
installed on your PC. The installation instructions can be found in the FieldCare
instructions.
Subsequently, install the FieldCare device driver according to the following instructions:
1. Firstly, install the device driver "CDI DTMlibrary" in FieldCare. It can be found under
"Endress+Hauser Device DTMs → Service / Specific → CDI" in FieldCare.
2. Then the DTM catalog must be updated. Add the new installed DTMs to the DTM
catalog.

RIA45 Operation
Endress+Hauser 15
Installing the Windows driver for the TXU10/FXA291
To install the Windows driver Administrator rights are required. Proceed as follows:
1. Connect the device to the PC using the TXU10/FXA291 interface adapter.
 A new device is detected and the Windows installation assistant opens.
2. In the installation assistant, do not carry out the automatic search for a driver. For
this, choose "No, not this time" and click "Next".
3. In the subsequent window, choose "Install from a list or specific location" and click
"Next".
4. In the next window, click "Browse" and select the directory where the driver for the
TXU10/FXA291 adapter is located.
 The driver is installed.
5. Finish the installation by clicking "Finish".
6. A further device is detected and the Windows installation assistant opens once more.
Again, choose "No, not this time" and click "Next".
7. In the subsequent window, choose "Install from a list or specific location" and click
"Next".
8. In the next window, click "Browse" and select the directory where the driver for the
TXU10/FXA291 adapter is located.
 The driver is installed.
9. Finish the installation by clicking "Finish".
The installation of the Windows driver for the interface adapter is now complete. Which
COM-Port has been assigned for the adapter can be seen in the Windows device manager.
Establishing the connection
To establish the connection with FieldCare, proceed as follows:
1. Firstly, edit the connection macro. For this, start a new project and in the window
displayed, click with the right mouse button on the symbol for "Service (CDI) FXA291"
and choose "Edit".
2. In the following window, next to "Serial interface", select the COM port which has
been assigned during the installation of the Windows driver for the TXU10/FXA291
adapter.
 The macro is now configured. Complete configuration by clicking "Finish".
3. Start the macro "Service (CDI) FXA291" by double-clicking it and confirm the
subsequent query with "Yes".
 A connected device is searched and the suitable DTM is automatically opened.
The configuration starts.
To then configure the device itself, follow these Operating Instructions for the device. The
entire Setup menu, i.e. all the parameters listed in these Operating Instructions, can also
be found in the FieldCare Device Setup.
In general, it is possible to overwrite parameters with the FieldCare PC software and
the appropriate device DTM even if access protection is active.
If access protection by means of a code should be extended to the software, this
function should be activated in the extended device setup.
For this purpose, select: Menu → Setup / Expert → System → Overfill protect →
German WHG and confirm.

Operation RIA45
16 Endress+Hauser
6.2 Display and device status indicator/LED
The device provides an illuminated LC display which is split into two sections. The segment
section displays the value of the channel and additional information and alarms.
In the dot matrix section, additional channel information, such as the TAG, unit or bar
graph, is displayed in the display mode. Operating text in English is displayed here during
operation.
The parameters for configuring the display are explained in detail in Section "Configuring
the device".
1
2
4
5
6
7
8
9
3
A0010223
 4 Display of the device
1 Channel display: 1: analog input 1; 2: analog input 2; 1M: calculated value 1; 2M: calculated value 2
2 Dot matrix display for TAG, bar graph and unit
3 Limit value indicators in the bar graph
4 "Operation locked" indicator
5 Green LED; on - supply voltage applied
6 Red LED; on - error/alarm
7 Yellow LED; on - relay 1 energized
8 Yellow LED; on - relay 2 energized
9 Minimum/maximum value indicator
In the event of an error, the device switches automatically between displaying the error
and displaying the channel, →  35 and →  40.
6.3 Icons
6.3.1 Display icons
Device is locked/operating lock; the device setup is locked against changes to parameters, the
display can be modified.
1 Channel one (Analog in 1)
2 Channel two (Analog in 2)
1M First calculated value (Calc value 1)
2M Second calculated value (Calc value 2)
Max Maximum value/value of the maximum indicator of the channel displayed
Min Minimum value/value of the minimum indicator of the channel displayed
In the event of an error:
The display shows: , the measured value is not displayed

RIA45 Operation
Endress+Hauser 17
Underrange/overrange:
In the dot matrix section, the error and channel name (TAG) are specified.
6.3.2 Icons in the editing mode
The following characters can be used to enter user-defined text:
‘0-9’, ‘a-z’, ‘A-Z’, ‘+’, ‘-’, ‘*’, ‘/’, ‘\’, ‘%’, ‘°’, ‘2’, ‘3’, ‘m’, ‘.’, ‘,’, ‘;’, ‘:’, ‘!’, ‘?’, ‘_’, ‘#’, ‘$’, ‘"’, ‘´’, ‘(’,
‘)’, ‘~’
For numerical entries, the numbers ‘0-9’ and the decimal point are available.
Furthermore, the following icons are used in the editing mode:
Symbol for the setup
Symbol for the Expert setup
Symbol for diagnostics
Accept entry.
If this icon is selected, the information entered is accepted at the position and the user exits the
editing mode.
Reject entry.
If this icon is selected, the information entered is rejected and the user exits the editing mode. The
text configured beforehand remains unchanged.
Move one position to the left.
If this icon is selected, the cursor moves one position to the left.
Delete back.
If this icon is selected, the character to the left of the cursor is deleted.
Delete all.
If this icon is selected, all the information entered is deleted.
6.4 Quick guide to the operating matrix
The following tables show all menus and the operating functions.
Display menu Description
 AI1 Reset minmax* Reset the min/max values for Analog in 1
AI2 Reset minmax* Reset the min/max values for Analog in 2
CV1 Reset minmax* Reset the min/max values for Calc value 1
CV2 Reset minmax* Reset the min/max values for Calc value 2
Analog in 1 Display setting for Analog in 1
Analog in 2 Display setting for Analog in 2
Calc value 1 Display setting for Calc value 1
Calc value 2 Display setting for Calc value 2
Contrast Display contrast
Brightness Display brightness
Alternating time Switchover time between values chosen to be displayed
Back Return to main menu
*) Is only displayed if "Allow reset" = "Yes" is set in the "Expert" menu for the corresponding channel.

Operation RIA45
18 Endress+Hauser
Setup menu Description
 Application Application selection
1-channel 1-channel application
2-channel 2-channel application
Diff-pressure Difference pressure application
AI1 Lower range* Lower measuring range limit for Analog in 1
AI1 Upper range* Upper measuring range limit for Analog in 1
AI2 Lower range* Lower measuring range limit for Analog in 2
AI2 Upper range* Upper measuring range limit for Analog in 2
CV Factor* Factor for calculated value
CV Unit* Unit for calculated value
CV Bar 0%* Lower limit for bargraph of calculated value
CV Bar 100%* Upper limit for bargraph of calculated value
Linearization* Linearization of calculated value
No lin points Number of linearization points
X-value X-values for linearization points
Y-value Y-values for linearization points
Analog in 1 Analog input 1
Signal type Signal type
Signal range Signal range
Connection Connection type (only for Signal type = RTD)
Lower range Lower limit of measuring range
Upper range Upper limit of measuring range
Tag Designation of analog input
Unit Unit of analog input
Temperature unit Unit for temperature; only visible is "Signal type" = RTD or
TC
Offset Offset of analog input
Ref junction Reference junction (only for Signal type = TC)
Reset min/max Reset min/max value for analog input
Analog in 2 Analog input 2
see Analog in 1
Calc value 1 Calculated value 1
Calculation Type of calculation
Tag Designation of calculated value
Unit Unit of calculated value
Bar 0% Lower limit for bargraph of calculated value
Bar 100% Upper limit for bargrapg of calculated value
Factor Factor for calculated value
Offset Offset for calculated value
No lin points Number of linearization points
X-value X-values for linearization points
Y-value Y-values for linearization points
*) Is only displayed if "Application" = "Diff pressure" is configured.

RIA45 Operation
Endress+Hauser 19
Setup menu Description
Reset min/max Reset min/max values
Calc value 2 Calculated value 2
See Calc value 1
Analog out 1 Analog output 1
Assignment Assignment for analog output
Signal type Signal type of analog output
Lower range Lower range limit of analog output
Upper range Upper range limit of analog output
Analog out 2 Analog output 2
See Analog out 1
Relay 1 Relay 1
Assignment Assignment of value to be monitored with relay
Function Operating function for relay
Set point Set point for relay
Set point 1/2 Set points 1 and 2 for relay (only, if Function = Inband,
Outband)
Time base Time base for gradient evaluation (only, if Function =
Gradient)
Hysteresis Hysteresis for relay
Relay 2 Relay 2
See Relay 1
Back Return to main menu
*) Is only displayed if "Application" = "Diff pressure" is configured.
Diagnostics menu Description
 Current diagn Current diagnostic
Last diagn Last diagnostic
Operating time Operating time of the device
Diagnost logbook Diagnostics logbook
Device information Device information
Back Return to main menu
Expert menu Description
 Direct access Direct access to an operting function
System System settings
Access code Protection of operating menu by means of access code
Overfill protect Overfill protection
Reset Device reset
Save user setup Save settings made in the setup
Input Inputs
The following parameters are available in addition to the parameters from the Setup menu:
Analog in 1 / 2 Analog input 1 / 2
Bar 0% Lower limit for bargraph of analog input

Operation RIA45
20 Endress+Hauser
Expert menu Description
Bar 100% Upper limit for bargraph of analog input
Decimal places Decimal place for analog input
Damping Damping
Failure mode Failure mode
Fixed fail value Fixed value in the event of an error (only, if Failure mode =
Fixed value)
Namur NE43 Error limits according Namur
Allow reset Allow reset of min/max values via Display menu
Output Outputs
The following parameters are available in addition to the parameters from the Setup menu:
Analog out 1 / 2 Analog output 1 / 2
Fail mode Failure mode
Fixed fail value Fixed value in the event of an error (only, if Fail mode =
Fixed value)
Relay 1 / 2 Relay 1/2
Time delay Switching delay time
Operating mode Operating mode
Failure mode Behavior in the event of an error
