Brief Operating Instructions
Cerabar S PMC71, PMP71,
PMP75
Process pressure measurement
These Brief Operating Instructions are not a substitute for the
Operating Instructions pertaining to the device.
Detailed information about the device can be found in the
Operating Instructions and the additional documentation.
Available for all device versions via
• Internet: www.endress.com/deviceviewer
• Smartphone/tablet: Endress+Hauser Operations app
KA01025P/00/EN/19.22-00
71565953
2022-04-05

Associated documentation Cerabar S PMC71, PMP71, PMP75
2 Endress+Hauser

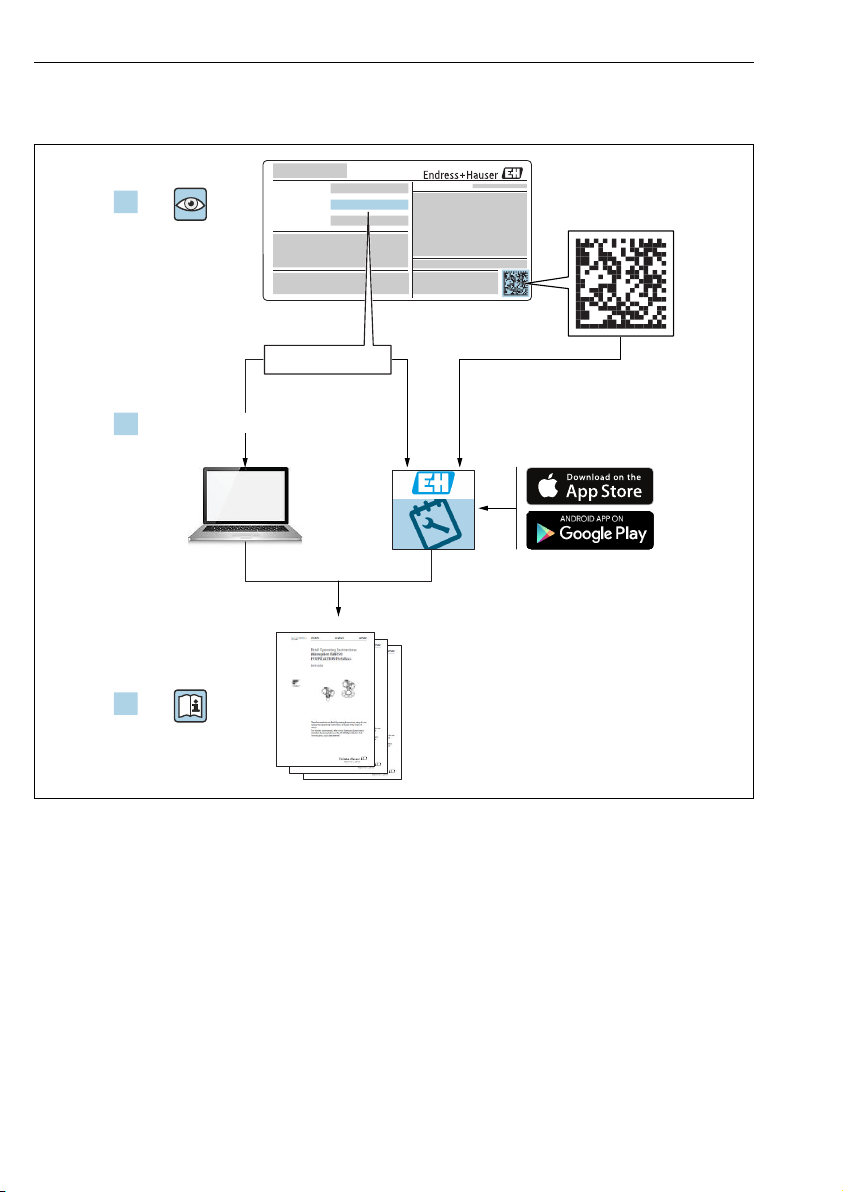

1 Associated documentation
Order code:
Ext. ord. cd.:
Ser. no.:
www.endress.com/deviceviewer Endress+Hauser
Operations App
XXXXXXXXXXXX
XXXXX-XXXXXX
XXX.XXXX.XX
Serial number
1.
3.
2.
A0023555
2 About this document
2.1 Document function
The Brief Operating Instructions contain all the essential information from incoming
acceptance to initial commissioning.

Cerabar S PMC71, PMP71, PMP75 About this document
Endress+Hauser 3
2.2 Symbols
2.2.1 Safety symbols
DANGER
This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in
serious or fatal injury.
WARNING
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
serious or fatal injury.
CAUTION
This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in
minor or medium injury.
NOTICE
This symbol contains information on procedures and other facts which do not result in
personal injury.
2.2.2 Electrical symbols
Protective earth (PE)
Ground terminals that must be connected to ground prior to establishing any other
connections.
The ground terminals are located on the interior and exterior of the device:
• Interior ground terminal: protective earth is connected to the mains supply.
• Exterior ground terminal: device is connected to the plant grounding system.
2.2.3 Symbols for certain types of information and graphics
Symbols for certain types of information and graphics
Permitted
Procedures, processes or actions that are permitted
Forbidden
Procedures, processes or actions that are forbidden
Tip
Indicates additional information
Reference to documentation
A
Reference to page
Visual inspection
Notice or individual step to be observed

Basic safety instructions Cerabar S PMC71, PMP71, PMP75
4 Endress+Hauser
1, 2, 3, ...
Item numbers
1.
,
2.
,
3.
Series of steps
Result of a step
2.3 Registered trademarks
•KALREZ®
Trademark of E.I. Du Pont de Nemours & Co., Wilmington, USA
•TRI-CLAMP®
Trademark of Ladish & Co., Inc., Kenosha, USA
•FOUNDATIONTM Fieldbus
Registered trademark of the FieldComm Group, Austin, USA
•GORE-TEX®
Trademark of W.L. Gore & Associates, Inc., USA
3 Basic safety instructions
3.1 Requirements for the personnel
Personnel must meet the following requirements for their tasks:
‣Trained, qualified specialists must be suitably qualified to perform this function and task
‣Are authorized by the plant owner/operator
‣Are familiar with federal/national regulations
‣Before starting work, read and understand the instructions in the manual and
supplementary documentation as well as the certificates (depending on the application)
‣Follow instructions and comply with basic conditions
3.2 Intended use
The Cerabar S is a pressure transmitter for measuring level and pressure.
3.2.1 Foreseeable incorrect use
The manufacturer is not liable for damage caused by improper or non-intended use.
Verification for borderline cases:
‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in
verifying the corrosion resistance of fluid-wetted materials, but does not accept any
warranty or liability.

Cerabar S PMC71, PMP71, PMP75 Basic safety instructions
Endress+Hauser 5
3.3 Workplace safety
When working on and with the device:
‣Wear the required personal protective equipment according to federal/national
regulations.
‣Switch off the supply voltage before connecting the device.
3.4 Operational safety
Risk of injury!
‣Operate the device only if it is in proper technical condition, free from errors and faults.
‣The operator is responsible for the interference-free operation of the device.
Modifications to the device
Unauthorized modifications to the device are not permitted and can lead to unforeseeable
dangers:
‣If, despite this, modifications are required, consult with Endress+Hauser.
Repair
To ensure continued operational safety and reliability:
‣Carry out repairs on the device only if they are expressly permitted.
‣Observe federal/national regulations pertaining to the repair of an electrical device.
‣Use original spare parts and accessories from Endress+Hauser only.
Hazardous area
To eliminate danger to persons or the installation when the device is used in the hazardous
area (e.g. explosion protection, pressure vessel safety):
‣Check the nameplate to verify whether the ordered device can be used for the intended
purpose in the hazardous area.
‣Observe the specifications in the separate supplementary documentation, which is an
integral part of this manual.
3.5 Product safety
This measuring device is designed in accordance with good engineering practice to meet state-
of-the-art safety requirements, has been tested, and left the factory in a condition in which it
is safe to operate.
It meets the general safety standards and legal requirements. It also complies with the EC
directives listed in the device-specific EC Declaration of Conformity. Endress+Hauser confirms
this by affixing the CE mark to the device.
3.6 Functional safety SIL3 (optional)
The Functional Safety Manual must be strictly observed for devices that are used in functional
safety applications.

Incoming acceptance and product identification Cerabar S PMC71, PMP71, PMP75
6 Endress+Hauser
4 Incoming acceptance and product identification
4.1 Incoming acceptance
DELIVERY NOTE
1 = 2
A0016870
• Is the order code on the delivery note (1) identical to the order code on the product sticker
(2)?
• Are the goods undamaged?
• Do the data on the nameplate correspond to the order specifications and the delivery note?
• Is the documentation available?
• If required (see nameplate): are the Safety Instructions (XA) provided?
If one of these conditions is not fulfilled, please contact your Endress+Hauser sales office.
4.2 Storage and transport
4.2.1 Storage conditions
Use original packaging.
Store the measuring device in clean and dry conditions and protect from damage caused by
shocks (EN 837-2).
4.2.2 Transporting the product to the measuring point
LWARNING
Incorrect transport!
Housing and membrane may become damaged, and there is a risk of injury!
‣Transport the measuring device to the measuring point in its original packaging or by the
process connection.
‣Follow the safety instructions and transport conditions for devices weighing more than 18
kg (39.6 lbs).

Cerabar S PMC71, PMP71, PMP75 Mounting
Endress+Hauser 7
5 Mounting
5.1 Mounting requirements
5.1.1 General installation instructions
• Devices with a G 1 1/2 thread:
When screwing the device into the tank, the flat seal has to be positioned on the sealing
surface of the process connection. To avoid additional strain on the process membrane, the
thread should never be sealed with hemp or similar materials.
• Devices with NPT threads:
• Wrap Teflon tape around the thread to seal it.
• Tighten the device at the hexagonal bolt only. Do not turn at the housing.
• Do not overtighten the thread when screwing. Max. tightening torque:
20 to 30 Nm (14.75 to 22.13 lbf ft)
• For the following process connections, a tightening torque of max. 40 Nm (29.50 lbf ft) is
specified:
• Thread ISO228 G1/2 (order option "1A" or "1B")
• Thread DIN13 M20 x 1.5 (order option "1N" or "1P")
5.1.2 Mounting sensor modules with PVDF thread
LWARNING
Risk of damage to process connection!
Risk of injury!
‣Sensor modules with PVDF thread must be installed with the mounting bracket provided!
LWARNING
Material fatigue from pressure and temperature!
Risk of injury if parts burst! The thread can become loose if exposed to high pressure and
temperature loads.
‣The integrity of the thread must be checked regularly and the thread may need to be
retightened with the maximum tightening torque of 7 Nm (5.16 lbf ft). Teflon tape is
recommended for sealing the ½" NPT thread.
5.2 Installation instructions for devices without diaphragm seals -
PMP71, PMC71
NOTICE
Damage to the device!
If a heated Cerabar S is cooled during the cleaning process (e.g. by cold water), a vacuum
develops for a short time, and as a result, moisture can enter the sensor through the pressure
compensation (1).
‣Mount the device as follows.

Mounting Cerabar S PMC71, PMP71, PMP75
8 Endress+Hauser
1
1
1
1
A0031804

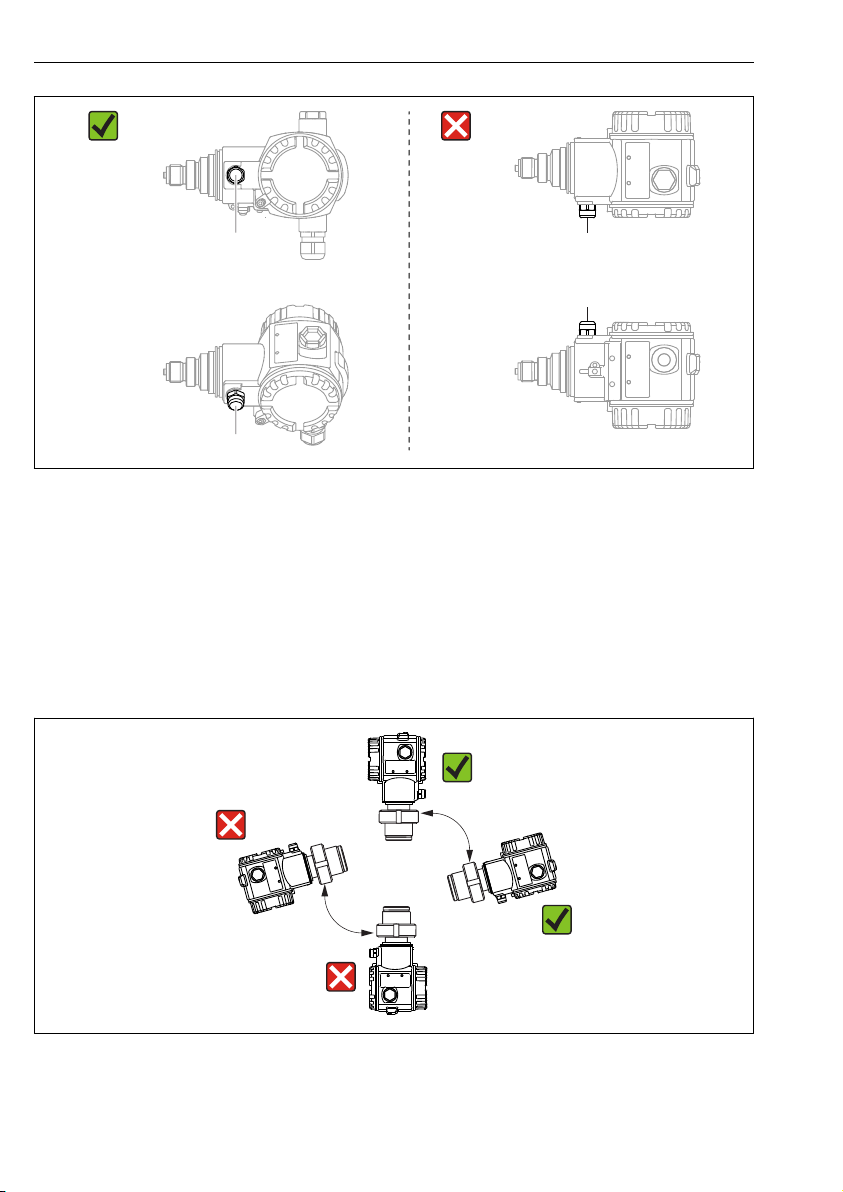

• Keep the pressure compensation and GORE-TEX® filter (1) free from contamination and
water.
• Cerabar S devices without diaphragm seals are mounted in accordance with the same
guidelines as a manometer (DIN EN 837‑2). We recommend the use of shutoff devices and
water pocket pipes. The orientation depends on the measuring application.
• Do not clean or touch process membranes with hard or pointed objects.
• The device must be installed as follows in order to comply with the cleanability
requirements of the ASME-BPE (Part SD Cleanability):
A0031805

Cerabar S PMC71, PMP71, PMP75 Mounting
Endress+Hauser 9
5.2.1 Pressure measurement in gases
Mount the Cerabar S with shutoff device above the tapping point so that any condensate can
flow into the process.
5.2.2 Pressure measurement in vapors
For pressure measurement in vapors, use water pocket pipes. The water pocket pipe reduces
the temperature to almost ambient temperature. Preferably mount the device with the water
pocket pipe below the tapping point.
Advantages:
• defined water column only causes minimal/negligible measured errors
• only minor/negligible heat effects on the device.
Mounting above the tapping point is also permitted. Observe the max. permitted ambient
temperature of the transmitter.
5.2.3 Pressure measurement in liquids
Mount the Cerabar S with the shutoff device below or at the same level as the tapping point.
5.2.4 Level measurement
• Always install the Cerabar S below the lowest measuring point.
• Do not mount the device in the filling curtain or at a point in the tank which could be
affected by pressure pulses from an agitator.
• Do not mount the device in the suction area of a pump.
• The adjustment and functional test can be carried out more easily if you mount the device
downstream from a shutoff device.
5.3 Installation instructions for devices with diaphragm seals –
PMP75
• Cerabar S devices with diaphragm seals are screwed in, flanged or clamped on, depending
on the type of diaphragm seal.
• Please note that the hydrostatic pressure of the liquid columns in the capillaries can cause
zero point shift. The zero point shift can be corrected.
• Do not clean or touch the process membrane of the diaphragm seal with hard or pointed
objects.
• Do not remove the protection on the process membrane until just before installation.
NOTICE
Incorrect handling!
Damage to the device!
‣A diaphragm seal and the pressure transmitter together form a closed, oil-filled calibrated
system. The fill fluid hole is sealed and may not be opened.
‣If a mounting bracket is used, sufficient strain relief must be ensured for the capillaries in
order to prevent them from buckling (bending radius >= 100 mm (3.94 in)))
‣Please observe the application limits of the diaphragm seal fill fluid as specified in the
Technical Information for Cerabar S TI00383P, "Planning instructions for diaphragm seal
systems" section.

Electrical connection Cerabar S PMC71, PMP71, PMP75
10 Endress+Hauser
NOTICE
In order to obtain more precise measurement results and to avoid a defect in the device,
mount the capillaries as follows:
‣Mount capillaries vibration-free (in order to avoid additional pressure fluctuations)
‣Do not mount in the vicinity of heating or cooling lines
‣Insulate the capillaries if the ambient temperature is below or above the reference
temperature
‣Mount with a bending radius >= 100 mm (3.94 in)
‣Do not use the capillaries as a carrying aid for the diaphragm seals!
6 Electrical connection
6.1 Connecting requirements
LWARNING
Risk of electric shock!
If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals.
‣In a wet environment, do not open the cover if voltage is present.
LWARNING
An incorrect connection compromises electrical safety!
‣Risk of electric shock and/or explosion! Switch off the supply voltage before connecting the
device.
‣When using the measuring device in hazardous areas, installation must also comply with
the applicable national standards and regulations and the Safety Instructions or
Installation or Control Drawings.
‣Devices with integrated overvoltage protection must be grounded.
‣Protective circuits against reverse polarity, HF influences and overvoltage peaks are
integrated.
‣The supply voltage must match the power supply on the nameplate, see Operating
Instructions →  2.
‣Switch off the supply voltage before connecting.
‣Remove the housing cover of the terminal compartment.
‣Guide the cable through the gland. Preferably use a twisted, shielded two-wire cable.
‣Connect the device as indicated in the diagram.
‣Screw down the housing cover.
‣Switch on the supply voltage.

Cerabar S PMC71, PMP71, PMP75 Electrical connection
Endress+Hauser 11
1
FF FF
FF FF
2
3
5
4
A0047210

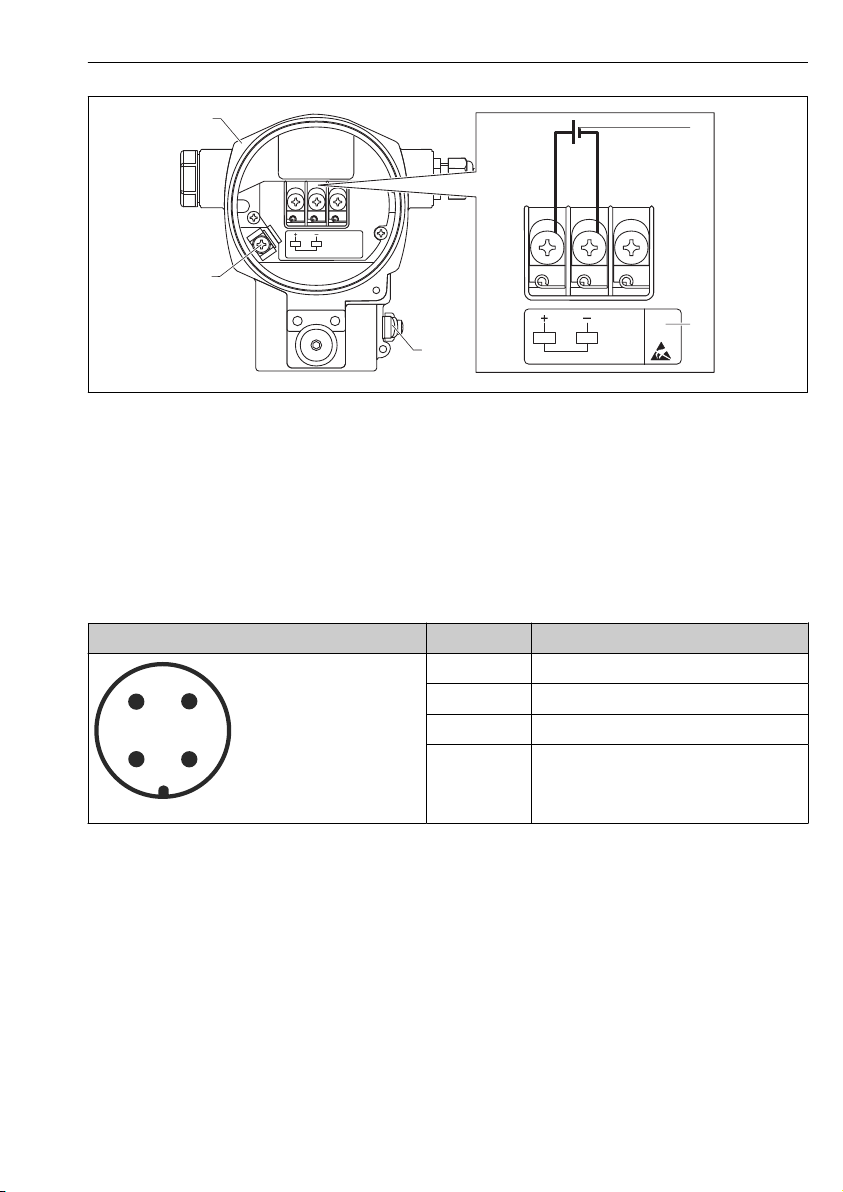

 1 FOUNDATION Fieldbus electrical connection
1 Housing
2 Internal ground terminal
3 External ground terminal
4 Minimum supply voltage, for version in the non-hazardous area = 9 to 32 V DC
5 Devices with integrated overvoltage protection are labeled "OVP" (overvoltage protection) here.
6.1.1 Connection of devices with 7/8" plug
PIN
2
1
4
3
A0011176
1 Signal -
2 Signal +
3 Not assigned
4 Ground
6.2 Connecting the measuring unit
For further information on the network structure and grounding and for further bus system
components such as bus cables, see the relevant documentation, e.g. Operating Instructions
BA00013S "FOUNDATION Fieldbus Overview" and the FOUNDATION Fieldbus Guideline.
6.2.1 Supply voltage
Version for non-hazardous areas: 9 to 32 V DC

Electrical connection Cerabar S PMC71, PMP71, PMP75
12 Endress+Hauser
LWARNING
Supply voltage might be connected!
Risk of electric shock and/or explosion!
‣When using the measuring device in hazardous areas, installation must also comply with
the applicable national standards and regulations and the Safety Instructions or
Installation or Control Drawings.
‣All explosion protection data are given in separate Ex documentation, which is available
upon request. The Ex documentation is supplied as standard with all devices approved for
use in explosion hazardous areas.
6.2.2 Current consumption
15.5 mA ± 1 mA, switch-on current corresponds to IEC 61158-2, Clause 21.
6.2.3 Terminals
• Supply voltage and internal ground terminal: 0.5 to 2.5 mm2 (20 to 14 AWG)
• External ground terminal: 0.5 to 4 mm2 (20 to 12 AWG)
6.2.4 Cable specification
• Endress+Hauser recommends using twisted, shielded two-wire cables.
• Cable diameter: 5 to 9 mm (0.2 to 0.35 in)
For further information on the cable specifications, see Operating Instructions BA00013S
"FOUNDATION Fieldbus Overview", FOUNDATION Fieldbus Guideline and IEC 61158-2 (MBP).
6.2.5 Grounding and shielding
The Cerabar S must be grounded, for example by means of the external ground terminal.
Different grounding and shielding installation methods are available for FOUNDATION
Fieldbus networks such as:
• Isolated installation (see also IEC 61158-2)
• Installation with multiple grounding
• Capacitance installation.

Cerabar S PMC71, PMP71, PMP75 Operation options
Endress+Hauser 13
7 Operation options
7.1 Operation without an operating menu
Operation options Explanation Graphic
Local operation without
device display
The device is operated using the operating keys and
DIP switches on the electronic insert.
on
off
Display
Zero
simulation
TM
FOUNDATION
SW / P2=High
SW / Ö
damping
delta p only
A0029998
7.1.1 Position of operating elements
In the case of the aluminum housing (T14/T15) and stainless steel housing (T14), the
operating key is located either under the protective flap on the exterior of the device or inside
on the electronic insert. In the case of the hygienic stainless steel housing (T17), the
operating key is always inside on the electronic insert. In addition, there are three operating
keys on the optional local display.
0%
Zero
0%
Zero
A0048645
 2 Operating keys, outside

Operation options Cerabar S PMC71, PMP71, PMP75
14 Endress+Hauser
Address
SW
HW
1 2 345 6 7 8
21
CKON
3 4 5 6 7 8
S D A 0 8
21
PC
3 4 5 6 7
0%
Zero
t
on
off
1 2
A0020032
1 DIP switch for locking/unlocking parameters relevant to the measured value
2 DIP switch for switching damping on/off
3 Green LED to indicate value is accepted
4 Key for position adjustment and device reset
5 DIP switch for bus address
6 Slot for optional display
7 Slot for optional HistoROM®/M-DAT
Function of the DIP switches
To perform the corresponding function, press the key or key combination for at least 3 s. Press
the key combination for at least 6 s for a reset.
Meaning
0%
Zero
• Position adjustment (zero point correction): press key for at least 3
seconds. The LED on the electronic insert lights up briefly if the pressure
applied has been accepted for position adjustment.
• Total reset: press key for at least 12 seconds. The LED on the electronic
insert lights up briefly if a reset is being carried out.
12
τ
on
off
• DIP switch 1: to lock/unlock parameters relevant to the measured value.
Factory setting: off (unlocked)
• DIP switch 2: damping on/off, factory setting: on (damping on)
7.1.2 FOUNDATION Fieldbus interface
Device identification and addressing
FOUNDATION Fieldbus identifies the device using its ID code and automatically assigns it a
suitable field address. The identity code cannot be changed. The device appears in the network

Cerabar S PMC71, PMP71, PMP75 Operation options
Endress+Hauser 15
display once you have started the FF configuration program and integrated the device into the
network. The blocks available are displayed under the device name.
If the device description has not yet been loaded, the blocks report "Unknown" or "(UNK)".
The Cerabar S reports as follows:
–
–
RS_XXXXXXXXXXX(RB2)
EH_DeltabarS-XXXXXXXXXXXXXXXX
TRD1_ (PCD)XXXXXXXXXXX
SERVICE_ (SERVICE)XXXXXXXXXXX
DIAGNOSTIC_ ( DIAGNOSTIC)XXXXXXXXXXX
DISPLAY_ ( DISP)XXXXXXXXXXX
AI1_ (AI)XXXXXXXXXXX
AI2_ (AI)XXXXXXXXXXX
DO_ (DO)XXXXXXXXXXX
PID_ (PID)XXXXXXXXXXX
ARTH_ (ARB)XXXXXXXXXXX
CHAR_ (SCB)XXXXXXXXXXX
ISEL_ (ISB)XXXXXXXXXXX
INTG_ (ITB)XXXXXXXXXXX
AALM_ (AALB)XXXXXXXXXXX
DI_ (DI)XXXXXXXXXXX
DP_FLOW_ (DPFLOW)XXXXXXXXXXX
Ai3_ (AI)XXXXXXXXXXX
1 2
A0047229
7.2 Operation with device display (optional)
A 4-line liquid crystal display (LCD) is used for display and operation. The local display shows
measured values, dialog texts, fault messages and notice messages. The device display can be
turned in 90 ° steps. Depending on the installation position of the device, this makes it easy to
operate the device and read the measured values.
Functions:
• 8-digit measured value display including sign and decimal point, unit display, bar graph for
displaying current
• Simple and complete menu guidance due to breakdown of parameters into several levels
and groups
• Each parameter is assigned a 3-digit ID number for easy navigation
• Possibility of configuring the display according to individual wishes and requirements e.g.
language, alternating display, display of other measured values, such as sensor
temperature, contrast setting
• Comprehensive diagnostic functions (fault and warning message, maximum/minimum
indicators, etc.)
• Rapid and safe commissioning using Quick Setup menus

Operation options Cerabar S PMC71, PMP71, PMP75
16 Endress+Hauser
1
E
+
–
3
2
45
A0016498
The following table illustrates the symbols that can appear on the local display. Four symbols
may appear at the same time.
Symbol Meaning
Alarm symbol
• Symbol flashing: warning, device continues measuring
• Symbol permanently lit: error, device does not continue measuring
Note: The alarm symbol may overlie the tendency symbol.
Lock symbol
The operation of the device is locked. Unlock the device.
Communication symbol
Data transfer via communication.
Tendency symbol (increasing)
The measured value increases.
Tendency symbol (decreasing)
The measured value decreases.
Tendency symbol (constant)
The measured value has remained constant throughout the last few minutes.
7.2.1 Operating keys on the display and operating module
Operating key(s) Meaning
• Navigate up in the picklist
• Edit the numerical values or characters within a function
• Navigate down in the picklist
• Edit the numerical values or characters within a function
• Confirm entry
• Jump to the next item

Cerabar S PMC71, PMP71, PMP75 Operation options
Endress+Hauser 17
Operating key(s) Meaning
+
Contrast setting of local display: darker
+
Contrast setting of local display: brighter
+
ESC functions:
• Exit the editing mode without saving the modified value
• You are in the menu within a function group: the first time you press the keys
simultaneously, you go back one parameter in the function group. Every subsequent
time you press the keys simultaneously, you go up one level in the menu.
• You are in the menu at a selection level: each time you press the keys simultaneously,
you go up a level in the menu.
Note:For the terms function group, level, selection level, see the "Menu structure".
12
τ
on
off
• DIP switch 1: to lock/unlock parameters relevant to the measured value. Factory
setting: off (unlocked)
• DIP switch 2: for the simulation mode, factory setting: off (simulation mode off)
7.2.2 Operating example: Parameters with a picklist
Example: selecting "Deutsch" as the language of the menu.
Language 000 Operation
1  English "English" is set as the menu language (default value).
A  in front of the menu text indicates the option that is currently active.
Deutsch
2 Deutsch Select "Deutsch" with  or .
 English
3  Deutsch • Select  to confirm. A  in front of the menu text indicates the active option ("Deutsch" is
now selected as the menu language).
• Use  to exit the edit mode for the parameter.
English
7.2.3 Operating example: User-definable parameters
Example: Setting the "Set URV (014)" parameter from 100 mbar (1.5 psi) to
50 mbar (0.75 psi).
Menu path: Setup → Extended setup → Current output → Set URV
Set URV 014 Operation
The local display shows the parameter to be changed. The "mbar" unit is
defined in another parameter and cannot be changed here.
11 0 0 . 0 0 0 mbar

Operation options Cerabar S PMC71, PMP71, PMP75
18 Endress+Hauser
Set URV 014 Operation
Press  or  to enter the edit mode.
The first digit is highlighted in black.
210 0 . 0 0 0 mbar
Use the  key to change "1" to "5".
Press the  key to confirm "5". The cursor jumps to the next position
(highlighted in black).
Confirm "0" with  (second position).
350 0 . 0 0 0 mbar
The third digit is highlighted in black and can now be edited.
45 0 0. 0 0 0 mbar
Use the  key to change to the " " symbol.
Use  to save the new value and exit the edit mode. See next graphic.
55 0 ¿. 0 0 0 mbar
The new value for the upper range value is 50 mbar (0.75 psi).
Use  to exit the edit mode for the parameter.
Use  or  to return to the edit mode.
65 0 . 0 0 0 mbar
7.2.4 Operating example: Accepting the pressure present
Example: Setting pos. zero adjustment.
Menu path: Main menu → Setup → Pos. zero adjust
Pos. zero adjust 007 Operation
1  Cancel The pressure for pos. zero adjustment is present at the device.
Confirm
2 Cancel Use  or  to switch to the "Confirm" option. The active option is highlighted in
black.
 Confirm
3 Adjustment has
been accepted!
Use the  key to accept the applied pressure for pos. zero adjustment. The device
confirms the adjustment and goes back to the "Pos. zero adjust" parameter.
4  Cancel Use  to exit the edit mode for the parameter.
Confirm

Cerabar S PMC71, PMP71, PMP75 Commissioning
Endress+Hauser 19
8 Commissioning
The device is configured for the "Pressure" measuring mode as standard. The measuring range
and the unit in which the measured value is transmitted correspond to the data on the
nameplate.
LWARNING
The permitted process pressure is exceeded!
Risk of injury if parts burst! Warnings are displayed if the pressure is too high
‣If a pressure that is greater than the maximum permitted pressure is present at the device,
messages "E115 sensor overpressure" and "E727 sensor pressure error - overrange" are
output in succession. Only use the device within the sensor range limits!
NOTICE
The permitted process pressure is undershot!
Messages are displayed if the pressure is too low.
‣If a pressure that is lower than the minimum permitted pressure is present at the device,
messages "E120 sensor low pressure" and "E727 sensor pressure error - overrange" are
output in succession. Only use the device within the sensor range limits!
8.1 Configuring messages
• The messages E727, E115 and E120 are "Error"-type messages and can be configured as a
"Warning" or an "Alarm". The factory setting for these messages is "Warning". This setting
prevents the current output from adopting the configured alarm current value in
applications (e.g. cascade measurement) where the user knowingly accepts that the sensor
range may be exceeded.
• We recommend setting messages E727, E115 and E120 to "Alarm" in the following
instances:
• It is not necessary to go outside the sensor range for the measuring application.
• A position adjustment must be carried out that has to correct a large measured error as a
result of the orientation of the device (e.g. devices with diaphragm seal).
8.2 Selecting the language and measuring mode
8.2.1 Local operation
The MEASURING MODE parameter is on the first selection level.
The following measuring modes are available:
• Pressure
• Level
8.3 Position adjustment
Due to the orientation of the device, there may be a shift in the measured value, i.e. when the
vessel is empty or partly filled, the measured value does not display zero. There are two ways
to perform position adjustment.

Commissioning Cerabar S PMC71, PMP71, PMP75
20 Endress+Hauser
• Menu path on local display:
GROUP SELECTION → OPERATING MENU → SETTINGS → POSITION ADJUST.
• Menu path in FieldCare:
OPERATING MENU → SETTINGS → POSITION ADJUST
