Endress+Hauser Proline Prosonic Flow 93T Portable User manual

KA00034D/06/EN/13.11
71136632
Brief Operating Instructions
Proline Prosonic Flow 93T Portable
Portable ultrasonic flow measuring system
These Brief Operating Instructions are not intended to replace the
Operating Instructions provided in the scope of supply.
Detailed information is provided in the Operating Instructions and
the additional documentation on the CD-ROM supplied.
The complete device documentation consists of:
• These Brief Operating Instructions
• Depending on the device version:
– Operating Instructions and the Description of Device Functions
– Approvals and safety certificates
– Special safety instructions in accordance with the approvals for
the device (e.g. explosion protection, pressure equipment
directive, etc.)
– Additional device-specific information

Table of contents Proline Prosonic Flow 93T Portable
2Endress+Hauser
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Installation, commissioning and operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Safety conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.1 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.2 Preparatory steps prior to installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.3 Determining the necessary installation distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 Connecting and switching on the transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.5 Determining the installation distances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.6 Mechanical preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.7 Installing Prosonic Flow P (DN 15 to 65 / ½ to 2½") . . . . . . . . . . . . . . . . . . . . . . . . . 17
2.8 Installing Prosonic Flow P (DN 50 to 4000 / 2 to 160") (Clamp On) . . . . . . . . . . . . . . 19
2.9 Post-installation check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3 Wiring. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.1 Charging the NiMH storage battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2 Connecting the connecting cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
3.3 Post-connection check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.1 Switching on the measuring device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
4.2 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.3 Navigating within the function matrix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.4 Calling the Commissioning Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.5 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Proline Prosonic Flow 93T Portable Safety instructions
Endress+Hauser 3
1 Safety instructions
1.1 Designated use
• The measuring device described in these Operating Instructions is to be used only for
measuring the flow rate of liquids in closed pipes, e.g.:
– Acids, alkalis, paints, oils
– Liquid gas
– Ultrapure water with low conductivity, water, wastewater
•
A
s well as measuring the volume flow, the sound velocity of the fluid is also always measured.
Different fluids can be distinguished or the fluid quality can be monitored.
• The designated operation of the measuring device is battery operation without connection to
the charger.
• The transmitter having the ingress protection IP 40 is intended for operation in dry, clean and
non-hazardous environment. Mechanical stresses are to be avoided.
• Any use other than that described here compromises the safety of persons and the entire
measuring system and is, therefore, not permitted.
• The manufacturer is not liable for damage caused by improper or non-designated use.
1.2 Installation, commissioning and operation
• The measuring device must only be installed, connected, commissioned and maintained by
qualified and authorized specialists (e.g. electrical technicians) in full compliance with the
instructions in these Brief Operating Instructions, the applicable norms, legal regulations and
certificates (depending on the application).
• The specialists must have read and understood these Brief Operating Instructions and must
follow the instructions they contain. If you are unclear on anything in these Brief Operating
Instructions, you must read the Operating Instructions (on the CD-ROM). The Operating
Instructions provide detailed information on the measuring device.
• The measuring device may only be modified if such work is expressly permitted in the
Operating Instructions (on the CD-ROM).
• Repairs may only be performed if a genuine spare parts kit is available and this repair work is
expressly permitted.
• If performing welding work on the piping, the welding unit may not be grounded by means
of the measuring device.

Safety instructions Proline Prosonic Flow 93T Portable
4Endress+Hauser
1.3 Operational safety
• The measuring device is designed to meet state-of-the-art safety requirements, has been
tested, and left the factory in a condition in which it is safe to operate. Relevant regulations
and standards have been observed.
• The manufacturer reserves the right to modify technical data without prior notice. Your
Endress+Hauser distributor will supply you with current information and updates to these
Operating Instructions.
• The information on the warning notices, nameplates and connection diagrams affixed to the
device must be observed. These contain important data on the permitted operating conditions,
the range of application of the device and information on the materials used.
• If the device is not used at atmospheric temperatures, compliance with the relevant marginal
conditions as specified in the device documentation supplied (on CD-ROM) is mandatory.
• The device must be wired as specified in the wiring and connection diagrams.
Interconnection must be permitted.
• When hot fluids pass through the measuring tube, the surface temperature of the housing
increases. In the case of the sensor, in particular, users should expect temperatures that can
be close to the fluid temperature. If the temperature of the fluid is high, implement sufficient
measures to prevent burning or scalding.
• Endress+Hauser will be happy to assist in clarifying any questions on approvals, their
application and implementation.
1.4 Safety conventions
#Warning!
“Warning” indicates an action or procedure which, if not performed correctly, can result in
injury or a safety hazard. Comply strictly with the instructions and proceed with care.
"Caution!
“Caution” indicates an action or procedure which, if not performed correctly, can result in
incorrect operation or destruction of the device. Comply strictly with the instructions.
!Note!
"Note" indicates an action or procedure which, if not performed correctly, can have an indirect
effect on operation or trigger an unexpected response on the part of the device.

Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 5
2 Installation
2.1 Installation conditions
2.1.1 Dimensions
For the dimensions of the measuring device, see the associated Technical Information on the
CD-ROM.
Mounting location
Correct flow measurement is possible only if the pipe is full. Entrained air or gas forming in the
pipe can result in an increase in measuring errors. For this reason avoid the following mounting
locations in the pipe:
• Highest point of a pipeline. Risk of air accumulating.
• Directly upstream of a free pipe outlet in a vertical pipeline.
A
0001103

Installation Proline Prosonic Flow 93T Portable
6Endress+Hauser
Orientation
Vertical
Recommended orientation with upward direction of flow (View A). With this orientation,
entrained solids will sink and gases will rise away from the sensor when the fluid is stagnant.
The piping can be completely drained and protected against solids buildup.
Horizontal
In the recommended installation range in a horizontal installation position (View B), gas and air
collections at the pipe cover and problematic deposits at the bottom of the pipe have a smaller
influence on measurement.
A0001105
Fig. 1: Recommended orientation and recommended installation range
A Recommended orientation with upward direction of flow
B Recommended installation range with horizontal orientation
C Recommended installation range max. 120°
A
B
CC

Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 7
Inlet and outlet run
If possible, install the sensor well clear of fittings such as valves, T-pieces, elbows, etc.
Compliance with the following inlet and outlet runs is recommended in order to ensure
measuring accuracy.
A
0013459
Fig. 2: Inlet and outlet run
1Valve(2/3open)
2 Pump
3 Two pipe bends in different directions
³15xDN
³20xDN
³20xDN
³15xDN
³3xDN
1
2
3

Installation Proline Prosonic Flow 93T Portable
8Endress+Hauser
2.2 Preparatory steps prior to installation
Depending on the conditions specific to the measuring point (e.g. Clamp On, number of
traverses, fluid, etc.), a number of preparatory steps have to be taken before actually installing
the sensors:
1. Using the conditions specific to the measuring point, determine which installation
distances are necessary for installation.
2. Determine the values for the requisite installation distances.
3. Mechanical preparation of the Clamp On holders for the sensors:
– Mount the sensor holder (DN 15 to 65 / ½ to 2½")
– Premount the strapping bands (DN 50 to 200 / 2 to 8") or
(DN 250 to 4000 / 10 to 160")
2.3 Determining the necessary installation distances
The installation distances that are necessary for installation depend on:
• The type of sensor: Prosonic Flow P DN 50 to 4000 (2 to 160") or DN 15 to 65 (½ to 2½")
• Number of traverses
2.4 Connecting and switching on the transmitter
A0011547
Fig. 3: Connecting and switching on the transmitter
1 On/off switch (press switch ≥3 seconds)
2 Charger connection (different adapters are available for the connection)
DN 50 to 4000 (2 to 160") DN 15 to 65 (½ to 2½")
1 traverse 2 traverses 1 traverse 2 traverses
SENSOR DISTANCE SENSOR DISTANCE SENSOR DISTANCE*
WIRE LENGTH POSITION SENSOR POSITION SENSOR*
* In the SENSOR DISTANCE function, the distance is indicated in millimeters. The POSITION SENSOR function displays
the values for using the mounting rail (e.g. A3).
DATA
mA IN
12V DC SERVICE CH-UP CH-DN
1
2
mA OUT

Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 9
2.5 Determining the installation distances
2.5.1 Running the "Sensor Installation" Quick Setup menu
Calling the Quick Setup
A
ll the installation distances required for sensor mounting are determined with the Quick Setup.
!Note!
If you are not familiar with the operation of the device →ä28.
1. F → Enter the function matrix (starting with measured value display)
2. P → Select the group QUICK SETUP
F → Confirm selection
3. P → Select the SENSOR INSTALLATION function
F → Confirm selection
4. Intermediate step if configuration is blocked:
P → Enter the code 93 (confirm with F ) and thus enable configuration
5. P → Go to Sensor Installation Quick Setup
6. P → Select YES
F → Confirm selection
7. F → Start Sensor Installation Quick Setup
For subsequent steps, see the following section "Running the Quick Setup for Clamp On type of
mounting".

Installation Proline Prosonic Flow 93T Portable
10 Endress+Hauser
Running the Quick Setup for Clamp On type of mounting
• Only the steps necessary for the type of mounting (Clamp On) are described.
• Enter or select installation-specific values or the values specified here.
• Read off the installation distances necessary for mounting.
Home position
↓
Quick Setup
↓
Setup sensor
↓
Language
Clamp On →Measurement
Sensor type
1 or 2 →Sensor configuration = Number of traverses
Pipe standard
Nominal diameter
Pipe material
Sound velocity pipe
Pipe diameter
Circumference
Wall thickness
Liner Material
Sound Velocity Liner
Liner Thickness
Liquid Installation
distances for
measurement via
one traverse:
Installation
distances for
measurement via
two traverses:
Temperature
Sound velocity liquid
Position sensor →–
Wire length →–
Sensor distance →
No →Other measurement?
↓
Setup sensor

Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 11
2.6 Mechanical preparation
The way in which the sensors are secured differs on account of the pipe nominal diameter and
the sensor type.
Overview of possible ways to secure the various sensors:
2.6.1 Mounting the sensor holder
Sensor: Prosonic Flow P (DN 15 to 65 / ½ to 2½")
1. Set the sensor distance determined (e.g. C9) on the sensor holder.
– Position the sensor holders with the aid of the mounting rail.
A
0013546

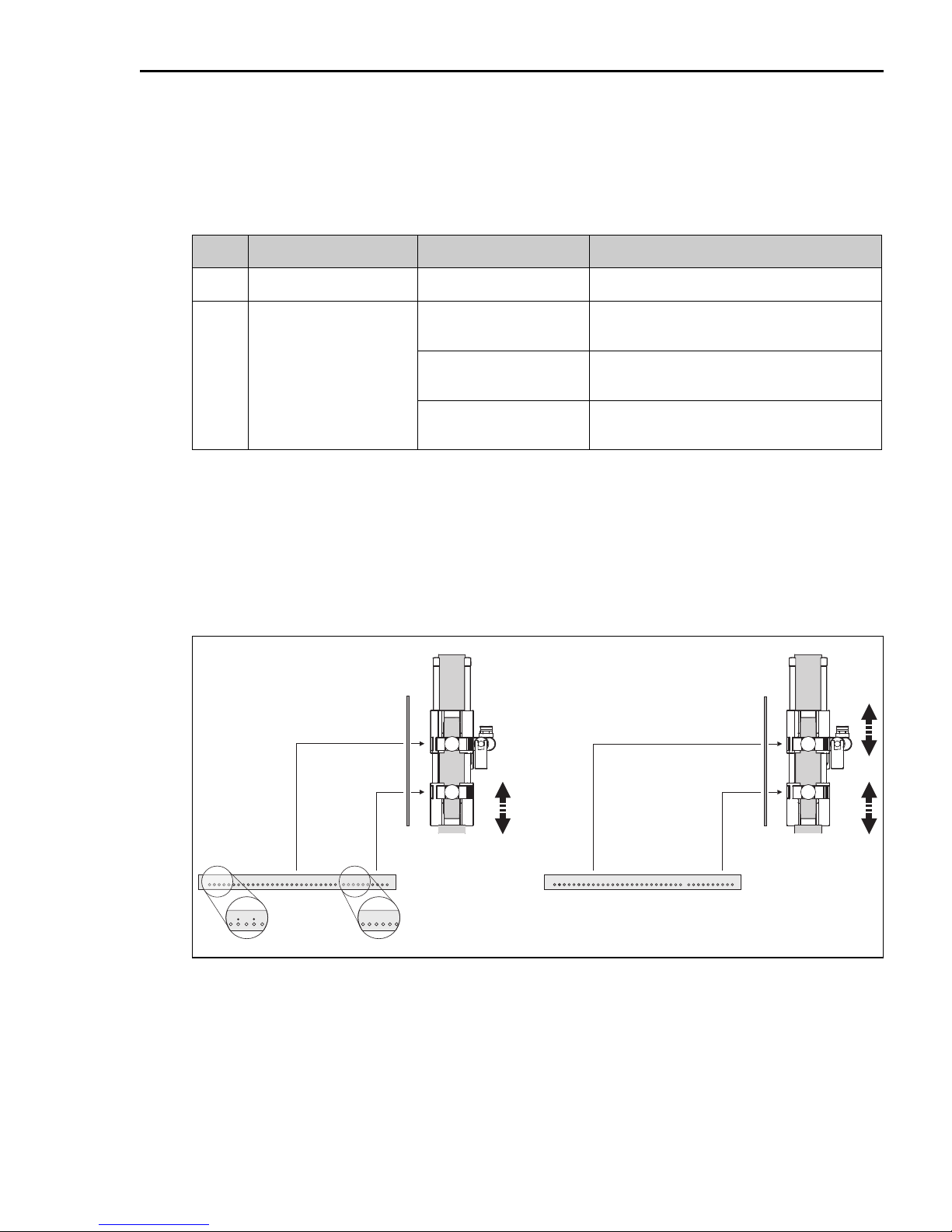

Fig. 4: Setting the sensor distance with the aid of the mounting rail
A Sensor distance for measurement via one traverse
B Sensor distance for measurement via two traverses
Sensor For the measuring range Pipe nominal diameter Secured by
P DN 15 to 65 (½ to 2½") DN 15 to 65 (½ to 2½") Sensor holder →ä17
P DN 50 to 4000 (2 to 160") DN ≤200 (8") Strapping bands
(metal, medium nominal diameters)
→ä14
DN >200 (8") Strapping bands
(metal, large nominal diameters)
→ä15
DN 50 to 4000 (2 to 160") Mounting with strapping bands
(flexible)
→ä16
AB
KIHGFE
KIHGFEDCBA
27 25 23
27. 25 . 23.21.19.17.15.13.11. 9 . 7 . 5 . 3 . 1 K I HGFEDCBA27. 25 . 23. 21. 19 . 17. 15 .13 . 11 . 9 . 7 . 5 . 3 . 1

Installation Proline Prosonic Flow 93T Portable
12 Endress+Hauser
2. Guide the sensor holder over the pipe.
A0013542

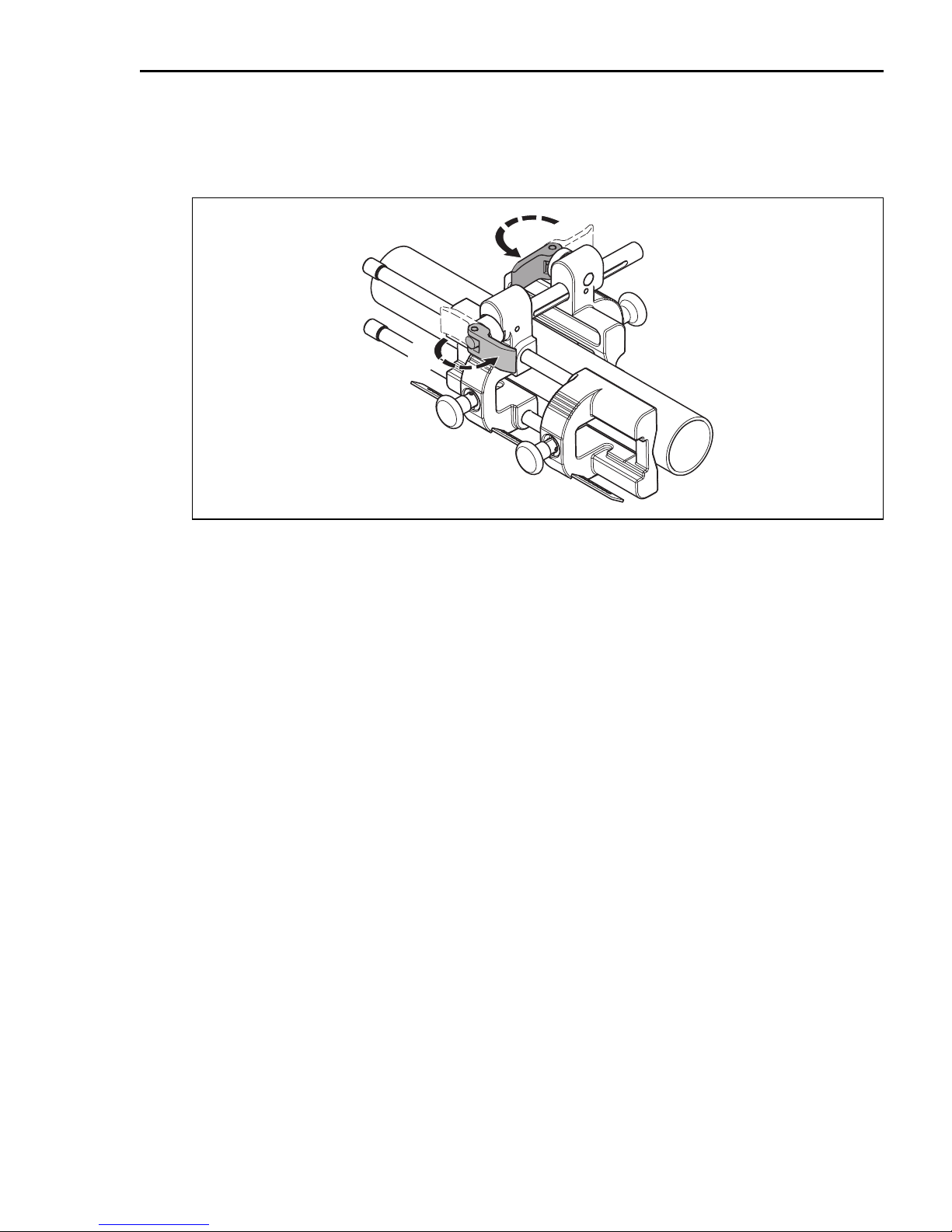

Fig. 5: Setting the sensor holder on the pipe
3. Release the quick release of the retaining bracket (a) and push the retaining bracket up
against the pipe.
A0013543
Fig. 6: Guiding the retaining bracket onto the pipe
a Quick release of retaining bracket
a

Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 13
4. Fix the sensor holder in place by:
– Tightening the quick release of the retaining bracket (a)
– Tightening the quick release (b)
A
0013544
Fig. 7: Fixing the sensor holder in place
a Quick release of retaining bracket
b Quick release
a
b

Installation Proline Prosonic Flow 93T Portable
14 Endress+Hauser
2.6.2 Premounting the strapping bands (medium nominal diameters)
When mounting on a pipe with a nominal diameter of DN ≤200 (8").
Sensor: Prosonic Flow P (DN 50 to 4000 / 2 to 160")
First strapping band
1. Fit the mounting bolt over the strapping band.
2. Wrap the strapping band around the pipe without twisting it.
3. Guide the end of the strapping band through the strapping band lock
(tensioning screw is pushed up).
4. Tighten the strapping band as tight as possible by hand.
5. Set the strapping band to the desired position.
6. Push down the tensioning screw and tighten the strapping band so that it cannot slip.
Second strapping band
7. Proceed as for the first strapping band (steps 1 to 7). Only slightly tighten the second
strapping band for final mounting. It must be possible to move the strapping band for final
alignment.
Both strapping bands
8. Where necessary, shorten the strapping bands and trim the cut edges.
#Warning!
Risk of injury. To avoid sharp edges, trim the cut edges after shortening the strapping
bands.
A0001109

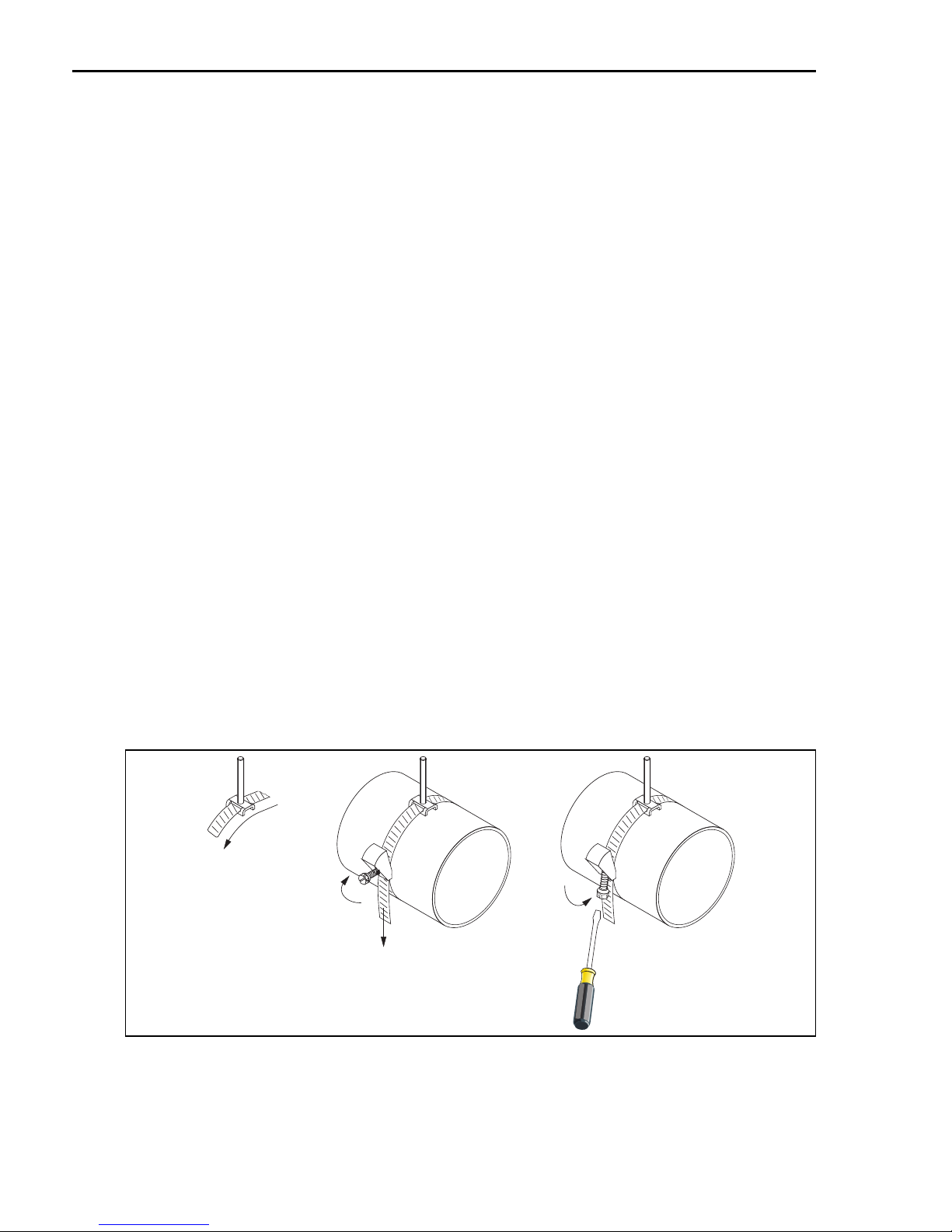

Fig. 8: Premounting strapping bands for pipe diameters DN ≤ 200 (8")
1 Mounting bolt
2 Strapping band
3 Tensioning screw
1
2
3

Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 15
2.6.3 Premounting the strapping bands (large nominal diameters)
When mounting on a pipe with a nominal diameter of DN >200 (8").
For sensor: Prosonic Flow P (DN 50 to 4000 / 2 to 160")
1. Measure the pipe circumference.
2. Shorten the strapping bands to one length (pipe circumference + 10 cm / 3.94") and trim
the cut edges.
#Warning!
Risk of injury. To avoid sharp edges, trim the cut edges after shortening the strapping
bands.
First strapping band
3. Fit the centering plate along with the mounting bolt over the strapping band.
4. Wrap the strapping band around the pipe without twisting it.
5. Guide the end of the strapping band through the strapping band lock
(tensioning screw is pushed up).
6. Tighten the strapping band as tight as possible by hand.
7. Set the strapping band to the desired position.
8. Push down the tensioning screw and tighten the strapping band so that it cannot slip.
Second strapping band
9. Proceed as for the first strapping band (steps 3 to 8). Only slightly tighten the second
strapping band for final mounting. It must be possible to move the strapping band for final
alignment.
A
0015461
Fig. 9: Premounting strapping bands for pipe diameters DN > 200 (8")
1 Centering plate with mounting bolt
2 Strapping band
3 Tensioning screw
2
3
1

Installation Proline Prosonic Flow 93T Portable
16 Endress+Hauser
2.6.4 Mounting with strapping bands (flexible)
For sensor Prosonic Flow P (DN 50 to 4000 / 2 to 160")
"Caution!
• Each time you use the strapping bands, check that the ratchet locks and springs function safely
beforehand.
• Inspect the strapping bands for damage.
Procedure
Closing the strapping band lock
1. Fit the mounting bolt onto the strapping band.
2. Guide the strapping band around the pipe making sure it is not twisted in the process and,
with the ratchet lock (a) open, push the end through the slot. Pretension manually by
pulling on the free end of the strapping band.
!Note!
If you do not pretension the bands it is more difficult to release the strapping bands.
3. Tension continuously by moving the lever back and forth (b) until the strapping band is
optimally tensioned.
4. Then push down the lever (c).
"Caution!
The tensioning clamp (d) must engage on both sides!
Opening the strapping band lock
1. Pull back the lever lock (e) while simultaneously opening the lever 180° (f) until the lever
lock (g) is engaged.
2. Remove the strapping band.
A0011556

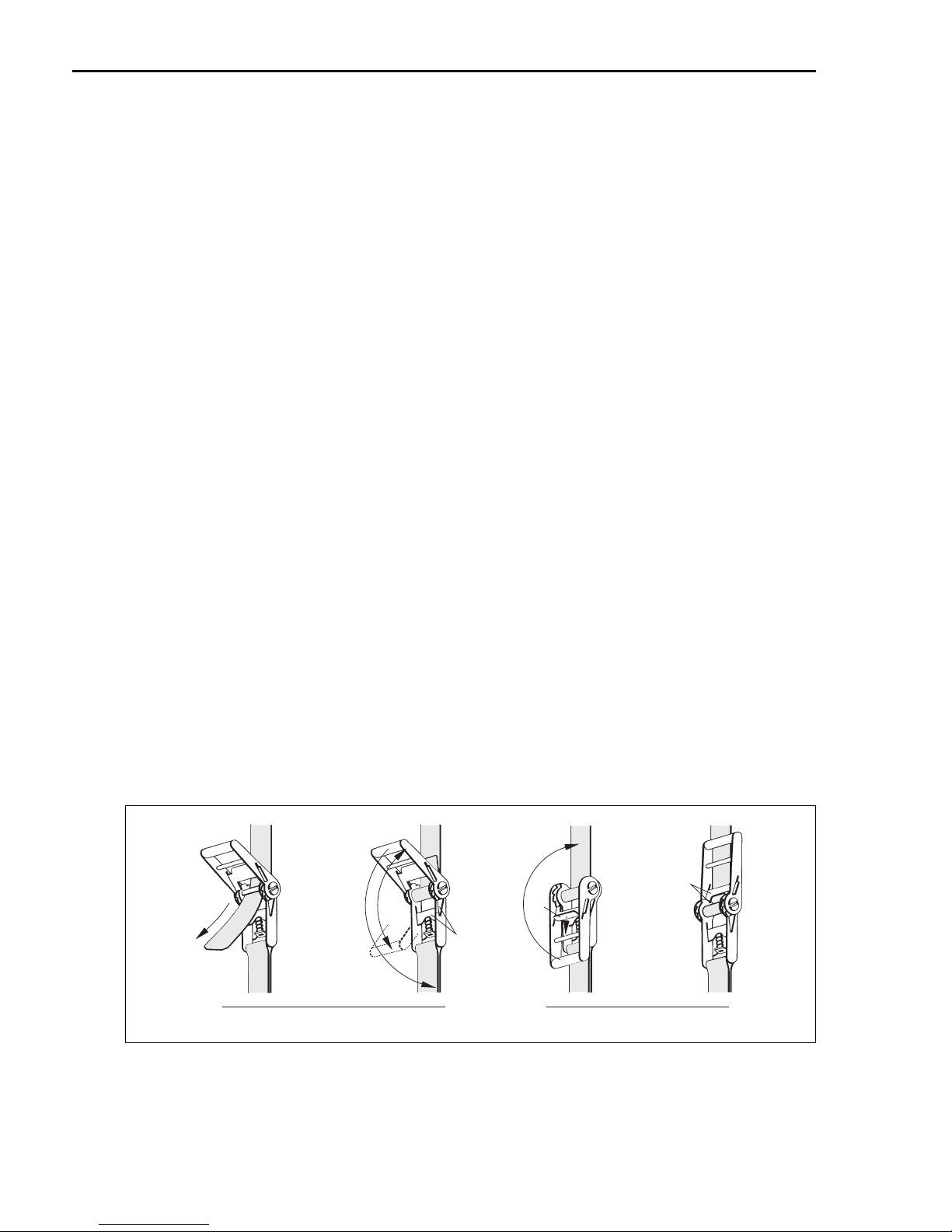

Fig. 10: Strapping band lock
1 Closing the strapping band lock
2 Opening the strapping band lock
g
abcfe
d
g
21

Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 17
2.7 Installing Prosonic Flow P (DN 15 to 65 / ½ to 2½")
2.7.1 Mounting the sensor
Prerequisites
• The sensor holder is already mounted →ä11.
• The distance of the sensor holder is set (sensor distance) →ä11.
Material
The following material is needed for mounting:
•Sensor
• Connecting cable
!Note!
Prior to mounting, connect the connecting cables to the sensors.
Procedure
1. Coat the contact surfaces (1) of the sensors with an even layer of coupling fluid
approx. 1 mm (0.04") thick.
A
0013624
Fig. 11: Coating with coupling fluid
1

Installation Proline Prosonic Flow 93T Portable
18 Endress+Hauser
2. Mount as illustrated in the graphic (steps 1 to 5):
A0013551
Fig. 12: Mounting the sensors
This completes the mounting process. The sensors can now be connected to the transmitter via
the connecting cables →ä25.
12
3
45

Proline Prosonic Flow 93T Portable Installation
Endress+Hauser 19
2.8 Installing Prosonic Flow P (DN 50 to 4000 / 2 to 160")
(Clamp On)
!Note!
Sensor orientation shown in the following sketches is for visual purposes only.
Please apply the recommended orientation →ä6.
2.8.1 Installation for measurement via one traverse
Prerequisites
• The installation distances (sensor distance and wire length) are known →ä8.
• The strapping bands are already mounted →ä14/→ä15.
Material
The following material is needed for mounting:
• Two strapping bands incl. mounting bolts and centering plates where necessary (already
mounted)
• Two measuring wires, each with a cable lug and a fixer to position the strapping bands
• Two sensor holders
• Coupling fluid for an acoustic connection between the sensor and pipe
• Two sensors incl. connecting cables
Procedure
1. Prepare the two measuring wires:
–
A
rrange the cable lugs and fixer such that the distance they are apart corresponds to the
wire length (SL).
– Screw the fixer onto the measuring wire.
A
0001112

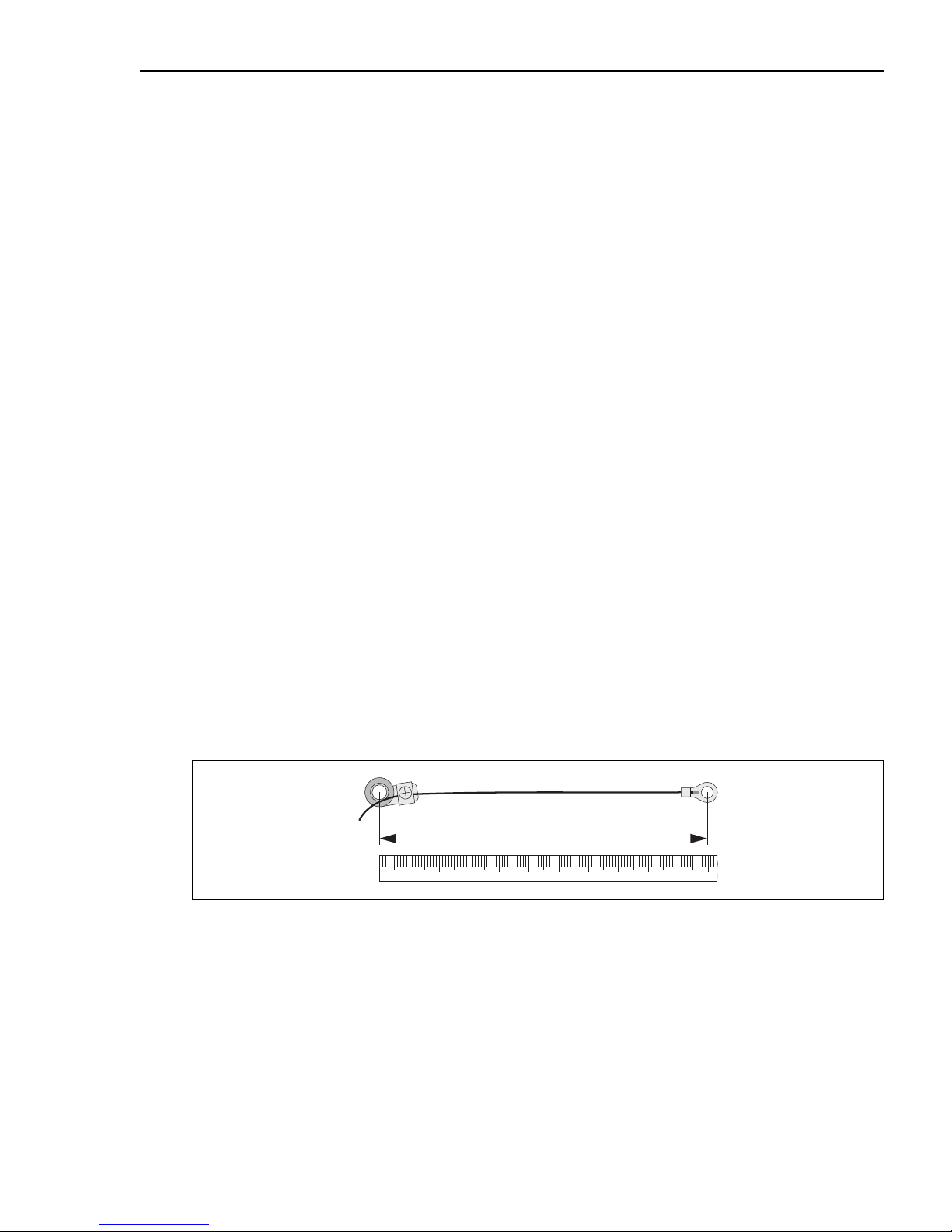

Fig. 13: Fixer (a) and cable lugs (b) at a distance that corresponds to the wire length (SL)
2. With the first measuring wire:
– Fit the fixer over the mounting bolt of the strapping band that is already securely
mounted.
– Run the measuring wire clockwise around the pipe.
– Fit the cable lug over the mounting bolt of the strapping band that can still be moved.
1234567891011
SL

Installation Proline Prosonic Flow 93T Portable
20 Endress+Hauser
3. With the second measuring wire:
– Fit the cable lug over the mounting bolt of the strapping band that is already securely
mounted.
– Run the measuring wire counterclockwise around the pipe.
– Fit the fixer over the mounting bolt of the strapping band that can still be moved.
4. Take the still movable strapping band, incl. the mounting bolt, and move it until both
measuring wires are evenly tensioned and tighten the strapping band so that it cannot slip.

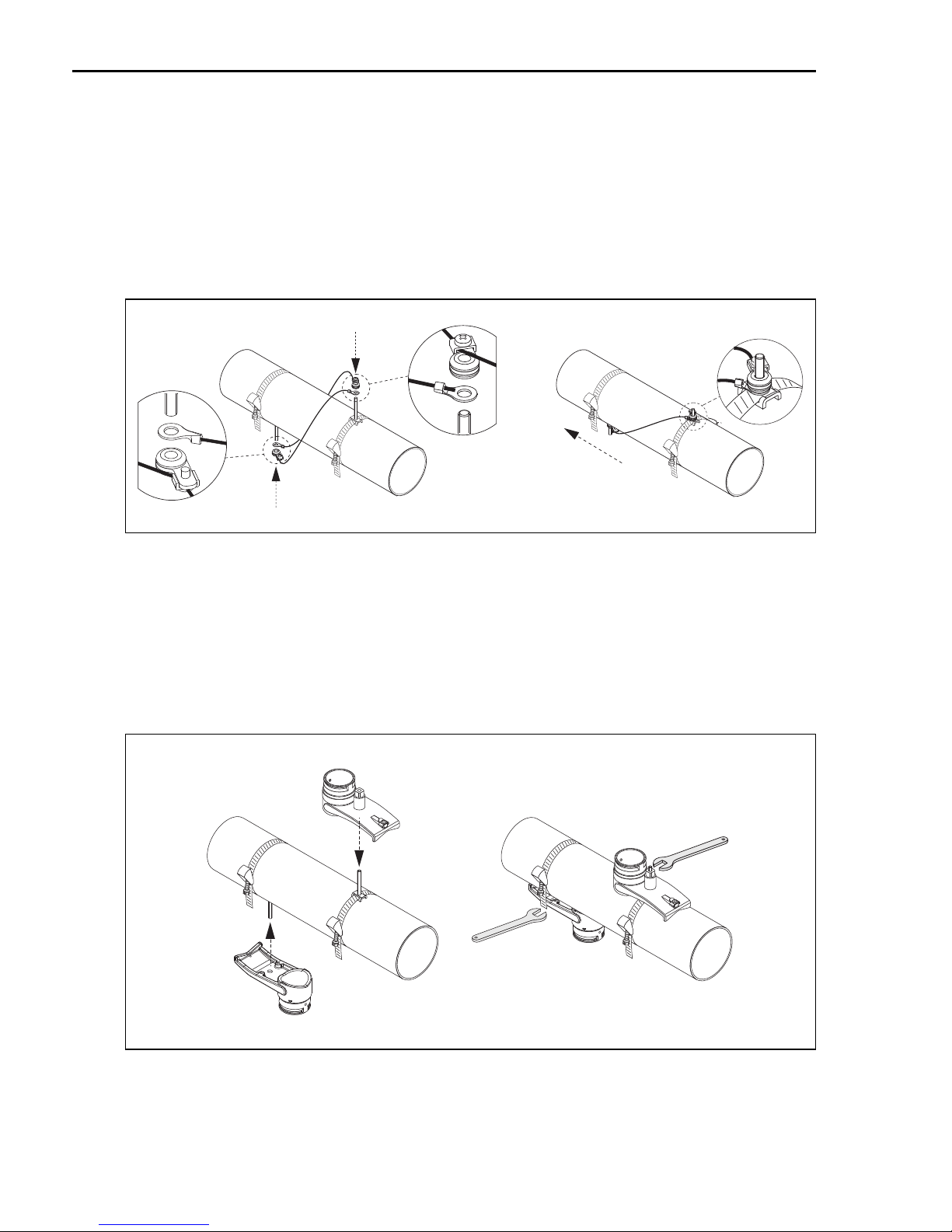

A0001113
Fig. 14: Positioning the strapping bands (steps 2 to 4)
5. Loosen the screws of the fixers on the measuring wires and remove the measuring wires
from the mounting bolt.
6. Fit the sensor holders over the individual mounting bolts and tighten securely with the
retaining nut.
A0001114
Fig. 15: Mounting the sensor holders
