Endress+Hauser RIA46 User manual

BA274R/09/en/04.09
71084133
SW Version
1.00.00
Operating Instructions
RIA46
Field meter

RIA46
2Endress+Hauser
Brief overview
For quick and easy commissioning:
Block circuit diagram
a0010175-en
Fig. 1: Block circuit diagram
Safety instructions →ä4
Æ
Installation →ä7
Æ
Wiring →ä10
Æ
Display and operating elements →ä13
Æ
Commissioning →ä17
Device configuration - explanation and use of all configurable device
functions with the associated value ranges and settings.

RIA46 Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.5 Notes on safety conventions and icons . . . . . . . . . . . 5
1.6 Other symbols used . . . . . . . . . . . . . . . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 6
3 Installation . . . . . . . . . . . . . . . . . . . . . . 7
3.1 Incoming acceptance, transport, storage . . . . . . . . . . 7
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 7
3.3 Installation procedure . . . . . . . . . . . . . . . . . . . . . . . 8
3.4 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . . 9
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 10
4.2 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 12
5 Operating elements and display . . . . . 13
5.1 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . 13
5.2 Display and device status indicator/LED . . . . . . . . 14
5.3 Icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
5.4 Quick guide to the operating matrix . . . . . . . . . . . . 16
6 Commissioning. . . . . . . . . . . . . . . . . . 17
6.1 Post-installation check and switching on the device 17
6.2 General information on the device configuration . . 17
6.3 Notes on setup access protection . . . . . . . . . . . . . . 17
6.4 Configuring the device . . . . . . . . . . . . . . . . . . . . . 18
6.5 In operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
7 Maintenance. . . . . . . . . . . . . . . . . . . . 34
8 Accessories. . . . . . . . . . . . . . . . . . . . . 34
9 Troubleshooting . . . . . . . . . . . . . . . . . 35
9.1 Troubleshooting instructions . . . . . . . . . . . . . . . . . 35
9.2 Process error messages . . . . . . . . . . . . . . . . . . . . . 36
9.3 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
9.4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
9.5 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
10 Technical data . . . . . . . . . . . . . . . . . . . 39
11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 47
11.1 Further explanations on the differential pressure
application at level measurement . . . . . . . . . . . . . . 47
11.2 Display menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
11.3 Setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
11.4 Diagnostics menu . . . . . . . . . . . . . . . . . . . . . . . . . 56
11.5 Expert menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Index . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Safety instructions RIA46
4Endress+Hauser
1 Safety instructions
Safe operation of the device is only guaranteed if these Operating Instructions have been read and
the safety instructions they contain have been observed.
1.1 Designated use
The device evaluates analog process variables and shows them on its multicolored display. Using the
unit's outputs and limit relays, processes can be monitored and controlled. The device is equipped
with a wide range of software functions for this purpose.
Power can be supplied to 2-wire sensors with the integrated transmitter power supply system.
– The device is designed for isntallation in the field.
– The manufacturer accepts no liability for damages resulting from incorrect use or use other than
that designated. The device may not be converted or modified in any way.
– The device has been designed for field installation and may only be operated in an installed state.
1.2 Installation, commissioning and operation
This device is designed to meet state-of-the-art safety requirements and complies with applicable
standards and EU regulations. The device can be a source of application-related danger if used
improperly or other than intended.
Installation, wiring, commissioning and maintenance of the device must only be carried out by
trained technical personnel. The technical personnel must have read and understood these
Operating Instructions and must strictly follow the instructions they contain. The information in the
electrical wiring diagrams (see Operating Instructions, Section 4 'Wiring') must be observed closely.
1.3 Operational safety
Technical improvement
The manufacturer reserves the right to adapt technical details to the most up-to-date technical
developments without prior notice. Contact your sales center for current information and updates
to these Operating Instructions.
1.4 Return
For a return, e.g. in case of repair, the device must be sent in protective packaging. The original
packaging offers the best protection. Repairs must only be carried out by your supplier's service
organization.
!Note!
Please enclose a note describing the fault and the application when sending the unit in for repair.

RIA46 Safety instructions
Endress+Hauser 5
1.5 Notes on safety conventions and icons
The safety instructions in these Operating Instructions are indicated by the following safety icons
and symbols:
"Caution!
This symbol indicates an action or procedure which, if not performed correctly, can result in the
incorrect operation or destruction of the device.
#Warning!
This symbol indicates an action or procedure which, if not performed correctly, can lead to personal
injury, a safety hazard or the destruction of the device.
!Note!
This symbol indicates an action or procedure which, if not performed correctly, can have
an indirect effect on operation or trigger an unexpected response on the part of the device.
1.6 Other symbols used
Cross-references
ä
Reference to "see page"
å
Reference to "see figure"
Identification of tools
a0010735-en

Identification RIA46
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
Compare the nameplate on the device with the following diagram:
a0010756
Fig. 2: Nameplate of the device (sample): A- Non-Ex version, B- Ex version
1 Order code, serial number and ID number of the device
2 Power supply
3 Power consumption
4Approval
5 Temperature range
2.2 Scope of delivery
The scope of delivery of the device comprises:
• Field meter
• Hard copy of Brief Operating Instructions and Ex documentation (XA)
• Operating Instructions and additional documentation on CD
• Mounting plate (optional)
• Clamps and screws for pipe mounting (optional)
!Note!
Please note the device accessories in Section 8 ’Accessories’ of the Operating Instructions.
2.3 Certificates and approvals
CE mark, Declaration of Conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device meets the relevant standards and
directives as per IEC 61 010-1 "Safety requirements for electrical equipment for measurement,
control and laboratory use".
Thus, the device described in these Operating Instructions meets the legal requirements of the EU
directives. The manufacturer confirms successful testing of the device by affixing to it the CE mark.
An overview of all the certificates and approvals available can be found in Section 10 "Technical
data".

RIA46 Installation
Endress+Hauser 7
3 Installation
3.1 Incoming acceptance, transport, storage
The permitted ambient and storage conditions must be observed. The precise specifications can be
found in Section 10 "Technical data".
3.1.1 Incoming acceptance
On receipt of the goods, check the following points:
• Are the packaging or contents damaged?
• Is anything missing from the delivery? Compare the scope of delivery with the information you
specified in the order. See also section 2.2 "Scope of delivery".
3.1.2 Transportation and storage
Note the following points:
• Pack the device so that is protected against impact for storage and transportation. The original
packaging provides optimum protection.
• The permitted storage temperature range is -40 to +85°C (-40 to +185 °F); it is possible to store
the device in the limit temperature ranges for a limited period (maximum 48 hours).
3.2 Installation conditions
The device is designed to be used in the field.
The orientation is determined by the readability of the display. Cable entries are located on the
bottom of the device.
Operational temperature range:
-40 to 60 °C (-40 to 140 °F)
"Caution!
If the device is operated in the upper temperature limit range, this reduces the operating life of the
device.
!Note!
Readability of the display cannot be guaranteed at temperatures below -30 °C (-22 °F).

Installation RIA46
8Endress+Hauser
3.3 Installation procedure
The device can be mounted directly to the wall with 4 screws ∅5 mm (0.2") or the optional
mounting plate can be used for wall or pipe mounting.
a0010683
Fig. 3: Pipe mounting of the device
1: Mounting plate
2: Clamp for pipe mounting
a0010684
Fig. 4: Pipe Mounting of the device

RIA46 Installation
Endress+Hauser 9
3.4 Dimensions
a0010574
Fig. 5: Dimensions of the device
A: Drill-hole for direct wall mounting or on optional mounting plate with 4 screws ∅5 mm (0.2")
3.5 Post-installation check
• Is the sealing ring undamaged?
• Is the device firmly screwed to the mounting plate or the wall?
• Are the housing frame screws closed tightly?

Wiring RIA46
10 Endress+Hauser
4 Wiring
#Warning!
Make sure that no voltage is supplied when wiring the device.
"Caution!
• The protective ground connection must be established before any other connection is made. A
source of danger could arise if the protective ground connection is disconnected.
• Prior to commissioning, make sure the supply voltage matches the specifications on the nameplate
(left side of the housing).
• It is not permitted to connect a mixture of safety extra low voltage and voltage which poses a
shock hazard to the relays.
• Provide a suitable switch or power-circuit breaker in the building installation. This switch must
be provided within easy reach of the device and be labeled as a disconnector.
• An overcurrent protection unit (nominal current = 10 A) is required for the power cable.
!Note!
Observe the terminal designation inside the device.
4.1 Connecting the device
A transmitter power supply system (LPS) is provided for every input. The transmitter power supply
system is primarily provided to supply power to 2-wire sensors and is galvanically isolated from the
system and the outputs.
a0010685
Fig. 6: Terminal assignment of the device
1: Connection socket for interface cable
2: Connection supply voltage
3: Connection relay 1 (optional)
4: Connection relay 2 (optional)
5: Connection analog and status output
6: Connection analog input 1
7: Connection analog input 2 (optional)
8: HART®connection sockets
9: Laser labeling of terminal assignment

RIA46 Wiring
Endress+Hauser 11
Overview of possible connection options at the device
Terminal assignment of analog inputs, channel 1 and 2
a0010406
Connection of the transmitter power supply system
2-wire 4-wire
a0010407 a0010408
Connection of the analog input
RTD/resistance 2-wire RTD/resistance 3-wire RTD/resistance 4-wire
a0010581 a0010582 a0010583
Thermocouple U ≤1V U>1V
a0010409
a0010410 a0010411
Connection of the relays
Relay 1 Relay 2
a0010740 a0010741
Connection of the analog output
Analog output 1 Analog output 2
a0010742 a0010743
Connection of the digital output
Digital output/open collector
a0010744

Wiring RIA46
12 Endress+Hauser
4.2 Post-connection check
Connection of the power supply
24 to 230 V (-20%/+10%) 50/60 V AC/DC
a0010746
Interface for configuring with the FieldCare PC software
a0010417
!Note!
No grounding conductor is connected for the plastic housing.
For the aluminum housing, a grounding conductor can be connected at the
grounding connection inside the housing.
Device condition and specifications Notes
Are the device or cables damaged? Visual inspection
Electrical connection Notes
Does the supply voltage match the specifications on the nameplate? 24 to 230 V (-20%/+10%)
50/60 Hz AC/DC, 50/60 Hz
Are the power supply terminals firmly engaged in their correct slot? -
Are the mounted cables strain-relieved? -
Are the supply voltage and signal cables connected correctly? See connection diagram on the
housing.

RIA46 Operating elements and display
Endress+Hauser 13
5 Operating elements and display
The easy operating concept of the device makes it possible for users to commission the device for
many applications without a printed set of Operating Instructions.
The FieldCare operating software is a quick and convenient way of configuring the device. Brief
explanatory (help) texts provide additional information on individual parameters.
5.1 Operating elements
5.1.1 Local operation at the device
The device is operated by means of the three keys integrated in the front part of the device
You can always exit items/submenus at the end of the menu by selecting "x Back".
Leave the setup directly without saving the changes by pressing the ‘-’ and ‘+’ keys simultaneously
for over 3 seconds.
5.1.2 Configuration via interface & FieldCare Device Setup PC
configuration software
"Caution!
The device can assume undefined states while configuring with FieldCare! This can result in the
undefined switching of outputs and relays.
To configure the device with the FieldCare Device Setup software, connect the device to your PC.
You need a special interface adapter for this purpose, e.g. the Commubox FXA291.
The 4-pin connector of the interface cable must be plugged into the corresponding socket on the
device and the USB connector must be plugged into a free USB slot on the PC.
To establish a connection with the device, please follow the FieldCare Operating Instructions.
To then configure the device itself, follow these Operating Instructions for the device. The entire
Setup menu, i.e. all the parameters listed in these Operating Instructions, can also be found in the
FieldCare Device Setup.
!Note!
In general, it is possible to overwrite parameters with the FieldCare PC software and the appropriate
device DTM even if access protection is active.
If access protection by means of a code should be extended to the software, this function should be
activated in the extended device setup.
For this purpose, select:
Menu ÉExpert ÉSystem ÉOverfill protect ÉGerman WHG and confirm.
• Open the configuration menu
•Confirmanentry
• Select a parameter or submenu offered in the menu
Within the configuration menu:
• Scroll step-by-step through the parameters/menu items/characters offered
• Change the value of the selected parameter (increase or decrease)
Outside the configuration menu:
• Display enabled and calculated channels, as well as min. and max. values for all the active channels.

Operating elements and display RIA46
14 Endress+Hauser
5.2 Display and device status indicator/LED
The device provides an illuminated LC display which is split into two sections. The segment section
displays the value of the channel and additional information and alarms.
In the dot matrix section, additional channel information, such as the TAG, unit or bar graph, is
displayed in the display mode. Operating text in English is displayed here during operation.
The parameters for configuring the display are explained in detail in Section 6.4.

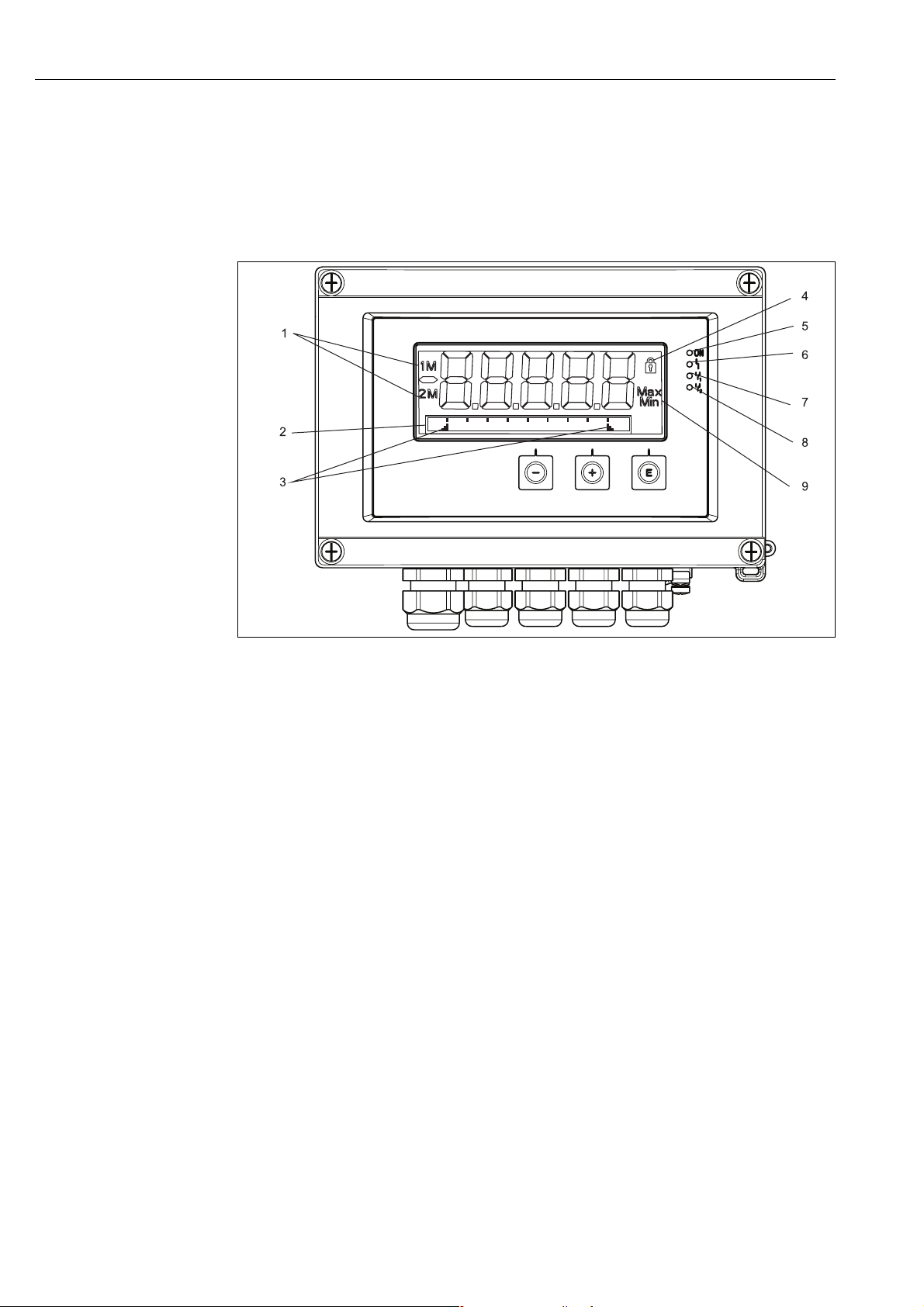

a0010738
Fig. 7: Display of the device
1: Channel display: 1: analog input 1; 2: analog input 2; 1M: calculated value 1; 2M: calculated value 2
2: Dot matrix display for TAG, bar graph and unit
3: Limit value indicators in the bar graph
4: "Operation locked" indicator
5: Green LED; on - supply voltage applied
6: Red LED; on - error/alarm
7: Yellow LED; on - relay 1 energized
8: Yellow LED; on - relay 2 energized
9: Minimum/maximum value indicator
In the event of an error, the device switches automatically between displaying the error and
displaying the channel, see Section 6.5.3 and Section 9 ‘Troubleshooting’.

RIA46 Operating elements and display
Endress+Hauser 15
5.3 Icons
5.3.1 Display icons
In the event of an error:
The display shows: , the measured value is not displayed
Underrange/overrange:
The display shows:
!Note!
In the dot matrix section, the error is specified with the error code and channel name (TAG).
5.3.2 Icons in the editing mode
The following characters can be used to enter user-defined text:
‘0-9’, ‘a-z’, ‘A-Z’, ‘+’, ‘-’, ‘*’, ‘/’, ‘\’, ‘%’, ‘°’, ‘2’, ‘3’, ‘μ’, ‘.’, ‘,’, ‘;’, ‘:’, ‘!’, ‘?’, ‘_’, ‘#’, ‘$’, ‘"’, ‘´’, ‘(’,
‘)’, ‘~’
For numerical entries, the numbers ‘0-9’ and the decimal point are available.
Furthermore, the following icons are used in the editing mode:
Device is locked/operating lock; the device setup is locked against changes to parameters, the display can be
modified.
1 Channel one (AnalogIn 1)
2 Channel two (AnalogIn 2)
1M First calculated value (Calc. Val 1)
2M Second calculated value (Calc. Val 2)
Max Maximum value/value of the maximum indicator of the channel displayed
Min Minimum value/value of the minimum indicator of the channel displayed
Symbol for the setup
Symbol for the Expert setup
Symbol for diagnostics
Accept entry.
If this icon is selected, the information entered is accepted at the position and the user exits the editing mode.
Reject entry.
If this icon is selected, the information entered is rejected and the user exits the editing mode. The text configured
beforehand remains unchanged.
Move one position to the left.
If this icon is selected, the cursor moves one position to the left.
Delete back.
If this icon is selected, the character to the left of the cursor is deleted.
Delete all.
If this icon is selected, all the information entered is deleted.
Write protection.
If this icon is displayed for a parameter, the parameter can only be read but cannot be modified.

Operating elements and display RIA46
16 Endress+Hauser
5.4 Quick guide to the operating matrix
Display AI1 Reset AI2 Reset Cv1 Reset Cv2 Reset
Analog In 1 Analog In 2 Calc 1 Calc 2
Contrast Brightness Alternating time
Setup Application Analog In 1 Analog In 2 Calc value 1
AI2 Upper range* CV Unit* CV Bar 0%* CV Bar 100%*
Linearization* Analog In 1 Analog In 2 Calc value 1
No lin points, X-value, Y-
value
Signal type, Signal range,
Lower range, Upper
range, Tag, Unit, Offset,
Reset min/max
Signal type, Signal range,
Lower range, Upper
range, Tag, Unit, Offset,
Reset min/max
Calculation, Tag, Unit,
Bar 0%, Bar 100%, Offset,
No lin points, X-value, Y-
value, Reset min/max
Calc value 2 Analog output 1 Analog output 2 Relay 1
Calculation, Tag, Unit,
Bar 0%, Bar 100%, Offset,
No lin points, X-value, Y-
value, Reset min/max
Assignment, Signal type,
Lower range, Upper range
Assignment, Signal type,
Lower range, Upper range
Assignment, Function,
Setpoint, Hysteresis
Relay 2 System
Assignment, Function,
Setpoint, Hysteresis
Access code, Overfill
protect, Reset
Diagnostics Current diagn Last diagn Operating time Diagnost logbook
Device information
Expert Direct access System Input Output
Access code, Overfill
protect, Reset, Save user
setup
Analog In 1, Analog In 2
The following parameters
are available in addition
to the parameters from
the Setup menu:
Bar 0%, Bar 100%,
Decimal places, Damping,
Failure mode, Fixed fail
value, Namur NE43,
Allow reset
Analog Out 1, Analog Out
2, Relay 1, Relay 2
The following parameters
are available in addition
to the parameters from
the Setup menu:
Analog In 1/2: Fail mode,
Fixed fail value
Relay 1/2: Time delay,
Operating mode, Failure
mode
Application Diagnostics
Calc value 1, Calc value 2
The following parameters
are available in addition
to the parameters from
the Setup menu:
Decimal places, Failure
mode, Allow reset
The following parameters
are available in addition
to the parameters from
the Diagnostics menu:
Verify HW set, Simulation
*) Is only displayed if Application ÉDiff pressure is configured.

RIA46 Commissioning
Endress+Hauser 17
6 Commissioning
6.1 Post-installation check and switching on the device
Make sure that all post-connection checks have been carried out before you commission your
device:
• ‘Post-installation check’ checklist in Section 3.5
• ‘Post-connection check’ checklist in Section 4.2
Once the operating voltage is applied, the display lights up and the green LED indicates that the
device is operational.
When you commission the device for the first time, you program the setup in accordance with the
descriptions provided in these Operating Instructions in the following sections.
When commissioning a device already configured or preset, measuring is immediately started as per
the settings. The values of the channels currently activated appear on the display. Changes to the
display can be made in the Display menu item (→Chap. 6.4.7 ‘Display settings’).
!Note!
Remove the protective foil from the display as this restricts display legibility otherwise.
6.2 General information on the device configuration
You can commission/configure your device locally using the three integrated keys, or by PC. You
require the Commubox FXA291 to connect the device to a PC (see ‘Accessories’ section).
Advantages of configuring the device using FieldCare Device Setup:
• The device data are saved in the FieldCare Device Setup and can be called up at any time.
• Entries can be made more quickly using the keyboard.
6.3 Notes on setup access protection
Access to the setup is enabled when the device leaves the factory. Access can be locked via the
setup.
Proceed as follows to lock the device:
1. Press ‘E’ to get to the configuration menu
2. Press ‘+’ , ‘Setup’ is displayedÉ, press ‘E’
3. Press ‘+’ again until ‘System’ is displayed, press É‘E’
4. ‘Access code’ is displayed, press É‘E’
5. Set the code: the desired numerical value is configured by pressing the ‘+’ and ‘-’ keys. The
access code is a four-digit number. The corresponding position of the number is displayed in
plain text.
To confirm the value entered and to go to the next position, press ‘E’.
6. Confirm the last position of the code to exit the menu. The code is displayed in full. Press ‘+’
to scroll to the last point of the ‘x Back’ submenu and confirm this point. As a result, the value
is accepted and the user returns to the level of the ‘Setup’ item. Also exit this submenu via the
last ‘x Back’ parameter to get back to the measured value/channel display.
!Note!
The ‘x Back’ point can be found at the end of every picklist/menu item. If you confirm this
parameter, you go from the submenu to the higher-order menu, or you exit the setup.

Commissioning RIA46
18 Endress+Hauser
6.4 Configuring the device
Configuration steps:
1. Select the application conditions (only for 2-channel devices) (→Chap. 6.4.1)
2. Configure the universal input(s) (→Chap. 6.4.2)
3. Configure the calculations (→Chap. 6.4.3)
4. Configure the analog output(s) (→Chap. 6.4.4)
5. Configure relays (if option selected); assign and monitor limit values (→Chap. 6.4.5)
6. Advanced device configuration (access protection/operating code; saving the current setup/
user setup) (→Chap. 6.4.6)
7. Configure the display functions (→Chap. 6.4.7)
The following section provides a detailed account of how to set up the two-channel device and the
differential pressure application package (brief overview of the configuration →ä20, only
available in the two-channel version). If you want to configure a single-channel device, please
proceed as explained in Section 6.4.2.
6.4.1 Step 1: Selecting the application conditions/number of active
input channels
Application conditions of a two-channel device
Call up the Setup menu after performing the post-installation check.
Press ‘E’ Épress ‘+’ É‘Setup’ is displayed, press É‘E’.
Select your application conditions in the first point of the setup. The following options are available:
1. Differential pressure (‘Diff press’): application package; parameters are automatically
preconfigured for you.
2. Single channel (‘1-channel’): universal input 2 (‘AnalogIn 2’) is deactivated (‘off’) from the
software side. The second channel can always be activated at a later stage via ‘Setup’É‘AI
2’ (→Chap. 6.4.2).
3. Two channels (‘2-channel’): universal input 1 (‘AnalogIn 1’) and universal input 2
(‘AnalogIn 2’) are preconfigured with the following values:
– Signal type (‘Sign type’): ‘current’
– Signal range (‘Sign range’): ‘4-20mA’
The following section provides a detailed description of the "Differential pressure" application
package.
To set up the device in single-channel/two-channel applications, please proceed with the device
setup as explained in Section 6.4.2 (analog input 1 (‘AnalogIn 1’)).
!Note!
If the application or the parameter selected are subsequently changed, parameters already
configured are retained (e.g. if the differential pressure application is changed to two-channel É
‘Calc Value 1’ remains at the Difference parameter).

RIA46 Commissioning
Endress+Hauser 19
Differential pressure application
A concise setup is available for differential pressure applications.
Once the differential pressure application setup has been successfully completed, the configured
parameters of the analog inputs and the linearization points are used to automatically form the
difference between the two inputs and linearize the signal. As a result, the volume is already shown
on the display (= calculated value 2).
"Caution!
The following is essential to ensure values are calculated correctly and that the setup functions
properly:
• Sensor returning the higher pressure: connected to analog input 1 (‘AnalogIn 1’)
• Sensor returning the lower pressure: connected to analog input 2 (‘AnalogIn 2’)
a0010350
Fig. 8: Differential pressure application
Setup ÉApplication ÉDiff pressure
After selecting the differential pressure application by confirming the "Diff press" parameter, the
parameters, which are displayed in succession and can be edited, must be configured individually
for your application.
Some parameters are already configured for you by selecting the application setup (→ä20).
The parameter “CV Factor” serves for the regard of the density of the medium at level
measurement, i.e. it equates the mathematic formula 1/(density*gravitational acceleration). The
standard value of the factor is 1.
At this the density is to be named in kg/m3and the pressure in Pascal (Pa) or N/m2. The
gravitational acceleration is defined by the constant on the earth’s surface.
It amounts g=9.81m/s2.
Tables and examples for the conversion of application related units into the defined values kg/m3
and Pa respectively N/m3 can be found in the appendix, →ä47.
!Note!
If you want to activate other parameters (see Step 4, 5, and 6 or offset for analog inputs, change
display options, display original values of analog channels, etc.), you can do so afterwards in the
setup of the corresponding parameter.

Commissioning RIA46
20 Endress+Hauser
‘Setup’ menu item
6.4.2 Step 2: Configuring the universal input(s) (‘AnalogIn 1/2’)
The device has one universal input, and optionally another universal input for current (‘current’),
voltage (‘voltage’), resistance thermometer (‘RTD’) or thermocouples (‘TC’).
The input is monitored for a cable open circuit (see "Measuring range limits" table (→ä32) and
"Troubleshooting" section (→ä35).
Minimum/maximum values at the inputs:
Each universal input saves the smallest and biggest measured value measured. These values can be
reset individually for every channel. In the setup, the administrator can decide whether a user can
reset the minimum and maximum values of the individual channels directly in the main menu
without the need for a release code. It is reset in the event of a PRESET and if the scaling of the
channel is changed.
!Note!
The current min./max. value is saved every 15 minutes. If the power supply is disconnected (mains
off/mains on), a gap in the recording may result. The measuring interval starts when the device is
switched on. It is not possible to synchronize the measuring cycles to full hours.
Setup ÉApplication É‘Diff pressure’
Preconfigured by application
package
Submenu
Setup analog inputs
ÉSignal: ‘current’
ÉRange: ‘4-20 mA’
(→ä18 Step 1 and 2)
‘AI1 Lower range’: start of measuring range, analog input 1 (corresponds to 4 mA
for example)
‘AI1 Upper range’: end of measuring range, analog input 1 (corresponds to 20 mA
for example)
‘AI2 Lower range’: start of measuring range, analog input 2 (corresponds to 4 mA
for example)
‘AI2 Upper range’: end of measuring range, analog input 2 (corresponds to 20 mA
for example)
Setup display
ÉDisplay: calculated value
and bar graph for Calc Value
2:
Active; all other values
inactive
(→ä18 Step 7)
‘CV Unit’: unit of the calculated volume value (e.g.liters)
‘CV Bar 0%’: start of measuring range for bar graph display
‘CV Bar 100%’: end of measuring range for bar graph display
Setup calculation of the
volume:
É‘Calc value 1’:
‘Difference’
É‘Calc value 2’: ‘Lineariz.
CV1’
(→ä18 Step 3)
Create the linearization table:
If the volume value should be calculated - i.e. a linearization of the difference is
output - the X and Y coordinates have to be specified as the basis for performing the
calculation.
‘No lin points’: number of linearization points required (max. 32)
‘X-value’: X-coordinate for linearization point X1, 2, ...
‘Y-value’: Y-coordinate for linearization point X1, 2, ...
CV Factor Factor for the regard of the density of the medium at level measurement, i.e. it
equates the formula 1/(density*gravitational acceleration); Standard value: 1
End differential pressure setup
