Endress+Hauser Deltapilot S FMB70 User manual

BA00372P/00/EN/17.14
71270399
Valid from software version:
04.00.zz
Operating Instructions
Deltapilot S FMB70
Hydrostatic Level Measurement

Deltapilot S FMB70 with FOUNDATION Fieldbus
2Endress+Hauser
A0023555
TAG No.: XXX000
Ser. No.: X000X000000
Order code 00X00-XXXX0XX0XXX
www.endress.com/deviceviewer Endress+Hauser Operations App
Serial number

Deltapilot S FMB70 with FOUNDATION Fieldbus Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety and process safety . . . . . . . . . . . . 4
1.4 Notes on safety conventions and icons . . . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Product identification . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
2.4 CE mark, Declaration of Conformity . . . . . . . . . . . . 8
2.5 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 8
3 Installation . . . . . . . . . . . . . . . . . . . . . . 9
3.1 Incoming acceptance and storage . . . . . . . . . . . . . . . 9
3.2 Installation conditions . . . . . . . . . . . . . . . . . . . . . . . 9
3.3 Installation instructions . . . . . . . . . . . . . . . . . . . . . . 9
3.4 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 15
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 16
4.1 Connecting the device . . . . . . . . . . . . . . . . . . . . . . 16
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 17
4.3 Overvoltage protection (optional) . . . . . . . . . . . . . . 18
4.4 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 18
5 Operation . . . . . . . . . . . . . . . . . . . . . . 19
5.1 Onsite display (optional) . . . . . . . . . . . . . . . . . . . . 19
5.2 Operating elements . . . . . . . . . . . . . . . . . . . . . . . . 21
5.3 FOUNDATION Fieldbus interface . . . . . . . . . . . . . 24
5.4 Local operation – onsite display connected . . . . . . . 36
5.5 FieldCare . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.6 HistoROM®/M-DAT (optional) . . . . . . . . . . . . . . 39
5.7 Locking/unlocking operation . . . . . . . . . . . . . . . . . 41
5.8 Simulation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
5.9 Factory setting (reset) . . . . . . . . . . . . . . . . . . . . . . 43
6 Commissioning. . . . . . . . . . . . . . . . . . 45
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
6.2 Commissioning via an FF configuration program . . 45
6.3 Selecting the language and measuring mode . . . . . 47
6.4 Position adjustment . . . . . . . . . . . . . . . . . . . . . . . . 48
6.5 Level measurement . . . . . . . . . . . . . . . . . . . . . . . . 50
6.6 Pressure measurement . . . . . . . . . . . . . . . . . . . . . . 55
6.7 Scaling the OUT parameter . . . . . . . . . . . . . . . . . . 57
6.8 Configuring event behavior in accordance with
FOUNDATION Fieldbus Specification FF912 Field
Diagnostic Profile . . . . . . . . . . . . . . . . . . . . . . . . . 58
7 Maintenance. . . . . . . . . . . . . . . . . . . . 68
7.1 Exterior cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . 68
8 Diagnostics and troubleshooting . . . . . 69
8.1 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . 69
8.2 Diagnostic information on local display . . . . . . . . . . 70
8.3 Diagnostic event in the operating tool . . . . . . . . . . 71
8.4 Diagnostic messages in the DIAGNOSTIC Transducer
Block (TRDDIAG) . . . . . . . . . . . . . . . . . . . . . . . . . 72
8.5 Overview of diagnostic events . . . . . . . . . . . . . . . . 75
8.6 Response of outputs to errors . . . . . . . . . . . . . . . . . 84
8.7 Confirming messages . . . . . . . . . . . . . . . . . . . . . . . 85
8.8 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
8.9 Repair of Ex-certified devices . . . . . . . . . . . . . . . . . 85
8.10 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
8.11 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
8.12 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
8.13 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
9 Technical data . . . . . . . . . . . . . . . . . . . 87
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Safety instructions Deltapilot S FMB70 with FOUNDATION Fieldbus
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Deltapilot S is a hydrostatic pressure sensor for measuring pressure and level.
The manufacturer accepts no liability for damages resulting from incorrect use or use other than that
designated.
1.2 Installation, commissioning and operation
The device is designed to meet state-of-the-art safety requirements and complies with applicable
standards and EC regulations. If installed incorrectly or used for applications for which it is not
intended, however, it is possible that application-related dangers may arise, e.g. product overflow
due to incorrect installation or configuration. For this reason, installation, connection to the
electricity supply, commissioning, operation and maintenance of the measuring system must only
be carried out by trained, qualified specialists authorized to perform such work by the facility's
owner-operator. The specialist staff must have read and understood these Operating Instructions
and must follow the instructions they contain. Modifications and repairs to the device are
permissible only if they are expressly approved in the Operating Instructions. Pay particular
attention to the technical data on the nameplate.
1.3 Operational safety and process safety
Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance work on the device.
1.3.1 Hazardous areas (optional)
Devices for use in hazardous areas are fitted with an additional nameplate (ä6). If using the
measuring system in hazardous areas, the appropriate national standards and regulations must be
observed. The device is accompanied by separate "Ex documentation", which is an integral part of
these Operating Instructions. The installation regulations, connection values and safety instructions
listed in this Ex document must be observed. The documentation number of the related safety
instructions is also indicated on the additional nameplate.
• Ensure that all personnel are suitably qualified.
• Measuring point requirements with regard to measurement and safety must be observed.

Deltapilot S FMB70 with FOUNDATION Fieldbus Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and icons
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding icon in the margin.
Symbol Meaning
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned.
0Device certified for use in explosion hazardous area
If the device has this symbol embossed on its nameplate, it can be installed in an explosion
hazardous area or a non-explosion hazardous area, according to the approval.
-Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas.
– Devices used in hazardous areas must possess an appropriate type of protection.
.
Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas.
– Devices used in hazardous areas must possess an appropriate type of protection. Lines used in
hazardous areas must meet the necessary safety-related characteristic quantities.
%Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
&Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied
or supplied.
)Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of
an earth grounding system.
*Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment.
+Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice.
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C (185 °F).
Safety instruction
For safety instructions refer to the manual for the appropriate instrument version.
t >85°C

Identification Deltapilot S FMB70 with FOUNDATION Fieldbus
6Endress+Hauser
2 Identification
2.1 Product identification
The following options are available for identification of the measuring device:
• Nameplate specifications
• Order code with breakdown of the device features on the delivery note
• Enter serial numbers from nameplates in W@M Device Viewer
(www.endress.com/deviceviewer): All information about the measuring device is displayed.
For an overview of the technical documentation provided, enter the serial number from the
nameplates in the W@M Device Viewer (www.endress.com/deviceviewer).
2.2 Device designation
2.2.1 Nameplates
!Note!
• The MWP (maximum working pressure) is specified on the nameplate. This value refers to a
reference temperature of 20°C (68°F) or 100°F (38 °C) for ASME flanges.
• The pressure values permitted at higher temperatures can be found in the following standards:
– EN 1092-1: 2001 Tab. 18 1)
– ASME B 16.5a – 1998 Tab. 2-2.2 F316
– ASME B 16.5a – 1998 Tab. 2.3.8 N10276
– JIS B 2220
• The test pressure corresponds to the overpressure limit (OPL) of the device = MWP x 1.5.
• The Pressure Equipment Directive (EC Directive 97/23/EC) uses the abbreviation "PS". The
abbreviation "PS" corresponds to the MWP (maximum working pressure) of the measuring
device.
Aluminum housing (T14/T15)
A0016056
Fig. 1: Nameplate
1 Device name
2 Order code (for re-orders)
3 Extended order code (complete)
4 Technical data
5 Serial number (for identification)
6 Address of manufacturer
1) With regard to their stability-temperature property, the materials 1.4435 and 1.4404 are grouped together under 13EO
in EN 1092-1 Tab. 18. The chemical composition of the two materials can be identical.
Ser. no.:
Order code:
Ext. order code:
25
6
3
4
1

Deltapilot S FMB70 with FOUNDATION Fieldbus Identification
Endress+Hauser 7
Devices for use in hazardous areas are fitted with an additional nameplate.
A0021222
Fig. 2: Additional nameplate
1 Approval-specific information
2 Document number for safety instructions or drawing number
Hygenic stainless steel housing (T17)
A0021552
Fig. 3: Nameplate
1 Device name
2 Address of manufacturer
3 Order code (for re-orders)
4 Extended order code (complete)
5 Serial number (for identification)
6 Technical data
7 Approval-specific information and document number for safety instructions or drawing number
2.2.2 Identifying the sensor type
See parameter "Sensor Meas.Type" in Operating Instruction BA00303P.
2
1
2
7
3
4
5
6
1
Ser. no.:
Order code:
Ext. ord. cd.:

Identification Deltapilot S FMB70 with FOUNDATION Fieldbus
8Endress+Hauser
2.3 Scope of delivery
The scope of delivery comprises:
• Hydrostatic pressure sensor Deltapilot S
• For devices with the "HistoROM/M-DAT" option:
CD-ROM with Endress+Hauser operating program
• Optional accessories
Documentation supplied:
• The Operating Instructions BA00372P and BA00303P are available via the Internet.
See: www.endress.com Download.
• Brief Operating Instructions KA01026P
• Fold-out brochure KA00252P
• Final inspection report
• Additional safety instructions for Ex devices
• Optional: factory calibration form, test certificates
2.4 CE mark, Declaration of Conformity
The devices are designed to meet state-of-the-art safety requirements, have been tested and left the
factory in a condition in which they are safe to operate. The devices comply with the applicable
standards and regulations as listed in the EC Declaration of Conformity and thus comply with the
statutory requirements of the EC Directives. Endress+Hauser confirms the conformity of the device
by affixing to it the CE mark.
2.5 Registered trademarks
KALREZ, VITON, TEFLON
Registered trademarks of E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP
Registered trademark of Ladish & Co., Inc., Kenosha, USA
FOUNDATIONTM Fieldbus
Registered trademark of the Fieldbus Foundation Austin, Texas, USA
GORE-TEX®
Registered trademark of W.L. Gore & Associates, Inc., USA

Deltapilot S FMB70 with FOUNDATION Fieldbus Installation
Endress+Hauser 9
3 Installation
3.1 Incoming acceptance and storage
3.1.1 Incoming acceptance
• Check the packaging and the contents for damage.
• Check the shipment, make sure nothing is missing and that the scope of supply matches your
order.
3.1.2 Transport
"Caution!
Follow the safety instructions and transport conditions for devices of more than 18 kg (39.69 lbs).
Transport the measuring device to the measuring point in its original packaging or at the process
connection.
3.1.3 Storage
The device must be stored in a dry, clean area and protected against impact (EN 837-2).
Storage temperature range:
• –40 to +90 °C (–40 to +194°F)
• Onsite display: –40 to +85°C (–40 to +185°F)
• Separate housing: –40 to +60°C (–40 to +140°F)
3.2 Installation conditions
3.2.1 Dimensions
For dimensions, please refer to the Technical Information for Deltapilot S TI00416P,
"Mechanical construction" section.
3.3 Installation instructions
!Note!
• Due to the orientation of the Deltapilot S, there may be a shift in the zero point, i.e. when the
container is empty or partially full, the measured value does not display zero. You can correct this
zero point shift using the "Zero" key on the electronic insert or externally on the device or via the
onsite display. See ä21, Section 5.2.1 "Position of the operating elements", ä22,
Section 5.2.2 "Function of the operating elements – onsite display not connected" and ä48,
Section 6.4 "Position adjustment".
• To ensure optimal readability of the onsite display, it is possible to rotate the housing up to 380°.
See ä14, Section 3.3.5 "Rotating the housing".
• Endress+Hauser offers a mounting bracket for installations on pipes or walls.
See ä12, Section 3.3.3 "Wall and pipe-mounting (optional)".

Installation Deltapilot S FMB70 with FOUNDATION Fieldbus
10 Endress+Hauser
3.3.1 Installation instructions
!Note!
• If a heated Deltapilot S is cooled during the cleaning process (e.g. by cold water), a vacuum
develops for a short time, whereby moisture can penetrate the sensor through the pressure
compensation (1). If this is the case, mount the Deltapilot S with the pressure compensation (1)
pointing downwards.
• Keep the pressure compensation and GORE-TEX®filter (1) free from contamination.
• Do not clean or touch the process isolating diaphragm with hard or pointed objects.
• The device must be installed as follows in order to comply with the cleanability requirements of
the ASME-BPE (Part SD Cleanability):
Level measurement
P01-PMP75xxx-11-xx-xx-xx-000

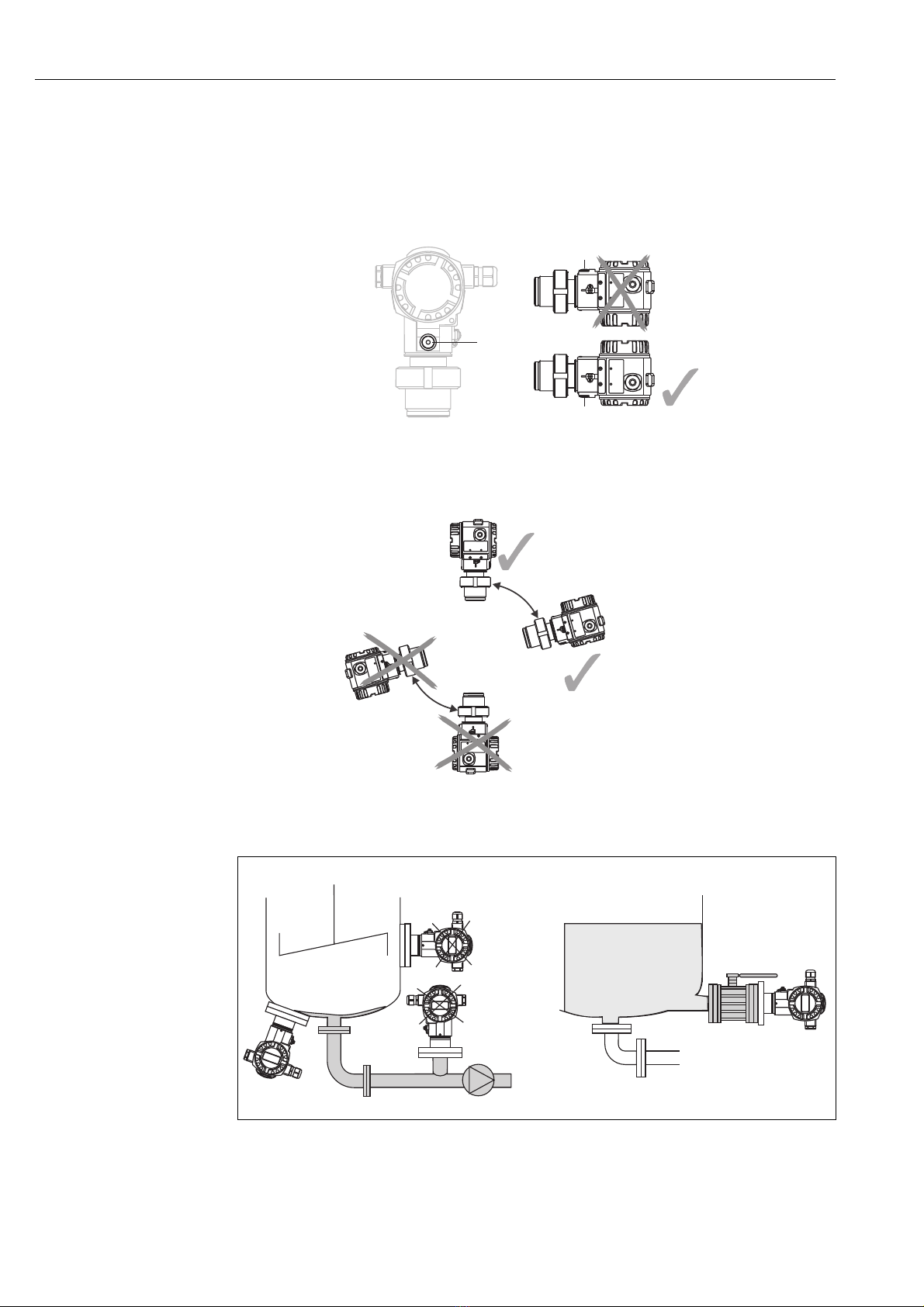

Fig. 4: Measuring arrangement for level
• Always install the device below the lowest measuring point.
1
1
1
FIELD TERMINALS
FIELD TERMINALS
FIELDTERMINALSFIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS
FIELDTERMINALS

Deltapilot S FMB70 with FOUNDATION Fieldbus Installation
Endress+Hauser 11
• Do not install the device at the following positions:
– in the filling curtain
– in the tank outflow
– in the suction area of a pump
– or at a point in the tank that can be affected by pressure pulses from the agitator
• The calibration and functional test can be carried out more easily if you mount the device
downstream of a shutoff device.
• Deltapilot S must be included in the insulation for media that can harden when cold.
Pressure measurement in gases
• Mount Deltapilot S with shutoff device above the tapping point so that any condensate can flow
into the process.
Pressure measurement in steams
• Mount Deltapilot S with siphon above the tapping point.
• Fill the siphon with liquid before commissioning.
The siphon reduces the temperature to almost the ambient temperature.
Pressure measurement in liquids
• Mount Deltapilot S with the shutoff device below or at the same level as the tapping point.
3.3.2 Seal for flange mounting
P01-FMD7xxxx-11-xx-xx-xx-002
Fig. 5: Mounting the versions with flange or diaphragm seal
1 Process isolating diaphragm
2Seal
#Warning!
The seal is not allowed to press on the process isolating diaphragm as this could affect the
measurement result.
➁➀

Installation Deltapilot S FMB70 with FOUNDATION Fieldbus
12 Endress+Hauser
3.3.3 Wall and pipe-mounting (optional)
Endress+Hauser offers a mounting bracket for installations on pipes or walls.

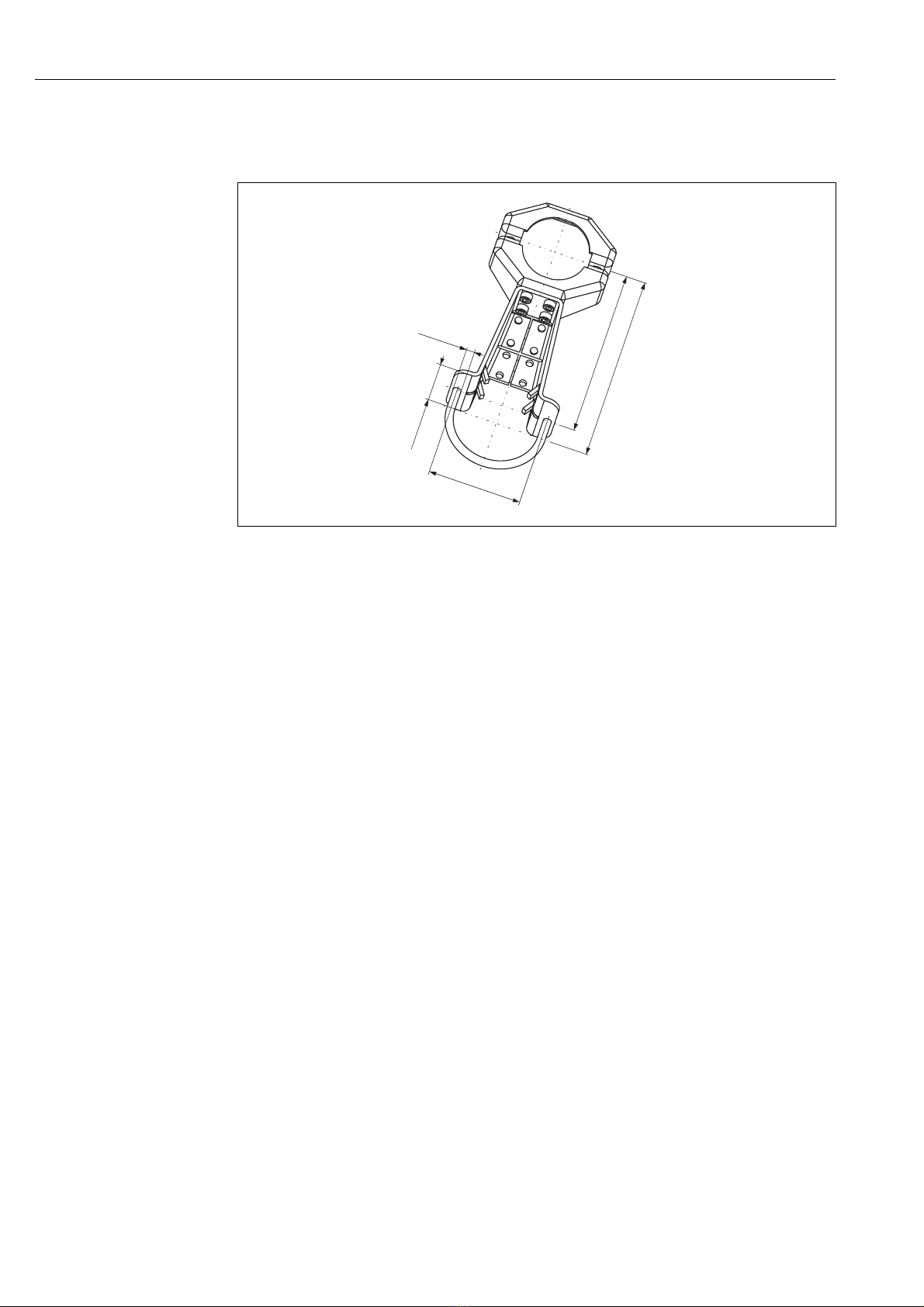

P01-xMx5xxxx-06-xx-xx-xx-001
Please note the following when mounting:
• When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least
5 Nm (3.69 lbs ft).
52 (2.05)
140(5.51)
122 (4.8)
70(2.76)
6 (0.24)
mm (in)

Deltapilot S FMB70 with FOUNDATION Fieldbus Installation
Endress+Hauser 13
3.3.4 Assembling and mounting the "separate housing" version

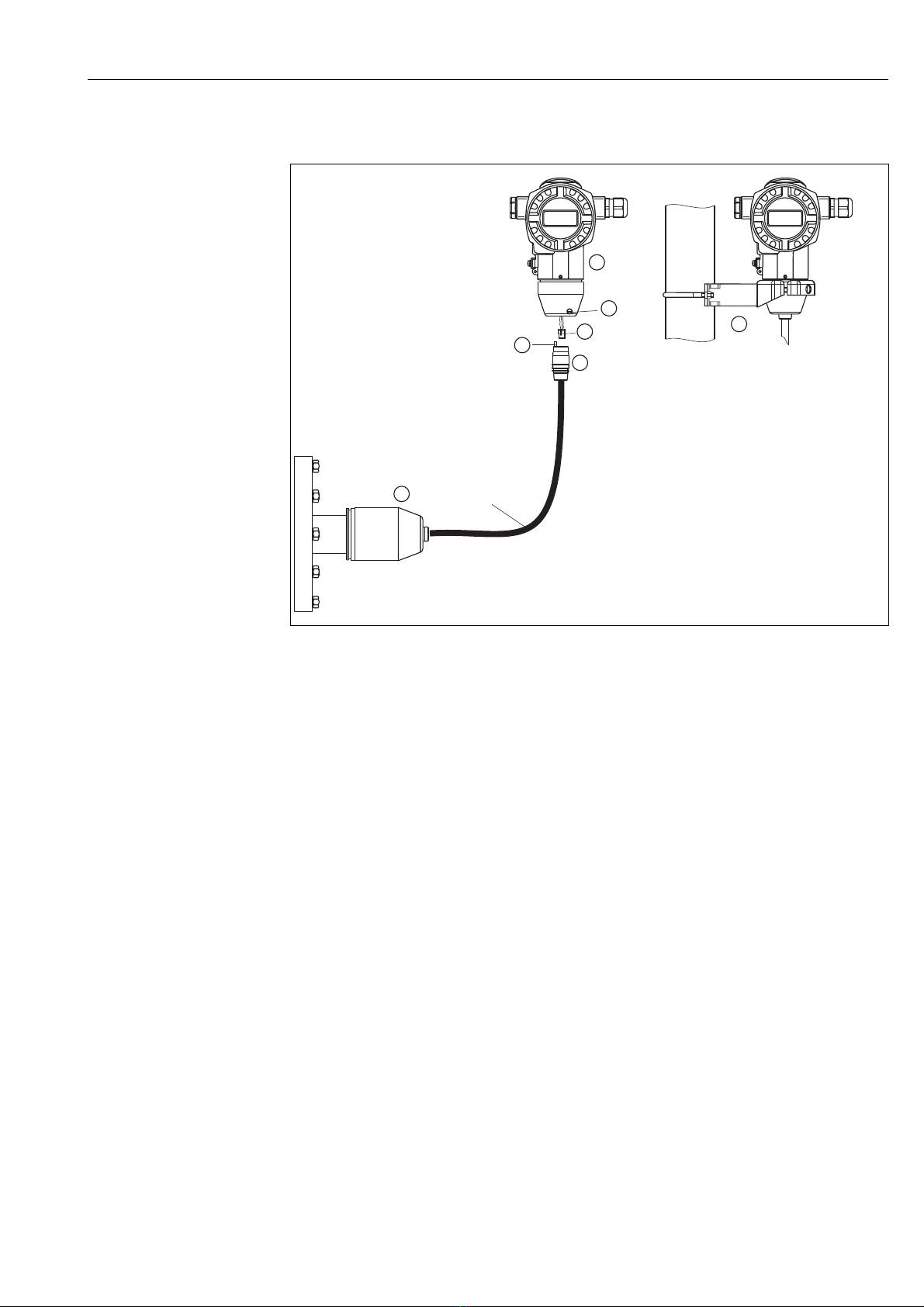

P01-FMB70xxx-11-xx-xx-xx-003
Fig. 6: "Separate housing" version
1 In the "separate housing" version, the sensor is supplied with the process connection and cable ready-fitted.
2 Cable with connection jack
3 Pressure compensation
5 Connector
6Lockingscrew
7 Housing fitted with housing adapter, included
8 Mounting bracket suitable for wall and pipe mounting, included
Assembly and mounting
1. Plug the connector (item 5) into the corresponding connection jack of the cable (item 2).
2. Plug the cable into the housing adapter (item 7).
3. Tighten the locking screw (item 6).
4. Mount the housing on a wall or pipe using the mounting bracket (item 8).
When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at least
5 Nm (3.69 lbs ft).
Mount the cable with a bending radius (r) 120 mm (4.72 in).
r³120mm
1
2
35
68
7

Installation Deltapilot S FMB70 with FOUNDATION Fieldbus
14 Endress+Hauser
3.3.5 Rotating the housing
The housing can be rotated up to 380° by loosening the setscrew.

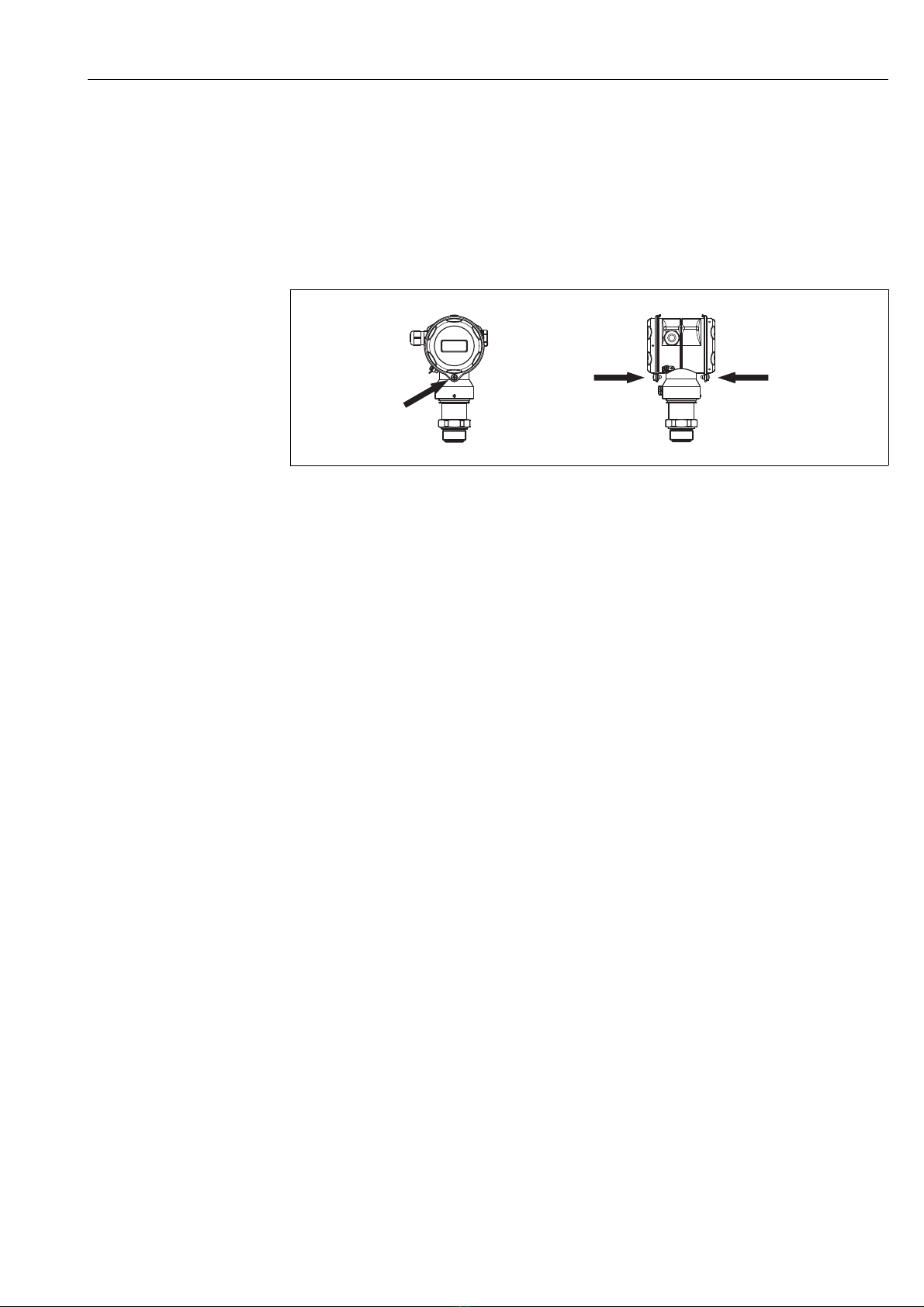

P01-FMB70xxx-17-xx-xx-xx-000
Fig. 7: Aligning the housing
– For aluminum housings (T14/T15): Loosen setscrew with a 2 mm (0.08 in) Allen key.
For hygienic stainless steel housings (T17): Loosen setscrew with a 3 mm (0.12 in) Allen key.
– Rotate housing (max. up to 380°).
– Retighten setscrew with 1 Nm (0.74 lbf ft).
3.3.6 Supplementary installation instructions
Seal
• Deltapilot M with a G 1 1/2 thread:
When screwing the device into the tank, the flat seal has to be positioned on the sealing surface
of the process connection. To avoid additional strain on the process isolating diaphragm, the
thread should never be sealed with hemp or similar materials.
• Deltapilot M with NPT threads:
– Wrap Teflon tape around the thread to seal it.
– Tighten the device at the hexagonal bolt only. Do not turn at the housing.
– Do not overtighten the thread when screwing. Max. torque: 20 to 30 Nm (14.75 to 22.13 lbf ft)
Sealing the probe housing
• Moisture must not penetrate the housing when mounting the device, establishing the electrical
connection and during operation.
• Always firmly tighten the housing cover and the cable entries.
3.3.7 Mounting of the profile seal for universal process mounting
adapter
For details on mounting, see KA00096F/00/A3.
max. 380°

Deltapilot S FMB70 with FOUNDATION Fieldbus Installation
Endress+Hauser 15
3.3.8 Closing the housing cover
!Note!
When closing the housing cover, make sure that the threads of the cover and the housing are free
from dirt, such as sand. If you encounter resistance when closing the cover, check the threads again
for fouling and dirt.
Closing the covers on the hygienic stainless steel housing (T17)
P01-FMB70xxx-17-xx-xx-xx-001
Fig. 8: Closing the covers
The covers for the terminal and electronics compartment are hooked into the housing and closed
with a screw. These screws should be tightened handtight (2 Nm (1.48 lbf ft)) to the stop to ensure
that the covers sit tightly.
3.4 Post-installation check
After installing the device, carry out the following checks:
• Are all screws firmly tightened?
• Are the housing covers screwed down tight?

Wiring Deltapilot S FMB70 with FOUNDATION Fieldbus
16 Endress+Hauser
4 Wiring
4.1 Connecting the device
#Warning!
If the operating voltage is > 35 VDC: Dangerous contact voltage at terminals.
Risk of electric shock!
In a wet environment, do not open the cover if voltage is present.
#Warning!
Limitation of electrical safety due to incorrect connection!
• Risk of electric shock and/or explosion in hazardous areas! In a wet environment, do not open
the cover if voltage is present.
• When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.
• Devices with integrated overvoltage protection must be grounded.
• Protective circuits against reverse polarity, HF influences and overvoltage peaks are installed.
• The supply voltage must match the power supply on the nameplate. (See also ä6,
Section 2.2.1 "Nameplates".)
• Switch off the supply voltage before connecting the device.
• Remove the housing cover of the terminal compartment.
• Guide the cable through the gland. For cable specifications, ä17, Section 4.2.3.
• Connect the device in accordance with the following diagram.
• Screw down the housing cover.
• Switch on the supply voltage.
P01-xMx7xxxx-04-xx-xx-xx-009
Fig. 9: Electrical connection of FOUNDATION Fieldbus
Please refer also to Section 4.2.1 "Supply voltage", ä17.
1 Housing
3 Internal ground terminal
3 External ground terminal
4 Supply voltage, for version in non-hazardous area = 9 to 32 V DC
5 Devices with integrated overvoltage protection are labeled OVP (overvoltage protection) here.
➀
➁
➂
➃
➄
FF FF
FF FF

Deltapilot S FMB70 with FOUNDATION Fieldbus Wiring
Endress+Hauser 17
4.1.1 Devices with 7/8" plug

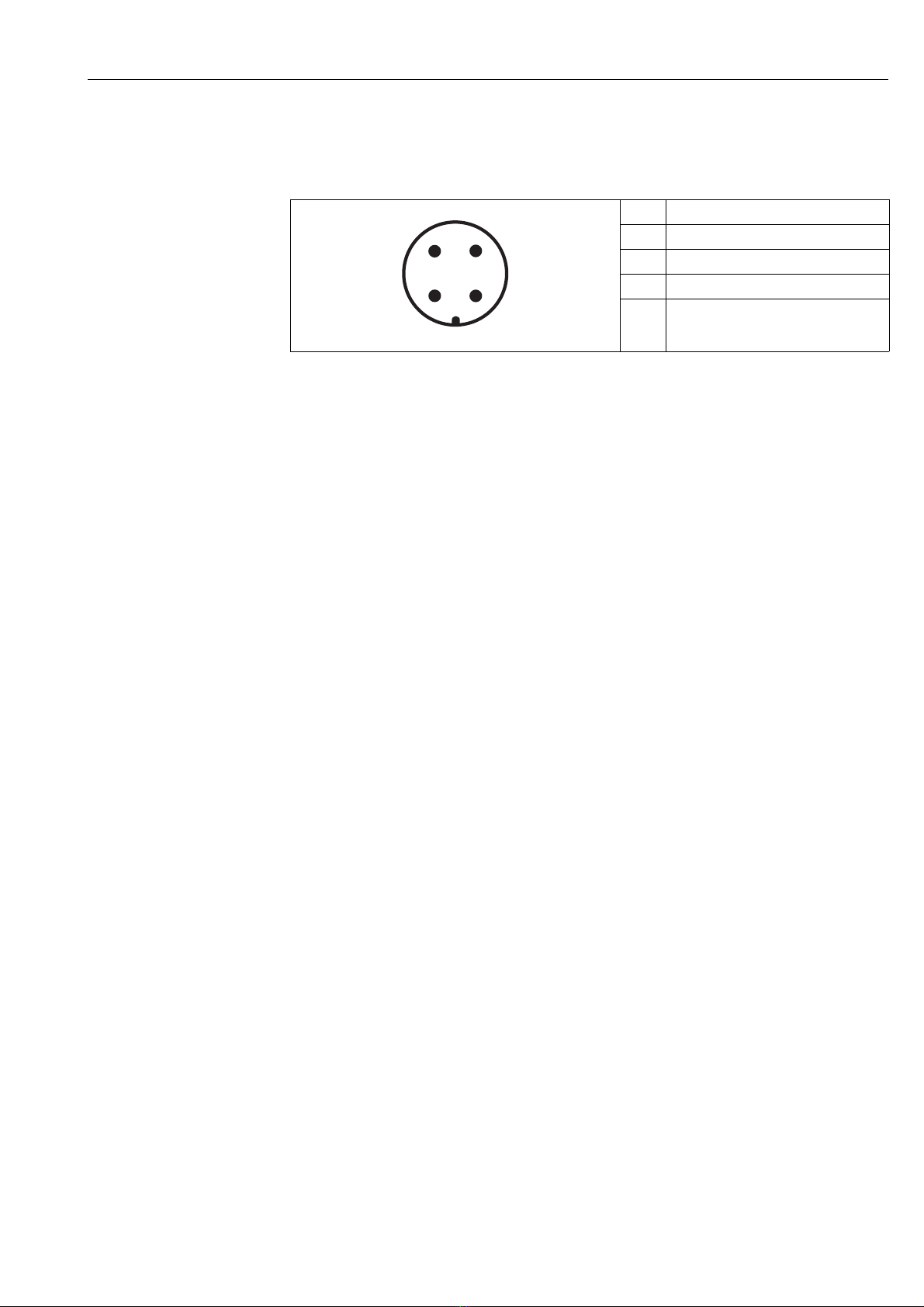

PIN assignment for 7/8" connector
4.2 Connecting the measuring unit
!Note!
For further information on the network structure and grounding and for further bus system
components such as bus cables, see the relevant documentation, e.g. Operating Instructions
BA00013S "FOUNDATION Fieldbus Overview" and the FOUNDATION Fieldbus Guideline.
4.2.1 Supply voltage
• Version for non-hazardous area: 9 to 32 V DC
!Note!
• When using the measuring device in hazardous areas, installation must comply with the
corresponding national standards and regulations and the Safety Instructions or Installation or
Control Drawings.
• All explosion-protection data are given in a separate documentation which is available upon
request. The Ex documentation is available as standard with all devices approved for use in
explosion hazardous areas.
4.2.2 Current consumption
15.5 mA ±1 mA, switch-on current corresponds to IEC 61158-2, Clause 21.
4.2.3 Cable specification
• Use a twisted, shielded two-wire cable, preferably cable type A.
• Terminals for wire cross-sections: 0.5 to 2.5 mm2(20 to 14 AWG)
• Outer cable diameter: 5 to 9 mm (0.2 to 0.35 in)
!Note!
For further information on the cable specifications, see Operating Instructions BA00013S
"FOUNDATION Fieldbus Overview", FOUNDATION Fieldbus Guideline and IEC 61158-2 (MBP).
4.2.4 Grounding and shielding
Deltapilot S must be grounded, for example by means of the external ground terminal.
Different grounding and shielding installation methods are available for FOUNDATION Fieldbus
networks such as:
• Isolated installation (see also IEC 61158-2)
• Installation with multiple grounding
• Capacitive installation
A0011176
PIN Meaning
1 Signal –
2 Signal +
3 Not assigned
4Shield
2
1
4
3

Wiring Deltapilot S FMB70 with FOUNDATION Fieldbus
18 Endress+Hauser
4.3 Overvoltage protection (optional)
Devices showing version "M" in feature 100 "Additional options 1" or feature 110 "Additional
options 2" in the order code are equipped with overvoltage protection (see also Technical
Information TI00416P "Ordering information").
• Overvoltage protection:
– Nominal functioning DC voltage: 600 V
– Nominal discharge current: 10 kA
• Surge current check î = 20 kA as per DIN EN 60079-14: 8/20 s satisfied
• Arrester AC current check I = 10 A satisfied
#Warning!
Devices with integrated overvoltage protection must be grounded.
4.4 Post-connection check
Perform the following checks after completing electrical installation of the device:
• Does the supply voltage match the specifications on the nameplate?
• Is the device connected as per Section 4.1?
• Are all screws firmly tightened?
• Are the housing covers screwed down tight?
As soon as voltage is applied to the device, the green LED on the electronic insert lights up for a few
seconds or the connected onsite display lights up.

Deltapilot S FMB70 with FOUNDATION Fieldbus Operation
Endress+Hauser 19
5Operation
Feature 20 "Output; operation" in the order code provides you with information on the operating
options available to you.
5.1 Onsite display (optional)
A 4-line liquid crystal display (LCD) is used for display and operation. The onsite display shows
measured values, fault messages and notice messages.
The display of the device can be turned in 90° steps.
Depending on the orientation of the device, this makes it easy to operate the device and read the
measured value.
Functions:
• 8-digit measured value display including sign and decimal point, unit display
• Bar graph as graphic display of the current pressure measured value in relation to the set pressure
range in the Pressure Transducer Block. The pressure range is set by means of the SCALE_IN
parameter.
• Easy and complete menu guidance by dividing the parameters into several levels and groups
• Menu guidance
The onsite display is available in English. Needless to say, the device can also be operated in 6
languages (de, en, fr, es, jp, ch) via the DTM or EDD. The FieldCare program is an E+H DTM
operating tool and can be acquired from endress.com.
• Each parameter has a 3-digit ID to aid navigation
• Option of configuring the display according to individual requirements and preferences, such as
language, alternating display, contrast setting, display of other measured values such as sensor
temperature
• Comprehensive diagnostic functions (fault and warning message, maximum indicator, etc.)
• Rapid and safe commissioning using Quick Setup menus
Versions in the order code Operation
P FOUNDATION Fieldbus; external operation, LCD Via onsite display and 1 key on the exterior of the
device
Q FOUNDATION Fieldbus; internal operation, LCD Via onsite display and 1 key on the inside of the device
R FOUNDATION Fieldbus; internal operation Without onsite display, 1 key on the inside of the device

Operation Deltapilot S FMB70 with FOUNDATION Fieldbus
20 Endress+Hauser
P01-xxxxxxxx-07-xx-xx-en-011

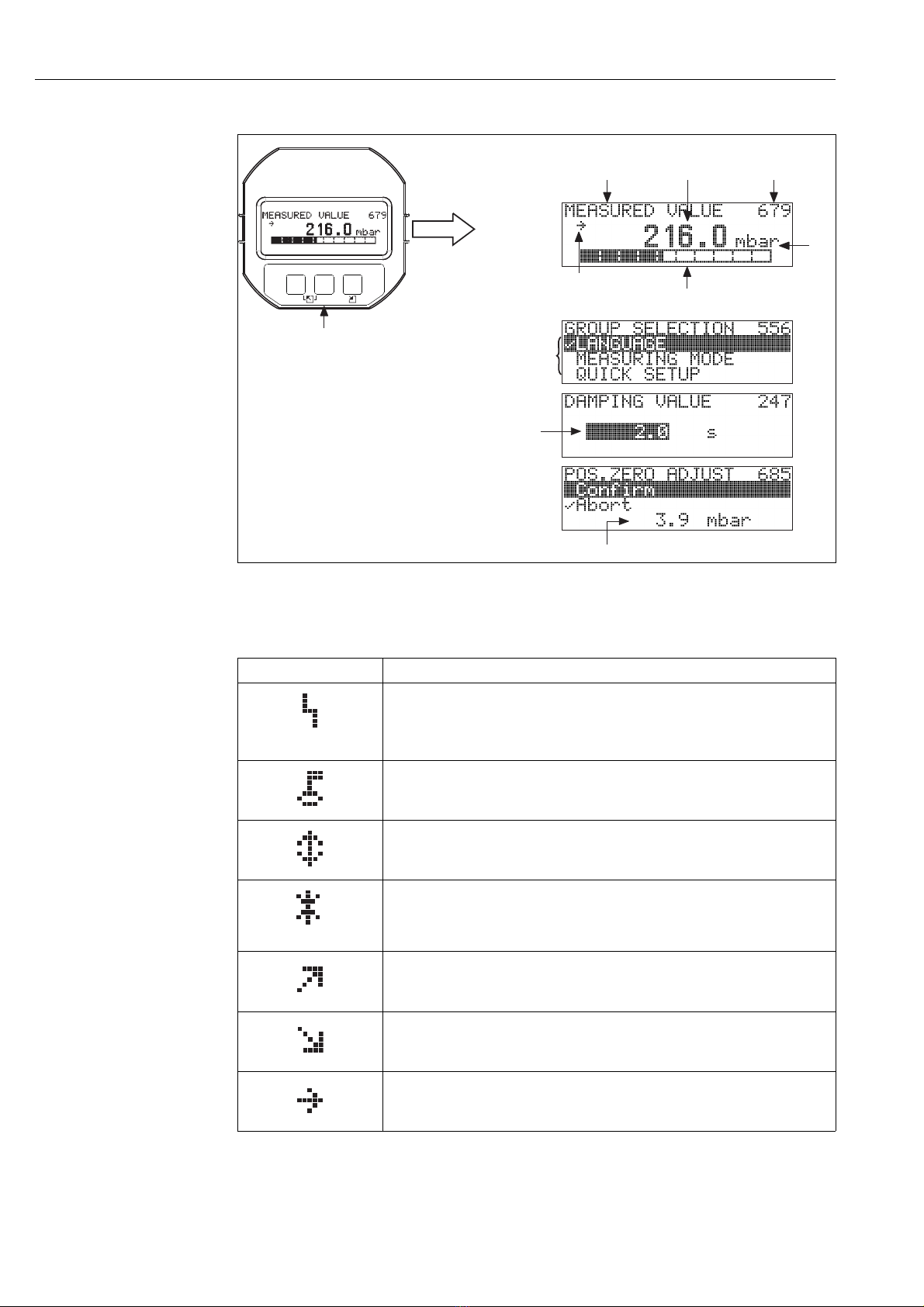

The following table illustrates the symbols that can appear on the onsite display. Four symbols can
occur at one time.
Symbol Meaning
Alarm symbol
– Symbol flashing: warning, device continues measuring.
– Symbol permanently lit: error, device does not continue measuring.
Note: The alarm symbol may overlie the tendency symbol.
Lock symbol
The operation of the device is locked. Unlock device, ä41, Section 5.7 "Locking/
unlocking operation".
Communication symbol
Data transfer via communication
Simulation symbol
Simulation mode is activated. DIP switch 2 for simulation is set to "On".
See also Section 5.2.1 "Position of the operating elements" and ä42, Section 5.8
"Simulation"
Tendency symbol (increasing)
The primary value of the Pressure Transducer Block is increasing.
Tendency symbol (decreasing)
The primary value of the Pressure Transducer Block is decreasing.
Tendency symbol (constant)
The primary value of the Pressure Transducer Block has remained constant over the past
few minutes.
E
+
–Bargraph
Operating keys
Symbol Bargraph
ValueFunction name
Unit
Header line
Information
line
Main line
Parameter
Identification
number
Editing modes
Selection
options
Value that
can be edited
Current measured value
Measured value display
