Endress+Hauser Micropilot M FMR231 User manual

BA00219F/00/EN/13.11
71139058
Valid as of software version:
01.04.00
Operating Instructions
Micropilot M FMR231
Level-Radar

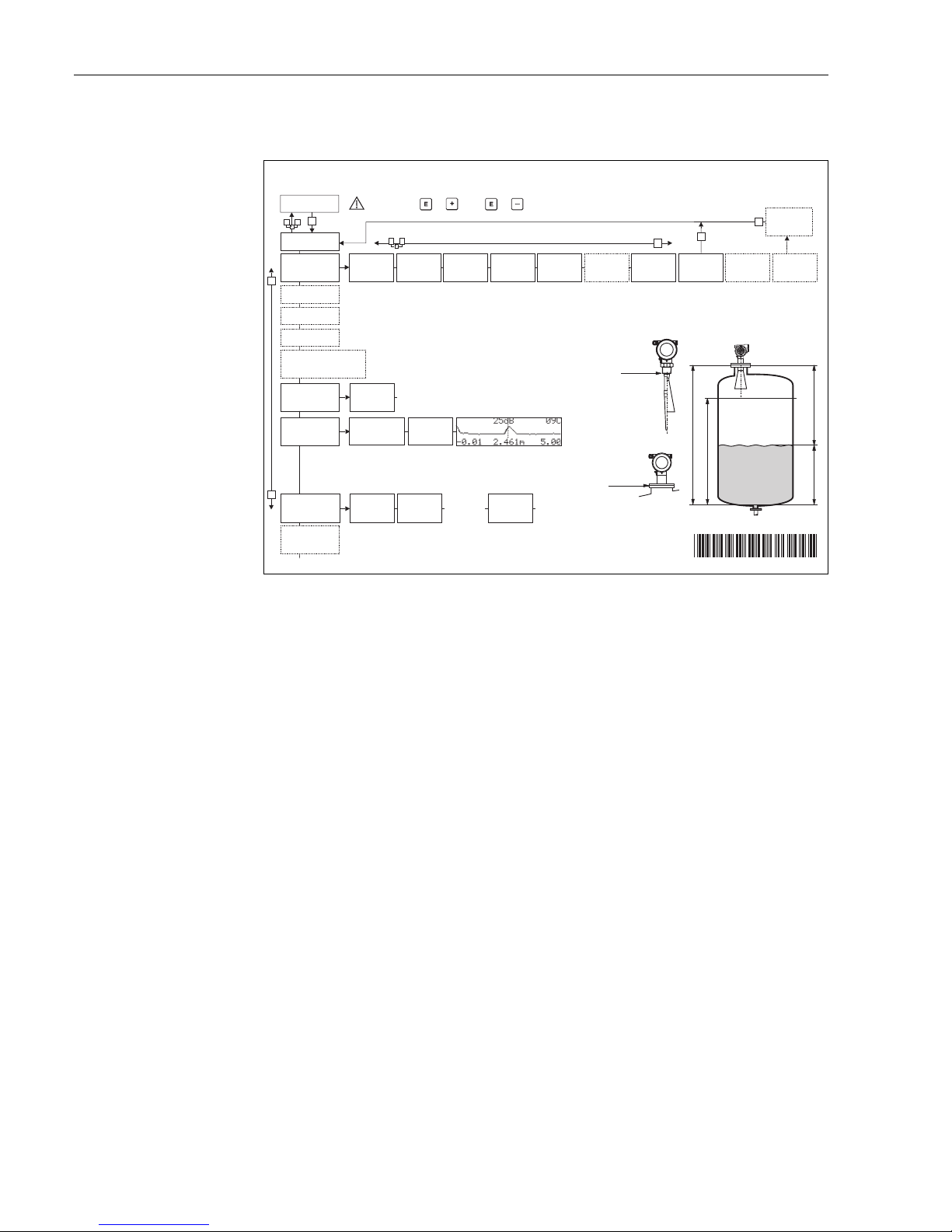

Brief operating instructions Micropilot M FMR231 4 to 20 mA HART
2Endress+Hauser
Brief operating instructions
L00-FMR2xxxx-19-00-00-en-039
!Note!
This operating manual explains the installation and initial start-up for the level transmitter.
All functions that are required for a typical measuring task are taken into account here. In addition,
the Micropilot M provides many other functions that are not included in this operating manual, such
as optimising the measuring point and converting the measured values.
An overview of all device functions can be found on →ä78.
The operating manual BA00221F/00/EN "Description of Instrument Functions" provides an
extensive description of all device functions, which can be found on the enclosed CD-ROM.
E
+
-
+
E
+
-
F
L
D
E
E
E
-
… …
… …
KA159F/00/a2/08.06
52006292
52006292
… …
Micropilot M FMR230, FMR231 - Brief operating instructions
- dome
ceiling
- horizontal
cyl.
- bypass
…
- unknown
- DC: <1.9
- DC: 1.9 … 4
-DC:4…10
- DC: >10
- standard
- calm
surface
- add. agitator
…
input E
(see sketch)
input F
(see sketch)
only for
bypass +
stilling well
-ok
- too small
- too big
- unknown
- manual
displayed
(see sketch)
D and L are confirm
or specify
range
suggestion
000
measured value
Group
selection
00
basic setup
01
safety settings
0C
system
parameter
09
display
0E
envelope curve
04
linearisation
05
extended calibr.
06
output (HART, FF)
profibus param.(PA)
092
language
0A
diagnostics
0A0
present
error
002
tank shape
004
process
cond.
005
empty
calibr.
006
full
calibr.
007
pipe
diameter
008
dist./
meas value
051
check
distance
003
medium
cond.
052
range of
mapping
053
start
mapping
008
dist./
meas value
flange:
reference point
of measurement
- envel. curve
- incl. FAC
- incl. cust. map
- single curve
- cyclic
= 100: unlocked
100: locked
= 2457: unlocked
2457: locked
0E1
plot settings
0E2
recording
curve
0A1
previous
error
0A4
unlock
parameter
threaded connection:
reference point of
measurement
HART
PA, FF
}
}
Contrast: +or +

Micropilot M FMR231 4 to 20 mA HART Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety and process safety . . . . . . . . . . . . 4
1.4 Notes on safety conventions and symbols . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 9
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 9
3 Mounting . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 10
3.2 Incoming acceptance, transport, storage . . . . . . . . . 11
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 12
3.4 Installation instructions . . . . . . . . . . . . . . . . . . . . . 18
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 20
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 21
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 21
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 23
4.3 Recommended connection . . . . . . . . . . . . . . . . . . 26
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 26
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 26
5 Operation . . . . . . . . . . . . . . . . . . . . . . 27
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 27
5.2 Display and operating elements . . . . . . . . . . . . . . . 29
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
5.4 Display and acknowledging error messages . . . . . . 35
5.5 HART communication . . . . . . . . . . . . . . . . . . . . . . 36
6 Commissioning. . . . . . . . . . . . . . . . . . 39
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
6.2 Switching on the measuring device . . . . . . . . . . . . 39
6.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
6.4 Basic Setup with the device display . . . . . . . . . . . . 42
6.5 Basic Setup with the
Endress+Hauser oprating program . . . . . . . . . . . . . 52
7 Maintenance. . . . . . . . . . . . . . . . . . . . 56
8 Accessories. . . . . . . . . . . . . . . . . . . . . 57
8.1 Weather protection cover . . . . . . . . . . . . . . . . . . . 57
8.2 Commubox FXA195 HART . . . . . . . . . . . . . . . . . . 57
8.3 Commubox FXA291 . . . . . . . . . . . . . . . . . . . . . . . 57
8.4 ToF Adapter FXA291 . . . . . . . . . . . . . . . . . . . . . . . 57
8.5 Remote display FHX40 . . . . . . . . . . . . . . . . . . . . . 58
9 Trouble-shooting . . . . . . . . . . . . . . . . . 59
9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . . 59
9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 60
9.3 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 62
9.4 Orientation of the Micropilot . . . . . . . . . . . . . . . . . 64
9.5 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
9.6 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
9.7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
9.8 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
9.9 Contact addresses of Endress+Hauser . . . . . . . . . . . 67
10 Technical data . . . . . . . . . . . . . . . . . . . 68
10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 68
11 Appendix. . . . . . . . . . . . . . . . . . . . . . . 78
11.1 Operating menu HART (display modul) . . . . . . . . . 78
11.2 Patents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

Safety instructions Micropilot M FMR231 4 to 20 mA HART
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Micropilot M is a compact radar level transmitter for the continuous, contactless measurement
of liquids, pastes and sludge. The device can also be freely mounted outside closed metal vessels
because of its operating frequency of about 6 GHz and a maximum radiated pulsed energy of 1 mW
(average power output 1 μW). Operation is completely harmless to humans and animals.
1.2 Installation, commissioning and operation
The Micropilot M has been designed to operate safely in accordance with current technical, safety
and EU standards. If installed incorrectly or used for applications for which it is not intended,
however, it is possible that application-related dangers may arise, e.g. product overflow due to
incorrect installation or calibration. For this reason, the instrument must be installed, connected,
operated and maintained according to the instructions in this manual: personnel must be authorised
and suitably qualified. The manual must have been read and understood, and the instructions
followed. Modifications and repairs to the device are permissible only when they are expressly
approved in the manual.
1.3 Operational safety and process safety
Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance work on the device.
1.3.1 Hazardous areas
Measuring systems for use in hazardous environments are accompanied by separate "Ex
documentation", which is an integral part of this Operating Manual. Strict compliance with the
installation instructions and ratings as stated in this supplementary documentation is mandatory.
• Ensure that all personnel are suitably qualified.
• Observe the specifications in the certificate as well as national and local standards and regulations.
1.3.2 FCC approval
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation.
"Caution!
Changes or modifications not expressly approved by the part responsible for compliance could void
the user’s authority to operate the equipment.

Micropilot M FMR231 4 to 20 mA HART Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and symbols
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety conventions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned.
Explosion protection
0Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous
area.
-Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring
entering areas with the designation “explosion hazardous areas” must conform with the stated type
of protection.
.Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in
safe areas still require a certificate if their outputs run into explosion hazardous areas.
Electrical symbols
%Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
&Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or
supplied.
)Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of an
earth grounding system.
*Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment.
+Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice .
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C (185 °F).
t >85°C

Identification Micropilot M FMR231 4 to 20 mA HART
6Endress+Hauser
2 Identification
2.1 Device designation

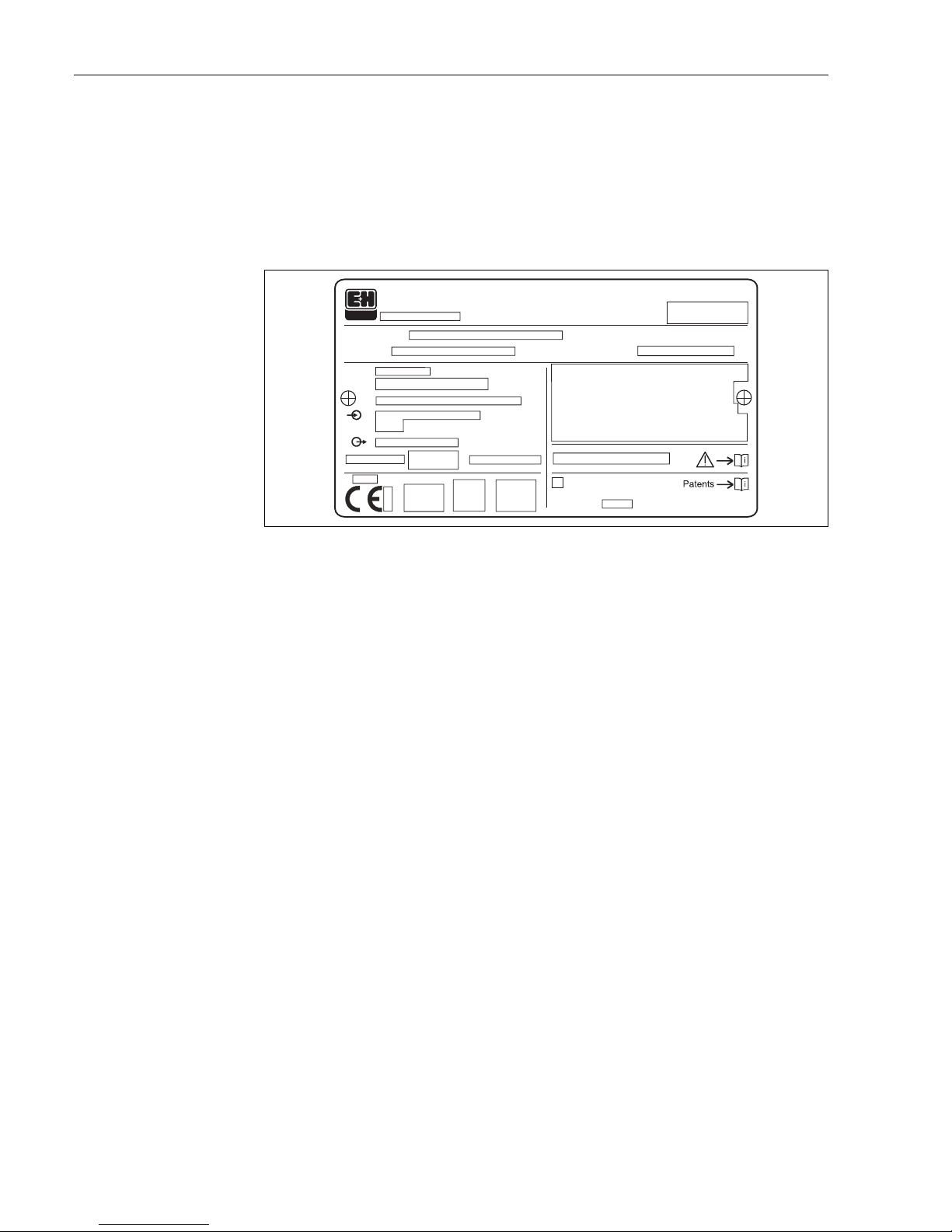

2.1.1 Nameplate
The following technical data are given on the instrument nameplate:
L00-FMR2xxxx-18-00-00-en-001
Information on the nameplate of the Micropilot M
1 Instrument designation
2 Order code
3 Serial number
4 Process pressure
5 Process temperature
6 Length (optional)
7 Power supply
8 Current supply
9 Ambient temperature
10 Cable specification
11 Factory sealed
12 Radio equipment number
13 TÜV identification mark
14 Certificate symbol (optional) e.g. Ex, NEPSI
15 Certificate symbol (optional) e.g. 3A
16 Certificate symbol (optional) e.g. SIL, FF
17 Place of production
18 Degree of protection e.g. IP65, IP67
19 Certificates and approvals
20 Document number of safety instructions e.g. XA, ZD, ZE
21 Dat./Insp. xx / yy (xx = week of production, yy = year of production)
ENDRESS+HAUSER
Order Code:
Ser.-No.:
Dat./Insp.:
if modification
see sep. label
X=
1
2
3
4
5
7
8
910 11
12
13
14 15
6
16
17
18
19
20
21

Micropilot M FMR231 4 to 20 mA HART Identification
Endress+Hauser 7
2.1.2 Ordering structure
This overview does not mark options which are mutually exclusive.
10 Approval
A Non-hazardous area
F Non-hazardous area, WHG
1 ATEX II 1/2 G EEx ia IIC T6, IECEx Zone 0/1
2 ATEX II 1/2 G EEx ia IIC T6, XA, IECEx Zone 0/1; Note safety instruction (XA) (electrostatic charging)!
5 ATEX II 1/2 G EEx d (ia) IIC T6, XA, IECEx Zone 0/1; Note safety instruction (XA) (electrostatic charging)!
6 ATEX II 1/2 G EEx ia IIC T6, WHG, IECEx Zone 0/1
7 ATEX II 1/2 G EEx ia IIC T6, WHG, XA, IECEx Zone 0/1; Note safety instruction (XA) (electrostatic charging)!
3 ATEX II 1/2 G EEx em (ia) IIC T6
8 ATEX II 1/2 G EEx em (ia) IIC T6, WHG
4 ATEX II 1/2 G EEx d (ia) IIC T, IECEx Zone 0/16
G ATEX II 3 G EEx nA II T6, XA, fully insutalted antenna: Note safety instruction (XA) (electrostatic charging)!
H ATEX II 1/2G EEx ia IIC T6, ATEX II 3D, XA,
fully insutalted antenna: Note safety instruction (XA) (electrostatic charging)!
S FM IS - Cl.I Div.1 Gr. A-D, zone 0, 1, 2
T FM XP - Cl.I Div.1 Group A-D, zone 1, 2
N CSA General Purpose
U CSA IS - Cl.I Div.1 Group A-D, zone 0, 1, 2
V CSA XP - Cl.I Div.1 Group A-D, zonw 1, 2
L TIIS EEx d [ia] IIC T4
I NEPSI Ex ia IIC T6
J NEPSI Ex d (ia) ia IIC T6
R NEPSI Ex nAL IIC T6
Y Special version, TSP-no. to be spec.
20 Antenna; Inactive Length
A PPS antistatic 360mm/14", Viton, 316L; nozzle height max 100mm/4"
B PPS antistatic 510mm/20", Viton, 316L; nozzle height max 250mm/10"
E PTFE 390mm/15", fully insulated; nozzle height max 100mm/4"
F PTFE 540mm/21", fully insulated; nozzle height max 250mm/10"
H PTFE antistatic 390mm/15", fully insul.; nozzle height max 100mm/4"
J PTFE antistatic 540mm/21", fully insul.; nozzle height max 250mm/10"
Y Special version, TSP-no. to be spec.
30 Process Connection
GGJ Thread EN10226 R1-1/2, 316L
GGS Thread EN10226 R1-1/2, PVDF
GNJ Thread ANSI NPT1-1/2, 316L
GNS Thread ANSI NPT1-1/2; PVDF
TEJ Tri-Clamp ISO2852 DN40-51 (2"), 316L
TLJ Tri-Clamp ISO2852 DN70-76.1 (3"), 316L
MFJ DIN11851 DN50 PN40, slotted-nut, 316L
HFJ DIN11864-1 A DN50 Tube DIN11850, slotted-nut, 316L
BFJ DN50 PN10/16 A, 316L flange EN1092-1 (DIN2527 B)
CFJ DN50 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CFK DN50 PN10/16, PTFE > 316L flange EN1092-1 (DIN2527)
BMJ DN80 PN10/16 A, 316L flange EN1092-1 (DIN2527 B)
CMJ DN80 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
BNJ DN80 PN25/40 A, 316L flange EN1092-1 (DIN2527 B)
CNJ DN80 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
CMK DN80 PN10/16, PTFE > 316L flange EN1092-1 (DIN2527)
BQJ DN100 PN10/16 A, 316L flange EN1092-1 (DIN2527 B)
CQJ DN100 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CQK DN100 PN10/16, PTFE > 316L flange EN1092-1 (DIN2527)
BWJ DN150 PN10/16 A, 316L flange EN1092-1 (DIN2527 B)
CWJ DN150 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CWK DN150 PN10/16, PTFE (black) > 316L flange EN1092-1 (DIN2527)
PTFE (black) = conductive cladding
AEJ 2" 150lbs RF, 316/316L flange ANSI B16.5
AEK 2" 150lbs, PTFE > 316/316L flange ANSI B16.5
ALJ 3" 150lbs RF, 316/316L flange ANSI B16.5
AMJ 3" 300lbs RF, 316/316L flange ANSI B16.5

Identification Micropilot M FMR231 4 to 20 mA HART
8Endress+Hauser
ALK 3" 150lbs, PTFE > 316/316L flange ANSI B16.5
APJ 4" 150lbs RF, 316/316L flange ANSI B16.5
AQJ 4" 300lbs RF, 316/316L flange ANSI B16.5
APK 4" 150lbs, PTFE > 316/316L flange ANSI B16.5
AVJ 6" 150lbs RF, 316/316L flange ANSI B16.5
AVK 6" 150lbs, PTFE (black) > 316/316L flange ANSI B16.5
PTFE (black) = conductive cladding
KEJ 10K 50A RF, 316L flange JIS B2220
KEK 10K 50A, PTFE > 316L flange JIS B2220
KLJ 10K 80A RF, 316L flange JIS B2220
KLK 10K 80A, PTFE > 316L flange JIS B2220
KPJ 10K 100A RF, 316L flange JIS B2220
KPK 10K 100A, PTFE > 316L flange JIS B2220
KVJ 10K 150A RF, 316L flange JIS B2220
KVK 10K 150A, PTFE (black) > 316L flange JIS B2220
PTFE (black) = conductive cladding
YY9 Special version, TSP-no. to be spec.
40 Output; Operation
A 4-20mA SIL HART; 4-line display VU331, envelope curve display on site
B 4-20mA SIL HART; w/o display, via communication
K 4-20mA SIL HART; Prepared for FHX40, remote display (Accessory)
C PROFIBUS PA; 4-line display VU331, envelope curve display on site
D PROFIBUS PA; w/o display, via communication
L PROFIBUS PA; Prepared for FHX40, remote display (Accessory)
E FOUNDATION Fieldbus; 4-line display, envelope curve display on site
F FOUNDATION Fieldbus; w/o display, via communication
M FOUNDATION Fieldbus; Prepared for FHX40, remote display (Accessory)
Y Special version, TSP-no. to be spec.
50 Housing
A F12 Alu, coated IP65 NEMA4X
B F23 316L IP65 NEMA4X
C T12 Alu, coated IP65 NEMA4X, separate conn. compartment
D T12 Alu, coated IP65 NEMA4X+OVP, separate conn. compartment,
OVP=overvoltage protection
Y Special version, TSP-no. to be spec.
60 Cable Entry
2 Gland M20 (EEx d > thread M20)
3ThreadG1/2
4 Thread NPT1/2
5PlugM12
6 Plug 7/8"
9 Special version, TSP-no. to be spec.
70 Gas-Tight Feed Through
ANotselected
CSelected
80 Additional Option
A Basic version
B EN10204-3.1 material, watted parts, (316L wetted parts) inspection certificate
C EN10204-3.1 material, pressurized, (316/316L pressurized) inspection certificate
H 5-point linearity protocol, see additional spec.
J 5-point, 3.1, wetted parts 5-point linearity protocol, see additional spec., EN10204-
3.1 material, wetted parts, (316L wetted parts) inspection certificate
K 5-point, 3.1, pressurized, 5-point linearity protocol, see additional spec., EN10204-
3.1 material, pressurized, (316/316L pressurized) inspection certificate
S GL/ABS/NK marine certificate
Y Special version, TSP-no. to be spec.
995 Marking
1Tagging(TAG)
2Busadress
FMR231- Complete product designation
30 Process Connection

Micropilot M FMR231 4 to 20 mA HART Identification
Endress+Hauser 9
2.2 Scope of delivery
"Caution!
It is essential to follow the instructions concerning the unpacking, transport and storage of
measuring instruments given in the chapter "Incoming acceptance, transport, storage", →ä11!
The scope of delivery consists of:
• Assembled instrument
• Accessories (→ä57)
• Endress+Hauser operating program on the enclosed CD-ROM
• Brief operating instructions KA01003F/00/EN for quick commissioning
• Brief operating instructions KA159F/00/A2 (basic setup/troubleshooting), housed in the
instrument
• Approval documentation: if this is not included in the operating manual
• CD-ROM with further documentation, e.g.
– Technical Information
– Operating Instructions
– Description of Instrument Functions
2.3 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC declaration of conformity and thus complies with the
statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademark of the company, E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of the company, Ladish & Co., Inc., Kenosha, USA
HART®
Registered trademark of HART Communication Foundation, Austin, USA
ToF®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PulseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PhaseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany

Mounting Micropilot M FMR231 4 to 20 mA HART
10 Endress+Hauser
3Mounting

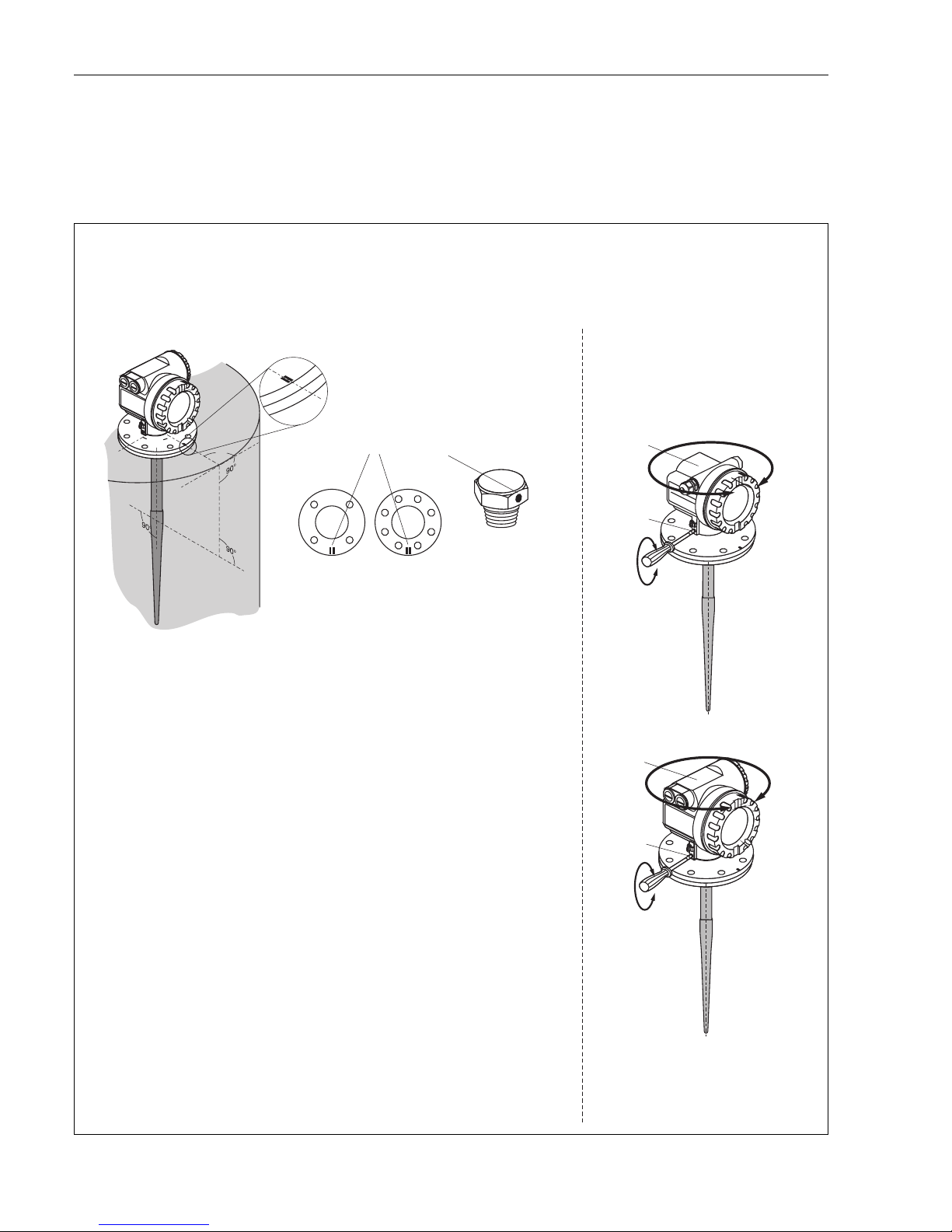

3.1 Quick installation guide
L00-FMR231xx-17-00-00-en-003
1
1
2
2
#
90°
90°
90°
90°
90°
DN50
ANSI 2”
DN80…150
ANSI 3…6”
F12/F23 housing
T12 housing
Turn housing
Observe orientation when installing!
Installation in tank (free space):
Mark on process connector facing the nearest tank wall!
Thehousing can be turned 350°
in order to simplify access to the
display and theterminal compartment
Allen key
4 mm (0.16 in)
1½” BSPT (R1½”)
or
1½ NPT
mark at instrument flange
or threaded boss

Micropilot M FMR231 4 to 20 mA HART Mounting
Endress+Hauser 11
3.2 Incoming acceptance, transport, storage
3.2.1 Incoming acceptance
Check the packing and contents for any signs of damage.
Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
3.2.2 Transport
"Caution!
Follow the safety instructions and transport conditions for instruments of more than
18 kg (39.69 lbs). Do not lift the measuring instrument by its housing in order to transport it.
3.2.3 Storage
Pack the measuring instrument so that is protected against impacts for storage and transport.
The original packing material provides the optimum protection for this.
The permissible storage temperature is -40°Cto+80°C(-40°Fto+176°F)or
-50 °C to +80 °C (-58 °F to +176 °F).

Mounting Micropilot M FMR231 4 to 20 mA HART
12 Endress+Hauser
3.3 Installation conditions
3.3.1 Dimensions
Housing dimensions
L00-F12xxxx-06-00-00-en-001
L00-T12xxxx-06-00-00-en-001
L00-F23xxxx-06-00-00-en-001
ENDRESS+HAUSER
65 (2.56)78 (3.07)
max. 110 (4.33)
mm (in)
85 (3.35)
150 (5.91)
ø129 (ø5.08)
(Aluminium)
F12 housing
ENDRESS+HAUSER
78 (3.07)
85 (3.35)
65 (2.56)
162 (6.38)
max. 100 (4.33)94 (3.7)
mm (in)
ø129 (ø5.08)
(Aluminium)
T12 housing
max. 94 (3.7)
mm (in)
93 (3.66)
ø129 (ø5.08)
150 (5.91)
40(1.57)
(316L)
F23 housing

Micropilot M FMR231 4 to 20 mA HART Mounting
Endress+Hauser 13
Process connection, type of antenna
L00-FMR231xx-06-00-00-en-005
a
a
L2
390 /540
ø33
a
ø25
øD
L2
360 /510
L2
390 /540
ø33
43
b
b
23
a
a
41
77
44.5
80.5
41
77
41
77
b[mm]
DN 80DN 50
20 (24)20
200 (200)165
D[mm]220
20
DN 100
285
22
DN 150
b[mm]
b[mm]
DN 80
3”
DN 50
2”
18
23.9(28.4)
16
19.1
185
190.5(209.5)
155
152.4
D[mm]
D[mm]
210
228.6(254)
18
23.9(31.8)
DN 100
4”
280
279.4
22
25.4
DN 150
6”
4
R
R
Threaded connection
1½” (R
or 1 ½NPT
BSPT 1½”) FlangeDN50…150
or equivalent
PPS,antistatic PTFE,antistatic
Flange
cladded version
DN 50 dairycoupling
DIN 11851
2”/3”Tri-Clamp
ISO 2852
a[mm]
withoutgastight
feedthrough
a[mm]
withgastight
feedthrough
Flange
DN 50…150
DN 50 aseptic
coupling
DN 50 diary
coupling
2”/3”
Tri-Clamp
Process
connection
Inactivelength, equivalent
to max. nozzleheight
L2=100 mm /250 mm
for PN16(for PN40)
Flange
Flange to EN 1092-1 (agreeable to DIN 2527)
PTFE,conform to
FDA 21 CFR 177.1550 and
USP<88>Class VI
(in conjunction with
)
DN50 aseptic/dairycoupling
respectively Tri-clamp
for 10K
Flange
Flange to JIS B2220
for 150 lbs (for 300 lbs)
Flange
Flange to ANSI B16.5
DN 50 aseptic
DIN 11864-1 form A
withO-ringfor tubes
accordingto DIN 11850
F12 / T12 / F23 housing
R=reference point of measurement

Mounting Micropilot M FMR231 4 to 20 mA HART
14 Endress+Hauser

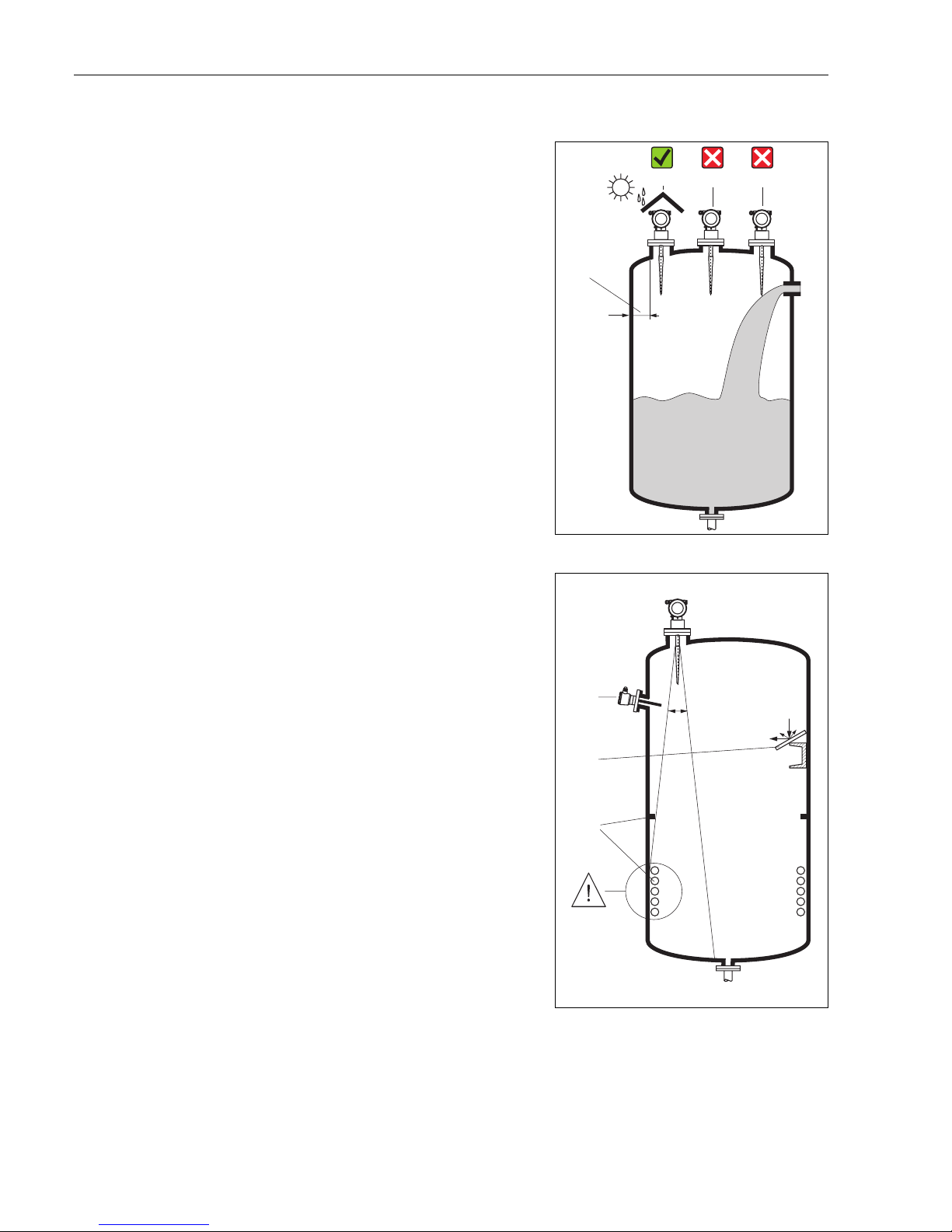

3.3.2 Engineering hints
Orientation
• Recommended distance (1) wall – outer
edge of nozzle: ~1/6 of tank diameter.
Nevertheless the device should not be
installed closer than 30 cm (11.8 in) to the
tankwall.
• Not in the centre (3), interference can cause
signal loss.
• Not above the fill stream (4).
• It is recommended to use a weather
protection cover (2) in order to protect the
transmitter from direct sun or rain. Assembly
and disassembly is simply done by means of a
tension clamp (→ä57, "Accessories").
L00-FMR2xxxx-17-00-00-xx-006
1
234
Tank installations
• Avoid any installations (1), like limit switches,
temperature sensors, etc., inside the signal
beam (→ä15, "Beam angle").
• Symmetrical installations (2), i.e. vacuum
rings, heating coils, baffles, etc., can also
interfere with the measurement.
Optimization options
• Antenna size: the bigger the antenna, the
smaller the beam angle, the less interference
echoes.
• Mapping: the measurement can be optimized
by means of electronic suppression of
interference echoes.
• Antenna alignment: refer to "optimum
mounting position", →ä18.
• Stilling well: a stilling well can always be used
to avoid interference.
• Metallic screens (3) mounted at a slope spread
the radar signals and can, therefore, reduce
interference echoes.
Please contact Endress+Hauser for further infor-
mation.
L00-FMR2xxxx-17-00-00-xx-007
1
3
2
a

Micropilot M FMR231 4 to 20 mA HART Mounting
Endress+Hauser 15

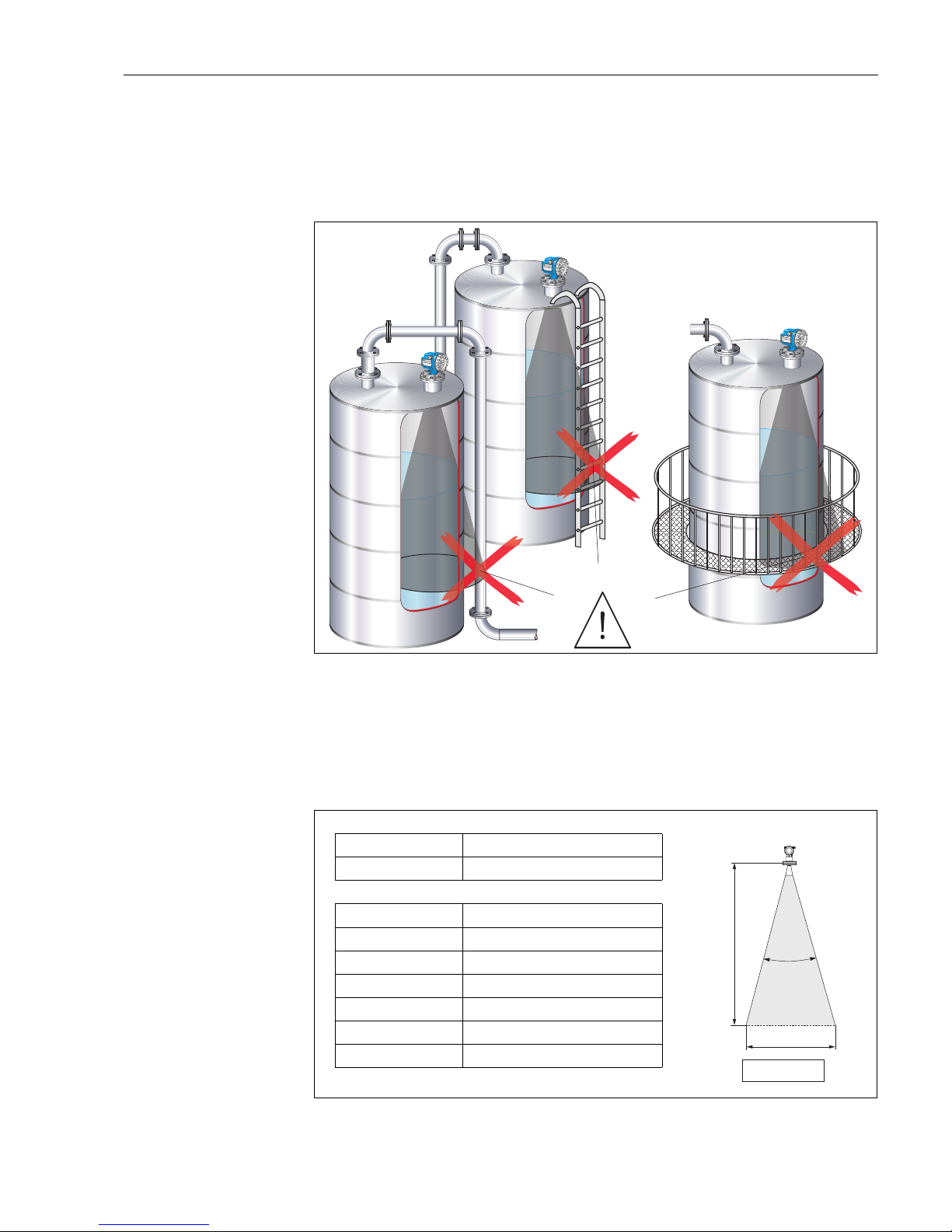

Measurement in a plastic tank
If the outer wall of the tank is made of a non-conductive material (e.g. GRP), microwaves can also
be reflected off interfering installations outside the signal beam (e.g. metallic pipes (1), ladders (2),
grates (3), …). Therefore, there should be no such interfering installations in the signal beam.
Please contact Endress+Hauser for further informatione.
L00-FMR2xxxx-17-00-00-xx-013
Beam angle
The beam angle is defined as the angle αwhere the energy density of the radar waves reaches half
the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the
signal beam and can be reflected off interfering installations. Beam diameter Was function of
antenna type (beam angle α) and measuring distance D:
L00-FMR2xxxx-14-00-06-de-027
Antenna Rod
Beam angle α30°
Measuring distance (D) Beam diameter (W)
3 m (9.8 ft) 1,61 m (5.3 ft)
6m(20ft) 3,22m(11ft)
9m(30ft) 4,82m(16ft)
12 m (39 ft) 6,43 m (21 ft)
15 m (49 ft) 8,04 m (26 ft)
20 m (66 ft) 10,72 m (35 ft)
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>70°C:
At>85°C
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>70°C:
At>85°C
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>
70°C:
At>85°C
1
2
3
a
D
W
a
D
_
=2
2..
tan
W

Mounting Micropilot M FMR231 4 to 20 mA HART
16 Endress+Hauser

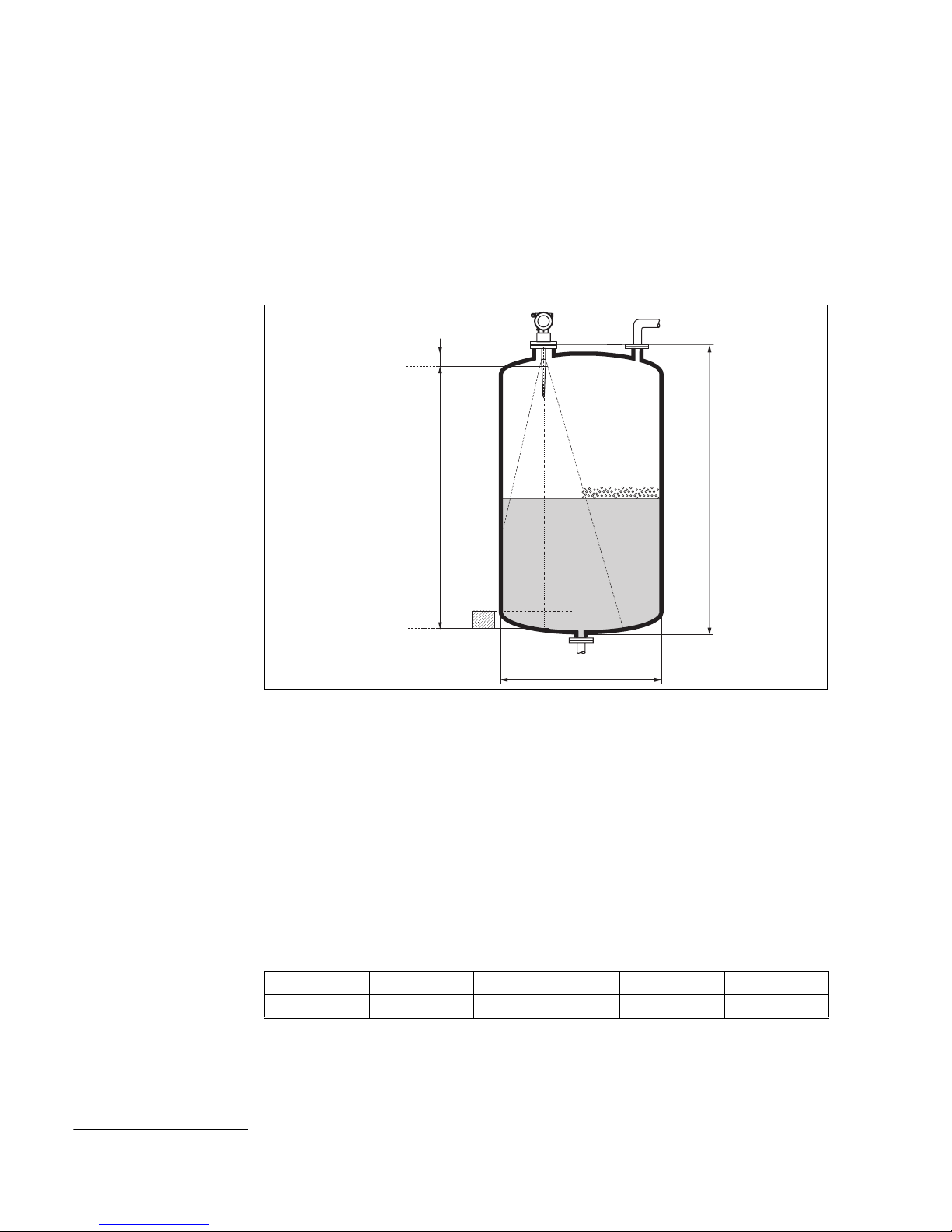

Measuring conditions
!Note!
• In case of boiling surfaces, bubbling or tendency for foaming, use FMR230 or FMR231.
Depending on its consistence, foam can either absorb microwaves or reflect them off the foam
surface. Measurement is possible under certain conditions.
• In case of heavy steam development or condensate the max. measuring range of FMR240 may
decrease depending on density, temperature and composition of the steam →use FMR230 or
FMR231.
• For the measurement of absorbing gases such as ammonia NH3or some fluorocarbons 1),
please use FMR230 in a stilling well.
L00-FMR2xxxx-17-00-00-de-017
• The measuring range begins, where the beam hits the tank bottom. Particularly with dish bottoms
or conical outlets the level cannot be detected below this point.
• In case of media with a low dielectric constant (groups A and B), the tank bottom can be visible
through the medium at low levels (low height C). Reduced accuracy has to be expected in this
range. If this is not acceptable, we recommend positioning the zero point at a distance C(see Fig.)
above the tank bottom in these applications.
• In principle it is possible to measure up to the tip of the antenna with FMR230/231/240.
However, due to considerations regarding corrosion and build-up, the end of the measuring range
should not be chosen any closer than A(see Fig.) to the tip of the antenna.
For FMR244/245, the end of measuring range should not be chosen closer than A(see Fig.) to
the tip of the antenna, especially if there is development of condensate.
• The smallest possible measuring range Bdepends on the antenna version (see Fig.).
• The tank diameter should be greater than D(see Fig.), the tank height at least H(see Fig.).
1) Affected compounds are e.g. R134a, R227, Dymel 152a.
100%
0%
B
A
C
H
ØD
A [mm (in)] B [m (ft)] C [mm (in)] D [m (ft)] H [m (ft)]
50 (1.97) > 0,5 (> 1.6) 150 to 300 (5.91 to 11.8) > 1 (> 3.3) > 1,5 (> 4.9)

Micropilot M FMR231 4 to 20 mA HART Mounting
Endress+Hauser 17
Measuring range
The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the
mounting location and eventual interference reflections.
The maximum configurable range is:
•20m(66ft)
The following tables describe the groups of media as well as the achievable measuring range as a
function of application and media group. If the dielectric constant of a medium is unknown, it is
recommended to assume media group B to ensure a reliable measurement.

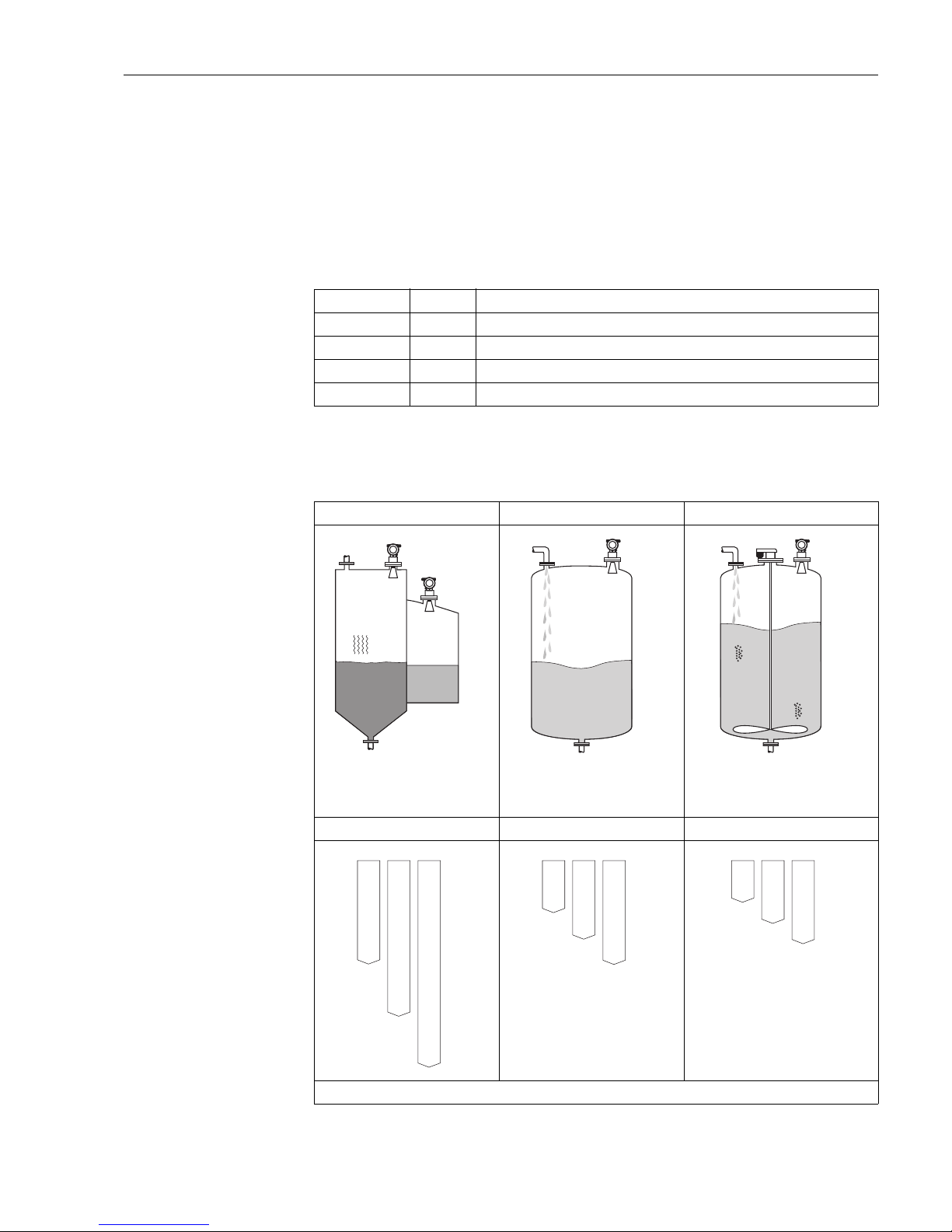

Measuring range depending on vessel type, conditions and product
Media group DC (εr) Examples
A1.4 to 1.9 non-conducting liquids, e.g. liquefied gas1)
1) Treat Ammonia NH3as a medium of group A, i.e. use FMR230 in a stilling well.
B1.9 to 4 non-conducting liquids, e.g. benzene, oil, toluene, …
C4 to 10 e.g. concentrated acids, organic solvents, esters, aniline, alcohol, acetone, …
D> 10 conducting liquids, e.g. aqueous solutions, dilute acids and alkalis
Storage tank 1) Buffer tank 1) Process tank with agitator 1)
Calm product surface
(e.g. intermittent filling, filling from
bottom, immersion tubes).
Moving surfaces (e.g. continuous
filling, from above, mixing jets).
Turbulent surface.
Single stage agitator < 60 U/min.
Rod antenna Rod antenna Rod antenna
Measuring range [m (ft)]
1) For media group A to use a stilling well (20 m (66 ft)).
BB
10
(33)
20
(66)
15
(49)
CCDDBB
10
(33)
7.5
(25)
5
(16)
CCDDBB
8
(26)
4
(13)6
(20)
CCDD

Mounting Micropilot M FMR231 4 to 20 mA HART
18 Endress+Hauser
3.4 Installation instructions
3.4.1 Mounting kit
In addition to the tool needed for flange mounting, you will require the following tool:
• 4 mm (0.16 in) Allen wrench for turning the housing.
3.4.2 Installation in tank (free space)
Optimum mounting position
L00-FMR231xx-17-00-00-en-001
Standard installation
For installations in a stilling well, follow the engineering hints (→ä14) and note the following
points:
• Marker is aligned towards tank wall.
• The marker is always exactly in the middle between two bolt-holes in the flange.
• Use spring washers (1) (see Fig.).
Note!
It is recommended to retighten the flange bolts periodically, depending on process temperature
and pressure. Recommended torque: 60 to 100 Nm (44.25 to 73.75 lbf ft).
• After mounting, the housing can be turned 350° in order to simplify access to the display and the
terminal compartment.
• The inactive part of the rod antenna must extend below the nozzle.
• The rod antenna must be aligned vertically.
90°
90°
90°
90°
90°
DN80…150
ANSI 3…6”
DN50
ANSI 2”
ENDRESS+HAUSER
MICROPILOTII
ENDRESS+HAUSER
MICROPILOT II
IP65
IP 65
OrderCode:
Ser.-No.:
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
Messbereich
Measuringrange
U16...36 V DC
4...20mA
U16...36 V DC
4...20mA
max.20 m
Madein Germany Maulburg
Madein Germany Maulburg
T >70°C :
At>85°C
T >70°C :
At>85°C
marker at instrument flange
or threaded boss
1½” BSPT (R1½”)
or
1½ NPT

Micropilot M FMR231 4 to 20 mA HART Mounting
Endress+Hauser 19
L00-FMR231xx-17-00-00-en-002
Material PPS PTFE
Antenna length [mm (in)] 360 (14.2) 510 (20.1) 390 (15.4) 540 (21.3)
H [mm (in)] < 100 (< 3.94) < 250 (< 9.84) < 100 (< 3.94) < 250 (< 9.84)
H
H
1
beam launched
here
beam launched
here
inactivelength
inactivelengthspring washers

Mounting Micropilot M FMR231 4 to 20 mA HART
20 Endress+Hauser
3.4.3 Turn housing
After mounting, the housing can be turned 350° in order to simplify access to the display and the
terminal compartment. Proceed as follows to turn the housing to the required position:
• Undo the fixing screws (1)
• Turn the housing (2) in the required direction
• Tighten up the fixing screws (1)
L00-FMR2xxxx-17-00-00-en-010
3.5 Post-installation check
After the measuring instrument has been installed, perform the following checks:
• Is the measuring instrument damaged (visual check)?
• Does the measuring instrument correspond to the measuring point specifications such as process
temperature/pressure, ambient temperature, measuring range, etc.?
• Is the flange marking correctly aligned (→ä10)?
• Have the flange screws been tightened up with the respective tightening torque?
• Are the measuring point number and labeling correct (visual check)?
• Is the measuring instrument adequately protected against rain and direct sunlight (→ä57)?
1
1
22
F12 / F23 housing T12 housing
allen key
4mm (0.16 in)
