Endress+Hauser Micropilot M FMR240 User manual

BA230F/00/en/12.05
Nr. 52008602
Valid as of software version:
V 01.04.00 (amplifier)
V 1.0 (communication)
Operating Instructions
Micropilot M FMR240
Level-Radar
9

Brief operating instructions Micropilot M FMR 240 with Foundation Fieldbus
2Endress + Hauser
Brief operating instructions
L00-FMR2xxxx-19-00-00-en-039
!Note!
This operating manual explains the installation and initial start-up for the level transmitter. All
functions that are required for a typical measuring task are taken into account here. In addition, the
Micropilot M provides many other functions that are not included in this operating manual, such as
optimising the measuring point and converting the measured values.
An overview of all device functions can be found on Page 102.
The operating manual BA 221F/00/en "Description of the instrument functions for Micropilot M"
provides an extensive description of all device functions, which can be found on the enclosed
CD-ROM.
E
+
-
+
E
+
-
F
L
D
E
E
E
-
… …
… …
KA 159F/00/a2/05.02
52006292
52006292
… …
Micropilot M - Brief operating instructions
- dome
ceiling
- horizontal
cyl.
- bypass
…
- unknown
- DC: <1.9
- DC: 1.9 … 4
- DC: 4 … 10
- DC: >10
- standard
- calm
surface
- add. agitator
…
input E
(see sketch)
input F
(see sketch)
only for
bypass +
stilling well
- ok
- too small
- too big
- unknown
- manual
displayed
(see sketch)
D and L are confirm
or specify
range
suggestion
000
measured value
Group
selection
00
basic setup
01
safety settings
0C
system
parameter
09
display
0E
envelope curve
04
linearisation
05
extended calibr.
06
output (HART, FF)
profibus param.(PA)
092
language
0A
diagnostics
0A0
present
error
002
tank shape
004
process
cond.
005
empty
calibr.
006
full
calibr.
007
pipe
diameter
008
dist./
meas value
051
check
distance
003
medium
cond.
052
range of
mapping
053
start
mapping
008
dist./
meas value
flange:
reference point
of measurement
- envel. curve
- incl. FAC
- incl. cust. map
- single curve
- cyclic
= 100: unlocked
100: locked≠
= 2457: unlocked
2457: locked≠
0E1
plot settings
0E2
recording
curve
0A1
previous
error
0A4
unlock
parameter
threaded connection:
reference point of
measurement
HART
PA, FF
}
}
Contrast: +or +

Micropilot M FMR 240 with Foundation Fieldbus Table of contents
Endress + Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.4 Notes on safety conventions and symbols . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 9
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 9
3 Mounting . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 10
3.2 Incoming acceptance, transport, storage . . . . . . . . . 11
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 12
3.4 Installation instructions . . . . . . . . . . . . . . . . . . . . . 20
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 27
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 28
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 28
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 31
4.3 Recommended connection . . . . . . . . . . . . . . . . . . 31
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 31
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 31
5 Operation . . . . . . . . . . . . . . . . . . . . . . 32
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 32
5.2 Display and operating elements . . . . . . . . . . . . . . . 34
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
5.4 Display and acknowledging error messages . . . . . . 40
5.5 Foundation Fieldbus communication . . . . . . . . . . . 41
6 Commissioning. . . . . . . . . . . . . . . . . . 59
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
6.2 Switching on the measuring device . . . . . . . . . . . . 59
6.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
6.4 Basic Setup with the VU 331 . . . . . . . . . . . . . . . . . 62
6.5 Basic Setup with the ToF Tool . . . . . . . . . . . . . . . . 74
7 Maintenance. . . . . . . . . . . . . . . . . . . . 79
8 Accessories. . . . . . . . . . . . . . . . . . . . . 80
9 Trouble-shooting . . . . . . . . . . . . . . . . 82
9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . 82
9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 83
9.3 Application errors . . . . . . . . . . . . . . . . . . . . . . . . . 85
9.4 Orientation of the Micropilot . . . . . . . . . . . . . . . . . 87
9.5 Spare parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
9.6 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
9.7 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
9.8 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
9.9 Contact addresses of Endress+Hauser . . . . . . . . . . . 96
10 Technical data . . . . . . . . . . . . . . . . . . . 97
10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 97
11 Appendix. . . . . . . . . . . . . . . . . . . . . . 102
11.1 Operating menu FF (display modul), ToF Tool . . . 102
11.2 Description of functions . . . . . . . . . . . . . . . . . . . . 104
11.3 Function and system design . . . . . . . . . . . . . . . . . 105
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Safety instructions Micropilot M FMR 240 with Foundation Fieldbus
4Endress + Hauser
1 Safety instructions
1.1 Designated use
The Micropilot M FMR 240 is a compact radar level transmitter for the continuous, contactless
measurement of liquids, pastes and sludge. The device can also be freely mounted outside closed
metal vessels because of its operating frequency of about 26 GHz and a maximum radiated pulsed
energy of 1mW (average power output 1 µW). Operation is completely harmless to humans and
animals.
1.2 Installation, commissioning and operation
The Micropilot M has been designed to operate safely in accordance with current technical, safety
and EU standards. If installed incorrectly or used for applications for which it is not intended,
however, it is possible that application-related dangers may arise, e.g. product overflow due to
incorrect installation or calibration. For this reason, the instrument must be installed, connected,
operated and maintained according to the instructions in this manual: personnel must be authorised
and suitably qualified. The manual must have been read and understood, and the instructions
followed. Modifications and repairs to the device are permissible only when they are expressly
approved in the manual.
1.3 Operational safety
1.3.1 Hazardous areas
Measuring systems for use in hazardous environments are accompanied by separate "Ex
documentation", which is an integral part of this Operating Manual. Strict compliance with the
installation instructions and ratings as stated in this supplementary documentation is mandatory.
• Ensure that all personnel are suitably qualified.
• Observe the specifications in the certificate as well as national and local standards and regulations.
1.3.2 FCC approval
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
"Caution!
Changes or modifications not expressly approved by the part responsible for
compliance could void the user’s authority to operate the equipment.

Micropilot M FMR 240 with Foundation Fieldbus Safety instructions
Endress + Hauser 5
1.4 Notes on safety conventions and symbols
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety conventions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the instrument
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the instrument
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned
Explosion protection
0Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous
area
-Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring
entering areas with the designation “explosion hazardous areas” must conform with the stated type
of protection.
.Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in
safe areas still require a certificate if their outputs run into explosion hazardous areas
Electrical symbols
%Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied
&Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or
supplied
)Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of an
earth grounding system
*Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment
+Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e.g. neutral star or
equipotential line according to national or company practice
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C.
t >85°C

Identification Micropilot M FMR 240 with Foundation Fieldbus
6Endress + Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
The following technical data are given on the instrument nameplate:
L00-FMR2xxxx-18-00-00-en-003
Fig. 1: Information on the nameplate of the Micropilot M with Foundation Fieldbus (example)
2.1.2 Ordering structure
Ordering structure Micropilot M FMR 240
10 Approval:
A Non-hazardous area
F Non-hazardous area, WHG
1 ATEX II 1/2 G EEx ia IIC T6, IECEx Zone 0/1
6 ATEX II 1/2 G EEx ia IIC T6, WHG, IECEx Zone 0/1
3 ATEX II 1/2 G EEx em [ia] IIC T6, IECEx Zone 0/1
8 ATEX II 1/2 G EEx em [ia] IIC T6, WHG, IECEx Zone 0/1
4 ATEX II 1/2 G EEx d [ia] IIC T6, IECEx Zone 0/1
G ATEX II 3 G EEx nA II T6
H ATEX II 1/2G EEx ia IIC T6, ATEX II 3D
S FM IS - Cl.I Div.1 Gr. A-D
T FM XP - Cl.I Div.1 Group A-D
N CSA General Purpose
U CSA IS - Cl.I Div.1 Group A-D
V CSA XP - Cl.I Div.1 Group A-D
K TIIS EEx ia IIC T4
L TIIS EEx d [ia] IIC T4
W AUS Ex ib IIC T6
Y Special version
20 Antenna:
2 40mm/1-1/2"
350mm/2"
480mm/3"
5 100mm/4"
7 ... mm Wave Guide, inner diameter 21mm
8 ... inch Wave Guide, inner diameter 21mm
FMR 240- Product designation (part 1)

Micropilot M FMR 240 with Foundation Fieldbus Identification
Endress + Hauser 7
Ordering structure Micropilot M FMR 240 (continued)
30 Antenna seal; Temperature:
V FKM Viton; -20°C…150°C/-4°F…302°F
E FKM Viton GLT; -40°C…150°C/-40°F…302°F
K Kalrez; -20°C…150°C/-4°F…302°F
40 Antenna extension
1 without antenna extension
2 100 mm / 4" antenna extension
9 Special version
50 Process connection:
GGJ Thread DIN2999 R1-1/2, 316L
GNJ Thread ANSI NPT 1-1/2, 316L
TLJ Tri-Clamp ISO2852 DN70-76.1 (3"), 316L
CFJ DN50 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CGJ DN50 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
CFM DN50 PN10/16, AlloyC22>316L flange EN1092-1 (DIN2527)
CGM DN50 PN25/40, AlloyC22>316L flange EN1092-1 (DIN2527)
CMJ DN80 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CNJ DN80 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
CMM DN80 PN10/16, AlloyC22>316L flange EN1092-1 (DIN2527)
CNM DN80 PN25/40, AlloyC22>316L flange EN1092-1 (DIN2527)
CQJ DN100 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CRJ DN100 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
CQM DN100 PN10/16, AlloyC22>316L flange EN1092-1 (DIN2527)
CRM DN100 PN25/40, AlloyC22>316L flange EN1092-1 (DIN2527)
CWJ DN150 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CWM DN150 PN10/16, AlloyC22>316L flange EN1092-1 (DIN2527)
AEJ 2" 150lbs RF, 316/316L flange ANSI B16.5
AFJ 2" 300lbs RF, 316/316L flange ANSI B16.5
AEM 2" 150lbs, AlloyC22>316/316L flange ANSI B16.5
AFM 2" 300lbs, AlloyC22>316/316L flange ANSI B16.5
ALJ 3" 150lbs RF, 316/316L flange ANSI B16.5
AMJ 3" 300lbs RF, 316/316L flange ANSI B16.5
ALM 3" 150lbs, AlloyC22>316/316L flange ANSI B16.5
AMM 3" 300lbs, AlloyC22>316/316L flange ANSI B16.5
APJ 4" 150lbs RF, 316/316L flange ANSI B16.5
AQJ 4" 300lbs RF, 316/316L flange ANSI B16.5
APM 4" 150lbs, AlloyC22>316/316L flange ANSI B16.5
AQM 4" 300lbs, AlloyC22>316/316L flange ANSI B16.5
AWJ 6" 150lbs RF, 316/316L flange ANSI B16.5
AWM 6" 150lbs, AlloyC22>316/316L flange ANSI B16.5
KEJ 10K 50A RF, 316L flange JIS B2220
KEM 10K 50A, AlloyC22>316L flange JIS B2220
KLJ 10K 80A RF, 316L flange JIS B2220
KLM 10K 80A, AlloyC22>316L flange JIS B2220
KPJ 10K 100A RF, 316L flange JIS B2220
KPM 10K 100A, AlloyC22>316L flange JIS B2220
KWJ 10K 150A RF, 316L flange JIS B2220
KWM 10K 150A, AlloyC22>316L flange JIS B2220
YY9 Special version
FMR 240- Product designation (part 2)

Identification Micropilot M FMR 240 with Foundation Fieldbus
8Endress + Hauser
Ordering structure Micropilot M FMR 240 (continued)
60 Output; Operation:
A 4-20mA HART; 4-line display VU331, envelope curve display on site
SIL2, IEC61508/IEC61511-1
B 4-20mA HART; w/o display, via communication
SIL2, IEC61508/IEC61511-1
K 4-20mA HART; Prepared for FHX40, remote display (Accessory)
SIL2, IEC61508/IEC61511-1
C PROFIBUS PA; 4-line display VU331, envelope curve display on site
D PROFIBUS PA; w/o display, via communication
L PROFIBUS PA; Prepared for FHX40, remote display (Accessory)
E FOUNDATION Fieldbus; 4-line display VU331, envelope curve display on site
F FOUNDATION Fieldbus; w/o display, via communication
M FOUNDATION Fieldbus; Prepared for FHX40, remote display (Accessory)
Y Special version
70 Housing:
A F12 Alu, coated IP65 NEMA4X
B F23 316L IP65 NEMA4X
C T12 Alu, coated IP65 NEMA4X, separate conn. compartment
D T12 Alu, coated IP65 NEMA4X+OVP, separate conn. compartment,
OVP=overvoltage protection
YSpecialversion
80 Cable entry:
2 Gland M20 (EEx d > thread M20)
3ThreadG1/2
4 Thread NPT1/2
5PlugM12
6 Plug 7/8"
9 Special version
90 Additional option:
A Basic version
B EN10204-3.1B (316L wetted parts) Inspection certificate
N EN10204-3.1B, NACE MR0175 (316L wetted parts) Inspection certificate
S GL/ABS/NK marine certificate
Y Special version
FMR 240- Complete product designation

Micropilot M FMR 240 with Foundation Fieldbus Identification
Endress + Hauser 9
2.2 Scope of delivery
"Caution!
It is essential to follow the instructions concerning the unpacking, transport and storage of
measuring instruments given in the chapter "Incoming acceptance, transport, storage" on Page 11!
The scope of delivery consists of:
• Assembled instrument
• 2 ToF Tool - FieldTool®Package CD-ROMs
– CD 1: ToF Tool - FieldTool®Program
Program including Device Descriptions (device drivers) for all Endress+Hauser devices wich are
operable using ToF Tool
– CD 2: ToF Tool - FieldTool®Documentation
Documentation for all Endress+Hauser devices wich are operable using ToF Tool)
• Accessories (→Chap. 8)
Accompanying documentation:
• Short manual (basic setup/troubleshooting): housed in the instrument
• Operating manual (this manual)
• Approval documentation: if this is not included in the operating manual.
!Note!
The operating manual "Description of Instrument Functions" you can be found on the enclosed CD-
ROM.
2.3 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC declaration of conformity and thus complies with the
statutory requirements of the EG directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademark of the company, E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of the company, Ladish & Co., Inc., Kenosha, USA
ToF®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PulseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PhaseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
Foundation™ Fieldbus
Registered trademark of Fieldbus Foundation Austin, Texas, USA

Mounting Micropilot M FMR 240 with Foundation Fieldbus
10 Endress + Hauser
3Mounting

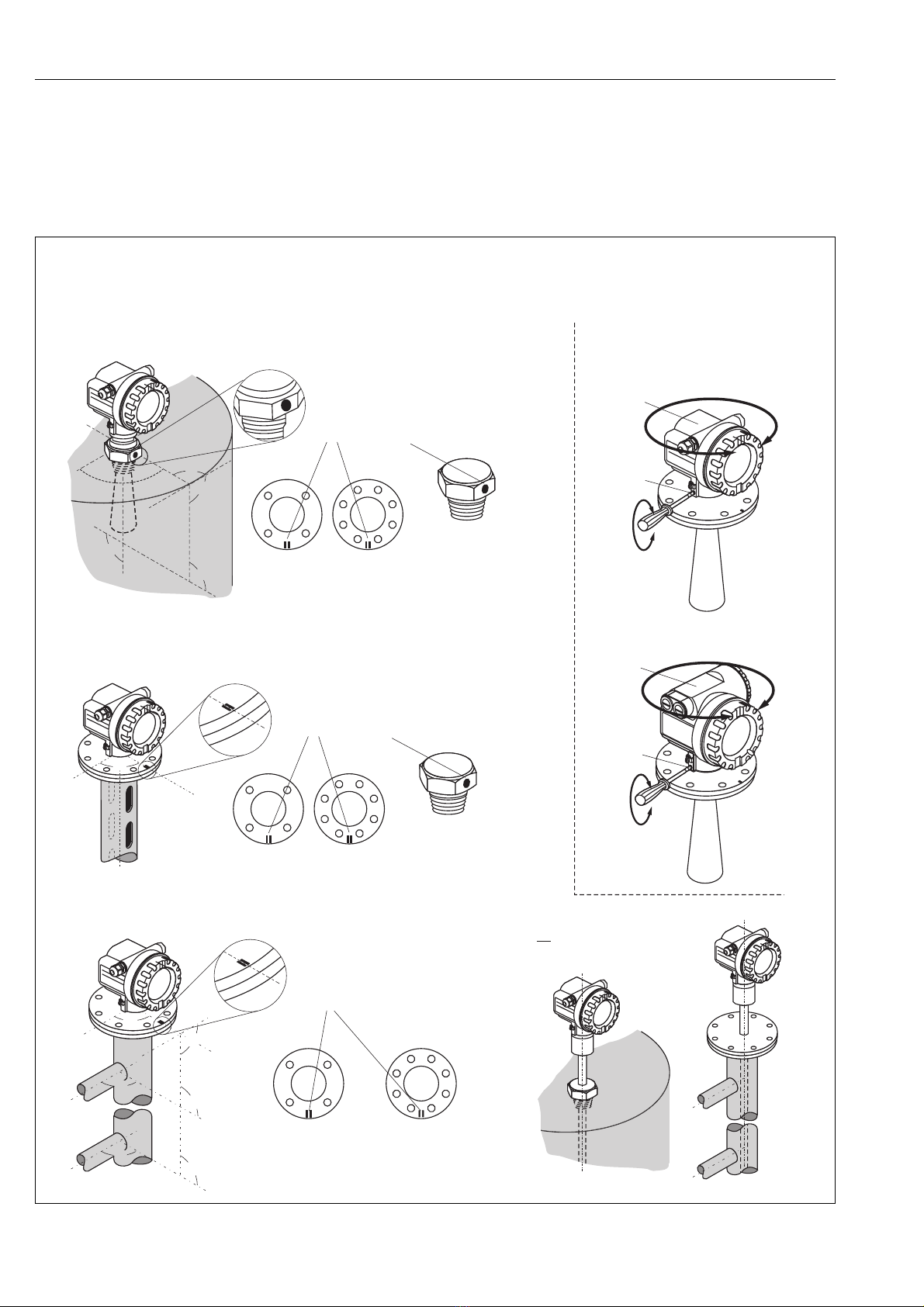

3.1 Quick installation guide
L00-FMR240xx-17-00-00-en-004
DN50
ANSI 2”
DN50
ANSI 2”
DN50
ANSI 2”
DN80…150
ANSI 3…6”
DN80…150
ANSI 3…6”
DN80…150
ANSI 3…6”
90°
90°
90°
90°
90°
90°
1
1
2
2
#
90°
90°
90°
90°
90°
90°
90°
90°
9
90°90°
90°
F12 / F23 housing
T12 housing
mark at instrument flange
Turn housing
Observe orientation when installing!
Installation in tank (free space):
Mark on process connector facing the nearest tank wall!
Installation in stilling well:
Mark on process connector pointed towards the slots or vent holes!
Installation in bypass:
Mark on process connector 90° offset from the tank connections!
Installation with Wave Guide antenna:
The housing can be turned 350°
in order to simplify access to the
display and the terminal compartment
Allen key
4 mm
1½” BSPT (R 1½”)
or
1½ NPT
mark at instrument flange
or threaded boss
1½” BSPT (R 1½”)
or
1½ NPT
mark at instrument flange
or threaded boss
No orientation is required!

Micropilot M FMR 240 with Foundation Fieldbus Mounting
Endress + Hauser 11
3.2 Incoming acceptance, transport, storage
3.2.1 Incoming acceptance
Check the packing and contents for any signs of damage.
Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
3.2.2 Transport
"Caution!
Follow the safety instructions and transport conditions for instruments of more than
18 kg.
Do not lift the measuring instrument by its housing in order to transport it.
3.2.3 Storage
Pack the measuring instrument so that is protected against impacts for storage and transport. The
original packing material provides the optimum protection for this.
The permissible storage temperature is -40 °C…+80 °C.

Mounting Micropilot M FMR 240 with Foundation Fieldbus
12 Endress + Hauser
3.3 Installation conditions
3.3.1 Dimensions
Housing dimensions
L00-F12xxxx-06-00-00-en-001
L00-T12xxxx-06-00-00-en-001
L00-F23xxxx-06-00-00-en-001
ENDRESS+HAUSER
65 78
max. 110
85
150
Ø 129
(Aluminium)
F12 housing
ENDRESS+HAUSER
78
85
65
162
max. 100 94
Ø 129
(Aluminium)
T12 housing
max. 94 104
Ø 129
150
40
(316L)
F23 housing

Micropilot M FMR 240 with Foundation Fieldbus Mounting
Endress + Hauser 13

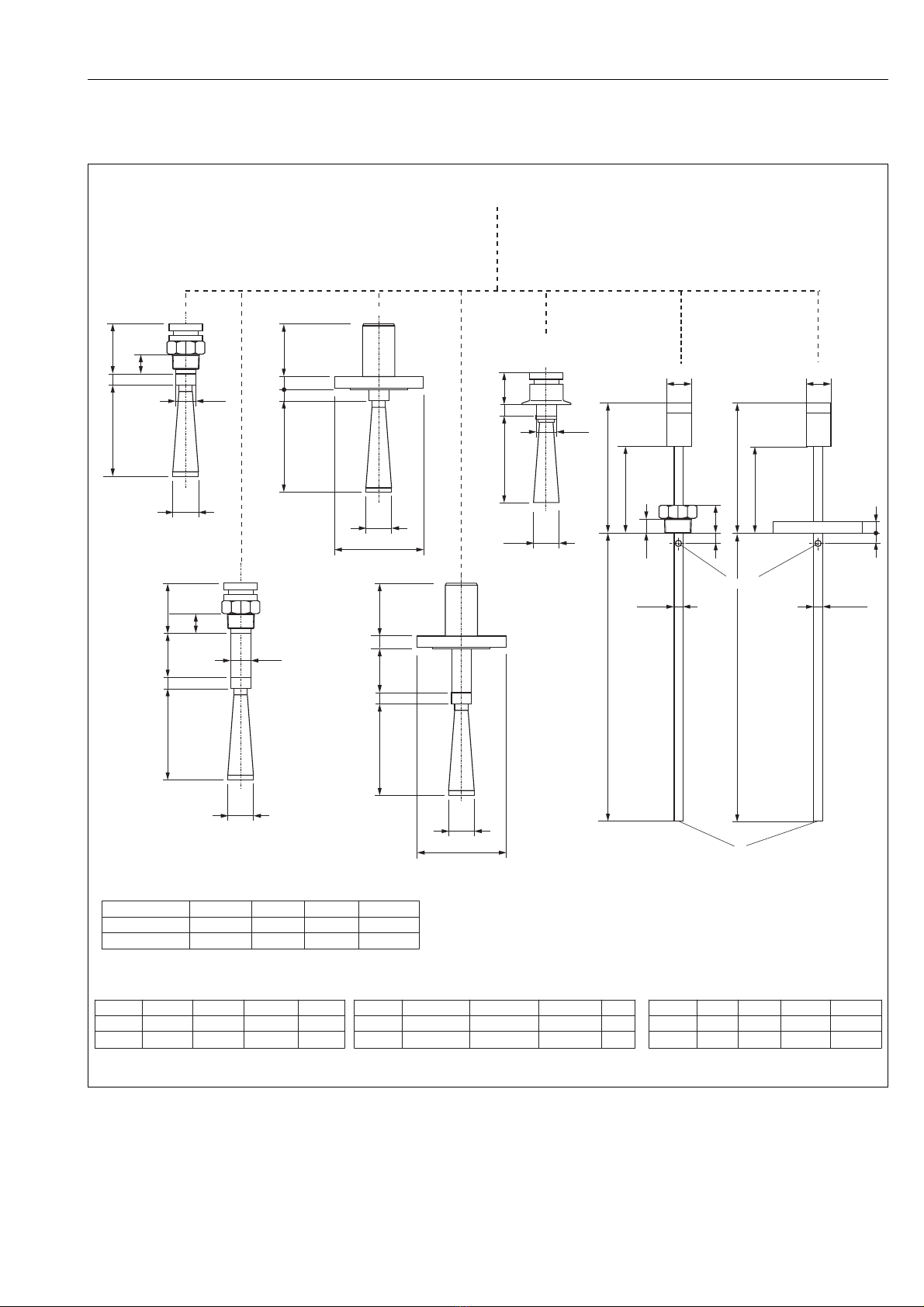

Micropilot M FMR 240 - process connection, type of antenna
L00-FMR240xx-06-00-00-en-005
L
L
86
L
L
L1
L1
b
b
18.5
18.5
16.5
18.5
18.5
ØD
ØD
Ø60Ø60
Ød
Ød
Ø40
Ø40
Ø40
Ø40
Ød
Ød
86
84
51
185
185
b
309
309
43
15
33
86
84
33
50mm/2”40mm/1½”
11586
4840 75
211
80mm/3”
95
282
100mm/4”
Ø 26.9Ø 26.9
23
b [mm] b [mm]b [mm]
DN 80 DN 803”DN 50 DN 502”
20 (24) 1823.9 (28.4)
18 (20) 1619.1 (22.4)
200 (200) 185190.5 (209.5)165 (165) 155
152.4 (165.1)
L [mm]
d [mm]
D [mm] D [mm]D [mm]
220 (235) 210228.6 (254)
20 (24) 1823.9 (31.8)
DN 100 DN 1004”
285 280279.4
22 2225.4
DN 150 DN 1506”
3" Tri-Clamp
ISO 2852
15
With antenne extension: L1 = 100 mm
Threaded connection
BSPT (R 1 ½”)
or 1 ½ NPT
1½” Flange DN 50…150
or equivalent
Wave Guide version
for 10K
Flange
Flange to JIS B2210
for 150 lbs (for 300 lbs)
Flange
Flange to ANSI B16.5
for PN 16 (for PN 40)
Antenna size
Horn antenna
Flange
Flange to EN 1092-1 (agreeable to DIN 2527)
inside diameter: 21 mm
standard: 300…3800
(longer on request)
standard: 300…3800
(longer on request)
F12 / T12 / F23 housing
vent hole

Mounting Micropilot M FMR 240 with Foundation Fieldbus
14 Endress + Hauser
3.3.2 Engineering hints

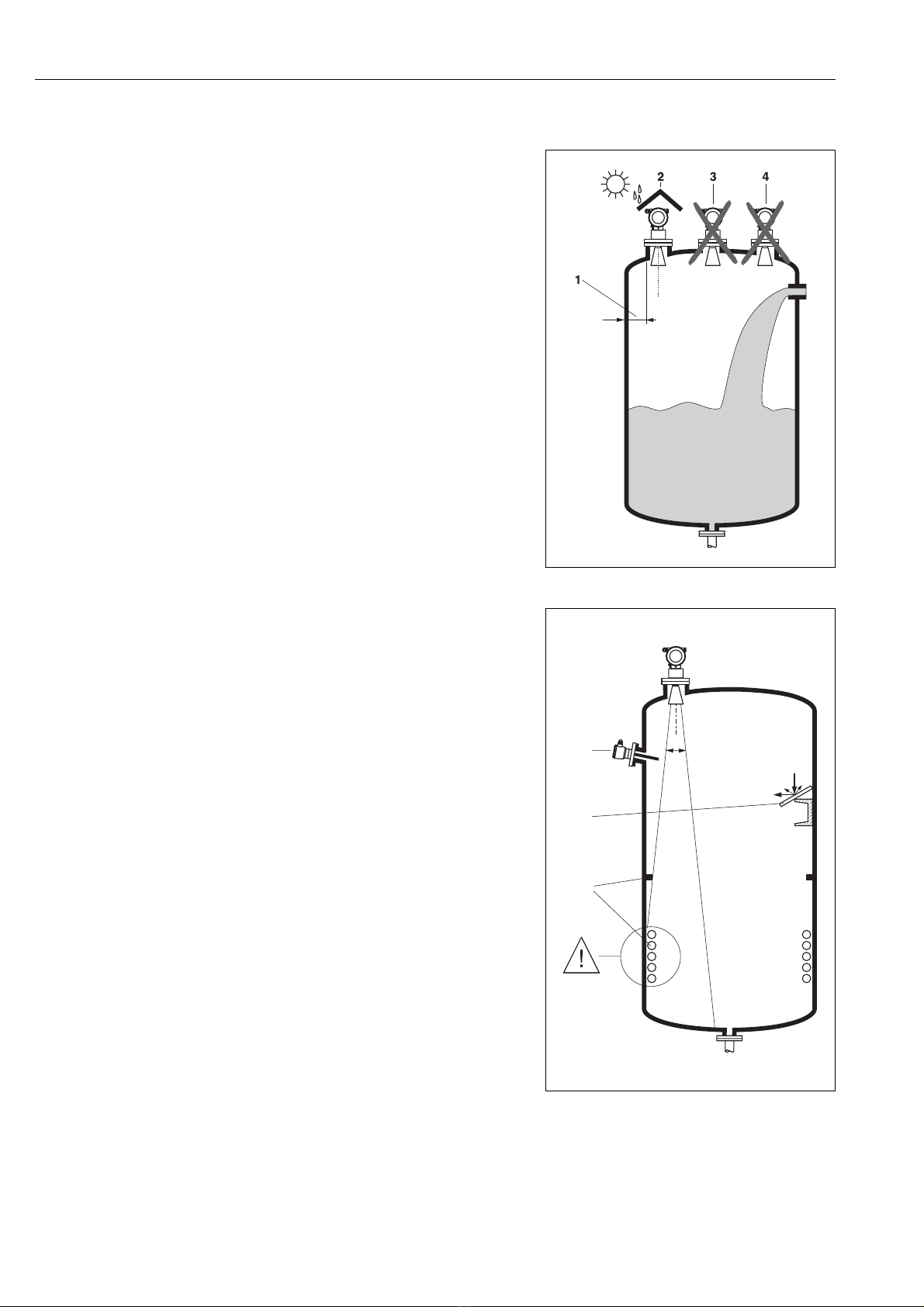

Orientation
• Recommended distance (1) wall – outer
edge of nozzle: ~1/6 of tank diameter.
Nevertheless the device should not be
installed closer than 15 cm (6“) to the
tankwall.
• Not in the centre (3), interference can cause
signal loss.
• Not above the fill stream (4).
• It is recommended to use a weather
protection cover (2) in order to protect the
transmitter from direct sun or rain. Assembly
and disassembly is simply done by means of a
tension clamp (→Chap. 8 on Page 80).
L00-FMR2xxxx-17-00-00-xx-001
Tank installations
• Avoid any installations (1), like limit switches,
temperature sensors, etc., inside the signal

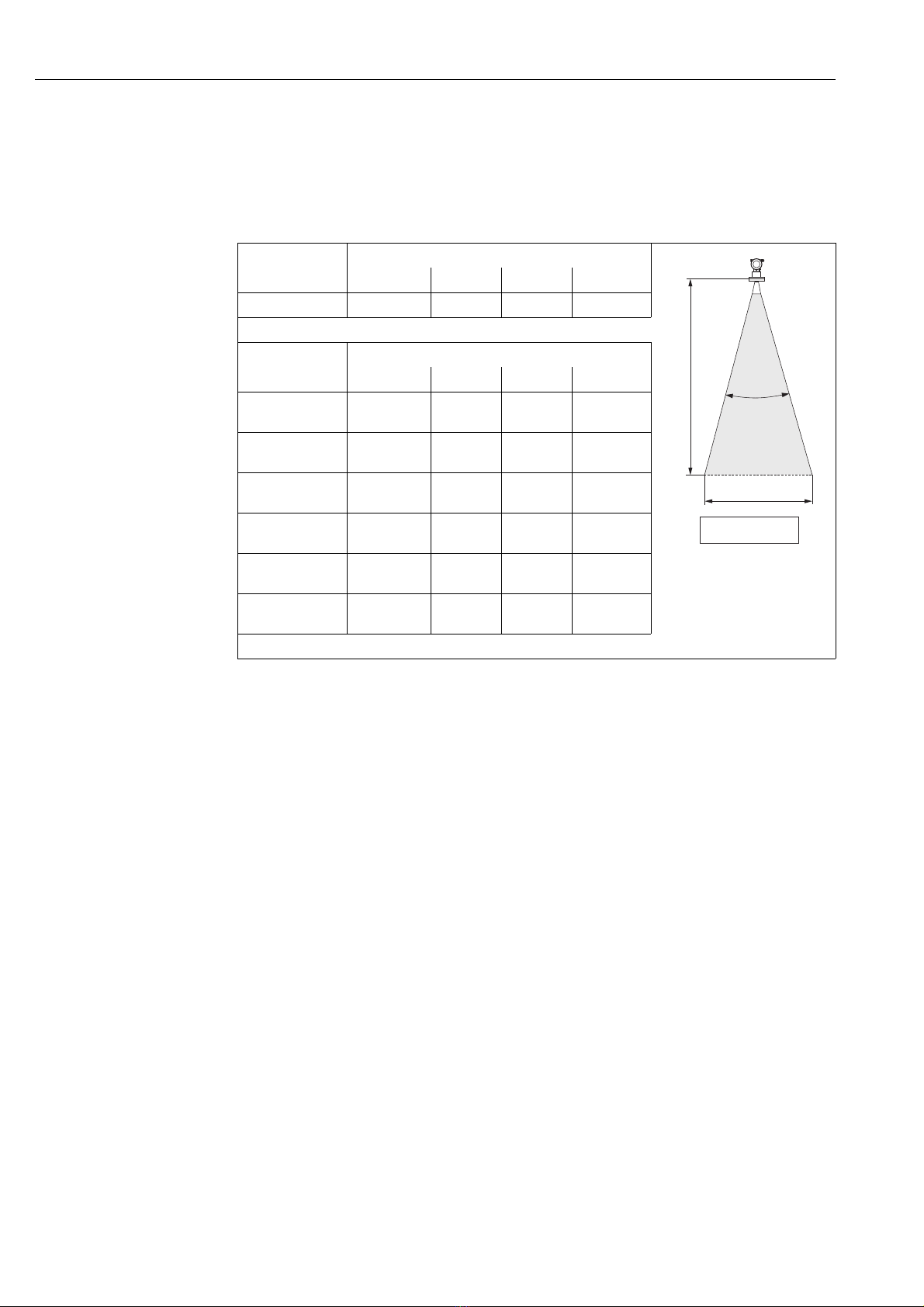

beam (refer to beam angle see "Beam angle"
on Page 16).
• Symmetrical installations (2), i.e. vacuum
rings, heating coils, baffles, etc., can also
interfere with the measurement.
Optimization options
• Antenna size: the bigger the antenna, the
smaller the beam angle, the less interference
echoes.
• Mapping: the measurement can be optimized
by means of electronic suppression of
interference echoes.
• Antenna alignment: refer to "optimum
mounting position"
• Stilling well: a stilling well respectively a
Wave Guide antenna can always be used to
avoid interference.
• Metallic screens (3) mounted at a slope spread
the radar signals and can, therefore, reduce
interference echoes.
Please contact Endress+Hauser for further infor-
mation. L00-FMR2xxxx-17-00-00-xx-002
1
3
2
a

Micropilot M FMR 240 with Foundation Fieldbus Mounting
Endress + Hauser 15
Measurement in a plastic tank
If the outer wall of the tank is made of a non-conductive material (e.g. GRP), microwaves can also
be reflected off interfering installations outside the signal beam (e.g. metallic pipes (1), ladders (2),
grates (3), …). Therefore, there should be no such interfering installations in the signal beam.
L00-FMR2xxxx-17-00-00-xx-013
Please contact Endress+Hauser for further information.
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>70°C:
At>85°C
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>
70°C:
At>85°C
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>70°C:
At>85°C
1
2
3

Mounting Micropilot M FMR 240 with Foundation Fieldbus
16 Endress + Hauser
Beam angle
The beam angle is defined as the angle a where the energy density of the radar waves reaches half
the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the
signal beam and can be reflected off interfering installations. Beam diameter Was function of
antenna type (beam angle α) and measuring distance D:
Antenna size
(horn diameter)
FMR 240
L00-FMR2xxxx-14-00-06-de-027
40 mm / 1½" 50 mm / 2" 80 mm / 3" 100 mm / 4"
Beam angle α23° 18° 10° 8°
Measuring
distance (D)
Beam diameter (W)
40 mm / 1½" 50 mm / 2" 80 mm / 3" 100 mm / 4"
3 m / 10 ft 1.22 m /
4.07 ft
0.95 m /
3.17 ft
0.53 m /
1.75 ft
0.42 m /
1.40 ft
6 m / 20 ft 1.22 m /
4.07 ft
1.90 m /
6.34 ft
1.05 m /
3.50 ft
0.84 m /
2.80 ft
9 m / 30 ft 2.44 m /
8.14 ft
2.85 m /
9.50 ft
1.58 m /
5.25 ft
1.26 m /
4.20 ft
12 m / 40 ft 3.80 m /
12.67 ft
2.10 m /
7.00 ft
1.68 m /
5.59 ft
15 m / 49 ft 4.75 m /
15.52 ft
2.63 m /
8.57 ft
2.10 m /
6.85 ft
20 m / 65 ft 
3.50 m /
11.37 ft
2.80 m /
9.09 ft
a
D
W
a
D
_
=2
2..
tan
W

Micropilot M FMR 240 with Foundation Fieldbus Mounting
Endress + Hauser 17

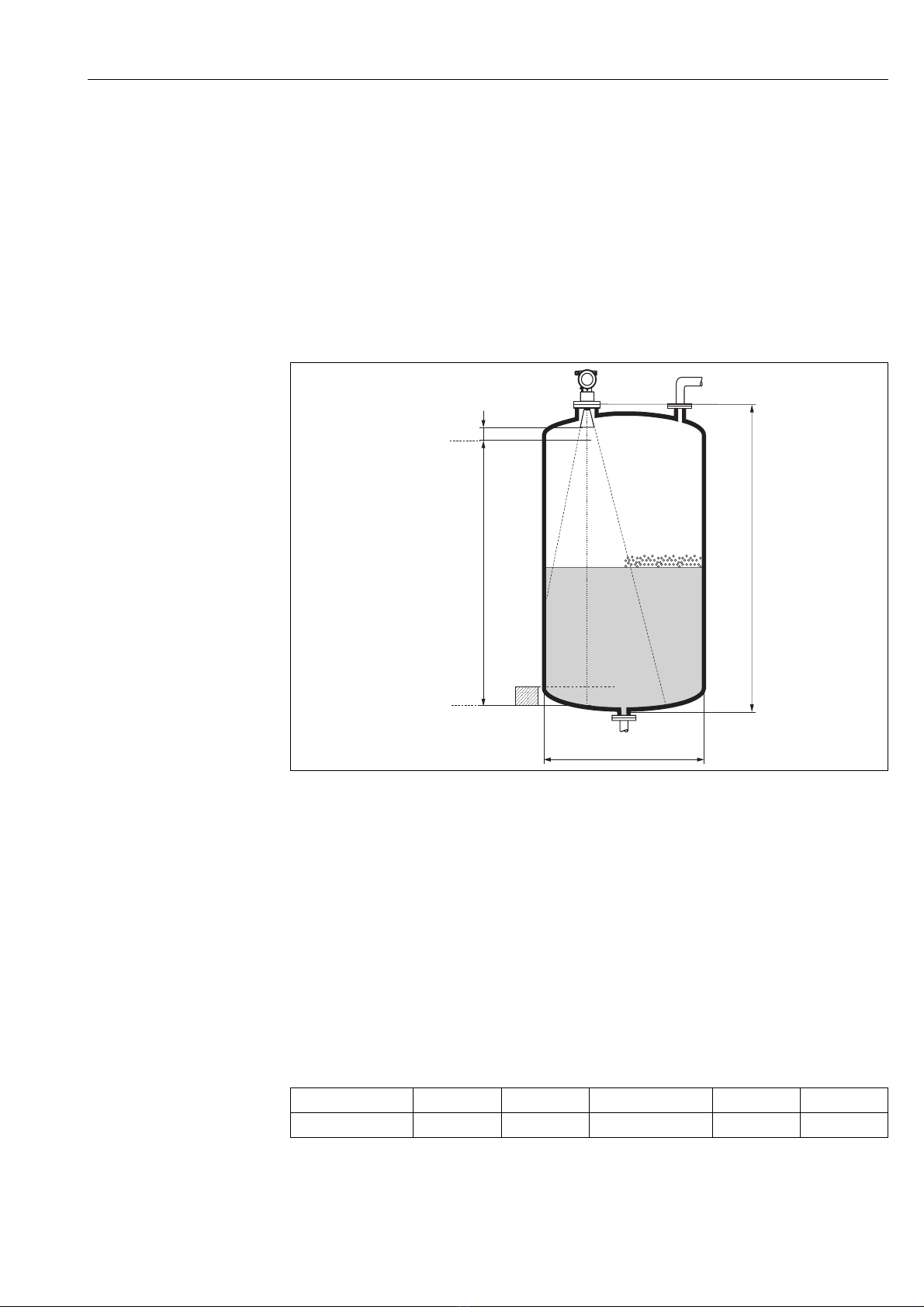

Measuring conditions
L00-FMR2xxxx-17-00-00-de-008
• The measuring range begins, where the beam hits the tank bottom. Particularly with dish bottoms
or conical outlets the level cannot be detected below this point.
• For Wave Guide antennas, the end of the pipe is the begin of the measuring range.
• In case of media with a low dielectric constant (groups A and B), the tank bottom can be visible
through the medium at low levels (low height C). Reduced accuracy has to be expected in this
range. If this is not acceptable, we recommend positioning the zero point at a distance C(see Fig.)
above the tank bottom in these applications.
• In principle it is possible to measure up to the tip of the antenna with FMR230/231/240.
However, due to considerations regarding corrosion and build-up, the end of the measuring range
should not be chosen any closer than A(see Fig.) to the tip of the antenna.
For FMR244/245, the end of measuring range should not be chosen closer than A(see Fig.) to
the tip of the antenna, especially if there is development of condensate.
• The smallest possible measuring range Bdepends on the antenna version (see Fig.).
• The tank diameter should be greater than D(see Fig.), the tank height at least H(see Fig.).
Note!
• In case of boiling surfaces, bubbling or tendency for foaming, use FMR230 or FMR231.
Depending on its consistence, foam can either absorb microwaves or reflect them off the foam
surface. Measurement is possible under certain conditions.
• In case of heavy steam development or condensate the max. measuring range of FMR240 may
decrease depending on density, temperature and composition of the steam →use FMR230 or
FMR231.
• For the measurement of absorbing gases such as ammonia NH3or some fluorocarbons 1),
please use FMR230 in a stilling well.
1) Affected compounds are e.g. R134a, R227, Dymel 152a.
100%
0%
B
A
C
H
ØD
A [mm/inch] B [m/inch] C [mm/inch] D [m/inch] H [m/inch]
FMR240 50 / 2 > 0,2 / > 8 50...150 / 2...6 > 0,2 / > 8 > 0,3 / > 12

Mounting Micropilot M FMR 240 with Foundation Fieldbus
18 Endress + Hauser
Measuring range
The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the
mounting location and eventual interference reflections.
The maximum configurable range is:
• 20 m (65 ft) for Micropilot M FMR23x/24x (larger ranges up to 35 m (114 ft) on request),
• 70 m (229 ft) for Micropilot M FMR250 (further informations see TI390F/00/en).
The following tables describe the groups of media as well as the achievable measuring range as a
function of application and media group. If the dielectric constant of a medium is unknown, it is
recommended to assume media group B to ensure a reliable measurement.
Measuring range depending on vessel type, conditions, and product for Micropilot M
FMR 240:
Media group DC (εr) Examples
A1,4...1,9 non-conducting liquids, e.g. liquefied gas1)
1) Treat Ammonia NH3as a medium of group A, i.e. use FMR230 in a stilling well.
B1,9...4 non-conducting liquids, e.g. benzene, oil, toluene, …
C4...10 e.g. concentrated acids, organic solvents, esters, aniline, alcohol, acetone, …
D> 10 conducting liquids, e.g. aqueous solutions, dilute acids and alkalis
Product class Storage tank
Calm product surface
(e.g. intermittent filling,
filling from bottom,
immersion tubes).
Buffer tank
Moving surfaces
(e.g. continuous filling, from above, mixing
jets).
Process tank with agitator
Turbulent surface.
Single stage agitator <60 RPM.
Measuring range Measuring range Measuring range
FMR 240 (horn dia): 40 mm /
1½"
50 mm /
2"
80 mm /
3"
100mm/
4"
40 mm /
1½"
50 mm /
2"
80 mm /
3"
100mm/
4"
40 mm /
1½"
50 mm /
2"
80 mm /
3"
100mm/
4"
ADK(εr)=1,4...1,9 to use a stilling well (20 m / 65 ft) or Wave Guide antenna1) (3.8 m /12.5 ft)
BDK(εr)=1,9...4 3m/
10 ft
5m/
16 ft
10 m /
33 ft
15 m /
49 ft
2m/
7 ft
2,5 m /
8 ft
5m/
16 ft
7,5 m /
25 ft
1m/
3 ft
1,5 m /
5 ft
2m/
7 ft
3m/
10 ft
CDK(εr)=4...10 6m/
20 ft
10 m /
33 ft
15 m /
49 ft
20 m /
65 ft
3m/
10 ft
5m/
16 ft
7,5 m /
25 ft
10 m /
33 ft
1,5 m /
5 ft
2m/
7 ft
3m/
10 ft
5m/
16 ft
DDK(εr)>10 9m/
30 ft
15 m /
49 ft
20 m /
65 ft
20 m /
65 ft
5m/
16 ft
7,5 m /
25 ft
10 m /
33 ft
12,5 m /
42 ft
2m/
7 ft
3m/
10 ft
5m/
16 ft
7m/
23 ft
1) In the event of horizontal stress (e.g. agitators), mechanical support is required or provide the Wave Guide antenna with a protective pipe (maximum lateral
load 100 Nm).

Micropilot M FMR 240 with Foundation Fieldbus Mounting
Endress + Hauser 19
Measuring range depending on vessel type, conditions, and product for Micropilot M
FMR 240 (continued):
Product class Stilling well Bypass Wave Guide antenna
Measuring range Measuring range Measuring range
FMR 240 (horn dia): 40mm/1½" ... 100mm/4" 50mm/2" ... 100mm/4" Wave Guide antenna1)
1) In the event of horizontal stress (e.g. agitators), mechanical support is required or provide the Wave Guide antenna
with a protective pipe (maximum lateral load 100 Nm).
ADK(εr)=1,4...1,9 20 m /
65 ft
to use the Wave Guide
antenna
depending
on pipe length,
max. 3.8 m (12.5 ft)
BDK(εr)=1,9...4 20 m /
65 ft
to use the Wave Guide
antenna
CDK(εr)=4...10 20 m /
65 ft
20 m /
65 ft
DDK(εr)>10 20 m /
65 ft
20 m /
65 ft

Mounting Micropilot M FMR 240 with Foundation Fieldbus
20 Endress + Hauser
3.4 Installation instructions
3.4.1 Mounting kit
In addition to the tool needed for flange mounting resp. a key AF60, you will require the following
tool:
• 4 mm/0.1" Allen wrench for turning the housing.
3.4.2 Installation in tank (free space)
Optimum mounting position
L00-FMR240xx-17-00-00-en-001
90°
90°
90°
90°
90°
90°
90°
90°
9
DN80…150
ANSI 3…6”
DN50
ANSI 2”
90°
1½” BSPT (R 1½”),
G 1½" (FMR 244)
or
1½ NPT
marker at instrument flange
or threaded boss
