Endress+Hauser Micropilot M FMR240 User manual

BA227F/00/EN/03.10
71112092
Valid as of software version:
01.05.00
Operating Instructions
Micropilot M FMR240
Level-Radar

Brief operating instructions Micropilot M FMR240 PROFIBUS PA
2Endress+Hauser
Brief operating instructions
L00-FMR250xx-19-00-00-en-020
!Note!
This operating manual explains the installation and initial start-up for the level transmitter. All
functions that are required for a typical measuring task are taken into account here. In addition, the
Micropilot M provides many other functions that are not included in this operating manual, such as
optimising the measuring point and converting the measured values.
An overview of all device functions can be found on →ä102.
The operating manual BA291F/00/EN "Description of Instrument Functions" provides an
extensive description of all device functions, which can be found on the enclosed CD-ROM.
E
+
-
+
E
+
-
E
E
-
… …
…
KA235F/00/a2/08.06
52025245
…
20 mA
100%
4mA
0%
D
L
F
E
52025245

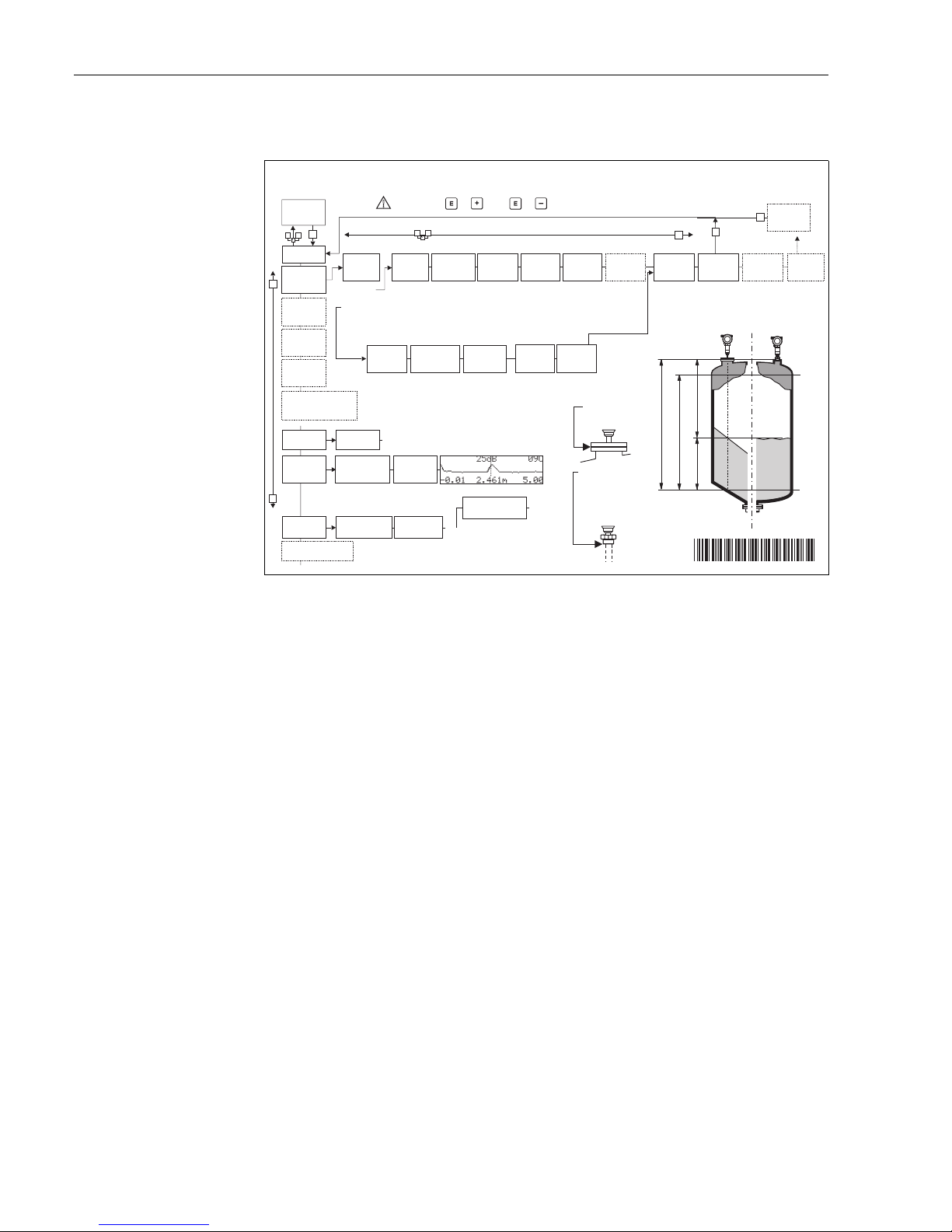

Micropilot M FMR240/244/245/250 - Brief operating instructions
- dome
ceiling
- horizontal
cyl.
- bypass
…
- unknown
- metal silo
- concrete
silo
- bin / bunker
…
- liquid
- solid
- unknown
- DC: <1.9
- DC: 1.9 … 4
- DC: 4 … 10
- DC: >10
- standard
- calm
surface
- add.
agitator
…
input E
(see sketch)
input E
(see sketch)
input F
(see sketch)
input F
(see sketch)
only for
bypass +
stilling well
-ok
- too small
- too big
- unknown
- manual
displayed
(see sketch)
D and L are confirm
or specify
range
suggestion
000
measured
value
Group
selection
00
basic
setup
01
safety
settings
0C
system parameter
09
display
0E
envelope
curve
04
linearisation
05
extended
calibr.
06
output (HART, FF)
profibus param. (PA)
092
language
0A
diagnostics
0A0
present error
002
tank
shape
002
tank
shape
00A
vessel /
silo
004
process
cond.
005
empty
calibr.
005
empty
calibr.
006
full
calibr.
006
full
calibr.
007
pipe
diameter
008
dist./
meas value
051
check
distance
003
medium
cond.
00B
medium
cond.
00C
proscess
cond.
052
range of
mapping
053
start
mapping
008
dist./
meas value
- envel. curve
- incl. FAC
- incl. cust. map
- single curve
- cyclic
= 100: unlocked
100: locked≠
0E1
plot settings
0E2
recording
curve
0A1
previous error
0A4
unlock parameter
HART
}
Contrast: +or +
- unknown
- DC: 1.6...1.9
- DC: 1.9 …2.5
- DC: 2.5 …4
...
- standard
- fast change
- slow change
- test: no filter flange:
reference point of
measurement
threaded
connection
1½” (R1
:
reference point of
measurement
BSPT ½”)
or 1½ NPT
001
media
type
= 2457: unlocked
2457: locked≠PA, FF
}
Solid Liquid

Micropilot M FMR240 PROFIBUS PA Table of contents
Endress+Hauser 3
Table of contents
1 Safety instructions . . . . . . . . . . . . . . . . 4
1.1 Designated use . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
1.2 Installation, commissioning and operation . . . . . . . . 4
1.3 Operational safety and process safety . . . . . . . . . . . . 4
1.4 Notes on safety conventions and symbols . . . . . . . . . 5
2 Identification . . . . . . . . . . . . . . . . . . . . 6
2.1 Device designation . . . . . . . . . . . . . . . . . . . . . . . . . 6
2.2 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.3 Certificates and approvals . . . . . . . . . . . . . . . . . . . . 9
2.4 Registered trademarks . . . . . . . . . . . . . . . . . . . . . . . 9
3 Mounting . . . . . . . . . . . . . . . . . . . . . . 10
3.1 Quick installation guide . . . . . . . . . . . . . . . . . . . . . 10
3.2 Incoming acceptance, transport, storage . . . . . . . . . 11
3.3 Installation conditions . . . . . . . . . . . . . . . . . . . . . . 12
3.4 Installation instructions . . . . . . . . . . . . . . . . . . . . . 22
3.5 Post-installation check . . . . . . . . . . . . . . . . . . . . . . 28
4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . 29
4.1 Quick wiring guide . . . . . . . . . . . . . . . . . . . . . . . . 29
4.2 Connecting the measuring unit . . . . . . . . . . . . . . . 32
4.3 Recommanded connection . . . . . . . . . . . . . . . . . . . 33
4.4 Degree of protection . . . . . . . . . . . . . . . . . . . . . . . 33
4.5 Post-connection check . . . . . . . . . . . . . . . . . . . . . . 33
5 Operation . . . . . . . . . . . . . . . . . . . . . . 34
5.1 Quick operation guide . . . . . . . . . . . . . . . . . . . . . . 34
5.2 Display and operating elements . . . . . . . . . . . . . . . 36
5.3 Local operation . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
5.4 Display and acknowledging error messages . . . . . . 42
5.5 PROFIBUS PA communication . . . . . . . . . . . . . . . . 43
6 Commissioning. . . . . . . . . . . . . . . . . . 59
6.1 Function check . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
6.2 Switching on the measuring device . . . . . . . . . . . . 59
6.3 Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
6.4 Basic Setup with the device display . . . . . . . . . . . . 62
6.5 Basic Setup with the
Endress+Hauser operating program . . . . . . . . . . . . 74
7 Maintenance. . . . . . . . . . . . . . . . . . . . 78
8 Accessories. . . . . . . . . . . . . . . . . . . . . 79
8.1 Weather protection cover . . . . . . . . . . . . . . . . . . . 79
8.2 Commubox FXA291 . . . . . . . . . . . . . . . . . . . . . . . 79
8.3 ToF Adapter FXA291 . . . . . . . . . . . . . . . . . . . . . . . 79
8.4 Proficard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
8.5 Profiboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 79
8.6 Remote display FHX40 . . . . . . . . . . . . . . . . . . . . . 80
8.7 Horn cover for 80 mm (3") and 100 mm (4")
horn antenna . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81
9 Trouble-shooting . . . . . . . . . . . . . . . . . 83
9.1 Trouble-shooting instructions . . . . . . . . . . . . . . . . . 83
9.2 System error messages . . . . . . . . . . . . . . . . . . . . . . 84
9.3 Application errors in liquids . . . . . . . . . . . . . . . . . . 86
9.4 Application errors in solids . . . . . . . . . . . . . . . . . . . 88
9.5 Orientation of the Micropilot . . . . . . . . . . . . . . . . . 89
9.6 Spare Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
9.7 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
9.8 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
9.9 Software history . . . . . . . . . . . . . . . . . . . . . . . . . . . 92
9.10 Contact addresses of Endress+Hauser . . . . . . . . . . . 92
10 Technical data . . . . . . . . . . . . . . . . . . . 93
10.1 Additional technical data . . . . . . . . . . . . . . . . . . . . 93
11 Appendix. . . . . . . . . . . . . . . . . . . . . . 102
11.1 Operating menu PROFIBUS PA . . . . . . . . . . . . . . 102
11.2 Patents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Safety instructions Micropilot M FMR240 PROFIBUS PA
4Endress+Hauser
1 Safety instructions
1.1 Designated use
The Micropilot M is a compact radar level transmitter for the continuous, contactless measurement
of liquids, pastes, sludge and solids. The device can also be freely mounted outside closed metal
vessels because of its operating frequency of about 26 GHz and a maximum radiated pulsed energy
of 1 mW (average power output 1 μW). Operation is completely harmless to humans and animals.
1.2 Installation, commissioning and operation
The Micropilot M has been designed to operate safely in accordance with current technical, safety
and EU standards. If installed incorrectly or used for applications for which it is not intended,
however, it is possible that application-related dangers may arise, e. g. product overflow due to
incorrect installation or calibration. For this reason, the instrument must be installed, connected,
operated and maintained according to the instructions in this manual: personnel must be authorised
and suitably qualified. The manual must have been read and understood, and the instructions
followed. Modifications and repairs to the device are permissible only when they are expressly
approved in the manual.
1.3 Operational safety and process safety
Alternative monitoring measures must be taken to ensure operational safety and process safety
during configuration, testing and maintenance work on the device.
Hazardous areas
Measuring systems for use in hazardous environments are accompanied by separate "Ex
documentation", which is an integral part of this Operating Manual. Strict compliance with the
installation instructions and ratings as stated in this Additional documentation is mandatory.
• Ensure that all personnel are suitably qualified.
• Observe the specifications in the certificate as well as national and local regulations.
1.3.1 FCC approval
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause
undesired operation.
"Caution!
Changes or modifications not expressly approved by the part responsible for compliance could void
the user’s authority to operate the equipment.

Micropilot M FMR240 PROFIBUS PA Safety instructions
Endress+Hauser 5
1.4 Notes on safety conventions and symbols
In order to highlight safety-relevant or alternative operating procedures in the manual, the following
conventions have been used, each indicated by a corresponding symbol in the margin.
Safety conventions
#Warning!
A warning highlights actions or procedures which, if not performed correctly, will lead to personal
injury, a safety hazard or destruction of the instrument.
"Caution!
Caution highlights actions or procedures which, if not performed correctly, may lead to personal
injury or incorrect functioning of the instrument.
!Note!
A note highlights actions or procedures which, if not performed correctly, may indirectly affect
operation or may lead to an instrument response which is not planned.
Explosion protection
0Device certified for use in explosion hazardous area
If the device has this symbol embossed on its name plate it can be installed in an explosion hazardous
area.
-Explosion hazardous area
Symbol used in drawings to indicate explosion hazardous areas. Devices located in and wiring
entering areas with the designation “explosion hazardous areas” must conform with the stated type
of protection.
.Safe area (non-explosion hazardous area)
Symbol used in drawings to indicate, if necessary, non-explosion hazardous areas. Devices located in
safe areas still require a certificate if their outputs run into explosion hazardous areas.
Electrical symbols
%Direct voltage
A terminal to which or from which a direct current or voltage may be applied or supplied.
&Alternating voltage
A terminal to which or from which an alternating (sine-wave) current or voltage may be applied or
supplied.
)Grounded terminal
A grounded terminal, which as far as the operator is concerned, is already grounded by means of an
earth grounding system.
*Protective grounding (earth) terminal
A terminal which must be connected to earth ground prior to making any other connection to the
equipment.
+Equipotential connection (earth bonding)
A connection made to the plant grounding system which may be of type e. g. neutral star or
equipotential line according to national or company practice.
Temperature resistance of the connection cables
States, that the connection cables must be resistant to a temperature of at least 85 °C (185 °F).
t >85°C

Identification Micropilot M FMR240 PROFIBUS PA
6Endress+Hauser
2 Identification
2.1 Device designation
2.1.1 Nameplate
The following technical data are given on the instrument nameplate:
Typenschild-FMxxxx-xx
Information on the nameplate of the Micropilot M
1 Instrument designation
2 Order code
3 Serial number
4 Process pressure
5 Process temperature
6 Length (optional)
7 Power supply
8 Current supply
9 Ambient temperature
10 Cable specification
11 Factory sealed
12 Radio equipment number
13 TÜV identification mark
14 Certificate symbol (optional) e.g. Ex, NEPSI
15 ertificate symbol (optional) e.g. 3A
16 Certificate symbol (optional) e.g. SIL, FF
17 Place of production
18 Degree of protection e.g. IP65, IP67
19 Certificates and approvals
20 Document number of safety instructions e.g. XA, ZD, ZE
21 Dat./Insp. xx / yy (xx = week of production, yy = year of production)
ENDRESS+HAUSER
Order Code:
Ser.-No.:
Dat./Insp.:
if modification
see sep. label
X=
1
2
3
4
5
7
8
910 11
12
13
14 15
6
16
17
18
19
20
21

Micropilot M FMR240 PROFIBUS PA Identification
Endress+Hauser 7
2.1.2 Ordering structure
This overview does not mark options which are mutually exclusive.
10 Approval:
A Non-hazardous area
F Non-hazardous area, WHG
1 ATEX II 1/2G EEx ia IIC T6
6 ATEX II 1/2G EEx ia IIC T6, WHG
3 ATEX II 1/2G EEx em (ia) IIC T6
8 ATEX II 1/2G EEx em (ia) IIC T6, WHG
4 ATEX II 1/2G EEx d (ia) IIC T6
B ATEX II 1/2G, II 1/2D, Alu blind cover, ATEX II 1/2G EEx ia IIC T6, ATEX II 1/2D
H ATEX II 1/2G EEx ia IIC T6, ATEX II 3D
G ATEX II 3G EEx nA II T6
S FM IS - Cl.I Div.1 Gr. A-D, zone 0, 1, 2
T FM XP - Cl.I Div.1 Group A-D, zone 1, 2
N CSA General Purpose
U CSA IS - Cl.I Div.1 Group A-D, zone 0, 1, 2
V CSA XP - Cl.I Div.1 Group A-D, zone 1, 2
L TIIS EEx d (ia) IIC T4
D IECEx Zone 0/1, Ex ia IIC T6
E IECEx Zone 0/1, Ex d (ia) IIC T6
I NEPSI Ex ia IIC T6
J NEPSI Ex d (ia) ia IIC T6
R NEPSI Ex nAL IIC T6
Y Special version
20 Antenna:
E 40mm/1-1/2", gas-tight feed through
F 50mm/2", gas-tight feed through
G 80mm/3", gas-tight feed through
H 100mm/4", gas-tight feed through
2 40mm/1-1/2"
350mm/2"
480mm/3"
5 100mm/4"
9 Special version
30 Antenna Seal; Temperature:
V FKM Viton; -20…150°C/-4…302°F
E FKM Viton GLT; -40…150°C/-40…302°F
K Kalrez; -20…150°C/-4…302°F
Y Special version
40 Antenna Extension
1 Not selected
2100mm/4"
9 Special version
50 Process Connection:
GGJ Thread EN10226 R1-1/2, 316L
GNJ Thread ANSI NPT1-1/2, 316L
TDJ Tri-Clamp ISO2852 DN40-51 (2"), 316L
TLJ Tri-Clamp ISO2852 DN70-76.1 (3"), 316L
CFJ DN50 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CGJ DN50 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
CFM DN50 PN10/16, AlloyC22 > 316L flange EN1092-1 (DIN2527)
CGM DN50 PN25/40, AlloyC22 > 316L flange EN1092-1 (DIN2527)
CMJ DN80 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CNJ DN80 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
CMM DN80 PN10/16, AlloyC22 > 316L flange EN1092-1 (DIN2527)
CNM DN80 PN25/40, AlloyC22 > 316L flange EN1092-1 (DIN2527)
CQJ DN100 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CRJ DN100 PN25/40 B1, 316L flange EN1092-1 (DIN2527 C)
CQM DN100 PN10/16, AlloyC22 > 316L flange EN1092-1 (DIN2527)
CRM DN100 PN25/40, AlloyC22 > 316L flange EN1092-1 (DIN2527)
CWJ DN150 PN10/16 B1, 316L flange EN1092-1 (DIN2527 C)
CWM DN150 PN10/16, AlloyC22 > 316L flange EN1092-1 (DIN2527)
AEJ 2" 150lbs RF, 316/316L flange ANSI B16.5
AFJ 2" 300lbs RF, 316/316L flange ANSI B16.5
AEM 2" 150lbs, AlloyC22 > 316/316L flange ANSI B16.5

Identification Micropilot M FMR240 PROFIBUS PA
8Endress+Hauser
AFM 2" 300lbs, AlloyC22 > 316/316L flange ANSI B16.5
ALJ 3" 150lbs RF, 316/316L flange ANSI B16.5
AMJ 3" 300lbs RF, 316/316L flange ANSI B16.5
ALM 3" 150lbs, AlloyC22 > 316/316L flange ANSI B16.5
AMM 3" 300lbs, AlloyC22 > 316/316L flange ANSI B16.5
APJ 4" 150lbs RF, 316/316L flange ANSI B16.5
AQJ 4" 300lbs RF, 316/316L flange ANSI B16.5
APM 4" 150lbs, AlloyC22 > 316/316L flange ANSI B16.5
AQM 4" 300lbs, AlloyC22 > 316/316L flange ANSI B16.5
AWJ 6" 150lbs RF, 316/316L flange ANSI B16.5
AWM 6" 150lbs, AlloyC22 > 316/316L flange ANSI B16.5
KEJ 10K 50A RF, 316L flange JIS B2220
KEM 10K 50A, AlloyC22 > 316L flange JIS B2220
KLJ 10K 80A RF, 316L flange JIS B2220
KLM 10K 80A, AlloyC22 > 316L flange JIS B2220
KPJ 10K 100A RF, 316L flange JIS B2220
KPM 10K 100A, AlloyC22 > 316L flange JIS B2220
KWJ 10K 150A RF, 316L flange JIS B2220
KWM 10K 150A, AlloyC22 > 316L flange JIS B2220
YY9 Special version
60 Output; Operation:
A 4-20mA SIL HART; 4-line display VU331, envelope curve display on site
B 4-20mA SIL HART; w/o display, via communication
K 4-20mA SIL HART; Prepared for FHX40, remote display (accessory)
C PROFIBUS PA; 4-line display VU331, envelope curve display on site
D PROFIBUS PA; w/o display, via communication
L PROFIBUS PA; Prepared for FHX40, remote display (accessory)
E FOUNDATION Fieldbus; 4-line display, envelope curve display on site
F FOUNDATION Fieldbus; w/o display, via communication
M FOUNDATION Fieldbus; Prepared for FHX40, remote display (accessory)
Y Special version
70 Housing:
A F12 Alu, coated IP65 NEMA4X
B F23 316L IP65 NEMA4X
C T12 Alu, coated IP65 NEMA4X, separate conn. compartment
D T12 Alu, coated IP65 NEMA4X+OVP, separate conn. compartment,
OVP=overvoltage protection
Y Special version
80 Cable Entry:
2 Gland M20 (EEx d > thread M20)
3ThreadG1/2
4 Thread NPT1/2
5PlugM12
6 Plug 7/8"
9 Special version
90 Additional Option:
A Basic version
B EN10204-3.1 material, wetted parts,
(316L wetted parts) inspection certificate
F Advanced dynamics, max. MB=70m liquids, MB=measuring range
G
Advanced dynamics, 3.1, NACE, max. MB=70m liquids, MB=measuring range
EN10204-3.1 material, NACE MR0175 (316L wetted parts) inspection certificate
H 5-point linearity protocol, see additional spec.
J 5-point, 3.1, NACE, 5-point linearity protocol, see additional spec., EN10204-
3.1 material, NACE MR0175 (316L wetted parts) inspection certificate
L
5-point, advanced dynamics, 3.1, NACE, 5-point linearity protocol, see additional
spec., Advanced dynamics, max MB=70m liquids, MB=measuring range
EN10204-3.1 material, NACE MR0175, (316L wetted parts) inspection certificate
N EN10204-3.1 material, NACE MR0175
(316L wetted parts) inspection certificate
S GL/ABS/NK marine certificate
Y Special version
995 Marking:
1Tagging(TAG)
2 Bus address
FMR240- Complete product designation
50 Process Connection:

Micropilot M FMR240 PROFIBUS PA Identification
Endress+Hauser 9
2.2 Scope of delivery
"Caution!
It is essential to follow the instructions concerning the unpacking, transport and storage of
measuring instruments given in the chapter "Incoming acceptance, transport, storage", →ä11!
The scope of delivery consists of:
• Assembled instrument
• Accessories (→ä79)
• Endress+Hauser oprating program on the enclosed CD-ROM
• Brief operating instructions KA1007F/00/EN for quick commissioning
• Brief operating instructions KA235F/00/A2 (basic setup/troubleshooting), housed in the
instrument)
• Approval documentation: if this is not included in the operating manual
• CD-ROM with further documentation, e. g.
- Technical Information
- Operating Instructions
- Description of Intrument Functions
2.3 Certificates and approvals
CE mark, declaration of conformity
The device is designed to meet state-of-the-art safety requirements, has been tested and left the
factory in a condition in which it is safe to operate. The device complies with the applicable
standards and regulations as listed in the EC declaration of conformity and thus complies with the
statutory requirements of the EC directives. Endress+Hauser confirms the successful testing of the
device by affixing to it the CE mark.
2.4 Registered trademarks
KALREZ®, VITON®, TEFLON®
Registered trademark of the company, E.I. Du Pont de Nemours & Co., Wilmington, USA
TRI-CLAMP®
Registered trademark of the company, Ladish & Co., Inc., Kenosha, USA
ToF®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PulseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PhaseMaster®
Registered trademark of the company Endress+Hauser GmbH+Co. KG, Maulburg, Germany
PROFIBUS®
Registered trademark of the PROFIBUS Trade Organisation, Karlsruhe, Germany

Mounting Micropilot M FMR240 PROFIBUS PA
10 Endress+Hauser
3Mounting

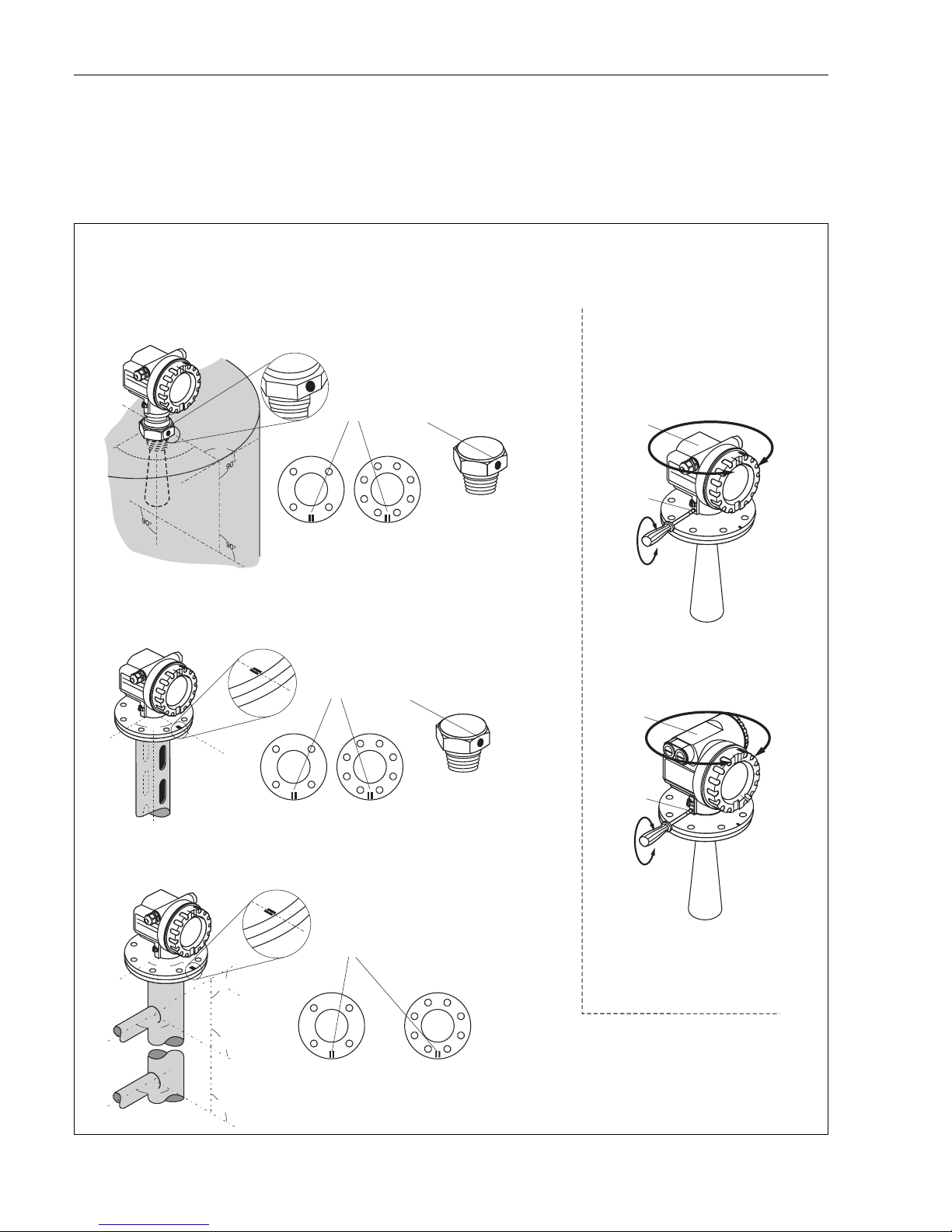

3.1 Quick installation guide
L00-FMR240xx-17-00-00-en-004
DN50
ANSI2”
DN50
ANSI2”
DN50
ANSI2”
DN80…150
ANSI3…6”
DN80…150
ANSI3…6”
DN80…150
ANSI3…6”
90°
90°
90°
90°
90°
90°
1
1
2
2
#
90°
90°
90°
90°
90°90°
90°
F12 / F23 housing
T12 housing
markat instrument flange
Turn housing
Observe orientation when installing!
Installation in tank (free space):
Mark on process connector facing the nearest tank wall!
Installation in stilling well:
Mark on process connector pointed towards the slots or vent holes!
Installation in bypass:
Mark on process connector 90° offset from the tank connections!
Thehousingcan be turned 350°
in order to simplifyaccess to the
displayand the terminalcompartment
Allen key
4mm (0.16 in)
1½” BSPT (R1½”)
or
1½NPT
markat instrument flange
or threaded boss
1½” BSPT (R1½”)
or
1½NPT
markat instrument flange
or threaded boss

Micropilot M FMR240 PROFIBUS PA Mounting
Endress+Hauser 11
3.2 Incoming acceptance, transport, storage
3.2.1 Incoming acceptance
Check the packing and contents for any signs of damage.
Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
3.2.2 Transport
"Caution!
Follow the safety instructions and transport conditions for instruments of more than
18 kg (39.69 lbs). Do not lift the measuring instrument by its housing in order to transport it.
3.2.3 Storage
Pack the measuring instrument so that is protected against impacts for storage and transport. The
original packing material provides the optimum protection for this.
The permissible storage temperature is -40 °C to +80 °C (-40 °F to +176 °F) or
-50 °C to +80 °C (-58 °F to +176 °F).

Mounting Micropilot M FMR240 PROFIBUS PA
12 Endress+Hauser
3.3 Installation conditions
3.3.1 Dimensions
Housing dimensions
L00-F12xxxx-06-00-00-en-001
L00-T12xxxx-06-00-00-en-001
L00-F23xxxx-06-00-00-en-001
ENDRESS+HAUSER
65 (2.56)78 (3.07)
max. 110 (4.33)
mm (in)
85 (3.35)
150 (5.91)
ø129 (ø5.08)
(Aluminium)
F12 housing
ENDRESS+HAUSER
78 (3.07)
85 (3.35)
65 (2.56)
162 (6.38)
max. 100 (4.33)94 (3.7)
mm (in)
ø129 (ø5.08)
(Aluminium)
T12 housing
max. 94 (3.7)
mm (in)
93 (3.66)
ø129 (ø5.08)
150 (5.91)
40(1.57)
(316L)
F23 housing

Micropilot M FMR240 PROFIBUS PA Mounting
Endress+Hauser 13
Process connection
L00-FMR240xx-06-00-00-en-006
2”+3”
Tri-Clamp
ISO 2852
DN 50 ... 150
DN 50 ... 150
L1= 100 mm
2”+3”
Tri-Clamp
ISO 2852
DN 50 ... 150
40 mm /1” 50 mm / 2” 80 mm /3” 100 mm / 4”
L[mm ]
d[ mm ]
86
40
115
48
211
75
282
95
DN 50 DN 80 DN 100 DN 150
b[ mm ]
D[ mm ]
18 (20)
165 (165)
20 (24)
200 (200)
20 (24)
220 (235)
22
285
DN 50 DN 80 DN 100 DN 150
b[ mm ]
D[ mm ]
16
155
18
185
18
210
22
280
Clamp 2” 3”
A6491
2” 3” 4” 6”
b[ mm ]
D[ mm ]
19.1(22.4)
152.4 (165.1)
23.9(28.4)
190.5(209.5)
23.9(31.8)25.4
279.4
228.6(254)
Tri - Clamp to ISO 2852
F12 / T12 / F23 housing
flange
or equivalent
R1½” or 1½” NPT
Screw-in adapter, compact Flangeplated
or equivalent
Screw-in adapter
R1½” or 1½” NPT
With tube extension:
flange
or equivalent
Horn antenna
Antenna size
Flange to EN 1092-1 (agreeable to DIN 2527)
Flange
for PN16 (for PN40)
Flange to JIS B2220
Flange
for 10K
Flange to ANSI B16.5
for 150 lbs (for 300 lbs)
Flange
Note!
material process connection = material horn antenna,
resp. wetted parts of theprocess connection
R = reference point of measurement
AF55
AF55
5
64
L
61
b
L
2
3
L
561
b
LL1
LL1
b
64
5
5
61
ødødød
ød
ød
øDøD
øD
øA
øA
R
R

Mounting Micropilot M FMR240 PROFIBUS PA
14 Endress+Hauser
3.3.2 Engineering hints
Orientation
• Recommended distance (1) wall – outer
edge of nozzle: ~1/6 of tank diameter.
Nevertheless the device should not be
installed closer than 15 cm (5.91 in) to the
tankwall.
• Not in the centre (3), interference can cause
signal loss.
• Not above the fill stream (4).
• It is recommended to use a weather
protection cover (2) in order to protect the
transmitter from direct sun or rain. Assembly
and disassembly is simply done by means of a
tension clamp (→ä79, "Accessories" ).
L00-FMR2xxxx-17-00-00-xx-001
1
234
Tank installations
• Avoid any installations (1), like limit switches,
temperature sensors, etc., inside the signal
beam (→ä16, "Beam angle").
• Symmetrical installations (2), i. e. vacuum
rings, heating coils, baffles, etc., can also
interfere with the measurement.
Optimization options
• Antenna size: the bigger the antenna, the
smaller the beam angle, the less interference
echoes.
• Mapping: the measurement can be optimized
by means of electronic suppression of
interference echoes.
• Antenna alignment: "Optimum mounting
position", →ä22
• Stilling well: a stilling well can always be used
to avoid interference.
• Metallic screens (3) mounted at a slope spread
the radar signals and can, therefore, reduce
interference echoes.
Please contact Endress+Hauser for further infor-
mation.
L00-FMR2xxxx-17-00-00-xx-002
1
3
2

Micropilot M FMR240 PROFIBUS PA Mounting
Endress+Hauser 15
Measurement in a plastic tank

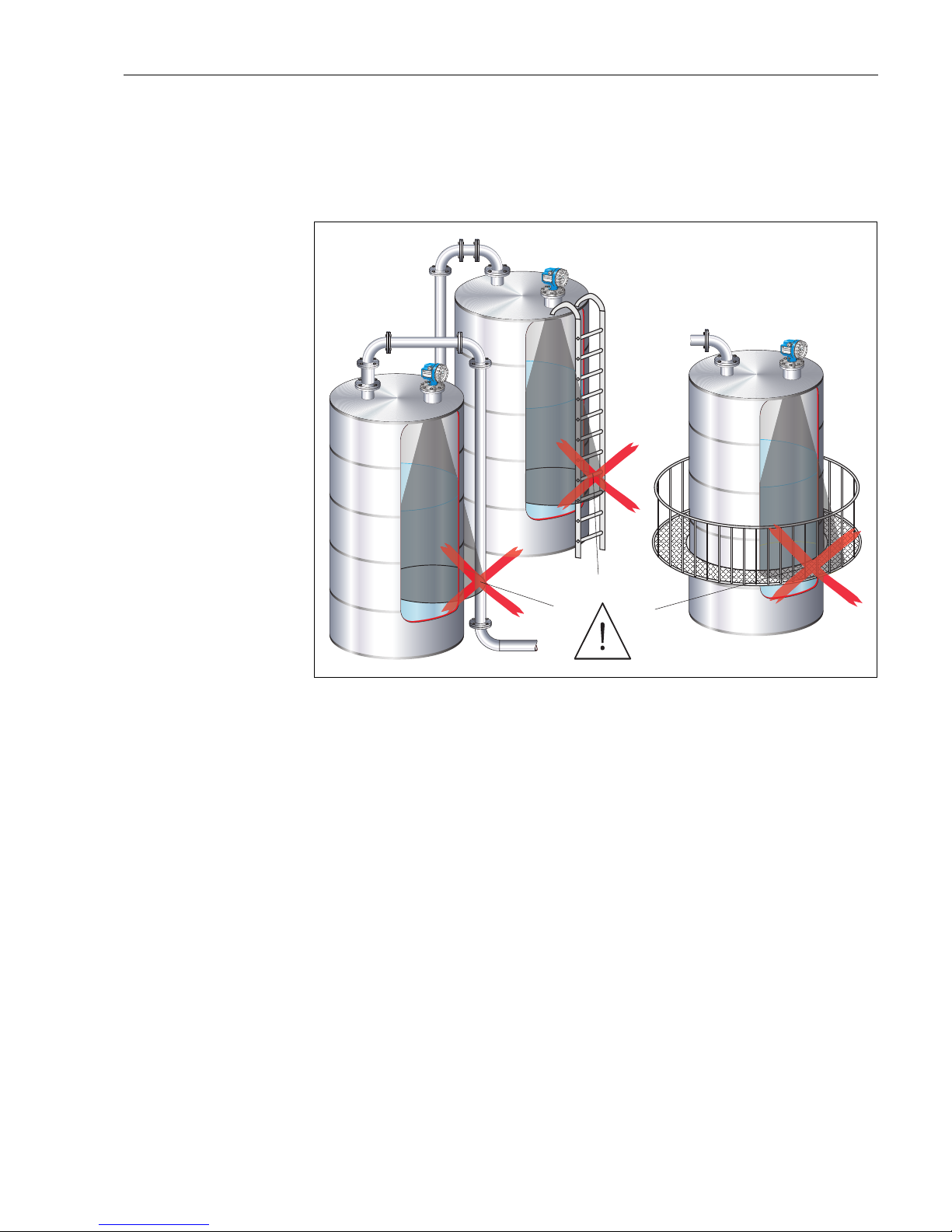

If the outer wall of the tank is made of a non-conductive material (e. g. GRP), microwaves can also
be reflected off interfering installations outside the signal beam (e. g. metallic pipes (1), ladders (2),
grates (3), …). Therefore, there should be no such interfering installations in the signal beam.
Please contact Endress+Hauser for further information.
L00-FMR2xxxx-17-00-00-xx-013
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>70°C:
At>85°C
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>70°C:
At>85°C
VH
00
VH
00
Endress+Hauser
Endress+Hauser
-+
VH
ENDRESS+HAUSER
MICROPILOTII
IP65
OrderCode:
Ser.-No.:
Messbereich
Measuringrange
U16...36VDC
4...20mA
max.20m
MadeinGermany Maulburg
MadeinGermany Maulburg
T>
70°C:
At>85°C
1
2
3

Mounting Micropilot M FMR240 PROFIBUS PA
16 Endress+Hauser
Beam angle
The beam angle is defined as the angle αwhere the energy density of the radar waves reaches half
the value of the maximum energy density (3dB-width). Microwaves are also emitted outside the
signal beam and can be reflected off interfering installations. Beam diameter Was function of
antenna type (beam angle α) and measuring distance D:
Antenna size
(horn
diameter)
40 mm (1½") 50 mm (2") 80 mm (3") 100 mm (4")
L00-FMR2xxxx-14-00-06-de-027
Beam angle α23° 18° 10° 8°
Measuring
distance (D)
Beam diameter (W)
40 mm (1½") 50 mm (2") 80 mm (3") 100 mm (4")
3 m (9.8 ft) 1,22 m (4 ft) 0,95 m (3.1 ft) 0,53 m (1.7 ft) 0,42 m (1.4 ft)
6 m (20 ft) 2,44 m (8 ft) 1,90 m (6.2 ft) 1,05 m (3.4 ft) 0,84 m (2.8 ft)
9 m (30 ft) 3,66 m (12 ft) 2,85 m (9.4 ft) 1,58 m (5.2 ft) 1,26 m (4.1 ft)
12 m (39 ft) 4,88 m (16 ft) 3,80 m (12.0 ft) 2,10 m (6.9 ft) 1,68 m (5.5 ft)
15 m (49 ft) 6,10 m (20 ft) 4,75 m (16 ft) 2,63 m (8.63 ft) 2,10 m (6.9 ft)
20 m (66 ft) 8,14 m (27 ft) 6,34 m (21 ft) 3,50 m (11 ft) 2,80 m (9.2 ft)
25 m (82 ft) 10,17 m (33 ft) 7,92 m (26 ft) 4,37 m (14 ft) 3,50 m (11 ft)
30 m (98 ft) ⎯9,50 m (31 ft) 5,25 m (17 ft) 4,20 m (14 ft)
35 m (115 ft) ⎯11,09 m (36 ft) 6,12 m (20 ft) 4,89 m (16 ft)
40 m (131 ft) ⎯12,67 m (42 ft) 7,00 m (23 ft) 5,59 m (18 ft)
45 m (148 ft) ⎯⎯7,87 m (26 ft) 6,29 m (21 ft)
60 m (197 ft) ⎯⎯10,50 m (34 ft) 8,39 m (28 ft)
70 m (230 ft) ⎯⎯⎯9,79 m (32 ft)
a
D
W
a
D
_
=2
2..
tan
W

Micropilot M FMR240 PROFIBUS PA Mounting
Endress+Hauser 17
Measuring conditions in liquids
Note!
• In case of boiling surfaces, bubbling or tendency for foaming, use FMR230 or FMR231.
Depending on its consistence, foam can either absorb microwaves or reflect them off the foam
surface. Measurement is possible under certain conditions.
• In case of heavy steam development or condensate the max. measuring range of FMR240 may
decrease depending on density, temperature and composition of the steam →use FMR230 or
FMR231.
• For the measurement of absorbing gases such as ammonia NH3or some fluorocarbons 1),
please use FMR230 in a stilling well.
L00-FMR2xxxx-17-00-00-de-008
• The measuring range begins, where the beam hits the tank bottom. Particularly with dish bottoms
or conical outlets the level cannot be detected below this point.
• In case of media with a low dielectric constant (groups A and B), the tank bottom can be visible
through the medium at low levels (low height C). Reduced accuracy has to be expected in this
range. If this is not acceptable, we recommend positioning the zero point at a distance C(see Fig.)
above the tank bottom in these applications.
• In principle it is possible to measure up to the tip of the antenna with FMR230/231/240.
However, due to considerations regarding corrosion and build-up, the end of the measuring range
should not be chosen any closer than A(see Fig.) to the tip of the antenna.
For FMR244/245, the end of measuring range should not be chosen closer than A(see Fig.) to
the tip of the antenna, especially if there is development of condensate.
• The smallest possible measuring range Bdepends on the antenna version (see Fig.).
• The tank diameter should be greater than D(see Fig.), the tank height at least H(see Fig.).
1) Affected compounds are e.g. R134a, R227, Dymel 152a.
100%
0%
B
A
C
H
øD
A [mm (in)] B [m (ft)] C [mm (in)] D [m (ft)] H [m (ft)]
50 (1.97) > 0,2 (> 0.7) 50 to 250 (1.97 to 9.84) > 0,2 (> 0.7) > 0,3 (> 1.0)

Mounting Micropilot M FMR240 PROFIBUS PA
18 Endress+Hauser
Measuring conditions in solids
• The measuring range begins, where the beam hits the bottom. Particularly with conical outlets
the level cannot be detected below this point.
The maximum measuring range can be increased in such applications by using a top target
positioner (see Technical Information TI345F/00/EN).
• In case of media with a low dielectric constant (groups A and B), the bottom can be visible through
the medium at low levels. In order to guarantee the required accuracy in these cases, it is
recommended to position the zero-point at a distance Cabove the bottom (see Figure).
• In principle it is possible to measure up to the tip of the antenna with the Micropilot M. However,
due to considerations regarding abrasion and build-up and depending on the orientation of the
product surface (angel of repose), the end of the measuring range should be at a distance of A(see
figure). If required, and if some conditions (high DC value, flat angle of repose) are met, shorter
distances can be achieved.
L00-FMR250xx-17-00-00-en-001
A [mm (in)] C [mm (in)]
approx. 400 (15.7) 50 to 150 (1.97 to 5.91)
100%
0%
A
C
Measuring range

Micropilot M FMR240 PROFIBUS PA Mounting
Endress+Hauser 19
Measuring range in liquids
The usable measuring range depends on the size of the antenna, the reflectivity of the medium, the
mounting location and eventual interference reflections.
The maximum configurable range is:
• 40 m (131 ft) for basic version
• 70 m (230 ft) with additional option F (G), →ä7, "ordering information"
The following tables describe the groups of media as well as the achievable measuring range as a
function of application and media group. If the dielectric constant of a medium is unknown, it is
recommended to assume media group B to ensure a reliable measurement.
Measuring range in solids
The FMR244 with 80 mm (3") antenna or FMR240 with 100 mm (4") horn antenna and additional
option F (= advanced dynamics) is also suited for solid applications. The usable measuring range
depends on the reflection properties of the medium, the mounting position and interference
reflections which may be present. The maximum configurable measuring range for the Micropilot
M FMR240 with 100 mm horn antenna and additional option F (= advanced dynamics) is 30 m (98
ft) in solid applications. It is recommended to use the variable flange seal for alignment (see
Technical Information TI345F/00/EN).
Reduction of the max. possible measuring range through:
• Media with poor reflection properties (= small DC). For examples refer to table below.
• Angle of repose.
• Extremely loose surfaces of bulk solids, e. g. bulk solids with low bulk weight for pneumatic
filling.
• Build-up, above all of moist products.
The following table describes the media groups and the dielectric constant εr.
The respective lower group applies for very loose or loosened bulk solids.
Media group DC (εr) Examples
A1,4 to 1,9 non-conducting liquids, e. g. liquefied gas1)
1) Treat Ammonia NH3as a medium of group A, i. e. use FMR230 in a stilling well.
B1,9 to 4 non-conducting liquids, e. g. benzene, oil, toluene, …
C4 to 10 e. g. concentrated acids, organic solvents, esters, aniline, alcohol, acetone, …
D> 10 conducting liquids, e. g. aqueous solutions, dilute acids and alkalis
Media group DC (εr) Examples Signal attenuation
A1.6 to 1.9
– Plastic granulate
– White lime, special cement
–Sugar
19 to 16 dB
B1.9 to 2.5 – Portland cement, plaster 16 to 13 dB
C2.5 to 4
–Grain,seeds
–Groundstones
–Sand
13 to 10 dB
D4 to 7 – Naturally moist (ground) stones, ores
–Salt 10 to 7 dB
E>7
– Metallic powder
– Carbon black
–Coal
< 7 dB

Mounting Micropilot M FMR240 PROFIBUS PA
20 Endress+Hauser
Measuring range depending on vessel type, conditions and product
Standard:
max. measuring range = 40 m (131 ft)
With additional option F (G):
max. measuring range = 70 m (230 ft)
min. measuring range = 5 m (16 ft)
The recommended measuring range with 100 mm (4") horn antenna in solids is 30 m (98 ft).
40 mm (1½") 50 mm (2") 80 mm (3") 100 mm (4")
Storage tank
Calm product surface (e. g. intermittent
filling, filling from bottom, immersion
tubes).
Measuring range [m (ft)]
AB
25
(82)
15
(49)
CD
3
(9.9)
10
(32)
15
(49)
5
(16)
8
(26)
5
(16)
AB
12
(39)
8
(26)
25
(82)
CD
8
(26)
4
(13)
15
(49)
35
(110)
40
(131)
AB
10
(32)
60
(197)
CD
15
(49)
8
(26)
30
(98)
40
(131)
40
(131)
20
(65)
AB
30
(99)
15
(49)
CD
25
(82)
10
(32)
40
(131) 40 (131)
70
(229)
45
(148)
40 mm (1½") 50 mm (2") 80 mm (3") 100 mm (4")
Buffer tank
Moving surfaces (e. g. continuous
filling, from above, mixing jets).
Measuring range [m (ft)]
B
10
(32)
CD
5
(16)
4
(13)
7.5
(24)
2
(6.6)
BB
5
(16)
15
(49)
10
(32)
CCDD
3
(9.9)
7.5
(24)
10
(32)
AB
10
(32)
5
(16)
25
(82)
15
(49)
CD
2.5
(8)
10
(32)
15
(49)
5
(16)
*
ABCD
7.5
(24)
10
(32)
5
(16)
15
(49)
15
(49)
25
(82)
25
(82)
35
(110)
