Energenie MiHome Gateway User manual

CAUTION: Please check that the appliances which you wish to plug
into the Multiplug support regular disconnection of main supply.
Energenie is a trading name of Sandal plc, Claremont House, Deans
Court, Bicester, UK, OX26 6BW
Setting up
1. Insert the supplied CR2032 battery into the Hand Controller
2. Insert the plug into a mains wall socket and switch the wall socket on. The red
indicator light near the ON-OFF button should flash at 1 second intervals indicating it is
ready to learn a key code from the hand controller.
If the light is not flashing, ensure the Multiplug is o, then press and hold the green
button on the front of the Multiplug for 6 seconds or so until it starts to flash at 1 second
intervals.
3. Press and hold briefly any one of the on buttons on the hand controller. The red
indicator light on the Multiplug will flash quickly and then turn o. Pairing of the
Multiplug to the hand controller is now complete.
4. Simply plug the appliances you want to control into the Multiplug and you can use the
hand controller button pairs to control the corresponding sockets on the unit.
Using the hand controller to switch the sockets
• Use the remote controller numbered button pairs to switch the required
socket ON or OFF
• Use the ALL button pair to switch all sockets ON or OFF at the same time.
Using the green button on the Multiplug to switch the
sockets
• Press the green ON-OFF button on the Multiplug to turn all sockets ON or OFF.
Add a new hand controller
Put the Multiplug into learning mode again as indicated in the Setting up procedure and
follow the same procedure for the new hand controller.
NOTE: The Mulitplug is compatible with the MiHome Gateway, which allows remote
switching and timer settings from the Energenie MiHome smart phone app.
Factory Reset
The device memory can be erased by factory reset:
1. Turn the Multiplug OFF (keeping power available at the main socket).
2. Press and hold the green button on the extension lead for 6 seconds. Note: The LED
will flash slowly after the first 3 seconds, and then briefly quicken after 6 seconds, before
returning to a slow flash rate, which indicates factory reset is complete.
d
u
a
l
c
o
n
t
r
o
l
l
e
r
o
p
t
i
o
n
General:
Product Code: ENER010
Radio Frequency: 433.92Mhz
Range: approx. 25 metres in open area
Applications: Domestic appliances with a
standard UK plug. Indoor use only
Remote controller:
4 separate channels + all ON or OFF
Battery: replaceable 3V CR2032
Transmission indicator lamp: red=ON
Transmitter output: -7.70 dBm (0.169mW)
Multiplug:
Rating: 240V~ 50Hz, 13A, 3kW max.
Power consumption in standby: < 0.5W
Mains cable length: 1.8 Meter
Number of sockets: 4
Multiplug ON-OFF button:
• Single press to toggle power ON or OFF
• Press and hold for 3 seconds: learning
mode (slow flash)
• Press and hold for 6 seconds: factory
reset
• SRD receiver classification: Class 3 (Non
Critical)
Dual Controller Option
The extension lead can be controlled by
two remote controllers. Additional remote
controllers can be purchased through our
website.
When an attempt is made to link a third
controller with a socket, it will
automatically overwrite the memory of the
first controller.
*
*
*MiHome Gateway available to purchase separately.
for whole Multiplug).
• 13 Amp rated sockets to BS1363, indoor use only (Max 3000W
MiHome app.
• Works with the MiHome Gateway* for control via the Energenie
• Dual controller option.
• Individual 4 channel remote control with all ON or OFF buttons.
furniture or in an adjacent room.
operate. It can work even when the socket is hidden behind
• The remote control does not require direct line-of-sight to
save money.
• Conveniently switch o appliances to reduce Standby usage and
appliances.
• Radio controlled Multiplug with controller for use with domestic
4individuallycontrolledsockets
RadioControlledMultiplug
V6.7- Nov 2019

EU Declaration of Conformity
We of Sandal Plc, trading as Energenie, Unit 5 Harold Close, The Pinnacles, Harlow,
Essex, England, CM19 5TH
Declare under our sole responsibility as importer, that the product:
Model: ENER010
Description: 4-Way Radio Controlled Multiplug and Hand Controller
To which this declaration relates is in conformity with the following Union harmonisation
legislation:
Directive 2014/53/EU
Directive 2012/19/EU
Directive 2011/65/EU
Regulation EC/1907/2006
Signed:
Name:
Position:
Place of signature:
On:
Troubleshooting
Q: The status light (LED) on the hand controller does not
illuminate when pressing the buttons

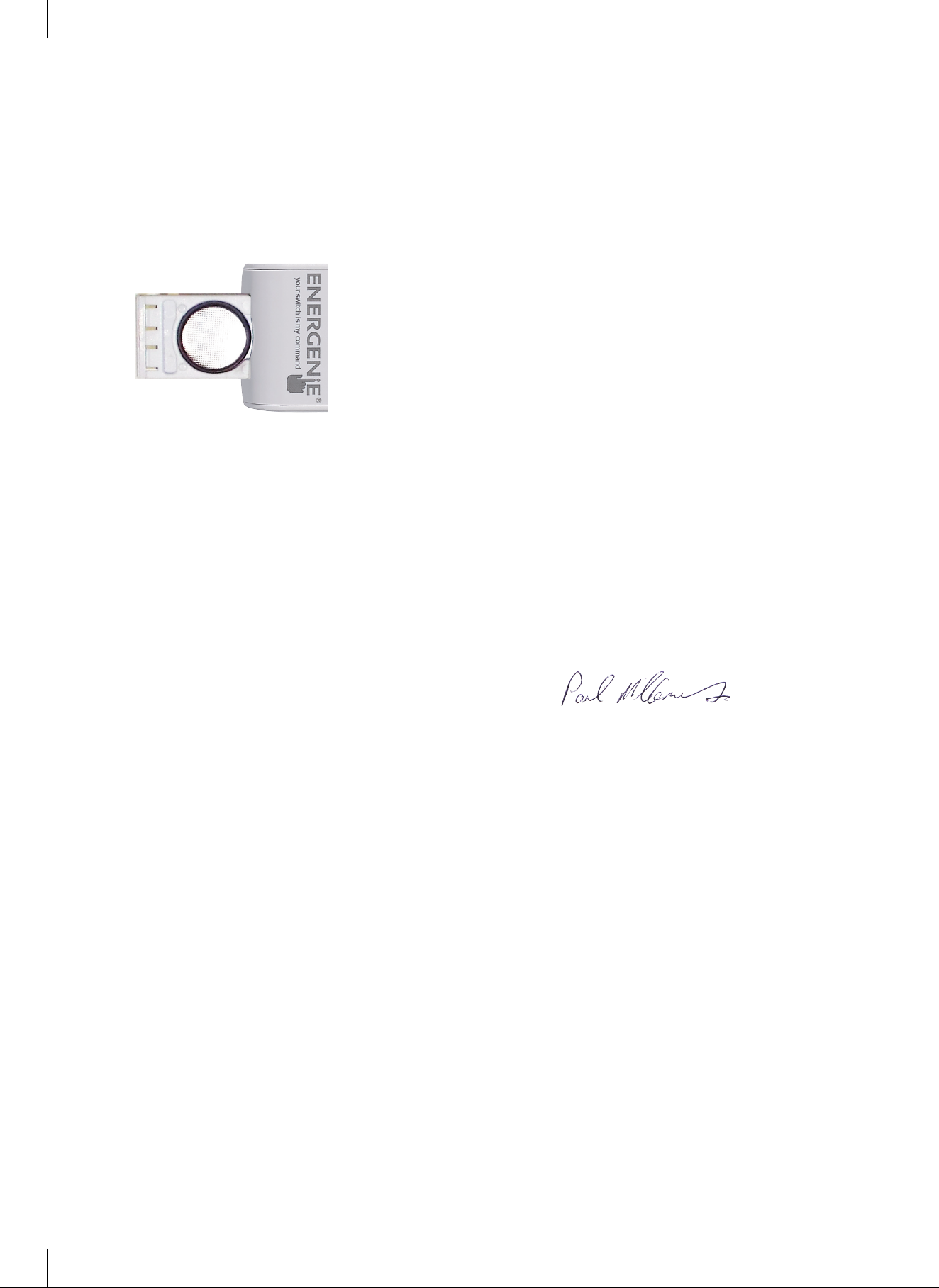

A: Check that the battery is fitted correctly with its
markings facing downwards in the battery tray as shown
in the image below. If the battery has been correctly fitted
it may be flat and require replacing.
Registration, Evaluation, Authorisation and
Amendment to Directive 2011/65/EU)
Substances (RoHS) Directive (inc 2015/863
Restriction of the Use of Certain Hazardous
(WEEE) Directive
Waste Electrical and Electronic Equipment
3.1a, 3.1b and 3.2)
Radio Equipment Directive (RED) (Articles
25/11/2019
5 Harold Close, the Pinnacles, Harlow Essex, CM15 9TH
Quality & Certification Manager
P D McClements
Court, Bicester, UK, OX26 6BW
Energenie is a trading name of Sandal plc, Claremont House, Deans
2019
V6.7- Nov
Directives.
referenced specifications. The unit complies with all essential requirements of the
above has been tested and found to comply with the relevant sections of the above
I hereby declare, on behalf of Sandal PLC t/a Energenie, that the equipment named
headquarters at 5 Harold Close, The Pinnacles, Harlow, Essex, England, CM19 5TH
The Technical Construction File required by this Directive is maintained at the company
BS 1363-2:2016+A1:2018
EN 61058-1:2002/A2:2008
IEC 62301:2005
EN 62479:2010
EN 301 489-3 V2.1.1
EN 301 489-1 V2.1.1
EN 300 220-2 V3.1.1
And is in conformity with the following standards:
Restriction of Chemicals (REACH)
Registered Oce: Claremont House, Deans Court, Bicester, Oxon, OX26 6BW
WEEE Reg. WEE/DD1045YV
A Division of Sandal Plc Reg. No. 32068855
https://energenie4u.co.uk/about_us/contact_us/
support team at the following website address:
If you need further help please contact our UK based
Support
protection.
which has exceeded the rating of the built-in surge
A2: The product may have experienced an electrical surge
A1: Check the mains socket is switched on.
illuminating
Q: The light above ‘protection on’ on the Multiplug is not
the Multiplug.
A2: If necessary replace the fuse in the plug attached to
A1: Check the mains socket is switched on.
Q: The Multiplug is not switching on.
pair/switch again.
between hand controller and Multiplug before trying to
least 1m away from the Multiplug, and reduce the distance
Please keep other RF receiving/transmitting devices at
Multiplug or hand controller.
electrical interference which is not compatible with the
In addition other nearby electronic items can generate
Multiplug.
materials if they are between hand controller and the
however the range can be reduced by certain building
A: The range of use is approximately 25 m in free air,
switching by the hand controller
Q: The Multiplug did not pair, and/or is not remotely
Watts.
devices to reduce the combined wattage to below 3000
total is greater than 3000 Watts please remove sucient
equipment plugged into the Multiplug. If the combined
Watts. Please check the Wattage rating of each item of
lead is suitable for a combined total of 13 Amps, or 3000
A: The Multiplug, like any UK mains powered extension
Q: The Multiplug is getting hot
