Energetiq LDLS EQ-9 User manual

Model EQ-9
LDLS™
Laser-Driven Light Source
Operation Manual
Revision 3April 2018
Part Number DOC-7173

Copyright © 2018 Energetiq Technology Inc. All rights reserved.
Energetiq products are covered by US and foreign patents. All technical information, including
drawings, schematics and specifications contained in this manual are the property of Energetiq
and shall not be reproduced in whole or in part without the written consent of Energetiq. The
content of this manual is subject to change without notice.
Energetiq Technology Inc.
7 Constitution Way, Woburn, MA 01801 USA
Tel. [phone]
Fax [phone]
E-mail: [e-mail]
http://www.energetiq.com

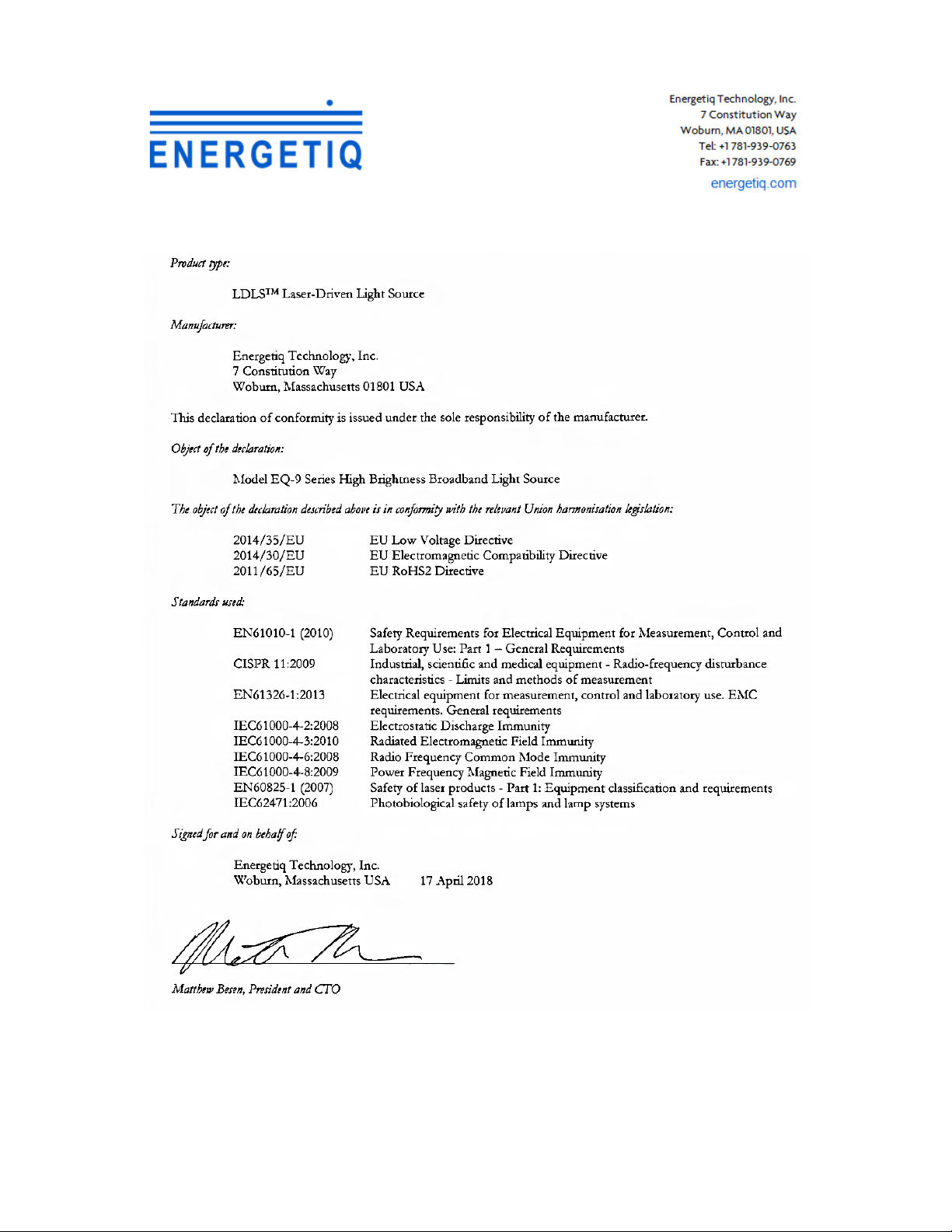

EU Declaration of Conformity

TABLE OF CONTENTS
Chapter 1...................................................................................................................................................... 1
General Information........................................................................................................................... 1
Safety............................................................................................................................................... 1
Chapter 2...................................................................................................................................................... 6
Description ........................................................................................................................................... 6
General ........................................................................................................................................... 6
Specifications................................................................................................................................. 7
System Description .................................................................................................................... 10
Power Supply Controller........................................................................................................... 10
Lamp House................................................................................................................................ 13
Chapter 3.................................................................................................................................................... 15
Installation........................................................................................................................................... 15
Unpacking.................................................................................................................................... 15
Connections................................................................................................................................. 15
RS-485 Serial Interface .............................................................................................................. 22
Installation Procedure................................................................................................................ 25
Chapter 4.................................................................................................................................................... 26
Operation............................................................................................................................................ 26
Starting.......................................................................................................................................... 26
Stopping ....................................................................................................................................... 26
Chapter 5.................................................................................................................................................... 28
Troubleshooting ................................................................................................................................ 28
Fault Indicator Block Diagram................................................................................................ 28
Appendix A................................................................................................................................................ 30
Revision Control................................................................................................................................ 30

DOC-7173 Rev. 3 EQ-9 Operation Manual 1
C h a p t e r 1
GENERAL INFORMATION
Safety
WARNING
CAUTION
This unit emits ultraviolet (UV) radiation that is
harmful to humans. Avoid exposure to the
direct or reflected output beam. Make certain
that the appropriate output beam shields and
optics are in place prior to energizing the unit.
All interlocks must be satisfied prior to
operation; failure to do so may lead to
hazardous conditions.
The EQ-9 emits dangerous levels of UV
radiation. Even short exposures to skin or eyes
may cause burns. Ensure that only authorized
personnel are in the vicinity of source during
operation. Personnel in vicinity of operating
source should wear protective eyewear, clothing,
and gloves. Lighted UV warning lights and signs
posted on doors to lab areas may help prevent
accidental exposure.
