Enerpac WR-13 Use and care manual

POWERFUL SOLUTIONS. GLOBAL FORCE.
Repair Parts Sheet
Integrated Spreader
Model WR-13
L2914 Rev. B 01/11 For Date Codes Beginning with the Letters “A” and “B”
To Protect Your Warranty, Use Only ENERPAC Hydraulic Oil.
Enerpac recommends that all kit components be installed to insure optimum performance of the repaired product.
WARNING: • Crush Hazard
•Pinch Point Hazard
WARNING:
• Do not loosen or remove any plugs from the spreader while it is under load.
• Be sure load is completely removed from spreader before performing any
adjustments, maintenance or repairs. Never attempt to service the spreader while
it is in use.
• Refer to Enerpac instruction sheet L2913 for spreader operating instructions and
additional safety precautions.

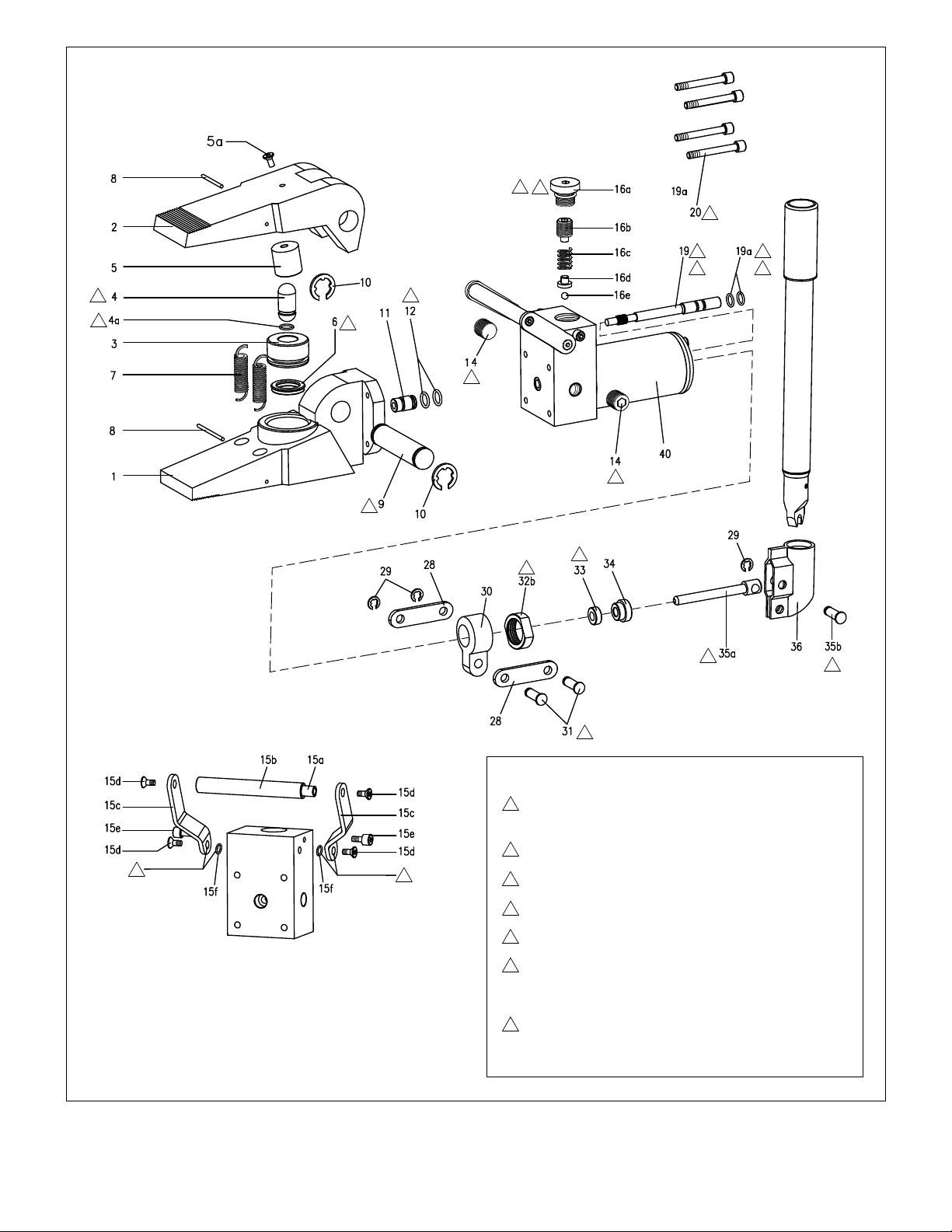

Figure 1, Exploded View, Model WR-13 Integrated Spreader
Notes:
Lubricate spherical surfaces on top and bottom
of item 4 with Castrol AP3 Grease or equivalent.
Lubricate with hydraulic oil before installation.
Torque to 40-50 ft-lbs. [54.2-67.7 Nm]
Torque to 2 ft-lbs. [2.7 Nm]
Lubricate with Castrol AP3 grease or equivalent.
Release valve parts are replaceable only on units
with product date codes beginning with the letter “B”.
See Kit Notes on next page for additional information.
Used only on units with product date codes
beginning with the letter “B”. See Kit Notes on next
page for additional information.
2
1
3
4
6
7
5
1
2
2
2
3
5
5
4
3
LIFTING HANDLE ASSEMBLY (items 15a - 15f )
2
5
5
5
2
5
6
2
6
7
23

Repair Parts List - Model WR-13 Integrated Spreader
Item Part No. Qty. Description Item Part No. Qty. Description
1●1Bottom Jaw 16b ★ ▲ 1Grub Screw
2◆1Upper Jaw 16c ★ ▲ 1Spring and Guide
3●1Rod, Piston 16d ★ ▲ 1Retainer
4❖ ◆ 1Pin 16e ★ ▲ 1Ball, Steel
4a ❖ ◆ 1O-Ring 19 ★ ▲ 1Release Valve
(see kit note K5, below)
5◆1Bushing, Hardened
5a ◆1Capscrew, Countersunk 19a ★ ▲ 2O-Ring
(see kit note K5, below)
6❖ ◆ 1Seal, Piston
7❖ ◆ 2Spring 20 ★4Capscrew
8❖ ◆ 2Pin, Locking 28 ★ ❋ 2Arm
9◆1Pin, Guide 29 ★ ❋ ❖ 3Retainer Ring, Circlip
10 ❖ ◆ 2Retainer Ring, Circlip 30 ★ ❋ 1Link I
11 ★ ❖ 1Capsule 31 ★ ❋ 2Pin
12 ★ ❖ 2O-Ring 32b ★ ❋ 1Locknut
(see kit note K6, below)
14 ★ ▲ 2Plug, 3/8" NPT
15a ★ ✜ 1Rod 33 ★ ❖ ❋ 1Seal, Gland
15b ★ ✜ 1Pipe 34 ★ ❋ 1Nut
15c ★ ✜ 2Plate 35a ★ ❋ 1Plunger
15d ★ ✜ 4Capscrew, Countersunk 35b ★ ❋ 1Pin
15e ★ ✜ 2Capscrew 36 ★ ❋ 1Link II
15f ★ ✜ 2Washer, Nylon 37 ❋1Handle
16a ★ ▲ 1Plug, 3/8" BSP w/O-Ring 40 ★1Pump and Manifold Assy.
Parts Kits:
★Items included as part of Pump Kit WR13PK.
✜Items included as part of Lifting Handle Kit WR13LHK.
❋Items included as part of Pump Handle Kit WR13PHK.
❖Items included as part of Seal/Spring Kit WR13SK.
◆Items included as part of Upper Jaw Kit WR13UJK.
▲Items included as part of Relief and Release Valve Kit WR13RVK.
●Item not available for purchase.
Kit Notes:
K1. Kit components must be purchased as part of a complete kit (not sold separately).
K2. Enerpac recommends that all kit components be installed to assure optimum performance of the repaired product.
K3. Parts included in Pump Kit WR13PK are factory assembled prior to shipment.
K4. Replacement pump and manifold assembly (item 40) must be purchased as part of Pump Kit WR13PK.
This assembly contains no serviceable components except for those shown in Figure 1.
K5. Items 19 and 19a can be replaced ONLY on units with product date codes beginning with the letter “B”. For units with product date
codes beginning with the letter “A”, Items 19 and 19a are NOT REPLACEABLE .
K6. Item 32b is used ONLY on units with product date codes beginning with the letter “B”. For units with product date codes beginning
with the letter “A”, Item 32b is NOT USED .
