Enerpac 3000 Series Operating instructions

¤
Service Instructions

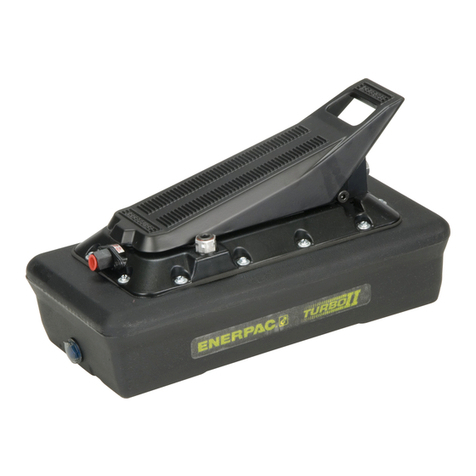

TURBO II AIR PUMPS
L2534 Rev. O 02/02 Refer to Repair Parts Sheet L2533
1.0 SERVICE INSTRUCTIONS
These Service Instructions are intended to be used by qualified
personnel at Authorized Enerpac Service Centers. Users of
Enerpac equipment should refer to the pump Instruction Sheet
for installation, operation and maintenance information.
2.0 DISASSEMBLY
WARNING: Make certain that pump is disconnected
from air supply before disassembling.
CAUTION: DO NOT attempt to remove or otherwise
service the Air Button Assembly, Item 73 in figure 3
of Repair Parts Sheet L2533. The Air Button
Assembly is a non-serviceable part. Removal will damage
the sealing surfaces molded in the reservoir cover.
2.1 Remove Treadle (T versions).
Refer to Repair Parts Sheet L2533, Figure 1.
1. Remove two Shoulder Bolts (item 95) and remove Treadle
(item 94). (3/16" Allen wrench required.)
2.2 Remove Treadle (M, C, S versions)
Refer to Repair Parts Sheet L2533, Figure 2.
1. Remove Retaining Ring (item 102) and Hinge Pin (item 103).
2.3 Remove Reservoir
Refer to Repair Parts Sheet L2533, Figure 1-3.
1. Remove Reservoir Cover (item 60, Fig. 3) and Gasket (items
51, Fig. 1 and 2) by removing twelve Screws (item 54) using
a 1/4" nut driver. Set reservoir and gasket off to the side.
2.4 Remove Muffler Cover and Pad
Refer to Repair Parts Sheet L2533, Figure 1 and 2.
1. Separate Muffler Cover and Pad (items 91 and 90) from
reservoir cover by removing two Screws, (item 92) with a
5/16" nut driver.
NOTE: The muffler pad will have oil on it from the air supply. To
check for air motor leaking oil, run the pump with the muffler off
and hold a piece of white paper towel over the exhaust port. If the
towel turns blue from oil there is a leak.
2.4 Remove Retaining Pin (See Photo 1)
Refer to Repair Parts Sheet L2533, Figure 3.
1. Remove Retaining Pin (item 88) by bending the arms of the
pin straight using a needle nose pliers.
Photo 1
A. Retaining Pin
B. Mounting Bracket Screws
2.6 Remove Mounting Bracket Screws (See Photo 1)
Refer to Repair Parts Sheet L2533, Figure 3.
1. Remove four Mounting Bracket Screws (item 66).
YOU MAY REQUIRE:
✔Repair Parts Sheet L2533
✔Hydraulic hand pump
✔Vise with soft jaws
✔Allen wrenches
✔Box end wrenches
✔1/4" and 5/16" nut driver
✔Vise-grips
✔To rque wrench
✔Snap-ring pliers
✔O-ring pick
✔Needle nose pliers
✔Pipe thread sealer
✔Solvent and soft brush
✔Enerpac hydraulic oil
Contents:
Disassembly ....................................1-3
Assembly .........................................3-5
Hydraulic Schematic ..........................5
Tr ouble Shooting.................................6
Specification Table ..............................7
Pump Cut-away ..................................7

2
2.6 Secure Cover Assembly
Refer to Repair Parts Sheet L2533, Figure 8.
1. Secure cover assembly in a vise vertically by clamping on the
sides of the Valve Block (item 10).
2. Remove plastic plug from top of valve block.
3. Using a soft blow hammer and brass drift tap on high
pressure tube. See Photo 2.
4. While tapping the high-pressure tube, secure air pump
assembly to prevent damage from being dropped.
Photo 2
A. High-pressure tube access hole
2.7 Remove Air Motor Assembly
CAUTION: The air motor is under load from the
return spring. If not secured the air motor can
"project" off the pump and cause injury.
1. Place air pump assembly in press.
2. Unscrew hose clamp with screwdriver while being held in
press.
3. Slowly release the press to remove the spring force on the air
motor.
4. Remove all components from press.
Photo 3
2.8 Disassemble Air Motor Assemble
Refer to Repair Parts Sheet L2533, Figure 7
1. Remove four Screws, (item 41) from air motor cap.
2. Remove the air motor cap from the air motor cylinder.
3. Remove the Retaining Pin (item 43) and the Extension
Fitting (item 42) from the cap.
4. Remove Air Piston (item 44) from air motor cylinder.
5. Remove Screw (item 30) from the Piston (item 32).
Note: Hold the Piston (item 32) with the needle nose pliers
in the area between the two o-rings away from bearing
surfaces of the piston to remove the Screw (item 30).
6. Remove all o-rings from the air motor cylinder and Air Piston
(item 32).
2.9 Disassemble Hydraulic Pump Assembly.
Refer to Repair Parts Sheet L2533, Figure 4.
1. Remove Piston (item 23), Spring Washer (item 22), Rubber
Washer (item 21) and Spring (item 20) from the Hydraulic
Cylinder (item 1).
2. Clamp Hydraulic Cylinder (item 1) in soft jaw vise.
3. Remove Bearing Retainer (item 18), Bearing (item 17) and
Seal (item 16) from the Hydraulic Cylinder (item 1).
4. Remove Pressure Tube (item 13) buy using a straight steel
bar through the hole in the top.
5. Remove Ball Guide (item 11), Conical Spring (item 10) and
Outlet Check Ball (item 9) from the Outlet Seat (item 8)
6. Remove Outlet Seat (item 8) from the Hydraulic Cylinder
(item 1).
7. Remove Ball Guide (item 11), Conical Spring (item 19) and
Intake Check Ball (item 9) from the Intake Seat (item 8).
8. Remove Hydraulic Cylinder from vise and rotate 180 degrees
to remove intake check.
9. Remove Intake Tube (item 52) from Intake Seat (item 8).
10. Remove Intake Seat (item 8) from Hydraulic Cylinder (item 1)
11. Remove Relief Valve (item 6) from Hydraulic Cylinder (item 1).
12. Remove Retaining Ring (item 5) from Hydraulic Cylinder
(item 1)
13. Remove Mounting Bracket (item 4) from the Hydraulic
Cylinder (item 1)
2.10 Remove Filter
Refer to Repair Parts Sheet L2533, Figure 3.
1. Remove two Screws (item 66), shown in Figure 3, and
Stamped Bracket (item 63). The Swivel Coupler (item 61) is
secured to the bracket by a retaining ring. It is not necessary
to remove the coupler from the bracket to change the O-ring
(item 65).
2. Remove Filter (item 62) from cover.
2.11 Disassemble Release Valve Assembly
Refer to Repair Parts Sheet L2533, Figure 8.
NOTE: The release mechanism can be removed without
removing the valve block from the cover. (The block must still be
clamped securely in a vise.)
1. Separate release valve block from cover by removing four
Screws (item 11).
2. Clamp valve block securely in vise. Remove Release Guide
Assembly (item 19) from block.

3
3. Remove the Ball Seat, two Copper Gaskets, Ball, Spring and
Ball Guide (items 6, 7, 8, 9, 18 and 20) from the bore of the
valve body.
4. Pry Plastic Cap (item 3) off of the Spring Washer (item 2).
5. Lightly compress Spring (item 5) by pushing down on the
spring washer and remove the Retaining Rng (item 1).
6. The Release Plunger (item 4) can now be removed from the
Release Guide Assembly (item 19).
3.0 ASSEMBLY
NOTE: Use all new seals provided in repair kit when rebuilding
pump. Lubricate all seals with DS-ES grease.
3.1 Assemble Release Valve Assembly
Refer to Repair Parts Sheet L2533, Figure 8.
1. Install new O-rings (items 13 and 14) and new Back-up
Washers (items 12 and 15) onto the Release Plunger (item 4).
NOTE: Make certain that the back-ups are located to the
outside of the o-rings (closest to both ends of the plunger).
2. Lightly grease o-rings and insert the Release Plunger (item
4) into Release Guide Assembly (item 19).
3. Install new Spring (item 5) over plunger and secure with
spring washer and new Retaining Ring (items 2 and 1). Snap
new Cap (item 3) onto spring washer.
4. Replace O-ring (item 16) located in the bore of the Valve
Block (item 10). Lightly grease o-ring after installation.
5. Place Copper Gasket (item 8) into Valve Block (item 10).
6. Install new Spring and new Ball Guide (items 18 and 20) into
the valve block.
NOTE: New ball seat must be "coined" prior to installation.
Coin seat at 250 psi with an Enerpac 10-ton press.
7. Use small amount of grease to hold new Copper Gasket
(item 7) and new Ball Seat (item 6) to Release Guide (item
19) while installing the assembly into the valve block. (NOTE:
Use DS/ES grease only.) Use grease to hold new Ball (item
9) to the Ball Seat (item 6).
8. Install the completed release guide assembly into the valve
block. Make certain that ball is centered in the seat. Torque
the assembly to 72-78 ft.-lbs [98-105 Nm] (lubricated torque).
3.2 Assemble Release Valve Assembly to Cover
Refer to Repair Parts Sheet L2533, Figure 3 and 8.
NOTE: Make certain that all old gasket material is removed from
the valve block before proceeding.
1. Place Gasket (item 69) onto release valve block. Remove the
paper backing from gasket and position on the valve block
using two of the Screws (item 11) for guides. Attach release
valve block to cover using four Screws (item 11). Torque
screws to 17-19 in.-lbs. [2 Nm] using a cross pattern.
3.3 Install Breather Assembly
Refer to Repair Parts Sheet L2533, Figure 3.
1. Replace O-rings (items 79 and 80) on Breather Assembly
(item 77). Install breather assembly into Cover (item 60).
NOTE: Make certain that the o-rings are in the proper
grooves. Do not reverse items 79 and 80. Also make
certain that the o-rings are lubricated.
3.4 Install Filter
Refer to Repair Parts Sheet L2533, Figure 3.
1. Place new O-ring (item 65) on Swivel Coupler (item 61).
Place new Filter (item 62), cone end first, into swivel coupler.
Attach swivel coupler to cover using Stamped Bracket (item
63) and Screws (item 66), shown in figure 3. Torque screws
to 17-19 in.-lbs [2 Nm].
3.5 Hydraulic Pump Assembly
Refer to Repair Parts Sheet L2533, Figure 4.
1. Install Seal (item 16), Bearing (item 17) and Bearing
Retainer (item 18) into the Hydraulic Cylinder (item 1). Apply
one drop of Loctite 243 to threads of the Bearing Retainer
(item 18) and torque to 34-41 ft.-lbs. [46-55 Nm]. Note the
orientation of the Seal (item 16) in Figure 4.
2. Replace two O-rings (item 3) to the Hydraulic Cylinder (item 1).
3. Slide Mounting Bracket (item 4) onto the Hydraulic Cylinder
(item 1) Secure the Mounting Bracket (item 4) to the Hydraulic
Cylinder (item 1) using the Retaining Ring (item 5) with the
sharp edge away from the Mounting Bracket (item 4).
4. Clamp Hydraulic Cylinder (item 1) into a soft jaw vise.
5. Install Outlet Seat (item 8) and new Copper Washer (item 7)
into the Hydraulic Cylinder (item 1). Apply Loctite 243 on the
threads of the Outlet Seat (item 8) and torque to 34–41 ft. lbs.
[46-55 Nm].
6. Install Outlet Check Ball (item 9), Conical Spring (item 10)
and Ball Guide (item 11) into the Outlet Seat (item 8) Note:
The Conical Spring (item 10) on the outlet check is the
stronger of the two springs that are supplied in the repair kit.
7. Install Pressure Tube (item 13) and new Copper Gasket (item
12) into the Outlet Seal (item 8). Apply loctite 243 to the
threads of the Pressure Tube (item 13) and torque to 34-41
ft.-lbs [34-41 Nm].
8. Replace the two O-rings (item 15) and Backup Rings (item
14) onto the Pressure Tube (item 13). Note the orientation of
the O-rings and Backup Rings on Figure 4.
9. Rotate the clamping of the Hydraulic Cylinder (item 1) in the
soft jaw vise 180 degrees.
10. With a small punch push on the Outlet Check Ball (item 9) to
make sure that the check is installed properly. The ball should
spring back onto the Outlet Check Seat (item 8).
11. Install Ball Guide (item 11), Conical Spring (item 19) and
Intake Check Ball (item 9) into the base of the Outlet Check
(item 8). Note: The Conical Spring (item 10) on the outlet
check is the weaker of the two springs that are supplied in
the repair kit.
12. Install Intake Seat (item 8) and new Copper Washer (item 7)
into the Hydraulic Cylinder (item 1). Apply Loctite 243 on the
threads of the Intake Seat (item 8) and torque to 34–41 ft. lbs.
[46-55 Nm].
13. With a small punch push on the Intake Check Ball (item 9) to
make sure that the check is installed properly. The ball should
spring back onto the Intake Check Seat (item 8).
14. Install Relief Valve (item 6) into the Hydraulic Cylinder (item
1). Apply Loctite 545 to the threads and torque to 10-12 ft-lbs
[14-16 Nm].
15. Do not assembly the Intake Tube Assembly (item 52) into the
Intake Seat (8) at this time. It will be assembled after the
pump assembly is mounted to the cover.

4
3.6 Air Motor Assembly
Refer to Repair Parts Sheet L2533, Figure 7.
1. Install two new O-rings (items 33 and 34) onto the Piston
(item 32) and set the Piston (item 32) onto the top of the air
cylinder.
2. While holding the Piston (item 32) with a needle nose pliers,
insert the screw (item 30) and the Rubber Bumper (item 31)
from the underside of the air motor into the piston (item 32).
Torque the screw (item 30) to 20-25 ft.-lbs. [1 Nm]. Note:
Hold the piston with the needle nose pliers between the two
o-rings being careful not to damage the bearing surfaces of
the piston.
3. Install new o-rings (item 36, 37 and 38) onto the air cylinder.
4. Apply a moderate amount of DS-ES grease to all seals.
5. Fasten the air cap to the air cylinder tightening the four
screws (item 41) in a " X " pattern, torquing to 39-55 ft. lbs.
[5 Nm].
6. Install two O-rings (item 38) onto the Extension fitting (item
42). Grease both O-rings (item 38) and install the Extension
Tube (item 42) into the air cap.
7. Install Retaining Pin (item 43) into the air cap and bend over
the ends with a needle nose pliers.
8. Coat the air cylinder with a light amount of hydraulic fluid and
install the Air Motor Piston (item 44).
9. Install the O-ring (item 47) on the air motor. Install Hose
Clamp (item 49) and Bracket (item 48) loosely on the air
motor for mounting.
3.7 Air Pump Assembly
1. Install hydraulic section in a press with the relief valve
pointing down. Fill up the hydraulic cavity with oil to ensure
the pump is primed upon first use. See Photo 5.
2. Install hydraulic pump section into press with the spring,
rubber washer, spring washer, piston and air motor on top.
Make sure the large o-ring between the hydraulic section and
air motor section is in place. See Photo 4.
Photo 4
3. With the hose clamp and hose brackets set loosely around
the mounting bracket, press the air motor down in the press.
CAUTION: Be careful to guide the air motor down
while the spring puts a load on the air motor.
IMPORTANT: As the air motor is compressed down you must be
sure the hydraulic piston enters the hydraulic cavity. Make sure
the notch on the bottom of the air motor lines up with the notch
on the mounting bracket. Also make sure the pressure tube is
pointing in the same direction as the extension tube of the air
motor. See Photo 5.
4. With the air motor compressed fully on the hydraulic section
tighten the hose clamp firmly. See Photo 5.
Photo 5
A. Hydraulic cavity
B. Hose clamp
C. Alignment notches
D. Return Spring
5. Remove the pump assembly and make sure the extension
tube and pressure tube are in the same line. If not properly
aligned the assembly will not mount on the cover assembly. If
the two are not aligned loosen the hose clamp slightly and
rotate the air motor until both tubes are aligned. See Photo 6.
CAUTION: Do not loosen the hose clamp too much or
the air motor can come off and cause injury.
Photo 6
A. High-pressure tube
B. Extension tube

5
3.8 Pump Cover Assembly (See Photo 7.)
1. Mount cover assembly in soft jaw vise by clamping on
release valve block.
2. Place pump assembly on top aligning the pressure tube and
extension tube with the according holes on cover.
3. With a soft blow hammer tap on the intake check until the
pump assembly is firmly mounted down tight on the cover.
4. Use four mounting screws to mount the bracket to the cover
assembly.
5. Use new retaining pin to mount the air motor to the cover
assembly. Use a needle nose pliers to bend the clip ends.
Photo 7
A. Retaining pin
B. Mounting screws
C. Intake seat
3.9 Install Muffler Cover and Pad
Refer to Repair Parts Sheet L2533, Figure 1 and 2.
1. Install muffler cover and pad (item 91 and 90) to cover using
two screws (item 92 or 54). Torque screws to 17-19 in. lbs. [2
Nm].
3.10 Install Reservoir
Refer to Repair Parts Sheet L2533, Figure 1-3.
1. Place gasket (item 51) on reservoir. Position large notch in
gasket opposite sight glass and align with fill port.
2. Position cover assembly on reservoir such that the air inlet
end of cover is opposite the sight glass end of reservoir.
3. Using twelve screws (item 54) fasten cover assembly to the
reservoir. First snug all screws, then moving around the
cover according to tightening sequence in Figure 1 and 2.
Torque to 17-19 in. Lbs [2 Nm].
3.11 Install Treadle
Refer to Repair Parts Sheet L2533, Figure 1 and 2.
1. Install treadle to pump using two shoulder bolts (item 95).
Torque shoulder bolts to 6-8 ft.-lbs.
4.0 TESTING
1. Fill reservoir with fresh hydraulic oil.
2. Connect pump to gauge and 10-ton cylinder.
3. Extend cylinder several times to remove air.
4. Test output pressure and flow according to charts on page 7.
Air Filter
Air Motor
Relief Valve
Outlet Check Ball
Inlet Check Ball Hydraulic Inlet Filter
Air Button
Hydraulic Pump
Release Valve

6
TROUBLESHOOTING
PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION
Drift–pump will not hold load.
Allowable drift is 10% in the
first 10 seconds and 200 psi
for the next 30 seconds.
Usually at 10 to 20% of the
relief valve setting
Test to be performed with a
trapped fluid volume of 18
cu. in. ±10%. (Fluid volume is
approximately equal to an
RC106 with a six foot hose.
No flow or pressure
Pump is autocycling (air
button seals are leaking)
1. Coupler leaking (outlet thread joint) -
also check complete system for any
external leakage.
2. Bad release seat.
3. Release assembly improperly torqued
(could be under or over torqued).
4. Copper gaskets not aligned properly.
5. No spring under release ball.
6. Release ball jammed into spring.
7. Leakage at pressure tube area.
a. Bad outlet ball seat.
b. Bad copper gasket.
c. Bad O-ring seals.
d. Contamination on seat or ball.
8. Leakage at outlet ball
1. Check for prime.
1. Leakage at air button seals.
2. Check for the inlet ball being either
stuck or glued to the seat.
3. The hydraulic piston is not in the
cylinder bore.
1. Repair leak at coupler and/or other leakage in the system.
2. Re-coin seat or rebuild release assembly.
3. If over-torqued, check for damage to valve block and
seat.Proper torque is 72-78 ft.-lbs. (lubricated torque).
4. Align gaskets as instructed in the Release Valve Assembly
Instructions on page 4.
5. Check by removing coupler and flushing out grease if
necessary. Using a flashlight, check to make certain that
spring is in place.
6. Check to make certain that ball is not jammed into spring and
that ball guide is in place.
7. Correct as follows:
a. Replace if worn.
b. Replace copper gasket.
c. Replace o-ring seals.
d. Clean seat and ball.
8. Test as follows:
a. Remove pressure tube from the hydraulic cylinder.
b. Insert tube into valve manifold.
c. Back pressure manifold using a hand pump.
d. Check for oil leaking past the outlet ball.
1. Lift cover and check oil flow from the return to tank port. This
is done by depressing the air button while the treadle is in the
release position.
NOTE: If cover is removed from reservoir a new gasket must
be used.
- No oil flow means the pump is not primed.
- Oil flow without the treadle in the release position
indicates that the release is bad. (Refer to Drift problems
and check for missing ball.
Re-prime unit by removing the relief valve and filling the
cylinder with oil. Fill the cylinder to the bottom of the threads.
Replace the relief valve.
1. Test as follows:
a. With cover removed from reservoir, pressurize valve to
100 psi.
b. Submerge valve in water or pour water into cavity at valve
and check for bubbles. If bubbles are present, the cover with
air button must be replaced. The air button assembly is a
non-serviceable part.
2. "LIGHTLY" press on inlet ball to ensure movement. Be careful
not to damage the inlet seat.
NOTE: Check that the inlet tube is properly glued to cylinder.
Be certain to reinstall the inlet filter when finished.
3. Remove air motor from hydraulic body. Check to make certain
that the hydraulic piston was operating in the cylinder bore.
Check for marks in the air motor wall or on the edge of the
mounting bracket where the piston would have been
contacting if not operating in the cylinder bore.
NOTE: When priming the pump, if the piston is not in the
cylinder bore, the oil will run into the air motor and out the
exhaust port of the mounting bracket.
NOTE: If the air motor "stalls" (does not cycle) after
reassembling pump, check to make certain that the white air
piston is installed in the air motor.

7
Model Hydraulic Hydraulic Oil Flow Oil Flow Air Pressure Air Operating
Type Air Ratio Output Ports @ 100 psi @ 10,000 psi Range Consumption @ Noise
(6.9 bar) (700 bar) 100 psi (6.9 bar) Level (dBA)
PAT G, 100:1 .375-18 NPTF 60 cu.in/min. 10 cu.in/min. 25-125 psi 12 SCFM 76
PA MG (1.0 liters/min.) (0.16 liters/min.) ( 1,7-8,6 bar) (0.34 cu.m/min)
PA RG 100:1 .375-18 NPTF 45 cu.in/min. 5 cu.in/min 25-125 psi 12 SCFM 76
(0.74 liters/min.) (0.08 liters/min.) ( 1,7-8,6 bar) (0.34 cu.m/min)
Series Hydraulic Oil Flow Oil Flow Oil Flow Air Pressure Air Consumption Operating
Air Ratio @ 100 psi @ 3,000 psi @ 5,000 psi Range @ 100 psi Noise
(6.9 bar) (207 bar) (350 bar) (6.9 bar) Level (dBA)
3000 50:1 170 cu.in/min. 50 cu.in/min. 0 cu.in/min. 25-125 psi 12 SCFM 76
(2.79 liters/min.) (0.82 liters/min.) (0.0 liters/min.) (1,7-8,6 bar) (0.34 cu.m/min)
5000 72:1 120 cu.in/min. 45 cu.in/min. 20 cu.in/min. 25-125 psi 12 SCFM 76
(1.97 liters/min.) (0.74 liters/min.) (0.33 liters/min.) ( 1,7-8,6 bar) (0.34 cu.m/min)
ABC
D
E
F
G
H
I
J
Turbo II Cut-away
A– Release Valve F– Hydraulic Piston
B– Air Outlet G– Intake Check
C– Air Inlet Button H– Relief Valve
D– Air Inlet I– Outlet Check
E– Air Motor Piston J– Hydraulic Outlet

Enerpac Worldwide Locations ✦ e-mail:i[email protected] ✦ internet:www.enerpac.com
All Enerpac products are guaranteed against defects in workmanship and materials for as long as you own them.
For your nearest authorized Enerpac Service Center, visit us at www.enerpac.com
Australia
ENERPAC, Applied Power Australia Ltd.
Block V Unit 3
Regents Park Estate
391 Park Road
Regents Park NSW 2143
(P.O. Box 261) Australia
Tel: [phone]
Fax: [phone]
Canada
Actuant Canada Corporation
6615 Ordan Drive, Unit 14-15
Mississauga, Ontario L5T 1X2
Tel: [phone]
Fax: [phone]
Toll Free:
Tel: [phone]
Fax: [phone]
China
Applied Power China Ltd.
1F, 269 Fute N. Road
Waigaoqiao Free Trade Zone
Pudong New District
Shanghai, 200 131
China
Tel: [phone]
Fax: [phone]
France, Turkey, Greece,
Africa, Middle East
ENERPAC S.A.
B.P. 200
Parc d’Activités
du Moulin de Massy
F-91882 Massy CEDEX (Paris) France
Tel: [phone]
Fax: [phone]
Germany, Switzerland,
Austria, Eastern Europe
ENERPAC
Applied Power GmbH
P. O. Box 300113
D-40401 Düsseldorf
Germany
Tel: [phone]
Fax: [phone]
Hong Kong
ENERPAC
Room 907 Workingberg
Commercial Building
41-47 Marble Road
North Point
Tel: [phone]
Fax: [phone]
India
ENERPAC
Hydraulics (India) Pvt Ltd
Plot No. A-571
MIDC, TTC Industrial Area
Mahape-400 701
Navi Mumbai, India
Tel: [phone]
Fax: [phone]
Italy
ENERPAC
Applied Power Italiana S.p.A.
Via Canova 4
20094 Corsico (Milano)
Tel: [phone]
Fax: [phone]
Japan
Applied Power Japan Ltd.
1-1-11, Shimomae
Toda-shi
Saitama Pref.
Japan 335-0016
Tel: [phone]
Fax: [phone]
Mexico
ENERPAC Applied Power
Mexico S.A. de C.V.
Avenida Principal
La Paz #100
Fracc. Industrial La Paz
42092 Pachuca, Hidalgo
Tel: [phone]
Fax: [phone]
The Netherlands, Belgium,
Luxembourg, Sweden, Denmark,
Norway, Finland, United Kingdom,
Ireland
ENERPAC B.V.
Storkstraat 25
P. O. Box 269, 3900 AG Veenendaal
The Netherlands
Tel: [phone]
Fax: [phone]
[phone]
UK, Ireland
Tel: [phone]
Fax: [phone]
Singapore
Applied Power Asia Pte Ltd
No. 8, Ang Mo Kio,
Industrial Park 2
#01-00
Singapore 569500
Thomson Road, P.O. Box 114
Singapore 915704
Tel: [phone]
Fax: [phone]
South Korea
ENERPAC
Applied Power Korea Ltd.
163-12 Dodang-Dong
Wonmi-Ku, Buchun-shi
Kyunggi-Do
Republic of Korea
Tel: [phone]
Fax: [phone]
Spain, Portugal
ENERPAC
Applied Power International S.A.
Avda. Camino de lo Cortao
21 - Nave 3
San Sebastian de los Reyes
28709 Madrid
Spain
Tel: [phone]
Fax: [phone]
USA, Latin America
and Caribbean
ENERPAC
P. O. Box 3241
6101 N. Baker Road
Milwaukee, WI 53209 USA
Tel: [phone]
Fax: [phone]
User inquiries:
[phone]
Distributor inquiries/orders:
[phone]
092501
