ENGWE-BIKES X5 User manual

ENGWE-BIKES
Operation and maintenance manual
Before using the e-bike, please read the attached operating instructions.
Carefully read the safety rules.

IMPORTANCE
When using the electric bicycle, basic safety precautions should always be followed,
including the following:
1. Read all instructions.
2. To protect against fire, electric shock and injury to persons, do not immerse cord,
plugs, or e-bike in water or other liquid.
3. Close supervision is necessary when the e-bike is used by or near children.
4. Unplug from outlet when not in charging and before cleaning.
5. Do not operate the e-bike with a damaged cord or plug or after the e-bike
malfunctions, or has been damaged in any manner. Take the e-bike to the nearest
authorized service bike shop for examination, repair or adjustment.
6. The use of accessory attachments not recommended by the e-bike
manufacturer may result in fire, electric shock or injury to persons.
7. Do waterproof when using on a rainy or snowy day.
8. Do not let cord hang over the edge of table or counter, or touch hot surfaces.
9. Do not place on or near a hot gas or electric burner, or a heated oven.
10. Always attach the plug to the battery first, then plug the cord into the wall
outlet.
11. Do not use the bike for other than intended use.
12. Save these instructions.

Electric Bicycle
General Manual

Read This First: Safety and Compliance with the Law
Congratulations on your purchasing of your new e-bike. Your new e-bike is an
excellent piece of personal transportation equipment that will give you good
service for many years.
Before you start using your e-bike, we want you to be aware of a few important
points. Please read this section carefully.
Observe Laws Regarding the Use of Battery-Operated Bicycles
Your e-bike is designed and manufactured to meet safety requirements as a
battery-operated bicycle. However, state and local laws governing the use of
battery-operated bicycles on public roadways, parks, and other open areas may
differ. Please check with your local authority before using your e-bike in public
areas.
Observe Laws Regarding the Use of Bicycles
Note that all laws regarding the use of bicycles in public areas, such as those
mandating the use of helmets and the use of infant seats, will automatically
apply for e-bikes. Check with your local authority on what restrictions might
apply.
The Lithium-ion Battery of Your e-Bike
Your e-bike is equipped with the latest battery technology. The lithium-ion
battery is much lighter than lead- or nickel-based batteries that are being used
in some older models.
Your First Ride
Please be VERY CAREFUL when you are ready to get on your e-bike for the first
time because that the e-bike moves significantly faster than a regular bicycle at
active power-assisted mode. Take your e-bike to an area with a lot of open space
before you start. Do not start pedaling hard as soon as you get on the e-bike (as
you normally would so with a regular bicycle), as the e-bike will accelerate under
pedal-assist mode and you may be unprepared for the sudden increase in speed.
However, after a few times, you will enjoy using the pedal-assisted function.

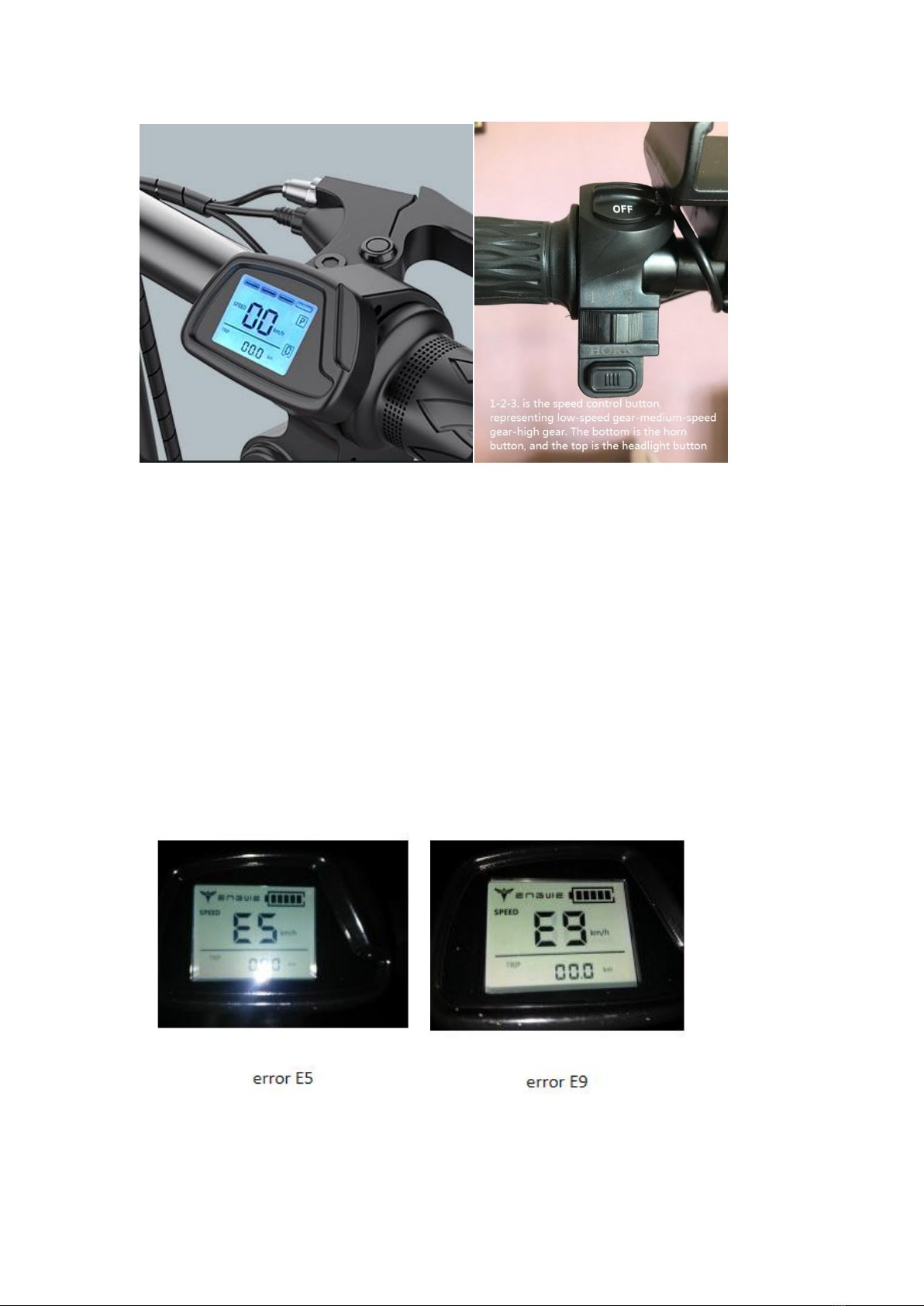

The meter displays garbled characters Error :
1. E 9 represents communication timeout, that is, no data command sent by the
control is received for more than 10 seconds, (check whether all lines are
normal, and the wire interface may be loose or broken)
2. E 1 means the motor is faulty (check whether the hall wire of the motor is
broken)
3. E 2 stands for instrument failure (check whether the instrument cable has
been disconnected from the controller or is badly removed)
4. E 3 represents brake failure (check whether the brake cable has fallen off
from the controller)
5. E 5 means the throttle lever is faulty (check whether the wire of the throttle
lever has been disconnected from the controller or the release is bad)

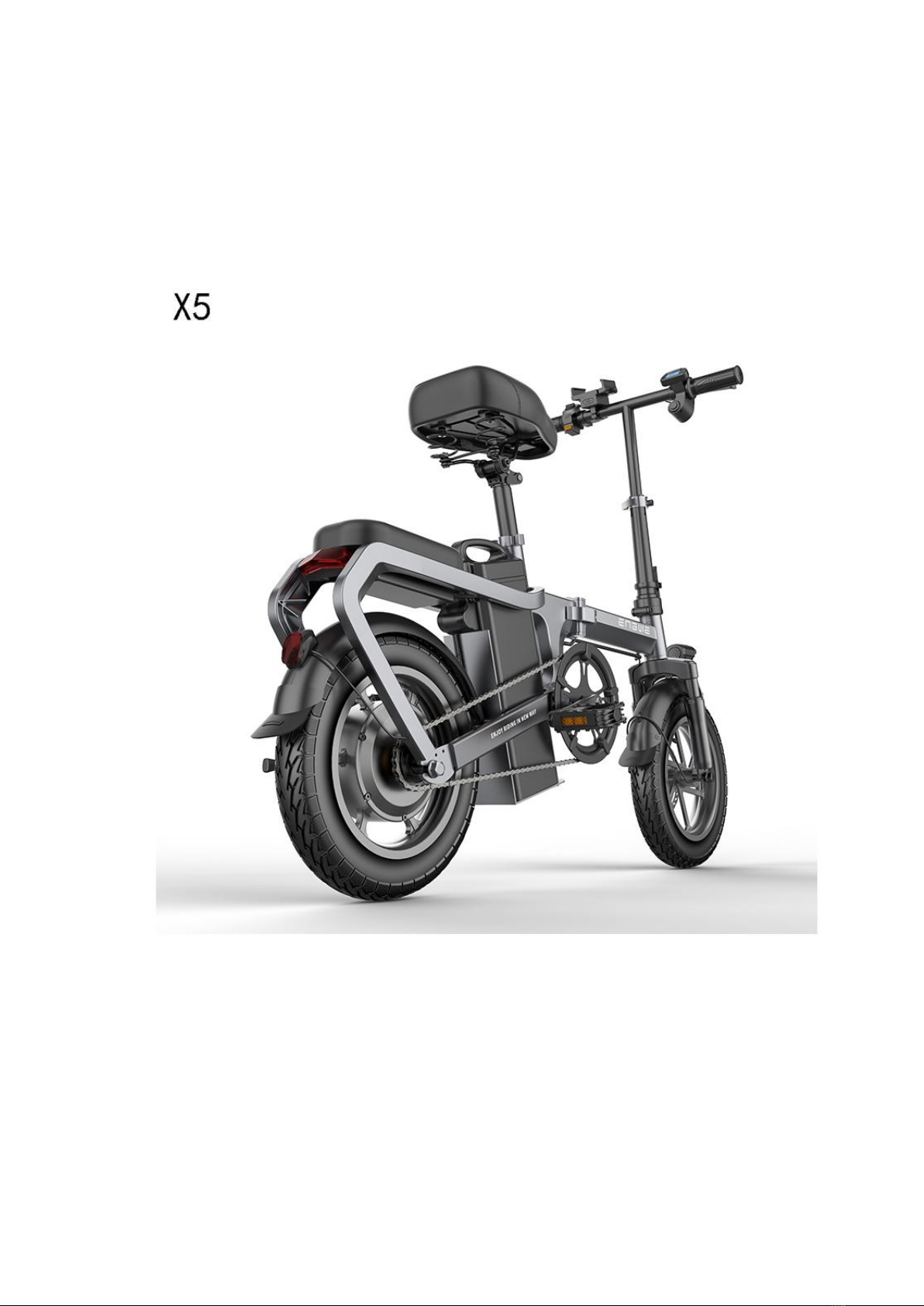

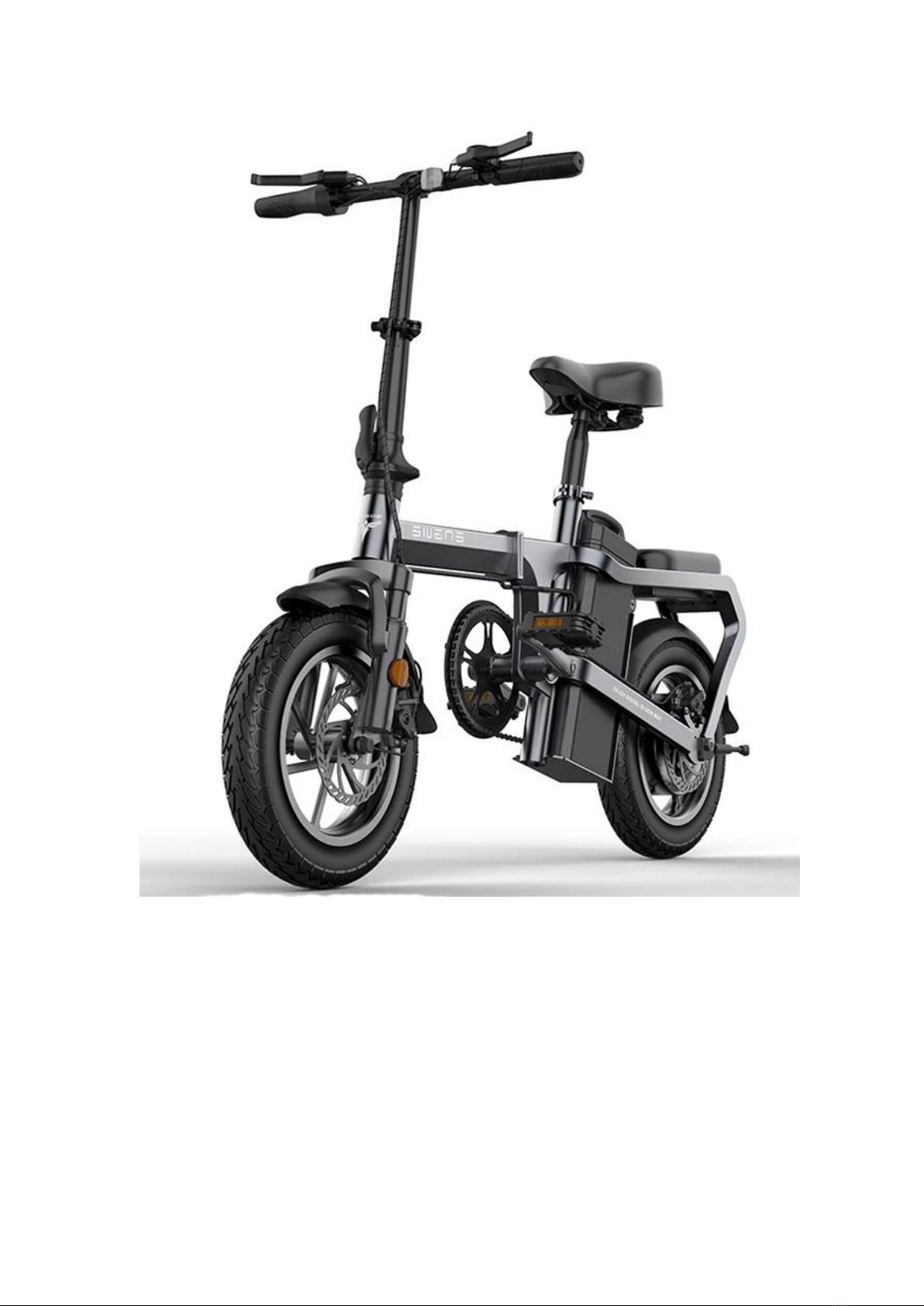

X5 Main FeaturesSpecification:
Maximum Speed: 0-30 km/h
Frame Material: steel
Tire: 14 X 2.125 inch
Package Sizes：80*40*60cm
Recommended Tire Pressure: 20 PSI | 1.4 BAR
Load capacity: 150kg Vehicle weight: 25kg
Battery: 48V 10Ah/ 20Ah Lithium-ion
Front Fork: Hydraulic shock absorption system
Charging time: about 6~10 hours
Motor: 400W high-speed brushless gear motors
Features: Booster riding, Pure electric riding, Pure human riding Collapsible
top-tube and frame make it portable and convenient to store in your bike.
Package Include:E-Bike*1, Battery*1, Charger*1
Care and Maintenance for Your New e-Bike
1.You should, in general, take care of your e-bike the way you would with a
regular bicycle by keeping it dry, clean and the moving parts well lubricated.
You should also avoid parking your e-bike in exposed areas whenever
possible.
2.You should check the effectiveness of the brakes before each use.
For your e-Bike, you should also take note of the following
3.Your e-bike is designed for regular country road use for a single person.
Using your e-bike for extreme maneuvers, such as extreme off-road use,
jumping, or carrying the excessive load will damage the e-bike and could cause
serious injury.
4.Do not use high-pressure water streams to clean your e-bike, as water might
seep inside the motor or the wiring compartment and cause rusting of electrical
parts or short circuits.
5.Avoid parking your e-bike outside when there is rain or snow. At the end of a
trip where there was rain or snow, bring the e-bike inside and use a clean, dry
towel to eliminate any wetness.
6.Be sure you do not lose both keys . If you lost one key, you should
immediately make a copy as a back-up. If you lost both keys, you will be unable
to remove the battery from the e-bike. If you lost both remote controls, you can’
t turn on the bike.

7.Special Care for the Battery and the Charger
8.Use only the supplied charger to charge your battery. Do not use an
unauthorized substitute. If your charger is lost or damaged, contact your dealer
to order a replacement.
9.Do not open or alter the battery or the battery charger.
10.Do not place the battery near fire or corrosive substances. Do not immerse
in water or other liquids.
11.Avoid subjecting the battery from high temperatures, such as directly under
the hot sun, for prolonged periods of time.
12.Do not connect (short circuit) the two poles of the battery.
13.After much use, your battery's charge holding capacity will decrease. If you
find that your battery does not hold sufficient charge even for short trips, you
should contact your dealer to order a replacement. Under normal use, the
battery will undergo 1000 charging and discharging cycles.
14.If the battery will not be used for an extended period of time, charge it fully
and recharge it every 3 months. Store it in a cool place.
Your e-bike battery is engineered with precision for high capacity and long
useful life. We do not recommend that you use it to power other electrical
devices. Improper use of the battery will damage the battery and shorten its
useful life and may cause a fire or an explosion.
