Enthermics DC250 User manual

Enthermics Medical Systems
An ISO 13485:2016 certified company
W164 N9221 Water St |Menomonee Falls WI 53051
Tel [phone] |800-TO-B-WARM
[email protected]
www.enthermics.com
Printed in the U.S.A. Specifications are subject to change without notice. Made in the U.S.A.
Owner’s Manual
MN-37072 • Rev 5 • 12/18
Designer Series Blanket Warmer
DC350
DC250
DC150
(shown with optional timer)
DC400
(shown with optional timer)
DC750
(shown with optional timer)
DC150
DC250
DC350
DC400
DC750

MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Table of Contents
Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Transportation Damage and Claims . . . . . . . . . . . . . . . . 1
Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Electrical Information . . . . . . . . . . . . . . . . . . . . . . . . 6
Operation Instructions . . . . . . . . . . . . . . . . . . . . . . . 9
Cleaning and Preventative Maintenance . . . . . . . . . . . . 14
Dimension Drawings . . . . . . . . . . . . . . . . . . . . . . . 16
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Wiring Diagrams Refer to the wire diagram located under the lid of the appliance.
Authorized Representative:
MDSS GmbH
Schigraben 41
30175 Hannover
Germany
REPEC

1
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Delivery
Receipt of Warmer
The warmer has been thoroughly tested and
inspected to ensure only the highest quality warmer is
provided. Upon receipt, inspect for any possible shipping
damage and report it at once to the delivering carrier.
See Transportation Damage and Claims section.
This warmer, complete with unattached items and
accessories, may be delivered in one or more packages.
Confirm that all standard items and options have been
received with each warmer as ordered. Save all the
information packed with the warmer.
Register the warmer online to assure prompt service in
the event of a warranty parts and labor claim.
http://www.enthermics.com/warranty-registration
Environmental Conditions
Transport and storage environmental conditions (not to exceed 15 days)
Ambient temperature range of -40°C to +70°C (-40°F to +159°F)
Relative humidity range of 10% to 95%, non-condensing
Atmospheric pressure range of 50kPa to 106kPa
Operational environmental conditions
The warmer must acclimate to the room temperature in the environment it will be placed—24 hours
is recommended.
The recommended environmental temperature range is 15°C to 32°C (60°F to 90°F).
The recommended relative humidity is above 20%, non-condensing.
Indicates that the package contents should
not be used if the package has been
damaged or opened.
All Enthermics Medical Systems warmers
are sold Free on Board (F.O.B.) shipping
point, and when accepted by the carrier,
such shipments become the property of the
consignee.
Should damage occur in shipment, do not put the warmer
into service until the damage has been inspected by an
authorized service provider.
Should damage occur in shipment, it is a matter between
the carrier and the consignee. In such cases, the carrier
is assumed to be responsible for the safe delivery of the
merchandise, unless negligence can be established on the
part of the shipper.
1. Conduct an immediate inspection while the warmer
is still in the truck or immediately aer it is moved to
the receiving area. Do not wait until aer the warmer
is moved to a storage area.
2. Do not sign a delivery receipt or a freight bill until
a proper count has been made and inspection of all
warmers are received.
3. Note all damage to packages directly on the carrier’s
delivery receipt.
4. Have the driver sign the delivery receipt. If the
driverrefuses to sign, make a notation of this refusal
on the receipt.
5. If the driver refuses to allow inspection, write the
following on the delivery receipt: Driver refuses to
allow inspection of containers for visible damage.
6. Contact the carrier’s office immediately upon finding
damage and request an inspection. Mail a written
confirmation to the carrier’s office with the time,
date, and the person called.
7. Save any packages and packing material for further
inspection by the carrier.
8. Promptly file a written claim with the carrier and
attach copies of all supporting paperwork.
Enthermics will continue our policy of assisting our
customers in collecting claims which have been properly
filed and actively pursued. Enthermics cannot, however,
file any damage claims, assume the responsibility of any
claims, or accept deductions in payment for such claims.
Transportation Damage and Claims

2MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer

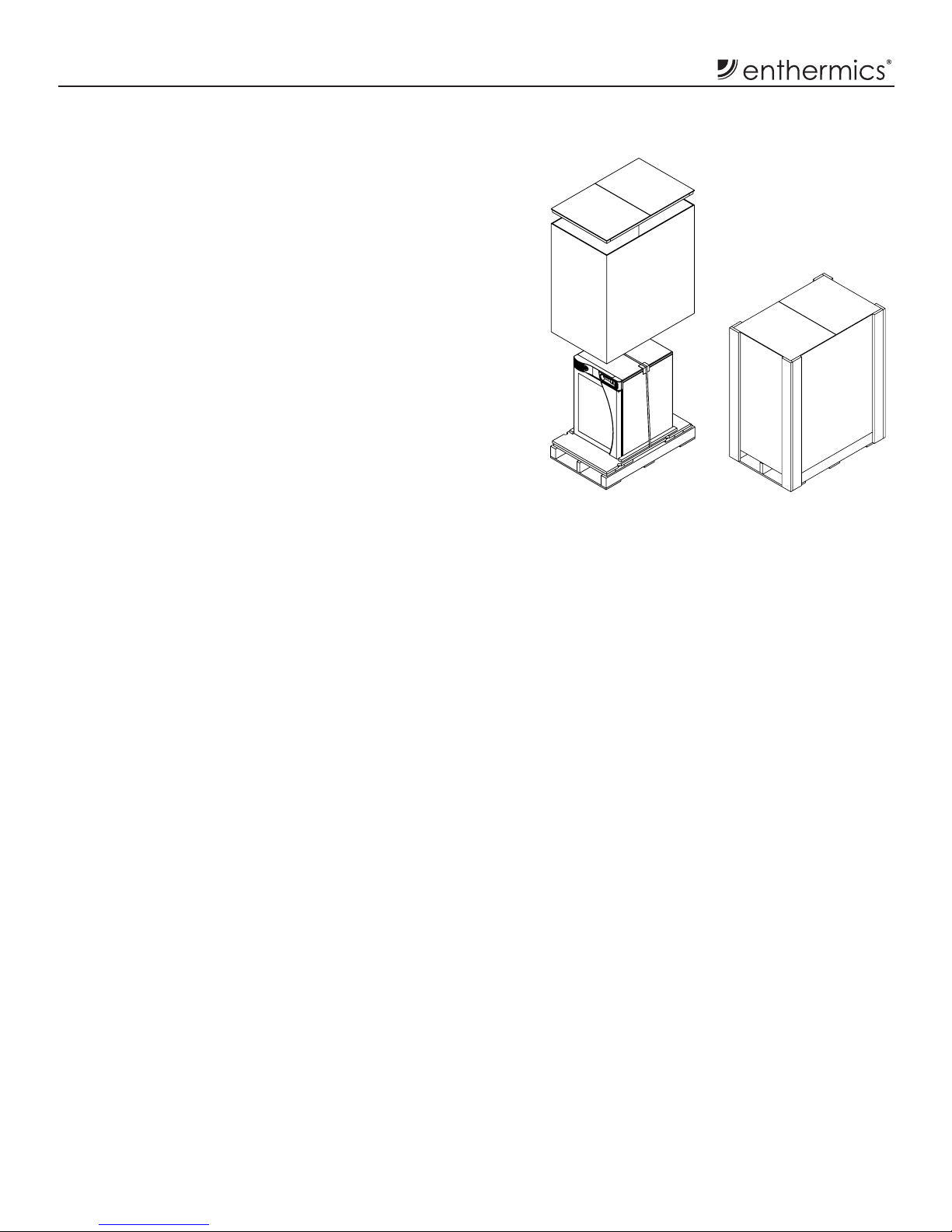

Unpacking
1. Carefully remove the appliance from the carton or crate.
NOTE: Do not discard the carton and other packaging material
until the appliance has been inspected for hidden
damage and tested for proper operation.
2. Read all instructions in this manual carefully before initiating
the installation of this appliance, using the appliance or
performing routine maintenance. Following procedures
other than those indicated in this guide to use and clean
the appliance is considered inappropriate and may cause
damage, injury or fatal accidents, in addition to invalidating
the guarantee and relieving the manufacturer of all liability.
3. Do not discard this manual. This manual is considered to
be part of the appliance and is to be provided to the owner
or manager of the business or to the person responsible for
training operators. Additional manuals are available from
the service department.
4. Remove all protective plastic film, packaging materials,
and accessories from the appliance before connecting
electrical power. Store any accessories in a convenient
place for future use.

3
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Safety Procedures
NOTICE: Used to notify personnel of installation,
operation, or maintenance information that is
important but not hazard related.
Used to indicate that referral to operating
instructions is a mandatory action. If not
followed, the operator or patient could suer
personal injury.
Used to indicate that referral to operating
instructions is recommended to understand
operation of the appliance.
Knowledge of proper procedures is essential to the
safe operation of electrically energized appliances. The
following hazard signal words and symbols may be used
throughout this manual.
DANGER
Used to indicate the presence of a hazard
that will cause severe personal injury, death,
or substantial property damage if the warning
included with this symbol is ignored.
WARNING
Used to indicate the presence of a hazard
that CAN cause personal injury, possible
death, or major property damage if the
warning included with this symbol is ignored.
CAUTION
Used to indicate the presence of a hazard
that can or will cause minor or moderate
personal injury or property damage if the
warning included with this symbol is ignored.
NOTE
For equipment delivered for use
in any location regulated by the
following directive:
DO NOT DISPOSE OF ELECTRICAL OR
ELECTRONIC EQUIPMENT WITH OTHER
MUNICIPAL WASTE.
• The blanket chamber is intended for warming dry,
cotton blankets or towels only. The blanket chamber
is designed to elevate blanket temperatures to a level
which will increase patient comfort.
• The fluid chamber is only intended for warming
medical solutions for irrigation and injection prior to
use. Refer to the labeling of the manufacturer of the
products to be warmed regarding the recommended
temperature and the duration of warming. No other use
for this appliance is authorized or recommended.
•
This warmer is intended for use in commercial
establishments where all operators are familiar with
the purpose, limitations, and associated hazards of this
appliance. The warmer can be used wherever there
is appropriate space and electrical source including
patient support areas, ER, ICU, PACU, surgical suites,
patient rooms, and nursing stations. Do not use the
warmer in the presence of flammable anesthetic
mixtures (with air, oxygen, or nitrous oxide).
• Operating instructions and warnings must be read and
understood by all operators and users.
• Any troubleshooting guides, component views, and
parts lists included in this manual are for general
reference only and are intended for use by qualified
and trained technicians.
• This manual should be considered a permanent
part of this appliance. This manual and all supplied
instructions, diagrams, schematics, parts lists, notices,
and labels must remain with the appliance if the item is
sold or moved to another location.
CAUTION
The door may swing during transport. Only
transport the appliance when the door is
closed and secure.
CAUTION
Appliance and accessories may be
heavy. To prevent serious injury, always
use a suicient number of trained and
experienced workers when moving or
leveling appliance and handling accessories.
NOTICE:
Due to the energy eicient design of the appliance
and tight seal around the door, water vapor from
moist or damp blankets placed in the appliance
may cause condensation to collect on interior
surfaces. To avoid this accumulation, use dry
blankets or towels.
A temporary odor may be noticeable upon initial
start-up of the appliance. Contact manufacturer if
the odor persists aer a day or more of continuous
use.
NOTICE: A temporary odor may be noticeable upon initial
start-up of the warmer. Contact manufacturer
if the odor persists aer a day or more of
continuous use.
• The blanket chamber is intended for warming dry,
cotton blankets or towels only. The blanket chamber
is designed to elevate blanket temperatures to a level
which will increase patient comfort.
• The fluid chamber is only intended for warming
medical solutions for irrigation and injection prior to
use. Refer to the labeling of the manufacturer of the
products to be warmed regarding the recommended
temperature and the duration of warming. No other use
for this appliance is authorized or recommended.
• This warmer is intended for use in commercial
establishments where all operators are familiar with
the purpose, limitations, and associated hazards of this
appliance. The warmer can be used wherever there
is appropriate space and electrical source including
patient support areas, ER, ICU, PACU, surgical suites,
patient rooms, and nursing stations. Do not use the
warmer in the presence of flammable anesthetic
mixtures (with air, oxygen, or nitrous oxide).
• Operating instructions and warnings must be read and
understood by all operators and users.
• Any troubleshooting guides, component views, and
parts lists included in this manual are for general
reference only and are intended for use by qualified
and trained technicians.
• This manual should be considered a permanent
part of this appliance. This manual and all supplied
instructions, diagrams, schematics, parts lists, notices,
and labels must remain with the appliance if the item is
sold or moved to another location.

4MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Installation
Preparation Before Operating the Appliance
1. Clean the interior and exterior with a damp cloth and mild soap solution.
2. Wipe with an appropriate disinfectant.
3. Wipe dry with a clean cloth or air dry.
WARNING
To prevent serious personal injury, death, or
property damage:
Do not steam clean, hose down or flood the
interior or exterior with water or liquid solution
of any kind. Do not use water jet toclean. Failure
to observe this precaution will void the warranty.
DANGER
To prevent serious personal injury, death,
or property damage:
Do not use this warmer in the presence of
flammable anesthetic mixtures (with air
or with oxygen or nitrous oxide).
Not category AP or APG equipment
General Information
Specifications:
• Single-chamber warming cabinet.
• White epoxy-coated steel exterior
casing and interior insert.
• Single pane, energy-efficient,
e-coated glass window in door
allows for inventory observation.
• Easy push-button door for
hands-free operation.
• Door is fully gasketed and hinged
on the right side of the unit.
• WarmSafe™ incorporates a multiple
zone warming technology (Patent No:
US 8,217,316; US 8,581,152) that heats where
and when it is needed. All chamber
surface temperatures are monitored,
providing an efficient balance of heat,
low-energy consumption and minimal
heat loss.
• DC350 & DC750 include a heated
center shelf to further optimize heat
distribution throughout the cavity.
• Four (4) non-skid rubber feet
are standard.
Control:
• Adjustable temperature range of
32° - 71°C (90° - 160°F)
• Operates in Celsius or Fahrenheit.
• Four digit L.E.D. display.
• On/off button.
• Up and down adjustment buttons.
• Actual temperature button.
• Interior light button.
• Built-in speaker for audible feedback.
• Integrated control lockout feature.
Additional features:
•
L.E.D. interior lighting casts a comforting
blue glow with two (2) different intensity
settings and off mode.
•
Safety: In the event of a power failure
the cabinet will retain its programming
and operates as previously set when
power is restored.
• Safety: A warming shut-off system,
separate from the electronic control,
prevents overheating.
• Convenience: Access point and
removable cover has been added to
the back panel that allows the addition
of data logging or temperature
management hardware.
•
Convenience: Stackable configurations
are available for additional capacity or to
pair with fluid warmers.
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom

5
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Dimensions
Dimensions (H x W x D)
With feet (standard):17.0" x 18.5" x 20" (432mm x 470mm x 508mm)
Capacity
1.5 3
Weight**
(est.) Net: 56 lbs (25 kg) Ship: 98 lbs (44 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.6 kW, 5.0 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
220 V.A.C. — 50Hz, 1 ph
0.6 kW, 2.7 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.6 kW, 2.6 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug IPX-0
Dimensions (H x W x D)
With feet (standard):22" x 18.5" x 23" (559mm x 470mm x 584mm)
With plate and
casters (optional):26.25" x 18.5" x 23" (667mm x 470mm x 584mm)
With bumper and
casters (optional):26.25" x 21.25" x 25" (667mm x 540mm x 635mm)
Capacity
2.5 3
Weight**
(est.) Net: 67 lbs (30 kg) Ship: 118 lbs (54 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.6 kW, 5.0 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
220 V.A.C. — 50Hz, 1 ph
0.6 kW, 2.7 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.6 kW, 2.6 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug IPX-0
Dimensions (H x W x D)
With feet (standard):28" x 18.5" x 23" (711mm x 470mm x 584mm)
With plate and
casters (optional):32.25" x 18.5" x 23" (819mm x 470mm x 584mm)
With bumper and
casters (optional):
32.25" x 21.25 x 25.25" (819mm x 540mm x
641mm)
Capacity
3.5 3
Weight**
(est.) Net: 91 lbs (41 kg) Ship: 146 lbs (66 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
E471516
220 V.A.C. — 50Hz, 1 ph
0.8 kW, 3.6 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.8 kW, 3.5 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug IPX-0
DC150
DC400
DC250
DC750
DC350
**Domestic ground shipping information. Contact factory for export weight and dimensions.
Dimensions (H x W x D)
With feet (standard):22" x 24.0" x 25.0" (559mm x 610mm x 635mm)
With plate and
casters (optional):26.25" x 24.0" x 25.0" (667mm x 610mm x 635mm)
With bumper and
casters (optional):26.5" x 26.75" x 27.5" (673mm x 679mm x 699mm)
Capacity
4.0 3
Weight**
(est.) Net: 85-1/2 lbs (439 kg) Ship: 160 lbs (73 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
E471516
220 V.A.C. — 50Hz, 1 ph
0.8 kW, 3.6 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.8 kW, 3.5 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug IPX-0
Dimensions (H x W x D)
With feet (standard):35.5" x 24.0" x 25.25" (902mm x 610mm x 641mm)
With bumper and
casters (optional):39.25” x 24.0" x 25.25" (997mm x 610mm x 641mm)
With casters (optional):39.25" x 26.75" x 27.5" (997mm x 680mm x 699mm)
Capacity
7.5 3
Weight**
(est.) Net: 134 lbs (61 kg) Ship: 196 lbs (89 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
E471516
220 V.A.C. — 50Hz, 1 ph
0.8 kW, 3.6 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.8 kW, 3.5 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug IPX-0

6MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Electrical Information
Locate the Rating Tag
Verify the power requirements for the appliance. The power specification is located on the
appliance identification rating tag. This tag is permanently attached to the appliance.
Hazardous
Voltage Present
CAUTION
Power source must match voltage identified
on appliance rating tag. The rating tag
provides essential technical information
required for any appliance installation,
maintenance or repairs. Do not remove,
damage or modify the rating tag.
DANGER
To prevent serious personal injury, death,
or property damage:
Do not
use this warmer in the presence of
flammable anesthetic mixtures (with air
or with oxygen or nitrous oxide).
Not category AP or APG equipment
DC150 DC400
Power Requirements
WARNING
For CE approved appliances: To prevent an electrical
shock hazard between the appliance and other appliances or
metal parts in close vicinity, an equalization-bonding stud is
provided. An equalization-bonding lead must be connected
to this stud and the other appliances/metal parts to provide
suicient protection against potential dierence.
The terminal is marked with the following symbol.
Provisions for earthing are to be made in accordance
with IEC:2010 60335-1 section 27 or local codes.
Dimensions (H x W x D)
With feet (standard):22" x 18.5" x 23" (559mm x 470mm x 584mm)
With plate and
casters (optional):26.25" x 18.5" x 23" (667mm x 470mm x 584mm)
With bumper and
casters (optional):26.25" x 21.25" x 25" (667mm x 540mm x 635mm)
Capacity 2.5 3
Weight** (est.) Net: 67 lbs (30 kg) Ship: 118 lbs (54 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.6 kW, 5.0 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
220 V.A.C. — 50Hz, 1 ph
0.6 kW, 2.7 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.6 kW, 2.6 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug
IPX-0
Dimensions (H x W x D)
With feet (standard):35.5" x 24.0" x 25.25" (902mm x 610mm x 641mm)
With bumper and
casters (optional):39.25” x 24.0" x 25.25" (997mm x 610mm x 641mm)
With casters (optional):39.25" x 26.75" x 27.5" (997mm x 680mm x 699mm)
Capacity 7.5 3
Weight** (est.) Net: 134 lbs (61 kg) Ship: 196 lbs (89 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
E471516
220 V.A.C. — 50Hz, 1 ph
0.8 kW, 3.6 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.8 kW, 3.5 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug
IPX-0
Dimensions (H x W x D)
With feet (standard):17.0" x 18.5" x 20" (432mm x 470mm x 508mm)
Capacity 1.5 3
Weight** (est.) Net: 56 lbs (25 kg) Ship: 98 lbs (44 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.6 kW, 5.0 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
220 V.A.C. — 50Hz, 1 ph
0.6 kW, 2.7 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.6 kW, 2.6 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug
IPX-0
Dimensions (H x W x D)
With feet (standard):22" x 24.0" x 25.0" (559mm x 610mm x 635mm)
With plate and
casters (optional):26.25" x 24.0" x 25.0" (667mm x 610mm x 635mm)
With bumper and
casters (optional):26.5" x 26.75" x 27.5" (673mm x 679mm x 699mm)
Capacity 4.0 3
Weight** (est.) Net: 85-1/2 lbs (439 kg) Ship: 160 lbs (73 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
E471516
220 V.A.C. — 50Hz, 1 ph
0.8 kW, 3.6 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.8 kW, 3.5 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug
IPX-0
DC250 DC750
Dimensions (H x W x D)
With feet (standard):28" x 18.5" x 23" (711mm x 470mm x 584mm)
With plate and
casters (optional):32.25" x 18.5" x 23" (819mm x 470mm x 584mm)
With bumper and
casters (optional):
32.25" x 21.25 x 25.25" (819mm x 540mm x
641mm)
Capacity 3.5 3
Weight** (est.) Net: 91 lbs (41 kg) Ship: 146 lbs (66 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.8 kW, 6.7 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
E471516
220 V.A.C. — 50Hz, 1 ph
0.8 kW, 3.6 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.8 kW, 3.5 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug
IPX-0
DC350
Safety Class I
Equipment
Protective Earth
Ground Symbol
Medical Equipment classified by Underwriters
Laboratories with Respect to Electrical Shock,
Fire and Mechanical Hazards only, in Accordance
with UL 61010–1 and CAN/CSA C22.2 No. 61010–1. E471516
Grounding reliability can only be achieved when appliance is
connected to an equivalent receptacle marked “Hospital Grade.”
Wire diagram is located under top lid of appliance.
*Other international plugs are available, contact the manufacturer for more information.

7
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Electrical Information
The warmer requires special precautions
regarding EMC (Electromagnetic
Compatibility) and needs to be installed
and put into service according to the
EMC information provided in the
accompanying documents.
Portable and mobile RF communications equipment can
affect medical electrical equipment.
A risk of increased emissions or decreased immunity
may result if the power cord attached is altered or a
manufacturer supplied power cable is not used.
The warmer should not be used adjacent to or stacked with
other equipment.
Observe to verify normal operation if it is necessary to use
adjacent to or stacked with other equipment.
The essential performance of the warmer is to not
exceed an internal temperature of 180°F / 82°C (+10%) for
blanket warmers or 150°F / 66°C (+10%) for fluid warmers.
The warmers are intended for use in the electromagnetic environment specified below. The customer or the end user
of this warmer should assure that it is used in such an environment.
Emissions test Compliance Electromagnetic environment - guidance
RF emissions; CISPR 11 Group 1 The warmer uses RF energy only for internal function. Therefore,
its RF emissions are very low and are not likely to cause any
interference in nearby electronic equipment.
RF emissions; CISPR 11 Class B The warmer is suitable for use in all establishments, including
domestic establishments and those directly connected to the public
low-voltage power supply network that supplies buildings used for
domestic purposes.
Harmonic emissions; IEC 61000-3-2 Class A
Voltage fluctuations/Flicker
emissions; IEC 61000-3-3
Complies
The warmer is intended for use in the electromagnetic environment specified below. The customer or the end user of
this warmer should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance
Electromagnetic
discharge (ESD)
IEC 61000-4-2
±6 kV contact
±8 kV air
±6 kV contact
±8 kV air
Floors should be wood, concrete or ceramic tile.
If floors are covered with synthetic material, the
relative humidity should be at least 30%.
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for power
supply lines; ±1 kV
for input/output lines
+2 kV for power
supply lines
Main power quality should be that of a typical
commercial or hospital environment. The
warmer does not have any input/output lines.
Surge
IEC 61000-4-5
±1 kV differential
mode; ±2 kV
common mode
±1 kV differential
mode; ±2 kV
common mode
Mains power quality should be that of a typical
commercial or hospital environment.
Voltage dips, short
interruptions and
voltage variations on
power supply input lines
IEC 61000-4-11
<5 % UT (>95 % dip in
UT) for 0.5 cycle
40 % UT (60 % dip in
UT) for 5 cycles
70 % UT (30 % dip in
UT) for 25 cycles
<5 % UT (>95 % dip in
UT) for 5 sec
<5 % UT (>95 % dip
in UT) for 0.5 cycle
40 % UT (60 % dip
in UT) for 5 cycles
70 % UT (30 % dip
in UT) for 25 cycles
<5 % UT (>95 % dip
in UT) for 5 sec
Mains power quality should be that of a typical
commercial or hospital environment. If the user
of the warmer requires continued operation
during power mains interruptions, it is
recommended that the warmer be powered from
an uninterrupted power supply or a battery.
Power frequency (50/60
Hz) magnetic field
IEC 61000-4-8
3 A/m 3 A/m Power frequency magnetic fields should be at
levels characteristic of a typical location in a
typical commercial or hospital environment.
NOTE:
UT is the a.c. mains voltage prior to application of the test level.
Guidance and Manufacturer’s Declaration
Electromagnetic Emissions
Electromagnetic Immunity

8MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Electrical Information
The warmer is intended for use in the electromagnetic environment specified below. The customer or the end user of
this warmer should assure that it is used in such an environment.
Immunity test IEC 60601 test level Compliance level Electromagnetic environment - guidance
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
3 V/m
150 kHz to 80 MHz
3 V/m
80 MHz to 2.5 GHz
3 V/m
3 V/m
Portable and mobile RF communications equipment should
be used no closer to any part of the warmer, including
cables, than the recommended separation distance
calculated from the equation applicable to the frequency of
the transmitter.
Recommended separation distance
d = [3.5/3] √P
d = [3.5/3] √P 80 MHz to 800 MHz
d = [7/3] √P 800 MHz to 2.5 GHz
where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter
manufacturer and d is the recommended separation distance
in meters (m).
Field strengths from fixed RF transmitters, as determined
by an electromagnetic site survey,ashould be less than the
compliance level in each frequency range.b
Interference may occur in the vicinity of equipment marked
with the following symbol:
NOTE: 1. At 80 MHz and 800 MHz, the higher frequency range applies. 2. These guidelines may not apply in all situations.
Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM
and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to
fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the warmer is
used exceeds the applicable RF compliance level above, the warmer should be observed to verify normal operation. If abnormal performance is
observed, additional measures may be necessary, such as reorienting or relocating the warmer.
b. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than [VI] V/m.
The warmer is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
The customer or the user of the warmer can help prevent electromagnetic interference by maintaining a minimum
distance between portable and mobile RF communications equipment (transmitters) and the warmer as recommended
below, according to the maximum output power of the communications equipment.
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter
m
150 kHz to 80 MHz 80 MHz to 800 MHz 800 MHz to 2.5 GHz
0.01 0.117 0.117 0.233
0.1 0.369 0.369 0.738
1 1.167 1.167 2.333
10 3.689 3.689 7.379
100 11.667 11.667 23.333
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using
the equation applicable to the frequency of the transmitter, where P is the maximum output rating of the transmitter in watts (W) according to the
transmitter manufacturer.
NOTE: 1. At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. 2. These guidelines may not apply
in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
Electromagnetic Emissions
Electromagnetic Immunity Recommended Separation Distance Between Portable And Mobile
RF Communications Equipment And This Warmer

9
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Operation Instructions

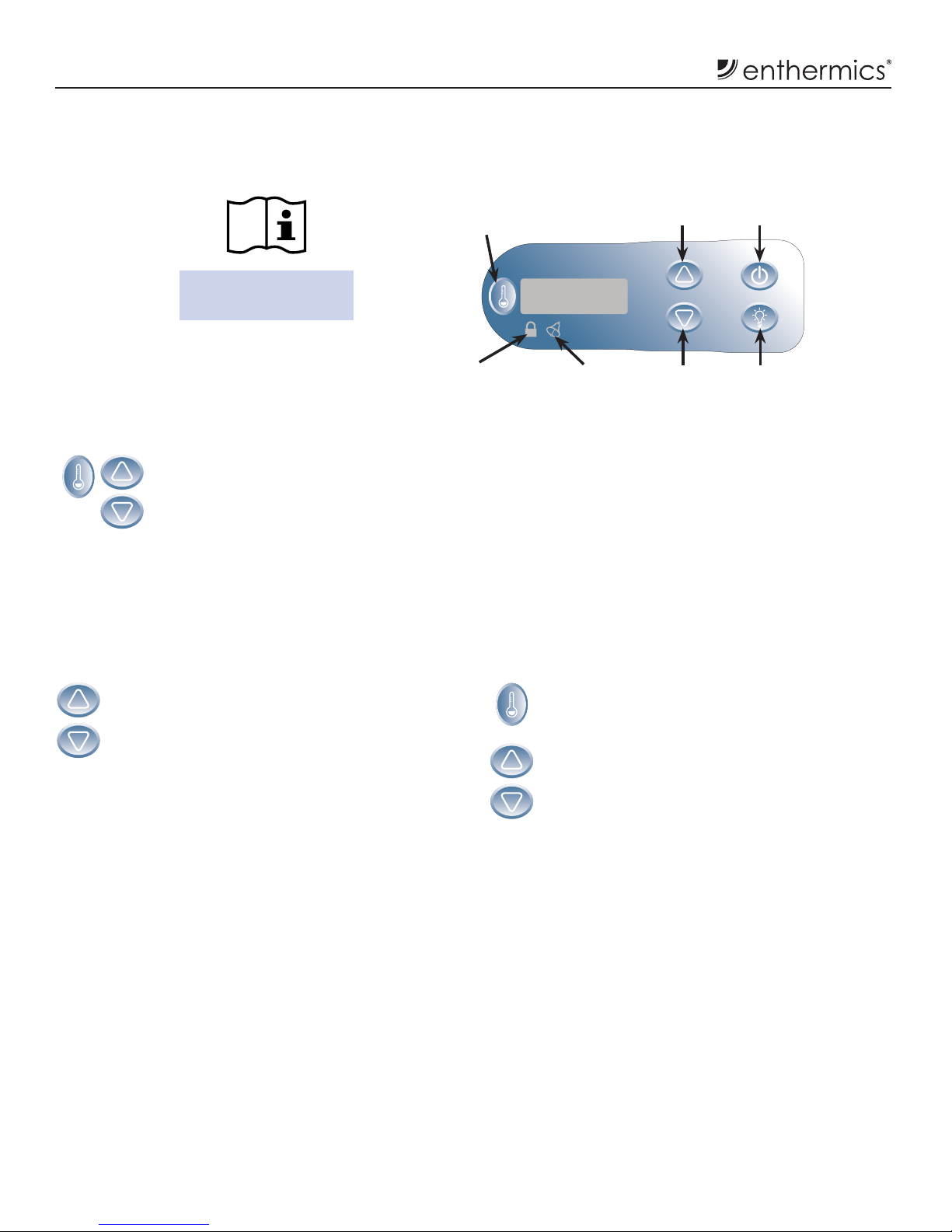

Electronic Control and LED Display
Blanket Electronic Control Features
The following refers to features that are available when the electronic control is powered on.

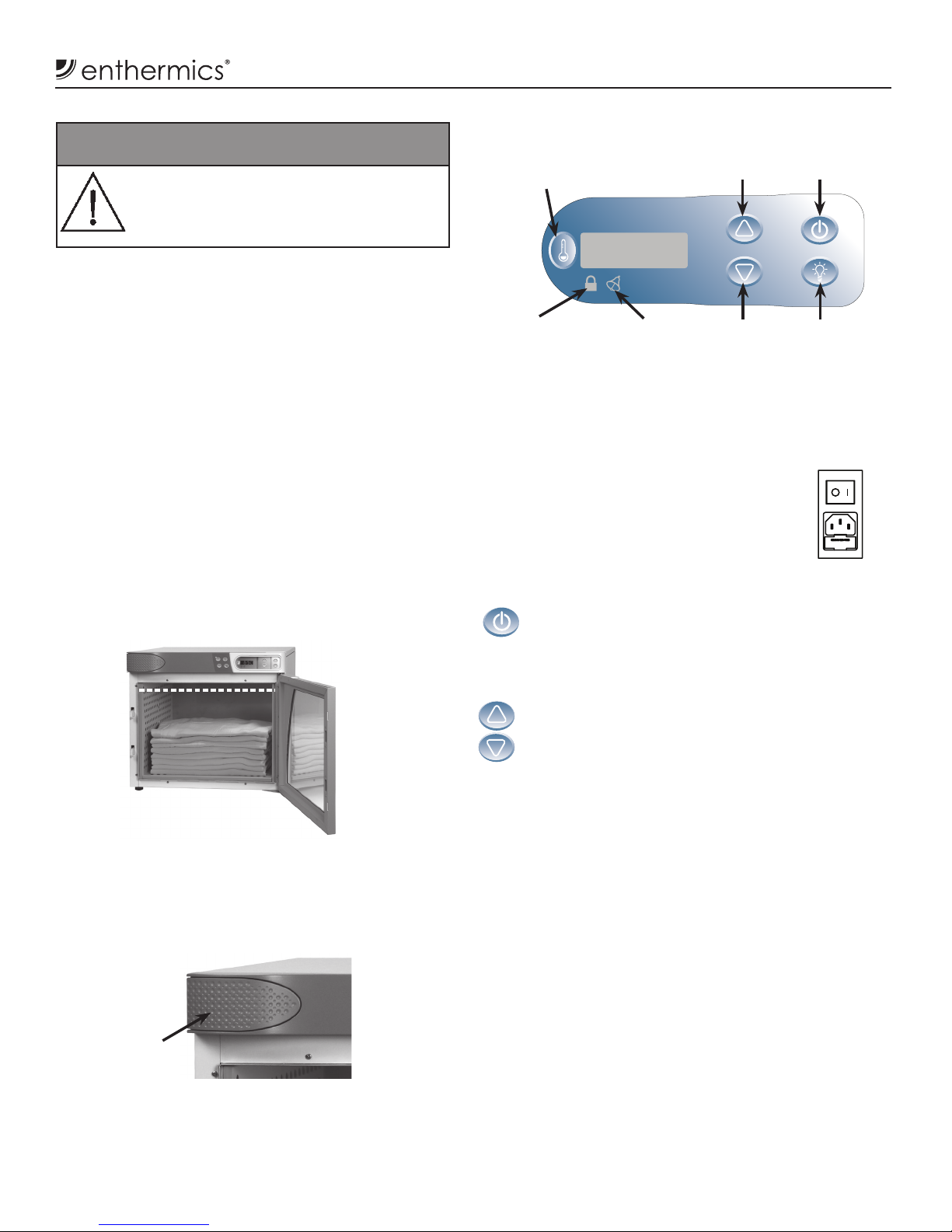

Electronic Control Panel
On/O Button
Press the On/O button to power on the
electronic control. Press and hold the
On/O button for three (3) seconds to power
the electronic control off.
Interior Light Button
Press the Interior Light button to toggle blue
interior LED light intensity to high, low, or off.
Up Arrow/Down Arrow Buttons
Used to increase or decrease the temperature
set-point. Additionally used to set the current to
increase or decrease time, date, auto-start, and
auto-stop times.
Temperature Recall Button
Press the Temperature Recall button to view
the actual temperature captured with the
cavity sensor. The display will show the actual
cavity temperature for five (5) seconds before
reverting back to displaying the current
temperature set-point.
LED Digital Display
The control has a four-digit LED display.
LED Display Status Indicators
Error Indicator Light
This indicator will illuminate and an alarm will
sound if the electronic control senses an error has
occurred (see troubleshooting guide). The alarm
can be muted by pressing the on button.
Error Acknowledgement
To clear or acknowledge an error, press the
On/O button. Press the On/O button to
acknowledge the periodic alarm. If the alarm
continues or returns, the appliance is still
experiencing an error and may need service.
Button Lockout Indicator Light
The electronic control can be locked so that no
changes can be made to the temperature set-point
or the mode selection. Press and hold the
On/O button and the Up Arrow button at the
same time. The lock indicator will illuminate.
Attempts to operate the on/off button, or
to change the temperature set-point will be
unsuccessful. To unlock the electronic control,
press and hold the On/O button and the Down
Arrow button at the same time. The electronic
control will unlock, and the lock indicator will
go out.
Power Fail Detection
If the power were to fail for any reason while electronic
control is powered on, the electronic control will retain
in memory its current operating state. When the power
is restored, the electronic control alarms once and
resumes operating in its previously set mode. The on/
off status indicator will blink, alerting the operator that
such an event has occurred. Press the On/O button
once to acknowledge that the power has been restored.
NOTE: If the timer option is installed, the appliance must
be off for more than 60 seconds to signal a power
failure alarm. When acknowledging a power
interruption, the display will show the length of
time in hours and minutes that the control has
been off due to the power outage.
Up Arrow
Button
Down Arrow
Button
On/O
Button
Interior
Light Button
Button Lockout
Indicator Light
Error
Indicator Light
Temperature
Recall Button
Temperature Range:
32°C-71°C (90°F-160°F)
LED Digital
Display

10 MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Operation Instructions
Electronic Control and LED Display
Blanket Electronic Control Features (continued)
Up Arrow
Button
Down Arrow
Button
On/O
Button
Interior
Light Button
Button Lockout
Indicator Light
Error
Indicator Light
Temperature
Recall Button
Temperature Range:
32°C-71°C (90°F-160°F)
Temperature Format Selection
While the electronic control is in off
state, press and hold the Temperature
Recall button for four (4) seconds to
display the current temperature scale.
Press the Up Arrow or Down Arrow
buttons to switch between °F (fahrenheit)
or °C (celsius).
Sound Function
(Prior to September 2015)
The sound function can be turned on or off.
1. While the appliance is off, press and hold the
Down Arrow button for four (4) seconds.
2. The display will indicate the current sound
status, 0 (off) or 1 (on). Press the Up Arrow
or Down Arrow button to toggle between the
two choices.
(Aer September 2015)
The sound volume can be changed:
1. While the appliance is on, press the
Temperature Recall button and the Down
Arrow button to display the current volume
setting. Release.
2. Press the Up Arrow or Down Arrow button to
adjust the volume. Volume settings range from
0 (mute)to 12 (loud).
NOTE: The alarm volume is set at the maximum
(12) and can not be disabled.

11
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Operation Instructions
Optional Timer Control Feature
NOTE:
If the appliance is not equipped with this optional
automated timer feature or it is not in use this section
can be skipped.
The appliance time must be manually reset for daylight
saving time.
The times are displayed in 24-hour format (hh:mm).
Midnight is 00:00. Noon is 12:00. 1:00 P.M. is 13:00.
If the display has changed due to user interaction, the
display will reset aer five (5) seconds of inactivity.
If the start and stop times are the same, the appliance
will recognize the off time only and will not turn on
without user intervention. This is the best way to set the
warmer for the days when it is not needed.
The timer option must be off to reset the appliance time.
An E-60 error is displayed if the clock is not set or
the control has been off too long and the memory
has become corrupted.
Timer Control Panel
Press the Timer On/O button to initiate the
automatic start/stop timer operation. The on/off
indicator light next to this button will illuminate
when the timer is turned on.
Press the Time button to view the current time,
date, and day and initiate changes to the settings.
Press the Start Time button to view the current
automatic start time and initiate changes to
the set time.
Press the Stop Time button to view the current
automatic stop time and initiate changes to
the set time.
Resetting the Time
1. Acknowledge E-60 error
a. Press the Time button to acknowledge the
E-60 error displayed when the control has
been inactive.
2. View and adjust time
a. Press and hold the Time button for four (4)
seconds until the auto-timer on/off indicator
light blinks slowly and the display shows the
current set time.
b. Press the Up Arrow or Down Arrow button to
adjust the time in increments of one (1) minute
or press and hold the Up Arrow or Down Arrow
button to adjust the minutes more quickly.
3. View and adjust year
a. Press the Time button again to view or set
the year.
b. Press the Up Arrow or Down Arrow button to
adjust the year. The year will always adjust by
one (1).
4. View and adjust date
a. Press the Time button again to view or set
the date.
b. Press the Up Arrow or Down Arrow button to
adjust the date.
5. View and adjust day code (optional)
a. Press the Time button again to set the day
code (d1-d7).
b. Press the Up Arrow or Down Arrow button to
adjust the day code.
NOTE: Setting the day code is optional unless the user
configures the auto-timer to start or stop at a
different time for each day of the week. Typically
Monday=d1, Tuesday=d2, etc.
Timer On/O
Button
Time Button
Set or View
Start Time Button
Set or View
Stop Time Button
Optional Timer Control
On/O
Indicator
Light
Electronic Control and LED Display
Up Arrow
Button
Down Arrow
Button
On/O
Button
Interior
Light Button
Button Lockout
Indicator Light
Error
Indicator Light
Temperature
Recall Button

12 MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Operation Instructions
Optional Timer Control Feature (continued)
Same Start and Stop Times for the Week
Note:
The timer option must be off to set the start time.
Activating this mode overrides all individual
day programming.
1. View and adjust start time
a. Press the Start Time button to view the start
time for that day.
b. Press and hold the Start Time button for four
(4) seconds to set the current day’s start time
as the same time for every day of the week.
The on/off indicator light will blink slowly.
c. Press the Up Arrow or Down Arrow button
to change the default start time minutes.
Press and hold the Up Arrow or Down Arrow
button to adjust the hour.
2. View and adjust stop time
a. Press the Stop Time button to view the stop
time for that day.
b. Press and hold the Stop Time button for four
(4) seconds to set the current day’s stop time
as the same time for every day of the week.
The on/off indicator light will blink slowly.
c. Press the Up Arrow or Down Arrow
button to change stop time. Press and
hold the Up Arrow or Down Arrow button
to adjust the hour.
3. When both times are set, allow the on/off indicator
light to extinguish and then press and hold the
Timer On/O button until the on/off indicator
light stays on steadily.
Different Start and Stop Times for Each Day of
the Week
1. View and adjust specic day
a. Press and hold the Time button for eight (8)
seconds. The on/off indicator light will
blink rapidly. The display will show the
current day.
b. Adjust the day by pressing the Up Arrow or
Down Arrow button.
2. View and adjust start time for that day
a. Press the Stop Time button to display the
start time for that day.
b. Press the Up Arrow or Down Arrow button
to adjust the automatic start time.
3. View and adjust stop time for that day
a. Press the Stop Time button to display the
start time for that day.
b. Press the Up Arrow or Down Arrow button
to adjust the automatic stop time.
4. Repeat steps 1-3 for each day of the week
5. When all days and times are set, allow the on/off
indicator light to extinguish and then press and
hold the Timer On/O button until the on/off
indicator light stays on steadily.
Timer On/O
Button
Time Button
Set or View
Start Time Button
Set or View
Stop Time Button
Optional Timer Control
On/O
Indicator
Light
Electronic Control and LED Display
Up Arrow
Button
Down Arrow
Button
On/O
Button
Interior
Light Button
Button Lockout
Indicator Light
Error
Indicator Light
Temperature
Recall Button

Section Title
13
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Load blankets only to the top of
the blanket support assembly.
NOTICE: The blanket support assembly and shelf must be
installed to prevent blankets from scorching or
discoloring.
Do not use blanket cleaning agents that cause
fabric to become brittle over time.
To enable the warmer to function properly, do
not overload the interior. Blankets must not
exceed the height of the support assembly. Allow
1" (25mm) gap between the top interior walls or
shelf and the blankets.
A temporary odor may be noticeable upon initial
start-up. Contact the manufacturer if the odor
persists aer a day or more of continuous use.
WARNING
To prevent personal injury or property
damage: Blanket support assembly and shelf
must be in place to prevent the blankets from
being scorched or discolored.
1. Plug appliance in with supplied cord.
The appliance must be plugged into an
appropriate hospital grade receptacle as
specified on the electrical information page.
2. Push the power circuit breaker switch to
the on (I) position. The rocker-type switch is
located at the back of the appliance.
3. Activate the control by pressing the On/
O  button on the control panel on the
front of the appliance. The digital display
indicates the last temperature set-point of
compartment.
4. Set the desired temperature. Press and hold
the Up Arrow or Down Arrow button to
change the value shown in the display. The
temperature set-point range is 32°C - 71°C
(90°F - 160°F).
5. Push the door latch on the control interface to
open the door.
6. Load the chamber with dry, cotton blankets.
Do not warm items containing plastic, rubber
or metal snaps, studs, hooks, etc. Check that
the epoxy-coated blanket support assembly and
shelf is in place. This blanket support assembly
and shelf must be used to hold blankets. A full
load of blankets takes two to three hours to
reach optimum temperature. Make sure that the
appliance door is securely closed during use.
7. Rotate load of blankets daily. Rotate the blankets
at the bottom of the load to the top to ensure equal
usage. Failure to rotate the blankets can cause the
blankets to discolor.
Electronic Control and LED Display
Up
Button
Down
Button
On/O
Button
Interior
Light Button
Button Lockout
Indicator Light
Error
Indicator Light
Temperature
Recall Button
FU-34955
F2 fuse
FU-34955
F1 fuse
fuse compartment door
fuse drawer
NOTE: Switching from a higher temperature setting to
a lower setting may cause an unwanted alarm.
Door
Latch

14 MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Cleaning and Preventative Maintenance
Protecting Stainless Steel
It is important to guard against corrosion in the care
of stainless steel surfaces. Harsh, corrosive, or
inappropriate chemicals can completely destroy the
protective surface layer of stainless steel, epoxy or plastic.
Abrasive pads, steel wool, or metal implements abrade
surfaces causing damage to this protective coating and
eventually result in areas of corrosion. Water can contain
high to moderate concentrations of chloride, causing
oxidation and pitting that results in rust and corrosion. In
addition, acidic spills that remain on metal surfaces are
contributing factors in corroded surfaces.
Proper cleaning agents, materials, and methods are
vital to maintaining the appearance and life of this
warmer. Spilled items should be removed and the
area wiped as soon as possible but at the very least, a
minimum of once per day. Always wipe standing water as
quickly as possible.
NOTICE: Always follow appropriate state or local health
(hygiene) regulations regarding all applicable
cleaning and sanitation requirements.
Cleaning Agents
Always use the proper cleaning agent at the
manufacturer’s recommended strength. Contact a local
cleaning supplier for product recommendations.
Cleaning Materials
Cleaning can usually be accomplished with the proper
cleaning agent and a so, clean cloth. When more
aggressive methods are needed, use a non-abrasive
scouring pad on difficult areas and make certain to
scrub with the visible grain of the surface metal to avoid
surface scratches.
How to Clean the Warmer
1. Disconnect the warmer from the power source.
2. Remove and wash any detachable items such as the
support assembly with hot, soapy water. Dry with a
clean, lint-free cloth.
3. Clean the interior and exterior of the warmer with
a mild soap and water solution. Apply the solution
with a clean, damp cloth. Do not use commercial or
household cleaners that contain ammonia.
NOTE: Make sure to wipe the control panel, door vents,
door handle or door button, and door gaskets.
4. Remove all detergent residue from the interior and
exterior of the warmer with a clean, damp cloth.
5. Dry the interior and exterior of the warmer with a
clean, lint-free cloth. Leave the door open until the
interior is completely dry.
6. Sanitize the interior of the warmer with a sanitizing
solution. This solution must be approved for use on
stainless steel surfaces.
7. Clean the warmer glass with glass cleaner or
distilledvinegar.
8. Replace the support assembly.
(IPX-0 - Listed as Ordinary)
WARNING
To prevent serious personal injury, death, or
property damage:
Do not steam clean, hose down or flood the
interior or exterior with water or liquid solution
of any kind. Do not use water jet toclean. Failure
to observe this precaution will void the warranty.
WARNING
Electric shock hazard.
Perform lockout/tagout procedures before
cleaning or servicing this appliance.
NOTICE: To protect surfaces, never use abrasive cleaning
compounds, chloride based cleaners, or
cleaners containing quaternary salts. Never use
hydrochloric acid (muriatic acid) on stainless
steel. Never use wire brushes, metal scouring
pads or scrapers. Failure to observe this
precaution will void the warranty.
N
O
S
T
E
E
L
P
A
D
S
N
O
W
I
R
E
B
R
U
S
H
E
S
N
O
S
C
R
A
P
E
R
S
CAUTION
Fire hazard.
Do not use flammable cleaning agents on
the appliance.

15
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Cleaning and Preventative Maintenance
Monthly Checklist:
�Check the integrity of the door gasket. Are there any tears? Is the gasket
worn or loose? Ensure that the seal is tight to the body. Replace the gasket if
the integrity is compromised.*
�Check the air temperature sensor mounted in the interior of chamber. Is the
sensor guard in place and fully secured to the appliance?
�Check the condition of the casters or feet. Are the components secure and
tightly threaded?
�Check the condition of the control panel overlay. Are there any tears or
excessive wear on the graphic? Does the control work properly when the
buttons are pushed?*
�Check the condition of the stacking hardware (if applicable), making sure
the mounting bolts and the hardware are secure.
Preventative Maintenance Checklist
Weekly Checklist:
�Inspect the condition of the plug and cord and replace if damaged.
�Remove the inserts and wash separately, set aside to dry before placing back
into the appliance.
�Blow dust from the interior, the outer vents and around the top of the
appliance.
�Wipe down the interior.
�Check that the electronic controller LEDs illuminate.*
�Check that the interior LED illuminates (if applicable).*
�Check the insert assembly. Check the blanket support assembly and the
shelf. Is the assembly in place? Are any pieces missing?*
Daily Checklist:
�Is the operation and care manual available?
�Has everyone been properly trained in the operation and safety instructions
of this appliance?
�Is the appliance properly loaded? Blankets must not exceed the height of
the support assembly. Allow 1" (25mm) gap between the top interior walls or
shelf and the blankets.
*Contact service for immediate repair.
Six-month Checklist:
�Is the set-point temperature comparable to the actual temperature
displayed? Check cavity air temperature with a quality thermocouple placed
1" (25mm) from the cavity sensor – not allowing it to touch any surface.
Monitor for approximately one hour in an empty interior.
NOTE: Blanket warmer temperature may fluctuate ±10°F (6°C) from set point.

16 MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
Dimension Drawings
DC150 with standard feet
9.2 " (235mm)
IEC Cord Inlet
18.0" (456mm)
39.1" (994mm)
18.5" (470mm)
17.0" (431mm)
16.2" (412mm)
14.4" (366mm)
INSERT
10.1" (258mm)
CAVITY
9.6" (245mm)
INSERT
14.5" (368mm)
CAVITY
17.7" (450mm)
18.8" (477mm)
20" (508mm)
13.5
" (344mm)
IEC Cord Inlet
15.5" (394mm)
CAVITY
36.0" (914mm)
Cord length: 6 ft (1.83m) (est.)
22.7" (577mm)
Dimensions (H x W x D)
With feet (standard):17.0" x 18.5" x 20" (432mm x 470mm x 508mm)
Capacity
1.5 3
Weight**
(est.) Net: 56 lbs (25 kg) Ship: 98 lbs (44 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.6 kW, 5.0 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
220 V.A.C. — 50Hz, 1 ph
0.6 kW, 2.7 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.6 kW, 2.6 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug IPX-0
**Domestic ground shipping information. Contact factory for export weight and dimensions.
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom

Dimension Drawings
17
MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
DC250 with standard feet
Dimensions (H x W x D)
With feet (standard):22" x 18.5" x 23" (559mm x 470mm x 584mm)
With plate and
casters (optional):26.25" x 18.5" x 23" (667mm x 470mm x 584mm)
With bumper and
casters (optional):26.25" x 21.25" x 25" (667mm x 540mm x 635mm)
Capacity
2.5 3
Weight**
(est.) Net: 67 lbs (30 kg) Ship: 118 lbs (54 kg)
Electrical
*Other international plugs are available, contact the manufacturer for more information.
**Domestic ground shipping information. Contact factory for export weight and dimensions.
120 V.A.C. — 60 Hz, 1 ph
0.6 kW, 5.0 Amps
Safety Class I Equipment
No Applied Parts
Mode of Operation: Continuous
NEMA 5-15P
15A - 125V Plug
Hospital Grade
IPX-0
220 V.A.C. — 50Hz, 1 ph
0.6 kW, 2.7 Amps
Type B Equipment
CEE 7/7*
220-230V Plug
IPX-0
230 V.A.C. — 50 Hz, 1 ph
0.6 kW, 2.6 Amps
Type B Equipment
BS 1363 Plug*
(UK only)
CEE 7/7*
220-230V Plug IPX-0
**Domestic ground shipping information. Contact factory for export weight and dimensions.
18.5" (470mm)
22" (559mm)
21.2" (538mm) 18.0" (457mm)
9.3 " (235mm)
IEC Cord Inlet
CORD LENGTH: 6 ft (1.83m) (est.)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
15.1" (385mm)
CAVITY
14.6" (372mm)
INSERT
18.6" (472mm)
CAVITY
23" (584mm)
42.2" (1071mm)
36.0" (914mm)
18.5
" (470mm)
IEC Cord Inlet
25.7" (653mm)
22.1" (561mm)
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom

Dimension Drawings
18 MN-37072 • Rev 5 • 12/18 • Designer Series Blanket Warmer
DC250 with optional plate and casters
18.5" (470mm)
22" (559mm)
15.5" (394mm)
CAVITY
14.5" (369mm)
INSERT
15.1" (385mm)
CAVITY
14.6" (372mm)
INSERT
18.6" (472mm)
CAVITY
26.25" (667mm)
5.0" (128mm)
CASTER HEIGHT
18.0" (457mm)
9.3 " (235mm)
IEC Cord Inlet
CORD LENGTH: 6 ft (1.83m) (est.)
42.2" (1071mm)
36.0" (914mm)
22.8
" (579mm)
IEC Cord Inlet
23" (584mm)
25.7" (653mm)
#5017542 (white epoxy coated) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
#5017544 (stainless steel) – 3" (76mm) casters (2 rigid, 2 swivel with brake)
Clearance requirements:
3" (76mm) from rear
1" (25mm) from top and sides
3/4" (19mm) from bottom
