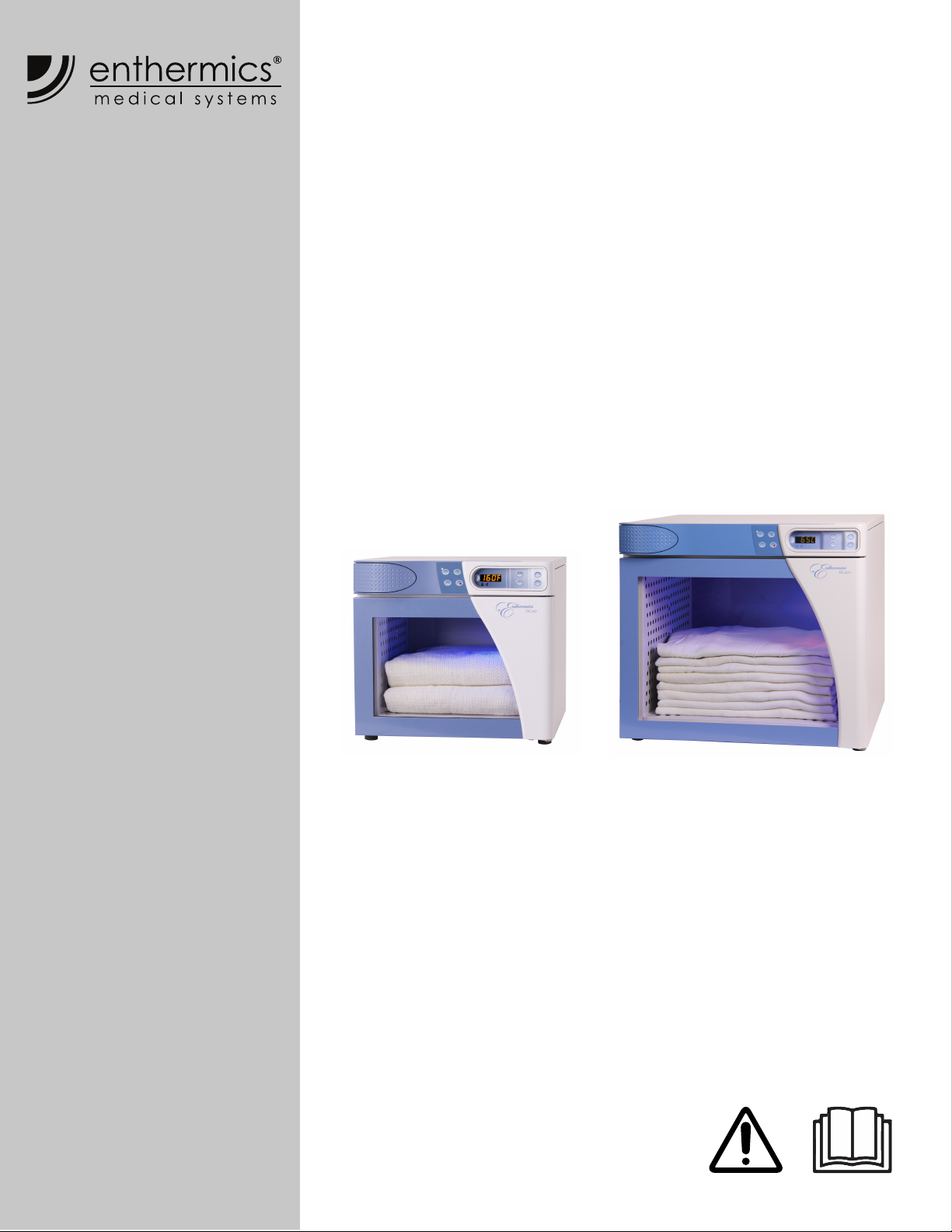

Enthermics Designer Series User manual

Operator’s Manual
Designer Series
Blanket Warmer
DC150
DC400
MN-46427
REV.01
6/19
EN

Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
2
Manufacturer’s Information
Copyright © Copyright 6/19 by Enthermics Medical Systems.
All rights reserved.
This manual or any portion thereof may not be reproduced or used in any
manner whatsoever without the express written permission of Enthermics
Medical Systems.
Trademarks All trademarks referenced in this documentation are the property of their
respective owners.
Manufacturer
Enthermics Medical Systems
An ISO 13485:2016 certified company
W164 N9221 Water Street
Menomonee Falls, WI 53051, USA
Original instructions The content in this manual is written in American English.

FOREWORD
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
3
FOREWORD
Thank you for your Purchase!
This warmer has been thoroughly tested and inspected to ensure only the
highest quality is provided. We supply the most durable, convenient, efficient
and safe warming equipment on the market. All warmers are manufactured and
fully inspected in the USA with a commitment to quality.
Register Your Warmer
Register Register your Enthermics appliance online. Registering your appliance ensures
prompt service in the event of a warranty claim. You will also receive direct
notifications of software updates and additional product information.
Your personal information will not be shared with any other company.
www.enthermics.com/warranty-registration
Enthermics 24/7 Emergency Repair Service
Call Call 800-558-8744 to reach our 24-hour emergency service call center for
immediate access to local authorized service agencies outside standard business
hours. The emergency service access is provided exclusively for Enthermics
Medical Systems equipment and is available throughout the United States
through Enthermics toll free number.
Availability Emergency service access is available seven days a week, including holidays.

FOREWORD
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
4
This page intentionally left blank.

FOREWORD
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
5
TABLE OF CONTENTS
Manufacturer’s Information . . . . . . . . . . . . . . . . . . . . . . . . 2
Foreword 3
Thank you for your Purchase! . . . . . . . . . . . . . . . . . . . . . . . 3
Register Your Warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Enthermics 24/7 Emergency Repair Service . . . . . . . . . . . . . . . 3
Safety 7
The Meaning of Signal Words . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Labels 11
Label Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications 13
Specification Information . . . . . . . . . . . . . . . . . . . . . . . . . 13
Dimension Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation 19
How to Unpack the Warmer . . . . . . . . . . . . . . . . . . . . . . . . 19
How to Install the Warmer . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operation 23
Preparing the Warmer for First Use. . . . . . . . . . . . . . . . . . . . 23
How to Turn On and Turn Off the Warmer . . . . . . . . . . . . . . . . 24
How to Operate the Blanket Warmer . . . . . . . . . . . . . . . . . . 25
How to Use the Timer (if equipped) . . . . . . . . . . . . . . . . . . . . 26
How to Change the Temperature Scale. . . . . . . . . . . . . . . . . . 29
How to Change the Sound Settings . . . . . . . . . . . . . . . . . . . . 29
How to Lock and Unlock the Controller. . . . . . . . . . . . . . . . . . 30
How to Adjust the Interior Light . . . . . . . . . . . . . . . . . . . . . 31
Maintenance 33
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
How to Clean the Warmer . . . . . . . . . . . . . . . . . . . . . . . . . 34
Troubleshooting 37
What to do if a Power Interruption Occurs. . . . . . . . . . . . . . . . 37
What to do if the Alarm Indicator Light Flashes . . . . . . . . . . . . . 38
Error Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
How to Replace a Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Electrical Information 45
Warranty 49
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

FOREWORD
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
6
This page intentionally left blank.

SAFETY
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
7
SAFETY
The Meaning of Signal Words
This manual contains signal words where needed. These signal words must be
obeyed to reduce the risk of death, personal injury, or equipment damage. The
meaning of these signal words is explained below.
DANGER
Danger indicates a hazardous situation which, if not avoided,
will result in serious injury or death.
WARNING
Warning indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
CAUTION
Caution indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
Notice indicates a situation which, if not avoided, could result
in property damage.
NOTE: Note indicates additional information that is important to a
concept or procedure.

SAFETY
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
8
Safety Precautions
Before you begin Read and understand all instructions in this manual.
Electrical precautions Obey these electrical precautions when using the warmer:
▪Connect the warmer to a properly grounded outlet. Do not use the warmer if it is
not properly grounded. Consult an electrician if there is any doubt that the outlet
used is properly grounded.
▪Keep the cord away from hot surfaces.
▪Do not attempt to service the warmer or its cord and plug, when plugged in.
▪Do not operate the warmer if it has a damaged cord or plug.
▪Do not immerse the cord or plug in water.
▪Do not let the cord hang over the edge of a table or counter.
▪Do not use an extension cord.
Usage precautions Obey these usage precautions when using the warmer:
▪Only use this warmer for its intended use of warming.
▪Do not use this warmer for warming blood or blood products.
▪Do not cover or block any of the openings of this warmer.
▪Do not use this warmer in a wet location.
▪Only clean the warmer when the power cord is unplugged.
▪Do not use corrosive chemicals when cleaning the warmer.
▪Do not use the warmer cavity for storage.
▪Do not remove the top cover or exterior side panels. There are no user-
serviceable components inside.
Operator training All personnel using the warmer must have proper operator training. Before
using the warmer:
▪Read and understand the operating instructions contained in all the
documentation delivered with the warmer.
▪Know the location and proper use of all controls.
▪Keep this manual and all supplied instructions, diagrams, schematics, parts lists,
notices, and labels with the warmer if the warmer is sold or moved to another
location.

SAFETY
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
9
Operator
qualifications
Only trained personnel with the following operator qualifications are permitted
to use the warmer:
▪Have received proper instruction on how to use the warmer.
▪Are familiar with the purpose, limitations, and associated hazards of the warmer.
The warmer must not be used by:
▪People impaired by drugs or alcohol.
Condition of warmer Only use the warmer when:
▪All controls operate correctly.
▪The warmer is installed correctly.
▪The warmer is clean.
▪The warmer labels are legible.
Servicing the warmer ▪Obey precautions in the manual, on tags, and on labels attached to or shipped
with the warmer.
▪Only trained personnel are permitted to service or repair the warmer. Repairs
that are not performed by a trained technician, or the use of non-factory parts,
will void the warranty and relieve all liability.
▪Any troubleshooting guides and components views included with this manual
are for reference only and are intended for use by qualified and trained service
technicians.
▪To prevent serious injury, death or property damage, have the warmer inspected
and serviced at least every twelve (12) months by a trained technician.
▪Contact Enthermics for the authorized service partner in your area.

SAFETY
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
10
This page intentionally left blank.

LABELS
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
11
LABELS

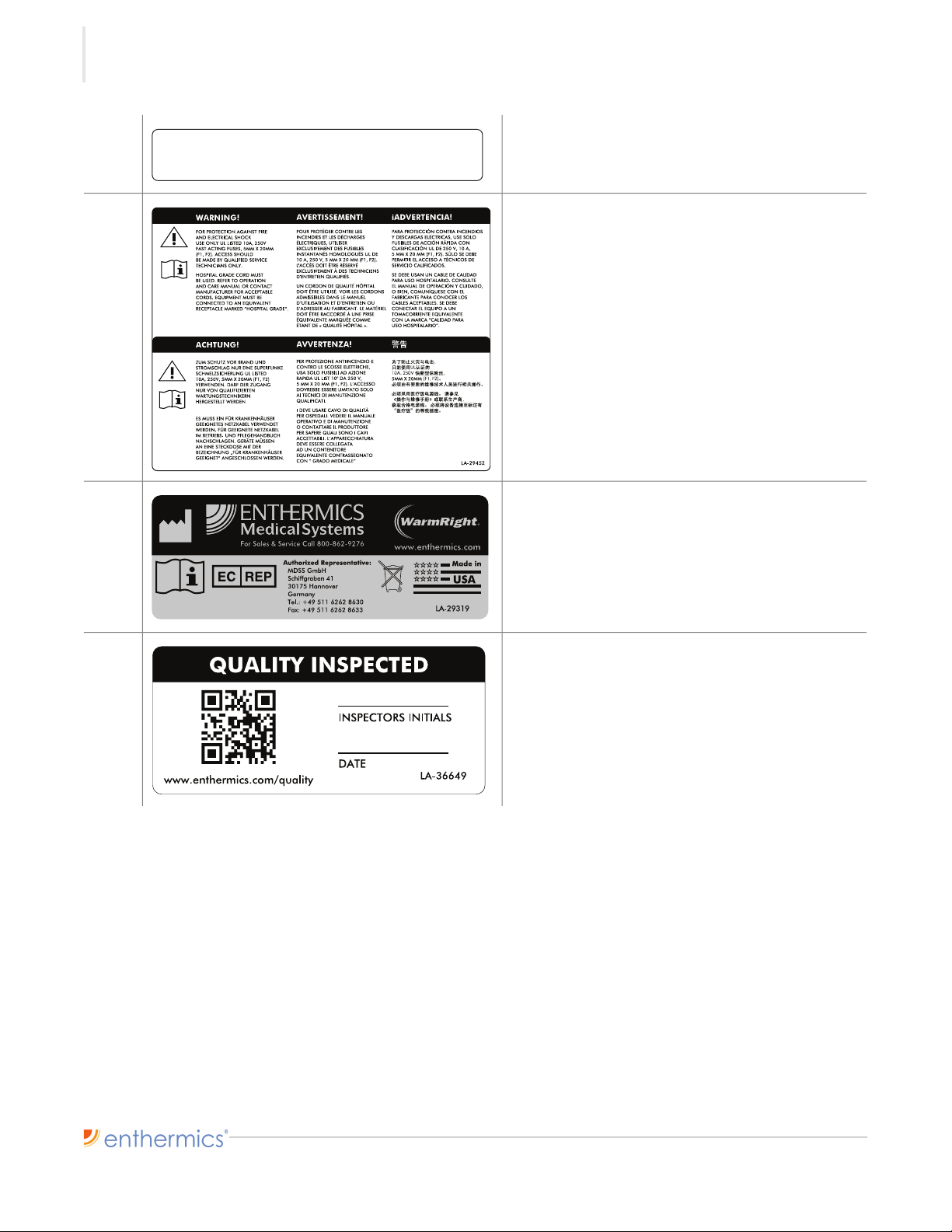

Label Locations
DC-PHD-007130
a
c
d
b

LABELS
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
12
1
Security seal
2
Electrical warning label
3
Enthermics contact information
4
Quality inspected
Security Seal Security Seal Security Seal Security Seal Security Seal Security Seal Security Seal Security Seal

SPECIFICATIONS
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
13
SPECIFICATIONS
Specification Information
Transportation and
storage conditions
▪Ambient temperature range of -40°F to +159°F (-40°C to +70°C).
▪Relative humidity range of 10% to 95%, non-condensing.
▪Atmospheric pressure range of 7.25 psi to 15.37 psi (50kPa to 106kPa).
Operating conditions ▪The warmer must acclimate to the room temperature it will be placed—24 hours
is recommended.
▪The recommended environmental temperature range is 60°F to 90°F
(15°C to 32°C).
▪The recommended relative humidity is above 20%, non-condensing.
Standards for
electrical equipment
▪Medical equipment classified by Underwriters Laboratories with respect
to electrical shock, fire, and mechanical hazards only, in accordance with
UL 61010-1 and CAN/CSA C22.2 No. 61010-1.
▪Grounding reliability can only be achieved when the appliance is
connected to an equivalent receptacle marked “Hospital Grade.”
▪IEC 60601-1-2
▪IP-XO ordinary
Model DC150 DC400
Weight Net: 56 lb (25 kg)
Ship: 60 lb (27 kg)
Net: 86 lb (39 kg)
Ship: 144 lb (65 kg)
Storage cavity
capacity
3–4 blankets
(1.5 ft3)
14–18 blankets
(4.0 ft3)
Temperature
range
90°F to 160°F (32°C to 71°C)
Clearance
requirements
3” (76mm) from rear
1” (25mm) from top
1” (25mm) from sides
3/4” (19mm) from bottom
E471516
Protective Earth
Ground Symbol

SPECIFICATIONS
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
14

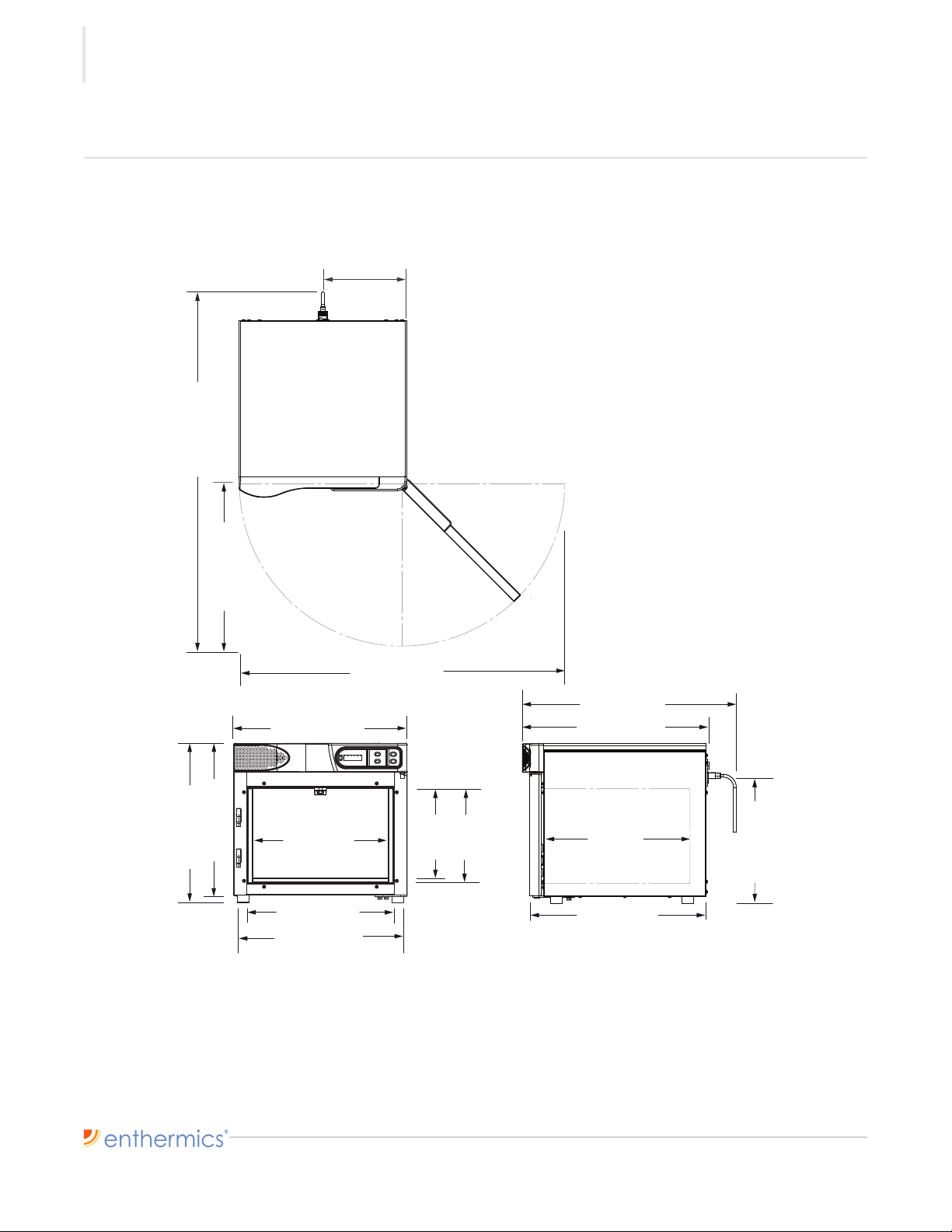

Dimension Drawings
DC150 shown with Standard Feet
DC-DIM-006935
9.2 " (235mm)
IEC Cord Inlet
18.0 " (456mm)
39.1 " (994mm)
18.5 " (470mm)
17.0 " (431mm)
16.2 " (412mm)
14.4 " (366mm)
INSERT
10.1 " (258mm)
CAVITY
9.6 " (245mm)
INSERT
14.5 " (368mm)
CAVITY
17.7 " (450mm)
18.8 " (477mm)
20" (508mm)
13.5
" (344mm)
IEC Cord Inlet
15.5 " (394mm)
CAVITY
36.0 " (914mm)
Cord length: 6  (1.83m) (est.)
22.7 " (577mm)

SPECIFICATIONS
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
15

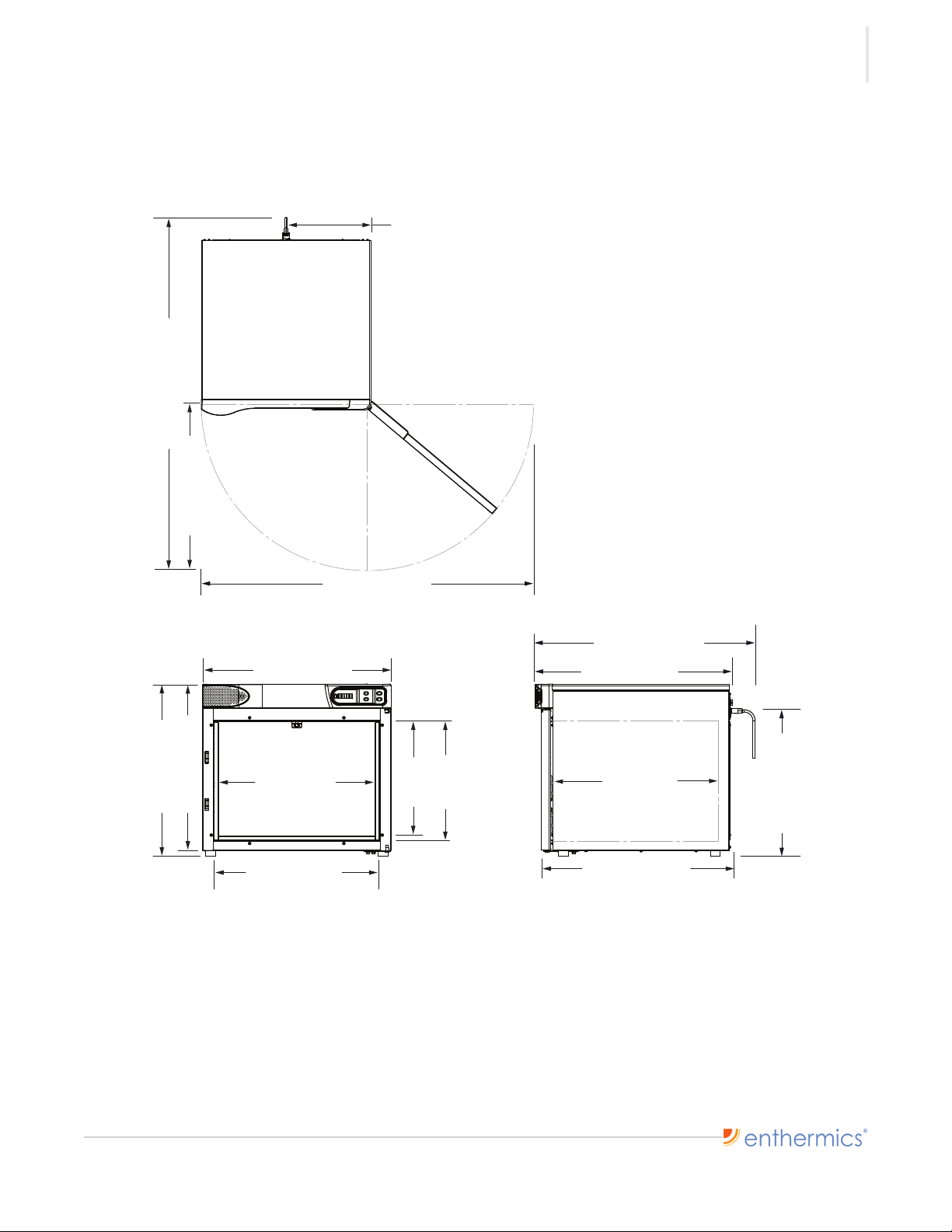

DC400 shown with Standard Feet
DC-DIM-006938
24.3 " (618mm)
18.5
" (470mm)
IEC Cord Inlet
28.0 " (712mm)
12 " (305mm)
IEC Cord Inlet
23.5 " (597mm)
50.0 " (1270mm)
47.0 " (1194mm)
21.1 " (537mm)
22" (559mm)
21.0 " (533mm)
CAVITY
20" (507mm)
INSERT
24.0 " (610mm)
21" (533mm)
CAVITY
25" (635mm)
14.6 " (372mm)
INSERT
15.1 " (384mm)
CAVITY
Cord length: 6  (1.83m) (est.)

SPECIFICATIONS
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
16

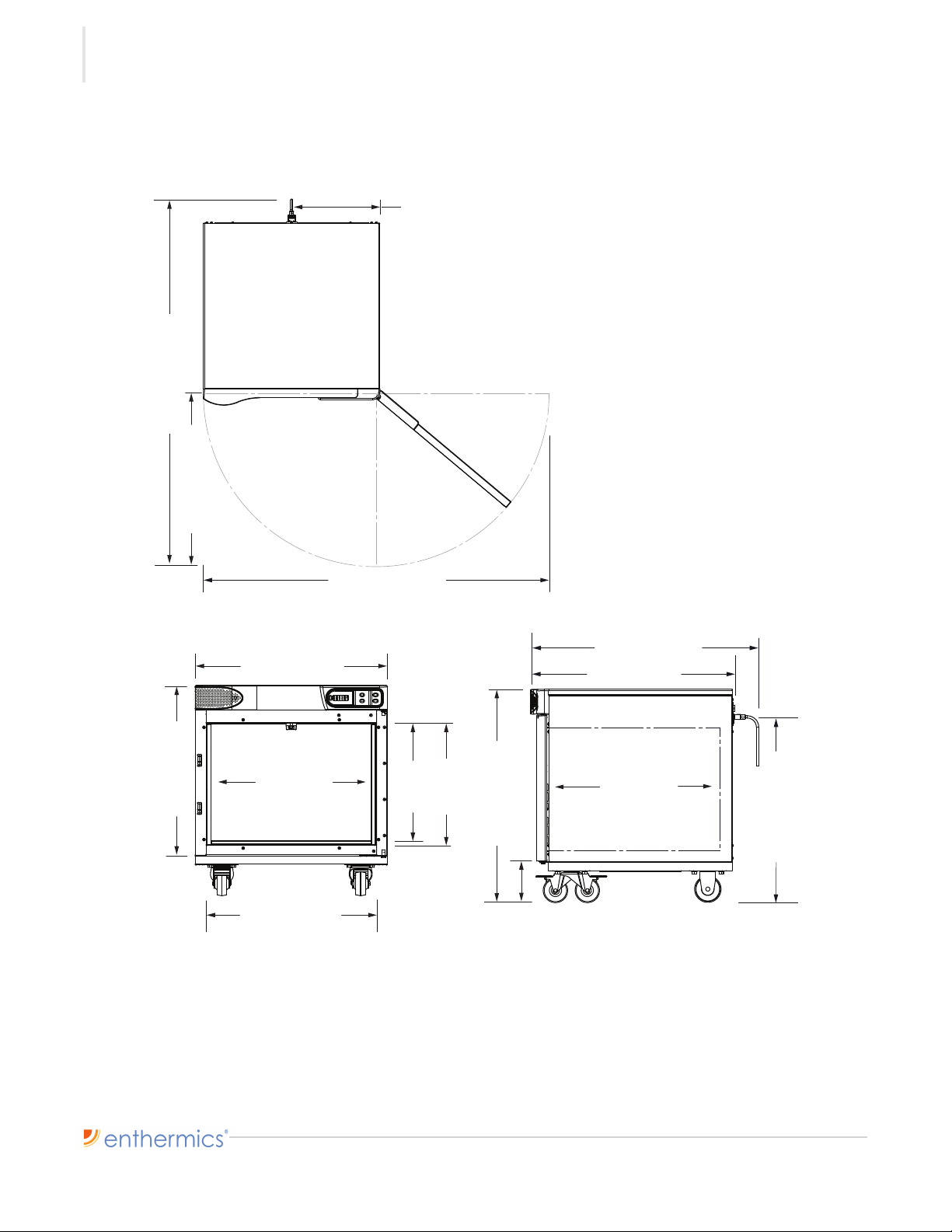

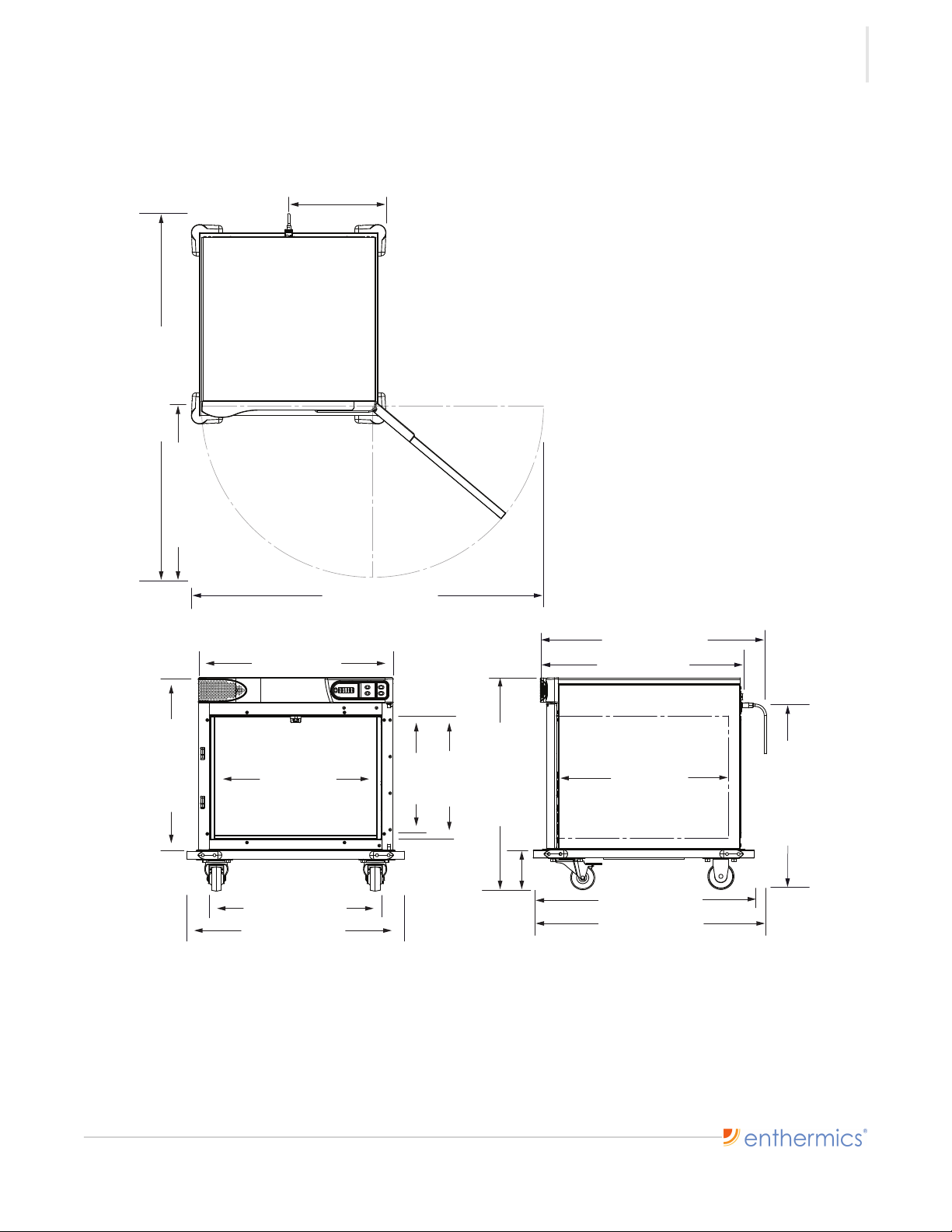

DC400 shown with Optional Plate and Casters
DC-DIM-006941
22" (559mm)
21.0 " (533mm)
CAVITY
20" (507mm)
INSERT
14.6 " (372mm)
INSERT
15.1" (384mm)
CAVITY
25" (635mm)
5.0 " (128mm)
26.25 " (667mm)
21" (533mm)
CAVITY
12 " (305mm)
IEC Cord Inlet
23.5 " (597mm)
50.0 " (1270mm)
47.0 " (1194mm)
Cord length: 6  (1.83m) (est.)
22.8
" (578mm)
IEC Cord Inlet
28.0 " (712mm)
24.0 " (610mm)

SPECIFICATIONS
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
17
DC400 shown with Optional Bumpers and Casters
DC-DIM-006944
13.4 " (339mm)
IEC Cord Inlet
23.5 " (597mm)
50.0 " (1270mm)
48.4 " (1229mm)
22" (559mm)
21.0 " (533mm)
CAVITY
20" (507mm)
INSERT
24" (610mm)
21.0 " (533mm)
CAVITY
25" (635mm)
14.6 " (372mm)
INSERT
15.1 " (384mm)
CAVITY
27.5 " (699mm)
5.0 " (127mm)
26.5 " (673mm)
Cord length: 6  (1.83m) (est.)
26.75 " (679mm)
22.8
" (578mm)
IEC Cord Inlet
28.9 " (734mm)
28.0 " (712mm)

SPECIFICATIONS
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
18
This page intentionally left blank.

INSTALLATION
Blanket Warmer ▪ Operat or’s Manu a l ▪ MN -4 6 42 7 ▪ Rev 1 ▪ 6 /19
19
INSTALLATION
How to Unpack the Warmer
Before you begin Make sure you have:
▪An appropriate lifting device and enough personnel to safely move and position
the weight of the warmer.
▪Cutting tools to remove the packaging.
Unpack the warmer To unpack the warmer, do the following.
Step Action
1. Remove the box or crate. Save all packing materials for inspection by the
carrier.
2. Cut and remove the retaining straps and plastic wrap.
3. Remove the warmer from the pallet using an appropriate lifting device.
4. Remove the paperwork from the cavity.
Result The warmer is now unpacked.
NOTE: Examine the warmer for damage. If the warmer has
been damaged, do not use the warmer until it has been
inspected by an authorized service provider. Contact your
carrier or customer service.

INSTALLATION
Blanket Warmer ▪ Oper a tor’s Ma nu al ▪ M N- 46 4 2 7 ▪ Rev 1 ▪ 6/ 1 9
20
How to Install the Warmer
Before you begin Make sure you have:
An appropriate lifting device and enough personnel to safely move and position
the weight of the warmer.
Requirements ▪The warmer must be installed on a level surface.
▪The warmer must not be installed in any area where it may be affected by steam,
dripping water, high temperature, or any other severely adverse conditions.
Voltages
Position the warmer To position the warmer, do the following.
Step Action
1. Make sure that:
▪The location where the warmer is being installed is rated to support the
weight of the warmer;
▪The warmer is within five feet of the appropriate electrical outlet;
▪You follow the warmer clearance guidelines. Refer to topic Specification
Information for clearance requirements.
2. Move the warmer to the installation location and onto the final resting
surface.
3. Lock the casters, if equipped.
The warmer is now correctly positioned.
Continued on next page
Model V Ph Hz kW Plug Configuration
DC150 120
220
230
1
1
1
60
50
50
0.6
0.6
0.6
NEMA 5-15P
CEE 7/7*
BS 1363 (UK only), CEE 7/7*
DC400 120
220
230
1
1
1
60
50
50
0.8
0.8
0.8
NEMA 5-15P
CEE 7/7*
BS 1363 (UK only), CEE 7/7*
*Other international plugs are available, contact the manufacturer for more
information.
