Enthermics EC770L User manual

Operator’s Manual
Fluid Warmer
EC770L
MN-39935
REV.01
3/19
EN

Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
2
Manufacturer’s Information
Copyright © Copyright 3/19 by Enthermics Medical Systems.
All rights reserved.
This manual or any portion thereof may not be reproduced or used in any
manner whatsoever without the express written permission of Enthermics
Medical Systems.
Trademarks All trademarks referenced in this documentation are the property of their
respective owners.
Manufacturer
Enthermics Medical Systems
An ISO 13485:2016 certified company
W164 N9221 Water Street
Menomonee Falls, WI 53051, USA
Original instructions The content in this manual is written in American English.

FOREWORD
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
3
OREWORD
Thank you for your Purchase!
This warmer has been thoroughly tested and inspected to ensure only the
highest quality is provided. We supply the most durable, convenient, efficient
and safe warming equipment on the market. All warmers are manufactured and
fully inspected in the USA with a commitment to quality.
Register Your Warmer
Register Register your Enthermics appliance online. Registering your appliance ensures
prompt service in the event of a warranty claim. You will also receive direct
notifications of software updates and additional product information.
Your personal information will not be shared with any other company.
www.enthermics.com/warranty-registration
Enthermics 24/7 Emergency Repair Service
Call Call 800-558-8744 to reach our 24-hour emergency service call center for
immediate access to local authorized service agencies outside standard business
hours. The emergency service access is provided exclusively for Enthermics
Medical Systems equipment and is available throughout the United States
through Enthermics toll free number.
Availability Emergency service access is available seven days a week, including holidays.

FOREWORD
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
4
This page intentionally left blank

TABLE OF CONTENTS
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
5
TABLE OF CONTENTS
Manufacturer’s Information . . . . . . . . . . . . . . . . . . . . . . . . 2
Foreword 3
Thank you for your Purchase! . . . . . . . . . . . . . . . . . . . . . . . 3
Register Your Warmer . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Enthermics 24/7 Emergency Repair Service . . . . . . . . . . . . . . . 3
Table of Contents 5
Safety 7
The Meaning of Signal Words . . . . . . . . . . . . . . . . . . . . . . . 7
Safety Precautions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Labels 11
Label Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Specifications 13
Specification Information . . . . . . . . . . . . . . . . . . . . . . . . . 13
Dimension Drawing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Installation 15
How to Unpack the Warmer . . . . . . . . . . . . . . . . . . . . . . . . 15
How to Install the Warmer . . . . . . . . . . . . . . . . . . . . . . . . . 16
Operation 19
Preparing the Warmer for First Use. . . . . . . . . . . . . . . . . . . . 19
How to Turn On and Turn Off the Warmer . . . . . . . . . . . . . . . . 20
How to Operate the Fluid Warmer . . . . . . . . . . . . . . . . . . . . 21
How to Change the Temperature Scale. . . . . . . . . . . . . . . . . . 23
How to Change the Sound Settings . . . . . . . . . . . . . . . . . . . . 24
How to Lock and Unlock the Controller. . . . . . . . . . . . . . . . . . 25
Maintenance 27
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
How to Clean the Warmer . . . . . . . . . . . . . . . . . . . . . . . . . 28
Troubleshooting 31
What to do if the Warmer Malfunctions . . . . . . . . . . . . . . . . . 31
How to Manually Reset the Warmer . . . . . . . . . . . . . . . . . . . 32
What to do if the Over Temperature Indicator Light Illuminates . . . 33
Error Codes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Warranty 39
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

TABLE OF CONTENTS
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
6
This page intentionally left blank

SAFETY
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
7
AFETY
The Meaning of Signal Words
This manual contains signal words where needed. These signal words must be
obeyed to reduce the risk of death, personal injury, or equipment damage. The
meaning of these signal words is explained below.
DANGER
Danger indicates a hazardous situation which, if not avoided,
will result in serious injury or death.
WARNING
Warning indicates a hazardous situation which, if not avoided,
could result in serious injury or death.
CAUTION
Caution indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
Notice indicates a situation which, if not avoided, could result
in property damage.
NOTE: Note indicates additional information that is important to a
concept or procedure.

SAFETY
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
8
Safety Precautions
Before you begin Read and understand all instructions in this manual.
Electrical precautions Obey these electrical precautions when using the warmer:
▪Connect the warmer to a properly grounded outlet. Do not use the warmer if it is
not properly grounded. Consult an electrician if there is any doubt that the outlet
used is properly grounded.
▪Keep the cord away from hot surfaces.
▪Do not attempt to service the warmer or its cord and plug, when plugged in.
▪Do not operate the warmer if it has a damaged cord or plug.
▪Do not immerse the cord or plug in water.
▪Do not let the cord hang over the edge of a table or counter.
▪Do not use an extension cord.
Usage precautions Obey these usage precautions when using the warmer:
▪Only use this warmer for its intended use of warming.
▪Do not use this warmer for warming blood or blood products.
▪Do not cover or block any of the openings of this warmer.
▪Do not use this warmer in a wet location.
▪Only clean the warmer when the power cord is unplugged.
▪Do not use corrosive chemicals when cleaning the warmer.
▪Do not use the warmer cavity for storage.
▪Do not remove the top cover or exterior side panels. There are no user-
serviceable components inside.
Operator training All personnel using the warmer must have proper operator training. Before
using the warmer:
▪Read and understand the operating instructions contained in all the
documentation delivered with the warmer.
▪Know the location and proper use of all controls.
▪Keep this manual and all supplied instructions, diagrams, schematics, parts lists,
notices, and labels with the warmer if the warmer is sold or moved to another
location.

SAFETY
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
9
Operator
qualifications
Only trained personnel with the following operator qualifications are permitted
to use the warmer:
▪Have received proper instruction on how to use the warmer.
▪Are familiar with the purpose, limitations, and associated hazards of the warmer.
The warmer must not be used by:
▪People impaired by drugs or alcohol.
Condition of warmer Only use the warmer when:
▪All controls operate correctly.
▪The warmer is installed correctly.
▪The warmer is clean.
▪The warmer labels are legible.
Servicing the warmer ▪Obey precautions in the manual, on tags, and on labels attached to or shipped
with the warmer.
▪Only trained personnel are permitted to service or repair the warmer. Repairs
that are not performed by a trained technician, or the use of non-factory parts,
will void the warranty and relieve all liability.
▪Any troubleshooting guides and components views included with this manual
are for reference only and are intended for use by qualified and trained service
technicians.
▪To prevent serious injury, death or property damage, have the warmer inspected
and serviced at least every twelve (12) months by a trained technician.
▪Contact Enthermics for the authorized service partner in your area.

SAFETY
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
10
This page intentionally left blank

LABELS
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
11
ABELS

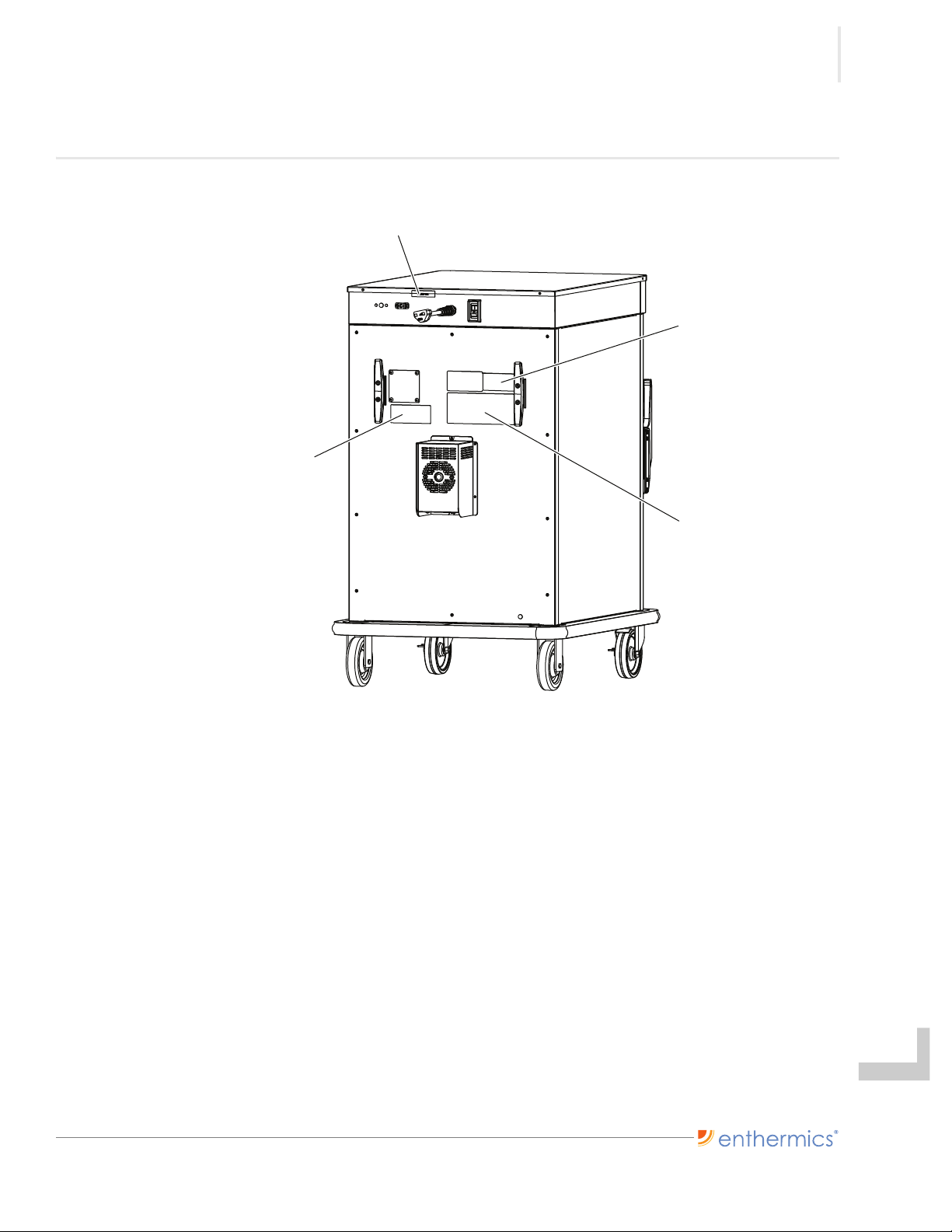

Label Locations
EC-PHD-006516
a
c
d
b

LABELS
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
12

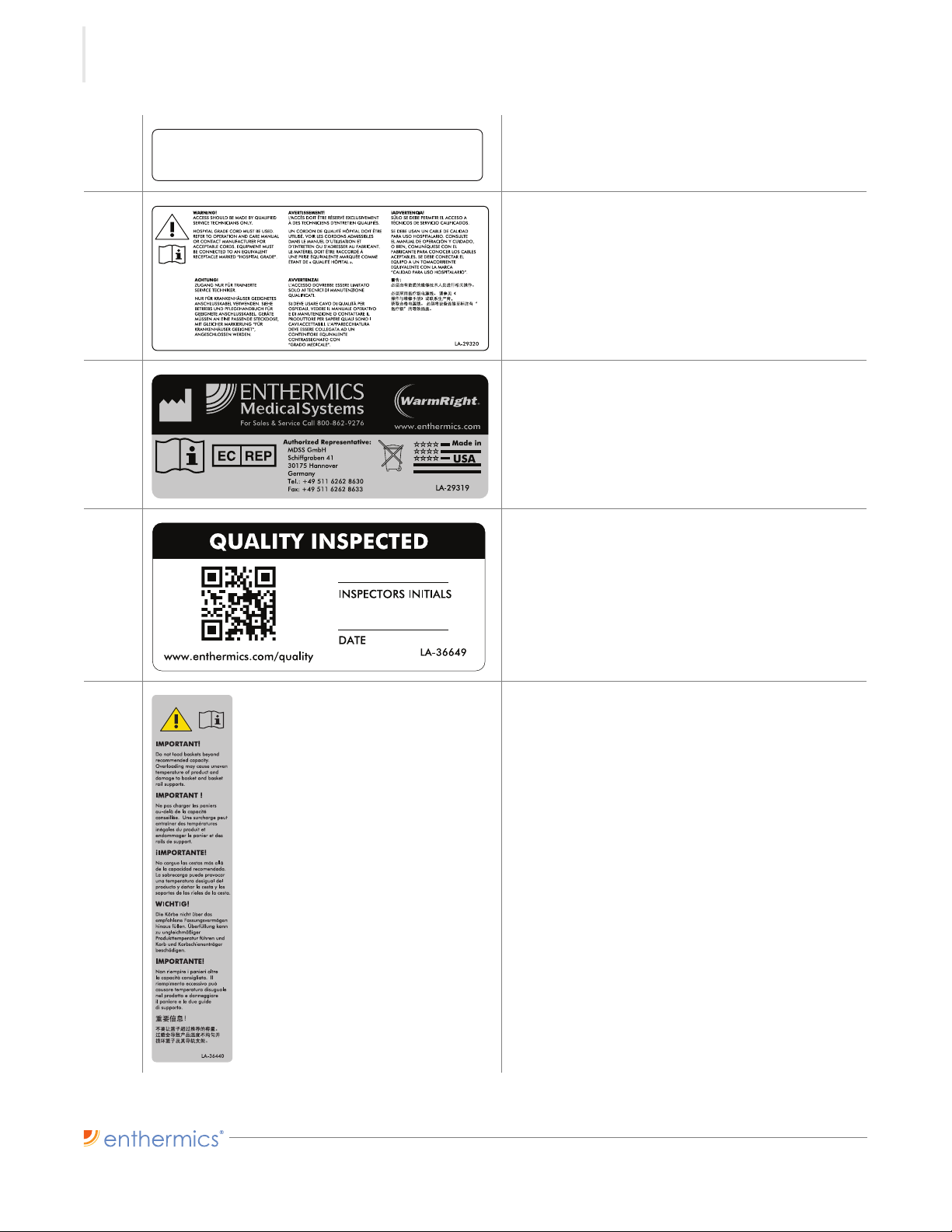

1
Security seal
2
Electrical warning label
3
Enthermics contact information
4
Quality inspected
—
IMPORTANT
Do not load baskets beyond recommended
capacity. Overloading may cause uneven
temperature of product and damage to basket and
basket rail supports.
Security Seal
Security Seal
Security Seal
Security Seal Security Seal
Security Seal
Security Seal
Security Seal

SPECIFICATIONS
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
13
PECIFICATIONS
Specification Information
Transportation and
storage conditions
▪Ambient temperature range of -40°F to +159°F (-40°C to +70°C).
▪Relative humidity range of 10% to 95%, non-condensing.
▪Atmospheric pressure range of 7.25 psi to 15.37 psi (50kPa to 106kPa).
Operating conditions ▪The warmer must acclimate to the room temperature it will be placed—24 hours
is recommended.
▪The recommended environmental temperature range is 60°F to 90°F
(15°C to 32°C).
▪The recommended relative humidity is above 20%, non-condensing.
Standards for
electrical equipment
▪Medical equipment classified by Underwriters Laboratories with respect
to electrical shock, fire, and mechanical hazards only, in accordance with
UL 60601-1 and CAN/CSA C22.2 No. 601.1.
▪Grounding reliability can only be achieved when the appliance is
connected to an equivalent receptacle marked “Hospital Grade.”
▪IP-XO ordinary
Model EC770L
Weight Net: 173 lb (78 kg)
Ship: 258 lb (117 kg)
Storage cavity
capacity
72 1-liter bags, 24 bags per basket
54 1-liter bottles, 18 1-liter bottles per basket
Temperature range Irrigation fluids (IRR): 98°F to 150°F (37°C to 66°C)
Injection fluids (INJ): 98°F to 104°F (37°C to 40°C)
Clearance
requirements
3” (76mm) from rear
1” (25mm) from top
1” (25mm) from sides
E471516
Protective Earth
Ground Symbol

SPECIFICATIONS
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
14

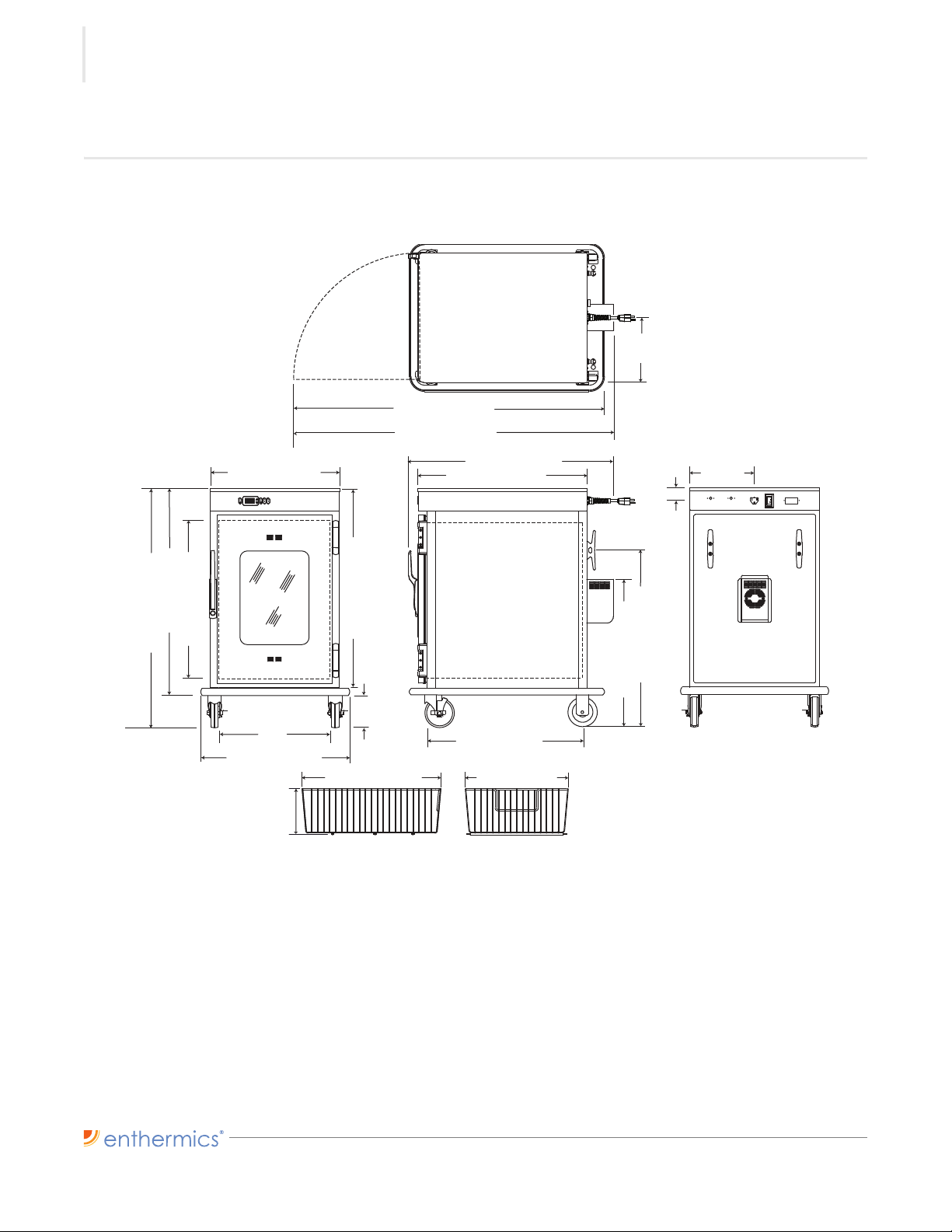

Dimension Drawing
EC770L
EC-DIM-006501
11.0"
(280mm)
52.8" (1341mm)
35.0" (890mm)
28.0" (731mm) 11.0"
(280mm)
2.20" (55.6mm)
OFF
ON
30.10" (764mm)
25.10" (638mm)
5.5" (140mm)
18.9" (480mm)
Cavity
25.2" (639mm)
26.9" (684mm)
Cavity
35.1" (892mm)
40.8" (1036mm)
54.0" (1372mm)
33.876" (860.5mm)
22.3" (566mm)
22. 1 " (561mm)
7.7"
(195mm)
17.1 " (434mm)
CORD LENGTH (est.)
8' (2,438mm)
26.6" (676mm)
Cavity

INSTALLATION
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
15
NSTALLATION
How to Unpack the Warmer
Before you begin Make sure you have:
▪An appropriate lifting device and enough personnel to safely move and position
the weight of the warmer.
▪Cutting tools to remove the packaging.
Unpack the warmer To unpack the warmer, do the following.
Step Action
1. Remove the box or crate. Save all packing materials for inspection by the
carrier.
2. Cut and remove the retaining straps and plastic wrap.
3. Remove the warmer from the pallet using an appropriate lifting device.
4. Remove the paperwork from the cavity.
Result The warmer is now unpacked.
NOTE: Examine the warmer for damage. If the warmer has
been damaged, do not use the warmer until it has been
inspected by an authorized service provider. Contact your
carrier or customer service.

INSTALLATION
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
16
How to Install the Warmer
Before you begin Make sure you have:
An appropriate lifting device and enough personnel to safely move and position
the weight of the warmer.
Requirements ▪The warmer must be installed on a level surface.
▪The warmer must not be installed in any area where it may be affected by steam,
dripping water, high temperature, or any other severely adverse conditions.
Voltages
Continued on next page
Model VPh Hz kW Plug Configuration
EC770L 120
230
1
1
50/60
50/60
1.06
0.9
NEMA 5-15P
BS 1363 (UK only)
CEE 7/7*
*Other international plugs are available, contact the manufacturer for more
information.

INSTALLATION
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
17

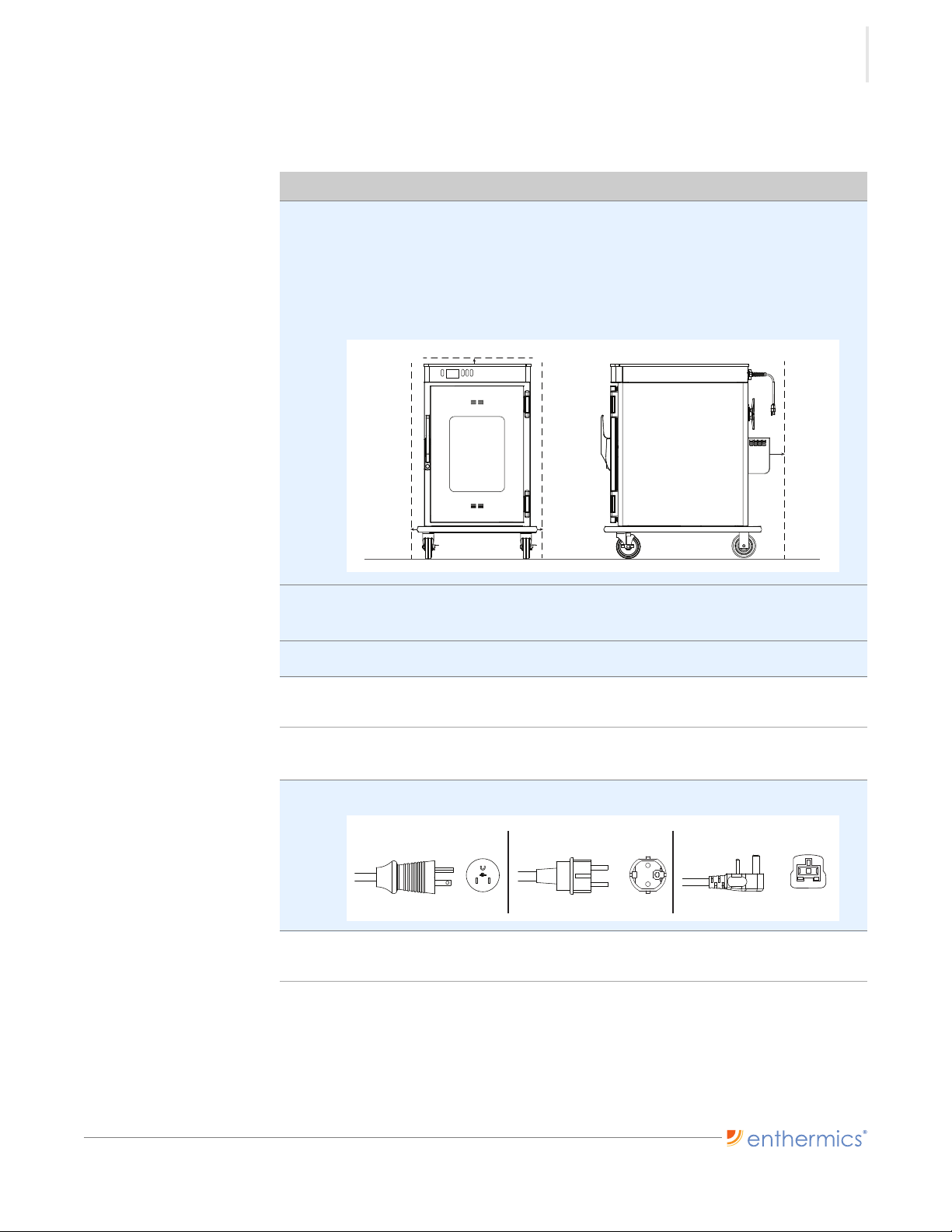

Continued from previous page
Position the warmer To position the warmer, do the following.
Step Action
1. Make sure that:
▪The location where the warmer is being installed is rated to support the
weight of the warmer;
▪The warmer is within five feet of the appropriate electrical outlet;
▪You follow the warmer clearance guidelines.
2. Move the warmer to the installation location and onto the final resting
surface.
3. Lock the casters, if equipped.
The warmer is now correctly positioned.
Connect power To connect electric power to the warmer, do the following.
4. Connect the plug to the electrical outlet.
Result The warmer is now installed and ready to be used.
EC-DIM-006510
1.0" (25mm)
1.0"
25mm
1.0"
25mm
3.0"
76mm
CEE 7/7NEMA 5-15P BS 1363
EC-TS-004411

INSTALLATION
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
18
This page intentionally left blank

OPERATION
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
19
PERATION
Preparing the Warmer for First Use
Before you begin
Procedure To prepare the warmer for first use, do the following.
Step Action
1. Make sure that the warmer is turned off and cool.
2. Wipe the outside of the warmer with a stainless steel cleaner.
3. Clean the interior of the warmer with a damp cloth.
4. Dry the interior and exterior of the warmer with a clean, lint-free cloth.
Leave the door open until the interior of the warmer completely dries.
5. Clean each side of the window pane with glass cleaner or distilled vinegar.
Result The warmer is now ready for use.
CAUTION: Burn hazard.
Allow the warmer to cool before cleaning.
NOTICE
Do not use:
▪abrasive cleaning compounds.
▪chloride based cleaners.
▪commercial or household cleaners containing ammonia.
▪cleaners containing quaternary salts.

OPERATION
Fluid Warmer ▪Operator’s Manual ▪MN-39935 ▪Rev 1 ▪3/19
20
How to Turn On and Turn Off the Warmer
Before you begin The warmer must be connected to electric power.
Turning on the
warmer
To turn on the warmer, do the following.
Step Action
1. Set the power switch ato the ON (l) position.
2. Press the ON/OFF button . The screen turns on.
The warmer is now on.
Turning off the
warmer
To turn off the warmer, do the following.
3. Press and hold the ON/OFF button until the screen turns off.
The warmer is now off.
NOTE: A temporary odor may be noticeable upon initial
start-up of the warmer. Contact the manufacturer if the
odor persists after a day or more of continuous use.
EC-TS-006522
a
NOTE: If equipped, the fan will continue to operate after
the warmer is turned off using the ON/OFF button.
