ENTRO A6000 User manual

A6000 SLIDING DOOR LOCK
Installation Instructions
A6000 Installation Instructions www.entro.com.au
1. DOOR PREPARATION
• Fold the supplied template and position
template on door edge.
• Mark horizontal centre-line of 25mm hole
using template, then mark centre of door
thickness.
• Drill 54mm hole from both sides of door to
avoid splintering.
• Drill 25mm (or 24mm) hole into the edge of
thedoor, central to the door thickness. Ensure
the hole is drilled squarely.
SUITS 35MM TO 45MM THICK DOORS
2. FINGER-PULL INSTALLATION
• Mark hole position for Finger-Pull on door
edge, at desired location above latch hole
(MINIMUM 60mm above).
• Drill 24mm hole, 24mm deep. NOTE: DO NOT
USE DIAMETER 25mm drill.
• Push Finger-Pull into 24mm hole.
3. LATCH INSTALLATION
• Insert the latch into latch hole in door.
• Hold latch centrally in hole and mark around
latch faceplate.
• Chisel marked rectangular section to a recess
of 4mm or until latch faceplate is ush with
the door edge.
• Insert the latch into hole.
• Pre-drill holes and fasten the latch to the door
with wood screws provided (#6x20mm).
#6x20mm
woodscrew
Latch
Faceplate
#6x20mm
woodscrew
Latch
Faceplate
#6x20mm
woodscrew
Latch
Faceplate

M4x16mm Screw
TurnButton
Interior Escutcheon
Exterior
Escutcheon
#6x20mm woodscrews
Figure A
Strike Plate2mm deep
Ø19mm Hole
(15mm deep)
Ø19mm Hole
(15mm deep)
Bolt-Hook
marking (grey)
Mark strike plate
outline centrally
to bolt-hook
marking.
Jamb
Mark Bolt-Hook
on Jamb
TEST BY ROTATING
TURNBUTTON - IF THE
OPERATION IS NOT
SMOOTH, LOOSEN SCREWS
AND RE-ADJUST THE
ESCUTCHEON POSITIONS
Drill a Ø54mm hole at
60mm backset through
the door for passage set
60mm Backset
60mm Backset
Fold on Door Edge
Ø54mm
Ø24mm
not Ø25mm
Ø19mm Hole
15mm deep
Ø19mm Hole
15mm deep
Bolt-Hook
Marking
Mark Strike Plate Outline
Centrally to Bolt-Hook Marking
Ø25mm
A6000 SLIDING DOOR LOCK
Installation Instructions
A6000 Installation Instructions www.entro.com.au

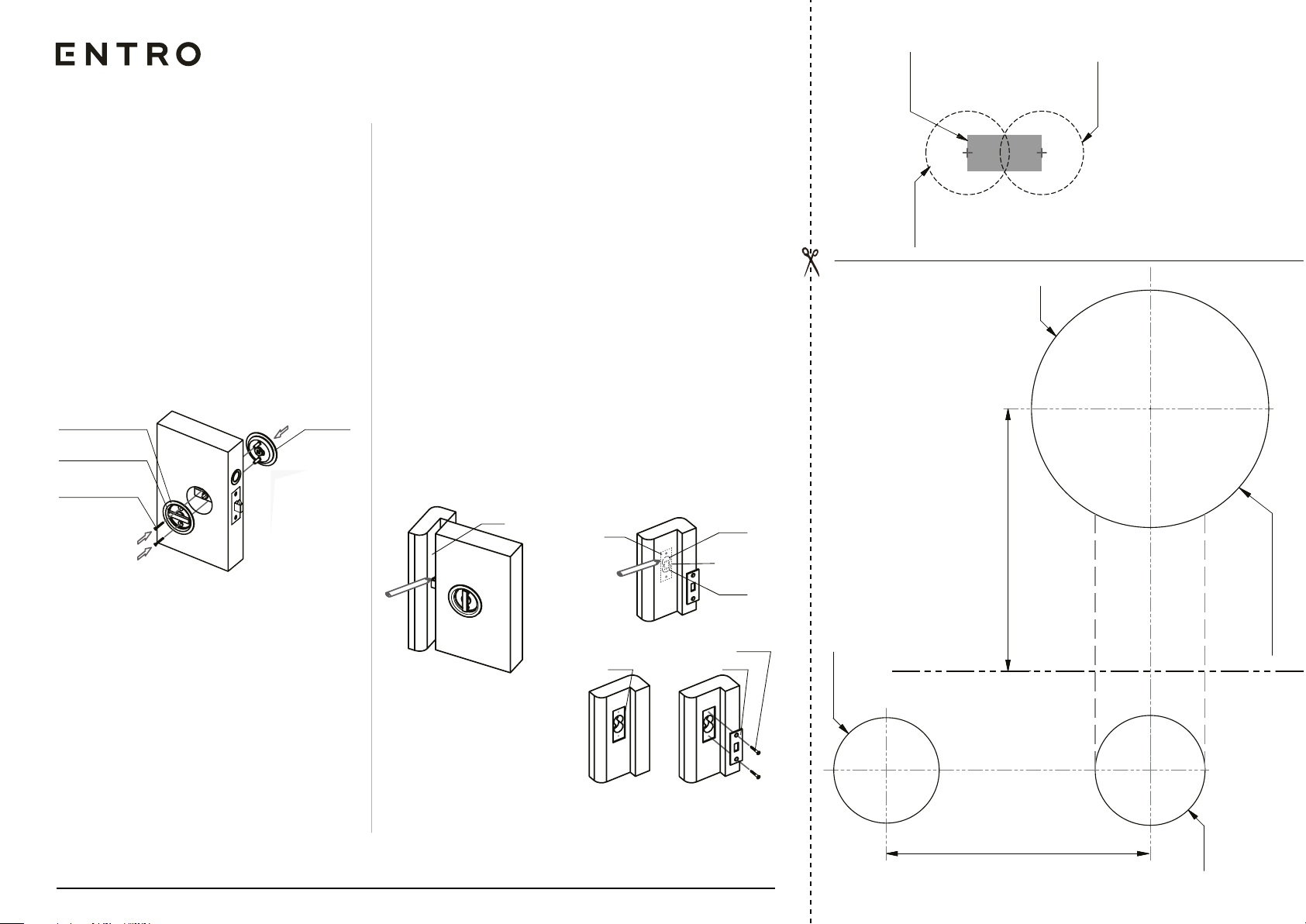

4. ESCUTCHEON ASSEMBLY
• Orientate the exterior escutcheon as
shown and place on exterior side of
door.
• Orientate the interior escutcheon as
shown and place on interior side of
door.
• Fasten with screws
provided(M4x16mm)
5. STRIKE PLATE INSTALLATION
• Extend bolt-hook and close door bolt-hook
contacts jamb.
• Mark around bolt-hook on jamb.
• Position strike plate centrally to bolt-hook marking
on jamb and mark strike plate outline on jamb.
• Mark two hole positions and drill two 19mm holes,
15mm deep as shown in gure A.
• Chisel srike plate outline until the strike plates sits
ush with the jamb.
• Pre-drill holes and fasten the strike plate to the
jamb with wood screws provided (#6x20mm).
• Close door and test lock operation.
Test by rotating turnbutton - if the operation is
not smooth, loosen screws and re-adjust the
escutcheon positions
NOTES FOLLOWING
INSTALLATION: If the hook-
bolt wont enter the strike
plate, reposition the strike
plate on the jamb. If the
door gap is too large, recess
the strike plate deeper.
Print to Actual Size A4
M4x16mm Screw
TurnButton
Interior Escutcheon
Exterior
Escutcheon
#6x20mm woodscrews
Figure A
Strike Plate2mm deep
Ø19mm Hole
(15mm deep)
Ø19mm Hole
(15mm deep)
Bolt-Hook
marking (grey)
Mark strike plate
outline centrally
to bolt-hook
marking.
Jamb
Mark Bolt-Hook
on Jamb
TEST BY ROTATING
TURNBUTTON - IF THE
OPERATION IS NOT
SMOOTH, LOOSEN SCREWS
AND RE-ADJUST THE
ESCUTCHEON POSITIONS
Drill a Ø54mm hole at
60mm backset through
the door for passage set
60mm Backset
60mm Backset
Fold on Door Edge
Ø54mm
Ø24mm
not Ø25mm
Ø19mm Hole
15mm deep
Ø19mm Hole
15mm deep
Bolt-Hook
Marking
Mark Strike Plate Outline
Centrally to Bolt-Hook Marking
Ø25mm
