Epever IP350-12 User manual

Pure Sine Wave Inverter
User Manual
IP350-12/22/11/21
IP500-12/22/11/21
IP1000-12/22/11/21
IP1500-12/22/11/21
IP2000-22/42/21/41

CONTENTS
1. Important Safety Instructions...............................................1
2. Introduction...........................................................................3
3. Designations of models........................................................4
4. Wiring ...................................................................................5
5. Functions..............................................................................7
6. Protection.............................................................................11
7. Troubleshooting....................................................................13
8. Maintenance.........................................................................14
9. Disclaimer.............................................................................15
10. Technical Specification.......................................................16

1
1. Important Safety Instructions
As an AC power supply equipment, the inverter's output voltage is at the same level as that
of the household power plug. Mind the AC output terminals, or you may get an electric
shock and result in life danger!
Attentions:
Connect the DC input according to the requirement strictly. The IPower inverter has a
relatively wide input range. Still, too high or too low input may cause problems even
destroy the inverter.
A reverse polarity connection will blow the fuses in the inverter and may damage the
unit.
Do not expose the inverter to a humid, flammable, explosive, or dust environment.
Keep the inverter out of children's touch.
Inverter input is recommended to connect to the battery. The minimum capacity of the
battery(expressed inAH) should be calculated in the following way: 5times of the rated
power of the inverter/battery voltage. If for testing purpose, the user should select DC
power supply current at least twice greater than that of the inverter rated input to keep
normal inverter operation. Use a DC power supply for testing may cause damage to
the inverter.
When the inverter works continuously, its surface may become very hot; please ensure
the air ventilation clearance around the inverter is more than 10cm. Keep away from
the material or device which may suffer from high temperature when the inverter is
working. Do not install the inverter in an airproof location and keep enough space
around the inverter.
The protective grounding must be connected to the ground. The cross-section of the
wire should not be less than 4mm2.
The wire connection between the battery and inverter should be less than 3m, and the
current density should be less than 3.5A/mm2. At this time, the inverter is running at full
load. If the wire length is greater than 3m, the current density should be reduced.
A fuse or breaker should be used between the battery and inverter. The value of the
fuse or breaker should be twice the inverter's rated input current.
Do not connect the battery charger or similar devices to the inverter's input terminal.
Do not put the inverter close to the flooded lead-acid battery because the terminals'
sparkle may ignite the hydrogen released by the battery.

2
It's an off-grid inverter. Do not connect the AC output terminals to the grid or electrical
source; otherwise, the inverter may be damaged.
This inverter can only be used singly in parallel connections. The series connection will
damage the inverters.
Risk of electric shock, don't touch the output port when the inverter is working. The
output is forbidden to connect to other power sources or grid; otherwise, the inverter
will be damaged. The inverter must be turned off when connecting the load.
Do not attempt to repair the fault inverter by yourself; otherwise, it may lead to a
serious accident. Please contact the manufacture's engineer.
IPower series is only suitable for civil applications, not for industrial applications.

3
2. Introduction
IPower series is a kind of pure sine wave inverter that can convert 12/24/48VDC to
220/230VAC(or 110/120VAC). Compared with civil design, industrial design has a wide
operating temperature, high reliability, and high efficiency. Simple appearance and
lightweight make it easy to install and operate. The wide input voltage range is ideal for
solar system applications. This inverter is especially suitable for civil applications, such as
household emergency lighting systems, vehicle-mounted systems, small field power supply,
etc.
Features:
Safe design with input and output electrical isolation
Adoption of advanced SPWM technology, pure sine wave output
Optional output voltage 220/230VAC(or 110/120VAC), choosing by DIP switch
LED indicators for fault status and working status
Lower No-load consumption
Max. efficiency up to 95%(IP2000-22, IP2000-42)①
Input protection: Over voltage protection, low voltage protection
Output protection: Overload protection, short circuit protection
Over-temperature protection: Temperature-controlled Fan Ventilation; Inverter turns off
automatically when overheating
Operational USB output 5VDC/1A
Operational RS485 communication port②
①The efficiency is tested at rated input voltage,220V output with resistive load, 25℃
Ambient temperature,1500W and higher version
②1000W and higher version support RS485 communication port optional.

4

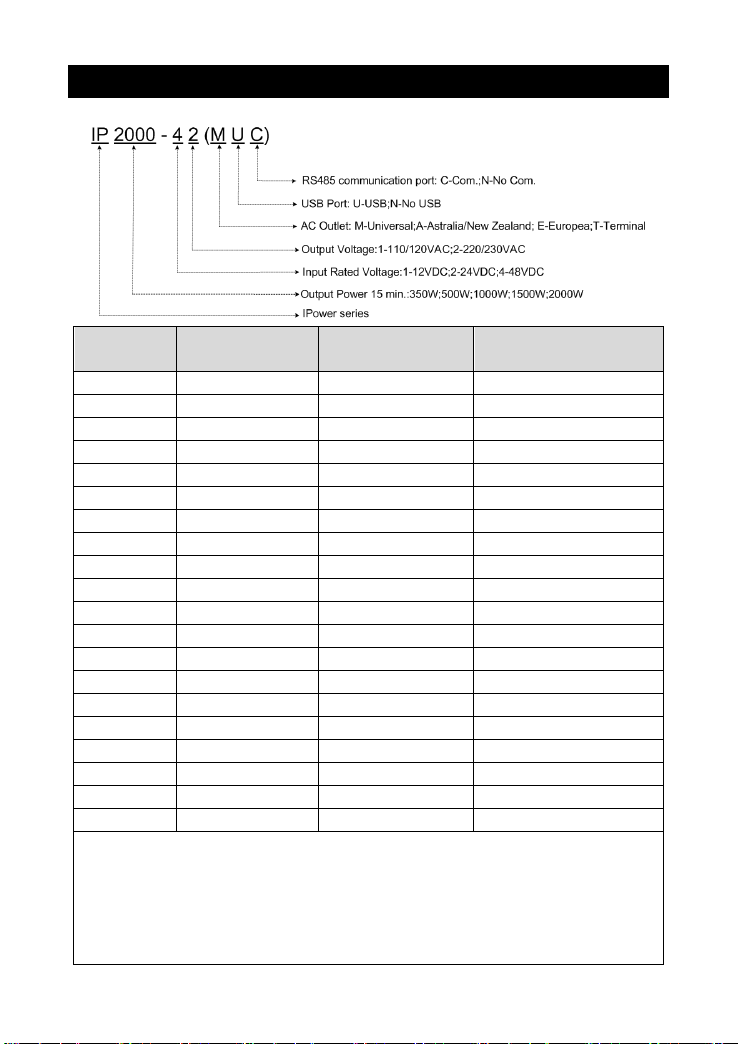

3. Designations of models
Model
Input Rated
Voltage
Output Voltage
Output Power
15 min.
IP350-12
12VDC
220/230VAC
350W
IP350-22
24VDC
220/230VAC
350W
IP500-12
12VDC
220/230VAC
500W
IP500-22
24VDC
220/230VAC
500W
IP1000-12
12VDC
220/230VAC
1000W
IP1000-22
24VDC
220/230VAC
1000W
IP1500-12
12VDC
220/230VAC
1500W
IP1500-22
24VDC
220/230VAC
1500W
IP2000-22
24VDC
220/230VAC
2000W
IP2000-42
48VDC
220/230VAC
2000W
IP350-11
12VDC
110/120VAC
350W
IP350-21
24VDC
110/120VAC
350W
IP500-11
12VDC
110/120VAC
500W
IP500-21
24VDC
110/120VAC
500W
IP1000-11
12VDC
110/120VAC
1000W
IP1000-21
24VDC
110/120VAC
1000W
IP1500-11
12VDC
110/120VAC
1500W
IP1500-21
24VDC
110/120VAC
1500W
IP2000-21
24VDC
110/120VAC
2000W
IP2000-41
48VDC
110/120VAC
2000W
220/230VAC output outlet: Universal, Australia/New Zealand, European,
Terminal(IP1000 and above models).
110/120VAC output outlet: Universal, Terminal(IP1000 and above models).
All the IPower models have an option for USB output.
All the IPower models have an option for RS485 communication except
IP350 and IP500.

5

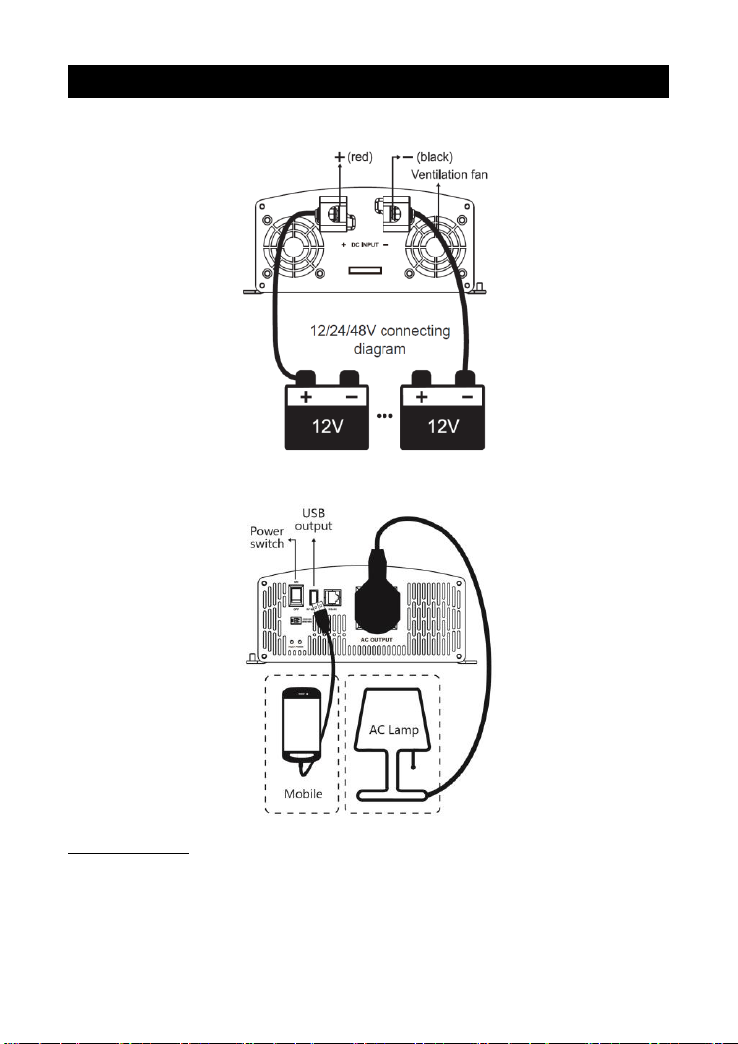

4. Wiring
(1)12/24/48Vsystem DC input
(2) 220/230V AC(or 110/120V) output
Operation Steps:
Step 1: Turn the power switch of the inverter to OFF
Step 2: Disconnect the input breaker or the fuse between the inverter and battery, connect
the battery terminals ('+' with the red line and '-' with the black line). Do not connect
the poles by contraries.

6
Step 3: Use the cable no less than 4mm2to connect the inverter's grounding terminal to the
ground.
Step 4: Connect the plug of AC load to the inverterAC outlet
Step 5: Switch on the input breaker or the fuse between the inverter and battery; turn on
the power switch to start the inverter. If the green indicator is on solid, turn on the
loads one by one. Check the operation state of the inverter and loads.
Step 6: If there are different types of loads, the loads with higher startup current should be
turned on firstly, such as television. After the loads work stably, turn on the loads
with a lower startup current, such as an incandescent lamp.
Step 7: If the Fault indicator is red and the buzzer alarms when turning on the devices,
please switch off the loads and inverter immediately.
Note: When using a USB port for charging, it is suggested to charge the
power bank first and then use the power bank to charge mobile phones.

7

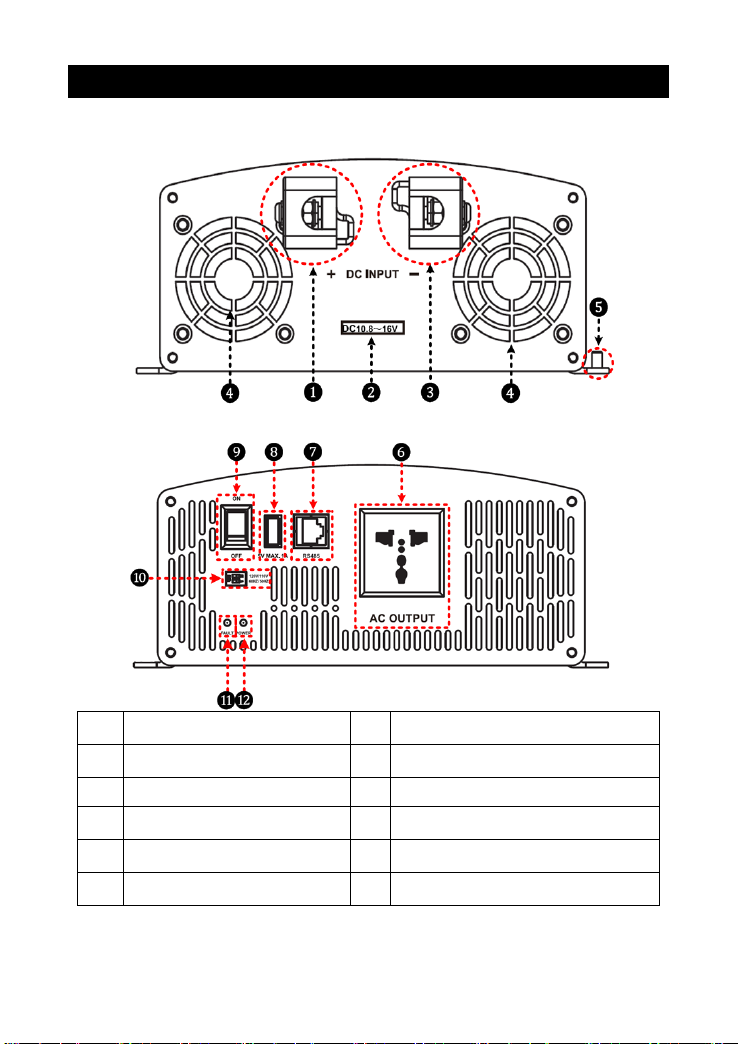

5. Functions
DC Input Panel
AC Output Panel
❶
DC Input Terminal Positive
❼
RS485 communication port(4)
❷
DC input voltage range(1)
❽
USB output port (5VDC/1A)
❸
DC Input Terminal Negative
❾
AC output switch
❹
Ventilation Fan(2)
❿
Mode switch(5)
❺
Grounding Terminal
⓫
Fault indicator(red)(6)
❻
AC Outlet(3)
⓬
Working indicator(green)(6)
(1) Input rated voltage
12V system input voltage range is 10.8~16V；

8
24V system input voltage range is 21.6~32V；
48V system input voltage range is 43.2~60V。
(2) Fan Ventilation
When the heat sink temperature is higher than 50℃or the internal temperature is
higher than 50℃, the fan will turn on automatically.
When the heat sink temperature is lower than 40℃and the internal temperature is
lower than 40℃, the fan will turn off automatically.

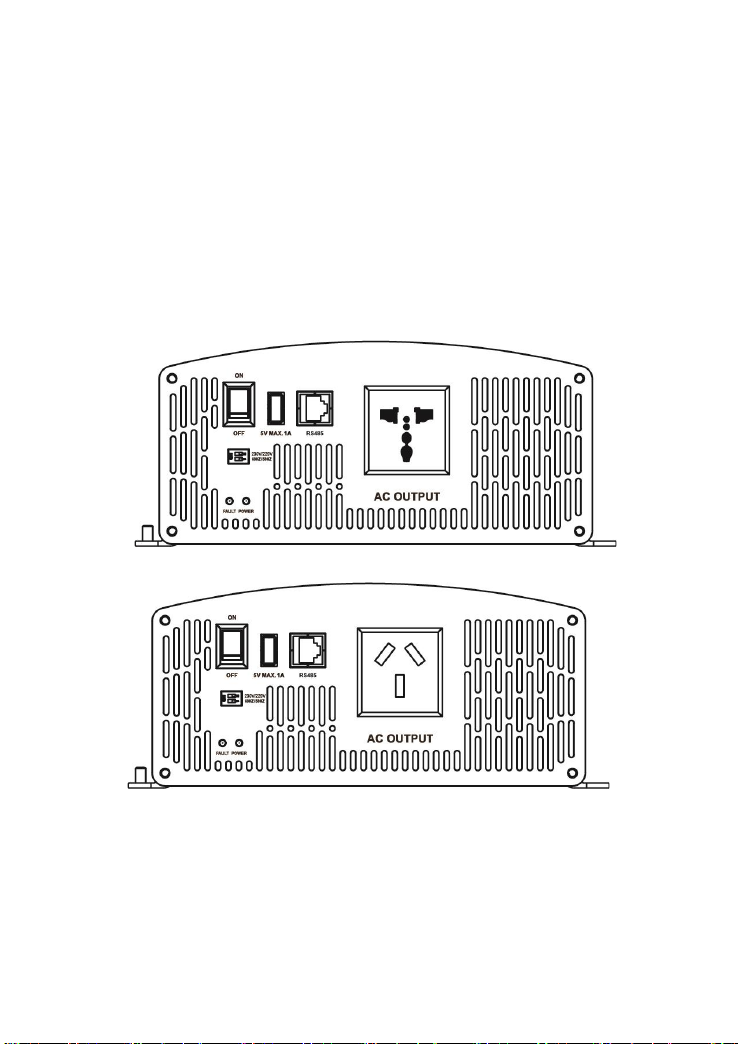

(3) AC Outlet (optional)
Universal
Australia/New Zealand

9
European
Terminal(IP1000 and above models）
(4) RS485 communication port(IP1000 and above models optional)
The RJ45 interface pin definition is shown below:
(5) Mode Switch
When switch No.1 is on the ON side, the output frequency is 60Hz. Otherwise, it is
50Hz.
When switch No.2 is on the ON side, the output voltage is 230VAC（120VAC）.
Pins
Define
1/2
5VDC
3/4
RS485-B
5/6
RS485-A
7/8
GND

10
Otherwise, it is 220VAC(110VAC).
NOTE: Both the output frequency and the output voltage change availability
after restarting the inverter.
WARNING: DO NOT turn ON/OFF the mode switch when the inverter is
working.
(6) LED indicator and Buzzer
Working indicator
Fault indicator
Buzzer
Status
Green On Solid
Red OFF
No Sounding
Output is normal
Green Slowly
Flashing(1/4Hz)
Red OFF
Sounding
Input under-voltage
Green Fast
Flashing(1Hz)
Red OFF
Sounding
Input overvoltage
Green On Solid
Red On Solid
Sounding
Over-temperature
Green OFF
Red Fast
Flashing(1Hz)
Sounding
Load short circuit
Green On Solid
Red Slowly
Flashing(1/4Hz)
Sounding
Overload
Green OFF
Red OFF
Sounding
Output voltage
abnormal

11
6. Protection
Protection
and recover
Condition
Phenomenon
Parameter
IPower-1*
IPower-2*
IPower-4*
Overvoltage
protection
and recover
Input Voltage
Ui
Ui>16V
Ui>32V
Ui>64V
Output is OFF
Green indicator fast
flashing
Buzzer sounds
Ui≤14.5V
Ui≤29V
Ui≤58V
Green indicator on
solid
The output is on
Low voltage
protection
and recover
Input Voltage
Ui
Ui<10.8V
Ui<21.6V
Ui<43.2V
Output is OFF
Green indicator slowly
flashing
Buzzer sounds
Ui≥12.5V
Ui≥25V
Ui≥50V
Green indicator on
solid
The output is on
Over tem.
protection
and recover
Tem. (T)
Heat sink T＞80℃(IP1000 T＞
75℃)
or Internal T＞60℃
Inverter turns OFF
Heat sink T≤70℃(IP1000
T≤65℃)
and Internal T≤50℃
Inverter turns ON
Overload
protection
and recover
S: Output
power
Pe: Rated
power
S=1.2Pe①
The output is OFF
after 15min
Red indicator slowly
flashing
Buzzer sounds
S=1.5Pe①
The output is OFF
after 30s②
Red indicator slowly
flashing
Buzzer sounds
S=1.8Pe①
The output is OFF
after 10s

12
Red indicator slowly
flashing
Buzzer sounds
S>2Pe(Rated input voltage) ①
The output is OFF
after 5s
Red indicator slowly
flashing
Buzzer sounds
Load short circuit protection①
The output is OFF
immediately
Red indicator fast
flashing
Buzzer sounds
①When output overload protection or load short circuit protection is activated, the
AC output would auto-recovery three times (the first time delays for 5s, the
second time delays for 10s, and the third time delays for 15s). After then the AC
output would not auto-recover, and it can only be recovered after restarting the
inverter. (When S=1.2Pe, the models don't have the auto-recovery function,
except IP350 and IP500.)
②IP350 and IP500 stop output after 1minute.

13
7. Troubleshooting
Faults
Possible
reasons
Troubleshooting
Green indicator slowly
flashing
Buzzer sounds
DC input
under-voltage
Measure the DC input voltage if the
voltage is lower than 10.8/21.6/43.2V.
Adjust the input voltage to restore
normally.
Green indicator fast
flashing
Buzzer sounds
DC input
overvoltage
Measure the DC input voltage if the
voltage is higher than 16/32/64V. Adjust
the input voltage to restore normally.
Red indicator slowly
flashing
Buzzer sounds
Overload
Reduce the number ofAC loads.
Restart the inverter.
Red indicator fast
flashing
Buzzer sounds
Short circuit
Check carefully loads connection,
clear the fault.
Restart the inverter.
Green and red
indicator on solid
Buzzer sounds
Over-temperature
When the heat sink temperature
exceeds 80℃, or the internal
temperature exceeds 60℃, the inverter
automatically turns off the output. When
the heat sink temperature goes below
70℃, or the internal temperature goes
below 50℃, the inverter resumes work.

14
8. Maintenance
The following inspections and maintenance tasks are recommended at least two
times per year for best performance.
Make sure no block on air-flow around the inverter. Clear up any dirt and fragments on
the radiator.
Check all the naked wires to make sure insulation is not damaged for serious
solarization. Frictional wear, dryness, insects or rats, etc. Repair or replace some wires
if necessary.
Check and confirm that indicator and display are consistent with required. Pay
attention to any troubleshooting or error indication. Take corrective action if necessary.
Confirm that all the terminals have no corrosion, insulation damaged, high temperature,
or burnt/discolored sign, tighten terminal screws to the suggested torque.
Check for dirt, nesting insects, and corrosion. If so, clear up in time.
Check and confirm that the lightning arrester is in good condition. Replace a new one
in time to avoid damaging the inverter/charger and even other equipment.
WARNING：Risk of electric shock!
Risk of electric shock! Before the above operations, ensure that all the power is turned off.
The electricity in the capacitances is completely discharged, then follows the corresponding
inspections and operations.

15
9. Disclaimer
The warranty does not apply under the following conditions:
Damage caused by improper use or use in an inappropriate environment
Battery voltage exceeds the input voltage limit of the inverter
Damage caused by working environment temperature exceeds the rated range
Unauthorized dismantling or attempted repair
Damage occurred during transportation or handling
Damage caused by force majeure

16
10. Technical Specification
Item
IP350-11
IP350-12
IP350-21
IP350-22
Rated Input Voltage
12VDC
24VDC
24VDC
Input Voltage Range
10.8～16VDC
21.6～32VDC
21.6～32VDC
Input surge voltage
＜32VDC
＜44VDC
＜44VDC
Output Voltage
110VAC(±5%)
120VAC(-10%~
+5%)
220VAC(±5%)
230VAC(-7%~+
5%)
110VAC(±5%)
120VAC(-10%~
+5%)
220VAC(±5%)
230VAC(-7%~+
5%)
Output Frequency
50/60±0.1Hz
Output Continuous
Power
280W
Output Power 15 min.
350W
Surge power
750W
Power factor
0.2-1(VA lower than output continuous power)
Output Wave
Pure sine wave
Distortion THD
THD≤5%①
THD≤3%①
THD≤5%①
THD≤3%①
Max. Efficiency
90%
91%
91%
92%
No-load current
＜0.7A
＜0.5A
USB Output Port②
5VDC/Max.1A
Binding post
Φ6mm
Overall dimension
214×105.5×57.7mm
Mounting dimension
185.5×76.7mm
Mounting hole size
Φ4.2mm
Net weight
1.0kg
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
②Conventional products don't have this port; the port is optional.
Item
IP500-11
IP500-12
IP500-21
IP500-22
Rated Input Voltage
12VDC
24VDC
Input Voltage Range
10.8～16VDC
21.6～32VDC
Input surge voltage
＜32VDC
＜44VDC
Output Voltage
110VAC(±5%)
120VAC(-10%~
+5%)
220VAC(±5%)
230VAC(-10%~
+5%)
110VAC(±5%)
120VAC(-10%~
+5%)
220VAC(±5%)
230VAC(-10%~
+5%)
Output Frequency
50/60±0.1Hz

17
Output Continuous
Power
400W
Output Power 15 min.
500W
Surge power
1000W
Power factor
0.2-1(VA lower than output continuous power)
Output Wave
Pure sine wave
Distortion THD
THD≤5%①
THD≤3%①
THD≤5%①
THD≤3%①
Max. Efficiency
91%
92%
91%
92%
No-load current
＜0.9A
＜0.5A
USB Output Port②
5VDC/Max.1A
Binding post
Φ6mm
Overall dimension
232.2×132×74.5mm
Mounting dimension
205×102mm
Mounting hole size
Φ5.2mm
Net weight
1.7kg
①Test condition: Rated Input Voltage, Output Continuous Power, Resistive load.
②Conventional products don't have this port; the port is optional.
Item
IP1000-11
IP1000-12
IP1000-21
IP1000-22
Rated Input Voltage
12VDC
24VDC
Input Voltage Range
10.8～16VDC
21.6～32VDC
Input Surge Voltage
＜20VDC
＜44VDC
＜40VDC
Output Voltage
110VAC/120VA
C(±3%)
220VAC/230VA
C (±5%)
110VAC/120VA
C(±3%)
220VAC/230VA
C (±5%)
Output Frequency
50/60±0.1Hz
Output Continuous
Power
800W
Output Power 15 min.
1000W
Surge power
1600W
Power factor
0.2-1(VA lower than output continuous power)
Output Wave
Pure sine wave
Distortion THD
THD≤5%①
THD≤3%①
THD≤5%①
THD≤3%①
Max. Efficiency
92.5%
94.5%
92.5%
94.5%
No-load Current
＜0.8A
＜0.5A
USB Output Port②
5VDC/Max.1A
RS485 Com. Port②
5VDC/200mA
