Epever IPT Series User manual

1
Model
IPT350, IPT500
IPT1000, IPT1500
IPT2000, IPT3000
IPT4000, IPT5000
Pure sine wave inverter
USER MANUAL

Contents
Important Safety Instructions....................................................................1
1 Overview...............................................................................................5
2 Appearance...........................................................................................7
3 Naming rule.........................................................................................13
4 Connection diagram............................................................................16
5 Installation...........................................................................................17
5.1 Attentions....................................................................................17
5.2 Wire size and circuit breaker.......................................................17
5.3 Mounting.....................................................................................19
6 Protections..........................................................................................25
7 Troubleshooting...................................................................................28
8 Maintenance........................................................................................29
9 Specifications......................................................................................30
Appendix 1 Disclaimers..........................................................................39

1
Important Safety Instructions
Please reserve this manual for future review.
This manual contains instructions on safety, installation, and operation for IPT series high-frequency
pure sine wave inverter ("inverter" as referred to in this manual).
1. Explanation of symbols
Please read related literature accompanying the following symbols to enable users to use the product
efficiently and ensure personal and property safety.
Please read the literature accompanying the following symbols.
Symbols
Definition
Tips:
Indicates any practical advice for reference
IMPORTANT: Indicates a critical tip during the operation, if ignored, may cause the
device to run in error.
CAUTION: Indicates potential hazards. If not avoided, it may cause the device to be
damaged.
WARNING: Indicates the danger of electric shock. If not avoided, it would cause
casualties.
WARNING HOT SURFACE: Indicates the risk of high temperature, if not avoided,
would cause scalds.
Read the user manual carefully before any operation.
WARNING
The entire system should be installed by professional and technical personnel.
2. Requirements for professional and technical personnel
Professionally trained；
Familiar with related safety specifications for the electrical system;
Read this manual carefully and master related safety cautions.
3. Professional and technical personnel is allowed to do
Install the inverter to a specified location.

2
Conduct trial operations for the inverter.
Operate and maintain the inverter.
4. Safety cautions before installation
IMPORTANT
When you receive the inverter, check whether there is any damage in
transportation. Contact the transportation company or our company in time for any
problem.
CAUTION
When placing or moving the inverter, follow the instructions in the manual.
When installing the inverter, evaluate whether the operation area exists arc
danger.
The inverter needs to be connected to a battery. The battery's minimum
capacity (Ah) is recommended to be five times the current that equals the
inverter's rated output power divided by the battery's voltage.
WARNING
Keep the inverter out of the reach of children.
This inverter is an off-grid type. It is strictly prohibited to connect the inverter to
the grid. Otherwise, the inverter will be damaged.
This inverter is only allowed for stand-alone operation. It is prohibited to
connect multiple units in parallel or series. Otherwise, the inverter will be
damaged.
5. Safety cautions for mechanical installation
WARNING
Before installation, ensure the inverter has no electrical connection.
Confirm enough heat dissipation space for the inverter before installation. Do not
install the inverter in a harsh environment such as humid, greasy, flammable,
explosive, or dust accumulation.
6. Safety cautions for electrical connection
CAUTION
Check whether wiring connections are tight to avoid the danger of heat
accumulation due to loose connections.
The protective grounding is connected to the ground. The cross-section of the
wire should not be less than 4mm2.
The DC input voltage must strictly follow the parameter table. Too high or too low
DC input voltage will affect the inverter's normal operation and may even damage

3
it.
It is recommended that the connection length between the battery and the
inverter be less than 3 meters. If greater than 3 meters, please reduce the current
density of the connection wire.
A fuse or breaker should be used between battery and Inverter; the fuse or
breaker's rated current should be twice the inverter rated input current.
DO NOT install the inverter close to the flooded lead-acid battery because the
terminals' sparkle may ignite the hydrogen released by the battery.
WARNING
The AC output terminal is only for the load connection. Do NOT connect it to
another power source or utility. Otherwise, the inverter will be damaged. Turn off
the inverter when connecting loads.
Do not connect battery chargers or other similar products to the input terminal of
the inverter. Otherwise, the inverter will be damaged.
7. Safety cautions for controller operation
WARNING
HOT
SURFACE
When the inverter is working, the shell will generate much heat, and the temperature
is very high; please do not touch it.
CAUTION
When the inverter is running, please do not open the cabinet.
WARNING
The inverter's AC output is of high voltage, do not touch the wiring connection to
avoid electric shock.
8. Dangerous operations which would cause electric arc, fire or explosion
Touch the wire end that hasn't been insulation treated and maybe electriferous.
Touch the wiring copper row, terminals, or internal inverter modules that may be electriferous.
The connection of the power cable is loose.
Screw or other spare parts inadvertently falls into the inverter.
Improper operations by untrained non-professional or technical personnel.
WARNING
Once an accident occurs, it must be handled by professional and technical
personnel. Improper operations would cause more serious accidents.

4
9. Safety cautions for stopping the inverter
The internal conductive modules could be touched after the inverter stopped running for five
minutes.
The inverter is allowed to restart after removing the faults, which affects the safety performance.
There are no serviceable parts inside. If any maintenance service is required, please contact our
service personnel.
WARNING
Do NOT touch or open the shell after the inverter is powered off within ten minutes.
10. Safety cautions for inverter maintenance
It is recommended to check the inverter with testing equipment to ensure no voltage and current.
When conducting electrical connection and maintenance, post a temporary warning sign or put up
barriers to prevent the unrelated personnel from entering the electrical connection or maintenance
area.
An improper operation of the inverter may cause personal injury or equipment damage.
It is recommended to wear an antistatic wrist strap or avoid unnecessary contact with the circuit
board.

5
1 Overview
IPT is a new generation of pure sine wave inverter, which can be customized according to customer
needs. Adopting the voltage and current double closed-loop control algorithm brings the inverter a faster
response and a lower THD. The inverter selects key components with a high power density and long
lifespan to provide a stable and reliable power guarantee.
1000W and above IPT products are equipped with two AC outlets. It supports two AC loads
simultaneously (Note: the total load power cannot exceed the rated power). At the same time, users
can choose various human-computer interaction solutions, which is convenient to control real-time
parameters.
The inverter can be widely used in DC to AC areas, such as solar AC power system, vehicle system, RV
power supply, security monitoring system, emergency lighting system, field power system, household
power system, etc. With industrial standard EMC (Electro Magnetic Compatibility) characteristics, the
inverter is also suitable for occasions with high power quality requirements.
Features:
Industrial standard, cost-effective
Customizable input reverse polarity protection and surge current suppression technology
Completely electrically isolated design for input and output
Full digital double closed-loop control
Excellent EMC characteristic, widely applied to higher quality power system
Advanced SPWM technology and pure sine wave output.
Double AC output ports (suitable for 1000W and above) to support two AC loads working at the
same time

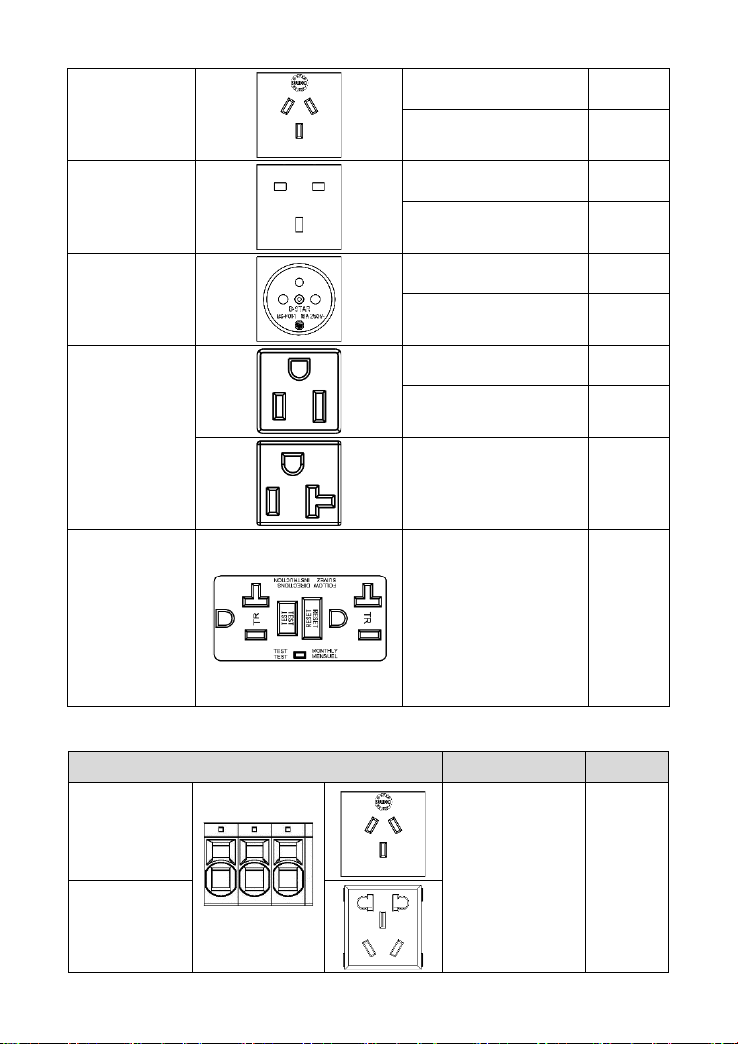

Multi AC outlets to meet the users' needs of different countries and regions
High power density and high-quality components to ensure the reliability
Output power factor up to 1
Low loss of zero loads and standby. Low THD (Total Harmonic Distortion). High conversion
efficiency
Extensive input under voltage/over-voltage, output overload/short circuit/overheating Instruction
Air cooling controlled by temperature and load
Remote control by the phone APP and PC software

6
Configurable output voltage and output frequency①
RS485 com. port②, to support various optional accessories
RJ11 port②to connect a remote switch, convenient to start/stop device and view errors remotely
External switch contact design to allow remote control
EN/IEC62109-1/2, EN61000-6-2/4 and FCC approved
①Related parameters' settings can only be operated through the remote meter, mobile phone
APP, or PC software.
②For inverters with 12V/24V input voltage, the RS485/RJ11 port has NO communication
isolation design. This function (communication isolation design) is just for inverters with 48V
input voltage.

7
2 Appearance
IPT350-xx
IPT500-xx
IPT1000-xx

8
IPT1500-XX
IPT2000-XX
IPT3000-XX

9
IPT4000-XX
IPT5000-42
CAUTION
The above products' appearance is only used as the terminal description. The DC
input and AC output port vary with different models; please refer to the actual
product appearance for details.
❶
DC input terminal positive
❻
RS485 communication port③
❷
DC input terminal negative
❼
Remote switch port(RJ11)
❸
Cooling fan①
❽
External switch port
❹
Grounding terminal
❾
Indicator④
❺
AC outlet②
❿
Inverter switch
⓫
Fuse terminal⑤

10
①Cooling fan
Conditions to start the cooling fan:
Heat sink temperature is higher than 45℃or
The internal inverter temperature is higher than 45℃or
The output power is higher than 700W
IPT1500-11
IPT1500-21
IPT1500-41
IPT1500-12
IPT1500-22
IPT1500-42
Heat sink temperature is higher than 45℃or
The internal inverter temperature is higher than 45℃or
The output power is higher than 50% of the rated power
IPT350-11
IPT350-21
IPT350-12
IPT350-22
IPT500-11
IPT500-21
IPT500-12
IPT500-22
IPT1000-11
IPT1000-21
IPT1000-12
IPT1000-22
IPT2000-11
IPT2000-21
IPT2000-41
IPT2000-12
IPT2000-22
IPT2000-42
IPT3000-11
IPT3000-21
IPT3000-41
IPT3000-12
IPT3000-22
IPT3000-42
IPT4000-41
IPT4000-42
IPT5000-42

11
Conditions to stop the cooling fan:
Heat sink temperature is lower than 40℃and
The internal inverter temperature is lower than 40℃and
The output power is lower than 300W
IPT1000-11
IPT1000-21
IPT1000-12
IPT1000-22
Heat sink temperature is lower than 40℃and
The internal inverter temperature is lower than 40℃and
The output power is lower than 500W
IPT1500-11
IPT1500-21
IPT1500-41
IPT1500-12
IPT1500-22
IPT1500-42
Heat sink temperature is lower than 40℃and
The internal inverter temperature is lower than 40℃and
The output power is lower than 40% of the rated power
IPT2000-11
IPT2000-21
IPT2000-41
IPT2000-12
IPT2000-22
IPT2000-42
IPT3000-11
IPT3000-21
IPT3000-41
IPT3000-12
IPT3000-22
IPT3000-42
IPT4000-41
IPT4000-42
IPT5000-42
Heat sink temperature is lower than 40℃and
The internal inverter temperature is lower than 40℃and
The output power is lower than 30% of the rated power
IPT350-11
IPT350-21
IPT350-12
IPT350-22
IPT500-11
IPT500-21
IPT500-12
IPT500-22

12
②The AC outlets vary with different products. Please refer to Chapter 3 Naming rule for the
specific supported outlet types.
③The RS485 communication port can be connected to the remote meter, Bluetooth module, WIFI
module, PC, etc., for parameter setting and remote monitoring.
Indicators include the Power indicator and Fault indicator. The indicator and buzzer status
under different working conditions are shown in the table below.
Power indicator
Fault indicator
Buzzer
Status
Green ON
Red OFF
No beeps
Output voltage normal
Green slowly
flashing(1/4Hz)
Red OFF
Buzzer beeps.
Input under voltage
Green fast flashing
(1Hz)
Red OFF
Buzzer beeps.
Input over voltage
Green OFF
Red ON solid
Buzzer beeps.
Inverter over temperature
Heat sink over
temperature
Green OFF
Red fast flashing (1Hz)
Buzzer beeps.
Load short-circuit
Green ON
Red slowly
flashing(1/4Hz)
Buzzer beeps.
Overload
Green OFF
Red OFF
Buzzer beeps.
Output voltage abnormal
⑤The main purpose of the fuse terminal ⓫is to protect the AC outlet, where the connected
load cannot exceed the marked 10A or 20A.

13
3 Naming rule
Instructions for the anti-reverse and anti-surge current protection:
Product type
Suffix
Definition
Standard products
No
Without reverse polarity and anti-surge current protection
Customized products
R
With reverse polarity protection, without anti-surge current
protection
S
Without reverse polarity protection, with anti-surge current
protection
RS
With reverse polarity and anti-surge current protection
Explanations for the AC output port:
Single terminal, single outlet or 2 pcs outlets for the AC output port
Type
Applicable product
Number
T
Terminal
IPT series
1 pcs
C - Chinese
dual-socket
IPT350/500-x2
1 pcs
IPT1000/1500/2000-x2
2 pcs
E - European
IPT350/500-x2
1 pcs
IPT1000/1500/2000/3000-x2
2 pcs

14
A - Australia
IPT350/500-x2
1 pcs
IPT1000/1500/2000-x2
2 pcs
UK - United
Kingdom
IPT350/500-x2
1 pcs
IPT1000/1500/2000-x2
2 pcs
F - French
IPT350/500-x2
1 pcs
IPT1000/1500/2000/3000-x2
2 pcs
N - North
American
IPT350/500-x1
1 pcs
IPT1000/1500-x1
2 pcs
IPT2000-x1
2 pcs
GFCI - Ground
Fault Circuit
Interrupt
IPT1000/1500/2000-x1
1 pcs
1 pcs terminal + 1 pcs outlet for the AC output port
Type
Applicable product
Number
TA - Terminal +
Australia
T: Terminal
IPT3000-x2
IPT4000/5000-42
Terminal*1
Outlet*1
TC - Terminal +
Chinese
dual-socket

15
TUK - Terminal +
United Kingdom
TE - Terminal +
European
IPT4000/5000-42
Terminal*1
Outlet*1
TF - Terminal +
French
TN - Terminal +
America
IPT3000-x1
IPT4000-41
Terminal*1
Outlet*1
GFCI outlets need to be tested after power-on to ensure proper operation.
Preparation
Connect a circuit breaker and an AC load (it is recommended to use a night light to observe the status
conveniently) to the GFCI outlet. Turn on the inverter after confirming the wiring.
Testing
1) If the red LED is ON solid, it indicates that the GFCI outlet is damaged; please replace a new one.
2) If the LED is green ON after it flashes in red three times, connect the circuit breaker, and the night light
will be turned on. Then, press the "TEST" button to observe the testing status:
① The "TEST" button always pops up, and the night light keeps ON solid. It indicates that the GFCI
wiring is an error; please correct the wrong wiring.
② The "TEST" button goes down, while the "RESET" button pops up. The LED and the night light are
turned off, indicating the GFCI outlet is normal (Note: Press the "RESET" button again to
recover the load output).

16
4 Connection diagram
The DC input and AC outlets located on different sides
The DC input and AC outlets are located on different sides, such as IPT350-xx, IPT500-xx, IPT1000-xx,
IPT1500-xx, IPT2000-xx, and IPT3000-42. The following takes IPT2000-2x as an example to introduce
the system connection.
The DC input and AC outlets located on the same side
The DC input and AC outlets are located on the same side, such as IPT3000-1x/2x, IPT3000-41,
IPT4000-4x, and IPT5000-42. The following takes IPT3000-1x as an example to introduce the system
connection.
CAUTION
It is recommended to directly connect the inverter DC input terminal to the battery
terminal. DO NOT connect it to the charge source terminal. Otherwise, the charging
voltage spikes of the charge source may cause over-voltage protection of the
inverter.
