EPOS EP-545T Series User manual

User’s Manual
EP-545T Series
IMPACT DOT-MATRIX PRINTER
E-POS International L.L.C
www.eposintl.com

-----------------IMPACT DOT MATRIX PRINTER------------------ 2
Safety Notice
* Don’t touch the Head of printer with anything.
* Don’t bend the power cord excessively or place any heavy objects onto it.
* Don’t use the printer when it is out of order. This can cause a fire or and electrocution.
* When connecting or disconnecting the plug, always hold the plug-not the cord.
* Keep the desiccant out of children’s reach.
* Use only approved accessories and do not try to disassemble, repair or remodel it for yourself.
* Install the printer on stable surface, choose firm, level surface where avoid vibration.
* Don’t let water or other foreign objects in the printer.
* Don’t connect a telephone line into the peripheral drive connector.
* We recommend that you unplug the printer from the power outlet if no use it for long period.
Available fields:
* Print POS system Receipts
* Print EFT POS system Receipts
* Print Gym, post, hospital, civil aviation systemReceipts
*Print Inquiry, Service system Receipts
*Print Instrument test Receipts
* Print Tax, Tab Receipts
Main Features:
* Command protocal is based on ESC/POS standard
* Support black mark anchor testing print.
* High speed and Low-noise dot printing.
* Various Layouts are possible by using page mode.
* High reliability due to a stable mechanism.*
* Repeated operation and copy printing are possible
* Easy paper jam clearance
* Easy maintenance for tasks such as headcleaning.
* Built-in interface provides control capability for cash drawer.

-----------------IMPACT DOT MATRIX PRINTER------------------ 3
Technique Spec.
Print method Impact Dot-matrix printing
Print speed 4.5 line / sec.
Paper width 76±0.5mm
Print columns 400dots/line
Character
ANK Character: Font A: 9×9 dots
Font B: 7×9 dots
Simplify/Traditional: 16×16 dots
Print command Compatible with ESC/POS
Interface Parallel/Serial
Reliability print 10 million lines
Copy capability One original and two copies
Paper thickness 0.05~0.08mm(total thickness≤0.20)
Adaptor power output AC 110V/220V, 50~60Hz
Adaptor power input DC 24V/2.5A
Printer power input DC 24V/2.5A
Cash drawer DC 12- 24V/1A
Work temperature 0~50℃Dampness: 10~80%
Storage temperature -10~60℃, Dampness: 10~90%

-----------------IMPACT DOT MATRIX PRINTER------------------ 4
Connection
a.Connect the adapter cable to power connector of the printer.
b.Connect the interface cable to the connector on the rear panel of the printer.
c.Connect the cash drawer’s RJ-11 phone jack to the connector on the rear panel.
Installation of Paper Roll and Ink Ribbon
Please install after turn on the printer with indicators on.
a. Open the top cover.
b. Install the paper roll as the picture showing direction
c. Insert the end of the bottom paper into the paper take-up spool,be sure that the paper is aligned
with the spool’s flange so that the paper is taken up by the spool.
d. Cut redundant paper by the cutter.
e. Open the printer’s cover,turn the knob five or six times in the direction of the arrow,insert the ink
ribbon,and push the ribbon cassette down until it clicks.
a
b c
Power adapter
Power line

-----------------IMPACT DOT MATRIX PRINTER------------------ 5
Set Print Mode (DIP Switch)
Set print mode by the DIP Switch,such as Black mark,Cutter,Language,Beep,Density,Speed mode…
a b c
d e

-----------------IMPACT DOT MATRIX PRINTER------------------ 6
Driver Installation
a. Insert the bundled CD disk into the CD-ROM driver,in the CD-ROM menu,click DRV545T
Series V4.5G file to begin driver installation
b. Please read and accept the principle first,and then go on with installation.

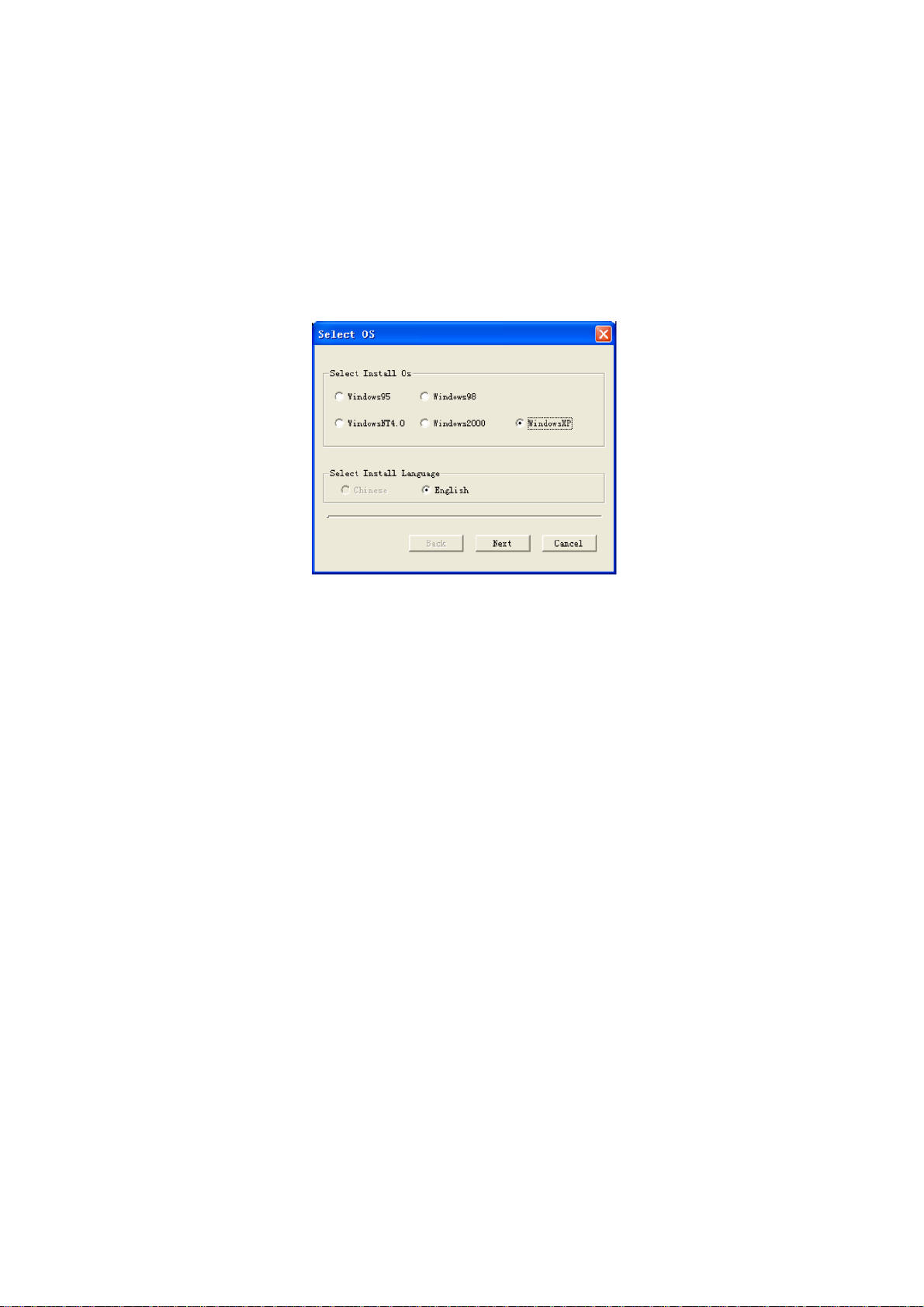

c. Please choose the OS that matches withyour computer system and press next.
d. Please select TEP-545T Series for Install module.

-----------------IMPACT DOT MATRIX PRINTER------------------ 7
ﻪﻴﺒﻨﺗ ﺔﻣﻼﺴﻟا:
*ءﻲﺷ يأ ﻊﻣ ﺔﻌﺑﺎﻄﻟا سأر ﺲﻤﻠﺗ ﻻ
*ﻊﻃﺎﻘﻟا ﻞﺼﻨﻟا ﺲﻤﻠﺗ ﻻ
*وأ طﺮﻔﻣ ﻞﻜﺸﺑ ﺔﻗﺎﻄﻟا ﻚﻠﺳ ﻲﻨﺤﻨﻳ ﻻﻚﻟذ ﻰﻠﻋ ﺔﻠﻴﻘﺛ ءﺎﻴﺷأ يأ ﻊﺿو.
*ﺐﻴﺗﺮﺘﻟا جرﺎﺧ نﻮﻜﻳ ﺎﻣﺪﻨﻋ ﺔﻌﺑﺎﻄﻟا مﺪﺨﺘﺴﺗ ﻻ.ءﺎﺑﺮﻬﻜﻟﺎﺑ ﻖﻌﺼﻟاو وأ ﺎﻘﻳﺮﺣ ﺐﺒﺴﻳ نأ ﻦﻜﻤﻳ اﺬهو
*ﻚﻠﺴﻟا ﺲﻴﻟ ﻦﻜﻟو تﺎﻧﻮﻜﻤﻟا ﺎﻤﺋاد ﺪﻘﻋو ،تﺎﻧﻮﻜﻤﻟا ﻞﺼﻓ وأ ﻞﻴﺻﻮﺗ ﺪﻨﻋ.
*لﺎﻔﻃﻷا لوﺎﻨﺘﻣ ﻦﻋ اﺪﻴﻌﺑ ﺔﻔﻔﺠﻤﻟا ﻰﻠﻋ ﻆﻓﺎﺣ
*ةﺪﻤﺘﻌﻤﻟا تﺎﻘﺤﻠﻤﻟا مﺪﺨﺘﺳاﻚﺴﻔﻧ ﻞﺒﻗ ﻦﻣ ﺎﻬﻠﻴﻜﺸﺗ ةدﺎﻋإ وأ حﻼﺻإو ﻚﻴﻜﻔﺘﻟ ﺔﻟوﺎﺤﻣ ﺲﻴﻟو ،ﻂﻘﻓ.
*ﺖﺑﺎﺛ ﺢﻄﺳ ﻰﻠﻋ ﺔﻌﺑﺎﻄﻟا ﺖﻴﺒﺜﺗ.زاﺰﺘها ﺐﻨﺠﺗ ﺚﻴﺣ ﺔآﺮﺸﻟا ىﻮﺘﺴﻣ ﺢﻄﺳ رﺎﻴﺘﺧا.
*ﺔﻌﺑﺎﻄﻟا ﻲﻓ ىﺮﺧﻷا ﺔﺒﻳﺮﻐﻟا مﺎﺴﺟﻷا وأ ءﺎﻤﻟا عﺪﺗ ﻻ.
*ﺔﻴﻓﺮﻄﻟا كﺮﺤﻣ ﻞﺻﻮﻣ ﻲﻓ ﻒﺗﺎﻬﻟا ﻂﺧ ﻞﻴﺻﻮﺘﺑ ﻢﻘﺗ ﻻ.
*ﻌﺑﺎﻄﻟا ﻞﺼﻓا ﻚﺤﺼﻨﻧﺔﻠﻳﻮﻃ ةﺮﺘﻔﻟ ﺎﻬﻣاﺪﺨﺘﺳا مﺪﻋ لﺎﺣ ﻲﻓ ﺔﻗﺎﻄﻟا ﺬﺧﺄﻣ ﻦﻣ ﺔ.
ةﺮﻓﻮﺘﻤﻟا لﻮﻘﺤﻟا:
*ﺔﻋﺎﺒﻃ تﻻﺎﺼﻳإ مﺎﻈﻧPOS
*ﺔﻋﺎﺒﻃ تﻻﺎﺼﻳإ مﺎﻈﻧEFT POS
*ﻲﻧﺪﻤﻟا ناﺮﻴﻄﻟا مﺎﻈﻧ تﻻﺎﺼﻳإو ،تﺎﻴﻔﺸﺘﺴﻤﻟاو ﺪﻳﺮﺒﻟاو ﺔﻋﺎﺒﻃ ﺔﺿﺎﻳر
*ﺔﻣﺪﺨﻟا مﺎﻈﻧ تﻻﺎﺼﻳإ ،ﻚﺘﻟﺎﺳر ﺔﻋﺎﺒﻃ
*ﺼﻟا ﺔﻋﺎﺒﻃ رﺎﺒﺘﺧا تﻻﺎﺼﻳإﻚ
*تﻻﺎﺼﻳإ ﺐﻳﻮﺒﺗ ،ﺔﻋﺎﺒﻃ ﺐﺋاﺮﺿ
ﺔﻴﺴﻴﺋﺮﻟا تاﺰﻴﻤﻟا:
*ىﻮﺘﺴﻣ ﻰﻠﻋ ةدﺎﻴﻘﻟا لﻮآﻮﺗوﺮﺑ ﺪﻨﺘﺴﻳوESC / POS.
*ﺔﻋﺎﺒﻄﻟا ةﺎﺳﺮﻣ ءادﻮﺳ ﺔﻣﻼﻋ ﻢﻋد رﺎﺒﺘﺧا.
*ﺔﻄﻘﻧ ﺔﻋﺎﺒﻄﻟا ءﺎﺿﻮﻀﻟا ﺔﻀﻔﺨﻨﻣو ﺔﻴﻟﺎﻋ ﺔﻋﺮﺳ.
*ﺔﺤﻔﺼﻟا ﻊﺿو ماﺪﺨﺘﺳﺎﺑ ﻦﻜﻤﻤﻟا ﻦﻣ ﺔﻔﻠﺘﺨﻣ ﻢﻴﻣﺎﺼﺗ
*ﻵﺔﺠﻴﺘﻧ ﺔﻴﻟﺎﻋ ﺔﻴﻗﻮﺛﻮﻣةﺮﻘﺘﺴﻣ ﺔﻴﻟ
*ﺔﻨﻜﻤﻣ ﺔﺨﺴﻧ ﺔﻋﺎﺒﻄﻟاو ةرﺮﻜﺘﻣ ﺔﻴﻠﻤﻋ.
*قرﻮﻟا رﺎﺸﺤﻧا ﺔﻟازإ ﻞﻬﺴﻟا ﻦﻣ.
*سأﺮﻟا ﻒﻴﻈﻨﺗ ﻞﺜﻣ مﺎﻬﻤﺑ مﺎﻴﻘﻠﻟ ﺔﻧﺎﻴﺼﻟا ﺔﻟﻮﻬﺳ.
*دﻮﻘﻨﻟا جرد ﻰﻠﻋ ةﺮﻄﻴﺴﻟا ﻰﻠﻋ ةرﺪﻘﻟا ﺮﻓﻮﻳ ﺔﻬﺟاو ﻲﻓ ﺞﻣﺪﻤﻟا.
