EPOX ADE-9040 User manual

P/N: 600C002904010
ADE-9040
Intel®Core™ 2 Duo Desktop
Q965 ATX Mother Board
User’s Manual
Rev. 1.0
2007/03/27

ADE-9040 User’s Manual
2 / 55
Copyright
All rights reserved. The information contained in this guide has been validated and
reviewed for accuracy. No patent liability is assumed with respect to the use of the
information contained herein. While every precaution has been taken in the preparation of
this guide, the Manufacturer assumes no responsibility for errors or omissions.
No part of this publication may be reproduced, stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without the prior written permission of Manufacturer.
Trademark
Intel®, Pentium®and Celeron®are registered trademarks of Intel®Corporation.
Microsoft®and Windows®are registered trademarks of Microsoft Corporation.
All products and company names are trademarks or registered trademarks of their
respective holders.
These specifications are subject to change without notice.
Technical Support
We hope you to get the maximum performance from your products and be willing to help if
running into technical difficulties. For the most frequently asked questions, it’s easily found
answers from the product documentation and usually a lot more detailed, so please take
reference to this manual first. If the answer still can not be found, gather all the information
or questions applying to the problem, and with the product on hand, contact your distributor,
sales representative, or customer service center for technical support. Most problems
reported are minor and able to be easily solved over the phone. In addition, free technical
support is available and always ready to give advices on application requirements or
specific information on the installation and operation of any of our products.
Please have the following information ready before you call:
1. Product name and serial number
2. Description of your peripheral attachments
3. Description of your software (operating system, version, application software, etc.)
4. A complete description of the problem
5. The exact wording of any error messages

ADE-9040 User’s Manual
3 / 55
How to Use This Manual
This manual is written for the system integrator, PC technician and knowledgeable PC end
user. It describes how to configure your ADE-9040 to meet various operating requirements.
The user’s manual is divided into four chapters, with each chapter addressing a basic
concept and operation of the server board.
Chapter 1: Introduction - presents what you have inside the box and gives you an
overview of the product specifications and basic system architecture for the ADE-9040
server board.
Chapter 2: Hardware Configuration Setting - shows the definitions and locations of
Jumpers and Connectors so that you can easily configure your system.
Chapter 3: System Installation - describes how to properly mount the CPU, main memory,
and M-System Flash disk for a safe installation. It will also introduce and show you the
driver installation procedure for the Graphics Controller and Ethernet Controller.
Chapter 4: BIOS Setup Information - specifies the meaning of each setup parameter, how
to get advanced BIOS performance and update to a new BIOS.

ADE-9040 User’s Manual
4 / 55
Table of Content
1. Introduction.................................................................................................................8
1.1 Description...........................................................................................................8
1.2 Packing Check List..............................................................................................9
1.3 Specifications....................................................................................................10
1.4 System Architecture..........................................................................................12
1.5 Dimensions........................................................................................................13
2. Hardware Configuration Setting..............................................................................15
2.1 Board Layout .....................................................................................................15
2.2 Jumpers & Connectors.....................................................................................16
2.3 Jumpers/Connectors Setting............................................................................17
2.3.1 RTC Clear CMOS (JP1)...............................................................................17
2.3.2 BIOS Write Protect (JP2)..............................................................................17
2.3.3 AT/ATX Power Select (JP3)..........................................................................17
2.3.4 DVI Select (JP4)...........................................................................................17
2.3.5 P-ATA Select (JP5).......................................................................................17
2.3.6 COM2 RS-232/422/485 Select (JPB1).........................................................17
2.3.7 USB 2/3/4/5/0/1 & LAN1/2 Connectors (CN1, CN2, CN22)..........................17
2.3.8 Internal USB 6/7/8/9 Connectors (CN23, CN24)..........................................17
2.3.9 CPU/System/Chassis Fan Connector (CN4, CN5, CN6)..............................17
2.3.10 CD-In from CD-ROM (CN13)........................................................................17
2.3.11 Extend Line-out Connector (CN14)..............................................................17
2.3.12 Audio Connector (CN15)..............................................................................18
2.3.13 PS/2 Keyboard & Mouse Connector (CN17)................................................18
2.3.14 Extend Keyboard & Mouse Connector (CN18).............................................18
2.3.15 Digital I/O Connector (CN19)........................................................................18
2.3.16 VGA & Serial Port 1 Connector (CN20)........................................................18
2.3.17 Serial Port 4 Connector (CN21)....................................................................18
2.3.18 Serial Port 3 & 2 Connectors (CN29, CN30) ................................................18
2.3.19 4-pin ATX Power Connector (CN25).............................................................19
2.3.20 24-pin ATX Power Connector (CN26)...........................................................19
2.3.21 Front Panel Connector (CN27).....................................................................19
2.3.22 DVI Connector (CN31) .................................................................................20
2.3.23 Serial ATA 1/2/3/4 Connectors (SATA1, SATA2, SATA3, SATA4) .................20

ADE-9040 User’s Manual
5 / 55
3. System Installation...................................................................................................22
3.1 Intel®µFC-LGA775 Processor...........................................................................22
3.1.1 Installing Intel®Core™ 2 Duo / Pentium®4 / Celeron®D CPU......................22
3.1.2 Installing Intel µFC-LGA775 CPU Fan, and Heat Sink ................................23
3.1.3 Removing CPU.............................................................................................23
3.2 Main Memory......................................................................................................24
3.3 Installing the ATX Mother Board ......................................................................25
3.4.1 Dual Marvell Gigabit Ethernet Controllers ....................................................25
3.4.2 Drivers Support ............................................................................................25
4. BIOS Setup................................................................................................................27
4.1 Entering Setup...................................................................................................27
4.1.1 Main Menu....................................................................................................27
4.1.2 Advanced Setting.........................................................................................28
4.1.3 Advanced PCI/PnP Setting...........................................................................43
4.1.4 Boot Settings................................................................................................46
4.1.5 Security Settings ..........................................................................................49
4.1.6 Advanced Chipset Settings ..........................................................................50
4.1.7 Exit Options..................................................................................................55

ADE-9040 User’s Manual
6 / 55
Revision History
Revision Date Comment
Rev.1.0 Mar. 2007 Initial released

ADE-9040 User’s Manual
7 / 55
CHAPTER 1

ADE-9040 User’s Manual
8 / 55
1. Introduction
1.1 Description
Taking advantages of Intel energy-efficient dual-core processing, ADE-9040 ATX Mother
Board adopts Intel®CoreTM 2 Duo Desktop processors up to 1066 MHz FSB and Intel®
Q965 Express chipset with Intel® ICH8R RAID function to fit the high performance computer
system applications for meeting today’s demanding pace and keep complete compatibility
with hardware and software designed. The onboard devices support one PCI Express x16
for an alternative graphics add-in card, one PCI Express x1, four PCI slots, integrated
graphics, and built dual Marvell 88E8053 Gigabit Ethernet controllers offering stable
high-speed networking.
ADE-9040 comes with the Intel®GMA 3000 graphics supporting DVMT 4.0 display memory
up to 256 MB for dual display function by VGA/DVI. The board also features two DIMMs up
to 4 GB SDRAM with dual channel DDR2 533/667/800, enhanced onboard one SATA to
Parallel ATA IDE interface supporting UltraATA 33/66/100 synchronous mode feature, four
Serial ATA high-speed data transferring at up to 3 GB/s, and 7.1 + 2 CH HDAC through
Realtek ALC883 audio codec. The onboard ITE IT8712F Super I/O chipset supports four
serial ports: one RS-232 serial port interfaces, two RS-232 and one RS-232/422/485 pin
headers, Hardware Monitor function, ten Hi-speed USB 2.0 ports, two 6-pin Mini-DIN
connectors for PS/2 mouse and keyboard, and one 24-pin standard connector designed to
support ATX power function. Besides, a feature of CPU overheat protection will provide
user more security and stability.
Built with these impressed functions, ADE-9040 ATX Mother Board are those ideal
solutions for DVR, KIOSK, medical equipment, industrial automation, financial automation,
process control, semiconductor equipment, and network security markets.

ADE-9040 User’s Manual
9 / 55
1.2 Packing Check List
The ADE-9040 package includes the following basic items accompany with this manual.
¾One ADE-9040 ATX Mother Board
¾One Quick Installation Guide for ADE-9040
¾One 40-pin IDE cable
¾Two SerialATA cable
¾One Serial port cable for COM2 or COM3
¾One Serial port cable for COM4
¾One USB 2.0 cable
¾One I/O shield
¾One Supporting CD-ROM contains User’s Manual and internal VGA display driver
and Marvell Gigabit Ethernet network controller driver and on board devices
drivers
If any of these items is damaged or missed, please contact your vendor and save all
packing materials for future replacement and maintenance.

ADE-9040 User’s Manual
10 / 55
1.3 Specifications
System
CPU
Intel®Core™ 2 Duo Desktop / Pentium®D / Pentium®4 / Celeron®D
processor in the LGA775 package
(E6000, 900, 800, 600, 500, 300 sequences)
FSB 1066/800/533 MHz
BIOS AMI BIOS with 8 Mb Flash EEPROM
System Chipset Intel®Q965 + ICH8R
I/O Chip ITE IT8718F I/O controller
System Memory
2 x 240-pin DIMM sockets support dual channel DDR2 533/667/800
SDRAM
Max. up to 4 GB memory
Storage 1 x SATA to Parallel ATA IDE port with UDMA 33, ATA-66/100 support
4 x Series ATA 300 ports
RAID ICH8R supports RAID 0, 1, 5, 10 function
Watchdog Timer Reset: 1 sec.~255 min. and 1 sec. or 1 min./step
H/W Status Monitor
Monitoring system temperature, voltage, and cooling fan status.
Auto throttling control when CPU overheats.
System automatically restored on recovery of AC power loss.
GPIO On-board programmable 8-bit Digital I/O interface
Expansion 1 x PCI Express x16, 1 x PCI Express x1 and 4 x PCI slots
MIO
Internal I/O 1 x IrDA, 2 x RS-232, 1 x RS-232/422/485, 4 x USB 2.0
Back Panel I/O 1 x VGA, 1 x Audio jack, 2 x RJ-45, 1 x RS-232, 6 x USB 2.0, 1 x KB,
1 x Mouse
Display
Chipset Intel® Q965 Integrated GMA 3000 graphics
Display Memory Intel® DVMT 4.0 supports up to 256 MB video memory
Resolution Analog display : up to 2048 x 1536 @ 75Hz (QXGA)
Digital LVDS : up to 2048 x 1536 @ 60 Hz
VGA/LCD Interface DSUB-15 connector for VGA output
DVI Chrontel CH7307 DVI transmitter

ADE-9040 User’s Manual
11 / 55
Audio
HDAC Realteck ALC883 7.1 + 2CH audio codec
Audio Interface Mic in, Line in, CD Audio in, Line out, Rear out and Center/Subwoofer out
Ethernet
Chipset Dual Marvell® 88E8053 PCI Express™ Gigabit Ethernet controllers
Ethernet Interface IEEE 802.3 10BASE-T/100BASE-TX/1000BASE-T
Mechanical & Environmental
Power Requirement +3.3 V @ 4.73 A, +5 V @ 0.96 A, +12 V @ 9.11 A, -12 V @ 0.01 A,,
5 VSB @ 0.07A
Power Type 24-pin ATX power connector, 1 x 4-pin ATX 12V power connector
FAN Connector 1 x CPU, 2 x system with DC 12V
Operating Temperature 0~60°C (32~140°F)
Operating Humidity 0%~90% relative humidity, non-condensing
Size (L x W) 12” x 8.7” (305 mm x 220 mm)
Weight 1.44 lbs (650 g)

ADE-9040 User’s Manual
12 / 55
1.4 System Architecture

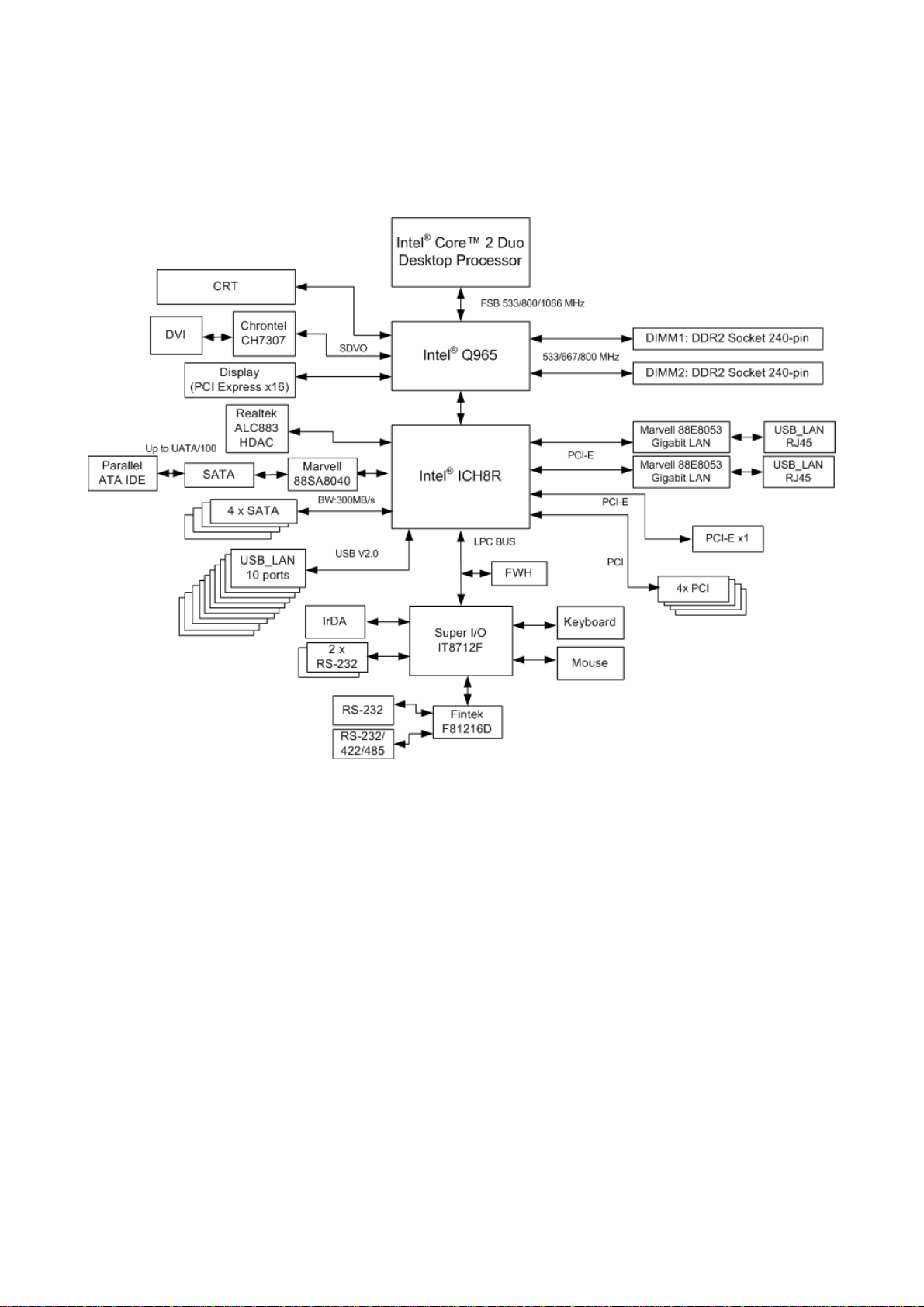

All of details operating relations are shown inADE-9040 system block diagram.

ADE-9040 User’s Manual
13 / 55
1.5 Dimensions
Unit: mm

ADE-9040 User’s Manual
14 / 55
CHAPTER 2

ADE-9040 User’s Manual
15 / 55
2. Hardware Configuration Setting
This chapter gives the definitions and shows the positions of jumpers, headers and
connectors. All of the configuration jumpers on ADE-9040 are in the proper position. The
default settings shipped from factory are marked with an asterisk ().
In general, jumpers on the ATX Main Board are used to select options for certain features.
Some of the jumpers are designed to be user-configurable, allowing for system
enhancement. The others are for testing purpose only and should not be altered. To select
any option, cover the jumper cap over (SHORT) or remove (NC) it from the jumper pins
according to the following instructions. Here, NC stands for “Not Connect”.
2.1 Board Layout

ADE-9040 User’s Manual
16 / 55
2.2 Jumpers & Connectors
JUMPERS FUNCTION REMARK
JP1 RTC CMOS clear select 1 x 3 header
JP2 BIOS write protect 1 x 3 header
JP3 AT/ATX power select 1 x 2 header
JP4 DVI select 2 x 12 header
JP5 PATA select 1 x 2 header
JPB1 COM4 RS-232/422/485 select 2 x 7 header
CONNECTORS FUNCTION REMARK
CN1, CN2 USB 2/3/4/5 & RJ-45 LAN 1/2 connector
CN4 CPU fan connector 1 x 4 wafer
CN5 System fan connector 1 x 4 wafer
CN6 Chassis fan connector 1 x 4 wafer
CN7 PCI-Express x16 connector
CN8, CN9,
CN10, CN11 PCI connector 1, 2, 3 & 4
CN12 Primary IDE connector 2 x 20 header
CN13 CD-In from CD-ROM connector 1 x 4 header
CN14 Extend Line-out connector 1 x 4 wafer
CN15 Audio connector Audio jack
CN17 PS/2 keyboard & mouse connector
CN18 Extend keyboard & mouse connector 1 x 6 header
CN19 Digital IO connector 2 x 5 header
CN20 D-sub 15-pin VGA & D-sub 9-pin serial port 1
connectors
CN21 Serial port 4 connector 2 x 7 header
CN22 USB 0 & 1 connectors
CN23, CN24 USB 6, 7 & 8, 9 connectors 2 x 5 header
CN25 4-pin ATX power connector
CN26 24-pin ATX power connector
CN27 Front panel connector
CN28 PCI Express x1 connector 2 x 13 header
CN29, CN30 Serial port 3 & 2 connectors
CN31 DVI connector
DIMM1, DIMM2 240-pin DDR2 DIMM socket
SATA1, SATA2 Serial ATA connector 1, 2
SATA3, SATA4 Serial ATA connector 3, 4

ADE-9040 User’s Manual
17 / 55
2.3 Jumpers/Connectors Setting
2.3.1 RTC Clear CMOS (JP1) 2.3.2 BIOS Write Protect (JP2)
PIN No. Description
1-2 Normal operation
2-3 Clear CMOS
PIN No. Description
1-2 BIOS write disabled
2-3 BIOS write enabled
2.3.3 AT/ATX Power Select (JP3) 2.3.4 DVI Select (JP4)
PIN No. Description
Open ATX Power
1-2 AT Power
Item. Description
Open PCI Express x16 Display 
DVI 1-2, 3-4, 5-6, 7-8,9-10,11-12, 13-14,
15-16, 17-18, 19-20,21-22,23-24 short
2.3.5 P-ATA Select (JP5) 2.3.6 COM2 RS-232/422/485 Select (JPB1)
PIN No. Description
Open P-ATA enabled 
1-2 P-ATA disabled
PIN No. RS-232 RS-422 RS-485
1-2 OFF ON (Term.) ON (Term.)
3-4 OFF ON (Term.) ON (Term.)
5-6 OFF OFF ON
7-8 OFF ON OFF
9-10 OFF ON ON
11-12 ON OFF OFF
13-14 OFF OFF ON
2.3.7 USB 2/3/4/5/0/1 & LAN1/2 Connectors (CN1, CN2, CN22)
LAN 1/2
PIN No. Description PIN No. Description
1 TX+ 5 NC
2 TX- 6 RX-
3 RX+ 7 NC
4 NC 8 NC
USB 0/1/2/3/4/5
PIN No. Description PIN No. Description
1 +5 V (fused) 5 +5 V (fused)
2 USBP0-/2-/4- 6 USBP1-/3-/5-
3 USBP0+/2+/4- 7 USBP1+/3+/5+
4 Ground 8 Ground
2.3.8 Internal USB 6/7/8/9 Connectors (CN23,
CN24) 2.3.9 CPU/System/Chassis Fan Connector (CN4, CN5, CN6)
PIN No. Description PIN No. Description
1 +5V 6 USBP7+/9+
2 +5V 7 Ground
3 USBP6-/8- 8 Ground
4 USBP7-/9- 9 NC
5 USBP6+/8+ 10 NC
PIN No. Description
1 Ground
2 +12V
3 Fan Status Signal
4 Fan Speed Control
2.3.10 CD-In from CD-ROM (CN13) 2.3.11 Extend Line-out Connector (CN14)
PIN No. Description
1 CD-L
2 CD-Ground
3 CD-Ground
4 CD-R
PIN No. Description
1 LINE_OUT_L
2 GND
3 GND
4 LINE_OUT_R

ADE-9040 User’s Manual
18 / 55
2.3.12 Audio Connector (CN15) 2.3.13 PS/2 Keyboard & Mouse Connector
(CN17)
PIN No. Description PIN No. Description
1(Orange) Central out 4(Blue) Line-in
2(Black) Surround out 5(Green) Line-out
3(Gray) Side out 6(Red) Mic-in
PIN No. Description PIN No. Description
1 Keyboard Data 7 Mouse Data
2 NC 8 NC
3 Ground 9 Ground
4 +5V 10 +5V
5 Keyboard Clock 11 Mouse Clock
6 NC 12 NC
2.3.14 Extend Keyboard & Mouse Connector
(CN18) 2.3.15 Digital I/O Connector (CN19)
PIN No. Description
1 Mouse Clock
2 Mouse Data
3 Keyboard Clock
4 Keyboard Data
5 Ground
6 +5V
Description PIN No. PIN No. Description
ISO_I1 2 1 EXT_VDD
ISO_I2 4 3 ISO_O1
ISO_I3 6 5 ISO_O2
ISO_I4 8 7 ISO_O3
EXT_VSS 10 9 ISO_O4
2.3.16 VGA & Serial Port 1 Connector (CN20)
COM1
PIN No. Description
1 Data Carrier Detect
2 Received Data
3 Transmit Data
4 Data Terminal Ready
5 Ground
6 Data Set Ready
7 Request To Send
8 Clear To Send
9 Ring Indicator
10 Not used
VGA
Description PIN No. PIN No. Description
Green Signal 2 1 Red Signal
NC 4 3 Blue Signal
Ground 6 5 Ground
Ground 8 7 Ground
Ground 10 9 +5V
DCC_DATA 12 11 NC
VSYNC 14 13 HSYNC
15 DCC_CLK
2.3.17 Serial Port 4 Connector (CN21) 2.3.18 Serial Port 3 & 2 Connectors (CN29,
CN30)
Description PIN No. PIN No. Description
DCD 1 2 DSR
RXD 3 4 RTS
TXD 5 6 CTS
DTR 7 8 RI
Ground 9 10 Ground
TX+ 11 12 TX-
RX+ 13 14 RX-
Description PIN No. PIN No. Description
DCD 1 2 DSR
RXD 3 4 RTS
TXD 5 6 CTS
DTR 7 8 RI
Ground 9 10 Ground

ADE-9040 User’s Manual
19 / 55
2.3.19 4-pin ATX Power Connector (CN25) 2.3.20 24-pin ATX Power Connector (CN26)
PIN No. Description
1 GND
2 GND
3 +12V
4 +12V
Description PIN No. PIN No. Description
+3.3V 13 1 +3.3V
-12V 14 2 +3.3V
Ground 15 3 Ground
PS_ON 16 4 +5V
Ground 17 5 Ground
Ground 18 6 +5V
Ground 19 7 Ground
-5V 20 8 PW_OK
+5V 21 9 5VSB
+5V 22 10 +12V
+5V 23 11 +12V
Ground 24 12 +3.3V
2.3.21 Front Panel Connector (CN27)
IrDA
PIN No. Signal Description
1 +5V
5 IRRX
7 Ground
9 IRTX
System Reset
PIN No. Signal Description
2 Reset
4 Ground
External Speaker
PIN No. Signal Description
8 Speaker
14 +5V
IDE Active LED
PIN No. Signal Description
13 +5V (Pull-up for HDD LED)
15 HDD active# (LED cathode terminal)
System Power On LED
PIN No. Signal Description
18 +5V
22 Power On
System Power On Switch
PIN No. Signal Description
23 Power button control signal
25 Ground
Keyboard Lock
PIN No. Signal Description
24 Keyboard lock
26 Ground

ADE-9040 User’s Manual
20 / 55
2.3.22 DVI Connector (CN31)
Description PIN No. PIN No. Description
HPDET 1 2 Ground
Ground 3 4 DVIDATA
TDC0# 5 6 DVICLK
TDC0 7 8 Ground
Ground 9 10 TLC#
TDC1# 11 12 TLC
TDC1 13 14 Ground
Ground 15 16 Ground
TDC2# 17 18 Ground
TDC2 19 20 +5V
Signal Type Description
TDC0,TDC0# O DVI Data Channel 0 Output: These pins provide the DVI differential
output for data channel 0 (Blue).
TDC1,TDC1# O DVI Data Channel 1 Output: These pins provide the DVI differential
output for data channel 1 (Green).
TDC2,TDC2# O DVI Data Channel 2 Output: These pins provide the DVI differential
output for data channel 2 (Red).
HPDET I
Hot Plug Detect (internal pull-down): This input determines whether the
DVI is connected to a DVI monitor. When terminated\, the monitor is
required to apply a voltage greater than 2.4 volts. Changes on the status of
this pin will be relayed to the graphics controller via the P-OUT/TLDET* or
GPIO(1)/TLDET* pin pulling low.
DVIDATA I/O DVI I2C Data: This signal is used as the I2C DOC clock for a digital display
connector (i.e. TV-Out Encoder, TMDS transmitter ). This signal is
tri-stated during a hard reset.
DVICLK I/O DVI DOC Clock: This signal is used as the DOC clock for a digital display
connector (i.e. primary digital monitor). This signal is tri-stated during a
hard reset.
TLC,TLC# O DVI Clock Output: These pins provide the differential clock outputs to the
DVI interface corresponding a data on TDC(0:2) outputs.
2.3.23 Serial ATA 1/2/3/4 Connectors (SATA1,
SATA2, SATA3, SATA4)
These SATA connectors support SerialATA 300. Each
SATA connector can only support one serialATA device.
Note: With most storage devices, there is a power cable
that you need attach to a power source (power
supply).
