REFILL INSTRUCTIONS
For Epson® S020047,
S020049
Contents:
Your kit should contain the following:
4 - 2oz bottle of ink, 1 10cc ink injector, 2 polly
wipes, 8 yellow seals, needle, drill tool,
instructions.
If any of these items are missing please call us for a
replacement item or kit.
MODEL STYLUS COLOR 200/II/IIS/
MODEL STYLUS COLOR 1500 (COLOR ONLY)
STEP 1

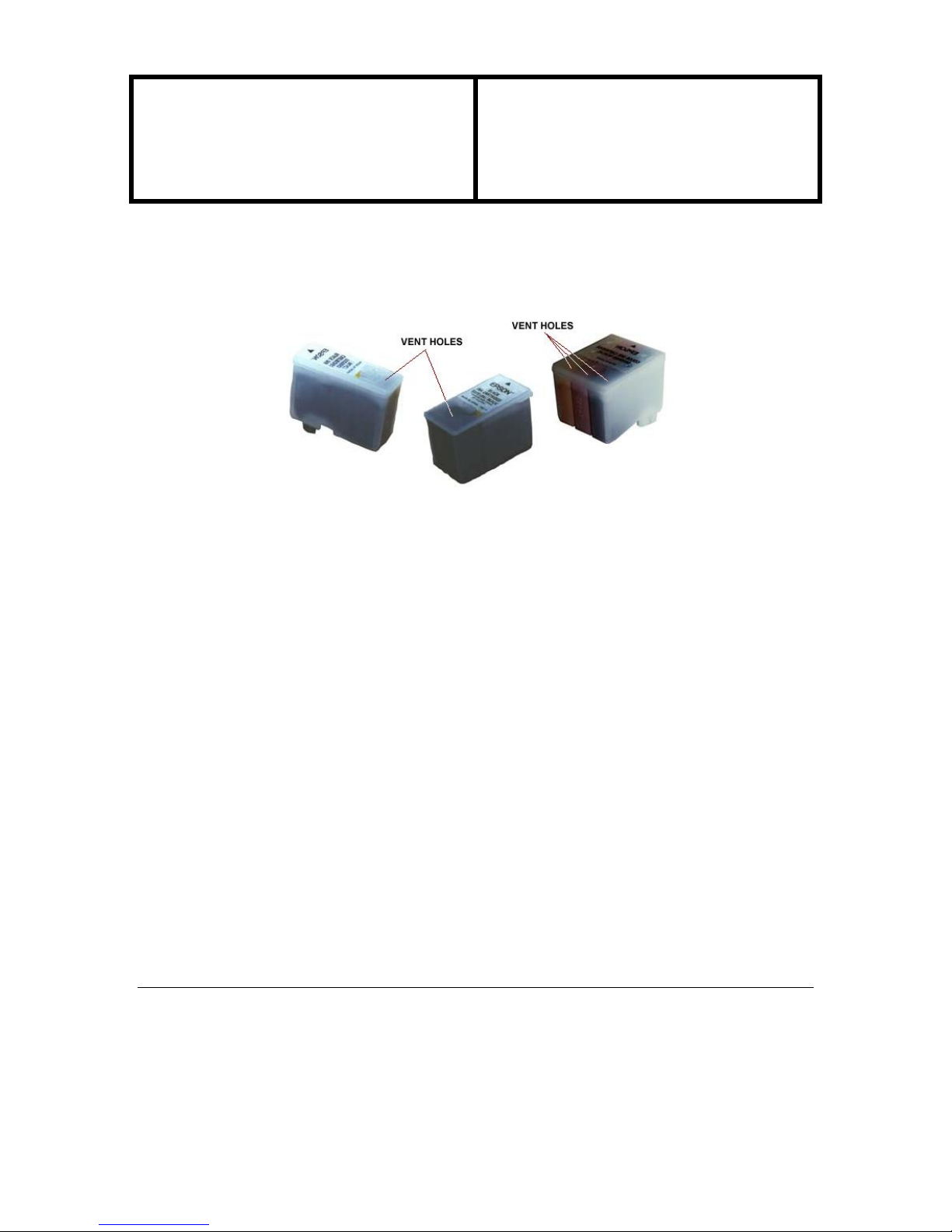

Using the hand held drill bit, drill a hole at the vent holes shown above. Drill until you feel the drill bit go
all the waythrough. Wash the bit with water between each newhole drilled. Attach the needle to the
syringe and drawthe proper color and amount of ink into it. Place the cartridge to be filled on a paper
towel in case of spillage. Using the yellowseals cover the exit holes on each color to avoid leakage.
STEP 2
Insert the needle into the hole you predrilled and slowlyinject the ink and at the same time lift up slightlyto
expose the ink to different parts of the internal sponge inside the cartridge. The cartridge mayor maynot
take all of the ink, depending on howemptyeach color was. Wash the injector between colors to prevent
contamination. If the cartridge is to be used soon after refilling do not cover the vent holes with tape as
these are vents and need to be open in order for the cartridge to work.
IMPORTANT
Care should be used in filling these cartridges since the print head is internal and made to be permanent,
which makes it susceptible to small particles clogging it over time. Both have an internal sponge for ink
retention. The exit holes need to be resealed to prevent leaking. Use the yellowround sealing dots to cover
the ink exit holes to avoid leaking when refilling. Remove the seals before installing the cartridge back into
your printer. For long termstorage, cover the top openings with tape to prevent the cartridge fromdrying
out.
TROUBLE SHOOTING
PRINTS IN STREAKS / MISSING LINES : Performprint head clean procedure as described in the
owners manual.
CARTRIDGE LEAKS: Cartridge is not sealed properly. Reseal cartridge. The cartridge is overfilled.
Place on a paper towel until it stops leaking.
ATLASCOPY.COM
P.O. Box 1292
Dover, DE. 19904
