1
Welcome!

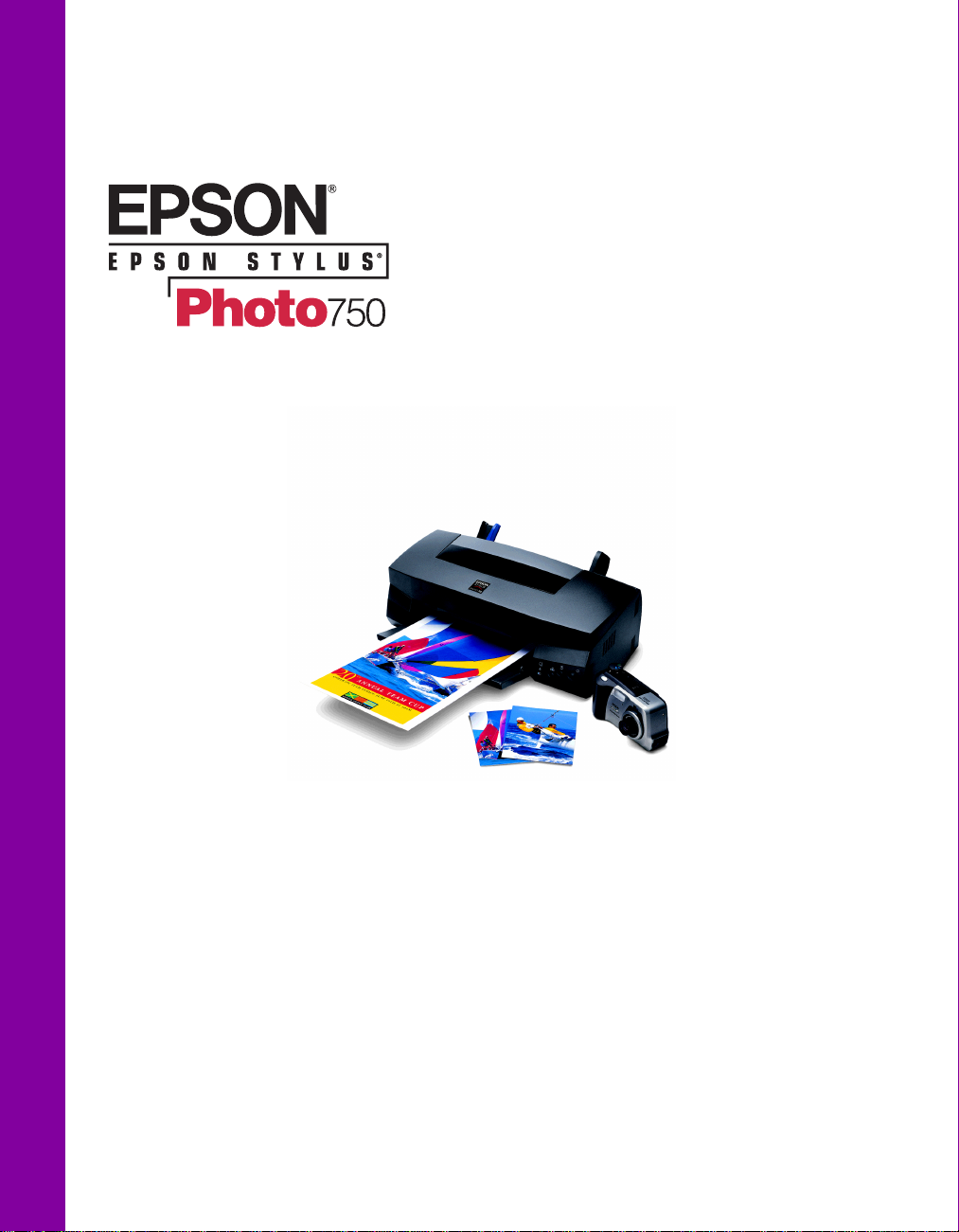

Your EPSON Stylus®Photo 750 printer is the ideal output device for digital
photographs, full-color graphics, newsletters, and more. You can print anything from
reports and resumes to panoramic photos and greeting cards with fabulous results.
The printer gives you optimum photo quality using these features:
■EPSON’s advanced Micro Piezo™print head and variable dot technology
produce small (6 picoliter), consistent dots and place ink precisely for superior
image quality
■Six-color printing for PRQ®(photo reproduction quality) color and subtle
gradations in photographs, as well as laser sharp black text
■Resolutions up to 1440 × 720 dpi, even on plain paper
■PhotoEnhance3 setting for clear, true photos by correcting for overall under- or
over-exposure and automatically adjusting contrast, saturation, and brightness
■Fast drying times for all your photos, courtesy of EPSON’s quick-drying inks
About Your Software
The printer software CD-ROM includes all the software you need for printing:
■Your printer driver runs your printer and lets you control how your documents
look. You can’t use your printer without it.
■Quick Guide to Printing gives a quick on-screen demonstration on using your
printer software and EPSON papers to get the best quality output.
■The EPSON Digital PhotoLab™and bonus software applications help you create
a myriad of printing projects to get the most out of your printer.
■Your electronic EPSON Stylus Photo 750 Manual gives you complete online
information about your printer, anytime you need it.
basics.book Page 1 Monday, February 22, 1999 9:31 AM

2
If you haven’t yet installed your printer software from your CD-ROM, see the
Start Here card for instructions.
Your Bonus Software Applications
Your printer software CD-ROM contains these bonus
software applications that you can install from the EPSON
Digital PhotoLab:
Polaroid®PhotoMAX™Pro, a full-featured image editing
program that lets you retouch photos to correct blemishes or
color anomalies, add text, or even combine pictures into a
photo montage. It includes over 30 special effects tools, such
as mosaic, emboss, and fisheye so you can get very creative.
ArcSoft™PhotoBase,
™a multimedia file management
program for creating albums of all your image, sound, and
audio files. It lets you organize your files for easy access, search
for them using a keyword feature, and drag-and-drop them
into other applications. You can even create a slide show of
your favorite photos and send it to your friends.
ArcSoft PhotoPrinter,
™a photo layout program that lets you
print your images in creative formats, such as multiple photo
montages, framed or bordered pictures, and calendars. Using
a variety of templates, you can print your photos almost any
way you can think of.
DogByte®Greeting Card Store™SE, an easy-to-use program
for creating custom greeting cards and matching envelopes for
any occasion. Choose from hundreds of pre-made designs and
customize them however you like, including imported digital
photos, personal message text, special effects, and
drag-and-drop graphics from the program’s library. (Not
available for Macintosh.)
basics.book Page 2 Monday, February 22, 1999 9:31 AM

3
About Your Documentation
To set up your printer and install its software, see the Start Here card. This book
contains instructions on:
■Using the EPSON Digital PhotoLab
■Viewing your electronic manual
■Printing with Windows or Macintosh
■Maintaining the printer
■Solving basic problems
■Installing printer software from diskettes, if necessary
■Configuring your printer for use on a Windows network
For more details about your printer, see the electronic EPSON Stylus Photo 750
Manual. For instructions on viewing it, see page 11.
Warnings, Cautions, Notes, and Tips
You’ll find this information throughout your manuals:
Warnings must be followed carefully to avoid bodily injury.
Cautions must be observed to avoid damage to your
equipment.
Notes contain important information about your printer.
Tips contain additional hints for great printing.
basics.book Page 3 Monday, February 22, 1999 9:31 AM

4
Windows System Requirements
To use your printer and its software with a PC, your system should have:
■An IBM®compatible PC with at least a 486/25 MHz (for Windows 95 or
Windows NT 4.0), or 486/66 MHz (for Windows 98) processor (Pentium
100 MHz or faster recommended)
■Microsoft®Windows 95, Windows 98, or Windows NT 4.0
■At least 16MB of RAM (32MB for Windows 95 or 98 or 64MB for
Windows NT 4.0 recommended)
■At least 50MB of free hard disk space (100MB recommended)
■VGA, Super VGA, or better display adapter and monitor
■Quad-speed (4x) or faster CD-ROM drive for installing the printer software
■For parallel connection, a high-speed, bidirectional, IEEE-1284 compliant
parallel cable (6 to 10 feet long); the cable must have a D-SUB, 25-pin, male
connector for your computer and a 36-pin, Centronics®compatible connector for
the printer.
For USB connection to a computer running Windows 98 with a Windows 98
compliant USB port, a shielded USB “AB” interface cable, from Series A
(computer) to Series B (printer), up to 6.5 ft. (2 meters) long.
Using an improperly shielded USB cable—especially a cable
more than 6.5 ft. (2 meters) long—may cause the printer to
malfunction.
basics.book Page 4 Monday, February 22, 1999 9:31 AM

5
Macintosh System Requirements
To use your printer and its software with a Macintosh, your system should have:
■One of the following Macintosh models:
LC475, LC575, LC630
Macintosh Quadra®series
Macintosh Centris®series
PowerBook®series (190, 520, 540, 550, or later)
PowerBook Duo 280, 2300c/100
Performa®475, 575, 588, 630, 5210 or later
Power Macintosh®series
iMac™series (for USB connection only)
Power Macintosh G3 (for USB connection only)
■For serial connection: System 7.1 or later (7.6 or later recommended)
For USB connection: iMac with System 8.1 or later or
Power Macintosh G3 with System 8.5.1 or later
■At least 16MB of available RAM
■At least 50MB of free hard disk space (100MB recommended)
■RGB display or better
■Quad-speed (4x) or faster CD-ROM drive for installing the printer software
■For serial connection, an ImageWriter®II serial cable or equivalent (8-pin mini
DIN male/male, Belkin brand recommended; EPSON part number: F2V024-06)
For USB connection to an iMac or Power Macintosh G3 computer, a shielded
USB “AB” interface cable, from Series A (computer) to Series B (printer), up to
6.5 ft. (2 meters) long.
Using an improperly shielded USB cable—especially a cable
more than 6.5 ft. (2 meters) long—may cause the printer to
malfunction.
basics.book Page 5 Monday, February 22, 1999 9:31 AM

6
ENERGY STAR Compliance
As an ENERGY STAR Partner, EPSON has determined that
this product meets the ENERGY STAR guidelines for energy
efficiency. The EPA ENERGY STAR Office Equipment
program is a voluntary partnership with the computer and
office equipment industry to promote the introduction of
energy-efficient personal computers, monitors, printers, fax
machines, and copiers in an effort to reduce air pollution
caused by power generation.
Year 2000 Ready
Your EPSON printer is Year 2000 Ready. However, be sure the other parts of your
computer system are also ready for the year 2000.
Printer Parts
paper support
printer cover
output tray
output tray extensions
edge
guides
sheet feeder control panelink cartridge holders
paper thickness
lever
basics.book Page 6 Monday, February 22, 1999 9:31 AM

7
Important Safety Instructions
Before using your printer, read the following safety instructions to make sure you use
the printer safely and effectively:
■Turn off and unplug the printer before cleaning. Clean with a damp cloth only.
Do not spill liquid on the printer.
Always turn the printer off using the Ppower button. Don’t
switch off the power strip or unplug the printer until the
Ppower light is off.
■Do not place the printer on an unstable surface or near a radiator or heating vent.
■Do not block or cover the openings in the printer’s case or insert objects through
the slots.
■Use only the type of power source indicated on the printer’s label.
■Connect all equipment to properly grounded power outlets. Avoid using outlets
on the same circuit as photocopiers or air control systems that regularly switch on
and off.
■Place the printer near a wall outlet where the plug can be easily unplugged.
Placez l’imprimante près d’une prise de contacte où la fiche peut être débranchée
facilement.
■Do not let the power cord become damaged or frayed.
■If you use an extension cord with the printer, make sure the total ampere rating of
the devices plugged into the extension cord does not exceed the cord’s ampere
rating. Also, make sure the total ampere rating of all devices plugged into the wall
outlet does not exceed the wall outlet’s ampere rating.
■Except as specifically explained in this manual, do not attempt to service the
printer yourself.
basics.book Page 7 Monday, February 22, 1999 9:31 AM

8
■Unplug the printer and refer servicing to qualified service personnel under the
following conditions:
If the power cord or plug is damaged; if liquid has entered the printer; if the
printer has been dropped or the case damaged; if the printer does not operate
normally or exhibits a distinct change in performance. Adjust only those controls
that are covered by the operating instructions.
Ink Cartridge Safety Instructions
■Do not put your hand inside the printer or touch the cartridge during printing.
■Under normal circumstances, ink will not come out of the cartridge. If it does get
on your skin, wash it off with soap and water. If it gets in your eyes, flush them
immediately with water.
■Keep ink cartridges out of the reach of children.
■Do not dismantle the ink cartridges or try to refill them. This could result in
damage to the print head.
■Once you install an ink cartridge, do not open the clamp or remove the cartridge
except to replace it with a new one. The cartridge may become unusable
otherwise.
■Install the ink cartridge immediately after you remove it from its foil package.
Leaving the cartridge unpacked for a long time before use may result in reduced
print quality.
■Do not use an ink cartridge beyond the date printed on the cartridge package. For
best results, use up the ink cartridges within six months of installing them.
■Do not shake an ink cartridge; this can cause leakage.
■Always turn the printer off using the Ppower button. When you press this
button, the Ppower light flashes briefly then goes out. Do not unplug the printer
or turn off the power to the printer until the Ppower light is off.
■Before transporting the printer, make sure the print head is positioned all the way
to the right (capped) and the ink cartridges are in place.
basics.book Page 8 Monday, February 22, 1999 9:31 AM

9
EPSON Digital PhotoLab
We’ve packed lots of fun and informative software with your
printer. EPSON Digital PhotoLab contains a collection of
photo-editing, photo-organizing, and photo-layout software.
Install any one or all of them, depending on your preferences
and the space available on your computer.
We’ve also included a variety of terrific project ideas for your photos, such as T-shirts,
greeting cards, and other items you might never have thought of! Plus, you get helpful
information on EPSON products and supplies.
Be sure to run EPSON Digital PhotoLab right away to install your bonus software
applications and check out the great projects. Here’s how . . .
■In Windows, double-click the EPSON Digital PhotoLab icon on the desktop
or select Start, Programs, EPSON, and double-click EPSON Digital PhotoLab.
■On a Macintosh, double-click the EPSON Digital PhotoLab alias on your
desktop.
After a moment, the EPSON Digital PhotoLab main menu appears:
not available on
Macintosh
basics.book Page 9 Monday, February 22, 1999 9:31 AM

10
Navigating Through EPSON Digital
PhotoLab
In the main menu, you can select from the following:
■INSTALL BONUS SOFTWARE contains a collection of award-winning creative
software; see the list on page 2. Follow the instructions on screen to install the
programs. For more information, see the program’s online help utility or
electronic manual.
■COOL PHOTO PROJECTS offers creative project ideas and fun photo products.
■PHOTOS ON THE NET give you information on the PhotoLoft web site and
other photo-savvy web sites.
■OTHER EPSON PRODUCTS gives you information on EPSON digital cameras,
scanners, and the wide variety of EPSON media.
■ELECTRONIC DOCUMENTATION lets you run the Quick Guide to Printing
(Windows only) and view your electronic printer manual using Adobe®Acrobat®
Reader.
■RE-INSTALL PRINTER SOFTWARE (Windows with parallel connection only)
installs your printer driver and utilities again, if you ever need to (be sure to
uninstall your old software first, as described on page 45).
Many of the submenus have tabbed sections. Select a section by clicking its tab. Click
DONE to return to the submenu screen.
Click to open a
section
Click to return
to the submenu
basics.book Page 10 Monday, February 22, 1999 9:31 AM

11
Viewing Your Electronic Printer
Manual
Here are some quick guidelines for viewing your electronic printer manual using
Adobe Acrobat Reader. Your bonus software may also include electronic manuals;
check their program folders or Help menu options to locate these manuals.
If you don’t have Adobe Acrobat Reader 3.0, or if you’re not
sure if you do, insert your printer software CD-ROM before
opening your electronic manual. If you don’t have Acrobat
Reader, the program installs automatically from the CD-ROM.
Opening Your Electronic Manual
There a several ways to open your electronic EPSON Stylus Photo 750 Manual:
■From Digital PhotoLab:
Select ELECTRONIC DOCUMENTATION from the main menu. With Windows,
then select VIEW PRINTER MANUAL on the submenu that appears.
■From the Windows desktop:
Double-click the View EPSON Stylus Photo 750 Manual shortcut on your
Windows desktop, or
Click Start, point to Programs, EPSON, and click View EPSON Stylus Photo
750 Manual.
■From the Macintosh desktop:
Double-click the EPSON Stylus Photo 750 Manual alias on your desktop, or
Open the Epson Folder on your hard disk and double-click EPSON Stylus
Photo 750 Manual.
If you don’t have Acrobat Reader 3.0 on your system, it is automatically installed.
Then the manual opens in Acrobat Reader.
basics.book Page 11 Monday, February 22, 1999 9:31 AM

12
Navigating an Electronic Manual
When you open an electronic manual, you’ll see this toolbar at the top:
There are several ways to navigate through electronic manuals:
■Click on hot topics, which are usually underlined or displayed in a different color.
To find out if a topic is hot, move your cursor over it. If the cursor turns into a
pointing hand, the topic is hot—you can jump to it by clicking once.
■If the manual has bookmarks, use the bookmark section on the left side of the
screen to move quickly to the topic of your choice. Click the show bookmarks
icon on the toolbar to see the bookmark section. (Some manuals may only have a
table of contents that you can use to navigate the manual, if the topics are hot.)
■Use the arrow buttons in the toolbar or the vertical scroll bar on the right side of
the document to move through a manual. (The box to the left of the scroll bar
displays the current page number.)
If you need more information, open Acrobat Reader’s Help menu and select the
online guide.
next page
last page
previous page
show bookmarks first page
basics.book Page 12 Monday, February 22, 1999 9:31 AM

13
Printing from Start to Finish
Here’s what you do to print a basic document—such as a memo, newsletter, or
photograph—from loading the paper to selecting print settings to controlling print
jobs. Follow the step-by-step instructions for your operating system in these sections:
■“Printing with Windows” below
■“Printing with a Macintosh” on page 16
For guidelines on loading special papers and envelopes, and for selecting the correct
Media Type setting for them, see “Using EPSON Special Papers” on page 18.
For instructions on customizing your settings to fine-tune your printouts, see
“Printing with Custom Settings” on page 21.
For guidelines on managing color and preserving photos, see page 25.
Printing with Windows
1. Make sure your printer and computer are turned on.
2. Load a stack of plain paper and place it against the right edge guide. Then slide
the left edge guide against the paper’s left edge, making sure the stack is lower
than the arrow on the guide.

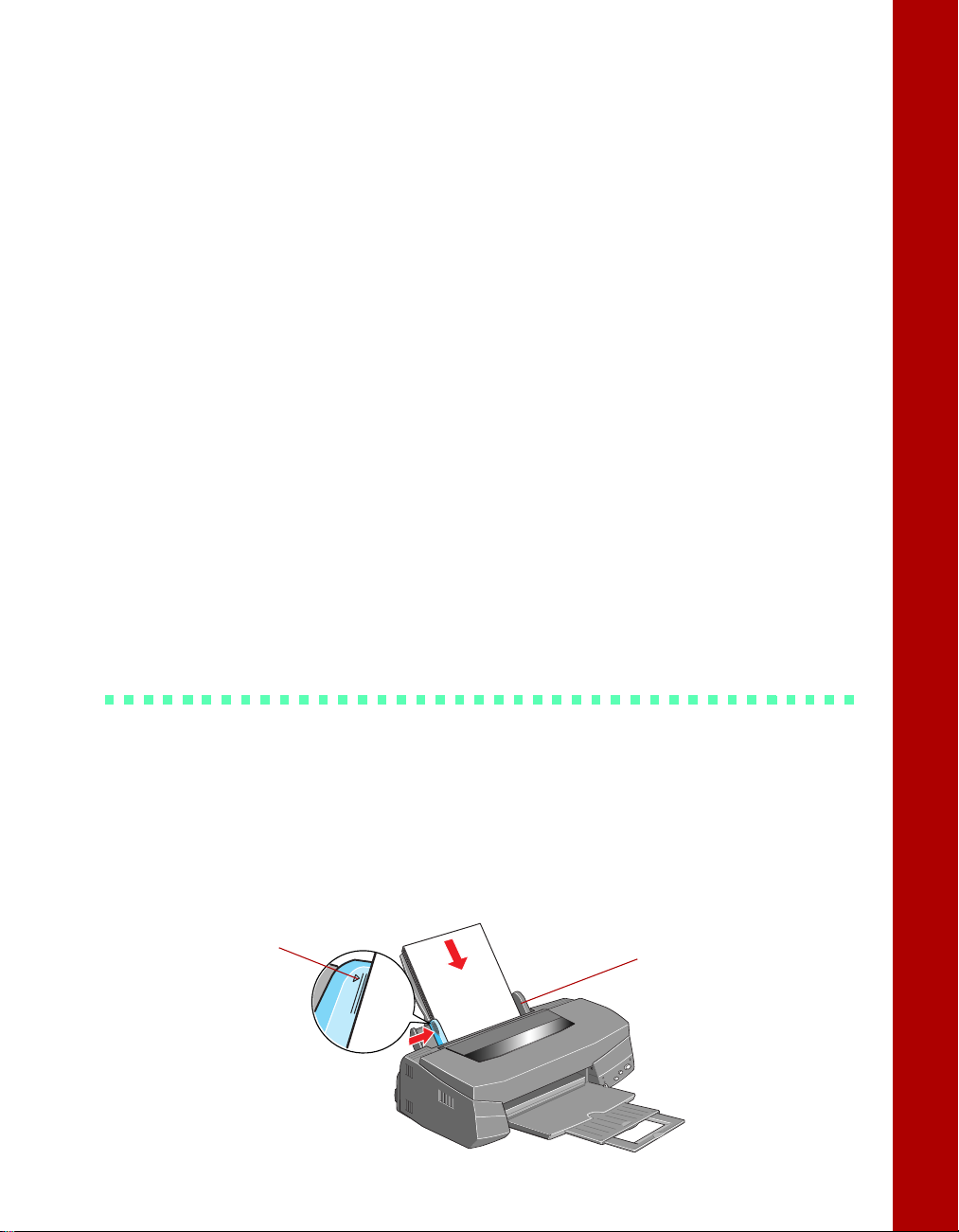

slide paper against the
right edge guide
load paper only up to
this arrow
basics.book Page 13 Monday, February 22, 1999 9:31 AM

14
3. Open a Windows application program and select a document to print.
4. Open the File menu and click Print. You see a Print dialog box, such as this:
5. Make sure EPSON Stylus Photo 750 is selected.
6. If your application’s Print dialog box contains a Properties button, click
Properties and go to step 7.
If you see a Setup, Printer, or Options button, click it. Then click the Properties
button on the next screen.
7. Now you see the printer settings dialog box. If necessary, click the Main tab to
display the settings shown below.
If you see a Properties
button, click it
If you see Setup, Printer,
or Options, click that
button instead; then click
Properties on the next
screen
Make sure your printer
is selected here
Quality/Speed slider
Main tab
Media Type setting
Automatic
mode setting
Ink setting
basics.book Page 14 Monday, February 22, 1999 9:31 AM

15
8. Check the following settings:
■Make sure the Media Type is set to Plain paper. (If you load a different type
of paper, select the corresponding setting for it, as described on page 20. For
instructions on loading special paper, see page 18.)
■Make sure Ink is set to Color if you want to print in color.
■Set the Mode option to Automatic. This is the easiest way to get good
printing results for all kinds of documents, on all types of paper.
■Move the Quality/Speed slider to the Quality setting. This selects a high
quality setting for the paper you’re using.
9. Click the Paper tab at the top of
the dialog box if you need to
change the paper size, number of
copies, or page orientation.
10. Click the Layout tab if you want to
reduce or enlarge your printed
image, print multiple pages on one
sheet of paper, or add a watermark.
11. Click OK until you see the Print
dialog box again.
12. Click OK to start printing. After a
moment, the Progress Meter appears
while your document is printing to
show you its progress. You can cancel
, pause , or restart your print
job as necessary.
For more information on printing, see the electronic EPSON Stylus Photo 750
Manual. See page 11 for instructions on viewing the manual.
Paper Size setting
Paper tab
basics.book Page 15 Monday, February 22, 1999 9:31 AM

16
Printing with a Macintosh
1. Make sure your printer and Macintosh are turned on.
2. Load a stack of plain paper and place it against the right edge guide. Then slide
the left edge guide against the paper’s left edge, making sure the stack is lower
than the arrow on the guide.
3. Open a Macintosh application program and select a document to print.
4. Open the File menu and choose Page Setup (Document Setup in some
applications). You see a Page Setup dialog box like this:
5. Choose your paper size, page orientation, and printable area settings. Then
click OK.
slide paper against the
right edge guide
load paper only up to
this arrow
Paper Size setting
basics.book Page 16 Monday, February 22, 1999 9:31 AM
