Epson U325PD - TM B/W Dot-matrix Printer User manual

TM-U325D/U325PD
User’s Manual
400665704

Printer Parts and Labels
Labels
CAUTION/ VORSICHT:
Print head cover and print head are hot.
Druckkopfabdeckung und Druckkopf sind heiß.
CAUTION/ VORSICHT:
Caution label for drawer kick-out connector.
Vorsichtsetikett für Schnappsteckerbuchse.
EPSON/U325 Printer - File: PRNTR_8.
e
W. Swanlund REV> 14Octobe
1
14 25
13
16
1
2
3
RECEIPT
OUTVALIDA
TION
POWER
ERROR
FEED
FEED
RELEASE
RELEASE
EPSON
16
1
2
3

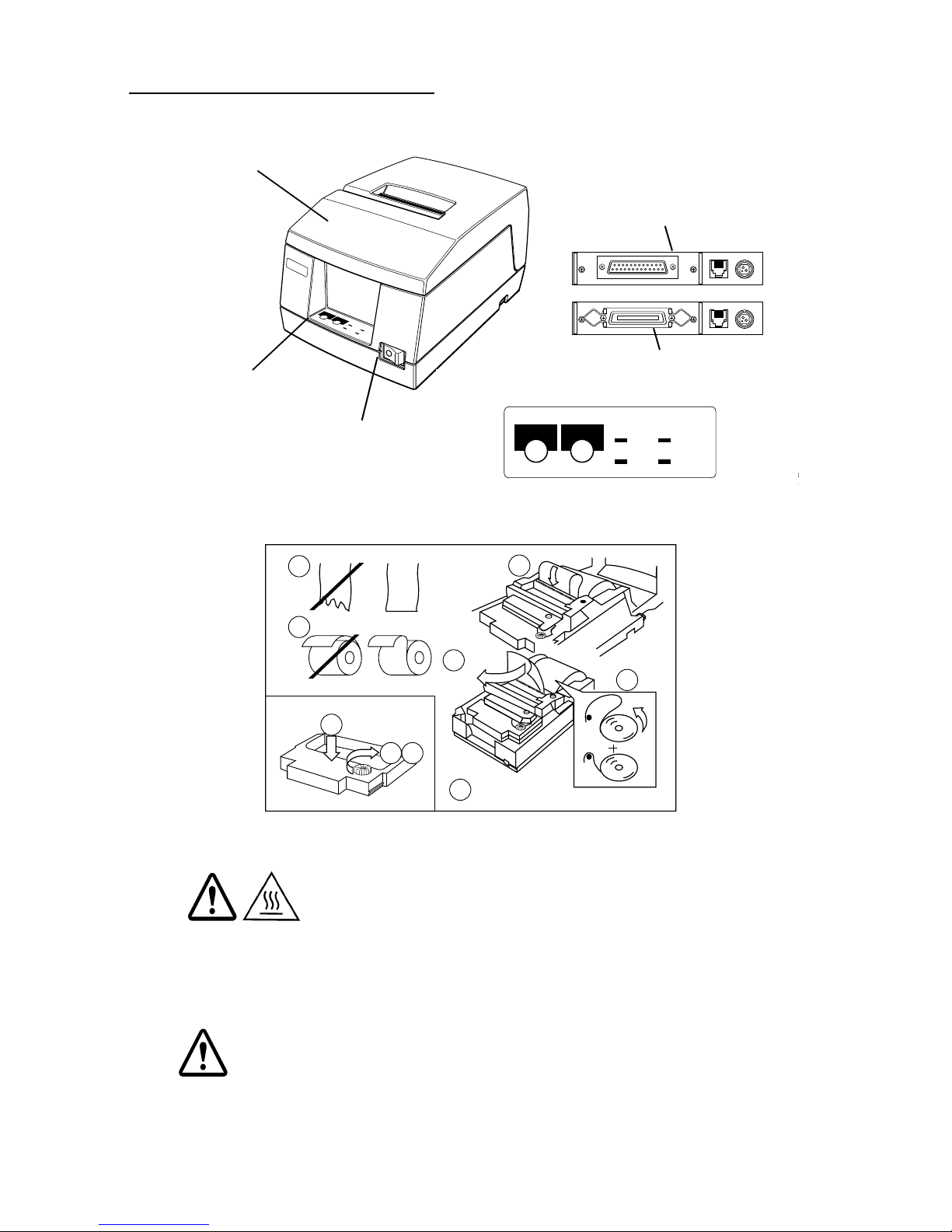

Control panel
Printer cover
On/Off switch
RECEIPT
OUT VALIDATION
POWERERROR
FEED
FEED
RELEASE
RELEASE
Control panel
Serial interface connector
Parallel interface connector
CUT
1
2
2
13
6
5
3
SET
CLOSE THE
PRINTER COVER
4

i
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system,
or transmitted in any form or by any means, electronic, mechanical, photocopying, recording,
or otherwise, without the prior written permission of Seiko Epson Corporation. No patent
liability is assumed with respect to the use of the information contained herein. While every
precaution has been taken in the preparation of this book, Seiko Epson Corporation assumes no
responsibility for errors or omissions. Neither is any liability assumed for damages resulting
from the use of the information contained herein.
Neither Seiko Epson Corporation nor its affiliates shall be liable to the purchaser of this product
or third parties for damages, losses, costs, or expenses incurred by purchaser or third parties as
a result of: accident, misuse, or abuse of this product or unauthorized modifications, repairs, or
alterations to this product, or (excluding the U.S.) failure to strictly comply with Seiko Epson
Corporation’s operating and maintenance instructions.
Seiko Epson Corporation shall not be liable against any damages or problems arising from the
use of any options or any consumable products other than those designated as Original Epson
Products or Epson Approved Products by Seiko Epson Corporation.
EPSON and ESC/POS are registered trademarks of Seiko Epson Corporation.
NOTICE: The contents of this manual are subject to change without notice.
Copyright © 1996, 1999 by Seiko Epson Corporation, Nagano, Japan.

ii
EMC and Safety Standards Applied
Product Name: TM-U325D/TM-U325PD
Model Name: M133A
The following standards are applied only to the printers that are so labeled. (EMC is tested
using Seiko Epson’s AC Adapter.)
Europe: CE marking
Safety: EN 60950
North America: EMI: FCC/ICES-003 Class A
Safety: UL 1950/CSA C22.2 No. 950
Oceania: EMC: AS/NZS CISPR22 Class B
WARNING
The connection of a non-shielded printer interface cable to this printer will invalidate the EMC
standards of this device.
You are cautioned that changes or modifications not expressly approved by SEIKO EPSON
Corporation could void your authority to operate the equipment.
CE Marking
The printer conforms to the following Directives and Norms:
Directive 89/336/EEC EN 55022 Class B
EN 55024
IEC 61000-4-2
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
IEC 61000-4-6
IEC 61000-4-11
FCC Compliance Statement
For American Users
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference, in which case the user will be required to correct the interference at his own
expense.
For Canadian Users
This Class A digital apparatus complies with Canadian ICES-003.
Cet appareil numérique de la classe A est conforme à la norme NMB-003 du Canada.
GEREÄUSCHPEGEL
Gemäß der Dritten Verordnung zum Gerätesicherheitsgesetz (Maschinenlärminformations-
Verordnung-3. GSGV) ist der arbeitsplatzbezogene Geräusch-Emissionswert kleiner als 70
dB(A) (basierend auf ISO 7779).

iii
About This Manual
Setting Up and Using
❏Chapter 1 contains information on unpacking the printer, setting it up, attaching
the paper roll near-end sensor, and setting the DIP switches.
❏Chapter 2 contains information on using the printer.
❏Chapter 3 contains troubleshooting information.
Reference
❏Chapter 4 contains specifications and character code tables.
Warnings, Cautions, and Notes
WARNING / WARNUNG:
Warnings must be followed carefully to avoid serious bodily
injury.
Warnhinweise müssen sorgfältig befolgt werden, um Unfälle
mit möglicherweise schweren Verletzungen zu vermeiden.
CAUTION / VORSICHT:
Cautions must be observed to avoid minor injury to yourself or
damage to your equipment.
Vorsichtshinweise müssen sorgfältig befolgt werden, um
Unfälle mit der Gefahr leichter Verletzungen oder Schäden
am Gerät zu vermeiden.
Note:
Notes have important information and useful tips on the operation of your
printer.

iv
Introduction
Features
The TM-U325D and TM-U325PD are high-quality POS printers that can print a
multiple-line validation and on receipt paper (paper roll). The printer has the
following features:
❏Easily changeable interface specifications for serial or parallel by exchanging the
interface board.
❏Excellent reliability (long life) and good operability (drop-in paper loading).
❏Multiple-line validation printing (possible to print a maximum of 9 lines).
❏Compact and light in weight.
❏High-speed printing through logic-seeking control.
❏Excellent reliability and long life due to adoption of stepping motor, both for
moving the carriage and for paper feeding.
❏Flexible line space setting permits printing in accordance with any user-defined
format.
❏Conforms with ESC/POS; excellent universality of control.
❏Built-in drawer kick-out interface provides capability to drive two drawers.
❏Selectable character fonts (7 ×9 and 9 ×9).
❏Semi-automatic paper loading capability.
❏AC adapter provides compact power supply.
❏Automatic status back (ASB) function that automatically transmits changes in
printer status.
Accessories
❏AC adapter
❏EPSON ribbon cassette, ERC-38
Options
❏EPSON power supply unit, PS-180
❏Printer fastening tape (Model No. DF-10)

Setting Up the Printer 1–1
Chapter 1
Setting Up the Printer
Unpacking
The illustration below shows the items included for the standard
specification printer.
(*1) The power cord may not be included in the package. If it is not, make sure to use a
power cord that complies with the safety standards.
If any item is damaged, please contact your dealer for assistance.
Selecting a Location
Place the printer on a surface that is as horizontal as possible. Make
sure that the printer does not tilt more than 15 degrees.
The printer should be installed so that it does not move or vibrate
during paper cutting or the drawer kick-out operation.
Fastening tape is available as an option.
Manual
RECEIPT
OUTVALIDA
TION
POWER
ERROR
FEED
FEED
RELEASE
RELEASE
EPSON
Printer
*1
Power supply
Spacers for the paper roll
near-end sensor 2 pcs
Power switch cover
Ribbon cassette Paper roll

1–2 Setting Up the Printer
Adjusting the Paper Roll Near-End Sensor
Notes:

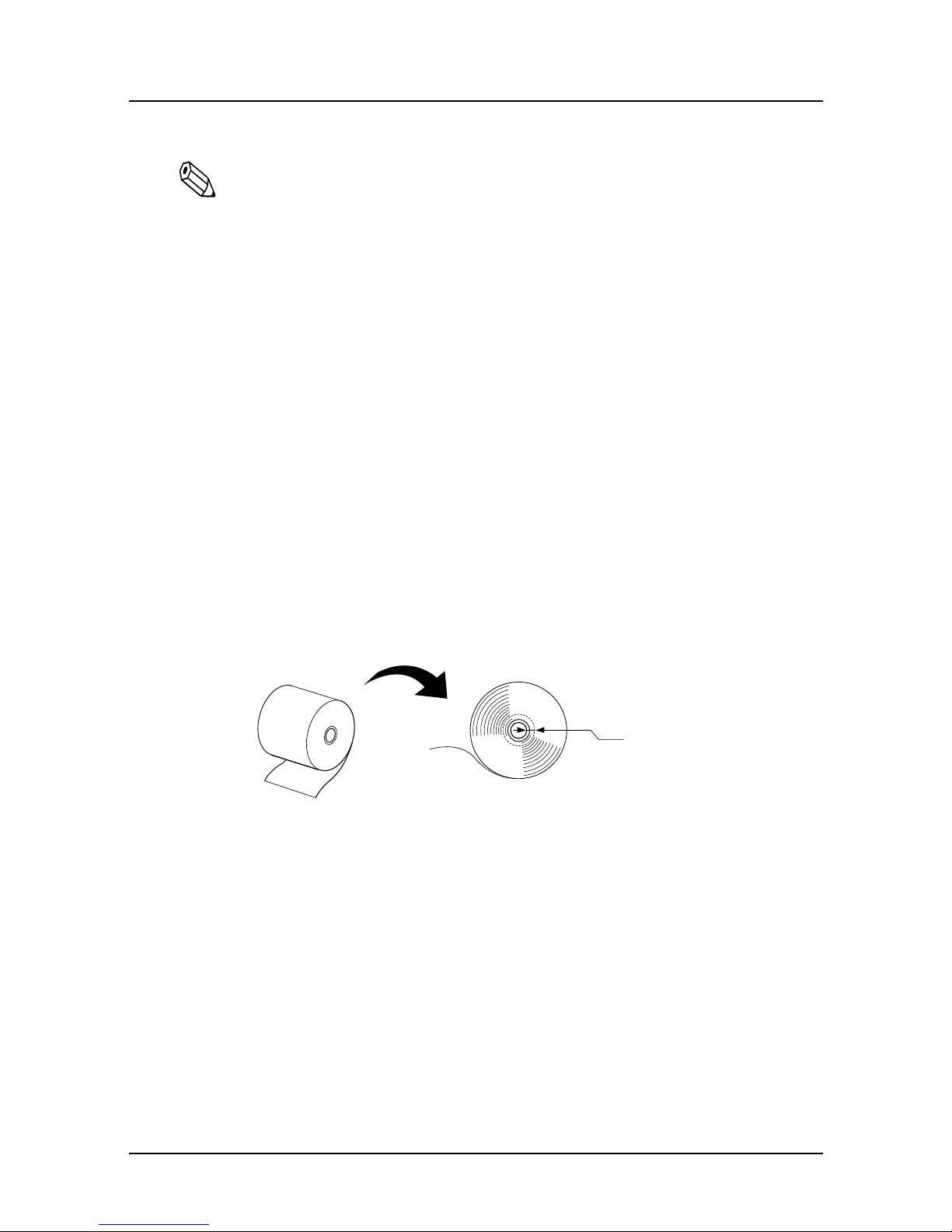

Use paper rolls with an inner core diameter of 10.5 to 12.5 mm so
that the sensor detects the remaining paper correctly.
When the last portion of a paper roll bears red markings, the
marking is sometimes an adhesive that pulls the entire paper roll up.
In this case, the sensor may not detect the remaining paper correctly.
If a paper roll easily becomes loose because of the quality of the paper
or other factors, incorrect detection of the paper end may result.
1. Make sure that the power supply is disconnected from the printer.
2. Two spacers are included. See the illustration below and decide
whether or not you want to use them. Use them if you want the
near-end sensor to be triggered when distance A is 3 to 4 mm;
otherwise it will be triggered when distance A is approximately
6mm.
3. Secure the paper roll near-end sensor (and spacers) with two
screws. When you insert the spacers, be sure you set the
spacers in the direction shown in the illustration.
Distance A

Setting Up the Printer 1–3
4. Check to be sure that the detecting lever moves freely.
Connecting the Cables and Grounding the Printer
You can connect up to three cables and a grounding wire to the
printer. They all connect to the connector panel on the bottom of
the printer, which is shown below:
Notes:
There is a caution label beside the drawer kick-out connector.
Depending on the interface installed, the interface connector on your
printer may look different from the one illustrated.
Before connecting any of the cables, make sure that both the printer
and the computer are turned off.
Spacers Paper roll
near-end sensor
Power supply
Drawer kick-out
Interface
Grounding screws

1–4 Setting Up the Printer
Connecting the Computer
1. Plug the cable into the connector on the printer and tighten the
screws on both sides of the cable connector, as shown.
2. Connect the other end of the cable to the connector on your
computer.
Connecting the Drawer
WARNING:
Use a drawer that matches the printer specification. Using an
improper drawer may damage the drawer as well as the
printer.
CAUTION:
Do not connect a telephone line to the drawer kick-out
connector; otherwise the printer and the telephone line may
be damaged.
Plug the drawer cable into the drawer kick-out connector on the
bottom of the printer next to the power supply connector.

Setting Up the Printer 1–5
Anschließen der Lade
WARNUNG:
Eine für den Drucker geeignete Lade verwenden. Bei
Verwendung einer falschen Lade kann diese oder der
Drucker beschädigt werden.
ACHTUNG:
Kein Telefonkabel an die Schnappsteckerbuchse
anschließen, da sonst der Drucker und die Telefonkabel
beschädigt werden können.
Das Kabel der Lade an die Schnappsteckerbuchse unten am
Drucker neben dem Netßzanschluß anschließen.
Grounding the Printer
You need a ground wire to ground your printer. Make sure that the
wire meets the specifications below.
Thickness of wire: AWG 18 or equivalent
Diameter of terminal to be attached: 3.2
1. Make sure that the printer is turned off.

1–6 Setting Up the Printer
2. Connect the ground wire to the printer using the FG screw on
the bottom of the printer, as shown.
Connecting the Power Supply
This printer requires an external power supply. Be sure to use a
power supply that matches the specifications.
WARNING / WARNUNG:
Using an incorrect power supply may cause fire or electrical
shock.
Bei Verwendung der falschen Stromversorgung besteht
Brand- oder Stromschlaggefahr.
CAUTION / VORSICHT:
When connecting or disconnecting the power supply from
the printer, make sure that the power supply is not plugged
into an electrical outlet; otherwise you may damage the
power supply or the printer.
If the power supply’s rated voltage and your outlet’s voltage
do not match, contact your dealer for assistance. Do not
plug in the power cord. Otherwise you may damage the
power supply or the printer.

Setting Up the Printer 1–7
Beim Anschließen der Stromversorgung an den Drucker und
beim Herausziehen der Stromversorgung aus dem Drucker
darf die Stromversorgung nicht in eine Steckdose eingesteckt
sein. Andernfalls kann die Stromversorgung oder der Drucker
beschädigt werden.
Wenn die Nennspannung der Stromversorgung und die
Spannung der Steckdose nicht übereinstimmen, den Händler
um Hilfe bitten. Das Netzkabel nicht einstecken. Andernfalls
kann die Stromversorgung oder der Drucker beschädigt
werden.
1. Make sure that the printer’s power switch is turned off, and the
power supply’s power cord is unplugged from the electrical
outlet.
2. Plug in the power supply’s cord as shown below. Notice that
the flat side of the connector faces down.
3. Plug the power supply’s power cord into an outlet.
Note:
If you ever need to remove the cable, unplug the power supply’s
power cord from the outlet and then grasp the connector firmly at
the arrow mark and pull it straight out.
Installing the Ribbon Cassette
Use the EPSON ERC-38 ribbon cassette for your printer.
Note the label inside the printer cover that can assist you in installing
the ribbon.

1–8 Setting Up the Printer
CAUTION / VORSICHT:
Never turn the ribbon cassette’s feed knob in the opposite
direction of the arrow marked on the cassette; otherwise the
ribbon cassette may be damaged.
Den Transportknopf an der Farbbandkassette nur in die durch
den Pfeil gekennzeichnete Richtung drehen. Andernfalls
kann die Farbbandkassette beschädigt werden.
1. Be sure the printer is not receiving data when you replace a
ribbon cassette; otherwise data may be lost.
2. Open the printer cover.
3. Turn the ribbon cassette’s knob in the direction of the arrow, to
take up any slack in the ribbon.

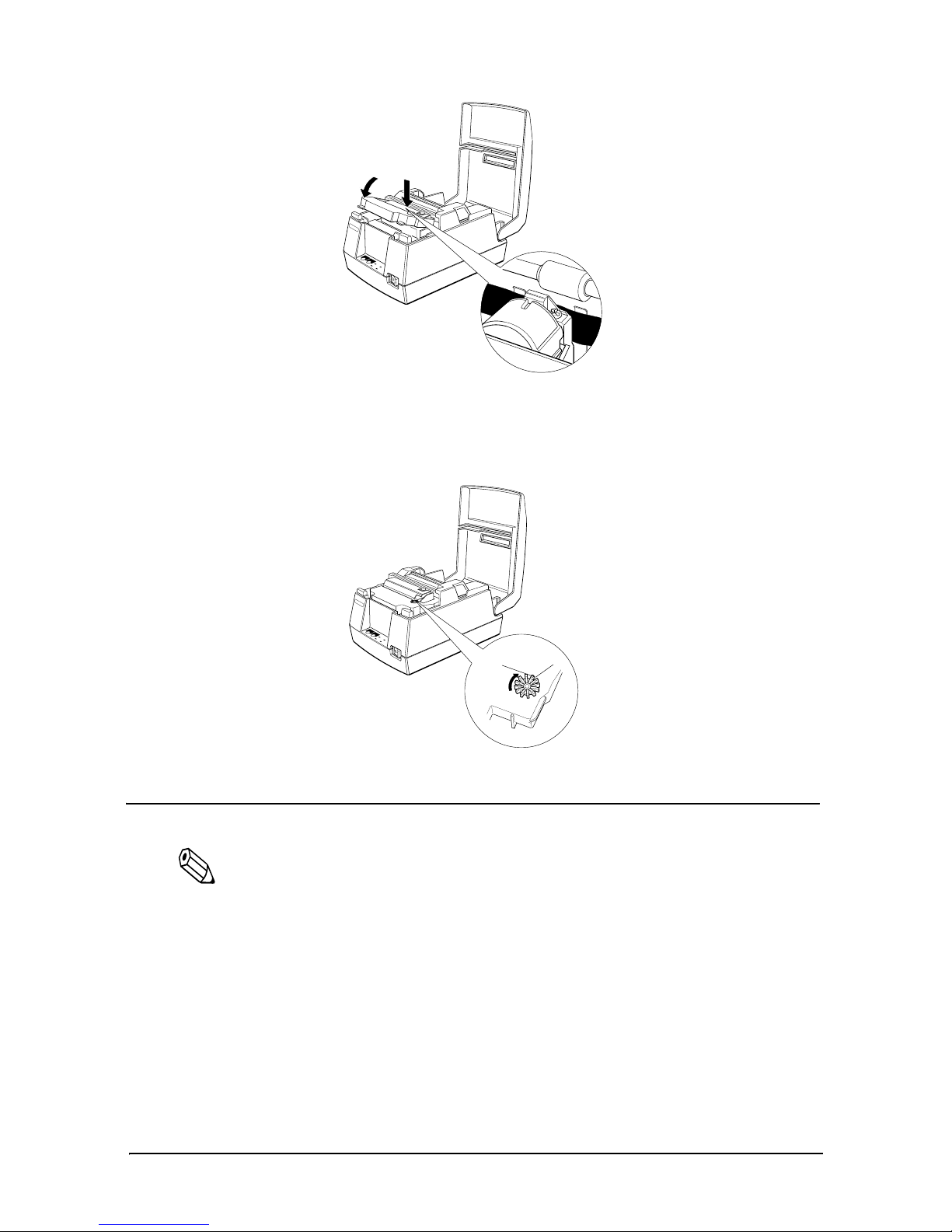

4. Insert the ribbon in the position shown in the illustration below
and push the ribbon cassette until it clicks.
Note:
Make sure that the ribbon is installed between the print head
and the platen without wrinkles or creases.

Setting Up the Printer 1–9
5. Turn the ribbon cassette’s knob 5 or 6 times in the direction of
the arrow again, to take up any slack in the ribbon.
Installing the Paper Roll
Notes:
Be sure to use a paper roll that meets the specifications.
Do not use paper rolls that have the paper glued to the core because
the printer cannot detect the paper end correctly. However, if you
will stop the printing using the paper roll near-end sensor, you can
use glued type paper rolls.
RECEIPT
OUT VALIDATION
POWER
ERROR
FEED
FEED
RELEASE
RELEASE
EPSON
RECEIPT
OUTV
ALIDATION
POWER
ERROR
FEED
FEED
RELEASE
RELEASE
EPSON

1–10 Setting Up the Printer
1. Using scissors, cut the leading edge of the paper roll as shown
below.
2. Turn on the printer and open the printer cover.
3. Insert the paper roll.
Note:
Be sure to note the correct direction that the paper comes off the
roll as shown below.
RECEIPT
OUTVALIDATION
POWER
ERROR
FEED
FEED
RELEASE
RELEASE
EPSON

Setting Up the Printer 1–11
4. Hold both edges of the paper and insert it straight into the
paper slot. The printer feeds the paper automatically.
5. Tear off the paper; then close the cover.
Note:
Before closing the cover, make sure that the paper from the paper
roll is not slack.
To remove the paper roll, follow the steps below.
1. Open the printer cover.
RECEIPT
OUTVALIDA
TION
POWER
ERROR
FEED
FEED
RELEASE
RELEASE
EPSON
RECEIPT
OUTVALIDA
TION
POWER
ERROR
FEED
FEED
RELEASE
RELEASE
EPSON

1–12 Setting Up the Printer
2. Pull up the paper and cut the paper at the dotted line shown in
the illustration below.
3. Remove the paper roll from the printer.
4. Press the FEED button to remove the remaining paper.
Running the Self Test
Any time that you want to check the performance of your printer,
you can run the self test described below. This shows whether your
printer is working correctly. It is independent of any other
equipment or software.
Note:
Be sure to install the ribbon cassette and the paper roll before
you run the self test.
1. To perform the self test, hold down the FEED button while you
turn on the printer with the power switch.
2. The printer prints the current printer settings and then the
RECEIPT OUT light flashes to indicate that the printer is in the
test printing standby state.
3. Press the FEED button to start the second part of the test, in
which the printer prints a pattern using the built-in character set.
RECEIPT
OUTVALIDA
TION
POWER
ERROR
FEED
FEED
RELEASE
RELEASE
EPSON
Cut here

Setting Up the Printer 1–13
4. After the printer completes a certain number of lines, it prints
the following:
*** completed ***
Then it enters the normal mode.
Note:
If you want to pause the self test manually, press the FEED
button. Press the FEED button again to continue the self test.
Setting the DIP Switches
Einstellen der DIP-Schalter
CAUTION / VORSICHT:
Turn off the printer while removing the DIP switch cover to
prevent an electrical short, which can damage the printer.
Den Drucker vor Abnahme der DIP-Schalterabdeckung
ausschalten, um einen Kurzschluß zu verhindern, durch den
der Drucker beschädigt werden könnte.
If you have special requirements, you can change the DIP switch
settings.
Wenn besondere Anforderungen vorliegen, können die DIP-
Schaltereinstellungen geändert werden.
1. Make sure that the printer is off.
Sicherstellen, daß der Drucker ausgeschaltet ist.
2. Turn the printer over and remove the DIP switch access cover,
as shown below.
Den Drucker umdrehen und die DIP-Schalterabdeckung
abnehmen (siehe Abbildung).

1–14 Setting Up the Printer
3. There are two sets of switches. Notice that ON is marked on
each set of switches. Use tweezers or another narrow tool to
move the switches.
Es gibt zwei Gruppen von Schaltern. Auf beiden Gruppen ist
die Einstellung ON (EIN) markiert. Zum Verschieben der
Schalter eine Pinzette oder ein anderes kleines Werkzeug
verwenden.
4. Use the following tables to set the DIP switches. Numbers
starting with 1 are in the first set, and numbers starting with 2
are in the second.
Die DIP-Schalter anhand der folgenden Tabellen einstellen.
Schalter, die mit 1 beginnen, befinden sich in der ersten
Gruppe, Schalter, die mit 2 beginnen, in der zweiten Gruppe.
Serial Interface (TM-U325D)
These are the settings for printers equipped with a serial interface.
DIP Switch Set 1
Switch Function ON OFF
1-1 Data reception error Ignored Prints”?”
1-2 Receive buffer capacity 45 bytes 4K bytes
1-3 Handshaking XON/XOFF DTR/DSR
1-4 Word length 7 bits 8 bits
1-5 Parity check Yes No
DSW1
DSW2
