PowerLite® Home Cinema 3010/3010e
Home Theater Projector
User’s Guide
pl3010_3010e_UG.book Page 1 Wednesday, September 7, 2011 6:28 PM

2Contents
Contents
Introduction 6
Projector Parts 7
Remote Control 9
Optional Accessories 10
Registration and Warranty 10
Using This Manual 11
Setting Up the Projector 12
Choose a Location 12
Installing the Projector 16
Connecting the Cables 18
Connecting Video and Computer Equipment 18
Making Other Connections 20
Installing Batteries in the Remote Control 21
Turning the Projector On and Off 21
Turning On the Projector 21
Turning Off the Projector 22
Selecting the Image Source 22
Positioning the Image 24
Making Basic Adjustments 26
Focusing and Zooming 26
Choosing the Aspect Ratio 27
Viewing 3D images 28
Projecting in Split Screen mode 29
Starting a Slideshow 30
Choosing Slideshow Options 31
Choosing the Color Mode 32
pl3010_3010e_UG.book Page 2 Wednesday, September 7, 2011 6:28 PM

Contents 3
Advanced Color Adjustments 33
Adjusting the Gamma Setting 33
Adjusting RGBCMY 35
Locking the Projector 36
Making Detailed Adjustments 37
Using the Menu System 37
Changing How the Menus Display 38
Adjusting the Picture Quality 39
Input Brightness Settings 39
Sharpness and Picture Quality Settings 41
Color Settings 43
3D Setup 45
Adjustments for Computer Images 46
WirelessHD Settings 47
Split Screen Setup 48
Selecting Memory Settings and Resetting the Projector 49
Creating Memory Settings 49
Selecting Memory Settings 50
Renaming Memory Settings 50
Deleting Saved Memory Settings 51
Resetting the Projector 51
Customizing Projector Features 52
Image Sizing 52
Screen Options 53
Other Setup Options 54
Using WirelessHD 56
Placing the WirelessHD Transmitter 56
Setting Up a WirelessHD Connection 57
Using HDMI Link 58
Setting Up HDMI Link 58
pl3010_3010e_UG.book Page 3 Wednesday, September 7, 2011 6:28 PM

4Contents
Changing HDMI Link Settings 59
Maintenance 60
Cleaning the Lens 60
Cleaning the 3D Glasses 61
Cleaning the Projector Case 61
Cleaning and Replacing the Air Filter 62
Replacing the Lamp 64
Resetting the Lamp Usage Timer 67
Checking the Projector Status 67
Storing the Projector 68
Transporting the Projector 68
Problem Solving 69
What To Do When the Lights Come On or Flash 69
Solving Picture Problems 71
Solving Remote Control Problems 75
Solving WirelessHD Problems 75
Where to Get Help 77
Specifications 78
General 78
Lamp 78
Remote Control 79
WirelessHD Transmitter (Home Cinema 3010e only) 79
Dimensions 79
Electrical 80
Environmental 80
Safety 80
Compatible Video Formats 81
ESC/VP21 Command Codes 83
pl3010_3010e_UG.book Page 4 Wednesday, September 7, 2011 6:28 PM

Contents 5
Notices 84
Important Safety Information 84
FCC Compliance Statement 86
Copyright Notice 87
A Note Concerning Responsible Use of Copyrighted Materials 87
Trademarks 88
pl3010_3010e_UG.book Page 5 Wednesday, September 7, 2011 6:28 PM

6Introduction
Introduction
The PowerLite®Home Cinema 3010/3010e projector lets you enjoy theater-quality 3D
images in the relaxing environment of your own home. Designed especially for home cinema
use, it offers these outstanding features:
■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 40,000:1 and up to
2200 lumens of brightness (white light output) for incredibly rich, sharp images in any
room lighting
■Auto Iris system that constantly controls the light output based on the gamma and
black/white levels of your projected content, for perfectly adjusted images and deepest
blacks
■Epson C2Fine®3LCD technology for reliable picture quality, increased contrast ratio and
uniform colors
■1080Perfect™video processing for more film-like images free of noise or artifacts
■10-bit color quality for unmatched color accuracy, with over a billion colors available
■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed
digital video
■True 16:9 wide-format projection
■Powerful 10 W per channel stereo speaker system
■Flexible setup configurations, including front projection and ceiling mounted, with
horizontal keystone slider for offset placement
pl3010_3010e_UG.book Page 6 Wednesday, September 7, 2011 6:28 PM

Introduction 7
Projector Parts
Control panel
Air exhaust
Lens cover Adjustable foot
HDMI ports
External 3D IR port
Remote receiver
Horizontal keystone slider
Zoom ring
Front
Back
Lamp cover
Cable clip hole
Air intake
Air filter cover
Focus ring
Speakers
Power inlet
Cable clip hole
Kensington®lock port
Audio (L-R) port
Component port
RS-232C port
USB port
Remote receiver
Video port
PC port
pl3010_3010e_UG.book Page 7 Wednesday, September 7, 2011 6:28 PM

8Introduction
Brightness
sensor
Escape button
Power button
Mounting bracket
attachment points
Bottom
Projector Control Panel
Front adjustable feet
Power
light
Source button
Volume/horizontal
keystone buttons
Vertical
keystone
buttons
Lamp
light
Temperature
light
pl3010_3010e_UG.book Page 8 Wednesday, September 7, 2011 6:28 PM

Introduction 9

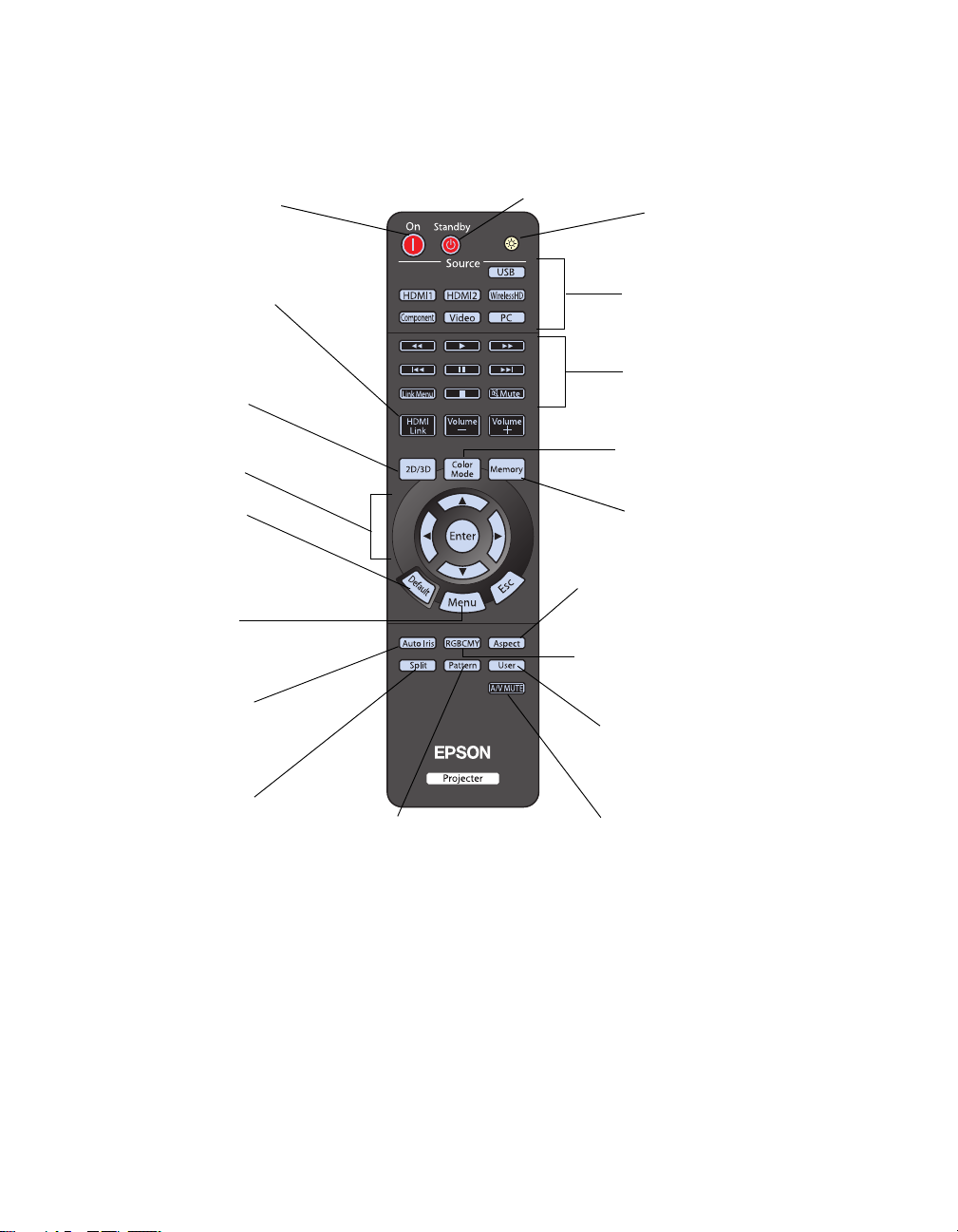

Remote Control
Source buttons
Switch between equipment
connected to the projector
On button
Turns projector on
Menu navigation
buttons
Split button
Toggles the Split
Screen function on or
off
Color Mode button
Quickly change color settings
to match room lighting
Aspect button
Changes the picture’s aspect ratio
A/V Mute button
Temporarily stops projection or
hides the menu screen
Auto Iris button
Toggles the Auto Iris
function on or off
HDMI Link button
Enables and disables the
HDMI link function
User button
Function can be set by the user
from the Settings menu
Illumination button
Lights the remote control
buttons for easy viewing
Menu button
Displays the projector’s
menus
Default button
Resets menu
selection to default
values
2D/3D button
Toggles
between 2D and
3D projection
RGBCMY button
Displays the color adjustment menu
Pattern button
Displays test patterns to adjust
the image
HDMI Link control buttons
Control playback of a linked
video device
Memory button
Accesses the Memory menu
Standby button
Turns projector off
pl3010_3010e_UG.book Page 9 Wednesday, September 7, 2011 6:28 PM

10 Introduction
Optional Accessories
Epson provides the following optional accessories for the projector:
In addition to the accessories listed above, 1-year and 2-year extended service plans are
available. You can purchase these plans and other accessories from an authorized Epson
reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To
purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).
Registration and Warranty
Your projector comes with a basic two-year carry-in warranty. For details, see the Quick Setup
sheet.
In addition, Epson offers free Extra CareSM Home Service. In the unlikely event of an
equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will
ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your
Extra Care Home Service brochure for details.
To register, simply follow the registration instructions on the CD, or register online at
epson.com/webreg. Registering also lets you receive special updates on new accessories,
products, and service.
Product Part number
Replacement lamp V12H010L68
Air filter replacement V13H134A38
Kensington security lock (anti-theft device) ELPSL01
Projector mount V12H003B20
Computer cable (6 feet [1.8 meters]) V12H005C02
3D active shutter glasses V12H483001
External 3D IR emitter V12H484001
pl3010_3010e_UG.book Page 10 Wednesday, September 7, 2011 6:28 PM

Introduction 11
Using This Manual
This book contains all the information you need to use the projector, in addition to basic
setup and maintenance instructions, troubleshooting tips, important safety instructions,
specifications, and warranty information.
Please follow these guidelines as you read through the manual:
Warning: Must be followed carefully to avoid bodily injury.
Caution: Must be observed to avoid damage to your equipment.
Note: Contains important information about your projector.
Tip: Contains helpful projection tips.
Need additional help? Take advantage of Epson’s automated support services 24 hours a day
at epson.com/support (U.S.) or epson.ca/support (Canada). Use this site to view FAQs or
product information and e-mail Epson.
If you need more help, you can use the Epson PrivateLine®Support service. Call
[phone] and enter the PIN on the PrivateLine support card that came with your
projector.
pl3010_3010e_UG.book Page 11 Wednesday, September 7, 2011 6:28 PM

12 Setting Up the Projector
Setting Up the Projector
Follow the instructions in this section to choose a location for the projector, connect the
cables, and display an image.
Choose a Location
You can install the projector for the viewing setups shown below, as well as rear projection.
Center
Ceiling
Side
pl3010_3010e_UG.book Page 12 Wednesday, September 7, 2011 6:28 PM

Setting Up the Projector 13
Keep the projector level and place it at a height where its lens is centered between the top and
bottom of the screen. If this isn’t possible, use the horizontal keystone slider and vertical
keystone buttons to adjust the image (see page 24).
Note: Image quality may be reduced if excessive keystone correction is used.

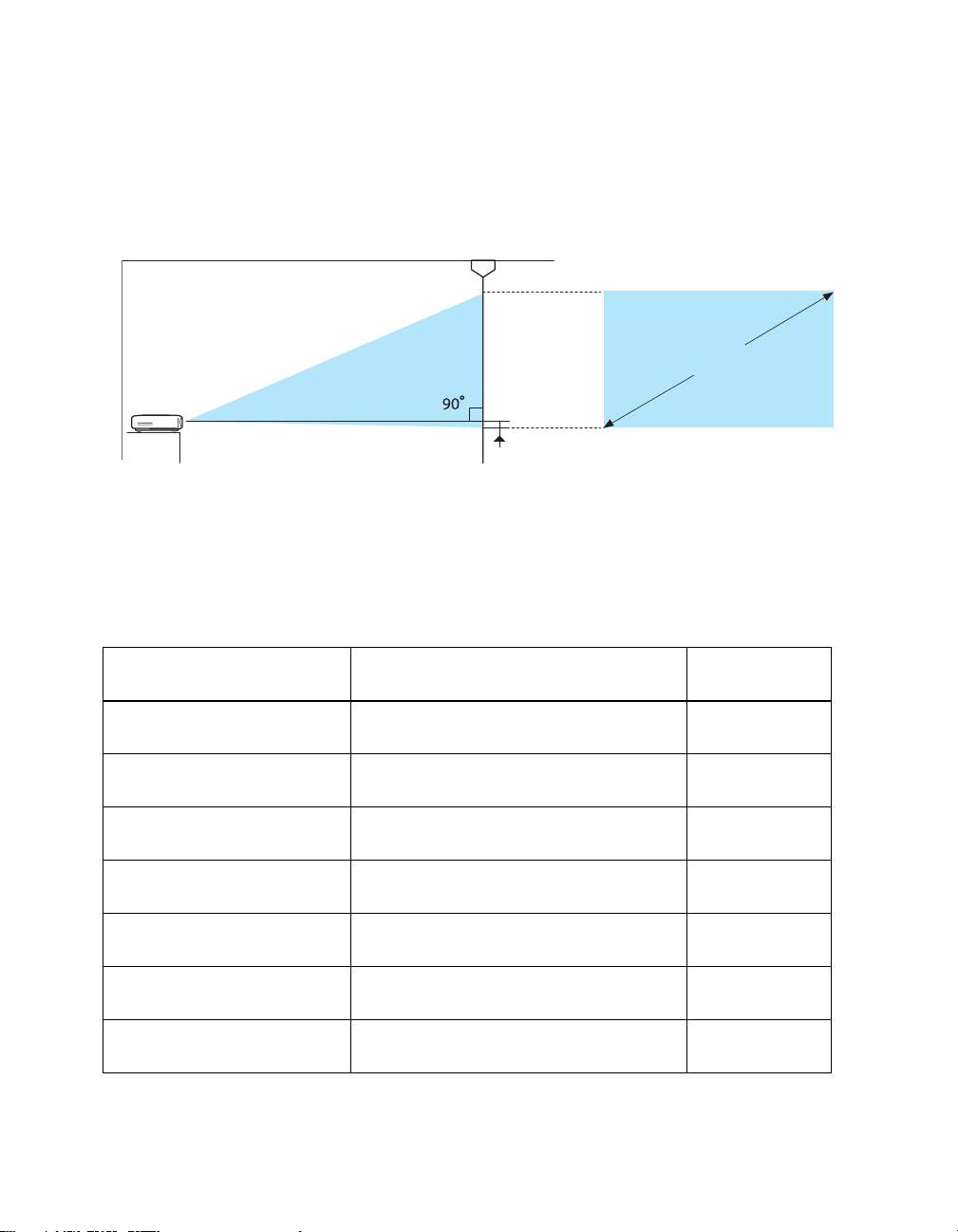

The size of the image is determined by the distance from the projector’s lens to the screen.
Depending on your display settings and how you use the zoom ring, the actual size may differ.
Use these tables as a guide for projector placement:
16:9 aspect ratio
Projection distance
Diagonal image size
(width × height) Offset
3.8 to 6.2 feet
116 to 190 cm
40 in. (35 × 20 in.)
101.6 cm (89 × 50 cm)
0 in.
(0 cm)
5.8 to 9.4 feet
176 to 287 cm
60 in. (51 × 30 in.)
152.4 cm (130 × 75 cm)
0 in.
(0 cm)
7.7 to 12.6 feet
235 to 383 cm
80 in. (71 × 39 in.)
203.2 cm (180 × 100 cm)
0 in.
(0 cm)
9.7 to 15.7 feet
295 to 480 cm
100 in. (87 × 47 in.)
254 cm (220 × 120 cm)
0 in.
(0 cm)
11.6 to 18.9 feet
354 to 576 cm
120 in. (106 × 59 in.)
304.9 cm (270 × 150 cm)
0 in.
(0 cm)
14.6 to 23.7 feet
444 to 721 cm
150 in. (130 × 75 in.)
361 cm (330 × 190 cm)
0.3 in.
(1 cm)
17.5 to 28.4 feet
533 to 866 cm
180 in. (173 × 98 in.)
457 cm (440 × 250 cm)
0.3 in.
(1 cm)
Projection distance Offset Offset refers to distance from
bottom of image to center of
lens.
Diagonal image size
pl3010_3010e_UG.book Page 13 Wednesday, September 7, 2011 6:28 PM

14 Setting Up the Projector
To determine the exact image size when you know the projection distance (or the exact
projection distance when you know the desired image size), you can use the Image Size
Calculator. This program is available on the Epson website at epson.com/support (U.S.) or
epson.ca/support (Canada).
Also keep these considerations in mind:
■Make sure there is plenty of space for ventilation around and under the projector. Do not
set the projector on top of loose materials that could block the vents underneath.
■Make sure the projector is within 9.8 feet (3 m) of a grounded electrical outlet or
extension cord.
4:3 aspect ratio
Projection distance
Diagonal image size
(width × height) Offset
4.7 to 7.6 feet
143 to 233 cm
40 in. (32 × 24 in.)
101.6 cm (81 × 61 cm)
0 in.
(0 cm)
7.1 to 11.5 feet
216 to 352 cm
60 in. (47 × 35 in.)
152.4 cm (120 × 90 cm)
0 in.
(0 cm)
9.5 to 15.4 feet
289 to 470 cm
80 in. (63 × 47 in.)
203.2 cm (160 × 120 cm)
0 in.
(0 cm)
11.8 to 19.3 feet
361 to 588 cm
100 in. (79 × 59 in.)
254 cm (200 × 150 cm)
0 in.
(0 cm)
14.2 to 23.2 feet
434 to 706 cm
120 in. (94 × 71 in.)
304.8 cm (240 × 180 cm)
0.3 in.
(1 cm)
17.8 to 29 feet
544 to 883 cm
150 in. (118 × 91 in.)
381 cm (300 × 230 cm)
0.3 in.
(1 cm)
23.8 to 38.7 feet
726 to 1179 cm
200 in. (161 × 118 in.)
508 cm (410 × 300 cm)
0.3 in.
(1 cm)
pl3010_3010e_UG.book Page 14 Wednesday, September 7, 2011 6:28 PM

Setting Up the Projector 15

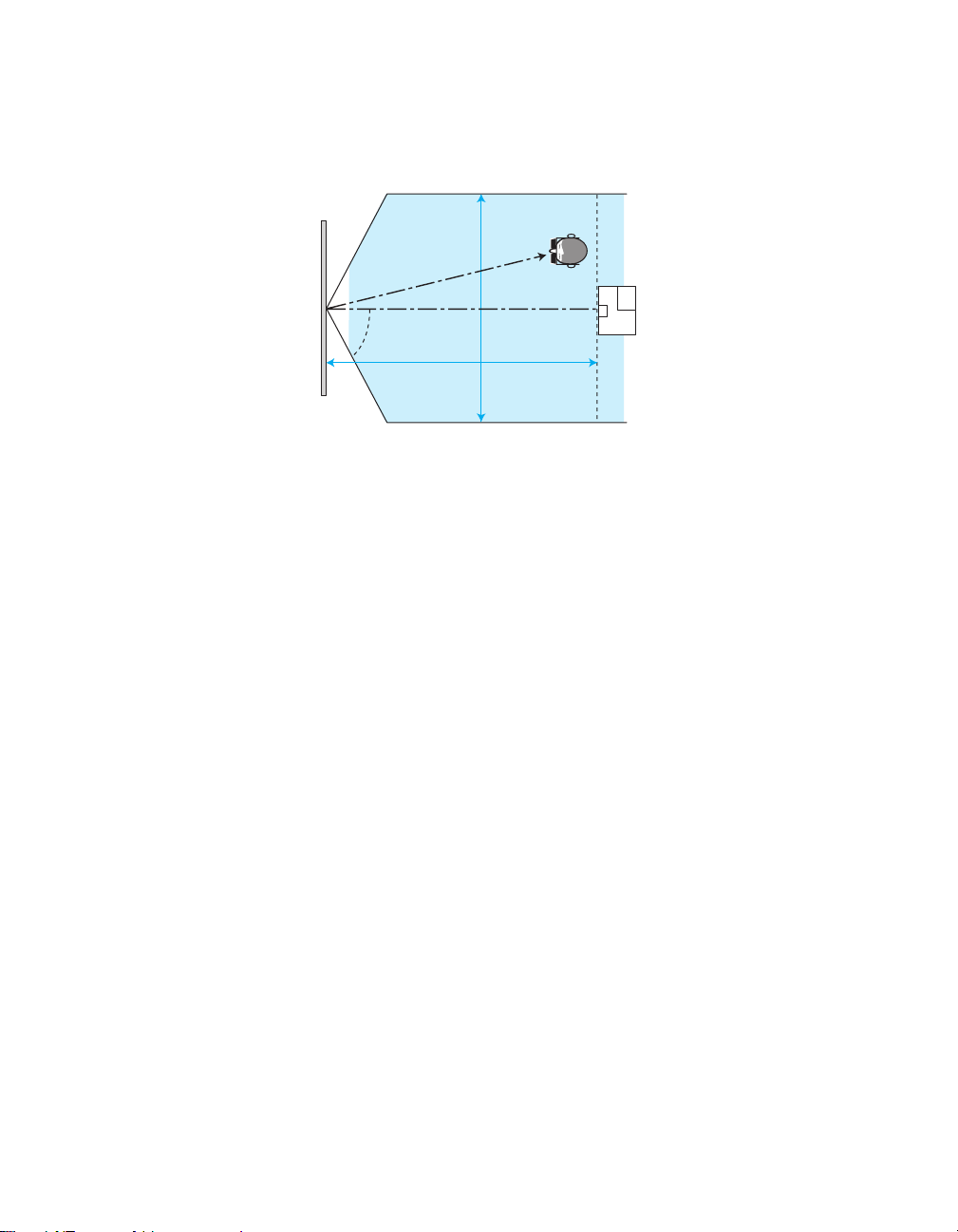

In order to view 3D images correctly, 3D glasses must be worn within proper range of the
projector. Use the image below to determine the ideal distance for 3D projection (the shading
represents the 3D viewing area):
Use the optional external 3D emitter if you cannot view the 3D image normally or if the
projector is located more than 16.5 feet (5 m) from the viewing area. See “Optional
Accessories” on page 10 for ordering information.
60º
16.5 ft (5 m)
13 ft (4 m)
pl3010_3010e_UG.book Page 15 Wednesday, September 7, 2011 6:28 PM

16 Setting Up the Projector
Installing the Projector
To install the projector, you first need to determine the location, based on the size of your
screen (maximum diagonal image size). Use the tables on page 13 as a guide to positioning the
projector.
To suspend the projector from a ceiling, you will need the optional projector mount designed
for the projector. See page 10 for ordering information. Follow the instructions included with
the mount to install the projector.
Warning: When installing or adjusting the ceiling mount, do not use adhesives to prevent the
screws from loosening and do not use any type of oil or lubricant. These may cause the projector
casing to crack and the projector may fall, causing serious injury and serious damage to the
projector.
If you install the projector on the ceiling, you will need to invert the picture so that it appears
right side up. Follow these steps:
1. Press the Menu button on the remote control.
2. Open the Settings menu, then select Projection.
3. Select Front/Ceiling.
4. Press the Menu button to exit the menu system.
pl3010_3010e_UG.book Page 16 Wednesday, September 7, 2011 6:28 PM

Setting Up the Projector 17
The following illustrations show the dimensions of the projector:
Center of lens
3.2 in.
(80 mm)
5.5 in.
(139.6 mm)
8.3 in. (210 mm)
16.5 in. (420 mm)
11.8 in. (300 mm)
2.4 in.
(60 mm) 5.9 in. (150 mm)
2.8 in.
(70 mm)
14.4 in.
(365 mm)
6.3 in.
(160 mm)
pl3010_3010e_UG.book Page 17 Wednesday, September 7, 2011 6:28 PM

18 Setting Up the Projector
Connecting the Cables
Connecting Video and Computer Equipment
You can connect the projector to many types of video equipment, such as a Blu-ray
Disc™/DVD player, digital tuner, cable or satellite box, video game console, camcorder, or
digital camera. You can also connect it to a desktop or laptop PC or Apple®Mac®system. For
details on compatible video formats, see page 81.

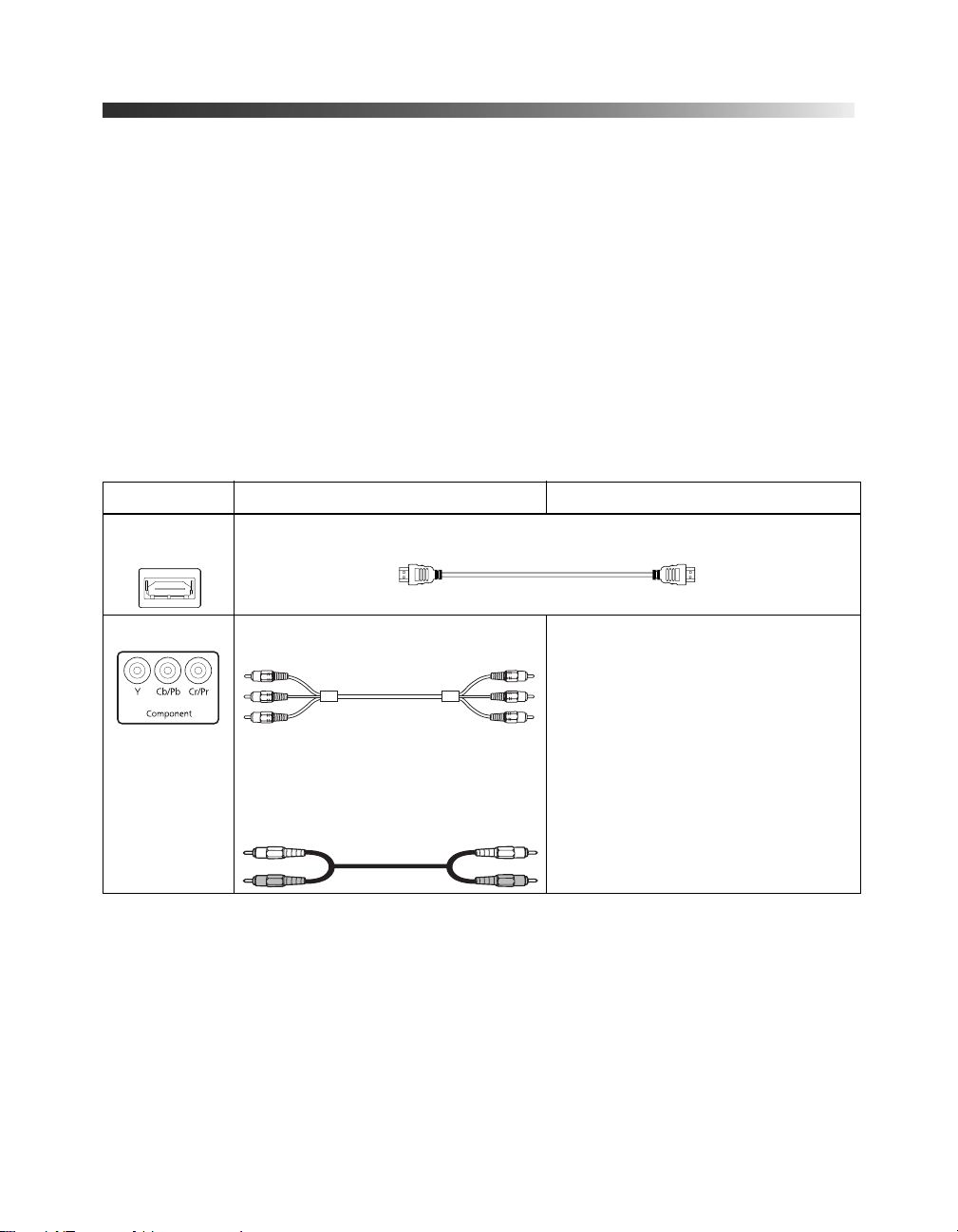

You can connect up to six pieces of equipment at the same time, using any of the
commercially available cables shown below:
Note: See page 57 for information on connecting with WirelessHD (PowerLite Home Cinema
3010e only).
Port name Video equipment connection Computer connection
HDMI 1/
HDMI 2
Use an HDMI cable:
Component Use a component video cable
(with RCA-style connectors):
Connect the cable to the three
component video ports. Match
corresponding colors between the
cable and the ports. For audio, use a
stereo RCA audio cable:
—
pl3010_3010e_UG.book Page 18 Wednesday, September 7, 2011 6:28 PM

Setting Up the Projector 19
For best results, connect your video equipment to the HDMI port, if possible. If your
equipment doesn’t support HDMI, connect it to either the Component (for high quality,
component video) or Video (for composite video) port.
When you connect an HDMI cable to the projector, it is recommended that you fasten it
with the included cable clip. Follow these steps to install the cable clip:
1. Connect the HDMI cable to one of the HDMI ports on the projector.
2. Insert the end of the cable clip anchor into the cable clip hole near the HDMI port, as
show below.
3. Place the open cable clip around the HDMI cable, but don’t lock it into place.
4. Slide the cable clip towards the projector and lock the clip onto the HDMI connector.
To remove the cable clip, unlock the clip and disconnect the HDMI cable. Then pinch the
side of the cable clip anchor and carefully pull it out of the cable clip hole.
PC — Use a Mini D-sub, 15-pin monitor cable
to connect to a computer RGB
(monitor) port:
For audio, use a stereo RCA to
mini-jack stereo (3.5 mm) audio cable:
Video Use an RCA video and audio cable: —
Port name Video equipment connection Computer connection
pl3010_3010e_UG.book Page 19 Wednesday, September 7, 2011 6:28 PM

20 Setting Up the Projector
Making Other Connections
Connect the power cable and other cables described below, depending on how you plan to
use the projector.

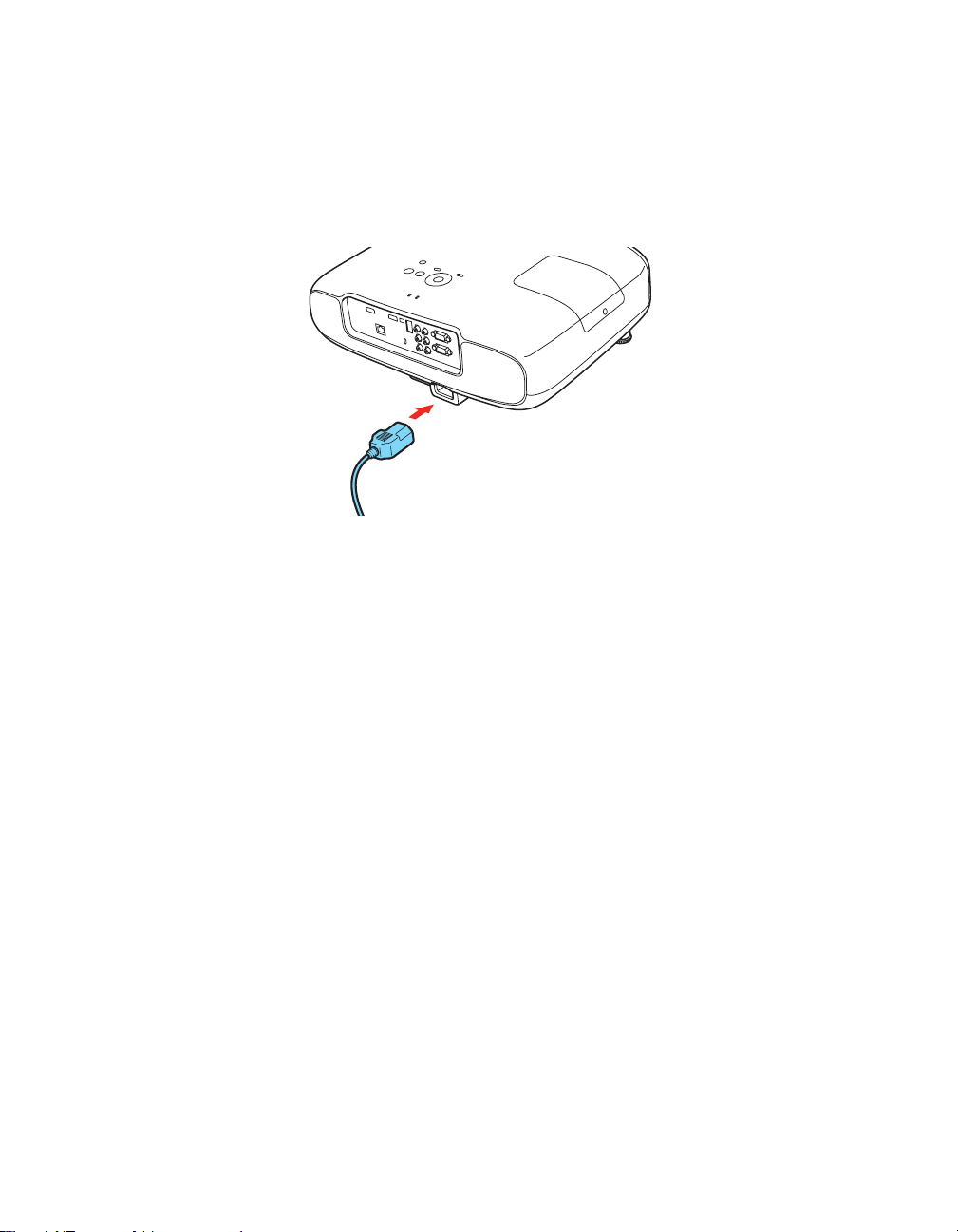

■Plug the power cable into the projector and a grounded electrical outlet.
■To use an AV controller with the projector, connect a 9-pin null modem serial cable to
the RS-232C port.
■To connect to a digital camera, flash drive, or storage device, connect the USB cable that
came with your device to both your device and to the projector’s USB port. For
information on using the projector’s Slideshow feature, see page 30.
pl3010_3010e_UG.book Page 20 Wednesday, September 7, 2011 6:28 PM
