Equinox systems Ppm3 User manual

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

Excellent Integrated System Limited

Stocking Distributor

Click to view price, real time Inventory, Delivery & Lifecycle Information:

Equinox Technologies

EQ-IOCON-3

For any questions, you can email us directly:

[email protected]

1 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

Reference

Manual

2 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

Contents

Copyright Information...........................................................................................................1

Equinox Warranty Information .............................................................................................2

Electromagnetic Compatibility (EMC) Compliance.............................................................3

Technical Support .................................................................................................................4

1.0 Introduction......................................................................................................................5

1.1 Connector Systems currently supported.......................................................................5

1.2 Programmers supported...............................................................................................5

2.0 Overview of I/O Connector Modules ..............................................................................6

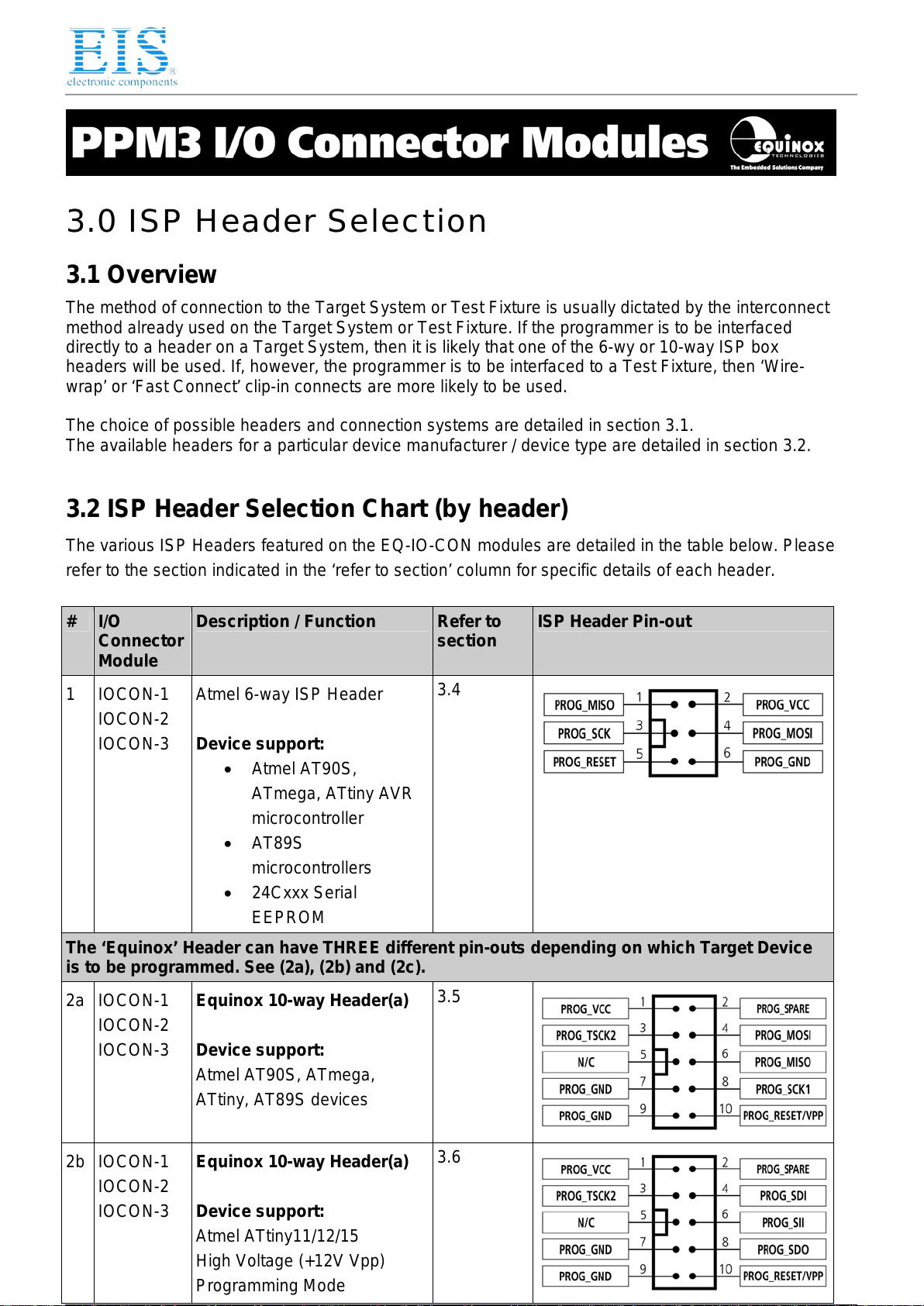

3.0 ISP Header Selection.......................................................................................................8

3.1 Overview.......................................................................................................................8

3.2 ISP Header Selection Chart (by header) ......................................................................8

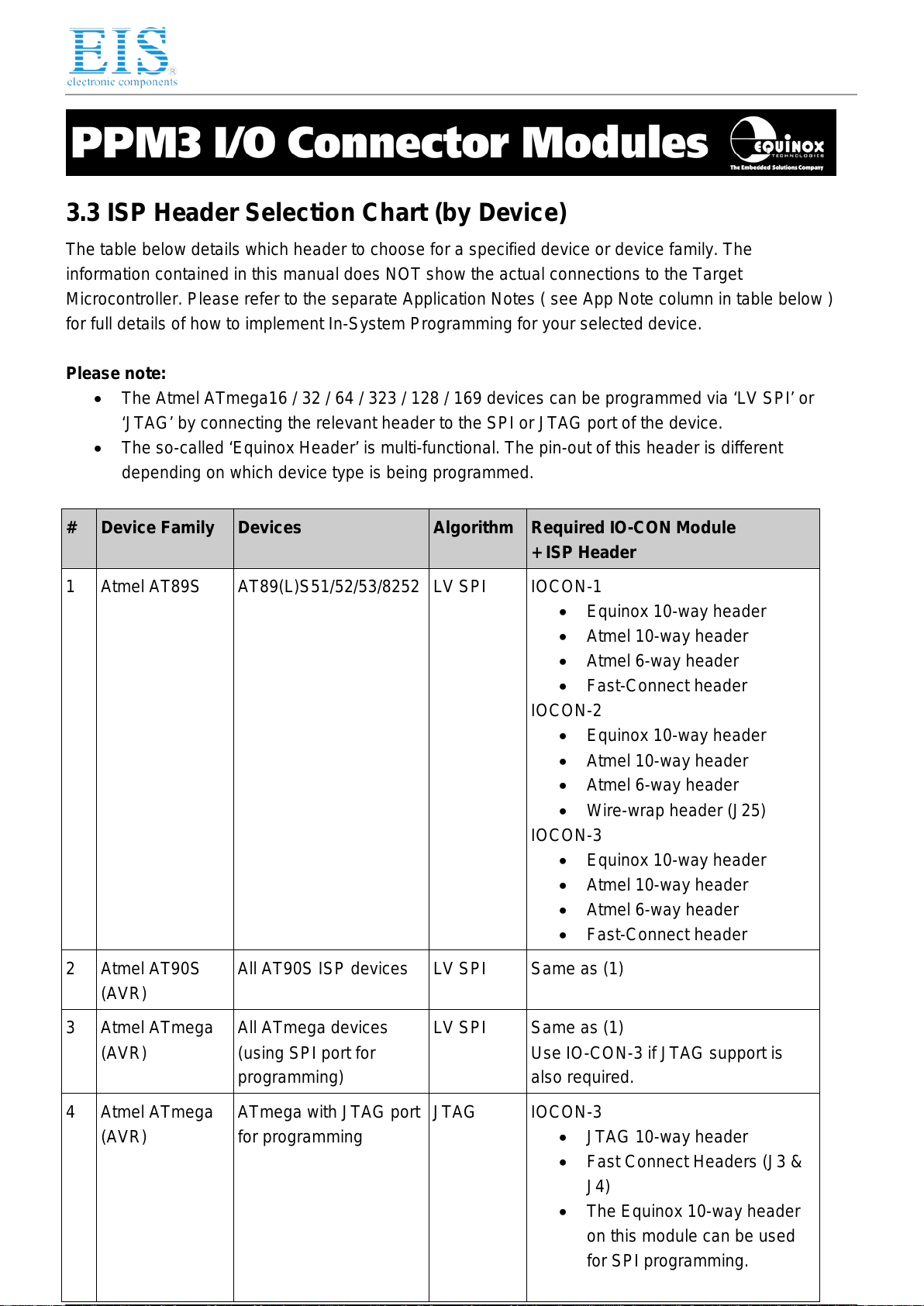

3.3 ISP Header Selection Chart (by Device).....................................................................10

3.4 Atmel 6-way ISP Header (SPI Interface) ....................................................................12

3.5 Equinox 10-way Header (Generic SPI Interface)........................................................14

3.6 Equinox 10-way Header (ATtiny11/12/15 HV Interface) .............................................16

3.7 Equinox 10-way Header (UART Boot Loader)............................................................18

3.8 Atmel 10-way Header (SPI Interface).........................................................................20

3.9 Atmel 10-way JTAG Header (JTAG Interface)............................................................22

4.0 ISP Cable considerations..............................................................................................24

5.0 Power Connections + Vcc Sense .................................................................................27

5.1 Overview.....................................................................................................................27

5.2 Vcc Option Link...........................................................................................................27

5.3 Target Vcc Sense LED ...............................................................................................27

6.0 IO-CON-1 Module...........................................................................................................28

6.1 Overview.....................................................................................................................28

6.2 Features......................................................................................................................28

6.3 Support Device Families.............................................................................................28

6.4 Connector Layout Schematic......................................................................................29

6.5 ISP Header Connectors..............................................................................................30

6.6 Clip-In Fast-Connectors..............................................................................................30

6.7 Power Connector – Screw terminals (J29)..................................................................31

7.0 IO-CON-2 Module...........................................................................................................32

7.1 Overview.....................................................................................................................32

7.2 Features......................................................................................................................32

7.3 Device Family Support................................................................................................32

8.0 IO-CON-3 Module (JTAG) ..............................................................................................35

8.1 Overview.....................................................................................................................35

8.2 Features......................................................................................................................35

8.3 Support Device Families.............................................................................................35

8.4 Connector Layout schematic ......................................................................................37

8.5 Clip-In fast Connector (J3 & J4)..................................................................................38

9.0 EQ-CALCON Module......................................................................................................40

9.1 Overview.....................................................................................................................40

9.2 Features......................................................................................................................40

3 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

9.3 Supported Device Families.........................................................................................40

9.4 Connector Layout Schematic......................................................................................41

9.5 ISP Header Connectors..............................................................................................42

9.6 Clip-In Fast-Connectors..............................................................................................42

9.7 Power Connector – Screw terminals (J29)..................................................................43

4 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008 1

Information in this document is subject to change without notice and does not represent a

commitment on the part of the manufacturer. The software described in this document is furnished

under license agreement or nondisclosure agreement and may be used or copied only in accordance

with the terms of the agreement.

It is against the law to copy the software on any medium except as specifically allowed in the license

or nondisclosure agreement.

The purchaser may make one copy of the software for backup purposes. No part of this manual may

be reproduced or transmitted in any form or by any means, electronic, mechanical, including

photocopying, recording, or information retrieval systems, for any purpose other than for the

purchaser’s personal use, without written permission.

AtmelTM and AVRTM are trademarks of the Atmel Corporation

Microsoft, MS-DOS, WindowsTM, Windows 95TM, Windows 98TM, Windows XPTM and Windows NT4TM

are registered trademarks of the Microsoft Corporation

IBM, PC and PS/2 are registered trademarks of International Business Machines Corporation

Intel, MCS 51, ASM-51 and PL/M-51 are registered trademarks of the Intel Corporation

Every effort was made to ensure accuracy in this manual and to give appropriate credit to persons,

companies and trademarks referenced herein.

Equinox guarantees that its products will be free from defects of material and workmanship under

normal use and service, and these products will perform to current specifications in accordance with,

and subject to, the Company’s standard warranty which is detailed in Equinox’s Purchase Order

Acknowledgment.

5 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

Equinox Warranty Information

This product is guaranteed by Equinox Technologies UK Limited for a period of 12 months (1 year)

after the date of purchase against defects due to faulty workmanship or materials. One guarantee

covers both parts and labour. Service under the guarantee is only provided upon presentation of

reasonable evidence that the date of the claim is within the guarantee period (e.g. completed

registration/guarantee card or a purchase receipt).

The guarantee is not valid if the defect is due to accidental damage, misuse or neglect and in the

case of alterations or repair carried out by unauthorised persons. A number of exceptions to the

warranty are listed in the ‘Exceptions to warranty’ section below. Service (during and after guarantee

period) is available in all countries where the product is distributed by Equinox Technologies UK

Limited.

Exceptions to warranty

Over-voltage damage

This warranty does not cover damage to the programmer due to voltages beyond the specified

voltage limits being applied to the ‘DC Power Input’ (CON1) or any of the ISP Headers. The user must

ensure that sufficient care is taken to avoid over-voltage and static conditions on any of the ‘ISP

Header’ I/O pins.

Over-current damage

This warranty does not cover damage to the programmer due to excessive current being drawn from

the programmer power supply. The user must ensure that there is sufficient over-current protection

within the test fixture to protect against short circuit loads.

Short-circuit damage

This warranty does not cover damage to the programmer due to short-circuit loads being placed

across programmer I/O lines.

Warning!

Any damage caused to the programmer by Electrostatic Discharge (ESD) through inadequate

earthing is not covered under the warranty of the product.

6 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008 3

Electromagnetic Compatibility (EMC)

Compliance

The ‘IO-CON-1 / 2 / 3 Modules’ are CE Approved products. They are designed for use in an ESD

controlled environment i.e. development or production. This means, therefore, that the user must

ensure that there is no possibility of damage from electrostatic discharge (ESD). Since the devices

and equipment to which this product is likely to be connected may well themselves be susceptible to

ESD, this should not pose any difficulty.

For example, if you are handling microcontrollers and EEPROMS etc. then you will already be used to

appropriate precautions, such as the use of anti-static mats, wrist straps and so on. You should treat

your ‘IO-CON Modules’ with the same care as you would these types of devices. Always ensure that

you are not yourself carrying a static charge before handling the product. Wearing an earthed anti-

static wrist strap is recommended.

Equinox have taken great care in designing this product to be compliant with the European EMC

directive. When using the equipment be sure to follow the instructions provided. Although RF

emissions are within prescribed limits, care should be taken if you are using the product near to

sensitive apparatus. If you experience any difficulty please refer to Equinox Technical Support.

ESD Points to remember

•Work in a static-free environment.

•Wear an earthed wrist strap when handling either the programmer and/or

any programmable device.

•Ensure that the PC, programmer and Target system are connected to the

same EARTH (0V) potential.

•Do NOT plug the ISP cable of the programmer into a Target System when

the Target power is ON.

Warning!

Any damage caused to the programmer by Electrostatic Discharge (ESD) through inadequate

earthing is not covered under the warranty of the product.

7 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

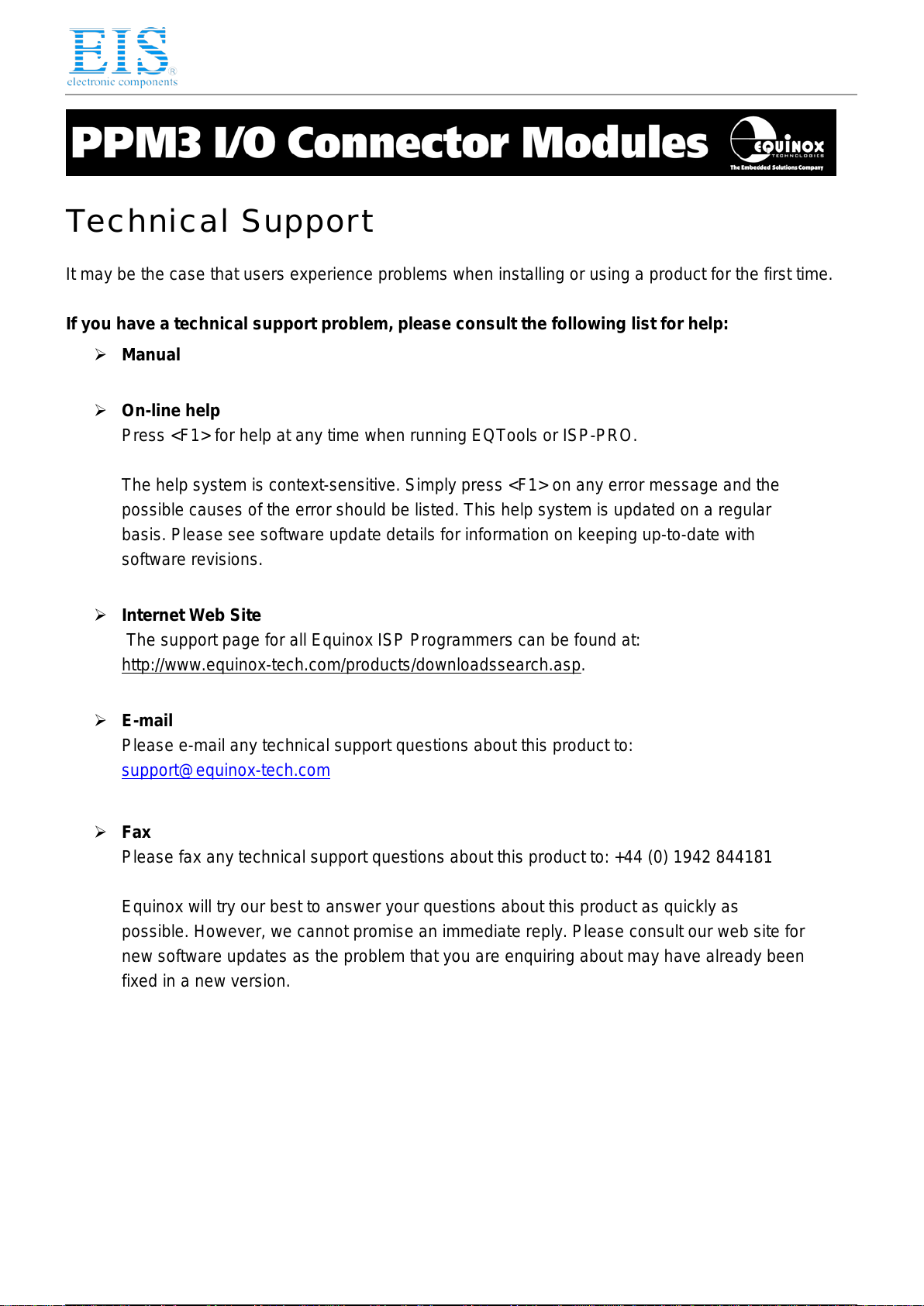

Technical Support

It may be the case that users experience problems when installing or using a product for the first time.

If you have a technical support problem, please consult the following list for help:

¾Manual

¾On-line help

Press <F1> for help at any time when running EQTools or ISP-PRO.

The help system is context-sensitive. Simply press <F1> on any error message and the

possible causes of the error should be listed. This help system is updated on a regular

basis. Please see software update details for information on keeping up-to-date with

software revisions.

¾Internet Web Site

The support page for all Equinox ISP Programmers can be found at:

http://www.equinox-tech.com/products/downloadssearch.asp.

¾E-mail

Please e-mail any technical support questions about this product to:

support@equinox-tech.com

¾Fax

Please fax any technical support questions about this product to: +44 (0) 1942 844181

Equinox will try our best to answer your questions about this product as quickly as

possible. However, we cannot promise an immediate reply. Please consult our web site for

new software updates as the problem that you are enquiring about may have already been

fixed in a new version.

8 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

1.0 Introduction

Equinox has developed a range of plug-in user-replaceable ‘I/O Connector Modules’ which are

designed to interface the Equinox ‘PPM3 Programming Module’ to a variety of different Target

Systems. This plug-in approach allows the required connection system to be tailored to a particular

Target System or Test Fixture without the requirement for unwiring the Test Fixture.

The currently available ‘I/O Connector Modules’ are as follows:

•EQ-IOCON-1

•EQ-IOCON-2

•EQ-IOCON-3

•EQ-CALCON

Features:

•Plug-in ‘I/O Connector Modules’ – simply plugs into the mating sockets on the PPM3 Module

•Different connector methods for interfacing to the Target System can be implemented by

simply plugging in the relevant ‘I/O Connector Module’.

•Programmer or Test Fixture can be easily swapped out without the requirement for unwiring

the Test Fixture

•One programmer can easily be used with multiple Test Fixtures

•New connection systems can be implemented using a new ‘I/O Connector Module’ without

requiring any redesign of the PPM3 Module.

•IO-CON-2 Module supports ‘wire-wrap’ connections

•IO-CON-1 / -2 support clip-in wire ‘Fast Connect’ wiring system

•EQ-CALCON Module provides a 32kHz oscillator under programmer control

•Target Vcc LED - illuminates when the ‘Target Vcc’ is detected

•Auxiliary Power available via screw-terminal connections

1.1 Connector Systems currently supported

The following ISP connector systems are currently supported

•Atmel 10-way ISP Header (SPI)

•Atmel 6-way ISP Header (SPI)

•Atmel 10-way ISP Header (JTAG)

•Equinox 10-way ISP Header for Atmel T89C51Rx2 microcontrollers

•Equinox 10-way ISP Header for Philips P89C51Rx2 and P89C66x microcontrollers

•Wire-wrap (all devices)

•Fast-Connect - plug-in wired connectors (all devices)

•24Cxxx Serial EEPROM programming via I2C Interface is supported on all ISP Headers

1.2 Programmers supported

The I/O Connector Modules are compatible with the following Equinox programmers:

•PPM3 MK1 – Production ISP Module Version 1

•PPM3 MK2 – Production ISP Module Version 2

9 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

2.0 Overview of I/O Connector Modules

There are currently four different I/O Connector Modules available as detailed in the table below:

Order Code Description

EQ-IOCON-1

I/O Connector Module 1 (SPI) – Fast Connect Version

I/O connector module for In-System Programming (ISP) of Atmel microcontrollers

using SPI protocol (Fast Connect version)

This module plugs into the PPM3 and provides the relevant I/O connectors for SPI

programming of Atmel devices.

Features:

•Plugs into suitable Equinox programmer eg. PPM3 Module

•Atmel 10-way IDC ISP Header

•Atmel 6-way IDC ISP Header

•Equinox 10-way IDC ISP header

•‘Fast Connect’ clip-in connectors for direct wiring to Test Fixture i.e wires

from bed-of-nails probe wires

•Screw terminals for power connections

•Target Vcc Status LED

•Link to connect / isolate the programmer Vcc from the Target Vcc

EQ-IOCON-2

I/O Connector Module 2 (SPI) – Wire-wrap version

I/O connector module for In-System Programming (ISP) of Atmel microcontrollers

using SPI protocol (wire-wrap version)

Features:

•Plugs into suitable Equinox programmer e.g. PPM3 Module

•Atmel 10-way IDC ISP Header

•Atmel 6-way IDC ISP Header

•Equinox 10-way IDC ISP header

•Single-in-line header with all programmer I/O brought out for wire-wrapping

to bed-of-nails probe wires

•Screw terminals for power connections

•Target Vcc Status LED

•Link to connect / isolate the programmer Vcc from the Target Vcc

10 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

EQ-IOCON-3

I/O Connector Module 3 (JTAG) – Fast Connect Version

I/O connector module for In-System Programming (ISP) of Atmel microcontrollers

using JTAG protocol

Features:

•Plugs into suitable Equinox programmer e.g. PPM3 Module

•Atmel 10-way JTAG IDC ISP connector (same as JTAG-ICE)

•Atmel 6-way IDC ISP Header

•Equinox 10-way IDC ISP header

•Single-in-line header with all programmer I/O brought out for wire-wrapping

to bed-of-nails probe wires

•Screw terminals for power connections

•Target Vcc Status LED

•Link to connect / isolate the programmer Vcc from the Target Vcc

Please note

The ‘Atmel AVR JTAG License’ (Order code: PPM3A1-UPG7) is also required to

enable the PPM3 to program Atmel AVR devices via JTAG.

EQ-CALCON

EQ-CALCON Module

The EQ-CALCON Module is a special plug-in I/O Connector Module for the PPM3-

MK2 programmer which is used to facilitate very accurate calibration of the Internal

Oscillator of an Atmel ATmega or ATtiny AVR microcontroller. The module features

an on-board high accuracy 32kHz Oscillator Module which can be connected to the

target AVR microcontroller MOSI pin during the Oscillator Calibration Procedure as

described in the Atmel Application Note 'AVR053: Calibration of the Internal

Oscillator'.

Features:

•Plugs into suitable Equinox programmer e.g. PPM3 Module

•Atmel 10-way JTAG IDC ISP connector (same as JTAG-ICE)

•Atmel 6-way IDC ISP Header

•Equinox 10-way IDC ISP header

•Screw terminals for power connections

•Target Vcc Status LED

•Link to connect / isolate the programmer Vcc from the Target Vcc

Please note

The use of this module requires development of / purchase of suitable ‘Calibration

Firmware’ for the chosen ATmega AVR microcontroller.

11 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

3.0 ISP Header Selection

3.1 Overview

The method of connection to the Target System or Test Fixture is usually dictated by the interconnect

method already used on the Target System or Test Fixture. If the programmer is to be interfaced

directly to a header on a Target System, then it is likely that one of the 6-wy or 10-way ISP box

headers will be used. If, however, the programmer is to be interfaced to a Test Fixture, then ‘Wire-

wrap’ or ‘Fast Connect’ clip-in connects are more likely to be used.

The choice of possible headers and connection systems are detailed in section 3.1.

The available headers for a particular device manufacturer / device type are detailed in section 3.2.

3.2 ISP Header Selection Chart (by header)

The various ISP Headers featured on the EQ-IO-CON modules are detailed in the table below. Please

refer to the section indicated in the ‘refer to section’ column for specific details of each header.

# I/O

Connector

Module

Description / Function Refer to

section ISP Header Pin-out

1 IOCON-1

IOCON-2

IOCON-3

Atmel 6-way ISP Header

Device support:

•Atmel AT90S,

ATmega, ATtiny AVR

microcontroller

•AT89S

microcontrollers

•24Cxxx Serial

EEPROM

3.4

The ‘Equinox’ Header can have THREE different pin-outs depending on which Target Device

is to be programmed. See (2a), (2b) and (2c).

2a IOCON-1

IOCON-2

IOCON-3

Equinox 10-way Header(a)

Device support:

Atmel AT90S, ATmega,

ATtiny, AT89S devices

3.5

2b IOCON-1

IOCON-2

IOCON-3

Equinox 10-way Header(a)

Device support:

Atmel ATtiny11/12/15

High Voltage (+12V Vpp)

Programming Mode

3.6

12 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008 9

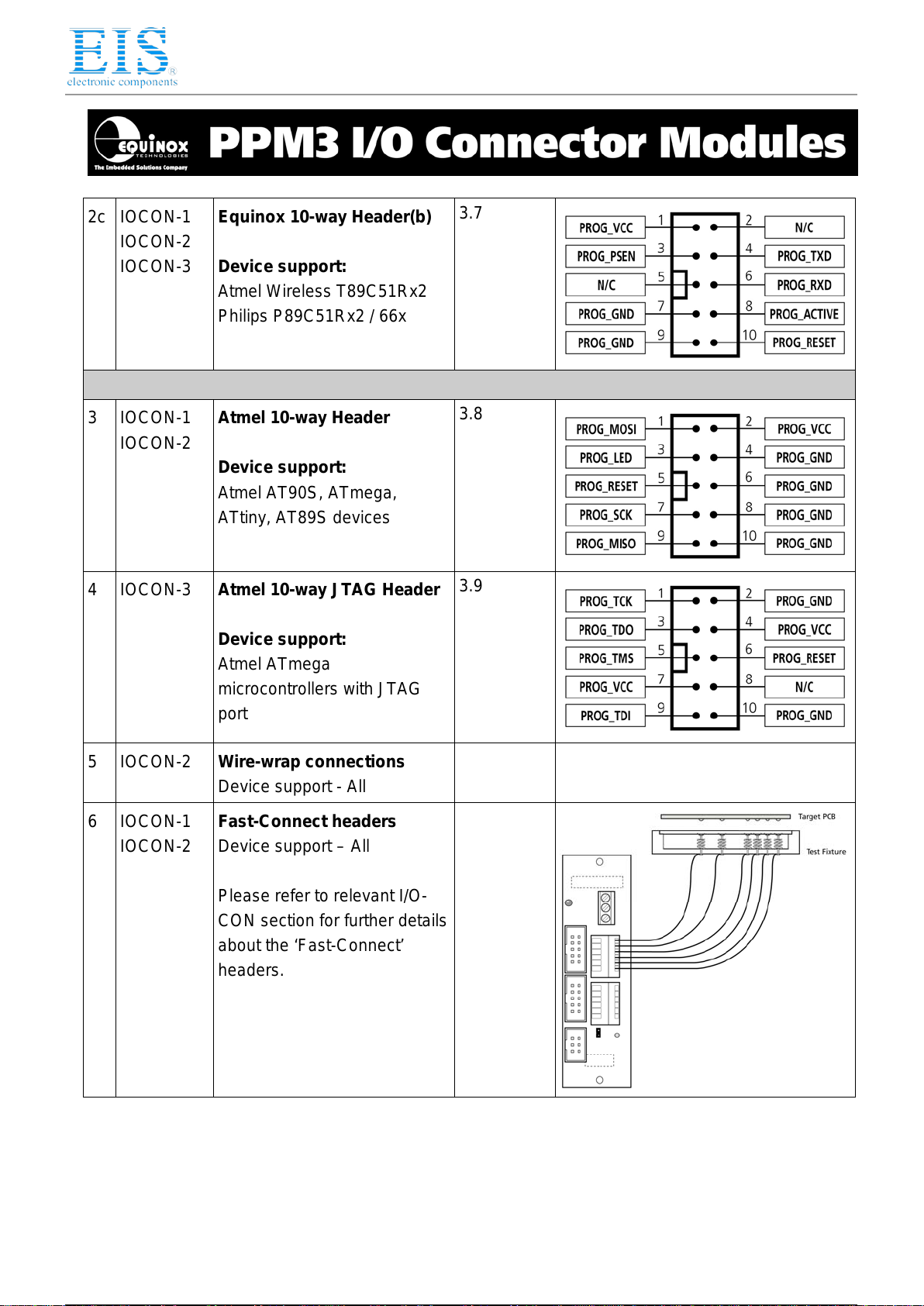

2c IOCON-1

IOCON-2

IOCON-3

Equinox 10-way Header(b)

Device support:

Atmel Wireless T89C51Rx2

Philips P89C51Rx2 / 66x

3.7

3 IOCON-1

IOCON-2

Atmel 10-way Header

Device support:

Atmel AT90S, ATmega,

ATtiny, AT89S devices

3.8

4 IOCON-3

Atmel 10-way JTAG Header

Device support:

Atmel ATmega

microcontrollers with JTAG

port

3.9

5 IOCON-2 Wire-wrap connections

Device support - All

6 IOCON-1

IOCON-2 Fast-Connect headers

Device support – All

Please refer to relevant I/O-

CON section for further details

about the ‘Fast-Connect’

headers.

13 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

3.3 ISP Header Selection Chart (by Device)

The table below details which header to choose for a specified device or device family. The

information contained in this manual does NOT show the actual connections to the Target

Microcontroller. Please refer to the separate Application Notes ( see App Note column in table below )

for full details of how to implement In-System Programming for your selected device.

Please note:

•The Atmel ATmega16 / 32 / 64 / 323 / 128 / 169 devices can be programmed via ‘LV SPI’ or

‘JTAG’ by connecting the relevant header to the SPI or JTAG port of the device.

•The so-called ‘Equinox Header’ is multi-functional. The pin-out of this header is different

depending on which device type is being programmed.

# Device Family Devices Algorithm Required IO-CON Module

+ ISP Header

1 Atmel AT89S AT89(L)S51/52/53/8252 LV SPI IOCON-1

•Equinox 10-way header

•Atmel 10-way header

•Atmel 6-way header

•Fast-Connect header

IOCON-2

•Equinox 10-way header

•Atmel 10-way header

•Atmel 6-way header

•Wire-wrap header (J25)

IOCON-3

•Equinox 10-way header

•Atmel 10-way header

•Atmel 6-way header

•Fast-Connect header

2 Atmel AT90S

(AVR) All AT90S ISP devices LV SPI Same as (1)

3 Atmel ATmega

(AVR) All ATmega devices

(using SPI port for

programming)

LV SPI Same as (1)

Use IO-CON-3 if JTAG support is

also required.

4 Atmel ATmega

(AVR) ATmega with JTAG port

for programming JTAG IOCON-3

•JTAG 10-way header

•Fast Connect Headers (J3 &

J4)

•The Equinox 10-way header

on this module can be used

for SPI programming.

14 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008 11

5 Atmel ATtiny

(Low Voltage) All ATtiny ISP devices LV SPI Same as (1)

6 Atmel ATtiny

(High Voltage) ATtiny11/12/15L HV SPI IO-CON-1

•Equinox 10-way header

IO-CON-2

•Equinox 10-way header

IO-CON-3

•Equinox 10-way header

7 Atmel W&uC

(Temic)

T89C51Rx2

T89CRB2/RC2/RD2 UART

Boot

Loader

Same as (6)

8 Philips

P89C51Rx2 P89CRB2/RC2/RD2 UART

Boot

Loader

Same as (6)

9 Philips P89C66x P89C662/4/8 UART

Boot

Loader

Same as (6)

10 24Cxxx 24Cxxx Serial EEPROM

Memory Devices I2C The 24Cxxx devices can be

programmed using any connector on

any I/O Connector Module:

•IO-CON-1

•IO-CON-2

•IO-CON-3

15 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

3.4 Atmel 6-way ISP Header (SPI Interface)

This connection method is suitable for interfacing the programmer to a Target System which features

the following:

•Atmel 6-way IDC ISP Header

•An Atmel device which features the 3-wire SPI + RESET Programming Interface

The 6-way IDC box header is the most compact header i.e. takes up least space on the Target

System and so is very popular for designs where PCB space is limited. Unfortunately, this connection

method does not have any pins spare for extra functionality such as the SCK2 Oscillator so it should

only be used if this functionality is not required.

To implement this connection method, simply plug a 6-way ISP cable (not supplied) into the 6-way

ISP header and plug the other end of the cable into the matching header on the Target System.

Figure 4.4.1 - Atmel 6-way IDC Header (J3) viewed from above

Warning!

Connecting to the wrong ISP Header may cause catastrophic

damage to the Programmer & Target System

No Programmer

Pin name Programmer

Input /

Output

Connect to

pin on

Target Device

Description

1 PROG_MISO I MISO

(except for

Tmega103/128/64

– connect to TXD

pin instead)

Master In Slave Out

This is the SPI data input pin to the

programmer. This pin should be

connected to the MISO pin on the Target

Microcontroller.

2 PROG_VCC P TARGET_VCC Target Vcc

This pin should be connected to the

Target System Vcc. This voltage could be

used to power the programmer depending

on the settings of the power switch/jumper

on the programmer.

3 PROG_SCK1 O SCK SPI Serial Clock Output

This is the SPI clock output signal.

4 PROG_MOSI O MOSI

(except for

Tmega103/128/64

– connect to RXD

pin instead)

Master Out Slave In

This is the SPI data output pin from the

programmer. This pin should be

connected to the MOSI pin on the Target

Microcontroller.

16 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008 13

5 PROG_RESET O RESET Target RESET control pin

This pin controls the Target Device

RESET pin. It will driven HIGH/LOW

according to the device type and settings

in the ‘Pre-program State Machine’ tab in

the Eqtools project.

6 PROG_GND P GROUND Ground Connection

Common ground connection between

PROGRAMMER and Target System.

Key

O - Output from programmer to Target Device

I - Input to programmer from Target Device

P - Passive e.g. GROUND and power rails

N/C - Not connected

17 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

3.5 Equinox 10-way Header (Generic SPI Interface)

This connection method is suitable for interfacing the programmer to a Target System which features

the following:

•Equinox 10-way IDC ISP Header

•An Atmel device which features the 3-wire SPI + RESET Programming Interface

This is the favoured ISP connector as it allows the following additional functions:

•Application of +12V Vpp for ATtiny High Voltage Serial Programming

•SCK2 Oscillator for clocking devices during programming

•Spare I/O pin which could be used for SPI SLAVE SELECT or to drive an LED on the Target

System

To implement this connection, simply plug the 10-way ISP cable into the header marked ‘Equinox’

and plug the other end of the cable into the matching header on the Target System.

Figure 4.5.1 – Equinox 10-way IDC Header (J8) viewed from above

Warning!

1. It is possible for +12V to be output on pin 10 of this

connector when programming ATtiny11/12/15 devices.

2. Connecting to the wrong ISP Header may cause

catastrophic damage to the Programmer & Target

System

No Programmer

Pin name Programmer

Input /

Output

Connect to

pin on

Target Device

Description

1 PROG_VCC P TARGET_VCC Target VCC

This pin should be connected to the

Target System Vcc. This voltage

could be used to power the

programmer depending on the

settings of the power switch/jumper

on the programmer.

2 PROG_SPARE - No connect Spare Programmer I/O pin

This pin is currently a spare I/O pin

which is not used during SPI

programming. In order to use this pin,

the pin state must be setup in the

EQTools <Pre-programming State

Machine> tab.

18 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008 1

3 PROG_TSCK2

O XTAL1

Only connect this pin if

you are using the

SCK2 Clock Output to

clock the Target

Device during

programming !

SCK2 Clock Output (*Optional*)

This output signal can be used to

supply an external clock signal

(SCK2) to the target microcontroller.

This function must be enabled in the

EQTools <Pre-programming State

Machine> tab. If the SCK2 oscillator

is not being used, then the pin could

be used as a spare output pin.

4 PROG_MOSI O MOSI

(except for

ATmega103/128/64 –

connect to RXD pin

instead)

Master Out Slave In

This is the SPI data output pin from

the programmer. This pin should be

connected to the MOSI pin on the

Target Microcontroller.

5 N/C O N/C Not connected

6 PROG_MISO I MISO

(except for

ATmega103/128/64 –

connect to TXD pin

instead)

Master In Slave Out

This is the SPI data input pin to the

programmer. This pin should be

connected to the MISO pin on the

Target Microcontroller.

7 PROG_GND P GROUND Ground Connection

Common ground connection between

PROGRAMMER and Target System.

8 PROG_SCK1 O SCK SPI Serial Clock Output

This is the SPI clock output signal

used to clock data into / out of the

Target Device.

9 PROG_GND P GROUND Ground Connection

Common ground connection between

PROGRAMMER and Target System.

10 PROG_RESET O RESET Target RESET control pin

This pin controls the Target Device

RESET pin. It will driven HIGH/LOW

according to the device type and

settings in the <Pre-program State

Machine> tab in the Eqtools project.

Warning!

During ‘High Voltage Serial

Programming’ of the Atmel

ATtiny11/12/15 microcontrollers, a

+12V Vpp voltage is generated by the

programmer on this pin.

O - Output from programmer to Target Device

I - Input to programmer from Target Device

P - Passive e.g. GROUND and power rails

N/C - Not connected

19 / 47

Distributor of Equinox Technologies: Excellent Integrated System Limited

Datasheet of EQ-IOCON-3 - MOD PPM3 CONN-3 I/O ATMEGA JTAG

I/O Connector Modules (IO-CON) for the PPM3 Programming Module – V1.04 – 1st April 2008

3.6 Equinox 10-way Header (ATtiny11/12/15 HV Interface)

This connection method is suitable for interfacing the programmer to a Target System which features

the following:

•Equinox 10-way IDC ISP Header

•An Atmel ATtiny microcontroller e.g. ATtiny11/12/15

•Suitable connections to implement ‘High Voltage Serial Programming Mode’.

The connector supports programming of the Atmel ATtiny11/12/15 microcontrollers in ‘High Voltage

Serial Programming Mode’. This mode requires that a +12.0V Vpp voltage is applied to the RESET

pin of the target device in order to enter programming mode.

To implement this connection, simply plug the 10-way ISP cable into the 10-way header marked

‘Equinox’ and plug the other end of the cable into the matching header on the Target System. Please

ensure that you have made the correct connections from the ISP Header to your Target Device.

Figure 4.6.1 – Equinox 10-way IDC Header (J8) viewed from above

Warning!

1. It is possible for +12V to be output on pin 10 of this

connector when programming ATtiny11/12/15 devices.

2. Connecting to the wrong ISP Header may cause

catastrophic damage to the Programmer & Target

System

No Programmer

Pin name Programmer

Input /

Output

Connect to

pin on

Target Device

Description

1 PROG_VCC P TARGET_VCC Target VCC

This pin should be connected to

the Target System Vcc. This

voltage could be used to power

the programmer depending on the

settings of the power

switch/jumper on the programmer.

2 PROG_SPARE - No connect Spare Programmer I/O pin

This pin is currently a spare I/O pin

which is not used during SPI

programming. In order to use this

pin, the pin state must be set up in

the EQTools <Pre-programming

State Machine> tab.

3 PROG_TSCK2

O XTAL1

SCK2 Clock Output

This output pin is used to supply

an external clock signal (SCK2) to

the target microcontroller.

20 / 47
