Equinox Systems Fusion Saber User manual

Order code: EQLED070

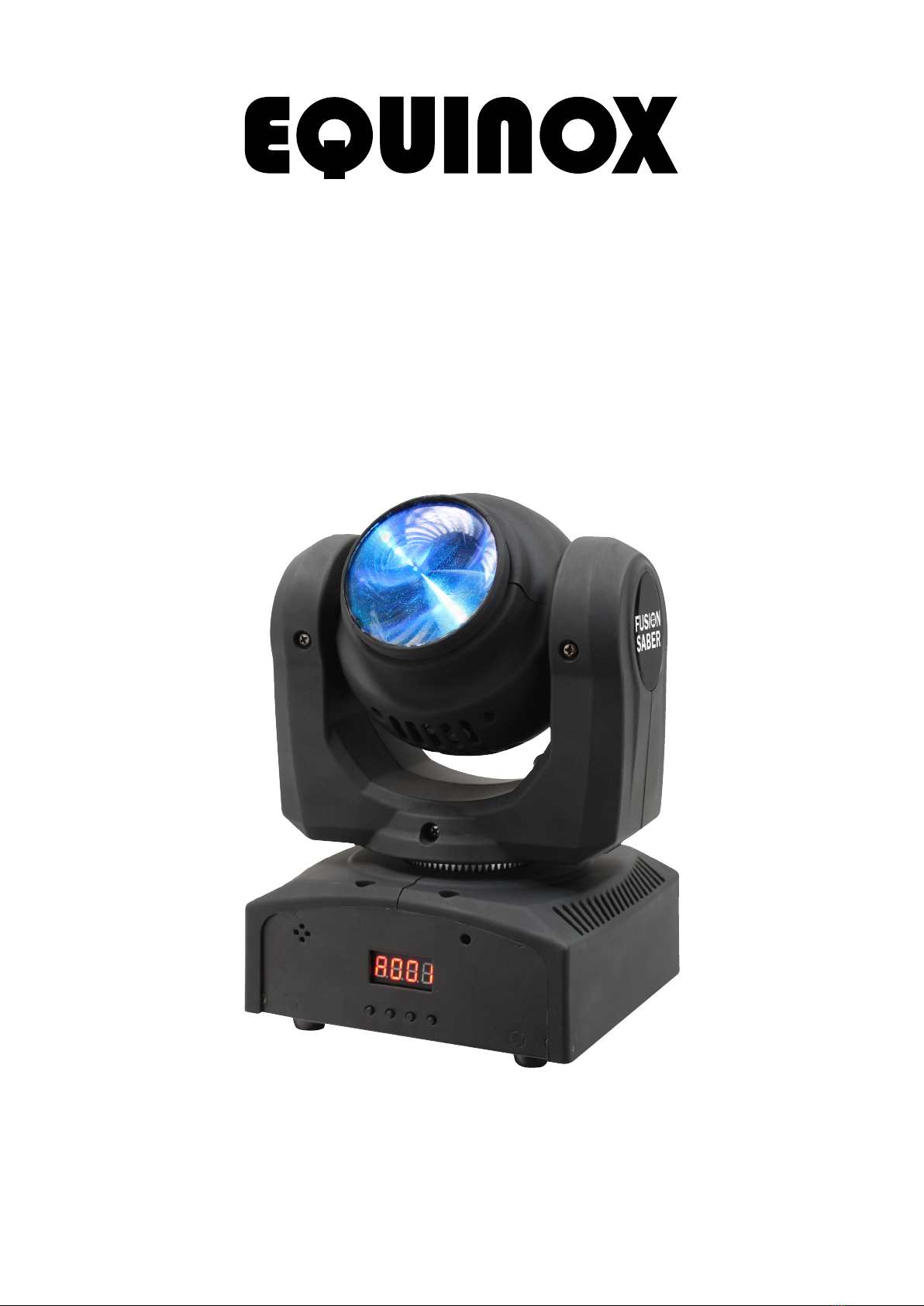

Fusion Saber
User Manual

www.prolight.co.uk Fusion Saber User Manual 2
Safety advice
WARNING
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL
CAREFULLY BEFORE YOUR INITIAL START-UP!
• Beforeyourinitialstart-up,pleasemakesurethatthereisnodamagecausedduringtransportation.
• Shouldtherebeanydamage,consultyourdealeranddonotusetheequipment.
• Tomaintaintheequipmentingoodworkingconditionandtoensuresafeoperation,itisnecessary
fortheusertofollowthesafetyinstructionsandwarningnoteswritteninthismanual.
• Pleasenotethatdamagescausedbyusermodicationstothisequipmentarenotsubjecttowarranty.
IMPORTANT:
The manufacturer will not accept liability for any resulting damages caused by the non-observance
of this manual or any unauthorised modication to the equipment.
OPERATING DETERMINATIONS
Ifthisequipmentisoperatedinanyotherway,thanthosedescribedinthismanual,theproductmaysufferdamageand
thewarrantybecomesvoid.Incorrectoperationmayleadtodangere.g:short-circuit,burnsandelectricshocksetc.
Donotendangeryourownsafetyandthesafetyofothers!
Incorrectinstallationorusecancauseseriousdamagetopeopleand/orproperty.
• Neverletthepowercablecomeintocontactwithother
cables.Handlethepowercableandallmainsvoltage
connectionswithparticularcaution!
• Neverremovewarningorinformativelabelsfromtheunit.
• Donotopentheequipmentanddonotmodifytheunit.
• Donotconnectthisequipmenttoadimmerpack.
• Donotswitchtheequipmentonandoffinshortintervals,
asthiswillreducethesystem’slife.
• Onlyusetheequipmentindoors.
• Donotexposetoammablesources,liquidsorgases.
• Alwaysdisconnectthepowerfromthemainswhen
equipmentisnotinuseorbeforecleaning!Onlyhandle
thepower-cablebytheplug.Neverpullouttheplugby
pullingthepower-cable.
• Makesurethattheavailablevoltageisbetween
110~240V,50/60Hz.
• Makesurethatthepowercableisnevercrimpedor
damaged.Checktheequipmentandthepowercable
periodically.
• Iftheequipmentisdroppedordamaged,disconnectthe
mainspowersupplyimmediatelyandhaveaqualied
engineerinspecttheequipmentbeforeoperatingagain.
• Iftheequipmenthasbeenexposedtodrastic
temperatureuctuation(e.g.aftertransportation),
donotconnectpowerorswitchitonimmediately.
Thearisingcondensationmightdamagetheequipment.
Leavetheequipmentswitchedoffuntilithasreached
roomtemperature.
• Ifyourproductfailstofunctioncorrectly,stopuse
immediately.Packtheunitsecurely(preferablyinthe
originalpackingmaterial),andreturnittoyourProLight
dealerforservice.
• Onlyusefusesofsametypeandrating.
• Repairs,servicingandpowerconnectionmustonlybe
carriedoutbyaqualiedtechnician.THISUNITCONTAINS
NOUSERSERVICEABLEPARTS.
• WARRANTY:Oneyearfromdateofpurchase.
CAUTION!
KEEP THIS EQUIPMENT
AWAY FROM RAIN,
MOISTURE AND LIQUIDS
CAUTION!
TAKE CARE USING
THIS EQUIPMENT!
HIGH VOLTAGE-RISK
OF ELECTRIC SHOCK!!

www.prolight.co.uk Fusion Saber User Manual 3
Product overview & technical specications
ThiscompactmovingheadfromEquinoxisloadedwith24WofLEDoutput
power.Eachfaceoftheheadhasa12WCREEquad-colour(RGBW)LED
enginetocreatesuperbbeameffects.Duetoitsuniquetwinfacedesign
thexturecreatescontinuoustumblingeffectswhichlooksuperb
inhazeorfog.
•2x12WCREEquad-colour
LEDs(RGBW)
•Beamangle:3°
•DMXchannels:9or17selectable
•Auto,soundactiveand
master/slavemodes
•Pan:540°,Tilt:360°
continuousrotation
•0-100%dimmingand
variablestrobe
•IECinsocket
•3-pinXLRin/outsockets
•Fancooled
•Suppliedwithhangingbracket
Fusion Saber
Specications
Powerconsumption 30W
Powersupply 110~240V,50/60Hz
Fuse F2A250V
Dimensions 240x170x150mm
Weight 2.58kg
Ordercode EQLED070
240mm
170mm 150mm
0m 1m 2m 3m 4m 5m
3° - Lux
R
G
B
W
15800
39500
5270
42400
3935
9880
1432
10640
1750
4390
636
4710
3°
985
2470
358
2650
630
1580
229
1700
01
02 04 05 07 080603
01-LEDdisplay
02-Functionbuttons
03-Microphone
04-DMXinputsocket
05-DMXoutputsocket
06-IECpowerinputsocket
07-FuseF1A250V
08-Fan
Inthebox:1 x xture,
1 x power cable &
1 x user manual

www.prolight.co.uk Fusion Saber User Manual 4
Operating instructionsOperating instructions
d S I Pd I S p
Display invert
A 0 0 1
A 5 1 2
A d d r
DMX address setting
9Ch
1 7 C h
C h N d
Channel modes
N A s t
S L A v
S L N d
Master/slave mode
A u t o
S o u d
S h N d
Show modes
- o n -
- o F F
S o U n
Sound mode on/off
0
100
S E n S
Sound sensitivity
y E S
n o
b L N d
Blackout mode
y E S
n o
P A n
Pan invert
y E S
n o
t I L t
Tilt invert
y E S
n o
r S E t
Reset factory settings
vEr
Software version
h o U r
Usage time (hours)
t E s t
Test
- o n -
- o F F
LEd
Backlight
MENU
N a n u
Manual mode
Pan
P 0
P 2 5 5
t 0
t 2 5 5
t I L t
r 0
r 2 5 5
r E d
G 0
G 2 5 5
G r E E
b 0
b 2 5 5
b L u E
U 0
U 2 5 5
U h I t
d 0
d 2 5 5
d I N N
S 0
S 2 5 5
S t r o
S P 0
S P 9

www.prolight.co.uk Fusion Saber User Manual 5
Operating instructions
DMX mode:
OperatinginaDMXcontrolmodeenvironmentgivestheuserthegreatestexibilitywhenitcomes
tocustomisingorcreatingashow.Inthismodeyouwillbeabletocontroleachindividualtraitof
thextureandeachxtureindependently.
ToaccesstheDMXaddressmode,pressthe“MENU”buttononthefrontoftheunittoshow
AddrontheLEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”
buttonstosettherequiredDMXaddress.Pressthe“ENTER”buttontoconrmthesetting.
Toexitoutofanyoftheaboveoptions,pressthe“MENU”button.
DMX channel mode:
ToaccesstheDMXchannelmode,pressthe“MENU”buttononthefrontoftheunittoshowChNd
ontheLEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstochoose
oneofthe9or17DMXchannelmodes.Pressthe“ENTER”buttontoconrmthesetting.
Toexitoutofanyoftheaboveoptions,pressthe“MENU”button.

www.prolight.co.uk Fusion Saber User Manual 6
Operating instructions
9 channel mode:
Channel Value Function
CH1 000-255 Pan0-540°
CH2
000-127 Rotation360°
128-191 Continousrotation(fast-slow)
192-255 Reversedcontinousrotation
(slow-fast)
CH3 000-255 Masterdimmer(0-100%)
CH4 000-255 Red(0-100%)
CH5 000-255 Green(0-100%)
CH6 000-255 Blue(0-100%)
CH7 000-255 White(0-100%)
CH8
000-015 Nofunction
016-131 Strobe(slow-fast)
132-139 Nofunction
140-181 Strobe(fastclose,slowopen)
182-189 Nofunction
190-231 Strobe(slowclose,fastopen)
232-239 Nofunction
240-247 Strobe(randomeffects)
248-255 Nofunction
CH9
000-069 Nofunction
070-079 Blackoutduringmovement
080-089 Noblackoutduringmovement
090-199 Nofunction
200-209 Reset
210-249 Nofunction
250-255 Soundmode
17 channel mode:
Channel Value Function
CH1 000-255 Pan0-540°
CH2 000-255 Panne
CH3
000-127 Rotation360°
128-191 Continousrotation(fast-slow)
192-255 Reversedcontinousrotation
(slow-fast)
CH4 000-255 Tiltne
CH5
000-069 Nofunction
070-079 Blackoutduringmovement
080-089 Noblackoutduringmovement
090-199 Nofunction
200-209 Reset
210-249 Nofunction
250-255 Soundmode
CH6 000-255 Masterdimmer(0-100%)
CH7
000-015 Nofunction
016-131 Strobe(slow-fast)
132-139 Nofunction
140-181 Strobe(fastclose,slowopen)
182-189 Nofunction
190-231 Strobe(slowclose,fastopen)
232-239 Nofunction
240-247 Strobe(randomeffects)
248-255 Nofunction
CH8 000-255 RedLED1(0-100%)
CH9 000-255 GreenLED1(0-100%)
CH10 000-255 BlueLED1(0-100%)
CH11 000-255 WhiteLED1(0-100%)
CH12 000-255 RedLED2(0-100%)
CH13 000-255 GreenLED2(0-100%)
CH14 000-255 BlueLED2(0-100%)
CH15 000-255 WhiteLED2(0-100%)
CH16
000-007 Nofunction
008-127 Staticcolour
128-191 Colourchange
192-255 Colourfade
CH17 000-255 CH16speed(slow-fast)

www.prolight.co.uk Fusion Saber User Manual 7
Master/slave mode:
Tosetthemasterunit,pressthe“MENU”buttononthefrontofthemasterunittoshowSLNd onthe
LEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstochooseNast.
Pressthe“ENTER”buttontoconrmthesetting.Thenselectyourdesiredprogram(soundactive,DMX
orauto).
Tosettheotherunitsinslavemode,pressthe“MENU”buttononthefrontoftheunittoshowSLNd
ontheLEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstochoose
eitherSLAv.Pressthe“ENTER”buttontoconrmthesetting.Theunitwillnowruninsequencewith
themasterunit.
Toexitoutofanyoftheaboveoptions,pressthe“MENU”button.
PleaseensurethatallslaveunitsaresettothesameDMXchannelmodeasthemasterunit.
Show mode:
Toaccesstheshowmodes,pressthe“MENU”buttononthefrontoftheunittoshowShNd
ontheLEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstochoose
betweenSoud(Soundactive)orAuto(Auto).Pressthe“ENTER”buttontoconrmthesetting.
Toexitoutofanyoftheaboveoptions,pressthe“MENU”button.
Sound/sound sensitivity:
Toturnthesoundmodeonoroff,pressthe“MENU”buttononthefrontoftheunittoshowSoud
ontheLEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstochoose
between-on-or-oFF.Pressthe“ENTER”buttontoconrmthesetting.
Toadjustthesoundsensitivity,pressthe“MENU”buttononthefrontoftheunittoshowSEnsonthe
LEDdisplay.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstochoosebetween
0~100.Value: 0 - 100 (0 = low, 100 = high)
Toexitoutofanyoftheaboveoptions,pressthe“MENU”button.
Manual mode:
Toaccessmanualmode,pressthe“MENU”buttononthefrontoftheunittoshowNanuontheLED
display.Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”buttonstochoosebetween
Pan(Pan),tILt(Tilt),rEd(Red0-100%),GrEE(Green0-100%),bLuE(Blue0-100%),
UhIt(White0-100%),dINN(Masterdimmer0-100%),orStro(Strobe).Pressthe“ENTER”
buttontoconrmthesettingandusethe“UP”and“DOWN”buttonstochoosebetween0~255.
Toexitoutofanyoftheaboveoptions,pressthe“MENU”button.
Pan/Tilt offset:
Toaccessthepan/tiltsubmenu,pressthe“MENU”buttononthefrontoftheunitandthenpressand
holdthe“ENTER”buttonshowPanontheLEDdisplay.Usethe“UP”and“DOWN”buttonstochoose
betweenPan(Pan)andtILt(Tilt).Nowpressthe“ENTER”buttonandusethe“UP”and“DOWN”
buttonstoadjustthevaluebetween-127~127.Pressthe“ENTER”buttontoconrmthesetting.
Toexitoutofanyoftheaboveoptions,pressthe“MENU”button.

www.prolight.co.uk Fusion Saber User Manual 8
Setting the DMX address:
TheDMXmodeenablestheuseofauniversalDMXcontroller.Eachxturerequiresa“startaddress”
from1-512.Axturerequiringoneormorechannelsforcontrolbeginstoreadthedataonthechannel
indicatedbythestartaddress.Forexample,axturethatoccupiesoruses7channelsofDMXandwas
addressedtostartonDMXchannel100,wouldreaddatafromchannels:100,101,102,103,104,105
and106.Chooseastartaddresssothatthechannelsuseddonotoverlap.E.g.thenextunitinthe
chainstartsat107.
DMX 512:
DMX(DigitalMultiplex)isauniversalprotocolusedasaformofcommunicationbetweenintelligent
xturesandcontrollers.ADMXcontrollersendsDMXdatainstructionsformthecontrollertothexture.
DMXdataissentasserialdatathattravelsfromxturetoxtureviatheDATA“IN”andDATA“OUT”
XLRterminalslocatedonallDMXxtures(mostcontrollersonlyhaveadata“out”terminal).
DMX linking:
DMXisalanguageallowingallmakesandmodelsofdifferentmanufacturestobelinkedtogether
andoperatefromasinglecontroller,aslongasallxturesandthecontrollerareDMXcompliant.
ToensureproperDMXdatatransmission,whenusingseveralDMXxturestrytousetheshortest
cablepathpossible.TheorderinwhichxturesareconnectedinaDMXlinedoesnotinuencethe
DMXaddressing.Forexample;axtureassignedtoaDMXaddressof1maybeplacedanywherein
aDMXline,atthebeginning,attheend,oranywhereinthemiddle.Whenaxtureisassigneda
DMXaddressof1,theDMXcontrollerknowstosendDATAassignedtoaddress1tothatunit,
nomatterwhereitislocatedintheDMXchain.
DATA cable (DMX cable) requirements (for DMX operation):
ThisxturecanbecontrolledviaDMX-512protocol.TheDMXaddressissetonthebackoftheunit.
YourunitandyourDMXcontrollerrequireastandard3-pinXLRconnectorfordatainput/output,
seeimagebelow.
Also remember that DMX cable must be daisy chained and cannot be split.
DMX setup
FurtherDMXcablescanbe
purchasedfromallgoodsound
andlightingsuppliersor
ProLightConceptsdealers.
Pleasequote:
CABL10 – 2m
CABL11 – 5m
CABL12 – 10m

www.prolight.co.uk Fusion Saber User Manual 9
Notice:
Besuretofollowthediagramsbelowwhenmakingyourowncables.Donotconnectthecables
shieldconductortothegroundlugorallowtheshieldconductortocomeincontactwiththeXLRs
outercasing.Groundingtheshieldcouldcauseashortcircuitanderraticbehaviour.
Special note:
Line termination:
Whenlongerrunsofcableareused,
youmayneedtouseaterminatoron
thelastunittoavoiderraticbehaviour.
Using a cable terminator will decrease
the possibilities of erratic behaviour.
(3-pin - Order ref: CABL9O, 5-pin - Order ref: CABL89)
5-pin XLR DMX connectors:
Somemanufacturesuse5-pinXLRconnectorsfordatatransmissioninplaceof3-pin.5-pinXLRxtures
maybeimplementedina3-pinXLRDMXline.Wheninsertingstandard5-pinXLRconnectorsintoa
3-pinlineacableadaptormustbeused.Thediagrambelowdetailsthecorrectcableconversion.
Terminationreducessignaltransmission
problemsandinterferance.itisalways
advisabletoconnectaDMXterminal,
(resistance120Ohm1/4W)betweenpin2
(DMX-)andpin3(DMX+)ofthelastxture.
5-pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
3-pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
3-pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
5-pin XLR (socket)
Pin 1: GND (screen)
Pin 2: Signal (-)
Pin 3: Signal (+)
Pin 4: N/C
Pin 5: N/C
DMX setup

www.prolight.co.uk Fusion Saber User Manual 10
WEEE notice
Correct Disposal of this Product
(Waste Electrical & Electronic Equipment)
(Applicable in the European Union and other European countries
with separate collection systems)
Thismarkingshownontheproductoritsliterature,indicatesthatitshouldnotbedisposedof
withotherhouseholdwastesattheendofitsworkinglife.Topreventpossibleharmtothe
environmentorhumanhealthfromuncontrolledwastedisposal,pleaseseparatethisfromother
typesofwastesandrecycleitresponsiblytopromotethesustainablereuseofmaterialresources.
Householdusersshouldcontacteithertheretailerwheretheypurchasedthisproduct,ortheir
localgovernmentofce,fordetailsofwhereandhowtheycantakethisitemforenvironmentally
saferecycling.
Businessusersshouldcontacttheirsupplierandcheckthetermsandconditionsofthe
purchasecontract.Thisproductshouldnotbemixedwithothercommercialwastesfordisposal.

www.prolight.co.uk Fusion Saber User Manual 11

www.prolight.co.uk Fusion Saber User Manual 12
