ergolet Lambda/175 Installation instructions

1
Lambda/175
Shower trolley
User instruction
Important information
Please read this user manual carefully
before using the product!
This user manual is intended as a guide
for caregivers and other users, as well as
technical personnel during servicing and
maintenance of the product.
Date: 01-08-2019
Version 15
Scan the QR code for more information

2

3
CONTENTS
1Aim and use................................................................................................ 4
1.1 Purpose ....................................................................................................................4
1.2 Safety instructions....................................................................................................4
1.3 Terminology .............................................................................................................4
2Technical functions..................................................................................... 5
2.1 Functions..................................................................................................................5
2.2 Safety functions........................................................................................................6
2.3 Charging ...................................................................................................................6
3Use ............................................................................................................. 7
3.1 Using the shower trolley ..........................................................................................7
4Maintenance and check.............................................................................. 9
4.1 Cleaning....................................................................................................................9
4.2 Maintenance ............................................................................................................9
4.3 Annual check ............................................................................................................9
5Technical data and dimensions................................................................. 10
5.1 Technical specifications..........................................................................................10
5.2 Dimensions.............................................................................................................10
6Environment and quality .......................................................................... 11
6.1 Disposal ..................................................................................................................11
6.2 Battery....................................................................................................................11
6.3 Quality....................................................................................................................11

4
!
1Aim and use
1.1 Purpose
The shower trolley is used to assist patients requiring a reclined/lying position during the
washing/showering situation. During use there must be at least one person present who
has received instruction in use of the shower trolley.
1.2 Safety instructions
Important – warning!
This user instruction must be read thoroughly before the shower trolley taking in use.
•There must be no indication of wear on the shower trolley.
•The shower trolley must not be loaded over 175kg including water.
1.3 Terminology
1. Control box
2. Motor
3. Wheels
4. Hand control
5. Adjustable and lockable end rails
6. Central braking and directional guide
7. Up and down release of side rails
8. Outlet hose
Fig 1.3
8.
6.
7.
4.
5.
1.
3.
2.

5
2Technical functions
2.1 Functions
The shower trolley is easy to operate. However, before use, please read the following
instructions carefully:
1. The hand control (Fig. 2.1) enables easy handling.
-Press on the top buttons "up" or "down” and the shower
trolley going up or down.
-Press on the lower buttons and the shower trolley will “tilt”.
Warning! Be careful using the tilt function since there is a risk that
the patient may slip down the shower trolley.
Note: The side rail MUST be up and locked to ensure that the
patient safety during operation.
2. The shower trolley is emptied via outlet hose (Fig. 2.1a) to
drain and then remove the plug. (Fig 2.1b)
Tilt the shower trolley to remove the water. (Fig 2.1c)
Fig 2.1
Fig 2.1a
Fig 2.1b
Fig 2.1c

6

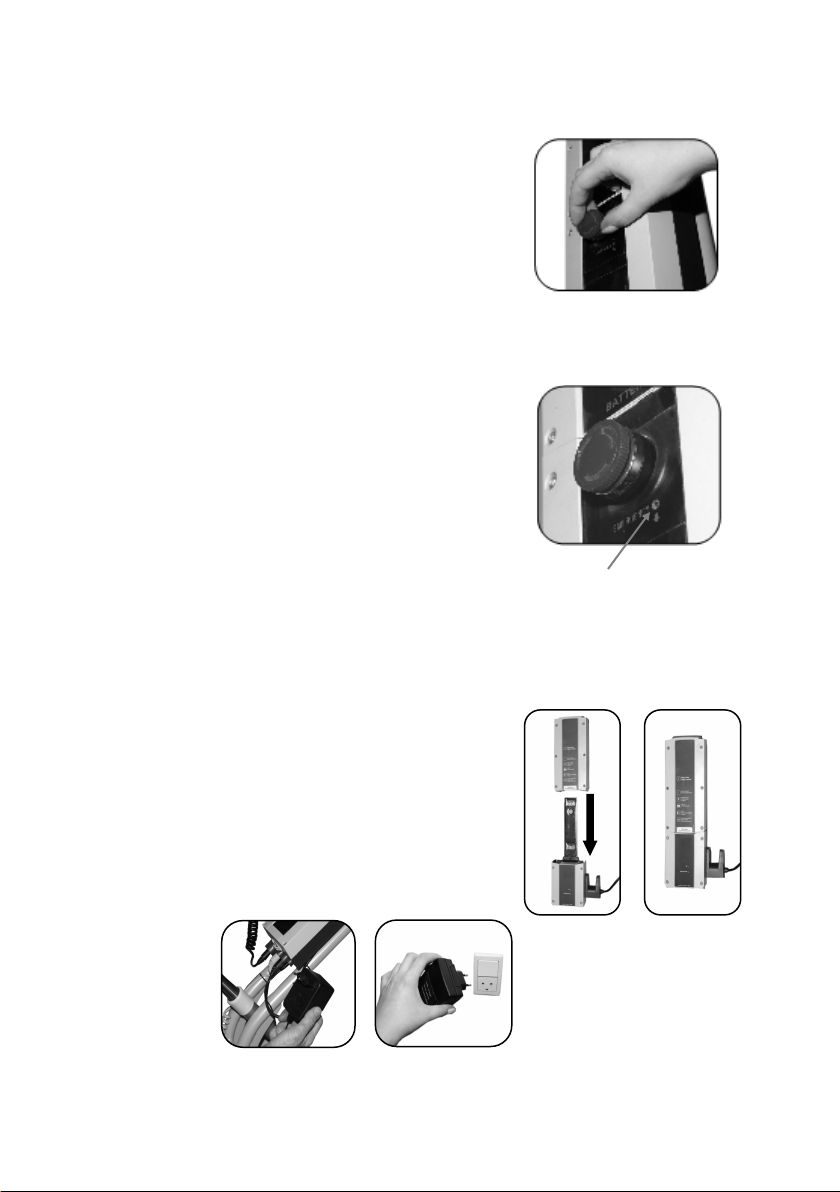

2.2 Safety functions
Emergency stop:
This function is only to be used in an emergency eg. if
the shower trolley does not react or does not stop after
releasing the hand control operation. If the emergency
button has been activated all functions immediately
stops. (Fig 2.2a)
The emergency button is not a contact to switch on/off.
It always has to be “on”, meaning it must not be pressed
in. The emergency button can be released by turning
the button a ¼ turn to the right.
Emergency lowering:
The shower trolley is equipped with an emergency
lowering system. (Fig 2.2b) The emergency lowering
system is used if it is necessary to safely lower a patient.
The emergency lowering button is placed immediately
under the emergency button.
The emergency lowering button is activated using a
pointed instrument e.g. a ballpoint pen.
In any doubt, please contact Winncare Nordic ApS.
2.3 Charging
The shower trolley is equipped with rechargeable lead
acid batteries that require regular charging. Winncare
Nordic recommends, that the batteries are charged when
the shower trolley is not in use or every night.
The shower trolley can be charged from the wall socket.
(Fig 2.3a+b+c) or alternatively using a wall/table external
charge unit (accessories) (Fig 2.3d+2.3e).
Fig 2.2a
Fig 2.2b
Lowering button
Fig 2.3d
Fig 2.3e
Fig 2.3a
Fig 2.3b
Fig 2.3c

7
3Use
3.1 Using the shower trolley

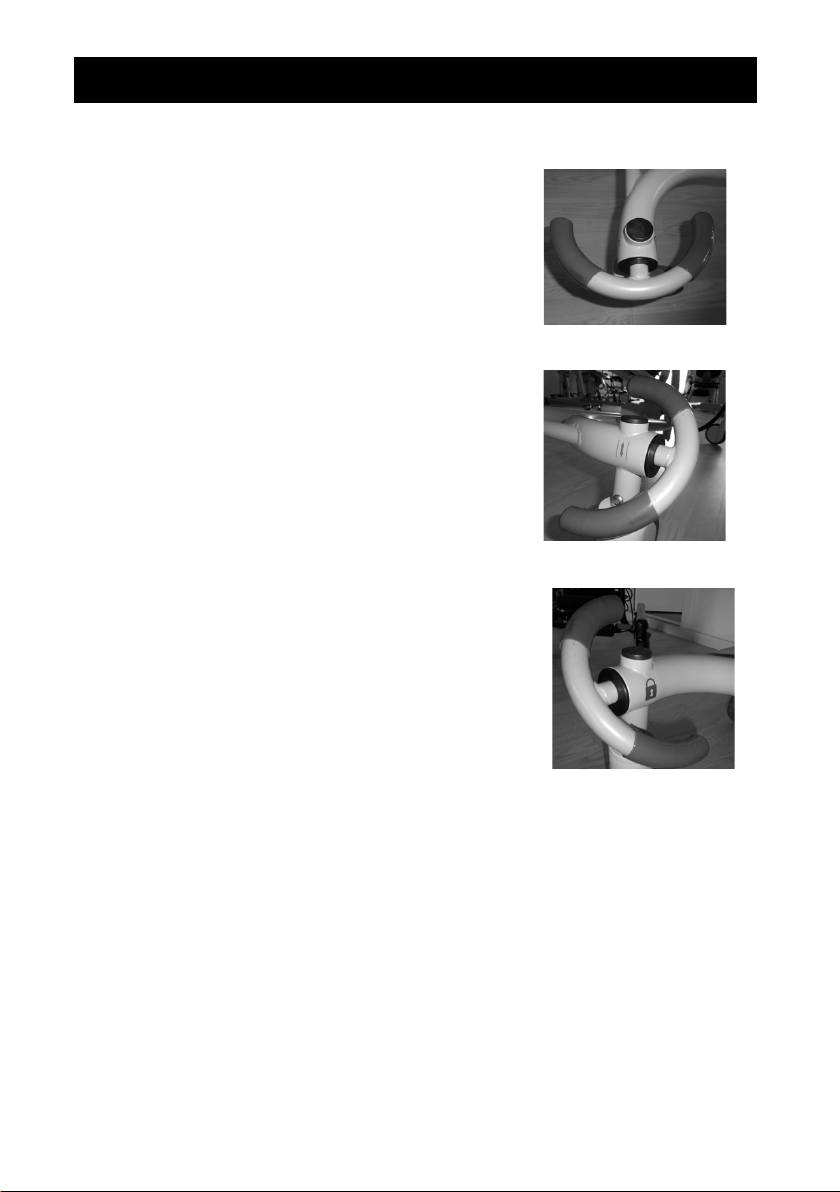

Brakes:
The shower trolley has central braking, direction guides
and neutral position.
Using these functions:
In a horizontal position (fig. 1) the shower trolley is
unlocked, and all wheels can move freely.
Pressing the directional guide pedal (fig. 2) ensures that
the wheels are locked in a straight travel direction (applies
only to the head end).
Pressing the brake pedal (fig. 3) will lock all the wheels.
Fig 1
Fig 2
Fig 3

8

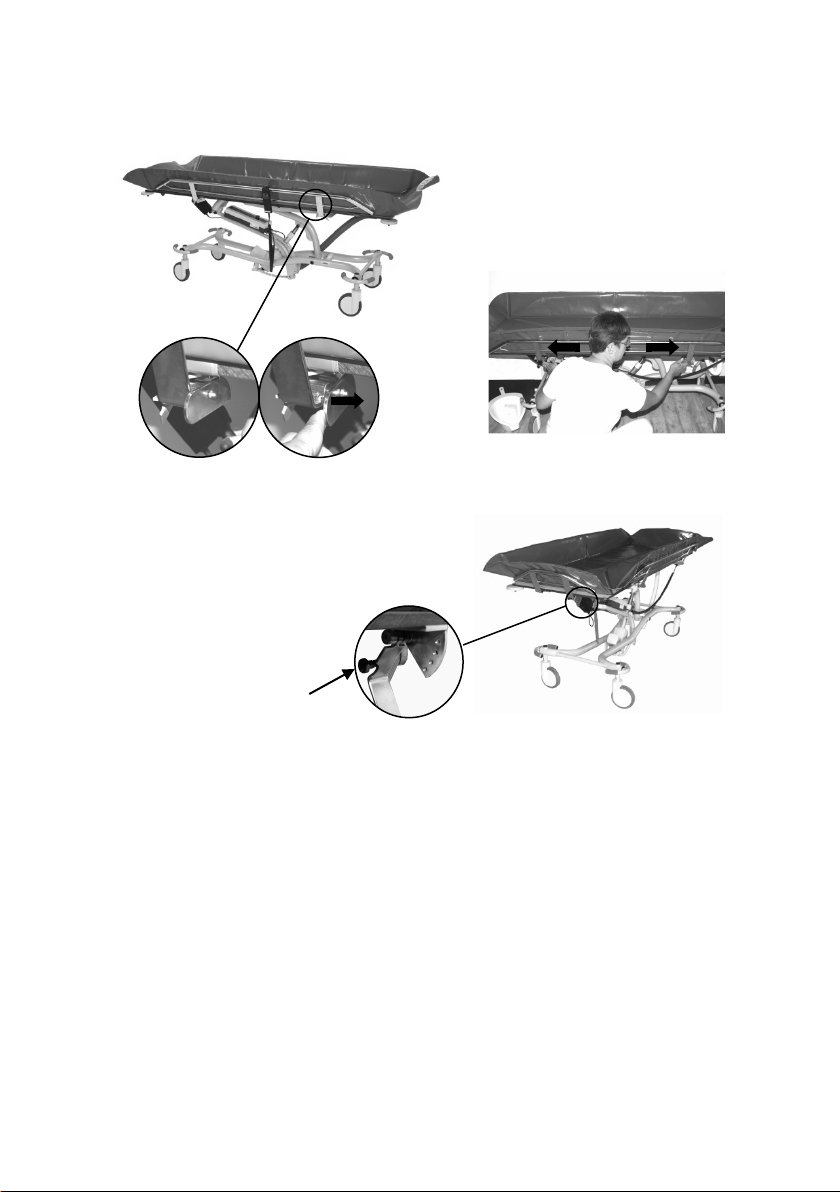

Side rails and end rail:
The side rails have two positions “up” or “down”. The end rails have 4 different positions.
Press
Press the holding bracket on both sides
at the same time to release the side rail.
Release pin
Pull the release pin on both sides and
the end rails can be lowered or angled
in 4 different positions.

9
!
4Maintenance and check
4.1 Cleaning
The shower trolley may be cleaned using soap and water. Low power disinfectants may
also be used.
4.2 Maintenance
The shower trolley must always be maintained by qualified and authorized personnel who
have been approved by Winncare Nordic.
4.3 Annual check
Winncare Nordic recommends, the Lambda has an annual service/check. It is the owner’s
responsibility to ensure that the annual check is performed.
If necessary, to replace any parts due to wear or damage, must the parts be
obtained/purchased from Winncare Nordic.
Warning! Unauthorized modification of the Lambda shower trolley is not
allowed and could resolved in fatal accident.

10

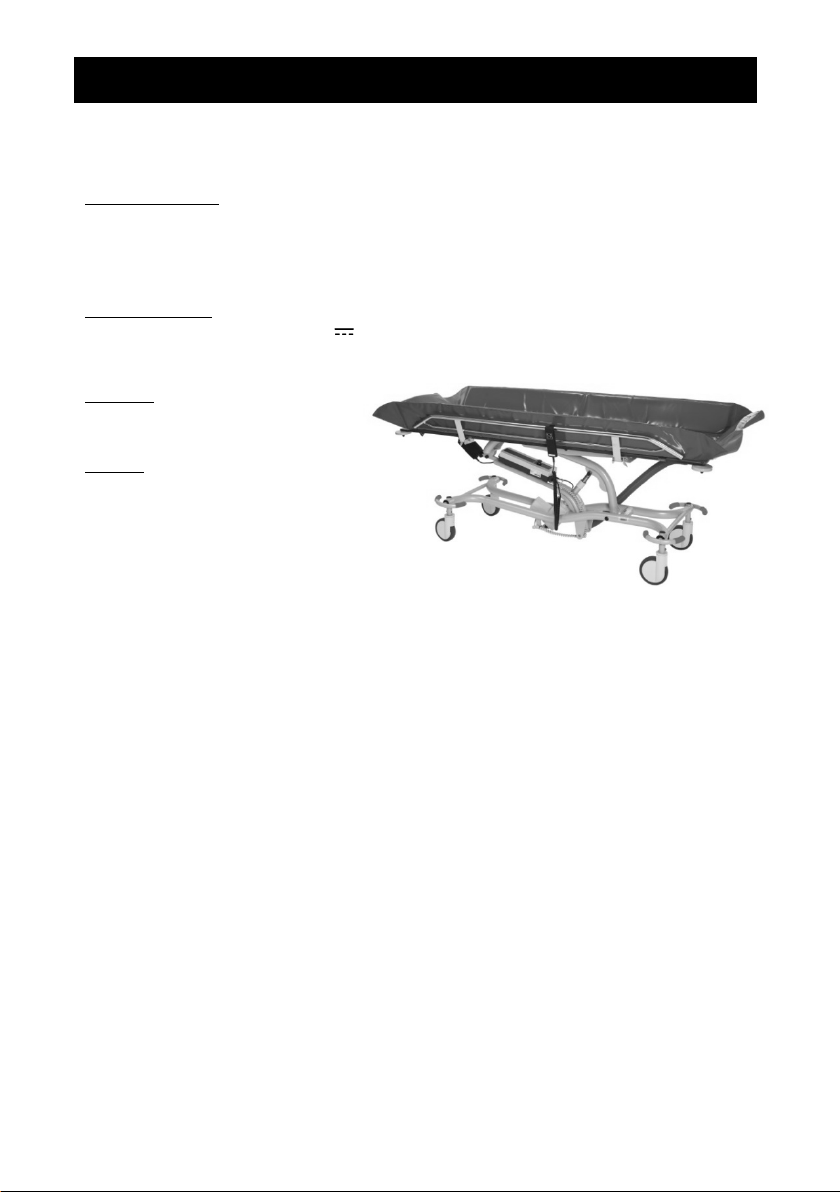

5Technical data and dimensions
5.1 Technical specifications
Lifting properties:
Load capacity (SWL): 175 kg
Lifting interval: 56-103cm
Electrical details:
Power supply: 24V
IP class IP65
Material:
Powder coated stainless steel
Weight:
Weight in total: 115 kg
5.2 Dimensions
Width over side rails 78cm
Length over side rails 206cm
Length/width of chassis 187/60cm
Sideways movement during up/down travel 45 cm in top position
Anti-Trendelenburg angle 10°
Wheels ø150mm
More test results may be available by contacting Winncare Nordic.

11
6Environment and quality
Lambda has an expected lifetime of minimum 10 years under the assumption that all
recommended service checks have been carried out and that the normal maintenance
and care instructions have been followed.
6.1 Disposal
Disposal of this shower trolley can be made through Winncare Nordic. After useful
lifetime Winncare Nordic will receive the trolley back and split the individual parts in an
environmentally friendly way either through reuse or recycling.
Parts that contain halogens, aluminum, lead acid batteries, electrical component, ABS
plastic, steel may damage the environment if not handled in an environmentally
responsible way.
6.2 Battery
The shower trolley is equipped with batteries, which may be returned either to the local
recycling station or to Winncare Nordic at the end of their lifetime.
6.3 Quality
Winncare Nordic is certified according to the quality standard ISO 9001 and ISO 13485.
These certifications mean that the products and the company complies with the
international standards for quality management, environmental management and
standards for traceability of medical products.
Lambda is classified as a Medical device class 1 product.

12
Manufacturer:
Winncare Nordic ApS
Taarnborgvej 12 C
4220 Korsoer
Denmark
Phone: + 45 70 27 37 20
Fax: + 45 70 27 37 19
Email: [e-mail]
www.winncare.dk
93/42/EØF CLASS I
UM-910-00753UK
