ESA LUMIA BOX User manual

LUMIA BOX User Manual
Documentation
Connect
Ideas.
Shape
solutions.

Table of contents
Product Introduction .................................................................................................................... 1
Product Overview .................................................................................................................... 1
Product Specification ............................................................................................................... 1
Application Planning ..................................................................................................................... 2
Transportation ......................................................................................................................... 2
Storage..................................................................................................................................... 2
Open and Inspection of Delivered Equipment ......................................................................... 2
Device Connection........................................................................................................................ 3
Precautions before Device Connection.................................................................................... 3
Instruction for Use........................................................................................................................ 4
Product Picture ........................................................................................................................ 4
Product Size Drawing ............................................................................................................... 5
I/O Ports................................................................................................................................... 6
Lower Cover of the PC.............................................................................................................. 7
Status Indicator LED ................................................................................................................. 7
Install the Internal Parts ............................................................................................................... 8
Definition of Pins .......................................................................................................................... 9
Daily Maintenance...................................................................................................................... 10
Troubleshooting Methods for Common Hardware Failure ........................................................ 11

1
Product Introduction
Product Overview
LUMIA BOX is an ultra low power fanless mini PC. It uses Intel® Celeron™ J1900 quad
core processor, support Windows 7/8/10 & Linux OS etc., support 1*MSATA and 1*2.5
inch HDD.
All aluminum fanless design, structure is simple, good dustproof, heat dissipation,
anti-vibration and EMC function, high reliability and strong environmental applicability.
Product Specification
N11
Processor Intel Celeron J1900 Quad Core 1.9 GHz
Graphics Intel HD Graphics, VGA (2048x1536),
HDMI (1920x1080)
Memory
Onboard DDR3L 1600 4G
Network 3*Intel i211-AT Gigabit LAN
Hard Disk 1*2.5 inches SATA HDD
Expansion
2*Mini PCIE
（
WIFI/Bluetooth 3G/4G
）
USB 1*USB3.0, 4*USB2.0
COM
4
（
2*RS232/485
）
Dimension 148 * 125 * 58 mm
Weight 1.2 kg
Power Supply DC 8 ~ 32V
Operating Temp -20℃~ +60℃, surface air flow

2
Application Planning
Transportation
Well packaged products can by any means of transport, to any place, in the long-distance
transportation shall not be installed in the open cabin and carriages, midway
transshipment shall not be stored in open-air warehouse, not allowed to be transported
with inflammable, explosive, corrosive goods together. And products are not allowed to
get wet by rain, snow or liquid substances and mechanical damage.
Storage
The products should be stored in the original packaging box, the storage environment
temperature of the products is 0℃~ 40℃, the relative humidity is 20% ~ 85%. All kinds
of harmful gases, inflammable and explosive products and corrosive chemicals are not
allowed in the warehouse, and there is no strong mechanical vibration, impact and strong
magnetic field effect. The packing case should be placed at least 10cm away from the
ground and at least 50cm away from the wall, heat source, cold source, window or air inlet.
Beware of the risk of damaging the equipment! Extreme temperature variations should be
noted when transporting products in cold weather. In this case, make sure no water
droplets (condensation) form on or inside the device. If condensation forms on the device,
please wait at least 12 hours before connecting the device.
Open and Inspection of Delivered Equipment
Please note the following points when unpacking the equipment:
●It is recommended that you do not discard the original packaging materials. Please
keep the original packaging materials for use in the transportation of equipment again.
●Please store the document in a safe place, for initial debugging of the equipment
need to use it.
●Inspect the delivered equipment to see whether there is any significant damage in
transit.

3
●Verify that the shipment contains the complete equipment and accessories that you
ordered separately. If there is any discrepancy or exist shipping damage, please contact
customer service.
Device Connection
Precautions before Device Connection
Warning
Connected or built-in peripherals shall not be connected to devices of opposite polarity.
Warning
This device can only be operated on the grounding power network. It is forbidden to
operate on the ungrounded or impedance grounded power network.
Warning
The rated voltage of the equipment used must conform to the power supply
characteristics of the product.
Attention
Connect the peripherals that are approved for industrial use. When the machine is
running, it can be connected to hot-plug I/O module (USB). I/O devices without hot-plug
function can only be connected after the power is disconnected.

4
Instruction for Use
Product Picture

5

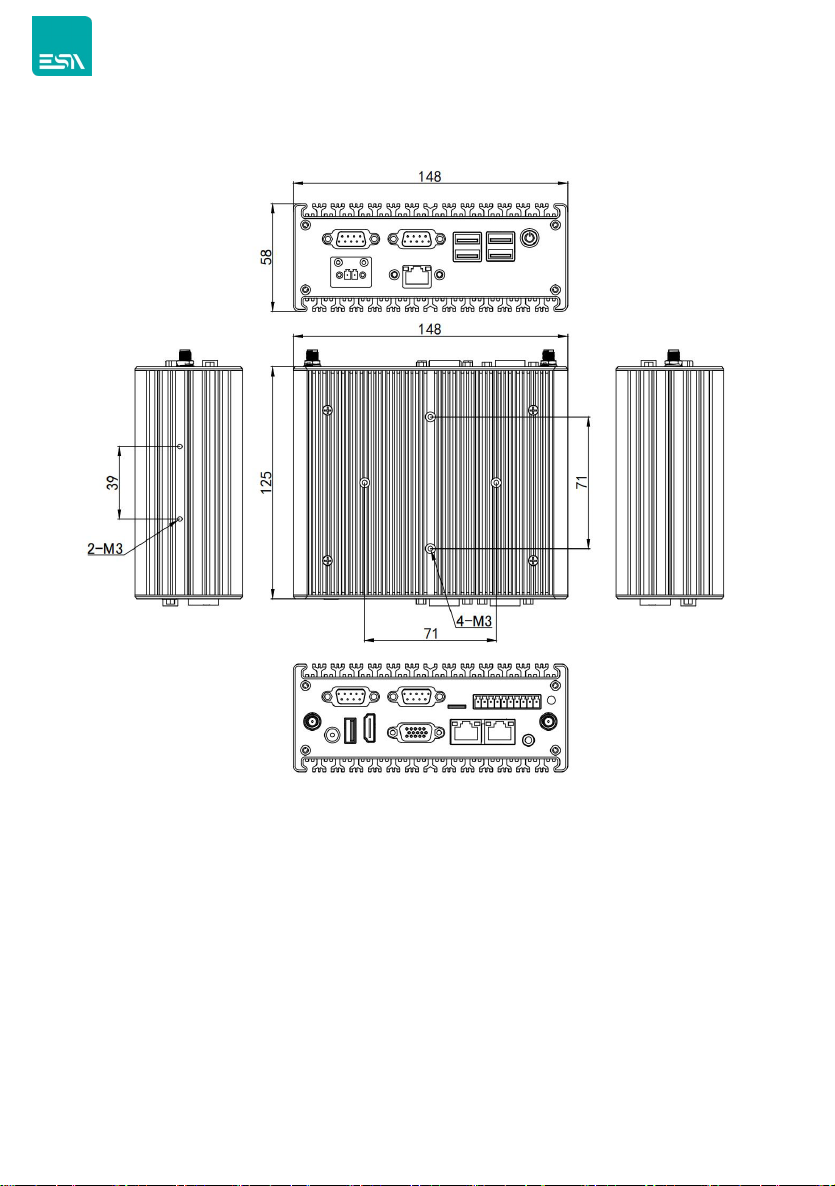

Product Size Drawing

6
I/O Ports
Front Plate No. Port Name
A : Power switch
B: 4 x USB 2.0
C-D: 2 x COM port
RS232/RS485
E: Power supply
DC 8 ~ 32V
F: LAN
Back Plate
G: DC 12V
H: USB 3.0
I : HDMI
Q-R : 2 x COM
RS32/RS485
L : VGA
M-N : LAN
P : GPIO
O : Audio

7
Lower Cover of the PC
Status Indicator LED
Name Description LED Description
POWER PC boot up
Not Light Power off
Light Operating
The Lower Cover of the PC

8
Install the Internal Parts
1. Remove four M2.5*35 screws from the bottom plate (see below), remove the
bottom plate，then please install the RAM, WIFI module, MSATA SSD or 2.5” HDD
and other accessories.
2. After finish installing the internal parts, then install the bottom plate，then install
the four M2.5*35 screws.

9
Definition of Pins
Symbol PIN Description Remark
JCMOS1 1-2 Delete COMS No jump cap by
default
FP1
1 HDD_LED+
2 PWR_LED+
3 HDD_LED-
4 PWR_LED-
5 RST
6 PW_ON
7 RST_GND
8 PWON_GND
9 Empty
JSATA
1 +5V
SATA Power
Supply
2 GND
3 GND
4 +12V
Warning
The internal wiring of the PC has been installed, and the wire plug and screw have been
fixed with glue. Please do not disassemble and install the motherboard, jumpers and other
operations at will to avoid damage to the motherboard.

10
Daily Maintenance
1. When the PC is in normal use, please ensure that the PC is working in a non-vibration
environment to avoid damaging the hard disk and internal accessories.
2. When using the PC, please pay attention that the environmental temperature should
between -10℃and 55℃.
3. This PC uses the PC case for heat dissipation. In order to ensure the heat dissipation
effect of the PC, we strongly recommend that you clean the PC surface regularly every
three months.
4. In order to ensure the efficient and reliable operation of the PC, we recommend you to
clean and defragment the hard disk regularly every three months.
5. When using the internal slot of the PC, we strongly advise you not to plug and unplug
with electricity to avoid electrostatic damage. When the PC encounters power failure due
to non-human reasons, in order to ensure the normal and reliable operation of the PC, we
strongly recommend that you disconnect the power supply of the PC immediately, please
confirm the stability of the power grid before power on.
6. We suggest special computer for special use, and professional to keep and care.

11
Troubleshooting Methods for Common Hardware Failure
No. Fault Phenomenon Analysis of Causes Repair Method
1
The PC doesn’t
boot up after
press the power
switch
The power
adapter is work
or not
Suggest to plug tighten the power
cord or change the socket;
Change the power adapter
Motherboard
damages
Send back to repair
2
No image on the
monitor
Maybe the
signal input is
not connected
properly
Check whether the PC starts up
normally; Check whether the LED
of monitor is on or not; Check
whether VGA cable or HDMI cable
is connecting right or not
The monitor is
in a
"power-saving"
state
Press any key of the keyboard
3
Can’t enter the
OS
BIOS Setting
mode not allow
Boot up the PC, then press the
“DEL”, enter BIOS, change the OS
mode to WIN7/WIN8.X, then
press “F4” save and exit.
Hard disk
power cord or
data cable is
damaged
Check HDD (The hard disk must
be installed the OS and bootable)
power cord or data cable is loose
or not.

12
The hard disk
system file is
corrupted
Enter the OS with a bootable disc
（Usual use WINPE OS）. Check
the hard disk system is damage or
not and reinstall the OS if
necessary.
4 Keep beeping
after PC turn on
No memory
detected
Open PC case to re-plug the RAM
Warning
When you need to open the case or enter the BIOS Settings, non
-professionals should follow
the steps under the guidance of technicians.

13
