Eskimo QuickFlip 2 User manual

Eskimo
ICE FISHING GEAR
Operator's Manual
QuickFlip 2 and 3
019J -a
QUICKFL1P 2
69167
QU1CKFLIP 3
69168
OMQUICKFLI11 3 10
Rev. 05/24/11
Get parts online at

0 Copyright 2011 Ardisam, Inc.
www.GetEskimo.com

All Rights Reserved.

EsICC
kimo
Operator's Manual
Quickflip 2(69167) and Quickflip " 3(69168) Sled-Style Shelters
INTRODUCTION
Eskimo Ice Shelters are engineered with you the high performance fisherman in mind. We appreciate your purchase of one of our
high performance ice shelters. Follow these simple instructions and your ice shelter will provide you many years of trouble-free
pleasure. Save these instructions for future reference.
If for any reason you have a problem with your product
DO NOT return to the retailer,
contact the Eskimo customer service de-
partment at
1-800-345-6007 or by email at [email protected]
for assistance.
CONTENTS
Introduction & Registration 
2
Important Safety Precautions

3
Assembly, Set-up &Take-down Instructions 
4-11
Long Term Storage

11
Parts 
12-17
FAQ's (Frequently Asked Questions) 
18
Warranty 
19
REGISTRATION
Record the model number and serial number Of applicable) in the space provided for easy reference. Fill out and mail the registration card located
in the parts packet. Warranty is valid only if the completed registration card is received by Ardisam, Inc. within 30 days of purchase.
OWNERSHIP RECORDS
Place of Purchase:
Place of Purchase Address:
City:
State/Province:
Zip Code/Postal Code:
Model Number:
Serial Number Code (found next to warning
tag):
Date of Purchase:
Notes:
Check for parts online at www.geteskimo.com or call 800-345-6007 M-F 8-5 CST
2

Eskimo
Operator's Manual
Quickflip TM 2(69167) and Quickflip
TTfl 3(69168) Sled-Style Shelters

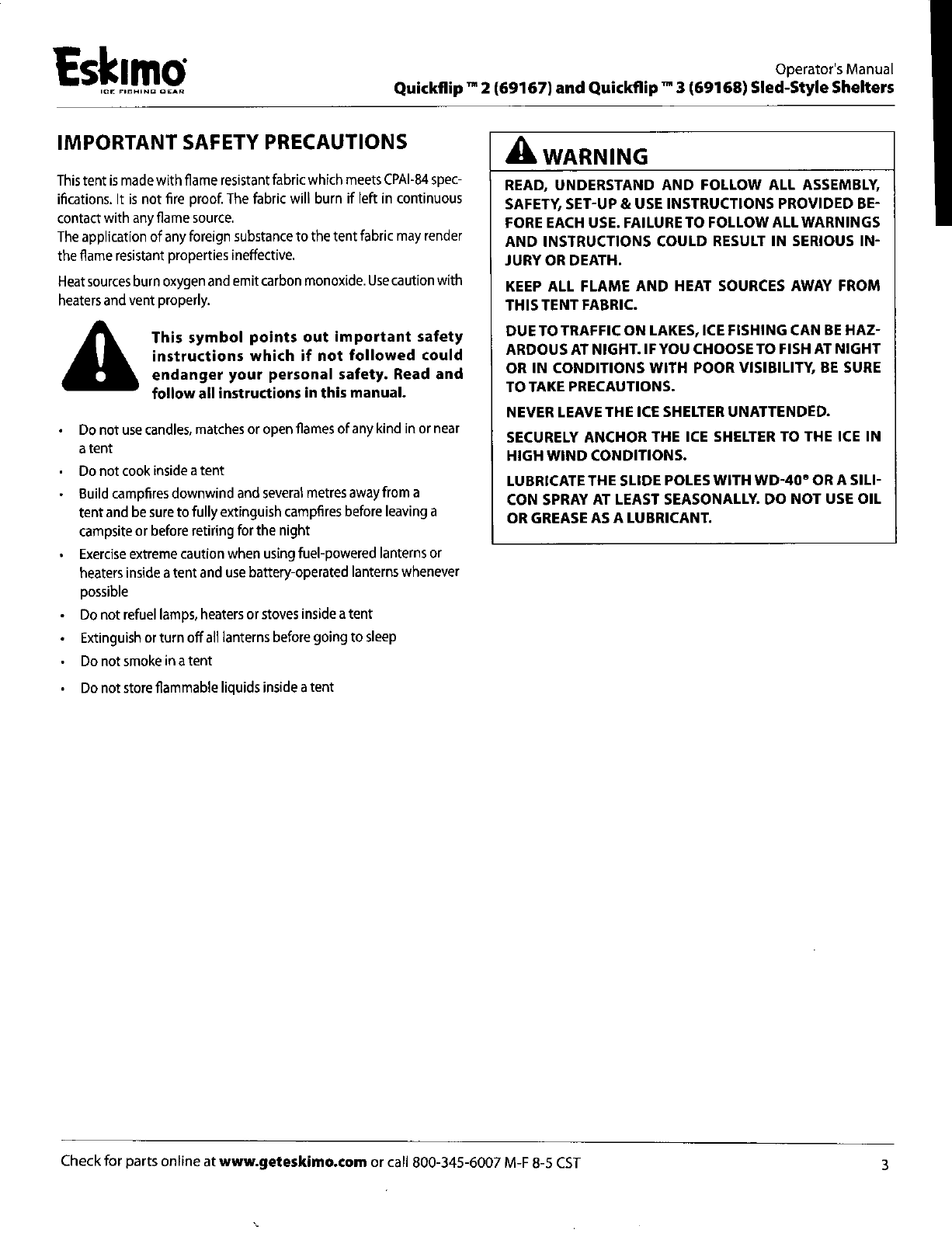

IMPORTANT SAFETY PRECAUTIONS
This tent is made with flame resistant fabric which meets CPAI-84 spec-
ifications. It is not fire proof. The fabric will burn if left in continuous
contact with any flame source.
The application of any foreign substance to the tent fabric may render
the flame resistant properties ineffective.
Heat sources burn oxygen and emit carbon monoxide. Use caution with
heaters and vent properly.
A
This symbol points out important safety
instructions which if not followed could
endanger your personal safety. Read and
follow all instructions in this manual.
Do not use candles, matches or open flames of any kind in or near
a tent
Do not cook inside a tent
Build campfires downwind and several metres away from a
tent and be sure to fully extinguish campfires before leaving a
campsite or before retiring for the night
Exercise extreme caution when using fuel-powered lanterns or
heaters inside a tent and use battery-operated lanterns whenever
possible
Do not refuel lamps, heaters or stoves inside a tent
Extinguish or turn off all lanterns before going to sleep
Do not smoke in a tent
Do not store flammable liquids inside a tent
A
WARNING
READ, UNDERSTAND AND FOLLOW ALL ASSEMBLY,
SAFETY, SET-UP & USE INSTRUCTIONS PROVIDED BE-
FORE EACH USE. FAILURE TO FOLLOW ALL WARNINGS
AND INSTRUCTIONS COULD RESULT IN SERIOUS IN-
JURY OR DEATH.
KEEP ALL FLAME AND HEAT SOURCES AWAY FROM
THIS TENT FABRIC.
DUE TO TRAFFIC ON LAKES, ICE FISHING CAN BE HAZ-
ARDOUS AT NIGHT. IF YOU CHOOSE TO FISH AT NIGHT
OR IN CONDITIONS WITH POOR VISIBILITY, BE SURE
TO TAKE PRECAUTIONS.
NEVER LEAVE THE ICE SHELTER UNATTENDED.
SECURELY ANCHOR THE ICE SHELTER TO THE ICE IN
HIGH WIND CONDITIONS.
LUBRICATE THE SLIDE POLES WITH WD-40° OR A SILI-
CON SPRAY AT LEAST SEASONALLY. DO NOT USE OIL
OR GREASE AS A LUBRICANT.
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
3

left hinge bracket
high side of bracket
(4) 1/4"x 7/8" bolts
sled support bar
(4) 1/4" washers ,
(4) 1/4" nuts
(3) 1/4"x 7/8" bolts

I
high side of bracket
left hinge
bracket
(3) SAE washers
(3) 1/4" nuts
EsICE
kiSHING
mo
GEAR
Operator's Manual
Quickflip TM
2 (69167) and Quickflip T`" 3 (69168) Sled-Style Shelters
ASSEMBLY INSTRUCTIONS
Tools needed - two 7
/ 1
6"wrenches and a Phillips screwdriver.
ASSEMBLY NOTE: This ice shelter should be assembled in a
garage or basement setting due to the time and length of
assembly. Identify and familiarize yourself with all parts and
hardware before assembly. Allow 1-3 hours for assembly.
ASSEMBLY NOTE: The use of a cordless drill with socket will
make assembly of your ice shelter much quicker. Be sure to
set the drill speed low so you do not over tighten any nut and
bolt combinations.
ASSEMBLY NOTE: If a Tracking Kit is purchased with the
shelter, it should be mounted to the sled before assembly
of the ice shelter for convenience.
IMPORTANT ASSEMBLY TIP: do not fully tighten any nut
and bolt combinations until all bolt-on parts are assembled
together! Finger tighten only! This will help hole alignment
of all parts.
FOR QUICKFLIP 2
Attach sled support bar (69677) and the left hinge assembly
(69309L) to the upper lip of sled using (4) provided 1/4-20 x
7/8" bolts, nyloc nuts and washers.
SEE FIGURE 1A.
NOTE: Be sure hinge assembly is orientated as shown in
FIGURE 1A, with high sides of hinges placed to the front of
sled and hinge poles to the inside.
Attach sled support bar and the right hinge assembly
(69309R) to the upper lip of sled using (4) provided1/4-20 x
7/8" bolts, nyloc nuts and washers.
NOTE: Be sure hinge assembly is orientated with high sides of
hinges placed to the frontof sled and hinge poles to the inside.
FOR QUICKFLIP 3
Attach the left hinge assembly (68426) to the upper lip of
sled using (3) provided 1/4-20 x7/8"bolts, nyloc nuts and SAE
washers. SEE FIGURE 1B.
NOTE: Be sure hinge assembly is orientated as shown in
FIGURE 1B, with high sides of hinges placed to the front of
sled and hinge poles to the inside.
Attach the right hinge assembly (68425) to the upper lip of sled
using (3) provided 1/4-20 x7/8"bolts, nyloc nuts and SAEwashers.
NOTE: Be sure hinge assembly is orientated with high sides of
hinges placed to the front of sled and hinge poles to the inside.
ASSEMBLY NOTE: The Peg pole assemblies for each hinge
assembly have been removed from the hinge assembly for
packaging reasons. You must re-attach the J-leg pole as-
semblies
to
each hinge assembly using the provided 1/4-20
x1-1/4"Phillips truss head bolts, nyloc nuts and pole hinge
caps. Be sure Pegs are positioned correctly on hinge (inside
of hinges). SEE PARTS EXPLOSION ON PAGE 12.
Figure 1,4 (left side shown)
Figure 18 (left side shown)
4
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
4

(2)1/4"x 3" bolts
(4)1/4"x 1-3/4" bolts
all washers are 1/4"
(1)1/4"x 2" bolt
I 
table
seat tube spacer
seat kit mount bracket
rear base tube
front base tube
all nuts are 1/4"
seat brace tube
Figure 3A
EsICE
kimo
Operator's Manual
Quickflip " 2 (69167) and Quickflip 3 (69168) Sled-Style Shelters
FOR QUICKFLIP 2 ONLY
Attach (2) seat kit mount brackets (68430)to each hinge assembly
using (4) provided 1/4-20 x 3/4" hex head bolts and nyloc nuts.
Make sure the mount brackets are positioned in the correct hole
locations so seat brace and seat positions are correct later in
instructions. SEE FIGURE 2.
Attach (2) seat tube spacers to each seat kit mount bracket
using (4) provided 1/4-20 x 3/4" bolts, nyloc nuts and washers.

ea. _
Attach (2) base tubes (68225) to the top side of seat tube
spacers using (4) provided 1/4-20 x 1-3/4" bolts, nyloc nuts
and (8) washers.
SEE FIGURE 3A.
a. Attach table (68439) to top of rear base tube and seat brace
(68172) to bottom of rear base tube using (2) provided 1/4-20
x 3" bolts, nyloc nuts and (4) washers.
SEE FIGURE 3A.
NOTE:Seat brace should be oriented so cross tube is to the

(2)1/4"x 3/4" bolts
Figure 2 (right side shown)
front of ice shelter.
SEE FIGURE 3A.
b. Attach front of table to front base tube using (1) provided
1/4-20 x 2" bolts, nyloc nut and (2) washers.
SEE FIGURE 3A.
hinge

seat kit mount bracket
(2) 1/4" nuts
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
5

(8) 1/4"x 2-3/4' bolts
all washers are 1/4"
(4) 1/4"x 1-1/2" bolts
RIGHT SIDE
base tubes
seat base
r
backrest frame
LEFT SIDE
all nuts are 1/9"
Eskimo
GEAR
Operator's Manual
Quickflip T's 2(69167) and Quickflip T"' 3(69168) Sled-Style Shelters

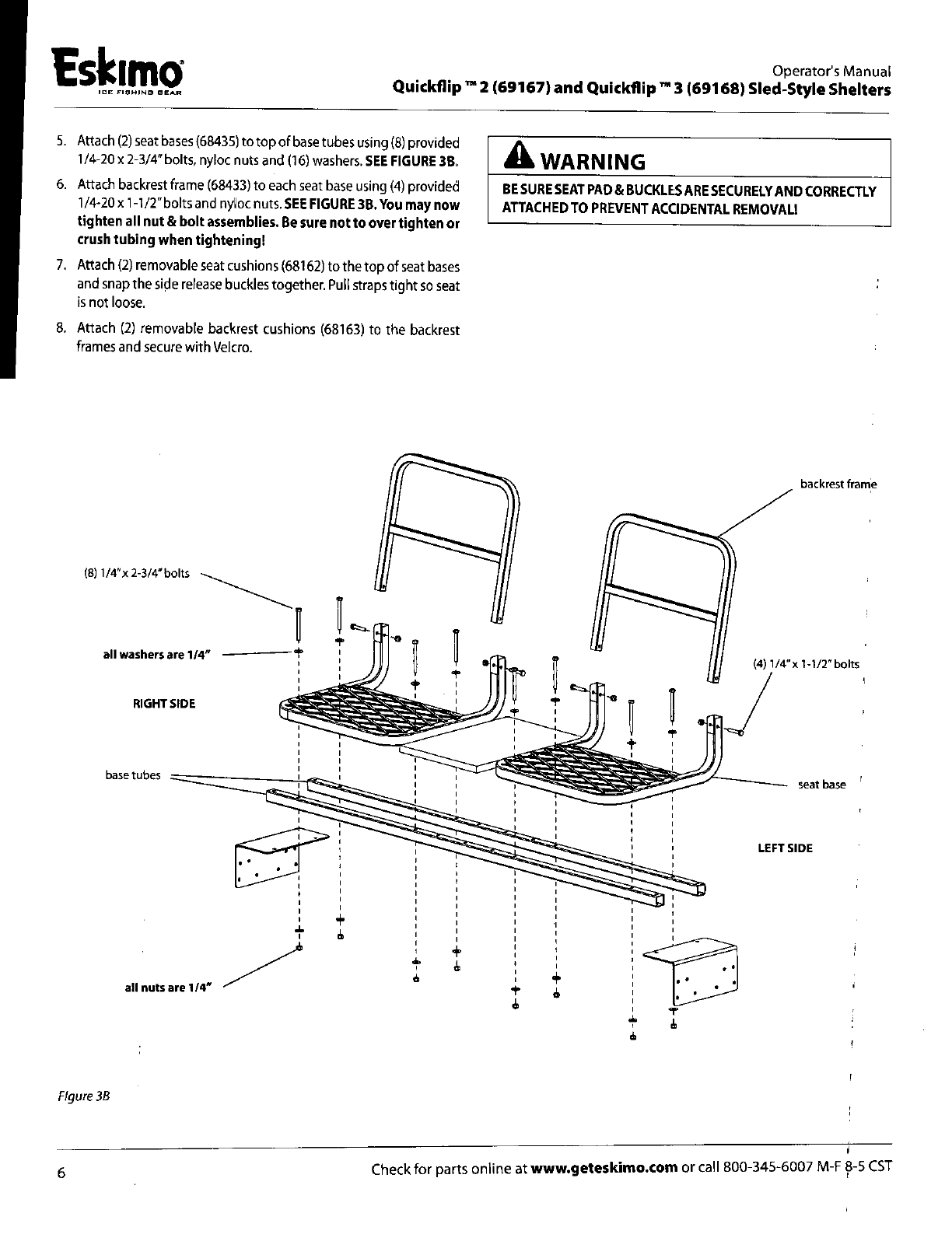

Attach (2) seat bases (68435) to top of base tubes using (8) provided
1/4-20 x 2-3/4" bolts, nyloc nuts and (16) washers.
SEE FIGURE 3B.
Attach backrest frame (68433) to each seat base using (4) provided
1/4-20 x 1-1/2" bolts and nyloc nuts.
SEE FIGURE 3B. You may now
tighten all nut & bolt assemblies. Be sure not to over tighten or
crush tubing when tightening!
Attach (2) removable seat cushions (68162) to the top of seat bases
and snap the side release buckles together. Pull straps tight so seat
is not loose.
Attach (2) removable backrest cushions (68163) to the backrest
frames and secure with Velcro.
A
WARNING
BE SURE SEAT PAD& BUCKLES ARE SECURELY AND CORRECTLY
ATTACHED TO PREVENT ACCIDENTAL REMOVAL!
Figure 38
Check for parts online at www.geteskimoscom or call 800-345-6007 M-F

CST
6

hinge
etz.,
\--
(2) 1/4"x 3/4" bolts
seat kit mount bracket
(2) 1/4" nuts
(2) 1/4"x 2-1/4" bolts
(4) 1/4"x 1-3/4" bolts
all washers are 1/4"
base tubes
seat kit mount bracket
all nuts are 1/4"
•
seat brace
Figure SA
Eskim o co:
Operators Manual
Quickflip "A 2(69167) and Quickflip TM 3(69168) Sled-Style Shelters
FOR QUICKFLIP 3 ONLY
Attach (2) seat kit mount brackets (68430) to each hinge assembly
using (4) provided 1/4-20 x 3/4" hex head bolts and nyloc nuts. Make
sure the mount brackets are positioned in the correct hole locations
so seat brace and seat positions are correct later in instructions. SEE
FIGURE 4.
Attach (2) base tubes (68441) to the top side of seat kit mount
brackets using (4) provided 1/4-20 x 1-3/4" bolts, nyloc nuts and (8)
washers. SEE FIGURE SA.
Attach seat brace (68440) to bottom of rear brace tube using (2)
provided 1/4-20 x 2-1/4" bolts, nyloc nuts and (4) washers. SEE
FIGURE SA.

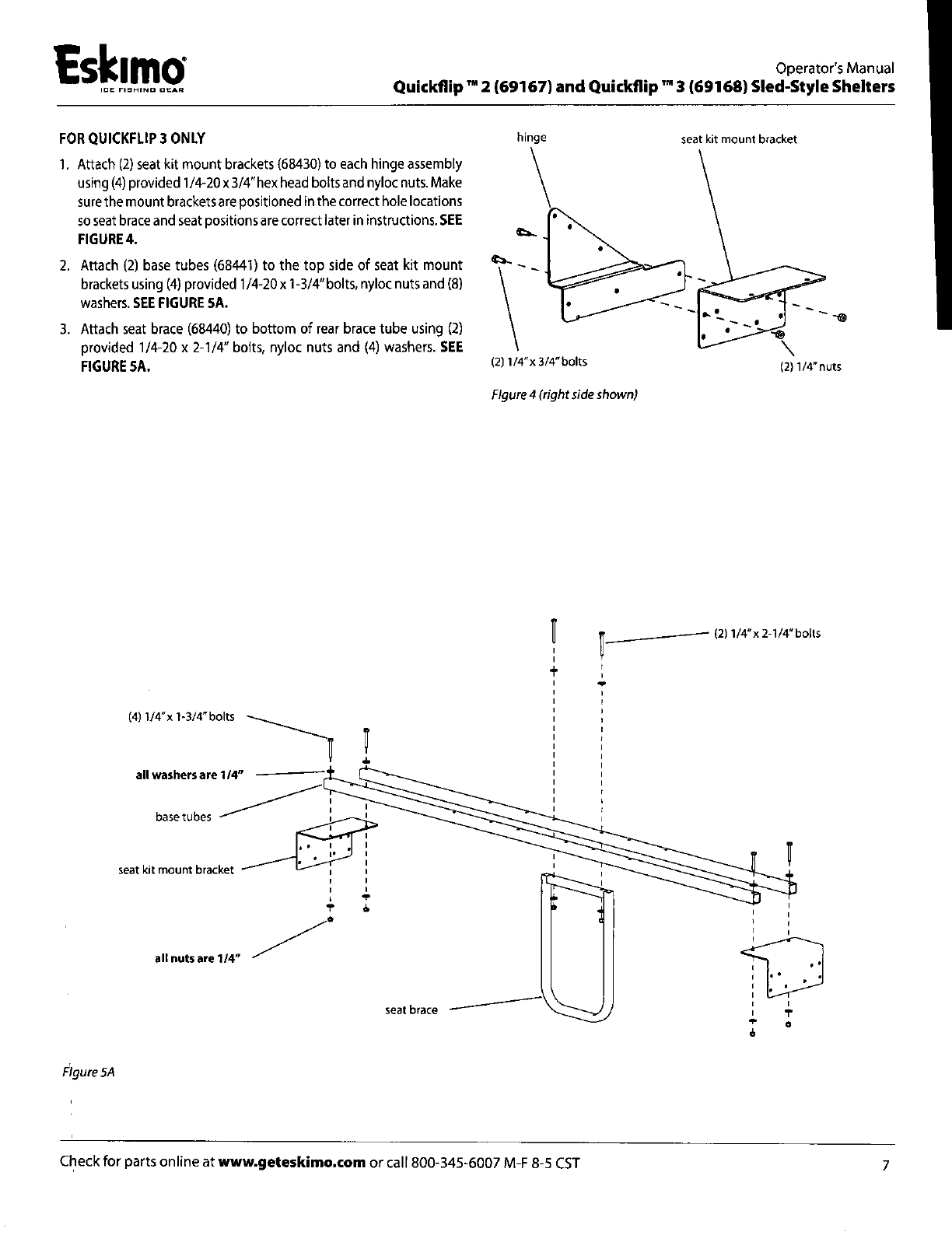

Figure 4 (right side shown)
Check for parts online at
www.geteskimoscom
or call 800-345-6007 M-F 8-5 CST
7

front base tube
seat base
all nuts are 1/9"
backrest frame
(12) 1/4"x 2-3/4" bolts
all washers are 1/4"
(6) 1/4"x 1-1 /2" bolts
RIGHT SIDE
LEFT SIDE
rear base tube
Eskimo
Operator's Manual
Quickflip 2(69167) and Quickflip n" 3(69168) Sled-Style Shelters
Attach (3) seat bases to top of base tubes using (12) provided
1/4-20 x 2-3/4" bolts, nyloc nuts and (24) washers.
SEE FIGURE
SB.
Attach backrest frame to each seat base using (6) provided
1/4-20 x 1-1/2"bolts and nyloc nuts.
SEE FIGURE 5B.You may
now tighten all nut & bolt assemblies. Be sure not to over
tighten or crush tubing when tightening!
Attach (3) removable seat cushions (68162) to the top of seat
bases and snap the side release buckles together. Pull straps
tight so seat is not loose.
Attach (3) removable backrest cushions (68163) to the back-
rest frames and secure with Velcro.
A
WARNING
BE SURE SEAT PAD & BUCKLES ARE SECURELY AND COR-
RECTLY ATTACHED TO PREVENT ACCIDENTAL REMOVAL!
Figure 58
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
8

plastic corner
vertical pole z
assembly
Figure 6
horizontal pole
assembly
top brace poles
snap button
upright poles
Figure?
Es
ICC
kimo:
Operator's Manual
Quickflip TM
2 (69167) and Quickflip T"' 3 (69168) Sled-Style Shelters
FOR QUICKFLIP 2

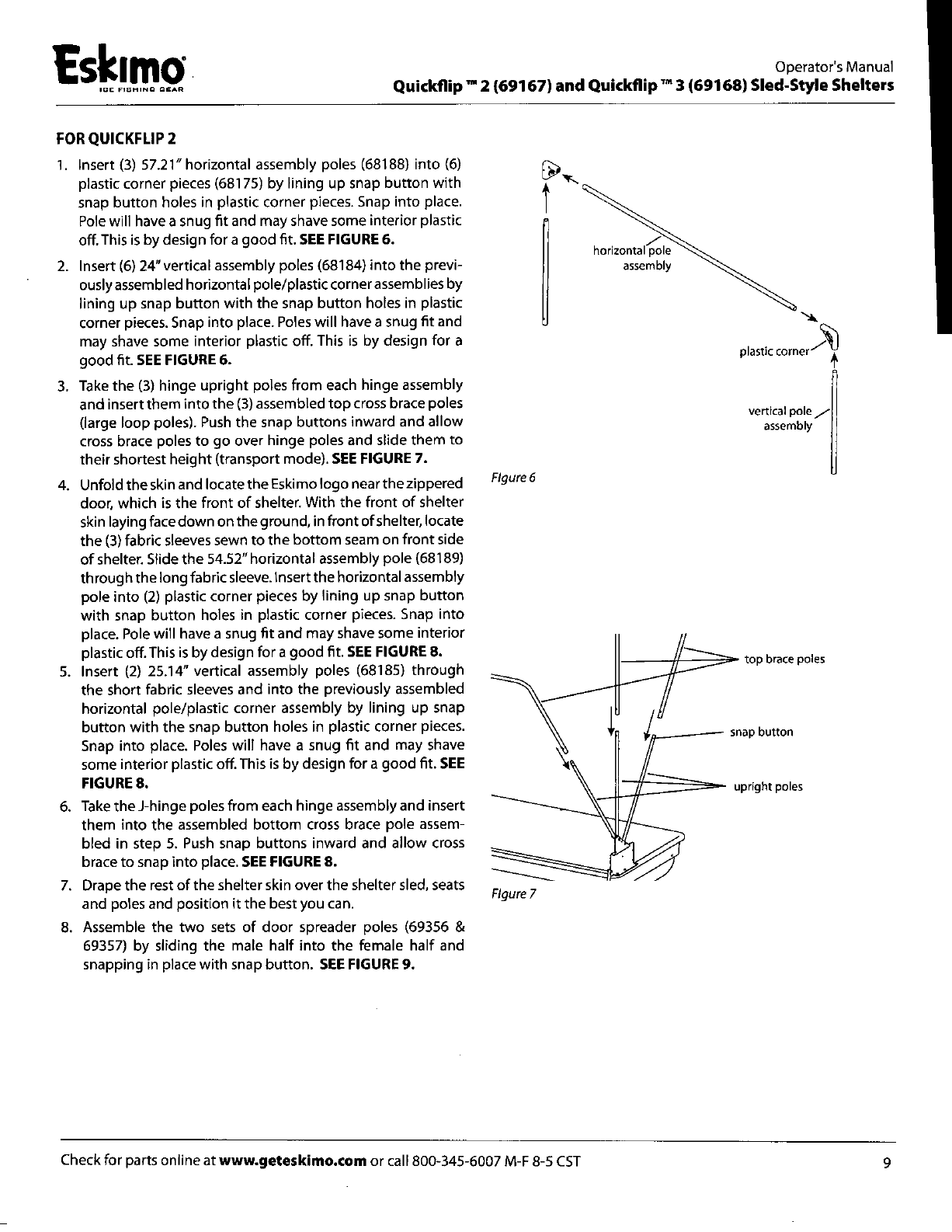

Insert (3) 57.21" horizontal assembly poles (68188) into (6)
plastic corner pieces (68175) by lining up snap button with
snap button holes in plastic corner pieces. Snap into place.
Pole will have a snug fit and may shave some interior plastic
off. This is by design for a good fit.
SEE FIGURE 6.
Insert (6) 24" vertical assembly poles (68184) into the previ-
ously assembled horizontal pole/plastic corner assemblies by
lining up snap button with the snap button holes in plastic
corner pieces. Snap into place. Poles will have a snug fit and
may shave some interior plastic off. This is by design for a
good fit.
SEE FIGURE 6.
Take the (3) hinge upright poles from each hinge assembly
and insert them into the (3) assembled top cross brace poles
(large loop poles). Push the snap buttons inward and allow
cross brace poles to go over hinge poles and slide them to
their shortest height (transport mode).
SEE FIGURE 7.
Unfold the skin and locate the Eskimo logo near the zippered
door, which is the front of shelter. With the front of shelter
skin laying face down on the ground, in front of shelter, locate
the (3) fabric sleeves sewn to the bottom seam on front side
of shelter. Slide the 54.52" horizontal assembly pole (68189)
through the long fabric sleeve. Insert the horizontal assembly
pole into (2) plastic corner pieces by lining up snap button
with snap button holes in plastic corner pieces. Snap into
place. Pole will have a snug fit and may shave some interior
plastic off. This is by design for a good fit.
SEE FIGURE 8.
Insert (2) 25.14" vertical assembly poles (68185) through
the short fabric sleeves and into the previously assembled
horizontal pole/plastic corner assembly by lining up snap
button with the snap button holes in plastic corner pieces.
Snap into place. Poles will have a snug fit and may shave
some interior plastic off. This is by design for a good fit.
SEE
FIGURE 8.
Take the J-hinge poles from each hinge assembly and insert
them into the assembled bottom cross brace pole assem-
bled in step 5. Push snap buttons inward and allow cross
brace to snap into place.
SEE FIGURES.
Drape the rest of the shelter skin over the shelter sled, seats
and poles and position it the best you can.
Assemble the two sets of door spreader poles (69356 &
69357) by sliding the male half into the female half and
snapping in place with snap button. SEE FIGURE 9.
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
9

snap button snapped in
place
Esk
,cEiHINo
mo
aEAR
Operators Manual
Quickflip "" 2 (69167) and Quickflip "" 3 (69168) Sled-Style Shelters
FOR QUICKFLIP 3 ONLY
Insert (3) 70.02" horizontal assembly poles (68190) into (6)
plastic corner pieces (68175) by lining up snap button with
snap button holes in plastic corner pieces. Snap into place.
Pole will have a snug fit and may shave some interior plastic
off. This is by design for a good fit.
SEE FIGURE 6.
Insert (6) 27.76"vertica I assembly poles (68186) into the pre-
viously assembled horizontal pole/plastic corner assemblies
by lining up snap button with the snap button holes in plas-
tic corner pieces. Snap into place. Poles will have a snug fit
and may shave some interior plastic off. This is by design for
a good fit.
SEE FIGURE 6.
Take the (3) hinge upright poles from each hinge assembly
and insert them into the (3) assembled top cross brace poles
(large loop poles). Push the snap buttons inward and allow
cross brace poles to go over hinge poles and slide them to
their shortest height (transport mode).
SEE FIGURE 7.
Unfold the skin and locate the Eskimo logo near the zip-
pered door, which is the front of shelter. With the front of
shelter skin laying face down on the ground, in front of shel-
ter, locate the (3) fabric sleeves sewn to the bottom seam
on front side of shelter. Slide the 67.52" horizontal assembly
pole (68191) through the long fabric sleeve. Insert the hori-
zontal assembly pole into (2) plastic corner pieces by lining
up snap button with snap button holes in plastic corner
pieces. Snap into place. Pole will have a snug fit and may
shave some interior plastic off. This is by design for a good
fit. SEE FIGURE 8.
Insert (2) 29.64" vertical assembly poles (68187) through
the short fabric sleeves and into the previously assembled
horizontal pole/plastic corner assembly by lining up snap
button with the snap button holes in plastic corner pieces.
Snap into place. Poles will have a snug fit and may shave
some interior plastic off. This is by design for a good fit.
SEE
FIGURE 8.
Take the J-hinge poles from each hinge assembly and insert
them into the assembled bottom cross brace pole assem-
bled in step 5. Push snap buttons inward and allow cross
brace to snap into place. SEE FIGURE 8.
Drape the rest of the shelter skin over the shelter sled, seats
and poles and position it the best you can.
front 1-leg
pole
fabric sleeve
Figure 8
Figure 9
FOR ALL MODELS
Unzip door and move to the inside of shelter and extend the (3) top
cross brace poles and snap into place. Place back spreader pole with
stud, both roof spreader poles and both door spreader poles into
position by snapping C-clip over cross brace poles. For back spreader
pole, simply place end with stud into pre-drilled hole in back lip of sled.
Attach all Velcro loops to cross brace poles.
SEE FIGURES 9 & 10.
Move to outside of shelter. Find the center of the edge trim and line
it up with the center of sled lip on back side of shelter. Pull down on
the skin evenly over the sled lip until it is snug.
NOTE: When pulling skin tight, DO NOT lift the bottom cross brace
pole off the ground. Bottom cross brace pole should always contact
the ground.
Temporarily press the edge trim over the skin and sled lip. Using a
rubber mallet may be helpful to press over the sled lip.
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
10

spreader poles
door spreader
poles
Eskimo
Operator's Manual
Quickflip "" 2(69167) and Quickflip 3(69168) Sled-Style Shelters

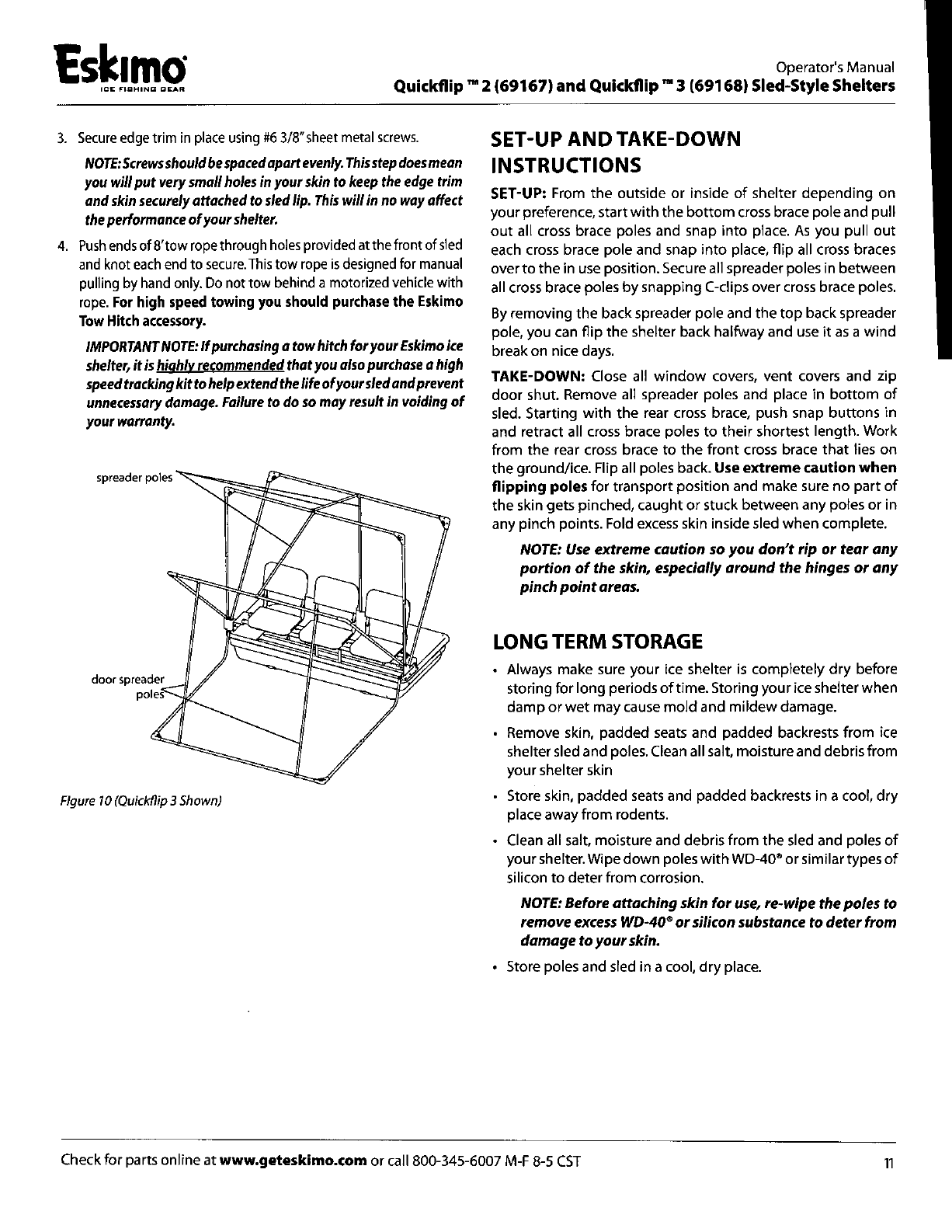

Secure edge trim in place using #63/8"sheet metal screws.
NOTE:Screwsshould be spaced apart evenly. This step does mean
you will put very small holes in your skin to keep the edge trim
and skin securely attached to sled lip. This will in no way affect
the performance of your shelter.
Push ends of 8'tow rope through holes provided at the front of sled
and knot each end to secure. This tow rope is designed for manual
pulling by hand only. Do not tow behind a motorized vehicle with
rope.
For high speed towing you should purchase the Eskimo
Tow Hitch accessory.
IMPORTANT NOTE: If purchasing a tow hitch for your Eskimo ice
shelter, it is highly recommended that you also purchase a high
speed tracking kit to help extend the life of your sled and prevent
unnecessary damage. Failure to do so may result in voiding of
your warranty.
Figure 10 (Quickflip 3 Shown)
SET-UP AND TAKE-DOWN
INSTRUCTIONS
SET-UP: From the outside or inside of shelter depending on
your preference, start with the bottom cross brace pole and pull
out all cross brace poles and snap into place. As you pull out
each cross brace pole and snap into place, flip all cross braces
over to the in use position. Secure all spreader poles in between
all cross brace poles by snapping C-clips over cross brace poles.
By removing the back spreader pole and the top back spreader
pole, you can flip the shelter back halfway and use it as a wind
break on nice days.
TAKE-DOWN:
Close all window covers, vent covers and zip
door shut Remove all spreader poles and place in bottom of
sled. Starting with the rear cross brace, push snap buttons in
and retract all cross brace poles to their shortest length. Work
from the rear cross brace to the front cross brace that lies on
the ground/ice. Flip all poles back.
Use extreme caution when
flipping poles
for transport position and make sure no part of
the skin gets pinched, caught or stuck between any poles or in
any pinch points. Fold excess skin inside sled when complete.
NOTE: Use extreme caution so you don't rip or tear any
portion of the skin, especially around the hinges or any
pinch point areas.
LONG TERM STORAGE
Always make sure your ice shelter is completely dry before
storing for long periods of time. Storing your ice shelter when
damp or wet may cause mold and mildew damage.
Remove skin, padded seats and padded backrests from ice
shelter sled and poles. Clean all salt moisture and debris from
your shelter skin
Store skin, padded seats and padded backrests in a cool, dry
place away from rodents.
Clean all salt, moisture and debris from the sled and poles of
your shelter. Wipe down poles with WD-40e or similar types of
silicon to deter from corrosion.
NOTE: Before attaching skin for use, re-wipe the poles to
remove excess WO-40e or silicon substance to deter from
damage to your skin.
Store poles and sled in a cool, dry place.
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST

11

EsICE kiSHINS
mo
AR
Operator's Manual
Quickflip "" 2 (69167) and Quickflip
TM
3 (69168) Sled-Style Shelters
QUICKFLIP 2
Quickflip 2 hinge assembly (right side shown)
Quickflip 2 assembled
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
12

Esit
ICC
i s o c
Operator's Manual
Quickflip 71.1 2
(69167) and Quickflip "“
3(69168) Sled-Style Shelters
QUICKFLIP 2 PARTS LIST
REF.
NO.
DESCRIPTION
PART NO.
QTY.
1 WASHER, 1/4" FLAT
482618 8
2
NUT, 1/4-20 HEX NYLOCK
67538 16
3
BOLT, 1/4-20 X 7/8" HHCS GAS
67541 8
4
CORNER, PLASTIC 7/8 POLE SIZE
68175 8
5
ASSEMBLY, POLE VERTICAL 24.00"
68184 6
6
ASSEMBLY, POLE VERTICAL 25.14"
68185
2
7
ASSEMBLY, POLE HORIZONTAL 57.21"
68188
3
8
ASSEMBLY, POLE HORIZONTAL 54.52"
68189
1
9
POLE ASSEMBLY, TOP FRONT SPREADER (INCLUDES
TWO .706' CLIPS)
68331
1
10
SLED
68380
11
POLE ASSEMBLY, BACK SPREADER (INCLUDES ONE
.706"CLIP & ONE .706
- STUD)
68422
1
12
SEAT KIT (SEE PAGE 18 FOR PARTS)
68436
1
13
HINGE, ASSEMBLY LEFT SIDE
693091
1
14
HINGE, ASSEMBLY RIGHT SIDE
69309R
1
15
POLE ASSEMBLY, FRONT TOP SPREADER (INCLUDES
ONE .706' CLIP)
69356
2
16
POLE ASSEMBLY, FRONT BOTTOM SPREADER
(INCLUDES ONE .875" CLIP)
69357
2
17
SUPPORT BAR, SLED
69677
2
18
POLE ASSEMBLY, TOP BACK SPREADER (INCLUDES
TWO .706 - CLIPS)
69679
1
19
BOLT, 1/4-20 X 1-1/4"PHILLIPS TRUSS HD GR2
67400
8
20 CAP, HINGE POLE
68305
8
21
POLE ASSEMBLY, MIDDLE UPRIGHT
69652 6
22
POLE ASSEMBLY, J-LEG
69678A
2
ITEMS BELOW NOT SHOWN
SNAP BUTTON, 1/4'
67501 26
CLIP, .875"
69124 2
CLIP, .706'
69134
7
-
STUD, .706"
68309 1
TOW ROPE
67589 1
SCREW, #6 X 3/8" PHILLIPS TRUSS HD 69629
13
SHELTER SKIN, RED (QUICKFLIP 2) 68017
1
- EDGE TRIM, 1/4" CUT TO 93.5
69654 1
WINDOW REPLACEMENT, 8" X 12 - 69531 2
WINDOW REPLACEMENT, 8' X 28' 69533
1
-
WINDOW REPLACEMENT, 13.5'X 13.5" 69534
1
REPAIR PARTS
PATCH krr, RED
KITISP
Check for parts online at www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST

13

Esk
FI OHING
imo
SEAR
Operator's Manual
Quickflip t' 2 (69167) and Quickflip
TM
3 (69168) Sled-Style Shelters
QUICKFLIP 3 PARTS
2
Quickflip 3 hinge assembly (right side shown)
Quickflip 3 assembled
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
14

Eskimo
ICI rUSHING GEAR
Operator's Manual
Quickflip in 2(69167) and Quickflip 3(69168) Sled-Style Shelters
QUICKFLIP 3 PARTS LISTS
REF.
NO.
DESCRIPTION
PART NO. QTY.
1 WASHER, SAE
67435
6
2
NUT, 1/4-20 HEX NYLOCK
67538
14
3
BOLT, 1/4-20' X 7/8" HHCS GR5
67541 6
4 CORNER, PLASTIC 7/8' POLE SIZE
68175 8
5
ASSEMBLY, POLE VERTICAL 27.76"
68186 6
6
ASSEMBLY, POLE VERTICAL 29.64'
68187 2
7
ASSEMBLY, POLE HORIZONTAL 70.02"
68190 3
8
ASSEMBLY, POLE HORIZONTAL 67.52'
68191 1
9
ASSEMBLY, POLE SPREADER 43.50"
68340
1
10
ASSEMBLY, POLE SPREADER, BACK 46.75"
68406 1
11 HINGE ASSEMBLY, RIGHT SIDE
68425
1
12
HINGE ASSEMBLY, LEFT SIDE
68426
1
13 POLE ASSEMBLY, 61.06"
68428 2
14 SEAT KIT (SEE PAGE 19 FOR PARTS)
68442
1
15 ASSEMBLY, POLE SPREADER 34.50"
69331
1
16 SLED
69390
1
17 POLE ASSEMBLY, FRONT UPRIGHT
69305A
2
18
POLE ASSEMBLY, MIDDLE UPRIGHT
69300A
4
19
BOLT 1/4-20 X 1-1/4" PHILLIPS TRUSS HO GR2
67400 8
20
TOP HINGE POLE
68305
8
21 POLE ASSEMBLY, J - LEG
69310A 2
ITEMS BELOW NOT SHOWN
- SNAP BUTTON, 1/4"
67501
24
CLIP, .706"
69134
9
-
STUD, .706'
68309
1
TOW ROPE
67589 1
SCREW, 46 X 3/8' PHILLIPS TRUSS HD 69629
13
SHELTER SKIN, RED
68018
1
EDGE TRIM, 1/4"CUTTO 114" 69306
1
- WINDOW REPLACEMENT, 8" X 12" 69531 2
WINDOW REPLACEMENT, 8' X 28' 69533
1
WINDOW REPLACEMENT, 13.5X 13.5" 69534 1
REPAIR PARTS
- PATCH KIT, RED KITISP
Check for parts online at www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST

15

EsICE
kyno
Operator's Manual
Quickflip " 2(69167) and Quickflip 3 (69168) Sled-Style Shelters
10

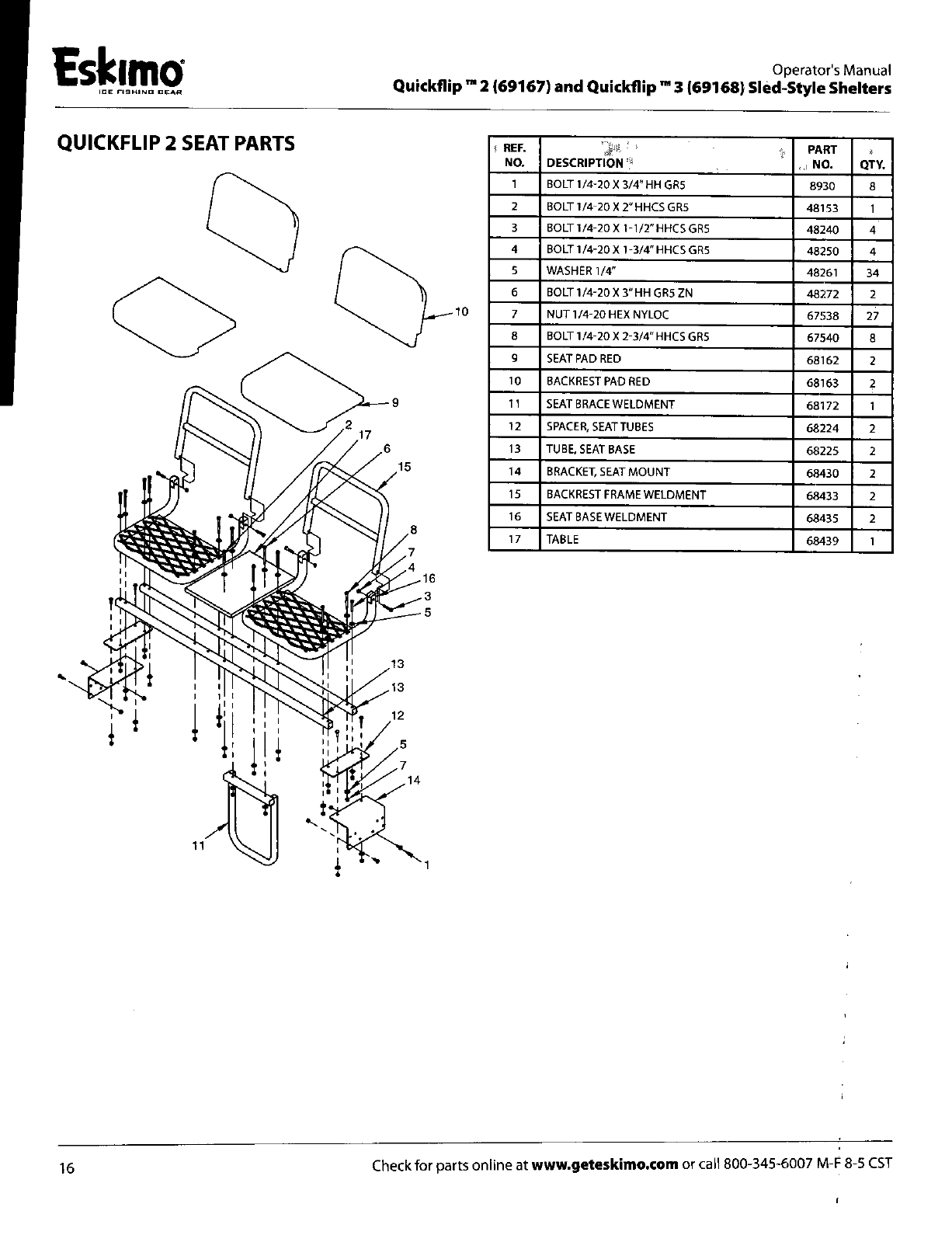

QUICKFLIP 2 SEAT PARTS
-‘ REF.
NO.
ril l  '
DESCRIPTION '
1
PART
,  NO.
a
QTY.
1
BOLT 1/4-20 X 3/4" HH GR5
8930 8
2
BOLT 1/4-20 X 2"HHCS GR5
48153
1
3
BOLT 1/4-20 X 1-1/2" HHCS GR5
48240
4
BOLT 1/4-20 X 1-3/4" HHCS GR5
48250 4
5
WASHER 1/4"
48261
34
6
BOLT 1/4-20 X 3" HH GR5 ZN
48272 2
7
NUT 1/4-20 HEX NYLOC
67538 27
8
BOLT 1/4-20 X 2-3/4" HHCS GR5
67540
8
9
SEAT PAD RED
68162
2
10
BACKREST PAD RED
68163
2
11
SEAT BRACE WELDMENT
68172
1
12
SPACER, SEAT TUBES
68224
2
13
TUBE, SEAT BASE
68225 2
14
BRACKET, SEAT MOUNT
68430
2
15
BACKREST FRAME WELDMENT
68433
2
16
SEAT BASE WELDMENT
68435 2
17
TABLE
68439 1
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
16

QUICKFLIP 3 SEAT PARTS
REF.
NO.
DESCRIPTION
PART
NO. QTY.
1 TUBE, SEAT BASE
68441
2
2 BRACKET, SEAT MOUNT 68430 2
3 SEAT BASE WELDMENT 68435 3
4 BACKREST FRAME WELDMENT 68433 3
5
WASHER 1/4' 48261 36
6 BOLT 1/4-20 X 3/4' HH GR5 8930
4
7 BOLT 1 / 4 -20 X 1-3/4" HHCS GR5
48250 4
8 BOLT 1/4-20 X 1-1/2 ° HHCS GR5 48240 6
9 BOLT 1/4-20 X 2-3/4' HI-CS GR5 67540
12
10 NUT 1/4-20 HEX NYLOC 67538 28
11 SEAT PAD RED 68162 3
12 BACKREST PAD RED 68163 3
13 SEAT BRACE WELDMENT 68440
1
14 BOLT 1/4-20 X 2- 1 / 4 " HHCS GR5
48271 2
12
EskiSHINO
mo
OCAR
Operator's Manual
Quickflip " 2(69167) and Quicktlip ' 3 (69168) Sled-Style Shelters
Check for parts online at
www.geteskimo.com or call 800-345-6007 M-F 8-5 CST

17

EsiStM,41
Operator's Manual
Quickflip T" 2(69167) and Quickflip " 3(69168) Sled-Style Shelters

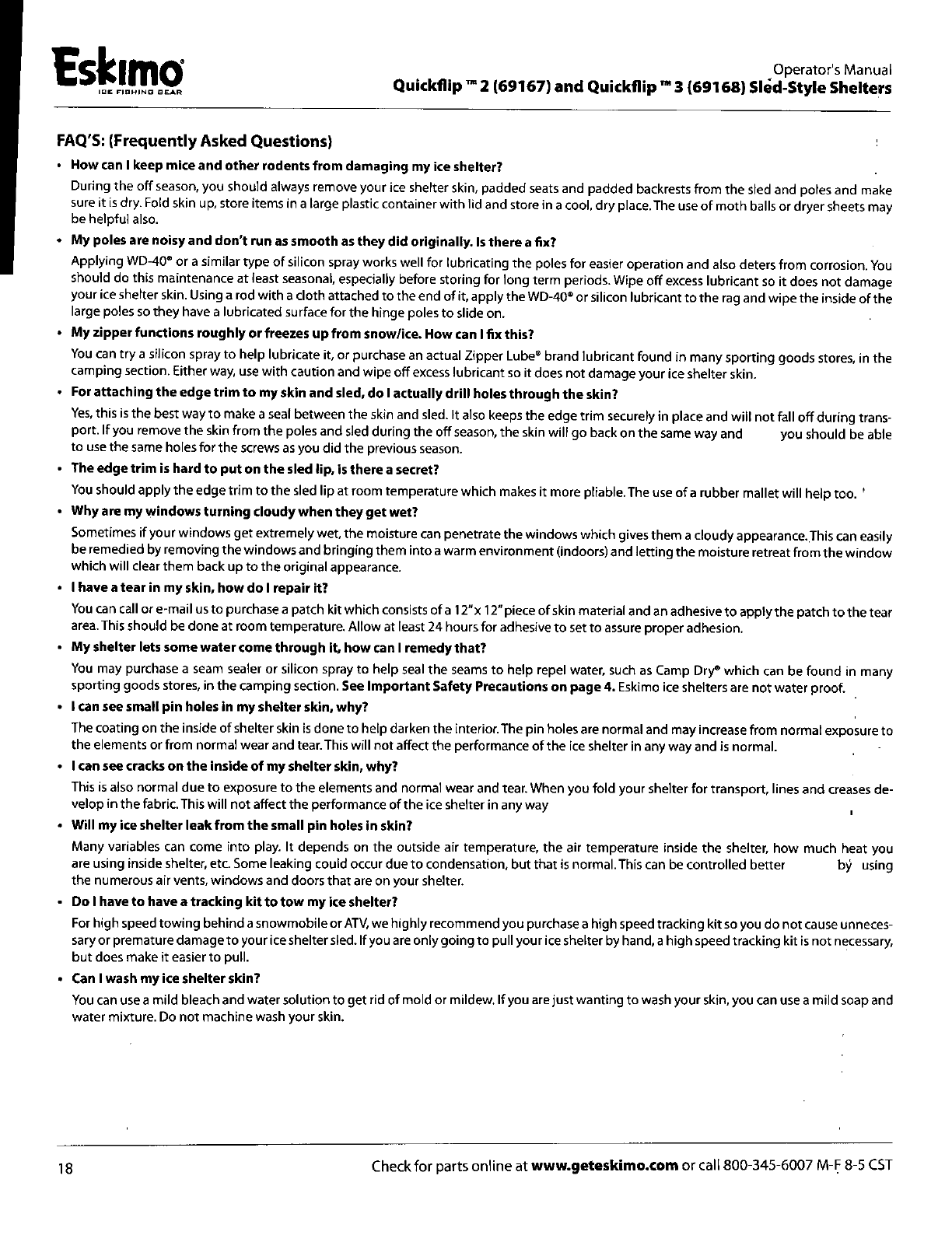

FAQ'S: (Frequently Asked Questions)
How can I keep mice and other rodents from damaging my ice shelter?
During the off season, you should always remove your ice shelter skin, padded seats and padded backrests from the sled and poles and make
sure it is dry. Fold skin up, store items in a large plastic container with lid and store in a cool, dry place.The use of moth balls or dryer sheets may
be helpful also.
My poles are noisy and don't run as smooth as they did originally. Is there a fix?
Applying WD-40° or a similar type of silicon spray works well for lubricating the poles for easier operation and also deters from corrosion. You
should do this maintenance at least seasonal, especially before storing for long term periods. Wipe off excess lubricant so it does not damage
your ice shelter skin. Using a rod with a cloth attached to the end of it, apply the WD-40 or silicon lubricant to the rag and wipe the inside of the
large poles so they have a lubricated surface for the hinge poles to slide on.
My zipper functions roughly or freezes up from snow/ice. How can I fix this?
You can try a silicon spray to help lubricate it, or purchase an actual Zipper Lube° brand lubricant found in many sporting goods stores, in the
camping section. Either way, use with caution and wipe off excess lubricant so it does not damage your ice shelter skin.
For attaching the edge trim to my skin and sled, do I actually drill holes through the skin?
Yes, this is the best way to make a seal between the skin and sled. It also keeps the edge trim securely in place and will not fall off during trans-
port. If you remove the skin from the poles and sled during the off season, the skin will go back on the same way and

you should be able
to use the same holes for the screws as you did the previous season.
The edge trim is hard to put on the sled lip, is there a secret?
You should apply the edge trim to the sled lip at room temperature which makes it more pliable.The use of a rubber mallet will help too. '
Why are my windows turning cloudy when they get wet?
Sometimes if your windows get extremely wet the moisture can penetrate the windows which gives them a cloudy appearance.This can easily
be remedied by removing the windows and bringing them into a warm environment (indoors) and letting the moisture retreat from the window
which will clear them back up to the original appearance.
I have a tear in my skin, how do I repair it?
You can call or e-mail us to purchase a patch kit which consists of a 12"x 12"piece of skin material and an adhesive to apply the patch to the tear
area. This should be done at room temperature. Allow at least 24 hours for adhesive to set to assure proper adhesion.
My shelter lets some water come through it, how can I remedy that?
You may purchase a seam sealer or silicon spray to help seal the seams to help repel water, such as Camp Dry
.° which can be found in many
sporting goods stores, in the camping section.
See Important Safety Precautions on page 4.
Eskimo ice shelters are not water proof.
I can see small pin holes in my shelter skin, why?
The coating on the inside of shelter skin is done to help darken the interior.The pin holes are normal and may increase from normal exposure to
the elements or from normal wear and tear. This will not affect the performance of the ice shelter in any way and is normal.
I can see cracks on the inside of my shelter skin, why?
This is also normal due to exposure to the elements and normal wear and tear. When you fold your shelter for transport, lines and creases de-
velop in the fabric. This will not affect the performance of the ice shelter in any way
Will my ice shelter leak from the small pin holes in skin?
Many variables can come into play. It depends on the outside air temperature, the air temperature inside the shelter, how much heat you
are using inside shelter, etc. Some leaking could occur due to condensation, but that is normal. This can be controlled better
 by using
the numerous air vents, windows and doors that are on your shelter.
Do I have to have a tracking kit to tow my ice shelter?
For high speed towing behind a snowmobile or ATV, we highly recommend you purchase a high speed tracking kit so you do not cause unneces-
sary or premature damage to your ice shelter sled. If you are only going to pull your ice shelter by hand, a high speed tracking kit is not necessary,
but does make it easier to pull.
Can I wash my ice shelter skin?
You can use a mild bleach and water solution to get rid of mold or mildew. If you are just wanting to wash your skin, you can use a mild soap and
water mixture. Do not machine wash your skin.
Check for parts online at
www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST
18

Esk
ICEi'NO
mo
EAR
Operator's Manual
Quickflip 2(69167) and Quickflip "" 3(69168) Sled-Style Shelters

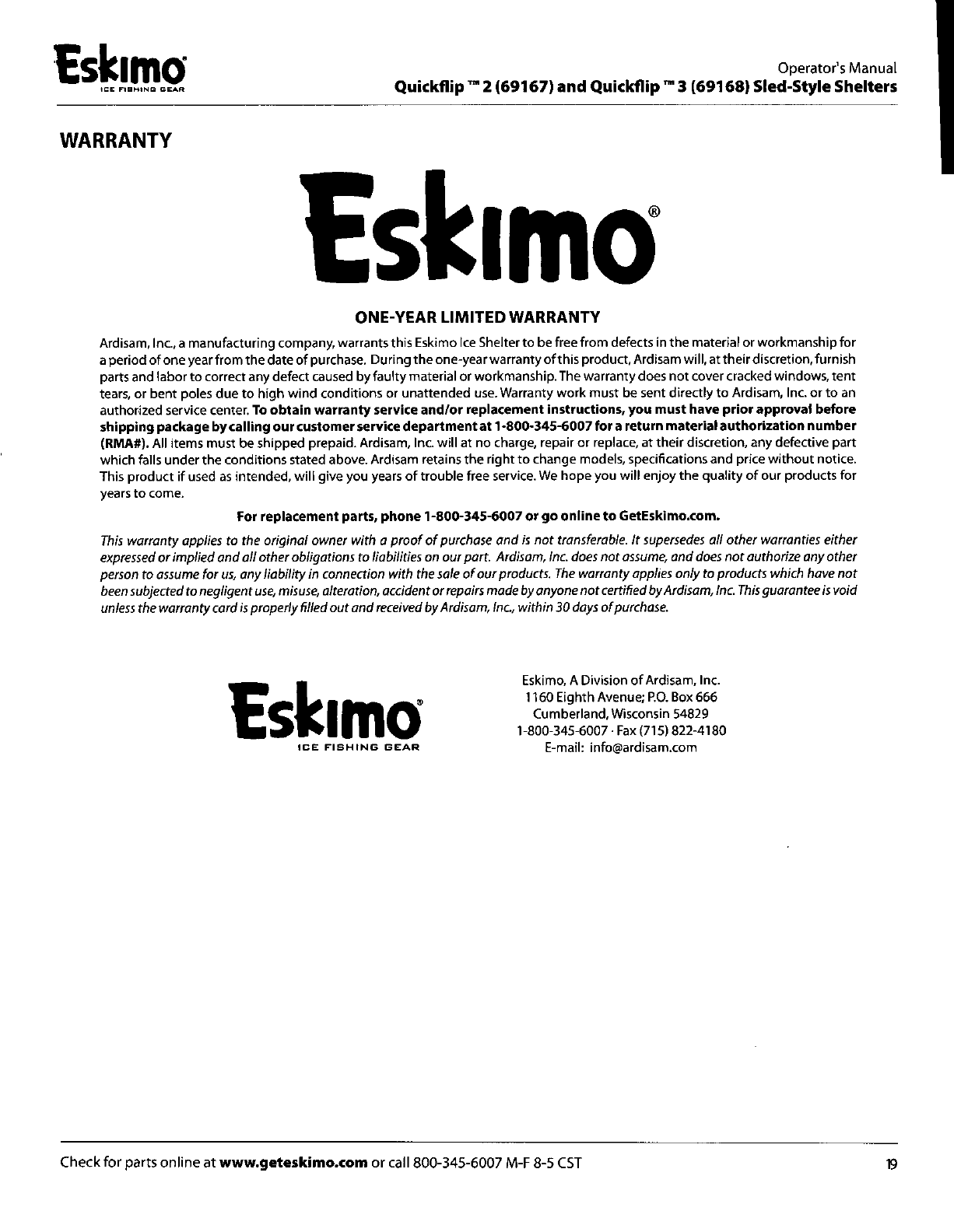

WARRANTY
Eskimo
®
ONE-YEAR LIMITED WARRANTY
Ardisam, Inc., a manufacturing company, warrants this Eskimo Ice Shelter to be free from defects in the material or workmanship for
a period of one year from the date of purchase. During the one-year warranty of this product. Ardisam will, at their discretion, furnish
parts and labor to correct any defect caused by faulty material or workmanship. The warranty does not cover cracked windows, tent
tears, or bent poles due to high wind conditions or unattended use. Warranty work must be sent directly to Ardisam, Inc. or to an
authorized service center.
To obtain warranty service and/or replacement instructions, you must have prior approval before
shipping package by calling our customer service department at 1-800-345-6007 for a return material authorization number
(RMA#).
All items must be shipped prepaid. Ardisam, Inc. will at no charge, repair or replace, at their discretion, any defective part
which falls under the conditions stated above. Ardisam retains the right to change models, specifications and price without notice.
This product if used as intended, will give you years of trouble free service. We hope you will enjoy the quality of our products for
years to come.
For replacement parts, phone [phone] or go online to GetEskimo.com
.
This warranty applies to the original owner with a proof of purchase and is not transferable. It supersedes all other warranties either
expressed or implied and all other obligations to liabilities on our part. Ardisam, Inc. does not assume, and does not authorize any other
person to assume for us, any liability in connection with the sale of our products. The warranty applies only to products which have not
been subjected to negligent use, misuse, alteration, accident or repairs made by anyone not certified by Ardisam, Inc This guarantee is void
unless the warranty card is properly filled out and received by Ardisam, Inc., within 30 days of purchase.
Eskimo
ICE FISHING GEAR
Eskimo, A Division of Ardisam, Inc.
1160 Eighth Avenue; P.O. Box 666
Cumberland, Wisconsin 54829
1-800-345-6007 . Fax [phone]
E-mail: [email protected]
Check for parts online at www.geteskimo.com
or call 800-345-6007 M-F 8-5 CST 
19

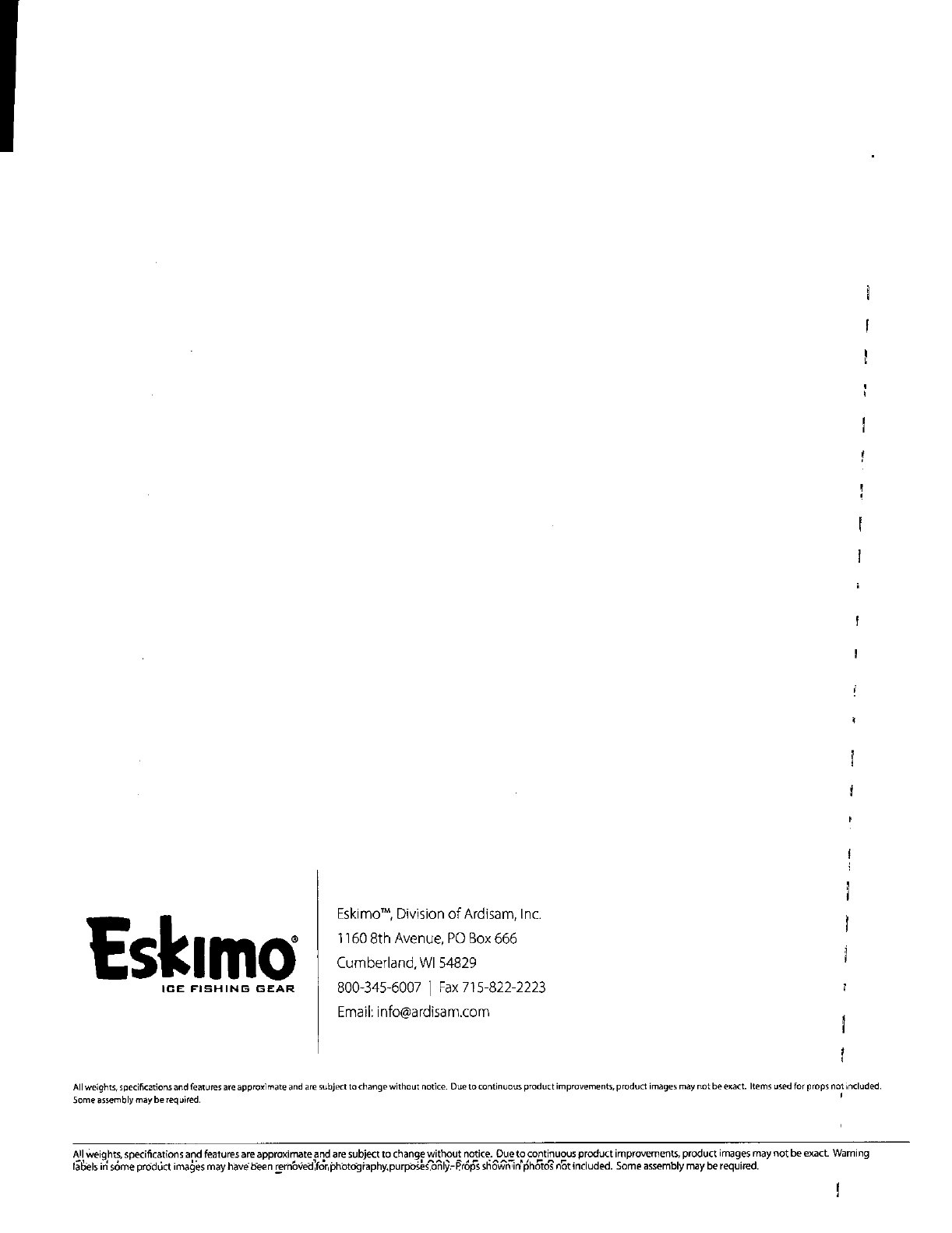

Esit m
ICE FISHING GEAR
EskimoTM, Division of Ardisam, Inc.
1160 8th Avenue, PO Box 666
Cumberland, WI 54829
800-345-6007 I Fax [phone]
Email: [email protected]
All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Items used for props not included.
Some assembly may be required.
All Weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact Warning
aels iri some prcithict images may Itavtieen rerhbVeefOnghbtcfgraphy,purpbSesaa9r rirOrcs 
nOt included. Some assembly may be required.
