ETC Installation Guide
Desire®Series D22
Desire D22 Page 1 of 8 Electronic Theatre Controls, Inc.
Corporate Headquarters  3031 Pleasant View Road, P.O. Box 620979, Middleton, Wisconsin 53562-0979 USA  Tel [phone]  Fax [phone]
London, UK  Unit 26-28, Victoria Industrial Estate, Victoria Road, London W3 6UU, UK  Tel [phone]  Fax [phone]
Rome, IT  Via Pieve Torina, 48, 00156 Rome, Italy  Tel [phone]  Fax [phone]
Holzkirchen, DE  Ohmstrasse 3, 83607 Holzkirchen, Germany  Tel [phone]  Fax [phone]
Hong Kong  Rm 1801, 18/F, Tower 1 Phase 1, Enterprise Square, 9 Sheung Yuet Road, Kowloon Bay, Kowloon, Hong Kong  Tel [phone]
Service: (Americas) [email protected]  (UK) ser[email protected]  (DE) [email protected]  (Asia) ser[email protected]
Web: www.etcconnect.com  Copyright © 2013 ETC. All Rights Reserved.  Product information and specifications subject to change.
7411M2100  Rev C  Released 2013-11  ETC intends this document to be provided in its entirety.
Introduction
ETC’s Desire D22 is designed for indoor installations and has a rugged die-cast
enclosure, steel mounting yoke, and noise-free, fan-less operation.
The D22 can be pipe mounted with a C-clamp, canopy mounted, or track mounted.
Mounting accessories are available. Contact ETC Customer Service for
assistance; contact information is located at the bottom of this page.
For information about the operation of the D22 Desire Series, refer to Desire
Series by ETC D22, D40, D40XT, D60 User Manual. ETC manuals are available
for download at http://www.etcconnect.com/downloads.aspx.
Specifications
Environment
Operates in ambient temperatures of 0°C to +40°C (32°F to 104°F).
CAUTION:
Do not attempt to install or use a fixture until you read and
understand the installation instructions and safety labels.
WARNING:
This fixture must be installed by a qualified electrician in
accordance with all national and local electrical and
construction codes and regulations.
CAUTION:
Risk of eye injury. Do not stare directly into the light.
Do not operate in proximity to flammable materials.

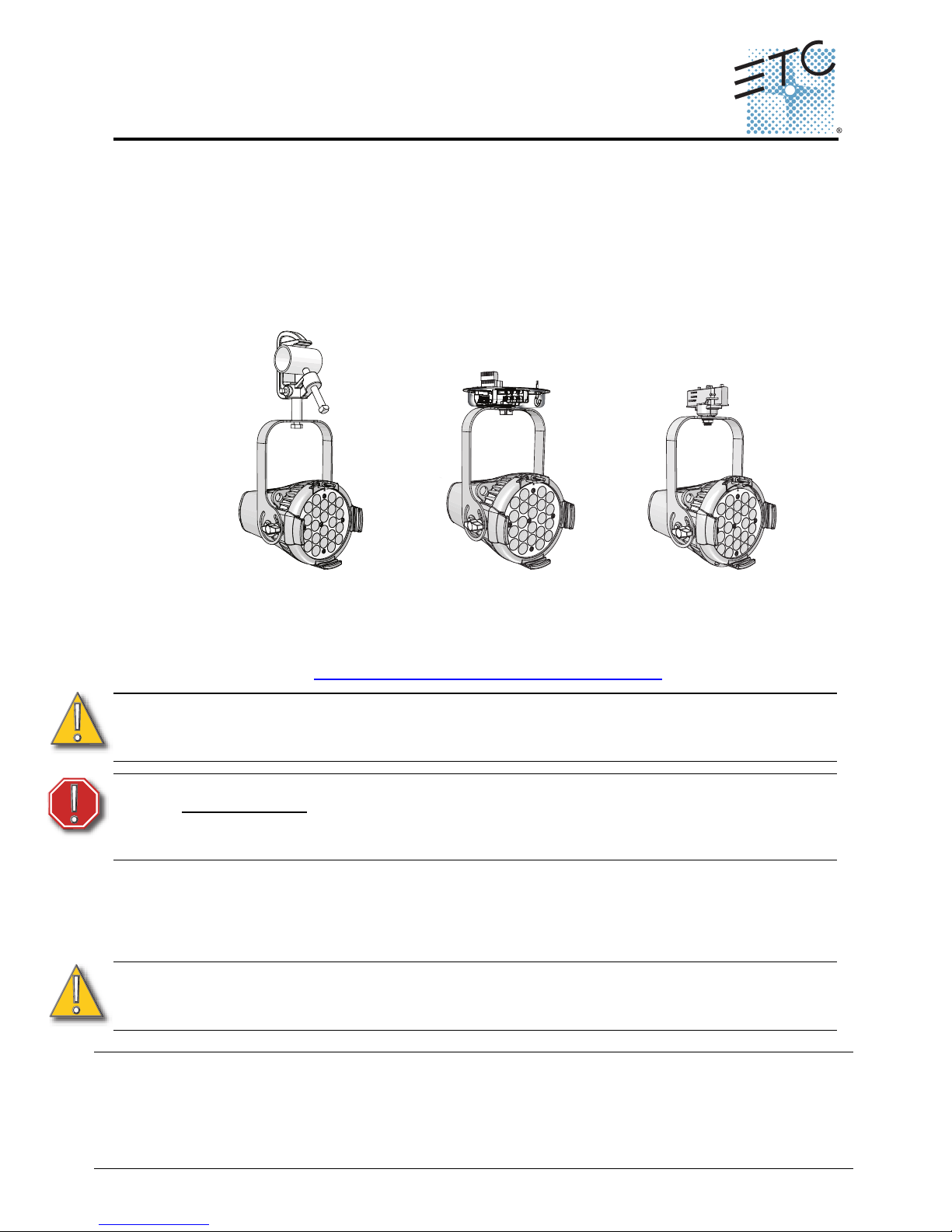

Portable Canopy Mount Track Mount

2Desire Series D22
Control
Portable
The Portable D22 is provided with 5-pin XLR connectors on the back for in and thru
connection to a DMX/RDM control network.
Canopy Mount
The D22 Canopy Mount fixture is provided with one cable, which provides power
and data into the canopy.
A termination board is incorporated into the mounting plate for installation onto a
voltage-separated junction box (junction box provided by others, voltage barrier
provided by ETC) and provides termination for control wiring.
• Connection of the D22 data cable to a provided screw-down connector,
which is pre-wired at the factory. The connector is plugged into the
termination board. The braided shield is connected inside the fixture and
should not be connected in the canopy.
• Connection of DMX/RDM input from the control source. This connection can
be cable type Belden 9729 (or equivalent) to the provided screw terminal.
When using Cat5 (or equivalent) cable type for DMX/RDM input, order a
Cat5 termination kit from ETC (part number 4100A1013). Cat5 termination
instructions and an IDC connector are provided with the termination kit.
• Connection of DMX/RDM thru to the next DMX device. This connection may
also be either Belden 9729 or Cat5. The connector is not provided. Order the
appropriate DMX termination kit for the cable type used from ETC (Belden
9729 use 4100A1012 or Cat5 use 4100A1013). Termination instructions and
the appropriate connector is provided with the termination kit. Up to 32 DMX/
RDM devices can be daisy-chained together per data run.
Track Mount
The Track Mount fixture’s power and data connections are made through the
Eutrac MultiAdaptor mounting adapter. No further wiring to the fixture is required.
Refer to the track installation instructions for more information.

3
Electrical
The Desire D22 Portable is provided with a permanently installed power cord with
3-prong Edison connector. Region specific connectors are available. Contact ETC
for available options. The Canopy fixture is provided with power and data wired to
the canopy and should be terminated in a voltage-separated junction box (provided
by others). The Track mount receives power through its MultiAdaptor, which
connects to one of two circuits.
Power Requirements
The universal power supply accepts 100-240 VAC 50/60Hz.
WARNING:
Ensure the main power supply is off before installing or
wiring a fixture.
CAUTION:
Do not use a fixture for any voltage for which it is not rated. Do
not exceed the specified voltage and current input for any
fixture.Connecting the fixture to a voltage outside the
acceptable range may damage the unit and will void the factory
warranty.
Note:
The fixture must be grounded.
Application appropriate electrical junction box with cord grips
are required. A voltage-separated junction box is required. A
RACO 232 series 4 x 2-1/8 inch deep junction box is
recommended.The junction box must not interfere with fixture
focusing.
The fixture is factory pre-wired. Opening the housing is not
required.
The fixture must be connected to a non-dimmable power
source. Dimming the unit will damage the fixture and void the
factory warranty.
Power Connections
Mains Europe North America
Line Brown Black
Neutral Blue White
Ground Green/Yellow Green

4Desire Series D22
Installation
Termination
The D22 Desire Series requires termination at the last fixture on a DMX/RDM line
with a 120 ohm resistor.
• The Portable fixture is self terminated.
• The Track fixture is terminated with a DataTrack DMX Term Block, ETC Part
# 7066A1030.
• The Canopy fixture is terminated on the Termination board inside the
canopy.
Canopy Fixture Mounting Plate and Termination Board
Termination
The Canopy fixture is terminated with the S1 switch on the Termination board. Set
the switch to the ON position to terminate the last fixture. All others on the
DMX/RDM line must be set to OFF.
Termination
board
Power block
Mounting plate
Termination switch
D22 Data connector

5
Installing the Canopy Fixture
The Canopy D22 Desire Series is installed on to a RACO 232 series 4 x 2-1/8 inch
deep double junction box. The fixture is supplied with a divider to separate the data
network from the line voltage inside the junction box.
DMX/RDM Cable Installation
Step 1: Terminate DMX/RDM input from the control source to the junction box.
This connection could be Belden 9729 or Category 5.
If using Belden 9729 for DMX/RDM input:
a: Reference the DMX Cable Preparation for
Screw Termination Setup Guide for
instructions to prepare and terminate
Belden 9729 for DMX input cable to the
screw terminal connector.
b: Install the screw terminal connector with
wires terminated to the DMX/RDM Input
receptacle on the termination board.
CAUTION:
Separate the line voltage from the data side in the
junction box. Install the voltage barrier provided by
ETC.
Canopy
Installation hook
Junction box
(not provided)
Data/Voltage
divider
Mounting plate
assembly
From a DMX/RDM source
Data – (Black)
Data + (Red)
Belden 9729 (or equivalent) wire
termination to screw connector
4 to 8 = n/c
COM

6Desire Series D22

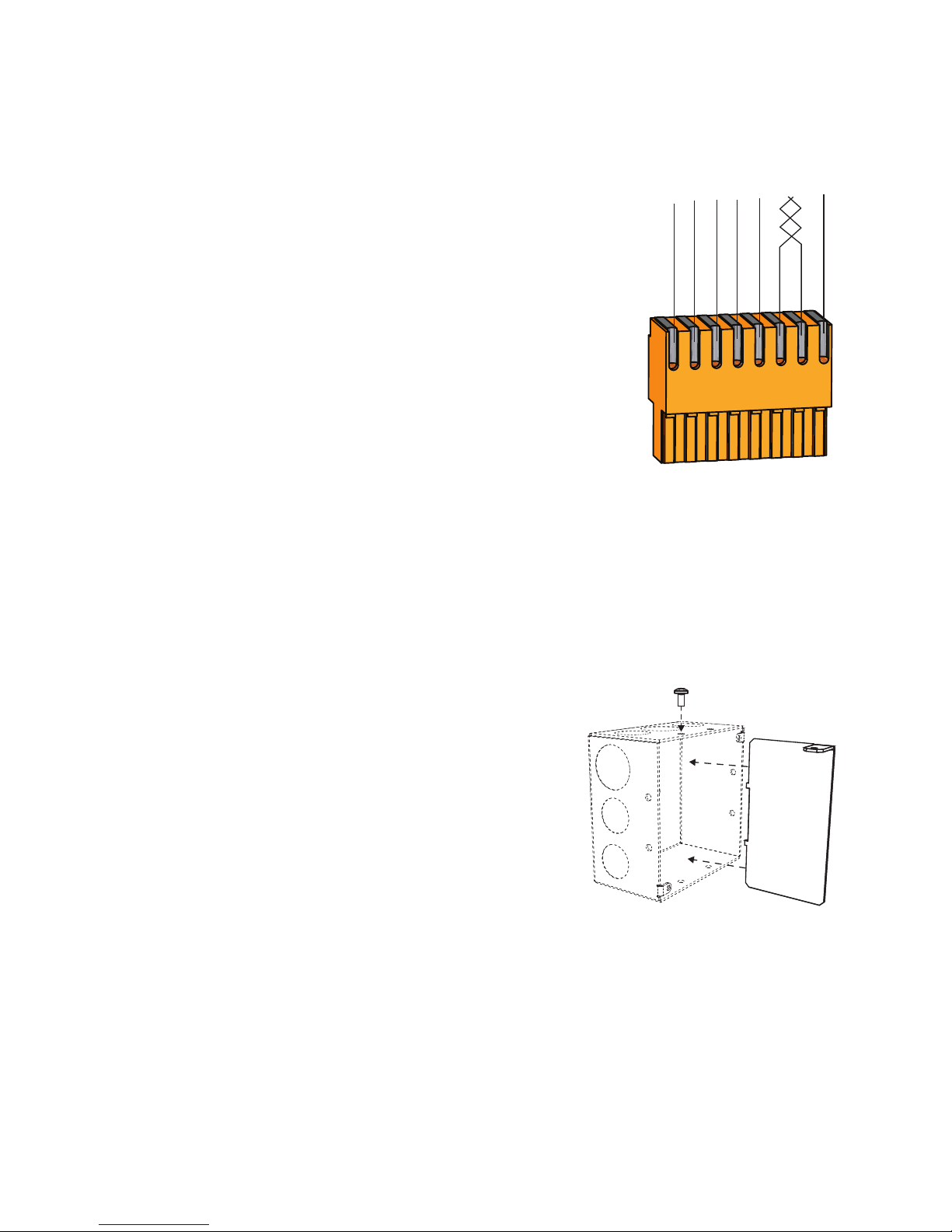

If using Category 5 for DMX/RDM input:
a: Reference the Cat5 Cable Preparation for IDC Termination Setup Guide
for instructions to prepare and terminate Category 5 for DMX/RDM input
cable to the insulation displacement connector.
b: Install the IDC connector with wires
terminated to the DMX/RDM Input
receptacle on the termination board.
Step 2: Optionally, terminate DMX/RDM thru to the
next device in the DMX data run. Up to 32
DMX/RDM devices can be daisy-chained
together per data run. Refer to Control on
page 2.
a: Reference the specific termination setup
guide for the type of cable used (either
Belden 9729 or Category 5) in the
installation. Termination kits are ordered
separately.
b: Install the connector with wires terminated
to the DMX/RDM Thru receptacle on the
termination board.
Step 3: Terminate DMX/RDM data signal for the last DMX/RDM device in the
data run by setting the termination switch on the termination board to ON.
All other devices in the data run maintain the factory default termination
switch setting OFF. Refer to Termination on page 4.
Canopy Mounting Plate Installation
Step 1: Install the divider in the junction box
with the provided screw, separating
the power side from the data side.
Step 2: Strip the supply power wires back 1/2
inch (13mm).
Step 3: Use a #2 Phillips screwdriver to
remove the two screws retaining the
Canopy to the mounting plate.
Step 4: Following the label on the mounting
plate, attach the supply power wires
to the power block on the mounting
plate. Refer to Canopy Fixture
Mounting Plate and Termination Board on page 4.
Step 5: Attach the power supply ground wire to the mounting plate.
Step 6: Plug in the input DMX/RDM connector (and thru DMX/RDM connector if
used) to the appropriate location on the terminal board.
Step 7: Attach the mounting plate to the junction box, ensuring the cables are
properly routed inside the box.
Data – (ORG)
Data + (W/ORG)
Cat5 (or equivalent) wire
termination to IDC connector
COM
BRN
GRN
W/GRN
BLU
W/BLU

7
Canopy Fixture Installation
Step 1: Strip the fixture’s power wires back 1/2 inch (13mm).
Step 2: Using the hole in the mounting bracket,
hang the canopy on the Installation hook.
Step 3: Following the label on the mounting plate,
attach the power wires to the power block.
Step 4: Secure the fixture ground wire to the
mounting plate.
Step 5: If the fixture is the last fixture on a
DMX/RDM line, terminate the fixture. See
Termination on page 4.
Step 6: Insert the DMX/RDM connector into the
Terminal board.
Step 7: To determine the alignment of the canopy,
orientate the fixture to where it will need to
be focused.
Step 8: Align the holes in the canopy with the
mounting posts on the mounting plate and using a #2 Phillips
screwdriver, secure the canopy to the mounting plate with the canopy
screws.
Step 9: Focus the fixture.
Installing the Portable Fixture
The C-clamp attaches the fixture to the mounting pipe.
The position of the fixture can be adjusted once it is
mounted.Tightly fasten the C-clamp to the yoke with
the provided yoke bolt and lock washer.
Step 1: Place the C-clamp on the mounting pipe,
and then tighten the pipe bolt to secure it.
Step 2: Loop a safety cable over the pipe and attach
the ends to the safety cable loop on the body
of the fixture.
Step 3: Loosen the C-clamp yoke bolt and rotate the
yoke to the desired position.
Step 4: Tighten the bolt to lock the fixture.
CAUTION:
Tighten the C-clamp pipe bolt to about 18 inch lbs.
(Approximately finger tight plus up to one-quarter turn.) Do not
use excessive force.
Installation
hook and
bracket
Safety loop

8Desire Series D22
Installing the Track Fixture
Step 1: Insert the DataTrack adapter into the track. The adapter only fits into the
track one way with the tabs nesting into the track’s groove.
Step 2: Rotate the locking mechanisms to lock the adapter into place.
Step 3: Use the circuit selection lock to select circuit 1 or 2. The desired circuit
number should point toward the center of the adaptor.
Step 4: Focus the fixture.
Addressing
Fixture addresses must be set between 1 and 510.
• Each Desire fixture must be considered a separate DMX device for the
purpose of DMX line-loading calculations.
Initial Power Up
Control and configuration of the Desire D22 can be achieved over a DMX/RDM
control network, or directly from a connected computer running appropriate
software. When controlling the D22 directly from a PC, a Gadget Interface or
DMX/RDM gateway is required.
WARNING:
When using the circuit selection lock, ensure the selected circuit
is a constant power circuit. Dialing into a dimmable circuit may
cause fixture damage that will void the ETC warranty.
Note:
No more than 32 DMX devices can be daisy-chained together on
a single run. For runs of fixtures totaling more than 32 DMX
devices, a DMX splitter will need to be used to split the DMX runs.
When using RDM with track fixtures, ETC recommends
connecting no more than 20 fixtures on a single run.
