Eterna CF28PIR User manual

Model:
CF28PIR
Flush Ceiling Fitting with Integral PIR Detector
These instructions are provided as a guideline to assist you.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLATION
AND RETAIN FOR FUTURE REFERENCE
Pack contents:
1 x Flush tting with Integral PIR
1 x GR10q 4 pin DD 28W lamp
INSTALLATION INSTRUCTIONS
A guide for qualied electricians
Issue 2014
FOR PRODUCT ADVICE:
• T: 01933 673 144
• F: 01933 678 083
• E: [email protected].uk
Visit our website:
www.eterna-lighting.co.uk
EVENTUALLY, YOU MAY WANT TO
REPLACE THIS PRODUCT:
Regulations require the recycling of Waste from
Electrical and Electronic Equipment (European
“WEEE Directive” eective August 2005—UK
WEEE Regulations eective 2nd January 2007).
Environment Agency Registered Producer: WEE/
GA0248QZ.
WHEN YOUR PRODUCT COMES TO THE END OF
ITS LIFE OR YOU CHOOSE TO REPLACE IT, PLEASE
RECYCLE IT WHERE FACILITIES EXIST  DO NOT
DISPOSE WITH HOUSEHOLD WASTE.
CLEANING:
Disconnect the power and clean the exterior only of
this tting with a moist (not wet) cloth.
Do not use any chemical or abrasive cleaners.
IF YOU EXPERIENCE PROBLEMS:
If you believe your product is defective, please return
it to the place where you bought it. Our Technical
Team will gladly advise on any Eterna Lighting
product, but may not be able to give specic
instructions regarding individual installations.
For breakage information visit:
www.eterna-lighting.co.uk
874/2012
A
MODELNO.
CF28PIR
MODELNO.
A++
XXX kWh/1000h
30.80
CF28PIR
A

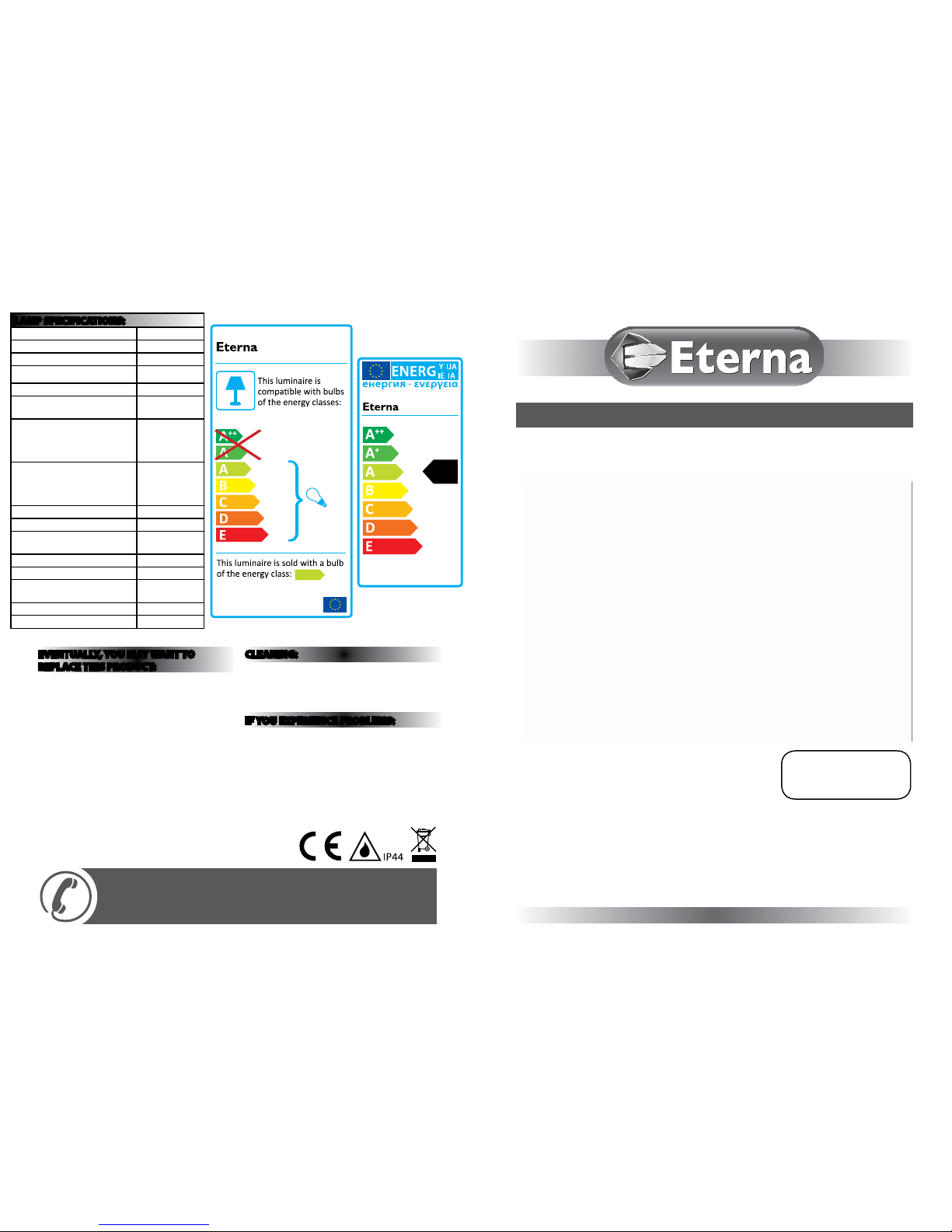

LAMP SPECIFICATIONS:
Nominal Wattage 28W
Rated Wattage 28W
Average lifetime hours 8,000 hrs
Nominal useful luminous ux 2050 lm
Rated luminous ux 2050 lm
Luminous ecacy (Lm/W) in
50Hz operation 73
Rated lamp Lumen
maintenance
2000hrs: ≥85%
4000 hrs: ≥78%
6000 hrs: ≥76%
8000 hrs: ≥75%
Rated survival factors
2000hrs: ≥98%
4000 hrs: ≥90%
6000 hrs: ≥88%
8000 hrs: ≥50%
Lamp dimensions mm 205 x 207mm
Cap type GR10q 4 Pin
Lamp Mercury content to an
accuracy of 0.1mg <2.5mg
Colour rendering index Ra ≥80
Colour temperature 3500K
Ambient temperature required to
achieve maximum luminous ux 25°C
Dimmable No
Ballast EEI A2

READ THIS FIRST:
Check the pack and make sure you have all of the parts
listed on the front of this booklet. If not, contact the
outlet where you bought this product.
This product contains glass, care must be taken when
assembling, tting or handling to prevent personal
injury or damage to the product.
This light tting must be installed by a competent
person in accordance with the Building Regulations
making reference to the current edition of the IEE Wiring
Regulations (BS7671). The Building Regulations may be
obtained from OPSI or viewed and downloaded from
www.communities.gov.uk following the link for Building
Regulations.
As the buyer, installer and/or user of this product it is
your own responsibility to ensure that this tting is t
for the purpose for which you have intended it. Eterna
Lighting cannot accept any liability for loss, damage or
premature failure resulting from inappropriate use.
This product is designed and constructed according
to the principles of the appropriate British Standard
and is intended for normal domestic service. Using
this tting in any other environments may result in a
shortened working life, for example where there are
prolonged periods of use or higher than normal ambient
temperatures such as lighting public or shared spaces or
in nursing / care home facilities.
The lamp supplied with this tting is a consumable part
and therefore may be outside of any warranty oered.
Switch o the mains before commencing installation
and remove the appropriate circuit fuse.
When working at heights, please use a suitable platform.
Disconnect the tting from the electrical supply before
ash or high voltage testing.
Suitable for indoor use only.
This product is suitable for use in living areas, and
Bathroom zone 2 and dry (Outside) zones only (see
diagram below and current IEE Wiring Regulations for
details). If being tted in a bathroom a 30mA RCD must
be used.
This product is suitable for installation on surfaces with
normal ammability e.g. wood, plasterboard, masonry.
It is not suitable for use on highly ammable surfaces
(e.g. polystyrene, textiles).
Before making xing hole(s), check that there are no
obstructions hidden beneath the mounting surface such
as pipes or cables.
The chosen location of your new tting should allow
for the product to be securely mounted (e.g. to a ceiling
joist) and safely connected to the mains supply (lighting
circuit).
If the location of your new tting requires the provision
of a new electrical supply, the supply must conform
with the requirements of the Building Regulations
making reference to the current edition of the IEE Wiring
Regulations (BS7671).
This product is designed for permanent connection to
xed wiring: this should be either a suitable lighting
circuit (protected with a 5 or 6 Amp MCB or fuse) or a
fused spur (with a 3 Amp fuse) via a fused connection
unit. We recommend that the supply incorporates a
switch for ease of operation.
Make connections to the electrical supply in accordance
with the following code:
Live - Brown or Red
Neutral - Blue or Black
Earth - Green and Yellow
Where this product is used to replace an existing light
tting, it will be necessary to remove any existing ceiling
rose to allow clearance for installation. If this is the case,
carefully note the existing position of each set of wires
(see diagram below). Where more than a single set of
L, N and E wires exist these must be transferred to a
separate approved junction box or terminal block (not
supplied) which must be insulated and placed within
the ceiling.
Additional red wires may be present in your ceiling
that are connected to the ring live circuit. Do not
connect your tting to these wires. If these wires are
not terminated in a ceiling rose, join them together in a
separate terminal block (not supplied) and place in the
ceiling.
When making connections, ensure that the terminals are
tightened securely and that no strands of wire protrude.
Check that the terminals are tightened onto the bared
conductors and not onto any insulation. Wrap loose
terminal blocks well with insulating tape.
This product must be connected to Earth.
NOTE: Very frequent switching can shorten the life of
the lamp . To minimise this, it is suggested to increase
the time to the maximum setting.
The bulkhead light (PIR version) incorporates a passive
infra red sensing device which continuously scans a
preset operating zone and immediately switches the
lamp on when it detects movement in that area. While
there is movement within range of the unit the lamp will
remain on.
You are advised at every stage of your installation to
double-check any electrical connections you have made.
After you have completed your installation there are
electrical tests that should be carried out: these tests are
specied in the Wiring Regulations (BS7671) referred to
in the Building Regulations.

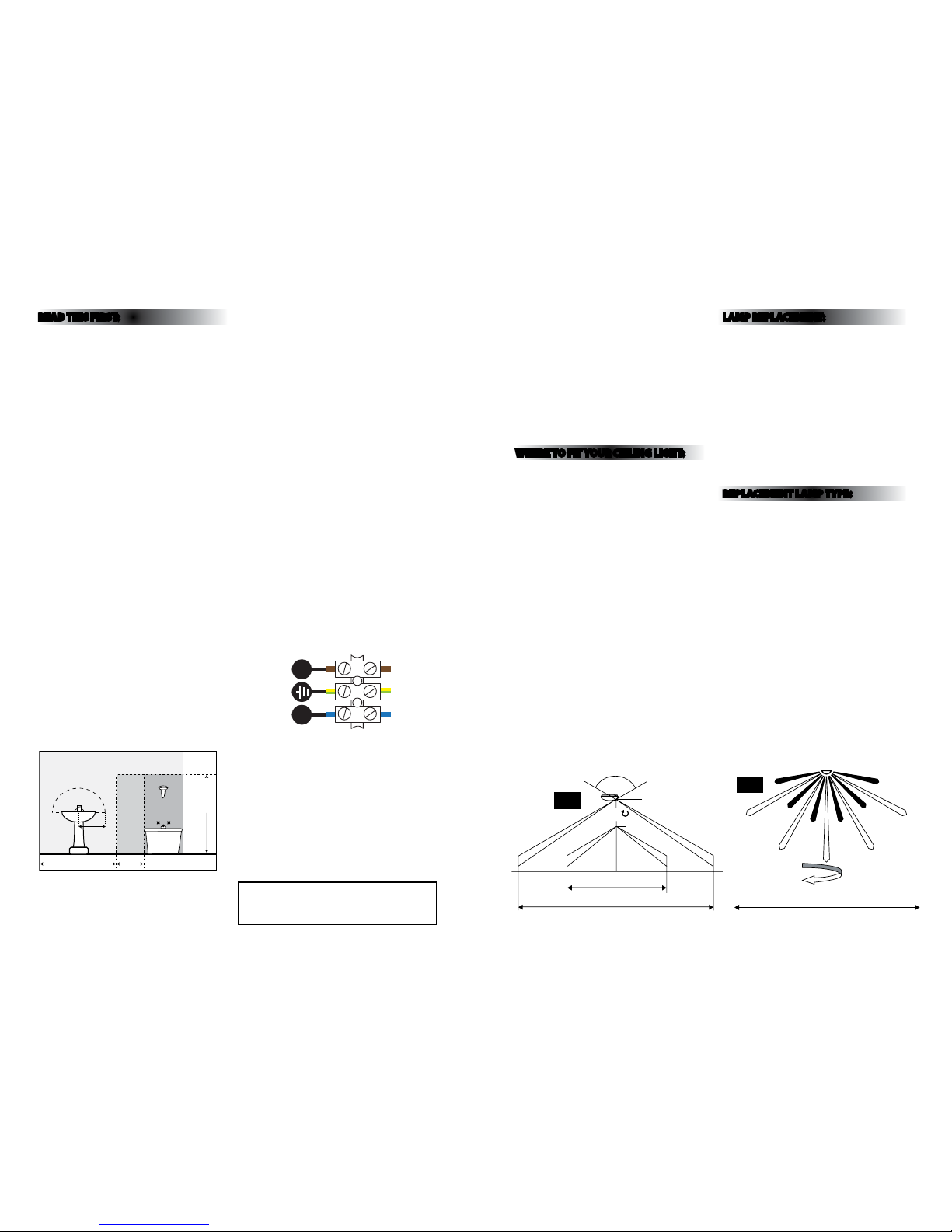

WHERE TO FIT YOUR CEILING LIGHT:
To achieve best results, we suggest you take into account
the following points:
• For maximum detection range, the bulkhead light
should be mounted 1.8 to 2.5 meters (6 to 8ft) above
the area to be scanned. (see FIG. 1 below).
• To avoid nuisance triggering, the sensor should be
directed away from heat sources such as heaters/
radiators, air-conditioning outlets, other lighting, pet
entry/exit or sleeping areas etc.
• To avoid nuisance triggering, do not connect to the
same circuit as large uorescent light ttings, bathroom
fans or other sources of mains borne noise (peaks and
spikes).
• The PIR Sensor scanning specications (approximately
8 meters at approx. 120° - horizontal) may vary slightly
depending on the mounting height and location.
The detection range of the unit may also alter with
temperature change. Before selecting a place to install
your new tting you should note that movement across
the scan area is more eective than movement directly
toward or away from the sensor. If movement is made
walking directly towards or away from the sensor
and not across, the apparent detection range will be
substantially reduced. (see FIG. 2 below).
LAMP REPLACEMENT:
1. Switch o the electricity at the mains.
2. Turn the three clips outwards to remove the diuser.
3. Pull the lamp straight out of the gear tray inside.
4. Press the new lamp into position, take care to position
the lamp correctly over the lampholder.
5. Replace the diuser, take care to position the inside
rim of the diuser over the circumference of the rear
half of the tting and the soft seal around the hole in
the diuser over the PIR detector lens.
6. Press the diuser in position and turn the three clips
to retain.
7. Restore the power and switch on.
REPLACEMENT LAMP TYPE:
Requires 1 x 28W GR10q 4pin DD CFL lamp (included).
Eterna replacement lamp product code: DD28435.
Fitting is rated at 28W max.
225cm
60cm240cm
60cm
radius
from tap
ZONE 1
ZONE 0
ZONE 2
ZONE 2
Bathroom Zones Diagram
3.5m
120º
2.5m
360º
6m
12m
360º
12m
3.5m
120º
2.5m
360º
6m
12m
360º
12m
Fig 1
Fig 2
LN
Yellow/Green
(Power Cable)
Blue
(Power Cable)
Brown
(Power Cable)
Yellow/Green
(Lamp Wire)
Blue (PIR Wire)
Brown (PIR Wire)

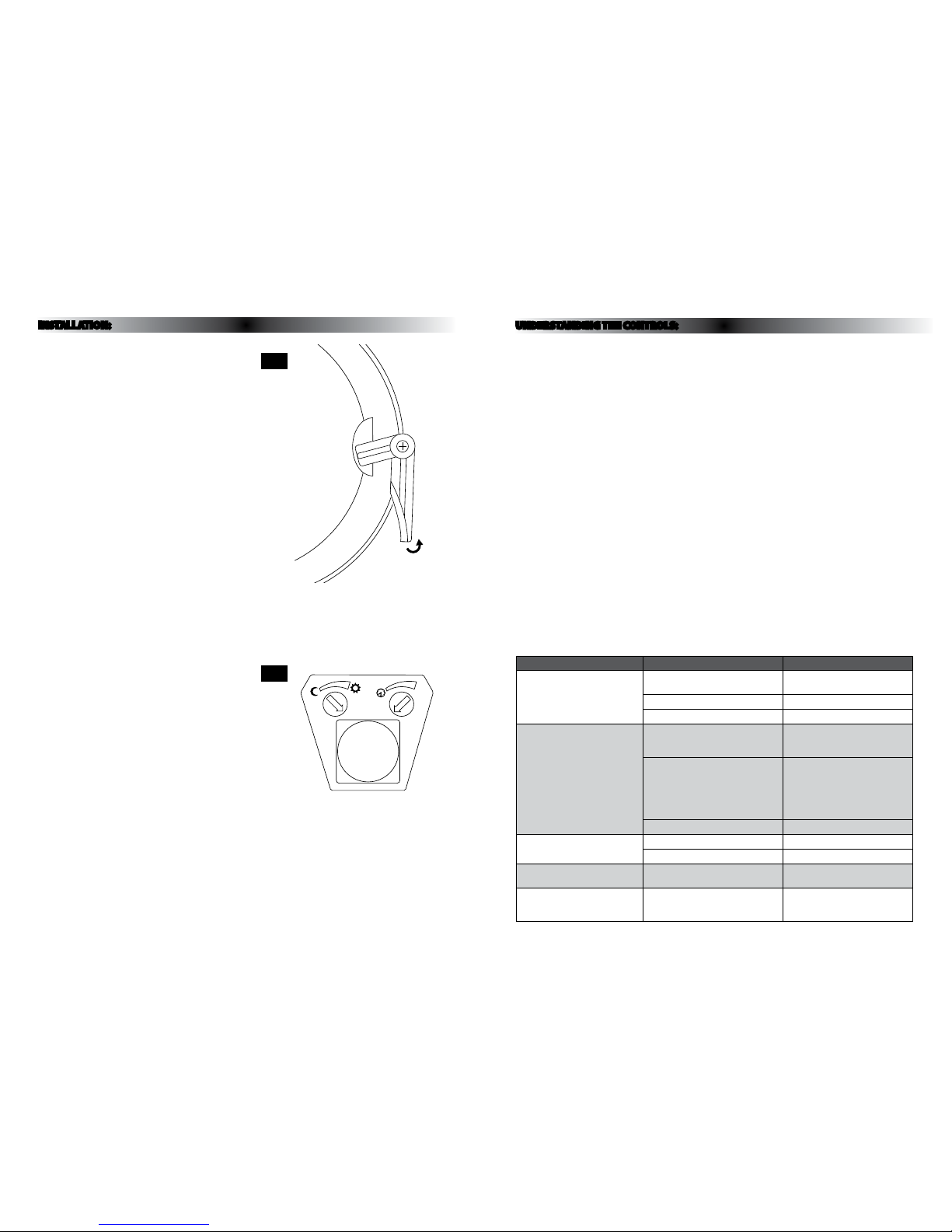

INSTALLATION:
01. Choose the location for your new tting according to
each of the conditions above.
02. Turn out the three clips at the side of the diuser and
lift o. (see FIG. 3 opposite).
03. Remove the tube from the tting by pulling straight
up.
04. Undo the gear tray retaining screw next to the PIR
detector module on the gear tray.
05. Undo the screws at each end of the hinge and lift o
the gear tray – take care not to lose the screws and
washers.
06. Choose whether you need to use 2 or 4 screw holes
and clear through using a 4-5mm diameter drill.
07. Using the back of the tting as a template, mark
the position of the xing screws on your mounting
surface.
08. Prepare your xing holes as appropriate.
09. Pierce the cable entry gland making a hole just large
enough for the cable to pass through and so that the
gland makes a tight seal around it.
10. Thread your supply cable through the gland.
11. Secure the back of your new tting using suitable
xings (not supplied).
12. Fix the gear tray by the hinge only, back into the
tting using the screws and washers removed earlier.
13. Allow the gear try to hang open.
14. Make the electrical connections according to the
colour code above.
15. Close the gear tray and secure with the screw
removed earlier.
16. Re-t the lamp pressing rmly onto the lampholder.
Take care to position the lamp correctly.
17. Replace the diuser, take care to position the inside
rim of the diuser over the circumference of the rear
half of the tting and the soft seal around the hole in
the diuser over the PIR detector lens.
18. Restore the power and switch on.
Adjusting the duration time:
The length of time that the light remains on after
activation can be adjusted from 8(±2) seconds to 7(±2)
minutes. Turning the TIME control anti-clockwise will
reduce the duration time.
Note: Once the light has been triggered by the PIR
sensor any subsequent detection will start the timed
period again from the beginning.
Adjusting the LUX level:
Refer to FIG. 4 opposite.
The Lux control module has a built-in sensing device
(photocell) that detects daylight and darkness. With the
control set to the () position, the light will operate in
both daylight and darkness. With the control set to the
() position, the light will only operate in darkness.
Setting the controls:
1. Turn the Lux control to the () position, turn the mains
power on and wait half a minute for the control circuit
to stabilize.
2. Turn the TIME control to the minimum duration time
(fully anti-clockwise) position. The bulkhead light will
now switch on and remain on for about 8 seconds.
3. Walk across the detection area to check that the
desired detection area is covered.
4. Adjust time control to the required setting.
5. To set the Lux level at which the lamp will
automatically switch “on” at night, please turn the LUX
control from daylight to night. If the lamp is required
to switch on earlier, e.g. at dusk, wait for the desired
ambient light level, then slowly turn the LUX control
knob towards the daylight setting () while someone
walks across the center of the area to be detected.
When the lamp switches on, release the Lux control.
Important:
To avoid dust build-up and ensure proper
functioning of the PIR detector, periodically wipe
the sensor lens lightly with a damp cloth.
Specication:
Voltage: 220-240 V 50 Hz
Load: Max. 28W CFL
Detection range: Approx.120o(horizontal),
Max. 8 metres
Duration time: From 8(±2) seconds to
7(±2) minutes adjustable
LUX control level: From daylight (2000 Lux) to
darkness (<3 Lux) adjustable
Splash-proof: IP44
Protection: Class I / Earthed
UNDERSTANDING THE CONTROLS:
PROBLEM POSSIBLE CAUSE TROUBLE SHOOT
Lamp does not switch on when
there is movement in the detection
area
1. No mains voltage Check all connections, fuses &
switches
Relocate the tting
2. Nearby lighting is too bright
Check adjustment of controls
3. Controls set incorrectly
Lamp switches on for no apparent
reason (false triggering)
1. Heat sources such as air con vents,
heater vents, other lighting or pets
are activating the sensor
Relocate the tting away from heat
sources
2. Interference from on/o switching
of electric fans, lights or appliances
on the same circuit. (This does not
always occur but a faulty switch or
noisy uorescent light may cause the
light to switch on)
Replace the faulty switch, replace
noisy uorescent tubes/starters or
connect to a separate supply circuit
3. Reection from a reective surface Relocate the tting
Light remains on 1. Continuously false triggered See above
2. Time is set too long Adjust the TIME control
Light switches on during daylight
hours 1. Lux control is set to daylight position Adjust the LUX control
When setting controls in daylight
the detection distance becomes
shorter
1. Interference by reected sunlight Re-test at night or in lower light
3.5m
120º
2.5m
360º
6m
12m
360º
12m
Fig 3
3.5m
120º
2.5m
360º
6m
12m
360º
12m
Fig 4
