EVA Logik ZW37 User manual

Z-Wave Smart Plug
(2 Channel)
• ZW37 •
Model: MP20Z
Power: 120V AC, 60Hz
Loading: 10 Amp Max Smart Outlet *1
10 Amp Max Smart Outlet *1
Total(Both Outlets): 16 Amp Max
Frequency: 908.42MHz
Put the Z-wave interface controller into “Add” mode,
triple press the Program button. It will be included in
network. (Once your controller confirmed, refresh
the Z-Wave network to optimize performance. )
Put the Z-Wave interface controller into "Remove"
mode, triple press the Program button. It will be
excluded to network.
Press and hold button 5S while power on.
Note: This should only be used in the event your
network’s primary controller is missing or otherwise
inoperable.
2. Your device may need to be within 100 feet of the
controller to be included. If so, include the device
to the network within 10 feet of the controller
and relocate it to the desired position in your
home. Be sure to refresh the network if the
device is included in this manner.
Add to Z-Wave Network
Remove from Z-Wave Network
1. Plug the device you want to control into the
Z-Wave Smart plug controlled outlet.
NOTE: Plug directly into the outlet, do not use
with extension cords.
To return your switch to factory defaults
100 feet

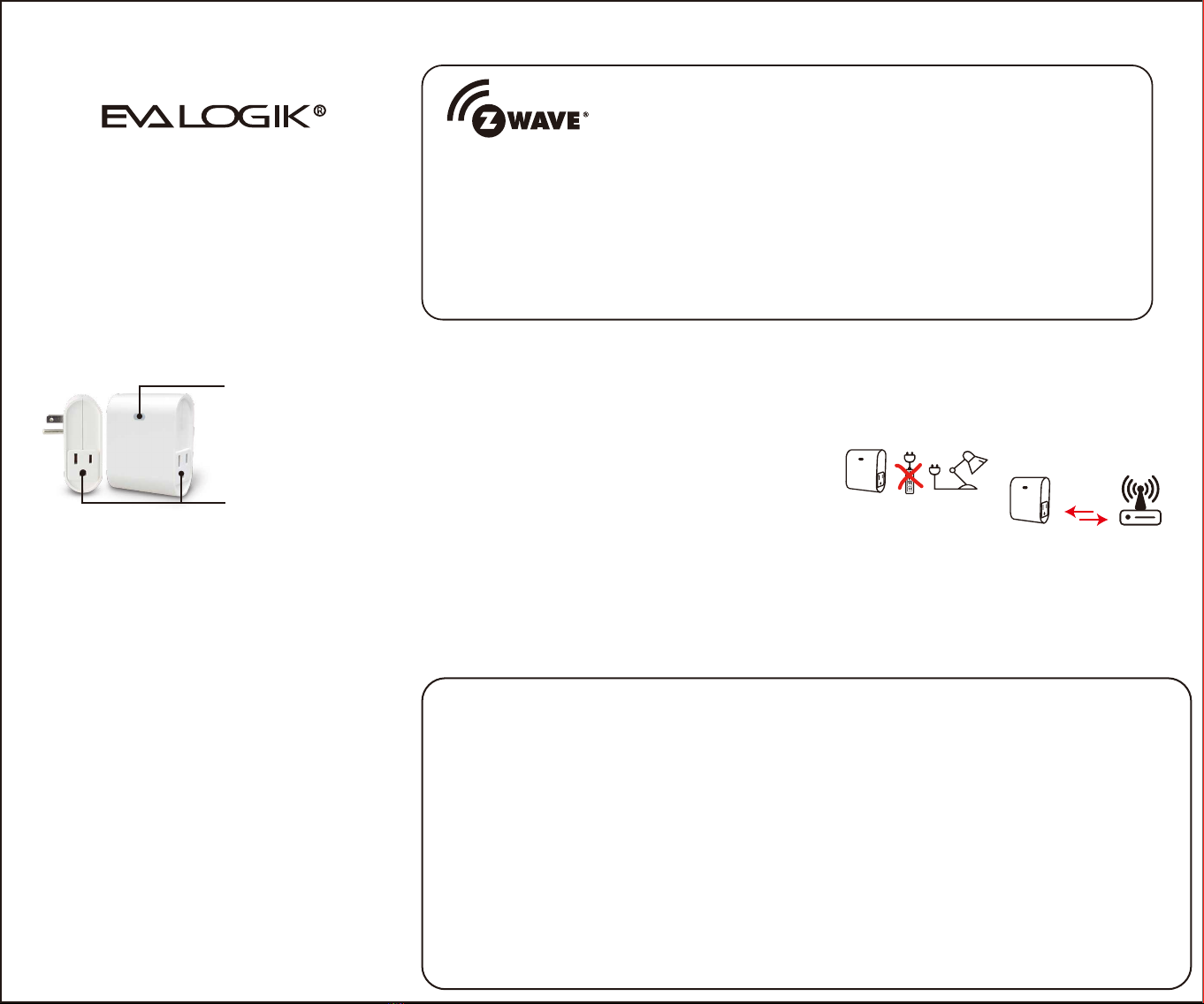

Features:
Notes:
Program button
Smart outlet*2
Single press : manually turn
on/off your device.
Two outlets can remotely
turn On/Off the
connected device.
Z-WAVE INTEROPERABILITY
This product can be included and operated in any Z-Wave network with other Z-Wave certified devices
from other manufacturers and/or other applications. All non-battery operated nodes within the
network will act as repeaters regardless of vendor to increase the reliability of the network.
This Device supports Lifeline (association group 1) supporting 1 node for lifeline communication.
Group 1 must be assigned the Node ID of the primary controller where unsolicited notifications will be
sent. The Z-Wave controller should set this association automatically aer inclusion.
Lifeline association only supports the “Device Reset Locally” function. Refer to the instructions of your
controller for any available details on how this can be set.
1. Z-Wave on/off control of 2 electrical devices.
2. Two Z-Wave controlled AC outlet for standard
incandescent lighting, CFL/LEDs, fans or small
appliances(1800W Resistive).
3. Grounded 3-wire power connection for safety.
4. Manual/wirelesson/offandbrightnesscontrol.
5. Remembersandrestoreson/offstatusaerpower
failure.
6. Built-inZ-WavePlussignalrepeatertoextend
networkrange.
7. S2 security and 500 Z-Wave chip for reliable
wireless communication.
8. Work with all certificated Z-Wave controllers.
1. ADD/REMOVE:
Triple press the button, LED will brink within 30s
press 1x: On/Off the Right outlet
press 2x: On/Off the Le outlet
press 3s: On/Off simultaneously.
2. Factory setting:
Manual: Click Z-Wave button 2 times quickly, and hold
for at least 10 seconds
Host reset: Remove it from the host and the device is
factory reset.
3. Association (Support 3 group, each group max
support 2 devices) LED flash twice to confirm its setup
successfully.
Group 1 lifeline
Group 2 Le outlet sends a basic set
Group 3 right outlet sends a basic set
4. LED Indicator
Manual: Click Z-Wave button 6 times quickly to change
between values 0,1, 2
Parameter =1, size =1byte, value=00 Default out on,led on,
value=01 out on,led off
value=02 led no work
5. Auto Turn-Off Timer
Parameter =2, Size=4,Values: 1 – 65535 (minutes);
turn off the le outlet
Parameter =3, Size=4,Values: 1 – 65535 (minutes)
turn off the right outlet
6. Auto Turn-On Timer
Parameter =4, Size=4,Values: 1 – 65535 (minutes);
turn on the le outlet
Parameter =5, Size=4,Values: 1 – 65535 (minutes)
turn on the right outlet

Our Products warrants this product to be free from manufacturing defects for a
period of one year from the original date of consumer purchase. This warranty
is limited to the repair or replacement of this product only and does not extend
to consequential or incidental damage to other products that may be used with
this product. This warranty is in lieu of all other warranties, expressed or
implied. Some states do not allow limitations on how long an implied warranty
lasts or permit the exclusion or limitation of incidental or consequential
damage, so the above limitations may not apply to you. This warranty gives you
specific rights, and you may also have other rights which vary from state to
state.
WARRANTY
FCC
This device complies with part 15 of the FCC and
Industry Canada license-exempt RSS standard(s).
Operation is subjected to the following two
conditions:(1) this device may not cause harmful
interference, and (2) this device must accept any
interference received, including interference that
may cause undesired operation.
NOTE: This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not occur
in a particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the equipment
and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the receiver is
connected.
— Consult the dealer or an experienced radio/TV
technician for help.
Important note: To comply with the FCC RF exposure
compliance requirements, no change to the antenna
or the device is permitted. Any change to the antenna
or the device could result in the device exceeding the
RF exposure requirements and void user’s authority to
operate the device.
FCC NOTE: The manufacturer is not responsible
for any radio or TV interference caused by
unauthorized modifications to this equipment.
Such modifications could void the user’s
authority to operate the equipment.
CAUTION - PLEASE READ!
This device (ZW37) is intended for installation in
accordance with the National Electric Code and
local regulations in the United States, or the
Canadian Electrical Code and local regulations in
Canada. If you are unsure or uncomfortable about
performing this installation consult a qualified
electrician.
WARNING
RISK OF FIRE
RISK OF ELECTRICAL SHOCK
RISK OF BURNS
TO REDUCE THE RISK OF ELECTRIC SHOCK, THIS
PRODUCT HAS A GROUNDING TYPE PLUG THAT HAS A
THIRD (GROUNDING) PIN. THIS PLUG WILL ONLY FIT
INTO A GROUNDING TYPE POWER OUTLET. IF THE PLUG
DOES NOT FIT INTO THE OUTLET, CONTACT A QUALI-
FIED ELECTRICIAN TO INSTALL THE PROPER
OUTLET. DO NOT CHANGE THE PLUG IN ANY WAY.
CONTROLLING APPLIANCES:
CAUTION: TO REDUCE THE RISK OF
OVERHEATING AND POSSIBLE DAMAGE TO
OTHER EQUIPMENT
• DO NOT EXCEED RATINGS
• DO NOT USE TO CONTROL ANY DEVICE
WHERE UNINTENDED OPERATION COULD
CAUSE UNSAFE CONDITIONS (HEAT LAMP, SUN LAMP,
ETC.)
MEDICAL EQUIPMENT
CONTROLLING APPLIANCES
Please exercise EXTREME CAUTION when using
Z-Wave devices to control appliances. Reason being
is because the appliance you want to control may be
in a separate room and if unintentional behavior
occurs (such as a device turning on or off - either
intentionally via schedules, or unintentionally via
network error) this event may lead to a hazardous
condition. For these reasons, please note the
following suggestions:
1) Do not include Z-Wave devices in Groups or Scenes if
they control appliances.
2) Do not use Z-Wave devices to control electric heaters
or any other appliances which may present a hazard-
ous condition due to unattended, unintentional, or
automatic power control.
Please DO NOT use this switch to control Medical or
Life Support equipment. Z-Wave devices should never
be used to control the On/Off status of Medical and/or
Life Support equipment.
V2.0
Generic Device Class: 0x10 - GENERIC_TYPE_SWITCH_BINARY
Specific Device Class: 0x01 - SPECIFIC_TYPE_POWER_SWITCH_BINARY
Command Classes: 0x5E - COMMAND_CLASS_ZWAVEPLUS_INFO
0x25 - COMMAND_CLASS_SWITCH_BINARY
0x85 - COMMAND_CLASS_ASSOCIATION
0x8E - COMMAND_CLASS_MULTI_CHANNEL_ASSOCIATION
0x59 - COMMAND_CLASS_ASSOCIATION_GRP_INFO
0x55 - COMMAND_CLASS_TRANSPORT_SERVICE
0x86 - COMMAND_CLASS_VERSION
0x72 - COMMAND_CLASS_MANUFACTURER_SPECIFIC
0x5A - COMMAND_CLASS_DEVICE_RESET_LOCALLY
0x73 - COMMAND_CLASS_POWERLEVEL
0x70 - COMMAND_CLASS_CONFIGURATION
0x9F - COMMAND_CLASS_SECURITY_2
0x60 - COMMAND_CLASS_MULTI_CHANNEL
0x6C - COMMAND_CLASS_SUPERVISION
0x7A - COMMAND_CLASS_FIRMWARE_UPDATE_MD
