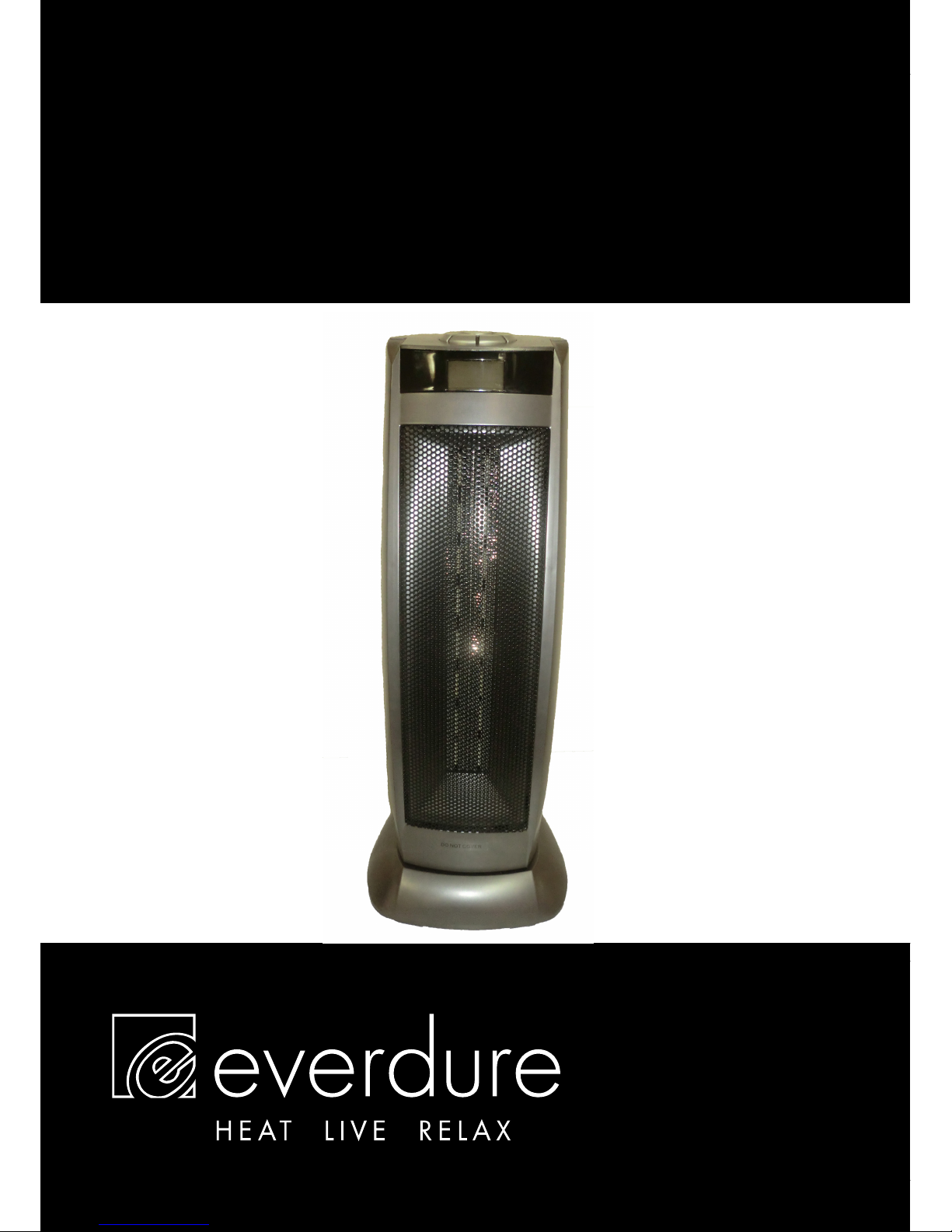

Everdure HCT206S User guide

HEAT LIVE RELAX
OPERATION, MAINTENANCE
AND SAFETY INSTRUCTIONS
FOR EVERDURE HEATER HCT206S

HEAT LIVE RELAX
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT: Read the safety precautions of this booklet carefully before attempting to assemble,
install, operate or maintain the product described. Protect yourself and others by
observing all safety information. Failure to comply with instructions could result in
personal injury and/or property damage. If you are unsure about anything regarding
your heater or these instructions, please contact Everdure on 1300 766 066 in Australia
or [phone] in New Zealand before operating your appliance.
1. Read all instructions carefully before using the heater.
2. Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause fire, electrical shock, or injury to persons.
3. Remove the package and ensure that the heater is undamaged. In case of doubt do not use the heater
and contact Everdure Service. Do not let children play with any parts of the package.
4. This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
5. Before you use the heater, check if the voltage marked on the rating label corresponds to the mains in
your home.
6. Extreme caution is necessary when the heater is used by or near children or individuals with decreased
mental and physical capacity and whenever the heater is left operating unattended.
7. Avoid using extension cords as the extension cord may overheat and cause a risk of fire.
8. Do not pull the power cord to disconnect with the power source. Always grasp the plug to pull it out.
9. Do not insert any objects into the heater as it may cause an electric shock or fire or damage to the
heater. Do not block or tamper with the heater in any manner while it is in operation. To prevent a
possible fire, do not block the air inlet or outlet in any manner. Do not place on soft surfaces, like a bed,
where openings may become blocked.
10. Do not leave the heater unattended. Always unplug the heater when not in use.
WARNING: The Main Power Switch and the On/Off switch should not be used as the sole means of
disconnecting power. Always unplug the power cord before servicing or moving the unit.
11. This heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Always use the
handle when moving the heater (where available) or hold on the sides if not available (make sure the
unit is turned off). Keep combustible materials such as furniture, pillows, bedding, papers, clothes and
curtains at least 3 feet (0.9m) from the front of the heater and keep them at least 1 foot (0.3m) from the
sides and rear.
12. The heater has hot and arcing or sparking parts inside. It must NOT be used in potentially dangerous
locations such as flammable, explosive, chemical-laden or wet atmospheres. This heater is intended
for general indoor domestic use ONLY.
13. This heater is not intended for use in wet or damp locations. Never locate a heater where it may fall into
a bathtub or other water container.
14. Do not use the heater outdoors.
15. This heater includes a tilt switch that turns the heater off if it falls over. Once righted, the heater will
completely reset and can be used as normal.
WARNING:
To avoid danger of electric shock, unplug from outlet when not in use and before cleaning. If the
supply cord is damaged, it must be replaced by a special cord or assembly available from an
authorized person. In order to avoid overheating, do not cover the heater. The heater must NOT
be located immediately below a socket outlet. Do not use the heater in the immediate
surrounding of a bath, shower or swimming pool.

HEAT LIVE RELAX
GENERAL HEATER PARTS
CONTROL BUTTONS
HANDLE
AIR FILTER & INLET
AIR OUTLET
BASE
POWER SWITCH
BUTTON FUNCTIONS
GETTING STARTED
1. Carefully remove the heater from the plastic bag and the carton, and unwind the cord to its full length.
2. Place the heater onto a stable, flat and dry surface.
3. Turn the heater off (“O” on the power switch - see diagram above). Plug the cord set into a 230-240V~A.C.
50Hz electrical outlet. Turn the power on at the electrical outlet.
4. Turn the heater on (“-“ on the power switch – see diagram above). A ’beep’ sound and the blue LCD screen will
come on indicating that there is power to the unit. The heater is now ready for use. Refer to the operating
instructions section further in this manual for the full operation of your heater. The blue LCD screen will remain
lit until the power switch on the heater base is turned off and the heater is unplugged from the electrical outlet.
3
Temp + button
Timer button
Power button
Heat buttons
Oscillation Button
Control Buttons
Temp - button

HEAT LIVE RELAX
OPERATING INSTRUCTIONS
All functions that can be performed from the main unit are repeated on the remote control.
The remote control requires 2 AAA batteries which are inserted into the back of the control. To use the remote
control, point at the front of the heater and push the appropriate buttons.
HEATER ON & OFF BUTTON
Press the button to start the heater. The LCD will start to display the room temperature and the heater fan will start
working (the fan symbol will show on the right hand side of the display). To stop the heater, push the button
again (the LCD will go blank but stay lit).
HEAT BUTTONS
There are two heat buttons on the heater and remote control which control two 1000W elements. In fan mode (the
default when the heater is turned on), neither of the elements are being used. Pressing one of the buttons activates
one of the elements, and pressing both once activates both (maximum heat output of 2000W). Pressing a button a
second time turns the element off. When an element is turned on, a flame symbol is highlighted at the top of the
display (with both working, two symbols are shown). NOTE: The maximum temperature must be set with the temp
+ & temp – buttons before use.
The heater runs for a short period of time when turned off to help cool the unit. Do not remove the power to the unit
without going through this cooling cycle first as damage can occur.
TIMER BUTTON
The heater can be set to run for up to 12 hours (in 1 hour increments) and then turn off. To use the timer function,
press the TIMER button on either the heater or the remote control. The timer function is indicated on the LCD display
by a clock in the top right hand corner and the length of time before turning off flashing in place of the temperature.
Pressing the temperature up and down buttons will cycle the function from 1 through to 12 hours. Once
programmed in, the display will change back to the room temperature. To cancel the timer, leave the time at “00”
(this can also be done by changing the time to “00” during its function).
TEMP BUTTONS
When the heater is to be used in the heating mode, a maximum required temperature must be set using the “temp
+” & “temp – buttons”. Push a temp button & the display will start to flash the required maximum temperature. This
can be adjusted by pushing the two temperature buttons until the required maximum temperature is displayed. This
temperature is programmed in when it stops flashing & displays the room temperature. Press the heat button(s) to
start heating the room. When the maximum temperature is reached, the element(s) will turn off, but the fan will
continue to operate. When the temperature drops below the maximum temperature required, the element(s) will
start to operate again.
OSCILLATION CONTROL
To start the heater oscillating, press the oscillation button (double sided arrow) on either the heater or remote
control. The display will show a set of flashing arrows on the left hand side. To halt the oscillation in the position it
is currently in, press the button again.

HEAT LIVE RELAX
SAFETY FEATURES
1. A thermal overload protector is built in to prevent overheating.
2. When an overheat temperature is reached, the heater will automatically shut off. It can only resume operation
when the user resets the unit (see reset instructions below).
To reset your heater:
1. Unplug the heater and wait between 5-10 minutes for the unit to cool down.
2. Then, turn on the unit again and operate normally.
CLEANING & MAINTENANCE
WARNING: ALWAYS UNPLUG THE CORD BEFORE MOVING OR SERVICING, DO NOT
IMMERSE HEATER IN WATER!
Take the Air Inlet and the Air Filter off, clean the Air Inlet with the vacuum brush attachment on your
Vacuum cleaner, and wash the Air Filter in warm water and dry it. DO NOT DRY AIR FILTER IN
DIRECT SUNLIGHT. Clean the body of the heater with a soft damp cloth. Always make sure that the
heater is completely dry before connecting back to the mains supply.
CAUTION: Do not use gasoline, benzene, thinner, harsh cleaners, etc. as they will damage the
heater. NEVER use ALCOHOL OR SOLVENTS.
STORAGE: Store the heater with these instructions in the original packaging, in a cool, dry place.
WEEE WARNING
This product should not be disposed of with household waste. Please recycle where facilities exist and
check with your local authority for recycling advice.
HINTS & TIPS
Where possible your electric heater should be connected to a power outlet
that uses a separate 10 amp power circuit. This will avoid overloading your
household fuse.
In the event that your household fuse is overloaded and trips, please note this is
normally caused by the use of excessive power outlets at the same time your heater
is operating (for example, a steam iron, kettle, toaster etc.). Please ensure to check
the use of the power circuit and adjust when heater is in use (i.e. turn off the heater
when boiling a kettle).
Should you still experience difficulty contact Everdure Service for assistance.

HEAT LIVE RELAX
It is important that you retain these instructions, proof of purchase as well as
other important documents about this product for future reference.
Due to continual product development, Everdure reserves the right to alter
specifications or appearances without notice.
Dispose of packaging responsibly – recycle where facilities are available.
