EverFocus EPTZ2700 User manual

Speed Dome
EPTZ2700/EPTZ2700I
USER MANUAL
Date: Oct. 2008

2
Table of Contents
1. EPTZ2700/EPTZ2700I OVERVIEW ........................................................5
1.1. Introduction ................................................................................................5
1.2. Specifications.............................................................................................7
1.3. Feature ........................................................................................................9
1.3.1. Profile of EPTZ2700/EPTZ2700I...........................................................9
1.3.2. EPTZ2700/EPTZ2700I Base Board ....................................................10
1.4. EPTZ2700/EPTZ2700I Quick Operation Guide (Work with EKB500) ....12
2. EPTZ2700/EPTZ2700I INSTALLATION................................................13
2.1. Packing List..............................................................................................13

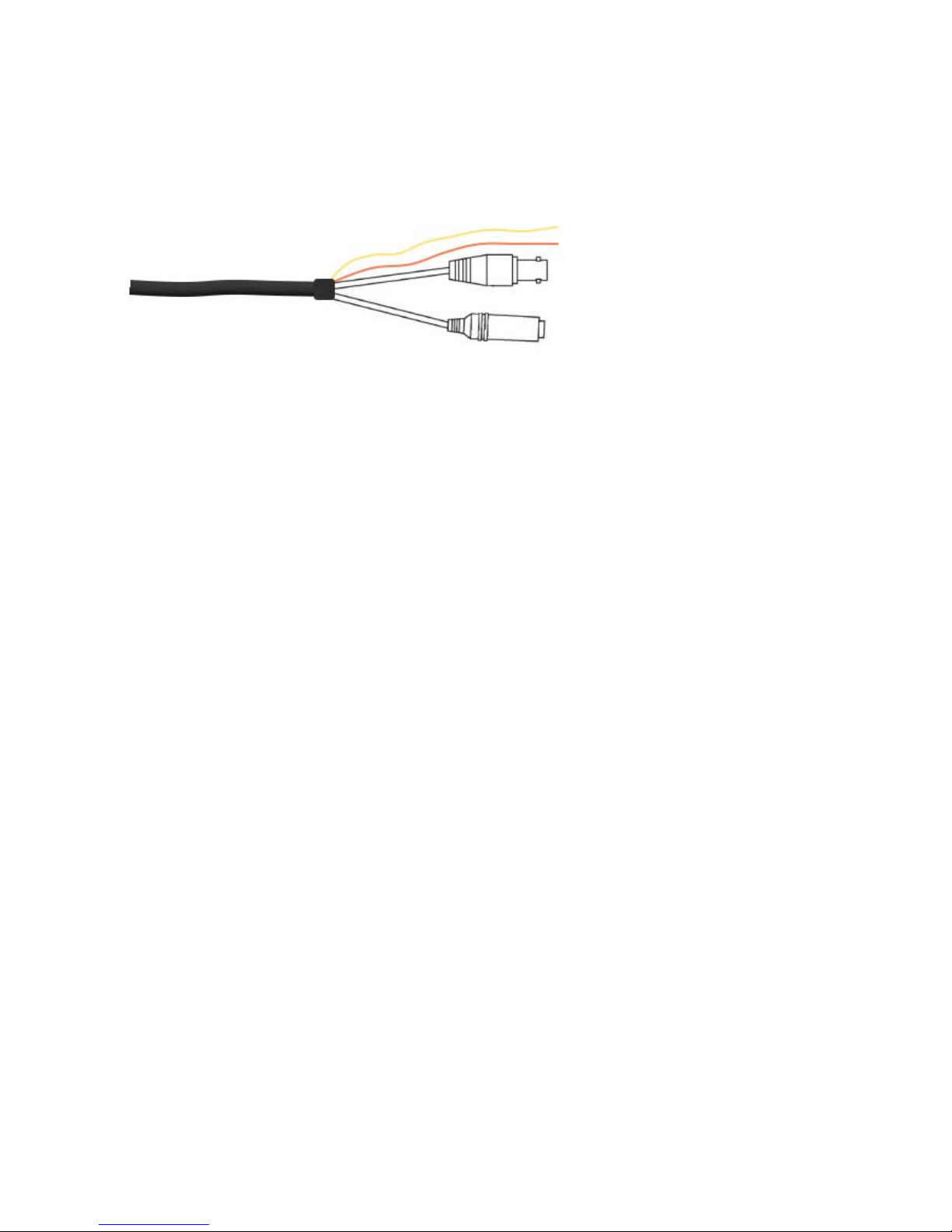

2.2. Cable Needed............................................................................................14
2.3. Initial Setup...............................................................................................15

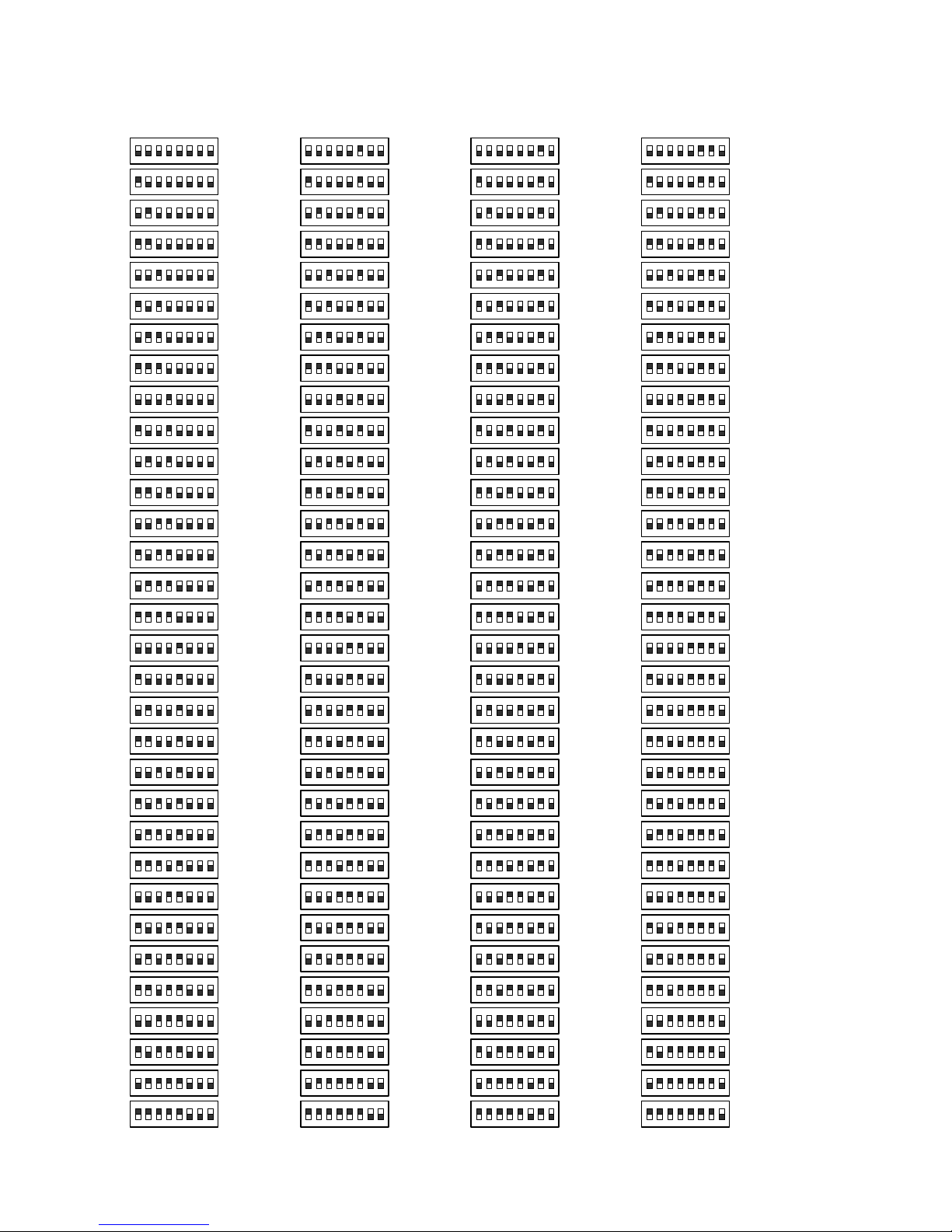

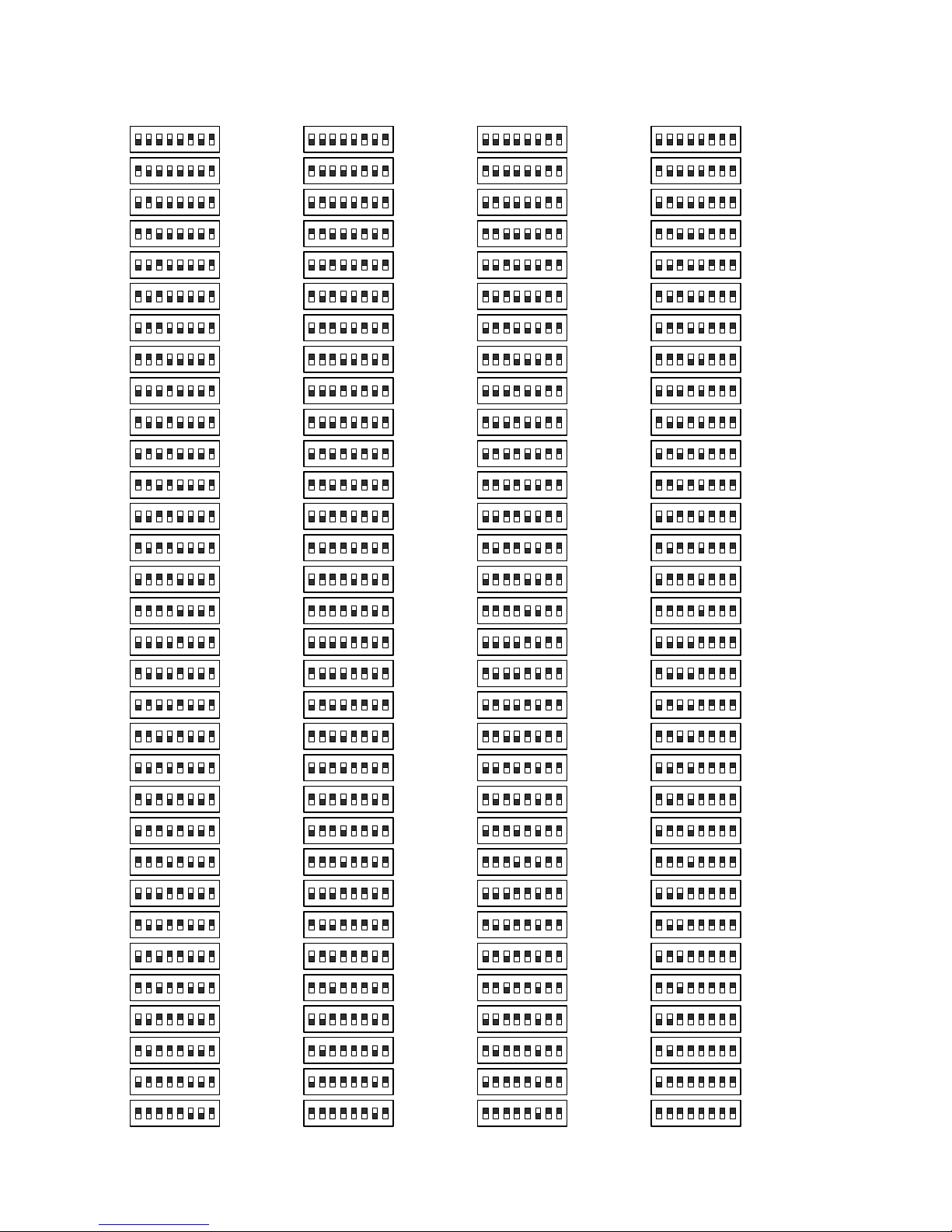

2.3.1. Address Setting...................................................................................15
2.3.2. Communication Protocol Setting .........................................................19
2.3.3. Transmission Speed Setting (Baud Rate Setting) ...............................19
2.4. Bracket and Speed Dome Installation ....................................................20
2.4.1. Installation Requirements....................................................................20
2.4.2. EPTZ2700 Dome Camera Installation.................................................21

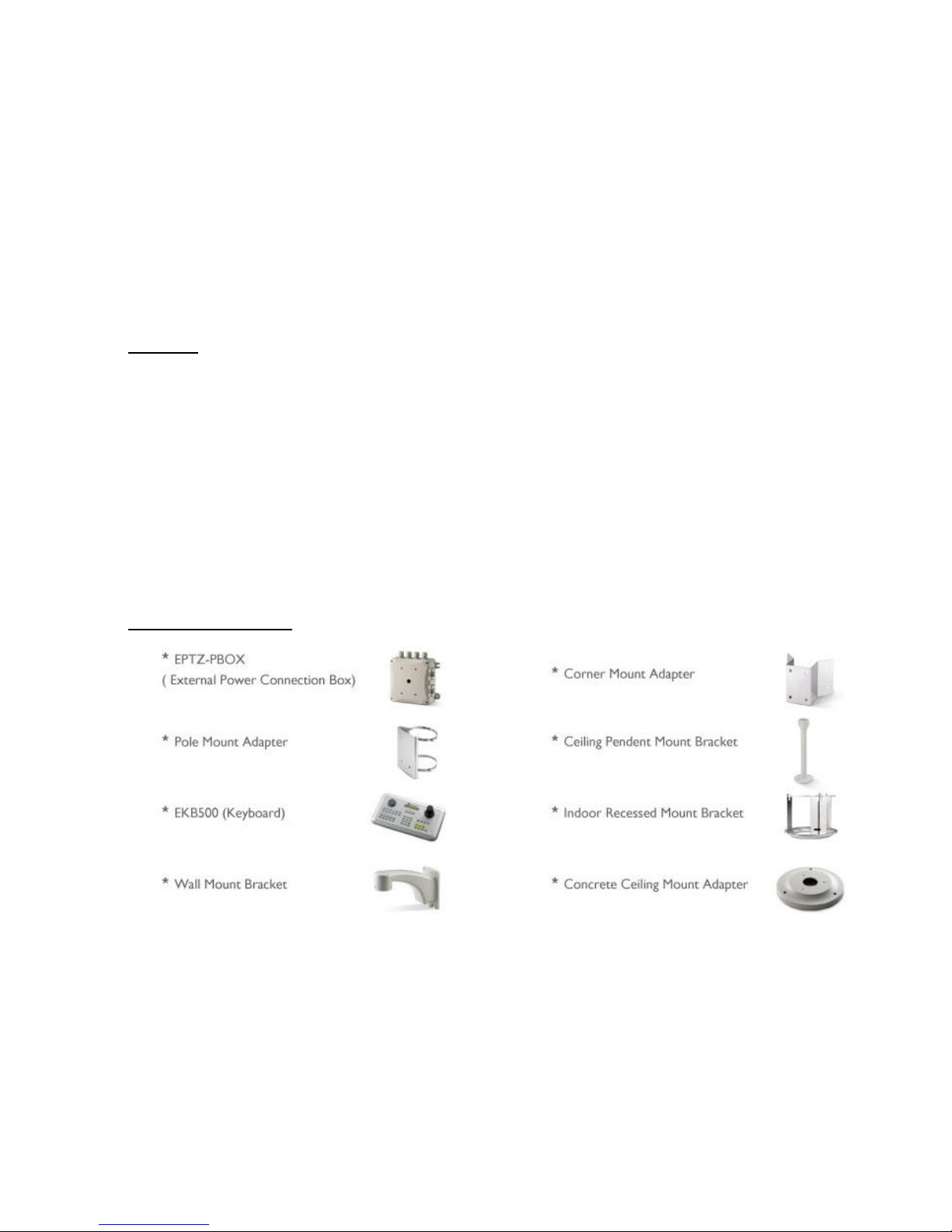

2.5. Accessories..............................................................................................30
2.5.1. EPTZ-CPMA: Ceiling Pendant Mount Adapter ....................................30
2.5.2. EPTZ-PMA: Pole Mount Adapter.........................................................30
2.5.3. EPTZ- CMA: Corner Mount Adapter....................................................31
3. EPTZ2700/EPTZ2700I CAMERA SETUP MENU..................................32
3.1. Structure of the Setup Menu ...................................................................32
3.2. VIDEO SETTINGS .....................................................................................33

3
3.2.1. EXPOSURE ........................................................................................33
3.2.2. FOCUS MODE....................................................................................35
3.2.3. DIGITAL ZOOM...................................................................................35
3.2.4. WHITE BALANCE...............................................................................35
3.2.5. BACKLIGHT........................................................................................36
3.2.6. DAY/NIGHT .........................................................................................36
3.2.7. COLOR ...............................................................................................37
3.2.8. NEGATIVE ..........................................................................................37
3.2.9. WIDE DYNAMIC RANGE....................................................................37
3.2.10 EXIT ....................................................................................................37
3.3. POSITIONS................................................................................................38
3.4. OSD/AREAS..............................................................................................41
3.4.1. CAM. TITLE.........................................................................................41
3.4.2. AREAS ................................................................................................41
3.4.3. DIRECTIONS ......................................................................................43
3.4.4. DISPLAY .............................................................................................45
3.4.5. EXIT ....................................................................................................46
3.5. AUTO MODES...........................................................................................47
3.5.1. AUTOPAN ...........................................................................................47
3.5.2. PRESET TOURS ................................................................................49
3.5.3. PATTERN ............................................................................................51
3.5.4. AUTO RESUME ..................................................................................52
3.5.5. RESUME TO .......................................................................................52
3.5.6. POWER UP FUNC..............................................................................53
3.5.7. AUTO FLIP..........................................................................................53
3.5.8. EXIT ....................................................................................................53

4
3.6. ALARM ......................................................................................................53
3.6.1. ALARM INPUTS..................................................................................53
3.6.2. ALARM OUTPUTS..............................................................................56
3.6.3. EXIT ....................................................................................................57
3.7. SYSTEM.....................................................................................................58
3.8. INFO...........................................................................................................59
3.9. EXIT ...........................................................................................................60
4. EPTZ2700/2700I FUNCTION SETUP AND OPERATION.....................61
4.1. Manual Control Mode...............................................................................61
4.2. Auto Pan Mode .........................................................................................61
4.3. Position Setting........................................................................................62
4.4. Tour Mode .................................................................................................63
4.5. Alarm Link to a Position/Tour..................................................................64
4.6. Other Operations......................................................................................65

5
1. EPTZ2700/EPTZ2700I OVERVIEW
1.1. Introduction
EPTZ2700 series has 2 types, EPTZ2700 is outdoor type whereas EPTZ2700I is
indoor type, using high sensitivity and high resolution CCD to display high quality
image. The design of ICR (IR cut filter removable) can provide real color even under
strong sunlight in day time. Under slight light in night time, a clear image can still be
displayed. WDR design allows the camera to be installed in any environment. Fast
moving function can reach to 360°/1sec. No matter high speed scanning or low speed
scanning, the solid base can avoid vibration. This full-functioned speed dome can
perform best quality images!
zEPTZ2700 for outdoor model; EPTZ2700I for indoor model
zBuilt in 27X Optical Zoom Lens
zSuper High Resolution more than 480TV Lines
zTrue Day and Night function (IR Cut Filter Removable)
zWide Dynamic Range
zDigital Slow Shutter
zAuto detection of protocols
zTilt rotation range -180°
z192 preset positions are available
z16 cruise tours can be set, and each tour contains up to 16 positions
z4 Alarm Inputs / 2 Alarm Outputs
zRunning to position speed, 0.01º/s to 360º/s
zRS485 Communication
zIP 66 (for EPTZ2700)

6
Furthermore, the micro control unit enables camera a nimble and exact movement
from minimal 0.01°/sec to maximal 360°/sec. It can go to every preset position in 1
second. It also has other advantages such as:
¾192 preset positions are available.
¾16 cruise tours can be set, and each tour contains up to 16 positions.
¾Up to 256 speed domes can be supported on a RS-485 bus when all speed
domes are controlled by keyboard EKB500.
¾Built-in fan to enhance heat dissipation at high temperature and circulate
heat to keep system operation at low temperature.
¾Built-in 4 alarm inputs and 2 alarm outputs.
All of the features make the intelligent high-speed dome camera works for a wide
range and demanding application such as banks, airports, stations, casinos, streets
of cities, intelligent buildings, etc.

7
1.2. Specifications
Product Model EPTZ2700 (outdoor) EPTZ2700I (indoor)
Pickup Device 1/4” CCD
Video Format NTSC or PAL
Scanning System NTSC: 525 TV lines, 60 fields/sec
PAL: 625 TV lines, 50 fields/sec.
Picture Elements 768 x 494 (NTSC)
752 x 582 (PAL)
Horizontal Resolution More than 480 TV Lines
Sensitivity 1 Lux/ F1.5 (Normal)
0.01 Lux/ F1.5 (ICR OFF, DSS16X)
0Lux/F1.5(ICRON,DSS16X)
S/N Ratio 48 dB
Electronic Shutter 1/50 ~ 1/10,000(s) (NTSC)
Digital Slow Shutter Auto: 2x, 4x, 6x, 10x, 16x, 32x Fix: 2x, 4x, 6x, 10x, 16x, 32x
Shutter Selection AUTO; A.FLK; Manual (1/50~1/10000) selectable
Lens Type 27x optical zoom, f=3.25 mm (wide) to 88.0 mm (tele),
F1.5 to F3.8
Zoom Ratio 270x max (27x Optical and x 10 Digital zoom)
True Day & Night Yes (Auto/DAY/NIGHT)
Backlight Comp. Yes (OFF/ON)
Wide Dynamic Range Yes (OFF/ON/AUTO)
White Balance Auto / Indoor / Outdoor
Motion Detection Yes (OFF/ON)
Private Zone Masking No
Video Output 1Vp-p / 75 ohm
Sync. Mode Internal
Power Source 24VAC
Power Consumption 21W Max
Operating Temperature ﹣40 ~+50 ≤95%℃℃ -10 ~+50 ≤85%℃℃
Focus Control One push/Auto/Manual
Horizontal Rotation Speed 0.01°/s－360°/s (1-255 grade shift gears)

8
Horizontal Rotation Range 360° unlimited rotation
Tilt Rotation Range 90° pendulum motion
Auto Zoom Speed Control Control speed auto-adjusted according to zoom length
changing
Auto Pan, 2 points
scanning Can set freely
Auto Pan Speed 1－255 grade available
Dwell Time (2 points) 1－99 second available
Preset Positions 192 positions
Running to position speed 1－255 grade available,0.01º/s - 360º/s
Dwell time at preset
position
1－99 available
Tour 16 groups
Tour point per group 16 preset positions
Pattern 4 patterns with 90 sec long each
Fan Fan auto starts
Position Accuracy ±0.1°
Alarm 4 in 2 out with tour/position auto triggering
Built-in Menu for Functions Yes
Communication RS-485
Communication Speed 1200/2400/4800/9600bps
Built-in Protocols
EVF-1; EVF-2; Pelco-P ;Pelco-D; A-Type; Plus-D; AUTO;
Panasonic
(Plus-D supports all other brands, it is equivalent to Pelco-D)
Address Editable Yes (through DIP switch)
Speed Dome Address 0-255
Manual Pan/Tilt Speed Pan: 0.01º ~ 360º/s ; Tilt: 0.01º ~ 180º/s
Safety CE, FCC
Dimensions 180mm(W) x 270mm(H) ; 70.9”x106.3”
Weight 3.0kg

9
1.3. Feature
1.3.1. Profile of EPTZ2700/EPTZ2700I
Wall Mount Bracket
Sun shield
(
o
p
tional
)
Bubble
Camera main body
Top housing
Camera module
Outer housing
EPTZ2700I
Bubble
Outer housing
Top housing
Camera
main body
Camera
Module
EPTZ2700

10
1.3.2. EPTZ2700/EPTZ2700I Base Board
The base board that is inside the top housing connects to power cable, video cable,
control cable, alarm cable and fan. In order to connect to cables, the board needs to be
taken off, and put back after finishing connecting to all cables. The connectors of cable
names are marked on the board in white text.
There are 4 alarm inputs and 2 alarm outputs available, represented by Pin 1~12. Pin 13
and 14 are video pins for connecting to video cable. Pin15~16 are RS485 pin for
connecting to keyboard. Pin 17 and 18 are power pin for connecting to 24VAC power.
EPTZ2700 Base board
1~12 ALARM
13~14
VIDEO
15~16
RS485
17~18
24VAC

11
Pin # Function
1 ALM_NO_B (Alarm Output Normal Open B)
2 ALM_COM_B (Alarm Output Common B)
3 ALM_NC_B (Alarm Output Normal Close B)
4 ALM_NO_A (Alarm Output Normal Open A)
5 ALM_COM_A (Alarm Output Common A)
6 ALM_NC_A (Alarm Output Normal Close A)
7 ALMIN1 (Alarm Input 1)
8 GND (Ground)
9 ALMIN2 (Alarm Input 2)
10 ALMIN3 (Alarm Input 3)
11 GND (Ground)
12 ALMIN4 (Alarm Input 4)
13 VIDEO+
14 VIDEO-
15 RS485-
16 RS485+
17 AC24A+
18 AC24B-

12

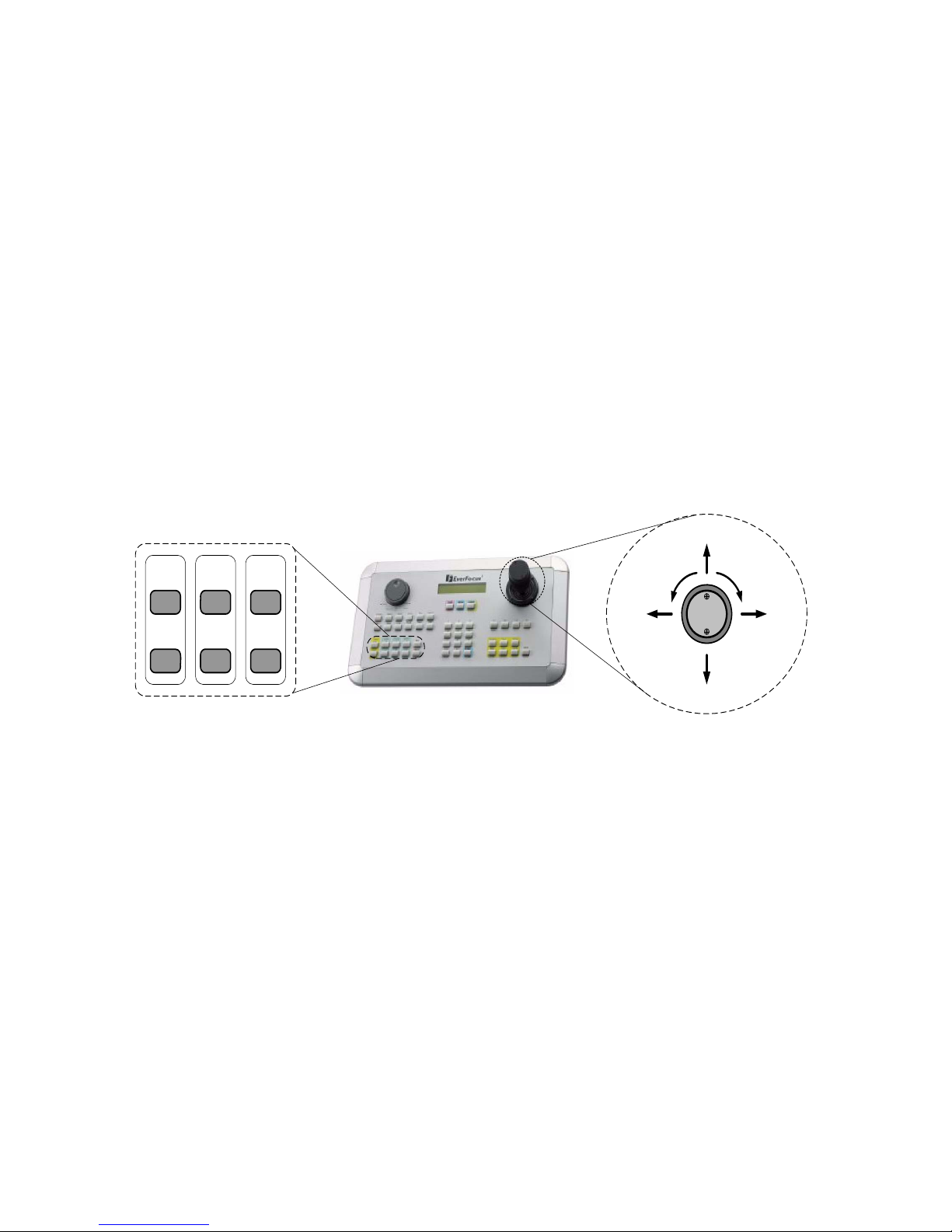

1.4. EPTZ2700/EPTZ2700I Quick Operation Guide (Work with EKB500)
EPTZ2700/EPTZ2700I and EKB500 (Keyboard) can work together by using factory
default setting. You just need to connect cables by the following steps:
1. Connect the RS-485 cable to EPTZ2700/EPTZ2700I and a keyboard (EKB500).
2. Connect a video cable from EPTZ2700/EPTZ2700I to a monitor.
3. Connect the power to the EPTZ2700/EPTZ2700I and a keyboard (EKB500).
After the EPTZ2700/EPTZ2700I finishes the self-test mode, you can start to operate
the EPTZ2700/EPTZ2700I via the keyboard.
To operate the EPTZ2700/EPTZ2700I:
IRIS
+
Focus
F.
Zoom
In
-N.Out
UP
DOWN
LEFT RIGHT
Zoom INZoom OUT
1. Shift the Joystick up/down or right/left to view from camera.
2. Turn the top of the Joystick to zoom in/out.
3. Press Zoom In/Out, Focus F. /N. and IRIS +/- function keys to operate the
EPTZ2700/EPTZ2700I.

13
2. EPTZ2700/EPTZ2700I INSTALLATION
2.1. Packing List
There are 3 boxes that are camera main body with a camera module, top housing with a
base board & pin connector and outer housing with bubble, plus one tool packet in the
package. The detail accessories are listed below:
Standard
¾Camera Main Body x 1
¾Top Housing x1
¾Outer Housing with Bubble x1
¾Tool packet
Glove x 1 pair
3 desiccant packs
Optional Accessories

14
2.2. Cable Needed
Power Cable
An adapter with 24VAC/3.5A output provides the power to the EPTZ2700/EPTZ2700I. An
extension power line may be needed.
Note: The input AC voltage range of an adapter depends on different area.
Please make sure the voltage range before installing.
Video Cable
A BNC cable is used for connecting an EPTZ2700/EPTZ2700I to a DVR or a monitor. An
amplifier may be needed if the video cable is too long.
RS485 Cable
Yellow wire represents RS485+, orange wire represents RS485-. Connect RS485 to
EKB500 and you will be able to control the speed dome by a keyboard. If you are unable
to control the speed dome with EKB500, it is probably due to a mis-connection. Please
try to switch RS485 wires and connect again.
Orange RS485-
24VAC
VIDEO
Yellow RS485+

15
2.3. Initial Setup
Initial setup includes dome address, communication protocol, transmission speed, and
terminal resistance settings. All of the settings should be confirmed before the dome is
installed. The control-related setting that is address, communication protocol and
transmission speed have to be set consistently with the control device such as a keyboard
or a DVR.
Notice: Please make sure the power is off before setting, and restart the
EPTZ2700/EPTZ2700I to enable a new value after changing.
2.3.1. Address Setting
The address code of the EPTZ2700/EPTZ2700I should be set to correspond properly
with a control device to control multiple dome cameras. The address codes are made
up by the dipswitch on the camera main body. The 8 bits dipswitch indicates the binary
coded of the address, and there are 256 addresses can be selected (0 ~ 255). It also
means that there are up to 256 dome cameras that can cascade on the RS-485 bus.
The dipswitch setting and the indicated address are represented in the following
diagram.
Note: The factory default address is 1.
Notice: Please make sure the power is off before setting, and restart the
EPTZ2700/EPTZ2700I to enable a new value after changing.

16
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
ID addressProtocol/Baud rate/ Terminal resistance

17
ON
12345678
Switch Address
1
ON
12345678 2
ON
12345678 3
ON
12345678 4
ON
12345678 5
ON
12345678 6
ON
12345678 7
ON
12345678 8
ON
12345678 9
ON
12345678 10
ON
12345678 11
ON
12345678 12
ON
12345678
Switch Address
13
ON
12345678 14
ON
12345678 15
ON
12345678 16
ON
12345678 17
ON
12345678 18
ON
12345678 19
ON
12345678 20
ON
12345678 21
ON
12345678 22
ON
12345678 23
ON
12345678 24
ON
12345678 25
ON
12345678 26
ON
12345678 27
ON
12345678 28
ON
12345678 29
ON
12345678 30
ON
12345678 31
ON
12345678
Switch Address
33
ON
12345678 34
ON
12345678 35
ON
12345678 36
ON
12345678 37
ON
12345678 38
ON
12345678 39
ON
12345678 40
ON
12345678 41
ON
12345678 42
ON
12345678 43
ON
12345678 44
ON
12345678 45
ON
12345678 46
ON
12345678 47
ON
12345678 48
ON
12345678 49
ON
12345678 50
ON
12345678 51
ON
12345678 52
ON
12345678 53
ON
12345678 54
ON
12345678 55
ON
12345678 56
ON
12345678 57
ON
12345678 58
ON
12345678 59
ON
12345678 60
ON
12345678 61
ON
12345678 62
ON
12345678 63
Switch Address Switch AddressSwitch AddressSwitch Address Switch AddressSwitch Address
ON
12345678
Switch Address
65
ON
12345678 66
ON
12345678 67
ON
12345678 68
ON
12345678 69
ON
12345678 70
ON
12345678 71
ON
12345678 72
ON
12345678 73
ON
12345678 74
ON
12345678 75
ON
12345678 76
ON
12345678
Switch Address
77
ON
12345678 78
ON
12345678 79
ON
12345678 80
ON
12345678 81
ON
12345678 82
ON
12345678 83
ON
12345678 84
ON
12345678 85
ON
12345678 86
ON
12345678 87
ON
12345678 88
ON
12345678 89
ON
12345678 90
ON
12345678 91
ON
12345678 92
ON
12345678 93
ON
12345678 94
ON
12345678 95
ON
12345678
Switch Address
97
ON
12345678 98
ON
12345678 99
ON
12345678 100
ON
12345678 101
ON
12345678 102
ON
12345678 103
ON
12345678 104
ON
12345678 105
ON
12345678 106
ON
12345678 107
ON
12345678 108
ON
12345678 109
ON
12345678 110
ON
12345678 111
ON
12345678 112
ON
12345678 113
ON
12345678 114
ON
12345678 115
ON
12345678 116
ON
12345678 117
ON
12345678 118
ON
12345678 119
ON
12345678 120
ON
12345678 121
ON
12345678 122
ON
12345678 123
ON
12345678 124
ON
12345678 125
ON
12345678 126
ON
12345678 127
Switch Address
ON
12345678 0ON 12345678 32 ON 12345678 64 ON 12345678 96

18
ON
12345678
Switch Address
129
ON
12345678 130
ON
12345678 131
ON
12345678 132
ON
12345678 133
ON
12345678 134
ON
12345678 135
ON
12345678 136
ON
12345678 137
ON
12345678 138
ON
12345678 139
ON
12345678 140
ON
12345678
Switch Address
141
ON
12345678 142
ON
12345678 143
ON
12345678 144
ON
12345678 145
ON
12345678 146
ON
12345678 147
ON
12345678 148
ON
12345678 149
ON
12345678 150
ON
12345678 151
ON
12345678 152
ON
12345678 153
ON
12345678 154
ON
12345678 155
ON
12345678 156
ON
12345678 157
ON
12345678 158
ON
12345678 159
ON
12345678
Switch Address
161
ON
12345678 162
ON
12345678 163
ON
12345678 164
ON
12345678 165
ON
12345678 166
ON
12345678 167
ON
12345678 168
ON
12345678 169
ON
12345678 170
ON
12345678 171
ON
12345678 172
ON
12345678 173
ON
12345678 174
ON
12345678 175
ON
12345678 176
ON
12345678 177
ON
12345678 178
ON
12345678 179
ON
12345678 180
ON
12345678 181
ON
12345678 182
ON
12345678 183
ON
12345678 184
ON
12345678 185
ON
12345678 186
ON
12345678 187
ON
12345678 188
ON
12345678 189
ON
12345678 190
ON
12345678 191
Switch Address Switch AddressSwitch AddressSwitch Address Switch AddressSwitch Address
ON
12345678
Switch Address
193
ON
12345678 194
ON
12345678 195
ON
12345678 196
ON
12345678 197
ON
12345678 198
ON
12345678 199
ON
12345678 200
ON
12345678 201
ON
12345678 202
ON
12345678 203
ON
12345678 204
ON
12345678
Switch Address
205
ON
12345678 206
ON
12345678 207
ON
12345678 208
ON
12345678 209
ON
12345678 210
ON
12345678 211
ON
12345678 212
ON
12345678 213
ON
12345678 214
ON
12345678 215
ON
12345678 216
ON
12345678 217
ON
12345678 218
ON
12345678 219
ON
12345678 220
ON
12345678 221
ON
12345678 222
ON
12345678 223
ON
12345678
Switch Address
225
ON
12345678 226
ON
12345678 227
ON
12345678 228
ON
12345678 229
ON
12345678 230
ON
12345678 231
ON
12345678 232
ON
12345678 233
ON
12345678 234
ON
12345678 235
ON
12345678 236
ON
12345678 237
ON
12345678 238
ON
12345678 239
ON
12345678 240
ON
12345678 241
ON
12345678 242
ON
12345678 243
ON
12345678 244
ON
12345678 245
ON
12345678 246
ON
12345678 247
ON
12345678 248
ON
12345678 249
ON
12345678 250
ON
12345678 251
ON
12345678 252
ON
12345678 253
ON
12345678 254
ON
12345678 255
Switch Address
ON
12345678 160 ON 12345678 192 ON 12345678 224
ON
12345678 128

19
2.3.2. Communication Protocol Setting
The 1st, 2nd and 3rd bits are used to set communication protocol. The factory default
protocol is EVF.
Notice: Please make sure the power is off before setting, and restart the
EPTZ2700/EPTZ2700I to enable a new value after changing.
Set all of protocol switches to ON; the speed dome EPTZ2700/EPTZ2700I will
enter a self-test mode.
2.3.3. Transmission Speed Setting (Baud Rate Setting)
The 4th and 5th bits on the PCB board are used to set the Baud Rate. The default baud rate
setting is 9600.
ON
12345678
SW2
Protocol
Baud Rate
Terminal
Resistance
ON
12345678
9600 BPS 4800 BPS 2400 BPS
ON
12345678
ON
12345678
1200 BPS
ON
12345678
Notice: Please make sure the power is off before setting, and restart the
EPTZ2700/EPTZ2700I to enable a new value after changing.

20
2.4. Bracket and Speed Dome Installation
2.4.1. Installation Requirements
1. Installation should be handled by a qualified service agent and should comply with
all local regulations. Service personnel should expect potential problems such as
surface strength, surface material, falling objects, outer breaches, building vibration
or other similar conditions.
2. Check for all necessary materials, and ensure if the selected installation location is
suitable for the EPTZ2700/EPTZ2700I.
Bracket base
Bracket
Top housing
Main body
ETPZ2700 overview
