EverFocus EZ180 User manual

H
Hi ig gh h R Re es so ol lu ut ti io on n B B/ /W W W We ea at th he er rp pr ro oo of f C Ca am me er ra a
E
E
Z
Z
1
1
8
8
0
0
User’s Manual
and
Operation Instructions

Notice
This manual is presented to the users of EZ180 by EverFocus Electronics
Corp. With years of engineering researches, EverFocus has spared no effort
to provide the high quality products to the worldwide users. For the policy
of continual product improvement, EverFocus reserves the right to make
changes to the product specifications and documentation without notice.
All the components of the products, including accessories, components, and
outlook, are based on the agreements of each deals to satisfy all kinds of
users. Meanwhile, please be advised that every step of operation must
follow the instruction of this manual to keep EZ180 working under the best
condition. Please notice that EverFocus will not be charged any claims or
renewing cases resulted from inappropriate operation.

Table of Contents
Safety Warning …………………………………………1
Introduction……………………………………………..2
Specification…………………………………………….3
Major Parts Names…..…………………………….…..4
Installation Instructions………………………….….…5
Settings………………………………………………….7

1. Handle the camera with care.
Be careful when handling the camera, do not drop it or subject
it to strong shock or vibration to prevent any damages to it. Do
not disassemble it or place it on an unstable base.
2. Do not install the camera near electric or magnetic fields.
Installed the camera away from TV, radio transmitter, magnet,
electric motor, transformer, audio speakers because the
magnetic fields generate from above devices will distort the
video image.
3. Do not install the camera in the high temperature environment.
Installed the camera away from stoves, or other heat
generating devices as the high temperature could cause
deformation, discoloration or other damages of the camera.
Install the camera at where the temperature range will stay
between -35℃~+50℃for 12VDC,-45℃~+50℃for 24VAC.
4. Never face the camera toward the sun.
Never aim the camera at the sun or other extremely bright objects
whether it is in use or not.
5. Cleaning
Do not touch the surface of CCD sensor by hand directly. Use
a soft cloth to remove the dirt from the camera body. Use lens
tissue or a cotton tipped applicator and ethanol to clean the
CCD sensor and the camera lens. When the camera is not in
use, put the cover cap on the lens mount.
Safet
y
Warnin
g
1

The EZ180 series offers great performance in 1/3”image format B/W
CCD camera. The EZ180 is ideal for outdoor applications such as
parking lots, gas stations or shopping malls. The sophisticated circuit
design provides a heater that turns on at 10℃for cold weather. The
EZ180 will provide protection against the elements and provide an
excellent quality picture.
Main Features :
High Resolution: 560 TV Lines.
Two types of built-in vari-focal lens for versatile applications.
Designed with sturdy aluminum shell specifically for outdoor
surveillance.
Removable sun shield.
The heater allows the camera to be used in extremely low
temperature to -46°C.
Introduction
2

EZ180
Pickup Device 1/3” SONY B/W CCD
Picture Elements 768 x 494 (EIA)
752 x 582 (CCIR)
Horizontal Resolution 560 TV lines
Video Output BNC 1.0Vp-p, 75 ohm
Lens Focal Length Vari-focal lens f=3.5~8mm
Vari-focallensf=9~22mm
*Lens models and availability vary in different regions
Sensitivity 0.1 lux/F=1.6
Gamma Correction 0.45
S/N Ratio Over 48dB (AGC off)
Back Light Comp. On/Off switch
Auto Gain Control On/Off switch
Flickerless On/Off switch
Line Lock On/Off switch
Sync. Mode Internal Sync.
Weatherproof IP66
Power Source 12VDC/24VAC
Power Consumption 12VDC: 7.5W max. (Heater ON)
24VAC: 10W max. (Heater ON)
Dimensions With sun shield : 90.7mm(W) x 70mm(H) x 172mm(L);3.57"(W) x
2.8"(H) x 6.8"(L)Without sun shield: 57mm(O.D) x 132mm(L);
2.2"(O.D) x5.2"(L)
Weight 0.71 kg ; 1.6 lbs
0.91 kg ; 2 lbs (with bracket)
Operating Temperature -46℃~ 50℃; -50.8°F~122°F (20%~80% Humidity)
Heater Operating Temperature 10 °C ; 50°F
Certifications FCC/CE
S
p
ecification
3

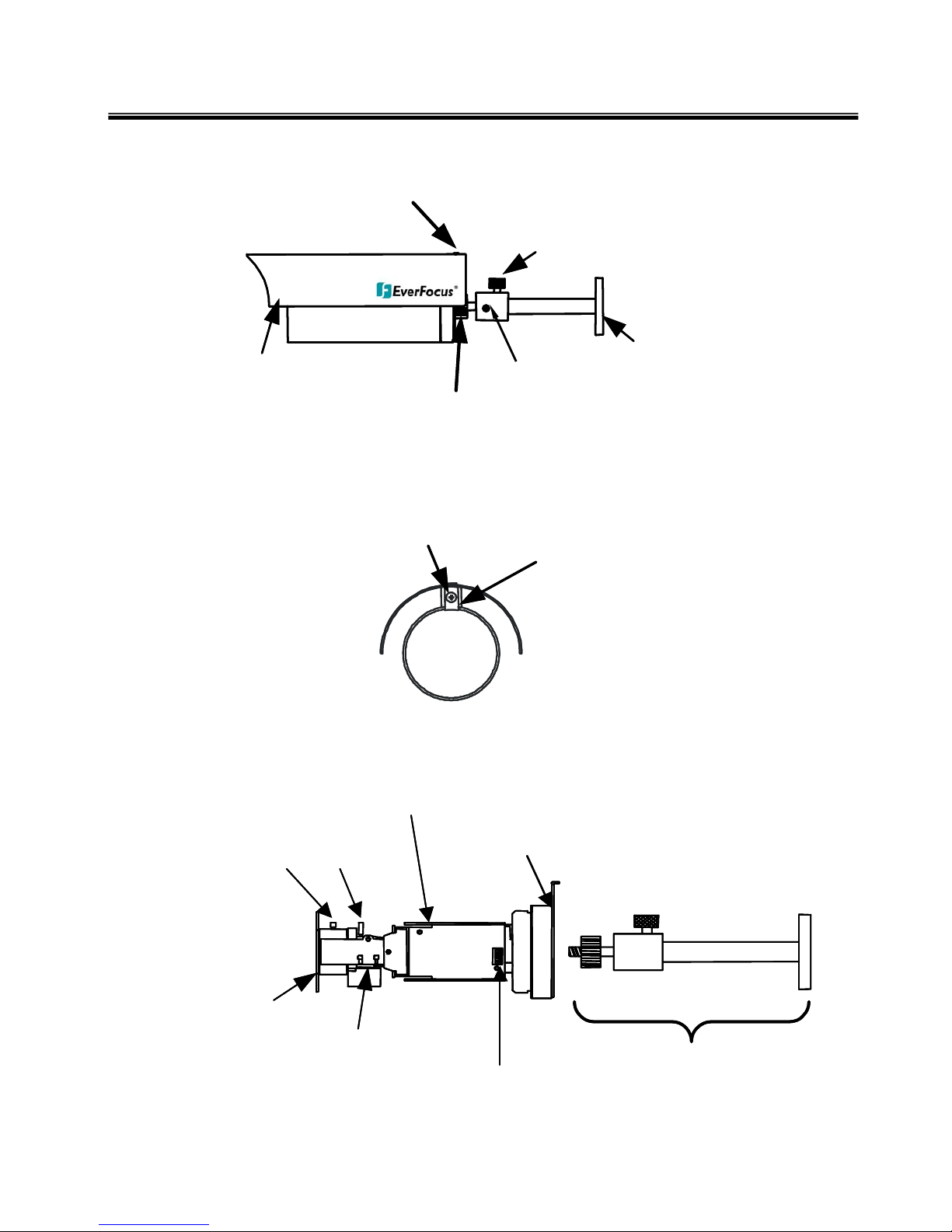

Mounting
Base
Swivel
Screw
Assembly
Screw
Sun Shield
Cover
Back Fixing Plate
Mounting
Base
Swivel
Screw
Assembly
Screw
Sun Shield
Cover
Back Fixing Plate
Major Parts Names and Their Functions
Fixing Screw Front
Fixing Plate
Fixing Screw Front
Fixing Plate
Mounting Bracket
O-ring Seal
Heater
Lens
Focus Zoom
IRIS ALC/Level Adjustment
Control Switch Mounting Bracket
O-ring Seal
Heater
Lens
Focus Zoom
IRIS ALC/Level Adjustment
Control Switch
4
Set-Screw

1. Using the supplied screws, mount the bracket base on the desired
location.
2. Connect the BNC connector of the camera to a monitor or other
video device through a 75 ohm type coaxial cable with BNC female
connector at cable extension.
3. Connect the 24VAC or 12VDC regulated power source of the camera
(power jack) to the power-in jack with 2mm plug. For 12VDC
power source, please make sure the power plug is center+ outer-
for heater normal operation.
4. Our factory settings is for you to get the best image within about 3~5
meters (for veri-focal lens f=3.5~8mm) or 5~10 meters (for
veri-focal lens f=9~22mm) . If it is out of focus, or any other
adjustment is required, follow the procedures below.
a. Remove the fixing screw in the front, which hold the sun shield
cover. Remove the sun shield cover.
b. Twist open and carefully remove the housing cover.
(Please pay attention to prevent damage to the “O”-Ring seal.)
c. Loosen the focal lens and focus locking screws.
d. Adjust the lens to bring the subject into focus.
(Caution: Heater elements could be hot! When camera power is
on, use caution when adjusting the camera.)
e. Retighten the screws.
f. Please refer to the Settings section for the details of the other
adjustments. Adjust accordingly if necessary.
Installation Instructions
5

g. When all the adjustments and settings are completed, overlaying
the cover gently. Be careful not to damage to the “O”-Ring and
camera components.
h. To reassemble the sun shield, match the hole on the sun shield to
the back fixing plate of camera, Fix the screw on the front fixing
plate. Make sure the wider side of the fixing plate holds the edge
of the camera well.
5. Attach the camera onto the mounting bracket.
6. Loosen the swivel screw and point the camera to the desired
direction.
7. Tighten the swivel screw. To strengthen the fixing power of the
swivel screw, tighten the set-screw with the set-screw wrench.
(supplied)
Notes:
(A) Make wiring connections only after it has been determined that
power has been disconnected.
(B) There is a desiccant pack attached to the housing base under the
camera which is designed to absorb any moisture trapped inside
the housing during adjustment. To avoid excessive moisture
build up, it is recommended that the camera not be installed in
rainy or excessively damp conditions. It is also advisable to
limit the number of times the housing cover is removed. The
desiccant pack can be replaced if condensation develops inside
the housing.
6

The camera is set up at factory and normally requires no adjustments.
Sometimes, however, adjustments may be necessary. Please refer to the
following description for the function details.
The IRIS ALC and IRIS Level adjustments are located on the side
circuit board, use a screwdriver to adjust if it’s necessary.
IRIS Level Adjustment
To adjust brightness level –
zTurn the IRIS Level Adjustment VR counterclockwise to get
darker picture.
zTurn the IRIS level adjustment VR clockwise to get brighter
picture.
IRIS ALC Adjustment
To select light metering method –
zTurn the IRIS ALC Adjustment VR counterclockwise for
Average Metering.
zTurn the IRIS ALC Adjustment VR clockwise for Peak
Metering.
Settings
7
IRIS ALC
Adjustment
IRIS Level
Adjustment
Control Switches

The 4 control switches are also located on the side circuit board, the
switches in orders are for Flickerless, Back Light Comp, Auto Gain
Control and Line Lock.
FL(Flickerless) Normal/On
When picture flicker fiercely, turn FL on, then the camera will stabilize
the speed of electronic shutter at 1/100(NTSC) or 1/120(PAL)
automatically, and reduce the flicker immediately. The default setting is
Normal.
BLC (Back Light Compensation) Normal/On
When BLC is turned on, the AGC, ES and IRIS operating point is
determined by averaging over the center area instead of entire
field-of-view, so that a dimly-lit foreground object at center area can be
clearly distinguished from brightly-lit backgrounds.
BLC should not be used unless it is needed to compensate for back-lit.
The default setting is Normal.
FL Normal On
BLC Normal On
On
On
AGC Off
LL Off
On
On
On
On
Control Switches
8

AGC (Automatic Gain Control) Off/On
AGC ON: The sensitivity increases automatically when light is low.
AGC OFF: A-low-noise picture is obtained under a low light condition.
The default setting is On.
LL (Line-Lock) Off/On
To select the sync mode between Internal Sync.(LL off) and Line-Lock
(LL on).
Set the line-lock off, the camera will synchronize to the internal time
base. Set the line-lock on, the camera’s vertical synchronization can be
driven by the AC signal in the power lines.
The default setting is Off
Note: Line-Lock sync mode operation is possible only when used with
an AC power source; it’s not possible with a DC power source.
9

Head Office:
12F, No.79 Sec. 1 Shin-Tai Wu Road,
Hsi-Chih, Taipei, Taiwan
TEL: [phone]
FAX: [phone]
www.everfocus.com.tw
USA L.A. Office:
1801 Highland Ave. UnitA
Duarte, CA 91010, U.S.A.
TEL: [phone]
FAX: [phone]
www.everfocus.com
USA N.Y. Office:
415 Oser Avenue Unit S
Hauppauge, NY 11788
TEL: [phone]
FAX: [phone]
www.everfocus.com
Europe Office:
Albert-Einstein-Strasse 1
D-46446 Emmerich, Germany
TEL: [phone]
FAX: [phone]
www.everfocus.de
China Office:
Room B-05D-1, KESHI PLAZA, Shangdi
Information Industry Base, Haidian District,
Beijing, China 100085
TEL: [phone]/38/39
FAX: [phone]
www.everfocus.com.cn
Japan Office:
1809 WBG MARIBU East 18F,
2-6 Nakase.Mihama-ku.
Chiba city 261-7118, Japan
TEL: [phone]
FAX: [phone]
www.everfocus.co.jp
Y
our EverFocus product is desi
g
ned and
manufactured with high quality materials and
components which can be recycled and
reused.
This symbol means that electrical and
electronic equipment, at their end-of-life,
should be disposed of separately from your
household waste.
Please, dispose of this equipment at your
local community waste collection/recycling
centre.
In the European Union there are separate
collection systems for used electrical and
electronic product.
Please, help us to conserve the environment
we live in!
Ihr EverFocus Produkt wurde entwickelt und
hergestellt mit qualitativ hochwertigen
Materialien und Komponenten, die recycelt
und wieder verwendet werden können.
Dieses Symbol bedeutet, dass elektrische und
elektronische Geräte am Ende ihrer
Nutzungsdauer vom Hausmüll getrennt
entsorgt werden sollen.
Bitte entsorgen Sie dieses Gerät bei Ihrer
örtlichen kommunalen Sammelstelle oder im
P/N: MEZ1G0040B VerC
